Micky1979 Posted October 27, 2015 Share Posted October 27, 2015 it's called source code. Link to comment Share on other sites More sharing options...
Slice Posted October 27, 2015 Share Posted October 27, 2015 I was wondering how graphic device detection/injection is done in Clover. For example, I have a Firepro W7100 8GB PCI-E card that is detected as a Radeon 4xxx (don't remember exactly) by clover based on the device/vendor ID. It didn't work at all, but I patched AMDRadeonX4000.kext to add my deviceID and modified a framebuffer for the port information described in another guide. I add the FakeID (although I don't have to, since it is correctly detecting the device ID) and also specify the modded frambuffer in the Graphics settings in Clover. By doing this, I can get into the desktop and have at least one display working, but with flickering and poor performance. However, Clover still incorrectly detects my video card no matter what settings I put, and therefore Mac 10.11 also gets the wrong information (shown as Radeon 7MB). Where is the database that Clover uses to populate the card information based on the device ID? How is it done, and how can I change it so that it picks up the information for my card? I'm determined to make this card work fully in OS X, and I'm getting there... device ID is 692b, vendor 1002 Just let me know. Committed to 3318. Link to comment Share on other sites More sharing options...
chiefsalami Posted October 27, 2015 Share Posted October 27, 2015 I'll take a look ASAP. Thanks for the quick support! Link to comment Share on other sites More sharing options...
sebinouse Posted October 28, 2015 Share Posted October 28, 2015 I just performed the 10.11.2 beta update and I noticed one line in log during caches rebuilt : kxld[com.apple.driver.pmtelemetry]: com_apple_driver_pm_pch_reporter::com_apple_driver_pm_pch_reporter() Is it new or did I miss it previously ? Link to comment Share on other sites More sharing options...
smolderas Posted October 28, 2015 Share Posted October 28, 2015 I just performed the 10.11.2 beta update and I noticed one line in log during caches rebuilt : kxld[com.apple.driver.pmtelemetry]: com_apple_driver_pm_pch_reporter::com_apple_driver_pm_pch_reporter() Is it new or did I miss it previously ? It is not. They always collected data for third party kext usage... Link to comment Share on other sites More sharing options...
sebinouse Posted October 28, 2015 Share Posted October 28, 2015 It is not. They always collected data for third party kext usage... It's a genuine Apple kext ... unmodified ... It was there previously and has been modified in 10.11.2 beta 1 For information I need KernelPM & Asus patches as my MSR 0xE2 is locked. Link to comment Share on other sites More sharing options...

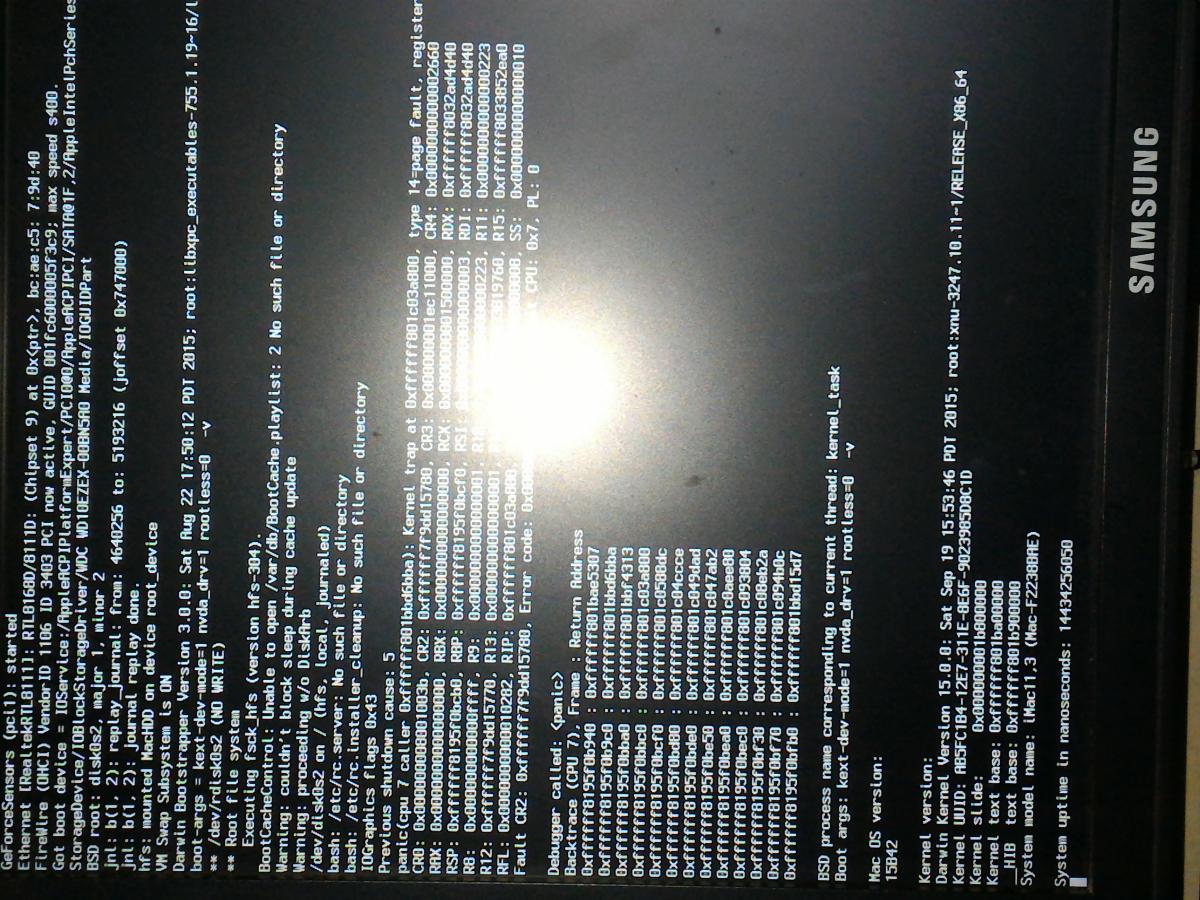

Faradis Posted October 30, 2015 Share Posted October 30, 2015 Any one facing this??? clover.tiff Link to comment Share on other sites More sharing options...
zxv Posted October 30, 2015 Share Posted October 30, 2015 It's a genuine Apple kext ... unmodified ... It was there previously and has been modified in 10.11.2 beta 1 For information I need KernelPM & Asus patches as my MSR 0xE2 is locked. I get some Console spam about that kext in this 10.11.2 build: 10/29/15 22:02:00.000 kernel[0]: kxld[com.apple.driver.pmtelemetry]: The following symbols are unresolved for this kext: 10/29/15 22:02:00.000 kernel[0]: kxld[com.apple.driver.pmtelemetry]: __ZN32com_apple_driver_pm_pch_reporterC1Ev 10/29/15 22:02:00.000 kernel[0]: Can't load kext com.apple.driver.pmtelemetry - link failed. 10/29/15 22:02:00.000 kernel[0]: Failed to load executable for kext com.apple.driver.pmtelemetry. 10/29/15 22:02:00.000 kernel[0]: Kext com.apple.driver.pmtelemetry failed to load (0xdc008016). 10/29/15 22:02:00.000 kernel[0]: Failed to load kext com.apple.driver.pmtelemetry (error 0xdc008016). 10/29/15 22:02:00.532 com.apple.kextd[49]: Failed to load /System/Library/Extensions/pmtelemetry.kext - (libkern/kext) link error. 10/29/15 22:02:00.533 com.apple.kextd[49]: Load com.apple.driver.pmtelemetry failed; removing personalities from kernel. Though MSR 0xE2 is unlocked for me and no need for KernelPM patch. Link to comment Share on other sites More sharing options...
T a D Posted October 30, 2015 Share Posted October 30, 2015 I have a strange problem with Clover that only seems to appear after I have updated the Nvidia web drivers. Clover fails to load any kexts in EFI/CLOVER/kexts/ Specifically FakeSMC.kext isn't loaded and then the system hangs after "Waiting for DSMOS...". It will boot in single user, command prompt, but once you run fsck, remount / and then exit it hangs at the same point. The issue seems to be resolved when I boot into Windows and then back into OS X (booting into Linux doesn't fix it). I don't even have to do anything in Windows, just boot to login and then re-boot. I'm not using any DSDT and have Clover drop CpuPm from SSDT. SMBIOS is iMac14,2 It has happened since r31xx and happened most recently with r3292. Any pointers on how to get more debugging information if this happens again? Is it possible to get bdmesg information from a single user, command prompt boot? Link to comment Share on other sites More sharing options...
TheRacerMaster Posted October 30, 2015 Share Posted October 30, 2015 What does your folder structure look like? Clover only will load kexts from EFI/CLOVER/kexts/Other & EFI/CLOVER/kexts/<OS version>, not EFI/CLOVER/kexts. 1 Link to comment Share on other sites More sharing options...
T a D Posted October 31, 2015 Share Posted October 31, 2015 What does your folder structure look like? Clover only will load kexts from EFI/CLOVER/kexts/Other & EFI/CLOVER/kexts/<OS version>, not EFI/CLOVER/kexts. <deleted irrelevant stuff> So, it turns out that somewhere along the line I managed to install Clover to the hard drive El Capitan was installed on (HD#2) (in /EFI/CLOVER on the root volume). This installation didn't have a config.plist or any kexts. It seems that occasionally when booting from the primary hard drive (HD#1) Clover would start fine, use config.plist from (HD#1)/EFI/CLOVER but when it came to boot El Cap from HD#2 it was looking in (HD#2)/EFI/CLOVER/kexts/... and didn't find any. That was the cause of my seemingly random failure to inject any kexts. I'm not sure why it worked sometimes and other times it didn't. I've now checked all hard drives for EFI folders and partitions and made sure that the only one being used is from HD#1. The system now boots OS X and injects kexts every time. Sorry for wasting everyone's time. Link to comment Share on other sites More sharing options...
Mork vom Ork Posted November 1, 2015 Share Posted November 1, 2015 I get some Console spam about that kext in this 10.11.2 build: 10/29/15 22:02:00.000 kernel[0]: kxld[com.apple.driver.pmtelemetry]: The following symbols are unresolved for this kext: 10/29/15 22:02:00.000 kernel[0]: kxld[com.apple.driver.pmtelemetry]: __ZN32com_apple_driver_pm_pch_reporterC1Ev 10/29/15 22:02:00.000 kernel[0]: Can't load kext com.apple.driver.pmtelemetry - link failed. 10/29/15 22:02:00.000 kernel[0]: Failed to load executable for kext com.apple.driver.pmtelemetry. 10/29/15 22:02:00.000 kernel[0]: Kext com.apple.driver.pmtelemetry failed to load (0xdc008016). 10/29/15 22:02:00.000 kernel[0]: Failed to load kext com.apple.driver.pmtelemetry (error 0xdc008016). 10/29/15 22:02:00.532 com.apple.kextd[49]: Failed to load /System/Library/Extensions/pmtelemetry.kext - (libkern/kext) link error. 10/29/15 22:02:00.533 com.apple.kextd[49]: Load com.apple.driver.pmtelemetry failed; removing personalities from kernel. Got exactly the same message, when booting a fresh installed 10.11.2 beta El Capitan. System seems to be working, but never had this message b4. Message comes right after loading my graphics-injection of AMD Radeon R9 380 - using CLOVER 3320 What for is this kext "pmtelemetry.kext" good for? Link to comment Share on other sites More sharing options...
Extreme™ Posted November 1, 2015 Share Posted November 1, 2015 I have clover 3270 with el cap 10.11.1. Try today clover last version v3320 but removed immediately: boot time with 3320 has increased compared to v3270. Bad news for me. Link to comment Share on other sites More sharing options...
scott_donald Posted November 1, 2015 Share Posted November 1, 2015 one of my hacks wont play flash at all... certainly installed and passes the animation test on adobe... Youtube, Iplayer, Instagram video wont work... are there any settings on Clover Config that would directly affect flash video playback... only thing i can think of... Its a GT 620 with graphic injected using Clover... ver 3270 and clean install of 10.11.1.... Link to comment Share on other sites More sharing options...
arsradu Posted November 1, 2015 Share Posted November 1, 2015 one of my hacks wont play flash at all... certainly installed and passes the animation test on adobe... Youtube, Iplayer, Instagram video wont work... are there any settings on Clover Config that would directly affect flash video playback... only thing i can think of... Its a GT 620 with graphic injected using Clover... ver 3270 and clean install of 10.11.1.... Not sure how much (if any) is related to Clover. But still, which browser are you having these issues with? And what are the issues? Also, I guess you already know that but, Adobe Flash Player has two versions (NPAPI & PPAPI). Make sure you got the one you need for the browser you use. Also, if you're on a Beta version of OS X, that might affect video playback, as well. I don't use Flash, at all. I don't really need it. HTML5 gets the job done just fine for me. Also, if you're using Chrome, I think you don't need Flash anyway since that one comes with some sort of Flash Player built in (if I remember correctly). Link to comment Share on other sites More sharing options...
smolderas Posted November 1, 2015 Share Posted November 1, 2015 one of my hacks wont play flash at all... certainly installed and passes the animation test on adobe... Youtube, Iplayer, Instagram video wont work... are there any settings on Clover Config that would directly affect flash video playback... only thing i can think of... Its a GT 620 with graphic injected using Clover... ver 3270 and clean install of 10.11.1.... It is most likely, that your browser blocks the aged flash version, because of security reasons... 1 Link to comment Share on other sites More sharing options...
scott_donald Posted November 1, 2015 Share Posted November 1, 2015 Not sure how much (if any) is related to Clover. But still, which browser are you having these issues with? And what are the issues? Also, I guess you already know that but, Adobe Flash Player has two versions (NPAPI & PPAPI). Make sure you got the one you need for the browser you use. Also, if you're on a Beta version of OS X, that might affect video playback, as well. I don't use Flash, at all. I don't really need it. HTML5 gets the job done just fine for me. Also, if you're using Chrome, I think you don't need Flash anyway since that one comes with some sort of Flash Player built in (if I remember correctly). all three browsers... so why doesnt html 5 work for me on the z77 build??? edit - it does on my macbook air.... just removed flash and i can still watch youtube and instagram... It is most likely, that your browser blocks the aged flash version, because of security reasons... this is my thread on here... http://www.insanelymac.com/forum/topic/309091-flash-player-not-working-on-el-capitan/ Link to comment Share on other sites More sharing options...
smolderas Posted November 1, 2015 Share Posted November 1, 2015 all three browsers... so why doesnt html 5 work for me??? this is my thread on here... http://www.insanelymac.com/forum/topic/309091-flash-player-not-working-on-el-capitan/ Please uninstall flash player. Use html5 and help/force web builders to migrate to more sophisticated (and battery friendly) HTML5... 1 Link to comment Share on other sites More sharing options...
scott_donald Posted November 1, 2015 Share Posted November 1, 2015 Please uninstall flash player. Use html5 and help/force web builders to migrate to more sophisticated (and battery friendly) HTML5... so on my air that works... on the z77 i still dont have working video with or without flash installed on it... Link to comment Share on other sites More sharing options...
smolderas Posted November 1, 2015 Share Posted November 1, 2015 so on my air that works... on the z77 i still dont have working video with or without flash installed on it... Are you using some kind of HDCP content? That's the only think, that would be problematic with clover... Link to comment Share on other sites More sharing options...
scott_donald Posted November 1, 2015 Share Posted November 1, 2015 Are you using some kind of HDCP content? That's the only think, that would be problematic with clover... no just youtube, BBC iplayer and instagram... Link to comment Share on other sites More sharing options...
Faradis Posted November 2, 2015 Share Posted November 2, 2015 Any one pls Help me Link to comment Share on other sites More sharing options...
Slice Posted November 2, 2015 Share Posted November 2, 2015 Faradis It may be NVidia fault. Link to comment Share on other sites More sharing options...
chiefsalami Posted November 2, 2015 Share Posted November 2, 2015 (edited) Just let me know. Committed to 3318. Took me a while to get Clover compiled, but eventually got it and installed. Clover now correctly recognizes the FirePro on bootup. El Cap just refuses to work (black screen) after adding my ID to the correct kexts... installed Yosemite and it works great. Minor flicker when first loading the desktop, but then no issues, really. However, About This Mac and System Report show the graphics card as an "AMD R9 xxx". What is the source of this info? I'd rather change a kext somewhere as opposed to editing OS screens, as described here: Thanks again for the great support! Edited November 2, 2015 by Micky1979 link to tonymac removed Link to comment Share on other sites More sharing options...
Micky1979 Posted November 2, 2015 Share Posted November 2, 2015 @chiefsalami, please read our Rule about tonymac. Anyway editing the SystemProfiler.plist as was described at tonymac is a poor solution, and is only cosmetics.. Link to comment Share on other sites More sharing options...
