Clover General discussion

[artur_pt]

hello



i run earlier scripts from slice..



i will see the logs



thanks

[lollo78]

Hi, I have two HDD: one with Yosemite, and the other with Windows 7.

I just migrated from Chimera to Clover installing the Legacy version into the Yosemite HDD (my motherboard Gigabyte P55A-UD4) and all works fine.

But I have to set Windows 7 like the default OS into the boot menu in Clover. How to do that? I'm going to be crazy...

Thanks a lot

[chris1111]

Hi Slice !

Do you please confirm yes or not

I remove arg kext-dev-mode=1 on my config.plist and everything works perfect

Not need annymore this args ?



I see this on my boot log







0:982  0:000  theme hmf defined in NVRAM found and theme.plist parsed

0:982  0:000  OS main and drive as badge

0:982  0:000  Font EFI\CLOVER\font\(null) is not loaded, using default

0:982  0:000  Choosing theme hmf

0:982  0:000  found boot-args in NVRAM:kext-dev-mode=1, size=16

0:982  0:000  ...found arg:kext-dev-mode=1

0:982  0:000  ...adding arg:kext-dev-mode=1



What about that ??

[Slice]



Hi Slice !

Do you please confirm yes or not

I remove arg kext-dev-mode=1 on my config.plist and everything works perfect

Not need annymore this args ?



I see this on my boot log







0:982  0:000  theme hmf defined in NVRAM found and theme.plist parsed

0:982  0:000  OS main and drive as badge

0:982  0:000  Font EFI\CLOVER\font\(null) is not loaded, using default

0:982  0:000  Choosing theme hmf

0:982  0:000  found boot-args in NVRAM:kext-dev-mode=1, size=16

0:982  0:000  ...found arg:kext-dev-mode=1

0:982  0:000  ...adding arg:kext-dev-mode=1



What about that ??



The flag "kext-dev-mode=1" is cached in nvram that has priority on config.plist.

You may clean nvram but I think you don't need to do this. All is right.

[chris1111]

The flag "kext-dev-mode=1" is cached in nvram that has priority on config.plist.

You may clean nvram but I think you don't need to do this. All is right.

Thanks !

[oSxFr33k]

Major Dilemma any suggestions are welcome!!  I have a couple older Quad Core 2's for example QX6850 3.0GHZ on two different motherboards. One is a Gigabyte P45 chipset and the other is an Asus Maximus Formula X38 chipset, both LGA775 sockets.  If I use iMac10,1 for example I have good CPU PowerManagement.  If I want to use a more modern day Graphics card like GT 610, 640 or GTX 760,770, I have to use a SMBIOS of imac13 or 14 or I will get no signal to monitor.  If I choose imac13,2 for example I get to desktop (acceleration), with the modern day graphics cards.  If I use iMac13,2 of course my CPU will be stuck at 3Ghz, no CPU power Management.



The only way for now to get CPU Power Management is to use a System Definition that was meant for that CPU class.  The only resolution right now for GPU, would be to use a graphics card older than GT 400, 500 or 600 series assuming that the 200 and 300 series will be the same issue or not?  Right now I have the GS 8400, GT 9500 and GTX 9800 no issues with SMBIOS iMac10,1, gets to desktop with acceleration and proper CPU Power managmeent.



I am wondering if the GT240 will have the same issue as the 400, 500,600 and 700 series or not and what else can I do in Clover to have FakeID or something else make the CPU Power Management work under imac13,2, so I can use the later series graphics cards?



Thanks

[Slice]

Major Dilemma any suggestions are welcome!!  I have a couple older Quad Core 2's for example QX6850 3.0GHZ on two different motherboards. One is a Gigabyte P45 chipset and the other is an Asus Maximus Formula X38 chipset, both LGA775 sockets.  If I use iMac10,1 for example I have good CPU PowerManagement.  If I want to use a more modern day Graphics card like GT 610, 640 or GTX 760,770, I have to use a SMBIOS of imac13 or 14 or I will get no signal to monitor.  If I choose imac13,2 for example I get to desktop (acceleration), with the modern day graphics cards.  If I use iMac13,2 of course my CPU will be stuck at 3Ghz, no CPU power Management.



The only way for now to get CPU Power Management is to use a System Definition that was meant for that CPU class.  The only resolution right now for GPU, would be to use a graphics card older than GT 400, 500 or 600 series assuming that the 200 and 300 series will be the same issue or not?  Right now I have the GS 8400, GT 9500 and GTX 9800 no issues with SMBIOS iMac10,1, gets to desktop with acceleration and proper CPU Power managmeent.



I am wondering if the GT240 will have the same issue as the 400, 500,600 and 700 series or not and what else can I do in Clover to have FakeID or something else make the CPU Power Management work under imac13,2, so I can use the later series graphics cards?



Thanks

May be it will be better to patch the kext AppleGPUPM? Why not?

[oSxFr33k]

@Slice,  I actually tried that using the AGPMLegacy kext and still have no signal to monitor?  Would just editing the native AGPM itself change anything?

[maleorderbride]

Have you tried MacPro3,1? Doesn't that match with that family of CPU?

[oldnapalm]

Maybe no signal to monitor is because Board-ID not present in AppleGraphicsDevicePolicy like it happens here?

[toleda]

Help please:

Black screen, white letters:

Welcome to Clover 3175:3182

. . . . . . . . scan entries . . .



No UI, no keyboard, stuck.

[bronxteck]

tried latest trunk? pkg is too large to attach here.

[alexanderq]

Help please:

Black screen, white letters:

Welcome to Clover 3175:3182

. . . . . . . . scan entries . . .



No UI, no keyboard, stuck.

Try this version (3188) and or attach boot.log

CLOVERX64.efi.zip

[anonymousnbs]

Try this version (3188) and or attach boot.log

CLOVERX64.efi.zip

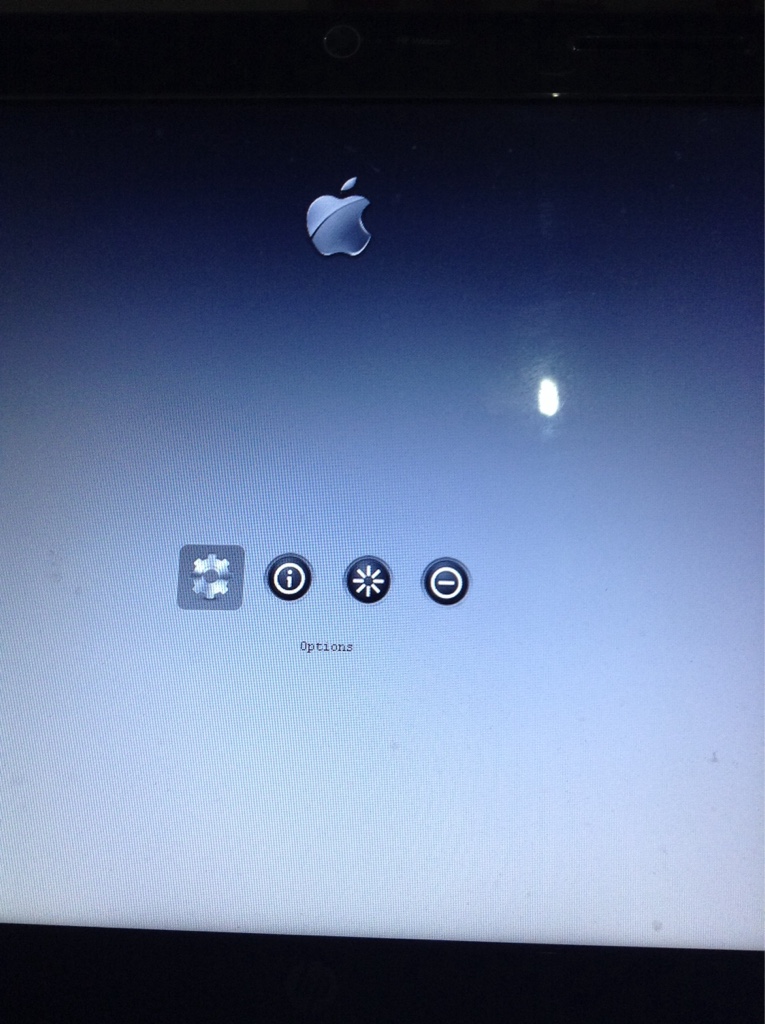

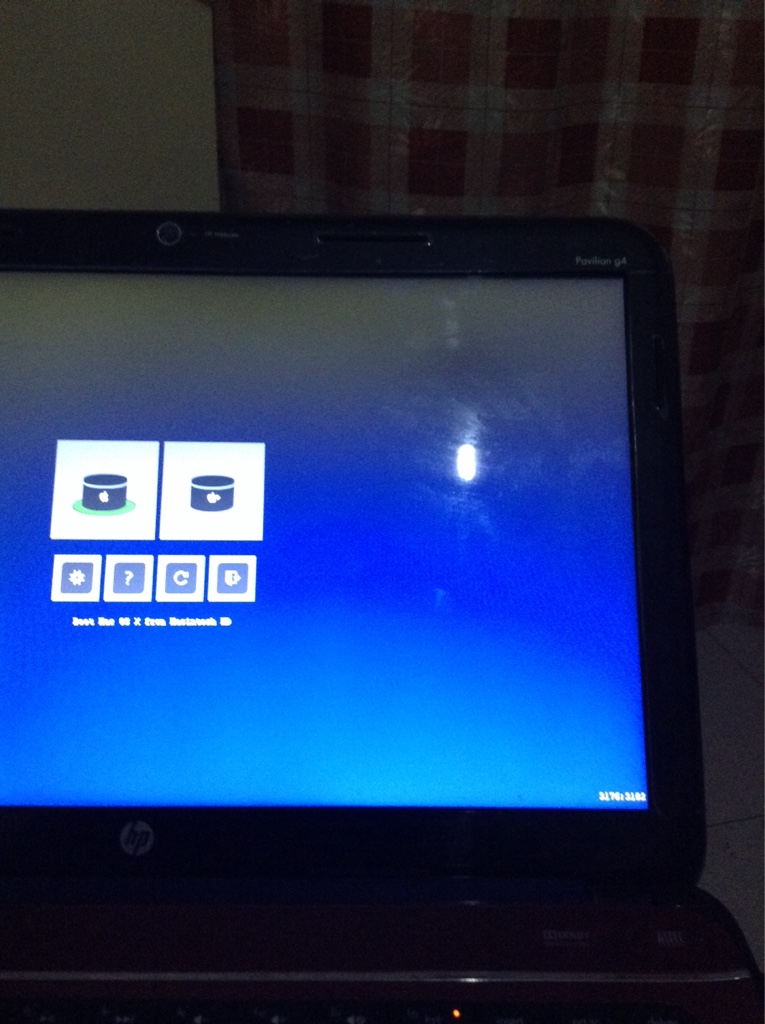

sr i don't have boot with file 3188 for u ... and i don't have boot.log

[toleda]

Try this version (3188) and or attach boot.log

Thanks, 3176 log attached.

0:100  0:100  MemLog inited, TSC freq: 3200003569
0:100  0:000
0:100  0:000  Now is 5.3.2015,  4:17:33 (GMT+2047)
0:100  0:000  Starting Clover rev 3176:3182 on American Megatrends EFI
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,EA40D4E9-1060-4D21-90F2-17E821D45D7F,0x28,0x64000) @BA388C18
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  Total Memory Slots Count = 2
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1333MHz
0:100  0:000  SmbiosTable.Type17->Size = 4096MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  Type 17 Index = 1
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  Boot status=0
0:100  0:000  Clover revision: 3176:3182  running on Z97N-WIFI
0:100  0:000  ... with board Z97N-WIFI
0:100  0:000  CPU Vendor = 756E6547 Model=306C3
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i5-4690S CPU @ 3.20GHz
0:100  0:000  MSR 0xE2 before patch 1E000404
0:100  0:000  MSR 0xE4              00021814
0:100  0:000  MSR 0xCE              00080838_F3012000
0:100  0:000  non-usable FLEX_RATIO = 10000
0:100  0:000  corrected FLEX_RATIO = 0
0:100  0:000  FSBFrequency=100MHz DMIvalue=100000kHz
0:100  0:000  Corrected FSBFrequency=100MHz
0:100  0:000  Vendor/Model/Stepping: 0x756E6547/0x3C/0x3
0:100  0:000  Family/ExtFamily: 0x6/0x0
0:100  0:000  MaxDiv/MinDiv: 32.0/8
0:100  0:000  Turbo: 35/36/38/39
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 4
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3200 MHz
0:100  0:000  TSC: 3200 MHz
0:100  0:000  PIS: 400 MHz
0:100  0:000  PCI (00|00:00.00) : 8086 0C00 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 0C01 class=060400
0:100  0:000  PCI (00|01:00.00) : 10DE 0FC1 class=030000
0:100  0:000  Found NVidia model=EVGA GeForce GT 640
0:100  0:000  PCI (00|01:00.01) : 10DE 0E1B class=040300
0:100  0:000  PCI (00|00:02.00) : 8086 0412 class=030000
0:100  0:000  Found GFX model=Intel HD Graphics 4600
0:100  0:000  PCI (00|00:03.00) : 8086 0C0C class=040300
0:100  0:000  PCI (00|00:14.00) : 8086 8CB1 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 8CBA class=078000
0:100  0:000  PCI (00|00:19.00) : 8086 153B class=020000
0:100  0:000  LAN 0, Vendor=8086, MMIO=F7A00000
0:100  0:000  PCI (00|00:1A.00) : 8086 8CAD class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 8CA0 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 8C90 class=060400
0:100  0:000  PCI (00|00:1C.03) : 8086 8C96 class=060400
0:100  0:000  PCI (00|03:00.00) : 1969 1091 class=020000
0:100  0:000  LAN 1, Vendor=1969, MMIO=F7900000
0:100  0:000  PCI (00|00:1C.04) : 8086 8C98 class=060400
0:100  0:000  PCI (00|04:00.00) : 14E4 4357 class=028000
0:100  0:000  PCI (00|00:1D.00) : 8086 8CA6 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 8CC4 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 8C82 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 8CA2 class=0C0500
0:100  0:000  Clover load options size = 0 bytes
0:104  0:004  Using OEM config.plist at path: EFI\CLOVER\config.plist
0:104  0:000  EFI\CLOVER\config.plist loaded: Success
0:106  0:001  Found theme directory: EMBEDDED
0:107  0:001  Found theme directory: METAL
0:111  0:003  Found theme directory: RANDOM
0:112  0:001  Loading early settings
0:112  0:000  timeout set to 10
0:112  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:130  0:018  KextsToPatch: 10 requested
0:133  0:002  KextToPatch 0: IOGraphicsFamily (10.10.2-Second Stage Patch 2-2) Kext bin patch, data len: 5
0:147  0:014  KextToPatch 1: AppleHDAController (10.9/HD4600 HDMI Audio 1/2) Kext bin patch, data len: 5
0:162  0:014  KextToPatch 2: AppleIntelFramebufferAzul (10.9.2/Azul/Port 06/DP>HDMI) Kext bin patch, data len: 12
0:178  0:015  KextToPatch 3: AppleHDAController (10.9/HD4600 HDMI Audio 2/2 ) Kext bin patch, data len: 5
0:193  0:015  KextToPatch 4: AppleIntelFramebufferAzul (10.9.2/Azul/Port 07/DP>HDMI) Kext bin patch, data len: 12
0:205  0:012  KextToPatch 5: AppleHDA (t1-10.9/AppleHDA/Resources/xml>zml) Kext bin patch, data len: 6
0:217  0:011  KextToPatch 6: IOAHCIBlockStorage (TrimEnabler) Kext bin patch, data len: 9
0:229  0:012  KextToPatch 7: AppleHDA (t1-10.9/AppleHDA/Realtek ALC892) Kext bin patch, data len: 4
0:235  0:006  KextToPatch 8: IOGraphicsFamily (10.10-Second Stage Patch 1-2) Kext bin patch, data len: 5
0:243  0:007  KextToPatch 9: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8
0:249  0:006  Default theme: metal
0:251  0:001  Hiding entries with string \EFI\BOOT\BOOTX64.EFI
0:252  0:001  Hiding entries with string Windows
0:254  0:001  LoadDrivers() start
0:257  0:002  Loading FSInject-64.efi  status=Success
0:263  0:006  Loading OsxAptioFix2Drv-64.efi  status=Success
0:270  0:006  Loading OsxFatBinaryDrv-64.efi  status=Success
0:278  0:008  Loading VBoxHfs-64.efi  status=Success
0:284  0:006   - driver needs connecting
0:286  0:001  1 drivers needs connecting ...
0:287  0:001  PlatformDriverOverrideProtocol->GetDriver overriden
0:291  0:003  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:473  0:182  LoadDrivers() end
0:475  0:001  Dump SMC keys from NVRAM:
0:513  0:038  SetMaxResolution: found best mode 3: 1920x1080
0:701  0:187  Video mode change to mode #3: Success
0:702  0:001   - set
0:706  0:003  Console modes reported: 6, available modes:
0:708  0:002    Mode 1: 80x25 (current mode)
0:712  0:004    Mode 2: 80x50
0:716  0:003    Mode 3: 100x31
0:720  0:004    Mode 4: 128x30
0:724  0:003    Mode 6: 120x50
0:728  0:004  SetScreenResolution: 1920x1080 - already set
0:734  0:005  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,EA40D4E9-1060-4D21-90F2-17E821D45D7F,0x28,0x64000)
0:830  0:096  MAC address of LAN #0=
0:851  0:021  MAC address of LAN #1=
0:871  0:019  ScanSPD() start
0:873  0:001  SMBus CmdReg: 0x1
0:875  0:001  Scanning SMBus [8086:8CA2], mmio: 0xF7A38004, ioport: 0xF040, hostc: 0x11
0:876  0:001  Slots to scan [8]...
0:892  0:015  SPD[0]: Type 11 @0x50
0:901  0:009  Found module with XMP version 0.0XMP Profile1: 10*1/8ns
0:904  0:003  Using XMP Profile1 instead of standard frequency 1333MHz
0:906  0:001  DDR speed 1600MHz
0:908  0:001  Slot: 0 Type 24 4096MB 1600MHz Vendor=G Skill Intl PartNo=F3-12800CL9-4GBRL SerialNo=0000000000000000
0:931  0:023  SPD[2]: Type 11 @0x52
0:940  0:009  Found module with XMP version 0.0XMP Profile1: 10*1/8ns
0:943  0:003  Using XMP Profile1 instead of standard frequency 1333MHz
0:945  0:001  DDR speed 1600MHz
0:946  0:001  Slot: 2 Type 24 4096MB 1600MHz Vendor=G Skill Intl PartNo=F3-12800CL9-4GBRL SerialNo=0000000000000000
0:978  0:031  ScanSPD() end
0:980  0:001  Get Acpi Tables List from RSDT:
0:983  0:003   Found table: FACP  A M I len=132
0:986  0:003   Found table: APIC  A M I len=114
0:987  0:001   Found table: FPDT  A M I len=68
0:989  0:001   Found table: SSDT  Ther_Rvp len=3054
0:990  0:001   Found table: SSDT  Cpu0Ist len=1337
0:992  0:001   Found table: SSDT  CpuSsdt len=2932
0:993  0:001   Found table: MCFG  A M I len=60
0:998  0:004   Found table: HPET  A M I len=56
1:002  0:004   Found table: SSDT  SataTabl len=877
1:006  0:004   Found table: SSDT  SaSsdt  len=23390
1:010  0:004  Calibrated TSC frequency =3200003569 =3200MHz
1:015  0:005  Loading main settings
1:018  0:003  Dropping 2 tables
1:022  0:004  Drop table 0 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
1:080  0:057  set table: 54445353,       6D50757043 to drop:
1:087  0:007  Drop table 1 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
1:128  0:040  set table: 54445353,   74734930757043 to drop:  true
1:131  0:003
1:132  0:001  PatchesDSDT: 2 requested
1:134  0:001   DSDT bin patch #0  lenToFind=4  lenToReplace=4
1:140  0:006   DSDT bin patch #1  lenToFind=4  lenToReplace=4
1:145  0:004  Config set MinMultiplier=8
1:146  0:001  Config set PluginType=0
1:148  0:001  Config set ChassisType=0xD
1:149  0:001  found 17 volumes with blockIO
1:151  0:001   0. Volume:
1:153  0:001    PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x3,0x0)
1:155  0:002    USB volume
1:157  0:001    USB volume
1:159  0:001   1. Volume:
1:160  0:001    PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(1,GPT,54DEFD5D-259E-48E0-AA0D-F1FE84EDD125,0x28,0x64000)
1:164  0:004    Result of bootcode detection: bootable unknown (legacy)
1:166  0:001    USB volume
1:170  0:004    USB volume
1:259  0:088   2. Volume:
1:260  0:001    PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(2,GPT,853E4E20-8B3B-427C-B025-EC7D0CC7C61A,0x64028,0xDF8478)
1:265  0:004    USB volume
1:269  0:003    USB volume
1:273  0:004   3. Volume:
1:277  0:004    PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(3,GPT,EF69E172-8469-49BD-9E45-C9C3B589EC4C,0xE9C4A0,0xDF8478)
1:283  0:005    USB volume
1:285  0:002    USB volume
1:289  0:004   4. Volume:
1:293  0:004    PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\HD(4,GPT,28806EB6-CF8F-4FFC-8E45-5F88D4E6CD42,0x1CD4918,0xFF770)
1:298  0:004    USB volume
1:302  0:003    USB volume
1:306  0:004   5. Volume:
1:310  0:003    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
1:315  0:004    Result of bootcode detection: bootable unknown (legacy)
1:317  0:002   6. Volume:
1:321  0:003    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)
20:800  19:479   7. Volume:
20:802  0:001    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,EA40D4E9-1060-4D21-90F2-17E821D45D7F,0x28,0x64000)
20:806  0:004    Result of bootcode detection: bootable unknown (legacy)
20:810  0:003    This is SelfVolume !!
20:813  0:002   8. Volume:
20:816  0:003    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,24230257-9C63-4F28-AE62-1D4AD73A6E4B,0x64028,0x26CA468)
20:821  0:004   9. Volume:
20:823  0:002    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,AC25467D-CFC0-43C0-8E1D-2F685EBD7C00,0x28643B8,0x26CA470)
20:828  0:005  10. Volume:
20:830  0:002    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,7A0A4219-2A3D-4FD4-9A23-301429A8318E,0x4F2E828,0x135F20)
20:832  0:002  11. Volume:
20:834  0:001    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(5,GPT,F351B13A-3AD6-482B-8409-62220E7D2CA1,0x5064748,0x25A6420)
20:836  0:002  12. Volume:
20:837  0:001    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,D9EB860B-259C-424B-BE44-6D14B4E3D483,0x28,0x64000)
41:727  20:889  13. Volume:
41:729  0:001    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,797DA229-728A-442A-903F-A652283467BC,0x64028,0x174876E8)
41:741  0:012  14. Volume:
41:743  0:001    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,7AF52C03-ADD6-4DB1-BFF7-865615280C32,0x1752B710,0x5755B3C8)
41:756  0:012  15. Volume:
41:757  0:001    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(4,GPT,0849A9E6-A6BD-44A5-B860-312E3E00E611,0x6EAC6AD8,0x2E93428)
41:771  0:014  16. Volume:
41:773  0:001    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(5,GPT,0A90389B-0F67-4A65-A92D-312FB2AA3DE5,0x71999F00,0x2D2CE88)
62:528  20:755  Using theme 'metal' (EFI\CLOVER\themes\metal)
62:531  0:002  font BoG_LucidaConsole_10W_NA.png loaded from themedir
62:533  0:001  Choosing theme metal
62:535  0:001  Custom legacy start
62:536  0:001  Custom legacy end
62:538  0:001  Scanning legacy ...
62:539  0:001   0: 'Whole Disc Boot' (legacy) not legacy
62:544  0:004   1: 'EFI' (legacy) not legacy
62:547  0:003   2: 'preview' (legacy) not legacy
62:550  0:003   3: 'Yosemite' (legacy) not legacy
62:553  0:003   4: 'post_install' (legacy) not legacy
62:556  0:003   5: 'Whole Disc Boot' (legacy) not legacy
62:564  0:007   6: 'Whole Disc Boot' (legacy) not legacy
62:571  0:007   7: 'EFI' (legacy) not legacy
62:579  0:008   8: '10.9.5' (legacy) not legacy
62:587  0:007   9: '10.10' (legacy) not legacy
62:598  0:010  10: 'Recovery HD' (legacy) not legacy
62:603  0:005  11: '10.??' (legacy) not legacy
62:611  0:008  12: 'EFI' (legacy) not legacy
62:619  0:007  13: 'User' (legacy) not legacy
62:624  0:005  14: 'Media' (legacy) not legacy
62:630  0:006  15: 'OS X-a' (legacy) not legacy
62:636  0:006  16: 'OS X-b' (legacy) not legacy
62:642  0:006  Custom entries start
62:646  0:003  Custom entries finish
62:649  0:003  Scanning loaders...
62:652  0:003   0: 'Whole Disc Boot' no file system
62:658  0:006   1: 'EFI'
62:685  0:027   2: 'preview'
62:695  0:009      AddLoaderEntry for Volume Name=preview
62:699  0:003      Check if volume Is Hibernated:
62:700  0:001      Check sleep image 'by signature':
62:708  0:007      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found
62:710  0:001      using default sleep image name = \private\var\vm\sleepimage
62:718  0:008      sleepimage not found -> Not Found
62:720  0:001       hibernated: no - sign
62:735  0:014   3: 'Yosemite'
62:746  0:010      AddLoaderEntry for Volume Name=Yosemite
62:750  0:004      Check if volume Is Hibernated:
62:751  0:001      Check sleep image 'by signature':
62:759  0:008      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found
62:761  0:001      using default sleep image name = \private\var\vm\sleepimage
62:771  0:009      sleepimage not found -> Not Found
62:772  0:001       hibernated: no - sign
62:786  0:013   4: 'post_install'
62:804  0:018   5: 'Whole Disc Boot' no file system
62:808  0:003   6: 'Whole Disc Boot' no file system
62:811  0:003   7: 'EFI'
62:828  0:017   8: '10.9.5'
62:838  0:009      AddLoaderEntry for Volume Name=10.9.5
62:843  0:005      Check if volume Is Hibernated:
62:845  0:001      Check sleep image 'by signature':
62:857  0:012      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
62:858  0:001      SleepImage name from pref: ImageVolume = '10.9.5', ImageName = '\private\var\vm\sleepimage'
62:870  0:011      Reading first 512 bytes of sleepimage ...
62:873  0:003   OurBlockIoRead: Lba=1DA4188, Offset=3B4831000 (BlockSize=512)
62:875  0:001   sig lion: 73696D65
62:878  0:003   sig snow: 0
62:882  0:004   got sleep image offset
62:886  0:003      Reading completed -> Success
62:890  0:004       sleepimage offset acquired successfully: 3B4831000
62:893  0:003       gSleepTime: 1407444819
62:900  0:006       HFS+ volume modifyDate: 1425529037
62:903  0:003       image older then volume: 18084218 sec
62:905  0:002       image too old
62:908  0:003       hibernated: no - time
62:918  0:009      AddLoaderEntry for Volume Name=10.9.5
62:939  0:021   9: '10.10'
62:951  0:011      AddLoaderEntry for Volume Name=10.10
62:956  0:004      Check if volume Is Hibernated:
62:957  0:001      Check sleep image 'by signature':
62:968  0:010      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found
62:971  0:003      using default sleep image name = \private\var\vm\sleepimage
62:978  0:007      Reading first 512 bytes of sleepimage ...
62:981  0:002   OurBlockIoRead: Lba=30A2638, Offset=6144C7000 (BlockSize=512)
62:984  0:002   sig lion: F1E0BE9D
62:987  0:003   sig snow: 0
62:991  0:003   no valid sleep image offset was found
62:992  0:001      Reading completed -> Success
62:994  0:001       sleepimage offset could not be acquired
62:995  0:001       hibernated: no - sign
63:001  0:005      AddLoaderEntry for Volume Name=10.10
63:021  0:020  10: 'Recovery HD'
63:025  0:004      AddLoaderEntry for Volume Name=Recovery HD
63:042  0:016  11: '10.??'
63:052  0:009      AddLoaderEntry for Volume Name=10.??
63:056  0:004      Check if volume Is Hibernated:
63:058  0:001      Check sleep image 'by signature':
63:063  0:005      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
63:064  0:001      SleepImage name from pref: ImageVolume = '10.??', ImageName = '\private\var\vm\sleepimage'
63:071  0:006      Reading first 512 bytes of sleepimage ...
63:073  0:002   OurBlockIoRead: Lba=6EA47E0, Offset=DD48FC000 (BlockSize=512)
63:074  0:001   sig lion: F1E0BE9D
63:076  0:001   sig snow: 0
63:077  0:001   no valid sleep image offset was found
63:079  0:001      Reading completed -> Success
63:080  0:001       sleepimage offset could not be acquired
63:082  0:001       hibernated: no - sign
63:088  0:006      AddLoaderEntry for Volume Name=10.??
63:110  0:021  12: 'EFI'
63:123  0:013  13: 'User'

[Slice]

See very long delays with Sata2. Is it broken?

1:317  0:002   6. Volume:
1:321  0:003    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)
20:800  19:479   7. Volume:


...

20:836  0:002  12. Volume:
20:837  0:001    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,D9EB860B-259C-424B-BE44-6D14B4E3D483,0x28,0x64000)
41:727  20:889  13. Volume:


...

41:771  0:014  16. Volume:
41:773  0:001    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(5,GPT,0A90389B-0F67-4A65-A92D-312FB2AA3DE5,0x71999F00,0x2D2CE88)
62:528  20:755  Using theme 'metal' (EFI\CLOVER\themes\metal)

[oSxFr33k]

Maybe no signal to monitor is because Board-ID not present in AppleGraphicsDevicePolicy like it happens here?



Thanks very much it, worked perfectly!  I was able to get to Desktop with the Nvidia 6x series cards where before I got no signal to monitor. I edited the plist per that link you posted to include the Board-id for iMac10,1.



Thanks Again!!

[toleda]



See very long delays with Sata2. Is it broken?

No, hangs at "Welcome to Clover"; occasional disk activity, never gets to UI.

No issues with 3021.

[Slice]

No, hangs at "Welcome to Clover"; occasional disk activity, never gets to UI.

No issues with 3021.

You may use boot file from 3021 and others from latest Clover.

[pinarek]

Hello Friends


So I have with me MBR on an SSD with 4 partitions with hfs +


On the 1st partition Yosemite is 10.10.2 with Clover 2988 works flawlessly.


Now I wanted the new version 3142 (yes, the last V2k version) to sample and the 3185 (this v2.3K), and I also would

like to know the differences between V2K and v2.3k.


These "new" versions do not boot the Yosemite, it is not even possible to only boot in verbose mode, after 4 rows white

letters that pass through so fast that I can not read so fast, the computer starts again ,


What has changed in the new version?
Why 2988 will boot properly? and not the new versions?


Thanks for the help to maybe like in German ...
This text was translated by Google Translator DE to EN.

[frankiee]

Only thing I can say that the latest Version boots 10.10 just fine, so it must be something else.

[Bruxo]

I have trouble off the hack !!!
I'm clover installed in hd on the EFI partition, the Yosemite system off perfectly but the hardware does not continue working off the coolers !!!
I have pointed out in config.plist in ACPI shutdown potion and yet he does not disconnect the only hardware the system !!!
any help ????



Remembering that I'm not using any DSDT or SSDT all settings are contained in config.plist clover

[Nick14]

Clover bug :



FSB and CPU frequency is detected wrong where FSB is 99 och CPU becomes 1.694



Changing  FSB too 100 och CPU 1,7ghz audio get shutters and sounds like exploded speakers...

[teddybearapple]



Slice please any help how to fix this or what I am missing? When I boot my machine it doesn't show any of my drives nor any option to select from my HDD unless I choose exit from the clover option and enter my HDD. That, I see my Mac. What must be the problem? The first photo is the what I get when I boot my machine and the second photo is that of when I exit and enter the HDD

[pkdesign]

I just updated to Clover_v2.3k_r3193 from Sourceforge and it totally messed up my boot.



After I was ablt to boot using a flash drive I can see that the installer only has an option for CloverEFI 32-bits. There is no option for CloverEFI 64-bits or, what I need, CloverEFI 64-bits BiosBlockIO.



Where can we go to see what changes are made to ewach version? There doesn't seem to be one place to see chnages version to veresion.
