foilage11 Posted June 23, 2014 Share Posted June 23, 2014 Fixed via changing SMBIOS. Thank you for your help! 1 Link to comment Share on other sites More sharing options...

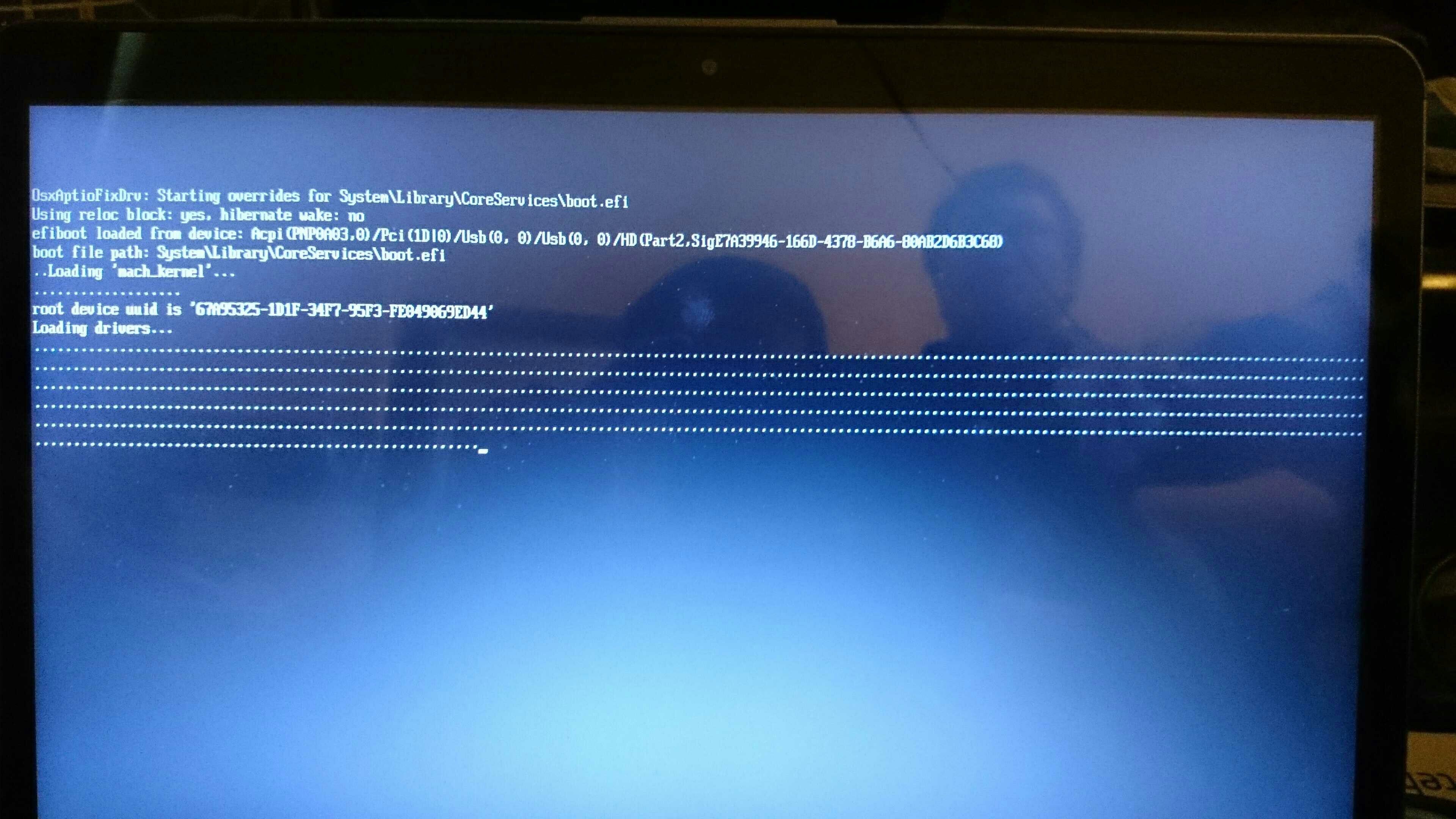

NSCXP2005 Posted June 23, 2014 Share Posted June 23, 2014 Hi there, I am getting am issue with Clover where it just freezes. I have run it with or without caches and it freezes on Mavericks. Does anybody know I way to fine out what is causing it? Thabks Link to comment Share on other sites More sharing options...
arsradu Posted June 24, 2014 Share Posted June 24, 2014 Hi, guys. So, during the past few days I think I formatted and installed Yosemite in both Legacy and UEFI mode at least 10 times, just to see where does my iMessage issue come from. And I made a very interesting discovery (and very annoying at the same time): Mac OS doesn't actually completely erase the freaking partitions!And here's the proof: after completing making the bootable USB stick with Clover as boot loader (legacy or UEFI doesn't seem to matter anymore), I left a file in the Trash. Not on purpose, but I just forgot to empty the trash, before rebooting into the USB and starting reinstalling the system. A file that could have never been from the system, because it was a tutorial I got from the internet and I didn't need anymore. So there is no way that would have been from the installation. But bear with me. So I booted up into the USB, as I normally do, I reached the installer, I went to Disk Utility, unmounted the Yosemite partition (though I don't think that's mandatory since it seems to unmount it previous to formatting anyway) then I went to the Erase tab and clicked Erase. I accepted the pop-up and waited patiently until it did its job.Then I closed the window and resumed the installation, as usual.Well, after everything was done and I was back into the Desktop, what do you think I found in the Trash? The file I deleted previous to the formatting and the "new" installation. So who knows what else might it have kept, even after formatting the freaking partition. I'm so pissed off right now! How is it possible, for such an operating system to have such issues? And no, I don't think that's something specific to Yosemite. I think Mavericks does it too. I just don't have enough patience to reinstall that as well right now.The first time this happened I thought it was just me. I thought the fact that I got a "packages" shortcut (from when you make the bootable USB drive) is just my imagination. But now I'm sure.So, since none of my "clean" installations was actually clean, can you, please, guide me on how the hell can I erase a partition, for real? Link to comment Share on other sites More sharing options...
theconnactic Posted June 24, 2014 Share Posted June 24, 2014 Use the security options available under the erase tab in Disk Utility and select the most secure one: i think it writes zeros on the entire disk and do it several times, complying with some US security standards. If even this fails to actually delete the disk, download a live Ubuntu disk and use it to do the job. Good luck! P.S.: and yeah, this is freaking scary and explains something that happened some time ago when I was doing some tests with my AMD rig. That time, I thought it was some confusion of mine, but perhaps it wasn't me that was confused after all. 1 Link to comment Share on other sites More sharing options...
arsradu Posted June 24, 2014 Share Posted June 24, 2014 Use the security options available under the erase tab in Disk Utility and select the most secure one: i think it writes zeros on the entire disk and do it several times, complying with some US security standards. If even this fail to actually delete the disk, download a live Ubuntu disk and use it to do the job. Good luck! P.S.: and yeah, this is freaking scary and explain something that happened some time ago when I was doing some tests with my AMD rig. That time, I thought it was some confusion of mine, but perhaps it wasn't me that was confused after all. Thanks, man. I'll try that tonight, when I get back home. I'm on my way to work right now. I've got Ubuntu on another hard drive. I use it mostly to compile Android. So I don't actually need a live CD/usb. But does gparted know about Mac partitions? HSF+ i think, right? can it interact with them and actually get the job done? I guess there is only one way to find out. Thanks again. I'll report back. Link to comment Share on other sites More sharing options...
Slice Posted June 24, 2014 Share Posted June 24, 2014 Clover 2721 In debug.log as I resolve "Cpu0Ist" I see true 3:323 0:007 Dropping 3 tables 3:330 0:007 Drop table 0 signature="DMAR" (52414D44) 3:390 0:060 set table: 52414D44, 0 to drop: 3:406 0:015 Drop table 1 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043) 3:534 0:127 set table: 54445353, 74734930757043 to drop: 3:549 0:015 Drop table 2 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043) 3:661 0:112 set table: 54445353, 6D50757043 to drop: true Thanks Fabio OK, If this is a question about correct dropping SSDT tables then see your boot.log/preboot.log/debug.log 1:571 0:001 Get Acpi Tables List from RSDT: 1:575 0:003 Found table: FACP A M I len=132 1:577 0:001 Found table: APIC A M I len=256 1:579 0:001 Found table: FPDT A M I len=68 1:580 0:001 Found table: MCFG OEMMCFG. len=60 1:582 0:001 Found table: HPET A M I len=56 1:584 0:001 Found table: SSDT CpuPm len=839976 1:586 0:001 Found table: EINJ AMI EINJ len=304 1:588 0:001 Found table: ERST AMI ERST len=560 1:590 0:001 Found table: HEST AMI HEST len=168 1:593 0:003 Found table: BERT AMI BERT len=48 1:595 0:001 Calibrated TSC frequency =3199974350 =3199MHz There is no DMAR table. No need to drop it. There is one SSDT table and it has signature CpuPm. You successfully dropped it. There is no table with signature Cpu0Ist. No need to drop it. 1 Link to comment Share on other sites More sharing options...
JahStories Posted June 24, 2014 Share Posted June 24, 2014 Hi there Slice, i think that this can be interesting, about booting with apple's logo... Original Post link from MiniHack Pasted: I think Pike has the answer….http://pikeralpha.wo...gessound-files/ (see towards end of post). If I understand correctly - and possible I don't! - then the boot loader will need to recognise and load the efires images/logos mentioned. So guess it is probably just waiting on Clover/Chameleon implementation in due course. Link to comment Share on other sites More sharing options...
Riley Freeman Posted June 24, 2014 Share Posted June 24, 2014 I'm trying to see if I can replace the DSDT.aml override on my X79 with Clover patches. There's only a few edits that I make and most are covered, although there's some bits I'd like to change. I think the key might be through binary DSDT patching but I didn't have much success with a test last night. First off, there are two values in the nvidia gfx injection that I want to change. The card is listed as Asus GeForce on PCI Slot 0 but I want it as NVIDIA GeForce on Slot-1 as this is how I always inject it. It's purely cosmetic but that's how I like it. More importantly I need to inject fake device IDs for one of my USB3 ports. The USB injection only seems to pick up my rear hub-attached ports (it renames ASMX to XHC1 in the process). However, I don't use these as they cause KPs here (I'm on Snow). Instead I inject fake IDs for the front ports which allows the USB3 driver to load and enable only those. I tried adding the replacement ven/dev id to the XHCI section but it didn't seem to get applied. In any case, it might have gotten applied to both ports and I only want the front ones patched. Any tips on how I could go about applying these patches? Link to comment Share on other sites More sharing options...
alexanderq Posted June 24, 2014 Share Posted June 24, 2014 Maybe you mean this http://www.insanelymac.com/forum/topic/282787-clover-v2-instructions/page-3?do=findComment&comment=2020878 and this http://www.insanelymac.com/forum/topic/282787-clover-v2-instructions/page-2?do=findComment&comment=1939878 Link to comment Share on other sites More sharing options...
Riley Freeman Posted June 24, 2014 Share Posted June 24, 2014 Thanks. The first link took care of the slot name. The second link is what I tried last night. The XHCI injection didn't work. I'm thinking it's probably because I'm trying to fake the vendor as well as the device. Still, I need it to only inject it for one instance. In other words, I need to fake the IDs for the port on PEX2, but not the one on PEX3. This is what I need but the samples link to applelife.ru doesn't work. Link to comment Share on other sites More sharing options...
Slice Posted June 24, 2014 Share Posted June 24, 2014 Hi there Slice, i think that this can be interesting, about booting with apple's logo... Original Post link from MiniHack Pasted: I think Pike has the answer….http://pikeralpha.wo...gessound-files/ (see towards end of post). If I understand correctly - and possible I don't! - then the boot loader will need to recognise and load the efires images/logos mentioned. So guess it is probably just waiting on Clover/Chameleon implementation in due course. This is Chameleon way to load manually system files. Clover will not do this. It must be boot.efi affair. Some more research needed. I'm trying to see if I can replace the DSDT.aml override on my X79 with Clover patches. There's only a few edits that I make and most are covered, although there's some bits I'd like to change. I think the key might be through binary DSDT patching but I didn't have much success with a test last night. First off, there are two values in the nvidia gfx injection that I want to change. The card is listed as Asus GeForce on PCI Slot 0 but I want it as NVIDIA GeForce on Slot-1 as this is how I always inject it. It's purely cosmetic but that's how I like it. More importantly I need to inject fake device IDs for one of my USB3 ports. The USB injection only seems to pick up my rear hub-attached ports (it renames ASMX to XHC1 in the process). However, I don't use these as they cause KPs here (I'm on Snow). Instead I inject fake IDs for the front ports which allows the USB3 driver to load and enable only those. I tried adding the replacement ven/dev id to the XHCI section but it didn't seem to get applied. In any case, it might have gotten applied to both ports and I only want the front ones patched. Any tips on how I could go about applying these patches? Sorry, but automatic DSDT patches by Clover are far from perfect because artificial intellect is still not created. My proposition is to prepare DSDT patched by Clover, save it, and then patch manually for all you want to achieve the best DSDT. Then you set DSDT->Name=DSDT.aml which is your custom DSDT.aml Fixes: NewWay_80000000 + FixRegions_10000000 that needed because of Floating regions. This is what I need but the samples link to applelife.ru doesn't work. At this moment applelife.ru is down. 1 Link to comment Share on other sites More sharing options...
Maniac10 Posted June 24, 2014 Share Posted June 24, 2014 Post an example of what you want to achieve. Also show us a boot.log and resulting DSDT with the XHCI injection enabled to see what it does. Link to comment Share on other sites More sharing options...
Fabio1971 Posted June 24, 2014 Share Posted June 24, 2014 OK, If this is a question about correct dropping SSDT tables then see your boot.log/preboot.log/debug.log 1:571 0:001 Get Acpi Tables List from RSDT: 1:575 0:003 Found table: FACP A M I len=132 1:577 0:001 Found table: APIC A M I len=256 1:579 0:001 Found table: FPDT A M I len=68 1:580 0:001 Found table: MCFG OEMMCFG. len=60 1:582 0:001 Found table: HPET A M I len=56 1:584 0:001 Found table: SSDT CpuPm len=839976 1:586 0:001 Found table: EINJ AMI EINJ len=304 1:588 0:001 Found table: ERST AMI ERST len=560 1:590 0:001 Found table: HEST AMI HEST len=168 1:593 0:003 Found table: BERT AMI BERT len=48 1:595 0:001 Calibrated TSC frequency =3199974350 =3199MHz There is no DMAR table. No need to drop it.There is one SSDT table and it has signature CpuPm. You successfully dropped it. There is no table with signature Cpu0Ist. No need to drop it. Thanks for your reply. Fabio Link to comment Share on other sites More sharing options...
magnifico Posted June 24, 2014 Share Posted June 24, 2014 Thanks for your reply. Fabio But your speed step work or not ? Link to comment Share on other sites More sharing options...
robE Posted June 24, 2014 Share Posted June 24, 2014 Hello, i updated clover to 2721 from 2703 and everything went fine but when i boot and i go to clover pref panel, it says that it booted with 2703 and the installed version is 2721, any ideea why? It's like having both versions of clover installed :s Link to comment Share on other sites More sharing options...
TimeWalker75a Posted June 24, 2014 Share Posted June 24, 2014 I'm facing an odd experience with FACP fix implemented in Clover on my Eee PC1201N. Thie laptop needs the restart fix because by default it doesn't support Reset Register (values are 00 00). So i have to enter 0x64 0xFE in config in order to gain proper reboot. Without the fix the laptop just stays at black screen and nothing happens. With reset address and value specified in config restart starts working .. but a subsequent issue arises. Every restart causes CMOS reset. If i don't enable the fix or use something like EvoReboot the CMOS remains intact after reboot, which led me to thinking it's something related to how Clover adjusts the FACP table. Enclosed are stock BIOS FACP/FACS tables and tables fixed by Clover. 1201N_facp_issue.zip Edit: Disregard this for the time being! I guess the problem lies somewhere else .. there's a driver in my system that accesses RTC and corrupts CMOS checksum. I will try to deal with it hoping the problem goes away. UPD: Yes, completely disregard the above issue - unrelated to Clover by all means. The problem comes from accessing CMOS without SMI interrupt and thus CRC corruption occurs. Link to comment Share on other sites More sharing options...
NSCXP2005 Posted June 24, 2014 Share Posted June 24, 2014 Hi all, Would somebody be able to help me with the issue I am facing that I posted a couple of pages back. Thanks Link to comment Share on other sites More sharing options...
tluck Posted June 24, 2014 Share Posted June 24, 2014 @nscxp2005 - well hard to say. it looks like it got stuck on a kext? maybe graphics? are you using a pre-built DSDT? what was it running ML? Link to comment Share on other sites More sharing options...
NSCXP2005 Posted June 24, 2014 Share Posted June 24, 2014 Yeah it's a prebuilt DSDT. The file. Works fine with Mavericks USB Installer, it's just the drive after I have installed it. Link to comment Share on other sites More sharing options...
tluck Posted June 24, 2014 Share Posted June 24, 2014 @nsxcp2005 - ok. can you boot it in safe mode or single user mode? should take a different path on loading drivers right? might help you narrow the issue. what about GMA 950 gfx kext for mavericks - does it exist? the installer usually uses a more generic driver. Link to comment Share on other sites More sharing options...
Slice Posted June 25, 2014 Share Posted June 25, 2014 No, GMA950 is impossible in Mavericks. You are restricted to 10.7.5 in 32bit modes. Link to comment Share on other sites More sharing options...
dudenesspa Posted June 25, 2014 Share Posted June 25, 2014 Has anyone had success installing clover on a PCIe SSD? I have a Revodrive that works fine with Chameleon installed on the EFI partition of the drive but clover bootloader can't see it even from another boot disk. Link to comment Share on other sites More sharing options...
pinarek Posted June 25, 2014 Share Posted June 25, 2014 I have a question about the new Clover 2728 Refers to Yosemite DP2 How can I set the default volume? in the conig.plist? With the "Univ unique identification." From the Disk Utility information - that does not work and with your entry eg hd (1,2) also does not work.. AND how can you change the font color of the label partition Thanks for info Link to comment Share on other sites More sharing options...
MacUser2525 Posted June 25, 2014 Share Posted June 25, 2014 Has anyone had success installing clover on a PCIe SSD? I have a Revodrive that works fine with Chameleon installed on the EFI partition of the drive but clover bootloader can't see it even from another boot disk.I am using Clover in conjunction with generic two port/slot bootable pci-e add in card using I think the Marvel 9128 chipset for the controller. Clover sees both SSDs I have in the enclosure at the moment and boots from either my main or backup drive I have in it for testing new updates or for changes I make to the OS. Link to comment Share on other sites More sharing options...
pinarek Posted June 25, 2014 Share Posted June 25, 2014 I have a question about the new Clover 2728 Refers to Yosemite DP2 How can I set the default volume? in the conig.plist? With the "Univ unique identification." From the Disk Utility information - that does not work and with your entry eg hd (1,2) also does not work.. AND how can you change the font color of the label partition Thanks for info Link to comment Share on other sites More sharing options...
