ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 The problem with USB 3.0 is not a Clover problem. See here and the whole thread. May be you found those solution is better. Checking it out now, thanks Slice. Okay as far as I can tell, I need to install V12? ...and do I need to uninstall GenericUSBXHCI? Link to comment Share on other sites More sharing options...
Slice Posted June 12, 2014 Share Posted June 12, 2014 Checking it out now, thanks Slice. Okay as far as I can tell, I need to install V12? ...and do I need to uninstall GenericUSBXHCI? Yes, don't mix. Either Generic or Apple but not both. Link to comment Share on other sites More sharing options...
ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 Ok... I removed genericUSB and installed that IOUSBFamily.kext. Now it reboots during verbose right when it gets ready to load USB kexts. Probably user error again lol lemme see what I did wrong I'm thinking the prelinked kernelcache still has the GenericUSBXHCI in it... Report back in a few Link to comment Share on other sites More sharing options...
ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 Well, I'm pretty sure I have both kexts in my kextcache somehow, and I cannot boot at all because I can't boot without caches. Do you know of a way I can boot without caches, or rebuild the cache for Yosemite from my Mavericks install? Link to comment Share on other sites More sharing options...
Slice Posted June 12, 2014 Share Posted June 12, 2014 Well, I'm pretty sure I have both kexts in my kextcache somehow, and I cannot boot at all because I can't boot without caches. Do you know of a way I can boot without caches, or rebuild the cache for Yosemite from my Mavericks install? Drag /System/Library/Caches/startup/* to trash. 1 Link to comment Share on other sites More sharing options...
ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 It wont thrown an error that it can't find kernelcache? Link to comment Share on other sites More sharing options...
theconnactic Posted June 12, 2014 Share Posted June 12, 2014 Hey, Slice! Remember those lousy Geekbench scores I was getting with Yosemite? Well, I sort it out, following a tip from Pike: it was the BIOS! Just loaded default values, changed back a thing or two, so OS X boots, and got back my precious 11K+ points. Those strange intermediate p-states are still there, though, and HWMonitor reports temps hotter that I'd like, but the overall performance of the system reached another league, and now I agree with folks who say Yosemite is even snappier than Mavericks. Using Clover rev. 2964, by the way. All the best! 1 Link to comment Share on other sites More sharing options...

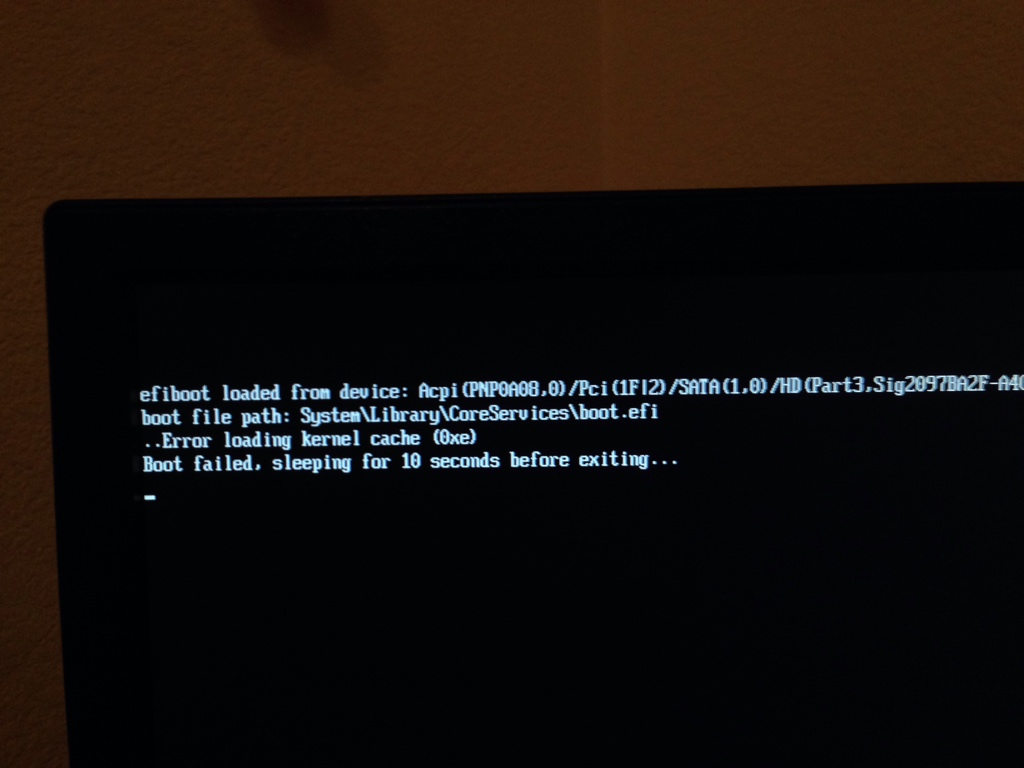

ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 Ya I removed the Startup folder and am now left with this, as I expected... Is there any way to fix this without being able to boot the Yosemite partition? EDIT: Fixed it by dragging and dropping "kernelcache" from my Yosemite installer should be using all the same kexts so I just need to get in and rebuild it The problem with USB 3.0 is not a Clover problem. See here and the whole thread. May be you found those solution is better. Ok bro, I got rid of all traces of GenericUSBXHCI and now have the AppleUSBXHCI loaded and running my 3.0 ports. And USB 3.0 is still broken up wake up from sleep, and I can't duplicate the problem with Chameleon. You sure there's nothing else I should be checking as far as the config.plist goes? Or somewhere else? Link to comment Share on other sites More sharing options...
Slice Posted June 12, 2014 Share Posted June 12, 2014 Ya I removed the Startup folder and am now left with this, as I expected... ImageUploadedByTapatalk1402548749.801114.jpg Is there any way to fix this without being able to boot the Yosemite partition? EDIT: Fixed it by dragging and dropping "kernelcache" from my Yosemite installer should be using all the same kexts so I just need to get in and rebuild it Ok bro, I got rid of all traces of GenericUSBXHCI and now have the AppleUSBXHCI loaded and running my 3.0 ports. And USB 3.0 is still broken up wake up from sleep, and I can't duplicate the problem with Chameleon. You sure there's nothing else I should be checking as far as the config.plist goes? Or somewhere else? AppleUSBXHCI has ACPI dependency that requires DSDT patch and/or adding SSDT but I don't remember details. Read the thread about this. Link to comment Share on other sites More sharing options...
ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 But why is this only an issue when I boot with Clover...? My USB3 works fine after sleep when booting with Chameleon. I don't feel like I should be messing with drivers that already work. I just need to know where to look in Clover. Link to comment Share on other sites More sharing options...
Slice Posted June 12, 2014 Share Posted June 12, 2014 But why is this only an issue when I boot with Clover...? My USB3 works fine after sleep when booting with Chameleon. I don't feel like I should be messing with drivers that already work. I just need to know where to look in Clover. Did you speak about the same system? Yosemite? You may compare ioregs with Clover and with Chameleon. USB3 settings here. There may be different tuning, different settings but until I see digits I can say nothing. Link to comment Share on other sites More sharing options...
ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 I've been using GenericUSBXHCI for as long as I've had this rig on Mavericks, and never once had this issue with Chameleon. Now that I am booting the same Mavericks install (and Yosemite now) with Clover, my USB3.0 only works until I wake from sleep. What "digits" can I provide you in order for you to believe me? Lol Is this possibly something to do with the issue? This message/error is not present at boot with Chameleon: 6/12/14 12:08:46.000 AM kernel[0]: USBF: 0.547 GenericUSBXHCI::CreateRootHubDevice Bus 14 already taken 6/12/14 12:08:46.000 AM kernel[0]: USBF: 0.550 GenericUSBXHCI::CreateRootHubDevice Bus 14 already taken Link to comment Share on other sites More sharing options...
iFIRE Posted June 12, 2014 Share Posted June 12, 2014 if chameleon works good to you, why you want change it ? to use Clover you need make some tests with the configuration in config.plist, and the part more important is know that you make, for this Clover Wiki, there with a bit of reading you can understand like work clover and your configuration Link to comment Share on other sites More sharing options...
ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 Because I started messing with Clover in order to install Yosemite and I started liking it more and more. I'm a 'tinkerer' I suppose. Anyway, it shouldn't matter, I was just asking a question regarding USB 3.0 and Clover. There's clearly something I'm missing, and I'm just looking to be pointed in the right direction. I've been through the wiki and didn't see anything that stood out as important re: USB 3.0. I'll just have to keep looking if no one else has ever had this issue. Link to comment Share on other sites More sharing options...
Pene Posted June 12, 2014 Share Posted June 12, 2014 I've been using GenericUSBXHCI for as long as I've had this rig on Mavericks, and never once had this issue with Chameleon. Now that I am booting the same Mavericks install (and Yosemite now) with Clover, my USB3.0 only works until I wake from sleep. What "digits" can I provide you in order for you to believe me? Lol Is this possibly something to do with the issue? This message/error is not present at boot with Chameleon: 6/12/14 12:08:46.000 AM kernel[0]: USBF: 0.547 GenericUSBXHCI::CreateRootHubDevice Bus 14 already taken 6/12/14 12:08:46.000 AM kernel[0]: USBF: 0.550 GenericUSBXHCI::CreateRootHubDevice Bus 14 already taken This is probably a DSDT issue. Use the same DSDT that you use in Chameleon, and disable Clover's DSDT fixes. I believe that then USB3 state after sleep should behave the same. 1 Link to comment Share on other sites More sharing options...
Wppley2 Posted June 12, 2014 Share Posted June 12, 2014 Hi Slice and all! Slice, first of all, I want to congratulate you and all the team for the great bootloader which is Clover. Great work. Slice after the upgrades made to Yosemite, here on my system, I ended up with no speed step, I had no problems before, and without the use of an edited DSDT, just using the resources of Clover itself. Have you heard anything about this? Clover would be some change that may be incompatible with my system? thank you in advance. Link to comment Share on other sites More sharing options...
Kikill3r Posted June 12, 2014 Share Posted June 12, 2014 Hello everybody. I installed Clover 2k v2703 onto my 2GB USB stick. When trying to boot it I get "b1t:init", after a few seconds it changes to "b1t:init6" and then my computer reboots. At install I selected "No update for PBR and MBR", "CloverEFI 64Bit SATA", "AppleStyle" as a theme, no drivers and no RC Scripts. The config.plist is attached, I do not use a DSDT. Any suggestions would be greatly appreciated. config.plist.zip Link to comment Share on other sites More sharing options...
ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 This is probably a DSDT issue. Use the same DSDT that you use in Chameleon, and disable Clover's DSDT fixes. I believe that then USB3 state after sleep should behave the same. Ok, should I just remove the whole DSDT section? Link to comment Share on other sites More sharing options...
ADHDMedia Posted June 12, 2014 Share Posted June 12, 2014 Nevermind, I'm ditching Clover again. Just more hassle than it's worth. Link to comment Share on other sites More sharing options...
ccsr Posted June 12, 2014 Share Posted June 12, 2014 I want to give my hack another try and I think the issues I'm facing are to do with the settings I chose in clover. Can anyone with a working Yosemite hack let me know what settings they used in clover for the Z77-DS3H? I really appreciate it if someone can help me out with the same motherboard. This is the settings I use. I'm pretty sure I am selecting things that I don't need or things that should be something else. This motherboard was recommended to me due to it being "compatible" with OS X. I have not one issue with Mavericks. I can boot Yosemite and get many things working, The only issue I have is the share menu and the today screen missing the widgets and the share feature doesn't work. Link to comment Share on other sites More sharing options...
Hackmodford Posted June 12, 2014 Share Posted June 12, 2014 Nevermind, I'm ditching Clover again. Just more hassle than it's worth. But once it works... you never will go back. Link to comment Share on other sites More sharing options...
Slice Posted June 13, 2014 Share Posted June 13, 2014 Hello everybody. I installed Clover 2k v2703 onto my 2GB USB stick. When trying to boot it I get "b1t:init", after a few seconds it changes to "b1t:init6" and then my computer reboots. At install I selected "No update for PBR and MBR", "CloverEFI 64Bit SATA", "AppleStyle" as a theme, no drivers and no RC Scripts. The config.plist is attached, I do not use a DSDT. Any suggestions would be greatly appreciated. config.plist.zip I may propose that as you set "No update for PBR and MBR" then this sectors already exists. Remember that b1h from Chameleon is not working with Clover while Clover's one works for both. Link to comment Share on other sites More sharing options...
a3yu Posted June 13, 2014 Share Posted June 13, 2014 I dont know if is all ok in my config..but everything works..and is quite better than chameleon(i'm in legacy bios).Thx chameleon for all these years now i got to change!Welcom clover! Link to comment Share on other sites More sharing options...
ADHDMedia Posted June 13, 2014 Share Posted June 13, 2014 Ok, I lied I'm back on Clover, and I finally got all the kinks worked out. For anyone interested, I solved my USB3.0 broken after sleep issue by adding the boot flag -gux_nosleep to my boot arguments. Funny thing is, I had tried this a day or two ago but wherever I was reading it at had it typed out wrong, so obviously it didn't work. Anyhow, I got it all resolved, and I'm dual booting 10.9.3 and 10.10 flawlessly now. Think I'll stick with Clover for awhile Thanks for all the support here and on other threads guys. 'Preciate it! Thanks for all the support here and on other threads guys. 'Preciate it! 2 Link to comment Share on other sites More sharing options...
fusion71au Posted June 13, 2014 Share Posted June 13, 2014 @ADHDMedia, Glad to hear your system's now working 100%. Solving the problems can sometimes be a PITA but once you've got it working, you'll never look back . 1 Link to comment Share on other sites More sharing options...
