Simonej Posted May 24, 2014 Share Posted May 24, 2014 Don't worry Slice, take your time anyone knows what are the states (x12, x37, x39 only?) of MacPro6,1 original?Slice, I'm reading that 1620v2 of MacPro works in turbo state x39 only single core, but I can't see x39, only x38 with ssdtPRGen and max x37 (4 core active always?) with Clover. Pike, with ssdtPRGen i need to change APFL generated (from Zero to 0x04 i think). I'm not expert with power management but with your script my system works almost always at x37. Super Respect for your awesome work! Thanks!!! 1 Link to comment Share on other sites More sharing options...
daslicht Posted May 25, 2014 Share Posted May 25, 2014 Hello, I have just installed the OSX 10.9.3 combo update but now I get this error when booting: Any idea whats wrong ? Link to comment Share on other sites More sharing options...
mac09hack Posted May 25, 2014 Share Posted May 25, 2014 I have tried to get Clover to consistently work as my boot loader of choice. I recently loaded MacOS X 10.6 onto a USB formatted as GUID and loaded Clover into the EFI partition. I managed to load the OS but upon loading that disk iClover was loaded onto, the disk will not boot up 10.6. ON the USB and the Disk/EFI I have run these Terminal commands: (1)sudo fdisk440 -f boot0ss -u -y /dev/rdisk1 (2)dd if=/dev/rdisk1s1 count=1 bs=512 of=origbs (3)cp boot1f32alt newbs (4)dd if=origbs of=newbs skip=3 seek=3 bs=1 count=87 conv=notrunc (5)dd if=newbs of=/dev/rdisk1s1 count=1 bs=512 (6)cp BOOT /Volumes/Kingston/ (7)cp -r EFI /Volumes/Kingston/ Now, I see no reason to do steps 6 and 7 because I first loaded the boot loader files onto the USB and the Disk/EFI (the Clover Bootloader installs the 4 directories and the boot file) Can anyone tell me what I am missing to get the Disk to load from the contents of the /EFI partition? Link to comment Share on other sites More sharing options...
The Real Deal Posted May 25, 2014 Share Posted May 25, 2014 Hi fellas, Despite i inject a SMC version via FakeSMC (AXIPAAAC), Clover overrides it with is own ; is there a flag i can use in the config.plist ? Many thanks. Link to comment Share on other sites More sharing options...
Slice Posted May 26, 2014 Share Posted May 26, 2014 Hi fellas, Despite i inject a SMC version via FakeSMC (AXIPAAAC), Clover overrides it with is own ; is there a flag i can use in the config.plist ? Many thanks. If you tell about version 3.3 then: - HWInfo.kext uses value from Clover to override default value from FakeSMC.info.plist. The priority needed to make dynamic changes for these key depending on Clover settings on the fly; - if you want a priority of FakeSMC.info.plist then you can erase HWInfo.kext. Be happy! If you use kozlek's version then I don't know his rules. Link to comment Share on other sites More sharing options...
Fab1Man Posted May 26, 2014 Share Posted May 26, 2014 what drivers u install ? u need aptiofix! I write something about this board if u wanna read.. http://www.insanelymac.com/forum/topic/288829-guide-gigabyte-z77x-ud5h-clover-uefi-installtweak-guide/ Sorry for the late response. I have aptiofix and a USB drive can't boot either, which IS working at my own pc. Faulty SSD? Link to comment Share on other sites More sharing options...
Slice Posted May 26, 2014 Share Posted May 26, 2014 @Simonej I made a revision 2678 that should work for your chipset. Test please. Set c-states as follow <key>ACPI</key> <dict> <key>SSDT</key> <dict> <key>Generate</key> <dict> <key>CStates</key> <true/> <key>PStates</key> <true/> </dict> <key>EnableC7</key> <true/> <key>EnableC6</key> <true/> <key>EnableC4</key> <false/> <key>EnableC2</key> <false/> @magnifico As far as I remember you have the same chipset. Are you able to test c-state PM in your case? CLOVERX64.efi-2678.zip Link to comment Share on other sites More sharing options...
magnifico Posted May 26, 2014 Share Posted May 26, 2014 @magnifico As far as I remember you have the same chipset. Are you able to test c-state PM in your case? No, I sold the motherboard with the x79 chipset,sorry . Ps: but him for me a need Patched AppleIntelCPUPowerManagement for ivy bridge ? Link to comment Share on other sites More sharing options...
Simonej Posted May 26, 2014 Share Posted May 26, 2014 Thank you Slice, problem is not solved; -I have same error "ACPI_SMC_PlatformPlugin::registerLPCDriver - WARNING - LPC device initialization failed: C-state power management not initialized"-No states other 12-37. -My Config was http://pastebin.com/HZZPbfYZ now is http://pastebin.com/49HrYrpd Link to comment Share on other sites More sharing options...
Slice Posted May 26, 2014 Share Posted May 26, 2014 Thank you Slice, problem is not solved; -I have same error "ACPI_SMC_PlatformPlugin::registerLPCDriver - WARNING - LPC device initialization failed: C-state power management not initialized" -No states other 12-37. -My Config was http://pastebin.com/HZZPbfYZ now is http://pastebin.com/49HrYrpd I want to see your generated SSDTs and boot.log Link to comment Share on other sites More sharing options...
Simonej Posted May 26, 2014 Share Posted May 26, 2014 -Log http://www64.zippyshare.com/v/73718371/file.html -SSDT http://www52.zippyshare.com/v/28896861/file.html Edit: In my Boot log I read AMD Radeon R9 but I don't have R9, I have Radeon 7950. Link to comment Share on other sites More sharing options...
Slice Posted May 27, 2014 Share Posted May 27, 2014 -Log http://www64.zippyshare.com/v/73718371/file.html -SSDT http://www52.zippyshare.com/v/28896861/file.html Edit: In my Boot log I read AMD Radeon R9 but I don't have R9, I have Radeon 7950. It is the same just rebranded. 7950 == R9 280. I decided to keep new name for a future. About state generation I found a mistake. Test new revision, please. CLOVERX64.efi-2678a.zip Link to comment Share on other sites More sharing options...
Simonej Posted May 27, 2014 Share Posted May 27, 2014 Same error "ACPI_SMC_PlatformPlugin::registerLPCDriver - WARNING - LPC device initialization failed: C-state power, maybe It's problem of my motherboard AsRock X79 Professional? Boot.log= http://pastebin.com/fbbgxh4mI tried to search, from what I understand 1620v2 works only with single core at x39, from what I see on my system also remains at x37 in single core. Link to comment Share on other sites More sharing options...
Slice Posted May 27, 2014 Share Posted May 27, 2014 Same error "ACPI_SMC_PlatformPlugin::registerLPCDriver - WARNING - LPC device initialization failed: C-state power, maybe It's problem of my motherboard AsRock X79 Professional? Boot.log= http://pastebin.com/fbbgxh4m I tried to search, from what I understand 1620v2 works only with single core at x39, from what I see on my system also remains at x37 in single core. At this moment this is my mistake but I still not see why. There are no significant messages in boot.log to understand. I will think more. If you can then you may insert additional DBG into findCPU procedure. Link to comment Share on other sites More sharing options...
Slice Posted May 27, 2014 Share Posted May 27, 2014 Hope I corrected a mistake in rev 2680. Test, please. Link to comment Share on other sites More sharing options...
Kikill3r Posted May 27, 2014 Share Posted May 27, 2014 Hello community, I finally managed to install Clover without those nasty boot0 and boot1 errors. But when I now boot my computer, after the POST there is just that blinking "_" for 4-5 seconds. Then a "7" appears on the screen for 3 seconds. After that, the computer just restarts. I searched for a solution for hours but didn't find anything. Please help me! System specs: Fujitsu T8100 Core 2 Duo T8100 GMA 965 graphics chipset (X3100 core) which is not supported of course, so I work with VESA 3.0 Graphics 1024x768 internal display btw I am using Niresh's mavericks Link to comment Share on other sites More sharing options...

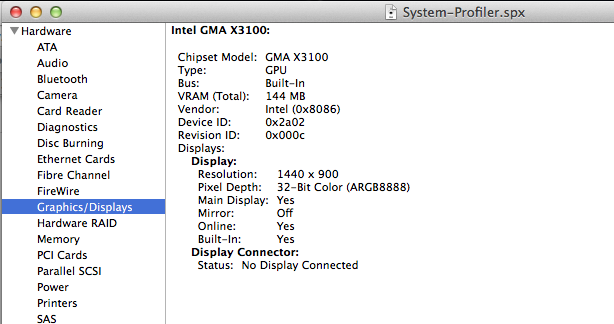

Slice Posted May 27, 2014 Share Posted May 27, 2014 Hello community, I finally managed to install Clover without those nasty boot0 and boot1 errors. But when I now boot my computer, after the POST there is just that blinking "_" for 4-5 seconds. Then a "7" appears on the screen for 3 seconds. After that, the computer just restarts. I searched for a solution for hours but didn't find anything. Please help me! System specs: Fujitsu T8100 Core 2 Duo T8100 GMA 965 graphics chipset (X3100 core) which is not supported of course, so I work with VESA 3.0 Graphics 1024x768 internal display btw I am using Niresh's mavericks I have very similar computer. See my signature #2. X3100 is supported very good but up to 10.7.5. I think you have to stay at this version. About Clover. You seems to choose Boot BiosBlockIO that may not work on notebooks. Choose ordinary boot Sata-64 Link to comment Share on other sites More sharing options...
Simonej Posted May 27, 2014 Share Posted May 27, 2014 Tested but same error, I think the problem is dependent by states generation, if I use SSDT i haven't this problem. Don't worry too much Slice, but I noticed a small performance improvement in single and multiple core! and Clover is working in single core x37 instead of x39 Link to comment Share on other sites More sharing options...
Kikill3r Posted May 27, 2014 Share Posted May 27, 2014 No, I installed in normal Sata-64. After reinstall, now it says b1t:init6 and reboots. It's just throwing random errors onto my head. Link to comment Share on other sites More sharing options...
xpamamadeus Posted May 27, 2014 Share Posted May 27, 2014 No, I installed in normal Sata-64. After reinstall, now it says b1t:init6 and reboots. It's just throwing random errors onto my head. I have same behavior on lenovo 3000 n100. I try one of first version of clover and have same problem. Clover canot be used on this machine... Link to comment Share on other sites More sharing options...
Slice Posted May 27, 2014 Share Posted May 27, 2014 Tested but same error, I think the problem is dependent by states generation, if I use SSDT i haven't this problem. Don't worry too much Slice, but I noticed a small performance improvement in single and multiple core! and Clover is working in single core x37 instead of x39 Corrected in rev.2681. Make full DarwinDump with it. 1 Link to comment Share on other sites More sharing options...
Kikill3r Posted May 27, 2014 Share Posted May 27, 2014 I have same behavior on lenovo 3000 n100. I try one of first version of clover and have same problem. Clover canot be used on this machine... So i can forget Clover? That would be a shame... Link to comment Share on other sites More sharing options...
Slice Posted May 27, 2014 Share Posted May 27, 2014 I have same behavior on lenovo 3000 n100. I try one of first version of clover and have same problem. Clover canot be used on this machine... On what machine? Link to comment Share on other sites More sharing options...
xpamamadeus Posted May 27, 2014 Share Posted May 27, 2014 On what machine? Screen Shot 2014-05-28 at 0.35.51.png http://support.lenovo.com/en_US/detail.page?LegacyDocID=MIGR-63445 Lenovo 3000 n100 i even try to replace cpu from Intel Celeron M processor 430 to Intel Core 2 Duo processor T5600 but same behavior. Link to comment Share on other sites More sharing options...
tluck Posted May 27, 2014 Share Posted May 27, 2014 @xpamamadeaus fwiw, i am using clover to boot a Lenovo T60. it has C2D T5600. this is a very similar model/spec to the 3000, I believe. Note: i run lion 10.7.4 as that is the highest level because of the 32-bit ATI X1300 gfx driver. but works works for snow leopard 10.6.8 too. Link to comment Share on other sites More sharing options...
