magnifico Posted May 14, 2014 Share Posted May 14, 2014 Sergey on wiki ? I edited all posts in the thread to correspond to actual Clover revision.Please install Clover at least 2652 and use new instructions. Link to comment Share on other sites More sharing options...
kjp4756 Posted May 14, 2014 Share Posted May 14, 2014 I updated from 2657 to 2669 today and now my mavericks volume wasn't showing in the clover gui. In my config.plist I have this to hide the EFI partition: <key>Hide</key> <array> <string>EFI</string> </array> Since installing rev 2669 it is also hiding my mavericks volume. Is this a bug? If not, is there a better way to hide my EFI parition? I saw this in the preboot.log which is how I knew the Hide setting was hiding my mavericks volume: 14:052 0:000 Scanning loaders... 14:052 0:000 0: 'Whole Disc Boot' no file system 14:052 0:000 1: 'Whole Disc Boot' no file system 14:052 0:000 2: 'Whole Disc Boot' no file system 14:052 0:000 3: 'Whole Disc Boot' no file system 14:052 0:000 4: 'Legacy HD1' no file system 14:052 0:000 5: 'Legacy HD2' no file system 14:052 0:000 6: 'Legacy HD3' no file system 14:052 0:000 7: 'EFI' hidden 14:052 0:000 8: 'Macintosh HD' 14:097 0:045 hiding entry: \System\Library\CoreServices\boot.efi 14:211 0:114 9: 'Recovery HD' 14:241 0:030 hiding entry: \com.apple.recovery.boot\boot.efi 14:260 0:018 10: 'EFI' hidden 14:260 0:000 11: 'Storage' 14:282 0:021 12: 'Legacy HD3' no file system 14:282 0:000 13: 'Boot OS X' Link to comment Share on other sites More sharing options...
Slice Posted May 15, 2014 Share Posted May 15, 2014 I updated from 2657 to 2669 today and now my mavericks volume wasn't showing in the clover gui. In my config.plist I have this to hide the EFI partition: Hide EFI Since installing rev 2669 it is also hiding my mavericks volume. Is this a bug? If not, is there a better way to hide my EFI parition? I saw this in the preboot.log which is how I knew the Hide setting was hiding my mavericks volume: 14:052 0:000 Scanning loaders... 14:052 0:000 0: 'Whole Disc Boot' no file system 14:052 0:000 1: 'Whole Disc Boot' no file system 14:052 0:000 2: 'Whole Disc Boot' no file system 14:052 0:000 3: 'Whole Disc Boot' no file system 14:052 0:000 4: 'Legacy HD1' no file system 14:052 0:000 5: 'Legacy HD2' no file system 14:052 0:000 6: 'Legacy HD3' no file system 14:052 0:000 7: 'EFI' hidden 14:052 0:000 8: 'Macintosh HD' 14:097 0:045 hiding entry: \System\Library\CoreServices\boot.efi 14:211 0:114 9: 'Recovery HD' 14:241 0:030 hiding entry: \com.apple.recovery.boot\boot.efi 14:260 0:018 10: 'EFI' hidden 14:260 0:000 11: 'Storage' 14:282 0:021 12: 'Legacy HD3' no file system 14:282 0:000 13: 'Boot OS X' It is not a bug. It is too powerful feature "hide all entry that contains a string xxxx" For hiding EFI volume you should decide what namely you want to hide from CloverGUI. May be all legacy entries? May be BOOTX64? Or you want to hide EFI partition from OS desktop? This is quite another task. Link to comment Share on other sites More sharing options...
user3012 Posted May 15, 2014 Share Posted May 15, 2014 CustomUUID=same as you see in SystemProfiler InjectSystemID=false Namely <key>SystemParameters</key> <dict> <key>CustomUUID</key> <string>511CE200-1000-4000-9999-010203040506</string> <key>InjectSystemID</key> <false/> @slice, before I ask my question - thank you for all the work you have done on this! I have just found this post after searching - I want to do exactly the same thing - I want to retain the same hardware ID when I rebuild my computer (which I do fairly regularly) I opened my config.plist and edited as per the instructions you gave above (using my own hardware ID obtained from my System Information/Hardware Overview) but when I reboot I see that a different Hardware ID is showing in Hardware Overview (I suspect automatically generated) - is there something which could be overiding this section of the config.plist? edited to add I see after I reboot that the two lines I had added after the Custom UUID string have disappeared - is this normal behaviour? the lines are <key>InjectSystemID</key> <false/> Link to comment Share on other sites More sharing options...
Slice Posted May 15, 2014 Share Posted May 15, 2014 How is it possible then two lines disappeared? 1 Link to comment Share on other sites More sharing options...
kidalive Posted May 15, 2014 Share Posted May 15, 2014 Hi Slice. I recently build a new PC with a MSI Z87-G41 PC Mate mb and i5-4670K. I installed Mavericks without patch my Bios with pmpatch. Instead I set AsusAICPUPM option of Clover to yes. I also found a similar KernelPm option, what`s the difference between these two options? Unlock msr or mars? Pmpatch unlocks msr just like AsusAICPUPM but what about KernelPm? Link to comment Share on other sites More sharing options...
Maniac10 Posted May 15, 2014 Share Posted May 15, 2014 I updated from 2657 to 2669 today and now my mavericks volume wasn't showing in the clover gui. In my config.plist I have this to hide the EFI partition: <key>Hide</key> <array> <string>EFI</string> </array> Since installing rev 2669 it is also hiding my mavericks volume. Is this a bug? If not, is there a better way to hide my EFI parition? I saw this in the preboot.log which is how I knew the Hide setting was hiding my mavericks volume: 14:052 0:000 7: 'EFI' hidden 14:052 0:000 8: 'Macintosh HD' 14:097 0:045 hiding entry: \System\Library\CoreServices\boot.efi 14:211 0:114 9: 'Recovery HD' 14:241 0:030 hiding entry: \com.apple.recovery.boot\boot.efi 14:260 0:018 10: 'EFI' hidden 14:260 0:000 11: 'Storage' 14:282 0:021 12: 'Legacy HD3' no file system 14:282 0:000 13: 'Boot OS X' Clover is hiding the OSX partition because of the loader's name: boot.efi. You should instead hide partitions by GUID. 1 Link to comment Share on other sites More sharing options...
Slice Posted May 15, 2014 Share Posted May 15, 2014 Hi Slice. I recently build a new PC with a MSI Z87-G41 PC Mate mb and i5-4670K. I installed Mavericks without patch my Bios with pmpatch. Instead I set AsusAICPUPM option of Clover to yes. I also found a similar KernelPm option, what`s the difference between these two options? Unlock msr or mars? Pmpatch unlocks msr just like AsusAICPUPM but what about KernelPm? There are the same patch to provide "do not lock MSR 0xE2". But in different places: 1. in BIOS, the best way but non-reversible. It is dangerous for errors. 2. In AppleCPUPM.kext if used. 3. In mach_kernel. It is for 10.9+ and CPU Haswell. So it will be good enough to patch everywhere. Link to comment Share on other sites More sharing options...
user3012 Posted May 15, 2014 Share Posted May 15, 2014 How is it possible then two lines disappeared? EDITED OK I removed that hard drive and connected another one with Mavericks and Clover v2k_r2671 also has Clover Configurator - however on this drive no problem with disappearing lines :-) so that is progress. It was clean install of Mavericks 10.9.2 with Clover v2k_r2652 which has then been upgraded today to Clover v2k_r2671. So ignore the disappearing lines - whatever caused that is not affecting this drive. but although the Custom UUID I want is in the System Parameters section of the config.plist I still don't get that UUID as the Hardware UUID in System Profile. What could cause that? Link to comment Share on other sites More sharing options...
blackosx Posted May 15, 2014 Share Posted May 15, 2014 although the Custom UUID I want is in the System Parameters section of the config.plist I still don't get that UUID as the Hardware UUID in System Profile. What could cause that? It works here for me. Maybe you have an error in your config.plist? Try editing it with plisteditpro or post it here for checking. Link to comment Share on other sites More sharing options...
FrDakota Posted May 16, 2014 Share Posted May 16, 2014 Hi Slice. I recently build a new PC with a MSI Z87-G41 PC Mate mb and i5-4670K. I installed Mavericks without patch my Bios with pmpatch. Instead I set AsusAICPUPM option of Clover to yes. I also found a similar KernelPm option, what`s the difference between these two options? Unlock msr or mars? Pmpatch unlocks msr just like AsusAICPUPM but what about KernelPm? By the way. Is AsusAiCPUPM needed in an installation on non Asus motherboards ? I always deselect it. Anyway I successfully created a boot stick to install Mavericks on a Dell Inspiron 1720 (ICH8) and installed fine, but I have freezing problems and it doesn't see my Atheros WiFi car which works natively under Leopard. Link to comment Share on other sites More sharing options...

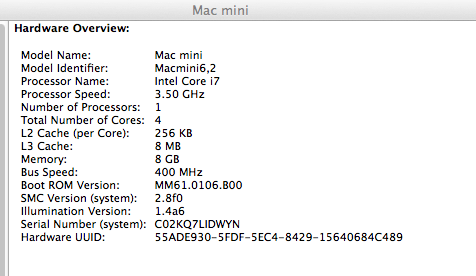

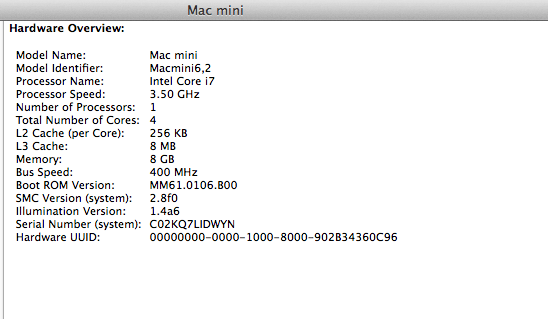

user3012 Posted May 16, 2014 Share Posted May 16, 2014 It works here for me. Maybe you have an error in your config.plist? Try editing it with plisteditpro or post it here for checking. blackosx, hello thanks for replying I remember talking to you a long time ago, probably around 2007 when I first started playing with osx86. I am now trying Clover but am a complete newb at it so have probably missed something or misunderstood something. I tried editing with plistedit pro but it still won't work for me - am attaching my config.plist in a zip file. Also a screenshot of what I see in Hardware Overview after rebooting with that plist. As you can see the Hardware UUID does not match the one in the config.plist edited had a problem with uploading the plist in zip file - will try adding it in a separate post blackosx, hello thanks for replying I remember talking to you a long time ago, probably around 2007 when I first started playing with osx86. I am now trying Clover but am a complete newb at it so have probably missed something or misunderstood something. I tried editing with plistedit pro but it still won't work for me - am attaching my config.plist in a zip file. Also a screenshot of what I see in Hardware Overview after rebooting with that plist. As you can see the Hardware UUID does not match the one in the config.plist edited had a problem with uploading the plist in zip file - will try adding it in a separate post here is the config.plist in a zip file OK just discovered something - I removed the Custom UUID and InjectSystemID from the the config.plist - rebooted and discovered that the hardware UUID I wanted is now showing in the Hardware overview. Is this the way its supposed to work? You add the Custom UUID, reboot and then remove it and reboot again. config.plist.zip Link to comment Share on other sites More sharing options...
blackosx Posted May 16, 2014 Share Posted May 16, 2014 Yes - I do remember your avatar but not the username but then I see you must have re-registered in 2012? Anyway - hi Good to see you now have it working. That's correct in that the value you give CustomUUID in to the config.plist is what you should be seeing as the Hardware UUID. I would have thought the process would work first time, rather than you having to add it, remove it and re-add it. I don't think the boot log shows any mention of CustomUUID being set, as otherwise you could have checked to see if it was being identified while running Clover. @Slice - Maybe you could add a line to the bootlog to indicate a CustomUUID value has been read and applied? Link to comment Share on other sites More sharing options...
user3012 Posted May 16, 2014 Share Posted May 16, 2014 Yes - I do remember your avatar but not the username but then I see you must have re-registered in 2012? Anyway - hi Good to see you now have it working. That's correct in that the value you give CustomUUID in to the config.plist is what you should be seeing as the Hardware UUID. I would have thought the process would work first time, rather than you having to add it, remove it and re-add it. I don't think the boot log shows any mention of CustomUUID being set, as otherwise you could have checked to see if it was being identified while running Clover. @Slice - Maybe you could add a line to the bootlog to indicate a CustomUUID value has been read and applied? I also had thought it would work first time - anyway it is working now - I have the UUID I wanted. Thank you for your time :-) Link to comment Share on other sites More sharing options...
iWin32 Posted May 17, 2014 Share Posted May 17, 2014 Recently read up on the "block kext" option on newer revisions of Clover, and that poses a question: Is it possible to use this in conjunction with on-the-fly kext patching to acheive a patched kext that's loaded later in the boot process? The reason I ask is because I've been trying to experiment with Clover's kext patching abilities with the Intel HD Graphics Framebuffer kext. Most users have gotten it working either by hard patching the kext themselves with Giofrida's tool, or by downloading a prepatched kext from GhostRaider. (BTW, this kext we're patching is AppleIntelHDGraphicsFB.kext) However, since Clover can patch kernel extensions on the fly, I envisioned this to be a better route than patching the kext manually. After an update, all one would have to do is reboot and Clover would do all the work for them. Assuming the patches were still the same, it would work! I've started experimenting with it, but the problem I face is that Clover always tries to load a patched kext early in the boot process. Booting without caches creates this problem because FSInject forces the kext to load before it's dependencies for Graphics have loaded. I've also never gotten a working kernelcache to work with Clover for my purposes because that requires me to have to boot with the vanilla kext (to then regenerate a kernelcache with an unpatched framebuffer), which either produces a blank screen or a distorted screen. VNC produces the same image results, so terminal work is not an option. So, I was wondering if this option could work. Enable the on-the-fly kext patching and kext blocking on the same kext. This would stop it from loading the kext prematurely, and then, when loading the kext later in the boot process, it would load a patched kext. Regardless if this specific idea would work or not, do you have any ideas as to how to go about doing this? If you want, I can point you into the direction of the specific kext patches. Thanks in advanced! Link to comment Share on other sites More sharing options...
toleda Posted May 18, 2014 Share Posted May 18, 2014 since Clover can patch kernel extensions on the fly, I envisioned this to be a better route than patching the kext manually. See toleda/audio_CloverHDMI/README/5. HDMI Audio framebuffer edits. HD3000/HD4000/HD4600 framebuffer edits supported. HDMI audio is not necessary; edits match framebuffer connector to motherboard physical connector. 1 Link to comment Share on other sites More sharing options...
kidalive Posted May 18, 2014 Share Posted May 18, 2014 @toleda. I applied your 8 series clean compile patch, pegp clean compile patch, Intel 5K AMD Nvidia HDMI patch to my DSDT then I used your alc887applehda command script and appleintelframebafferazul script patch to boot. The result is I cannot boot now. The display goes black and I had to force it to shut down. I tried restore stock appleintelframebufferazul then I can see a speaker icon shows but no HDMI audio. Any idea? Link to comment Share on other sites More sharing options...
magnifico Posted May 18, 2014 Share Posted May 18, 2014 Just wanted to pop in and say I got an email from source forge and Clover will once again be a featured project on source forge for the next week! Thanks to every one for your support and all the developers for your contributions.[/size] apianti hey, what happened, because you've been out for so long? Welcome .... Link to comment Share on other sites More sharing options...
scott_donald Posted May 18, 2014 Share Posted May 18, 2014 having problems with a Z77 D3h and booting with a GT 620.... i just bought a few things to make a browser computer - as far as i was understood the GT 620 works out of the box but struggling with it and Clover... if i boot with graphics injector then i get it to boot but with only 1024x768... if i disable graphics injector i then get the dreaded black screen - tried using both HDMI and DVI outputs but still no luck... build 2652 of clover and 10.9.2... anyone have any ideas??? Link to comment Share on other sites More sharing options...
xpamamadeus Posted May 18, 2014 Share Posted May 18, 2014 Doo u have integrated vga turned off or no ? Share config.plist. Link to comment Share on other sites More sharing options...
scott_donald Posted May 18, 2014 Share Posted May 18, 2014 Doo u have integrated vga turned off or no ? Share config.plist. disabled. trying to use the most basic config that worked with my main computer which is in my sig - config.plist.zip Link to comment Share on other sites More sharing options...
xpamamadeus Posted May 18, 2014 Share Posted May 18, 2014 disabled. trying to use the most basic config that worked with my main computer which is in my sig - config.zip try this config. 2 Link to comment Share on other sites More sharing options...
toleda Posted May 18, 2014 Share Posted May 18, 2014 I can see a speaker icon shows but no HDMI audio. Any idea? No idea. See Post #1, Problem Reporting, Mavericks AppleHDA HDMI Audio. Reply to that thread with the requested files attached. 1 Link to comment Share on other sites More sharing options...
scott_donald Posted May 18, 2014 Share Posted May 18, 2014 config.zip try this config. perfect - now i see the changes... thanks so much!!! Link to comment Share on other sites More sharing options...
scott_donald Posted May 19, 2014 Share Posted May 19, 2014 well i have everything working 100% now and last thing was edit my Config to boot the main drive after 3 seconds with injected kexts loaded... did what i thought was that and now i can see the drive... i know i have done a little bit wrong and can't figure out where - config.plist.zip Link to comment Share on other sites More sharing options...
