Slice Posted February 25, 2014 Share Posted February 25, 2014 And what is the issue? Link to comment Share on other sites More sharing options...
WinstonAce Posted February 25, 2014 Share Posted February 25, 2014 Hi Any news regarding HDMI patch? Link to comment Share on other sites More sharing options...
ericsia-ES Posted February 25, 2014 Share Posted February 25, 2014 I have 1 question, when i use clover. It show Mac-F22788a9 , so i need to get mac-f22788a9 smbios? (it is a type of mac model, MacBook4,1 (Mac-F22788A9) ) Link to comment Share on other sites More sharing options...
Slice Posted February 25, 2014 Share Posted February 25, 2014 I have 1 question, when i use clover. It show Mac-F22788a9 , so i need to get mac-f22788a9 smbios? (it is a type of mac model, MacBook4,1 (Mac-F22788A9) ) It is provided automatically. You need no think about it. Hi Any news regarding HDMI patch? HDMI audio Update: v2618 Z87I-Deluxe/HD4600/HD7750 Progress, no HDMI audio 2618 - ssdts, both working 2618-1 - DSDT/Fix, not working. HD4600: GFX0 - no hda-gfx, HDM0 - in dsdt, HDAController not loading, onboard-2 HD7750: GFX0 - in dsdt, HDAU - missing, onboard-2 Other 2618-1 issues FixHDA/inject=2 - 1150 audio stopped working FixAirport - KP on AppleAirPortBrcm43224 should not load, AirPortBrcm4360 should. OK. I see all I expected to see. Is this wrong to do HDMI sound? Anyway you have to do some manual patching, some SSDTs. I think Clover does enough for HDMI. 1 Link to comment Share on other sites More sharing options...
Hackmodford Posted February 25, 2014 Share Posted February 25, 2014 And what is the issue? If I only use the GTX 760 I get a black window in itunes, the video does not play at all, and I eventually get a warning saying it's not HDCP compliant. If I also enable the HD4000 the video will play but the picture is garbled (pink/green) Link to comment Share on other sites More sharing options...
joe75 Posted February 25, 2014 Share Posted February 25, 2014 You can try removing AppleUpstreamUserClient.kext for the 760. The pink/green problem is usually from not having full OpenGL support. Link to comment Share on other sites More sharing options...
WinstonAce Posted February 25, 2014 Share Posted February 25, 2014 Anyway you have to do some manual patching, some SSDTs. I think Clover does enough for HDMI. no disrespect but... Half of the patch needed is the same as no patch at all if I already need DSDT/SSDT patch, what is the HDMI patch good for? Thanks anyway. Link to comment Share on other sites More sharing options...
toleda Posted February 26, 2014 Share Posted February 26, 2014 Finally got Clover Legacy to boot Sandy Bridge . For what it is worth: H67-I Deluxe/HD3000/GT 640/10.9.1/2618 2618: HD3000 and GT 640 HDMI audio working w/ssdts 2618-1: HDMI audio not working - Inject Intel/Nvidia, UseIntelHDMI, etc., SNB would not load. 2618.zip 2618-1.zip 1 Link to comment Share on other sites More sharing options...
ericsia-ES Posted February 26, 2014 Share Posted February 26, 2014 Question 1 and 2 and 3 1.How to generate SmBios and put to Clover? 2.where can i download this version of clover? (I need this version, specific) : rEFIt Version 2.01 UEFI by Slice CLOVER rev 806 Running on: EFI Revision 2.31 3.There are no hackintosh that can install on Dell n4020 until one of my friends build his hackintosh. I felt surprise because it is a miracke that it work like a charm for my laptop. The things that i can detect is he use older versiom of clover. I don't know much more. Now i want to detect his method and make a Maverick installer, can tell me what the possibility or method he use?that is the topic that i ask:http://www.insanelymac.com/forum/topic/296303-what-can-you-observe/ Link to comment Share on other sites More sharing options...
alexanderq Posted February 26, 2014 Share Posted February 26, 2014 1)First of all my friend you have to read this http://clover-wiki.zetam.org/Configuration#Creating-a-configuration-file 2)That version will be useless because 3)Does not support maverick 4)Still you have to read that wiki 1 Link to comment Share on other sites More sharing options...

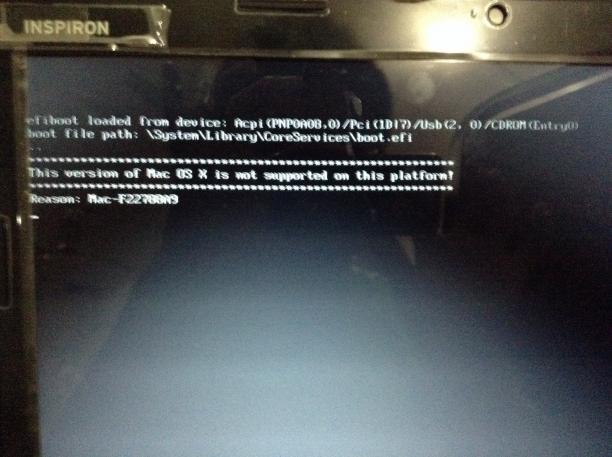

ericsia-ES Posted February 26, 2014 Share Posted February 26, 2014 It is provided automatically. You need no think about it. Which version of clover is provided? But after this picture I won't able to proceed to further installation.. Link to comment Share on other sites More sharing options...
Onixs Posted February 26, 2014 Share Posted February 26, 2014 Bad or board-id is mismatched Link to comment Share on other sites More sharing options...
ericsia-ES Posted February 26, 2014 Share Posted February 26, 2014 Bad or board-id is mismatched are you replying to me? What mean bad or board-id mismatched? but when i use older clover everything goes well 1)First of all my friend you have to read this http://clover-wiki.zetam.org/Configuration#Creating-a-configuration-file 2)That version will be useless because 3)Does not support maverick 4)Still you have to read that wiki alexanderq, so it means that there are no hope for Mavericks? How abount mountain lion? I feel statify with lion or mountain lion.. Do you still have a copy older version of clover that i mention? Link to comment Share on other sites More sharing options...

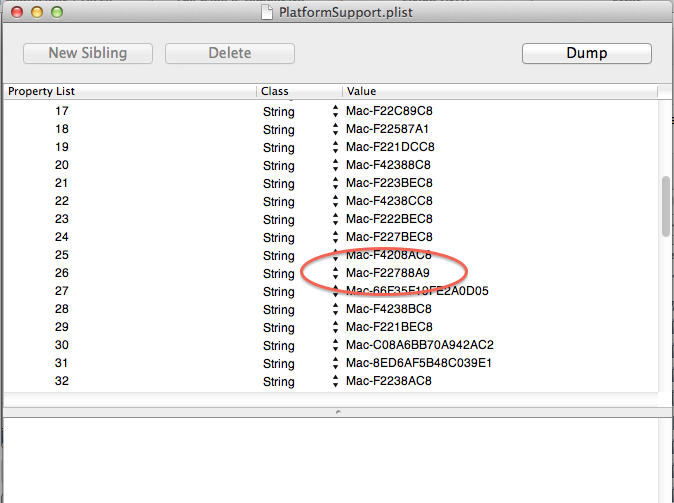

Slice Posted February 26, 2014 Share Posted February 26, 2014 I have 1 question, when i use clover. It show Mac-F22788a9 , so i need to get mac-f22788a9 smbios? (it is a type of mac model, MacBook4,1 (Mac-F22788A9) ) Yes, this boardID correspond to MacBook4,1 having IntelX3100 graphics so it is not supported by Mavericks. But it is supported by 10.7.5 This system may works in 32bit mode and contains drivers for the graphics. Link to comment Share on other sites More sharing options...
ericsia-ES Posted February 26, 2014 Share Posted February 26, 2014 Yes, this boardID correspond to MacBook4,1 having IntelX3100 graphics so it is not supported by Mavericks. But it is supported by 10.7.5 Screen Shot 2014-02-26 at 17.22.32.png This system may works in 32bit mode and contains drivers for the graphics. wow, I didn't tell you my laptop is 64bit but how you know? I tried clover to install mountain lion and Maverick but can't, i get the same error. I use your newest version of clover to boot my installed (working) hackintosh but and the result is I get mac-f22788a9.. I have to use back the older version of your clover to boot, what is the extra feature of the older version of your clover? (The conclusion is there are something at your previous version of clover that make my hackintosh can load to system) Link to comment Share on other sites More sharing options...
Slice Posted February 26, 2014 Share Posted February 26, 2014 wow, I didn't tell you my laptop is 64bit but how you know? I tried clover to install mountain lion and Maverick but can't, i get the same error. I use your newest version of clover to boot my installed (working) hackintosh but and the result is I get mac-f22788a9.. I have to use back the older version of your clover to boot, what is the extra feature of the older version of your clover? (The conclusion is there are something at your previous version of clover that make my hackintosh can load to system) Probably you miss a difference in config.plist structure of Clover 2000. If you want you can write your own config.plist with SMBIOS values for MacBookPro11,1 but I don't think it is very good idea. Yes, in this case you boot into Mountain Lion or Mavericks. But Lion-32 is a last working system for you. Link to comment Share on other sites More sharing options...
ericsia-ES Posted February 26, 2014 Share Posted February 26, 2014 Probably you miss a difference in config.plist structure of Clover <2000 and >2000. If you want you can write your own config.plist with SMBIOS values for MacBookPro11,1 but I don't think it is very good idea. Yes, in this case you boot into Mountain Lion or Mavericks. But Lion-32 is a last working system for you. why lion-32 is last working system for me? When i use your previous clover, the efi is 64-bit, I think it is possible to install Mavericks too.. Why you are sure that MacBookPro11,1? I still a ver new user to hackintosh, i don't know how to write config.plist Link to comment Share on other sites More sharing options...
Slice Posted February 26, 2014 Share Posted February 26, 2014 SMBIOSBiosReleaseDate05/03/10BiosVendorApple Inc.BiosVersionMB11.88Z.0061.B03.0809221748Board-IDMac-F4208CC8BoardManufacturerApple Inc.BoardSerialNumber***********************BoardType10BoardVersionProto1ChassisAssetTagLatitudeD420ChassisManufacturerApple Inc.ChassisType16FamilyMacBookFirmwareFeatures0xC0001403LocationInChassisMLBManufacturerApple Inc.MobileProductNameMacBook1,1SerialNumber***********SmUUID00000000-0000-1000-8000-010203040506TrustVersion1.0 1 Link to comment Share on other sites More sharing options...
ericsia-ES Posted February 26, 2014 Share Posted February 26, 2014 Thank you very much ^^ I feel so happy, hope this smbios can help me successfully install Mavericks. I have another question, where is the config.plist/smbios located? You recommend me use which version of clover? <key>SMBIOS</key> <dict> <key>BiosReleaseDate</key> <string>05/03/10</string> <key>BiosVendor</key> <string>Apple Inc.</string> <key>BiosVersion</key> <string>MB11.88Z.0061.B03.0809221748</string> <key>Board-ID</key> <string>Mac-F4208CC8</string> <key>BoardManufacturer</key> <string>Apple Inc.</string> <key>BoardSerialNumber</key> <string>***********************</string> <key>BoardType</key> <integer>10</integer> <key>BoardVersion</key> <string>Proto1</string> <key>ChassisAssetTag</key> <string>LatitudeD420</string> <key>ChassisManufacturer</key> <string>Apple Inc.</string> <key>ChassisType</key> <integer>16</integer> <key>Family</key> <string>MacBook</string> <key>FirmwareFeatures</key> <string>0xC0001403</string> <key>LocationInChassis</key> <string>MLB</string> <key>Manufacturer</key> <string>Apple Inc.</string> <key>Mobile</key> <true/> <key>ProductName</key> <string>MacBook1,1</string> <key>SerialNumber</key> <string>***********</string> <key>SmUUID</key> <string>00000000-0000-1000-8000-010203040506</string> <key>Trust</key> <true/> <key>Version</key> <string>1.0</string> </dict> oh no, why there are no board serial? Link to comment Share on other sites More sharing options...
khe91 Posted February 26, 2014 Share Posted February 26, 2014 Because you must insert your serial number there. Link to comment Share on other sites More sharing options...
ericsia-ES Posted February 26, 2014 Share Posted February 26, 2014 (edited) Because you must insert your serial number there. Thank you for tell me but which serial? where can i get it? Edited February 27, 2014 by ericsia-newbie Link to comment Share on other sites More sharing options...
ericsia-ES Posted February 26, 2014 Share Posted February 26, 2014 (edited) <key>SMBIOS</key> <dict> <key>BiosReleaseDate</key> <string>05/03/10</string> <key>BiosVendor</key> <string>Apple Inc.</string> <key>BiosVersion</key> <string>MB11.88Z.0061.B03.0809221748</string> <key>Board-ID</key> <string>Mac-F4208CC8</string> <key>BoardManufacturer</key> <string>Apple Inc.</string> <key>BoardSerialNumber</key> <string>***********************</string> <key>BoardType</key> <integer>10</integer> <key>BoardVersion</key> <string>Proto1</string> <key>ChassisAssetTag</key> <string>LatitudeD420</string> <key>ChassisManufacturer</key> <string>Apple Inc.</string> <key>ChassisType</key> <integer>16</integer> <key>Family</key> <string>MacBook</string> <key>FirmwareFeatures</key> <string>0xC0001403</string> <key>LocationInChassis</key> <string>MLB</string> <key>Manufacturer</key> <string>Apple Inc.</string> <key>Mobile</key> <true/> <key>ProductName</key> <string>MacBook1,1</string> <key>SerialNumber</key> <string>***********</string> <key>SmUUID</key> <string>00000000-0000-1000-8000-010203040506</string> <key>Trust</key> <true/> <key>Version</key> <string>1.0</string> </dict> Slice, Thank You for your smbios but someone say macbookpro 11,1 is the most new and my laptop is very old... Is this the right smbios? or do you have another smbios recommend to me? Edited February 27, 2014 by ericsia-newbie Link to comment Share on other sites More sharing options...
Allan Posted February 27, 2014 Share Posted February 27, 2014 Hi. 2618: HDMI audio and video working - Inject Intel, UseIntelHDMI, Audio Inject, AddHDMI_8000000, NewWay_80000000, ig-platform-id. Link to comment Share on other sites More sharing options...
ericsia-ES Posted February 27, 2014 Share Posted February 27, 2014 Hi. 2618: HDMI audio and video working - Inject Intel, UseIntelHDMI, Audio Inject, AddHDMI_8000000, NewWay_80000000, ig-platform-id. hi, are you talking to me? Yes, this boardID correspond to MacBook4,1 having IntelX3100 graphics so it is not supported by Mavericks. But it is supported by 10.7.5 Screen Shot 2014-02-26 at 17.22.32.png This system may works in 32bit mode and contains drivers for the graphics. 10.7.5 can work for me? Thank you.. I will go and try it Link to comment Share on other sites More sharing options...
toleda Posted February 27, 2014 Share Posted February 27, 2014 2618: HDMI audio and video working - Inject Intel, UseIntelHDMI, Audio Inject, AddHDMI_8000000, NewWay_80000000, ig-platform-id. Not required: AddHDMI_8000000, NewWay_80000000 Link to comment Share on other sites More sharing options...
