phi777 Posted January 23 Share Posted January 23 59 minutes ago, Slice said: The logs are almost same. But I wonder if 5155 works and 5156 no. There is no differences which may prevent old working config to be working with new Clover. Test latest version CLOVERX64.efi.zip 801.46 kB · 1 download Thank you, but same problem, I will use v5155 for now. 1 Link to comment Share on other sites More sharing options...
MakAsus Posted January 23 Share Posted January 23 4 minutes ago, miliuco said: @MakAsus You boot Sonoma with SIP enabled but is the Fenvi wifi working in this way? I booted into Sonoma with SIP enabled and kexts blocked. At the same time, the Fenvi wifi does not work for me, but the realtek wifi utility and wifi USB dongle stick are works. 1 Link to comment Share on other sites More sharing options...
fabiosun Posted January 23 Share Posted January 23 9 minutes ago, MakAsus said: no one is stopping you from temporarily moving these Kexts to the off folder. I I use only Sonoma THis feature would be use to update to new Sonoma beta. It is possible as we know, but we have this feature at bootmenu level and i hoped in a future implementation in the config.plist 1 Link to comment Share on other sites More sharing options...
MakAsus Posted January 23 Share Posted January 23 (edited) On 1/23/2024 at 8:12 PM, mariosun said: I use only Sonoma THis feature would be use to update to new Sonoma beta. It is possible as we know, but we have this feature at bootmenu level and i hoped in a future implementation in the config.plist I understand.😉 Bat as far as I know, such a similar function is available in the OС because all kexts there are stored in a common folder, so each aded kext is entered into the config in a certain order, and the ability has been added not to delete a line, but to disable it. Which is not very convenient if there is no way boot to desktop. Unlike the OC, a problematic kext can be blocked once by a space or permanently moved to the off folder, which can be done even from the Clover shell. In Clover, unlike the OC, a problematic kext can be blocked once with a space or permanently moved to a disabled folder, which can be done even from the Clover shell. Therefore, I guess that this function will be duplicate. Edited January 25 by MakAsus 1 Link to comment Share on other sites More sharing options...
Slice Posted January 24 Share Posted January 24 23 hours ago, tluck said: Ok interesting. OEM/boardID/kexts works up to now. meaning some change in december for 5157. What do you see in preboot.log as me? 0:706 0:010 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Standard PC (Q35 + ICH9, 2009)--52-54-00-12-34-56'. Dir doesn't exist. 0:707 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Standard PC (Q35 + ICH9, 2009)'. Dir doesn't exist. 0:707 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Standard PC (Q35 + ICH9, 2009)-2000'. Dir doesn't exist. 0:707 0:000 _checkOEMPath looked for config file at '\EFI\CLOVER\OEM\\config.plist'. File doesn't exist. 0:707 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\-2000'. Dir doesn't exist. 1 Link to comment Share on other sites More sharing options...
Slice Posted January 24 Share Posted January 24 No such path. There is a path OEM\BoardName\... but there is no path OEM\BoardID\... So why I see these messages in QEMU 0:693 0:000 Running on: 'Standard PC (Q35 + ICH9, 2009)' with board '' BoardName is empty. 0:707 0:000 _checkOEMPath looked for config file at '\EFI\CLOVER\OEM\\config.plist'. File doesn't exist. this is empty board name. 2 Link to comment Share on other sites More sharing options...
tluck Posted January 26 Share Posted January 26 On 1/24/2024 at 7:56 AM, Slice said: What do you see in preboot.log as me? 0:706 0:010 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Standard PC (Q35 + ICH9, 2009)--52-54-00-12-34-56'. Dir doesn't exist. 0:707 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Standard PC (Q35 + ICH9, 2009)'. Dir doesn't exist. 0:707 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\Standard PC (Q35 + ICH9, 2009)-2000'. Dir doesn't exist. 0:707 0:000 _checkOEMPath looked for config file at '\EFI\CLOVER\OEM\\config.plist'. File doesn't exist. 0:707 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\-2000'. Dir doesn't exist. so the latest clover loads everything but kexts from OEM/board tluck@Toms-T420 /Volumes/ESP/EFI/CLOVER $ grep OEM /Library/Logs/CloverEFI/boot.log 0:105 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\41786UU--00-21-CC-4A-13-10'. Dir doesn't exist. 0:105 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\41786UU\UEFI'. Dir doesn't exist. 0:105 0:000 _checkOEMPath: set OEMPath: '\EFI\CLOVER\OEM\41786UU' 0:106 0:000 Using config.plist at path: \EFI\CLOVER\OEM\41786UU 11:673 0:000 DSDT found in Clover volume OEM folder: \EFI\CLOVER\OEM\41786UU\ACPI\patched\DSDT.aml 11:674 0:000 Inserting SSDT-T420-PS2K-keys.aml from \EFI\CLOVER\OEM\41786UU\ACPI\patched: size=1418 OCABC: AllocPages 1 0xB6FC2000 (1) - Success 11:674 0:000 Inserting SSDT-PNLF.aml from \EFI\CLOVER\OEM\41786UU\ACPI\patched: size=1128 OCABC: AllocPages 1 0xB6FC1000 (1) - Success 11:674 0:000 Inserting SSDT-RMCF.aml from \EFI\CLOVER\OEM\41786UU\ACPI\patched: size=911 OCABC: AllocPages 1 0xB6FC0000 (1) - Success 11:674 0:000 Inserting SSDT-CpuPm.aml from \EFI\CLOVER\OEM\41786UU\ACPI\patched: size=1515 OCABC: AllocPages 1 0xB6FBF000 (1) - Success meaning i had to copy OEM/*/kexts to EFI/CLOVER tluck@Toms-T420 /Volumes/ESP/EFI/CLOVER $ ls -l /Volumes/ESP/EFI/CLOVER/ total 3521 -rwxrwxrwx 1 tluck staff 1798912 Jan 25 20:10 CLOVERX64.efi drwxrwxrwx 1 tluck staff 512 Jan 25 20:35 NU drwxrwxrwx 1 tluck staff 512 Jan 20 09:16 OEM drwxrwxrwx 1 tluck staff 512 Jan 19 15:45 drivers drwxrwxrwx 1 tluck staff 512 Jan 25 20:10 kexts drwxrwxrwx 1 tluck staff 512 Jan 18 22:34 misc drwxrwxrwx 1 tluck staff 512 Jan 19 15:47 themes drwxrwxrwx 1 tluck staff 512 Jan 25 20:10 tools tluck@Toms-T420 /Volumes/ESP/EFI/CLOVER $ ls -l /Volumes/ESP/EFI/CLOVER/OEM/41786UU/ total 55 drwxrwxrwx 1 tluck staff 1536 Jan 18 19:41 ACPI -rwxrwxrwx 1 tluck staff 12268 Nov 11 2021 config.plist -rwxrwxrwx 1 tluck staff 13369 Apr 28 2021 config.works.plist drwxrwxrwx 1 tluck staff 512 Jan 21 18:01 kexts oh but the graphics are working again! thanks! Link to comment Share on other sites More sharing options...
Stefanalmare Posted January 26 Share Posted January 26 Maybe somebody need OC quirk DisableIoMapperMapping, Clover equivalent: Spoiler <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>DisableIoMapperMapping</string> <key>Disabled</key> <false/> <key>Find</key> <data>ww==</data> <key>InfoPlistPatch</key> <false/> <key>MaskFind</key> <data>AA==</data> <key>MaskReplace</key> <data>/w==</data> <key>Name</key> <string>com.apple.iokit.IOPCIFamily</string> <key>Procedure</key> <string>__ZN8AppleVTD14addMemoryRangeEyy</string> <key>Replace</key> <data>ww==</data> </dict> </array> Or @Slice can insert it as quirk. It was necessary for me in my z390 Aorus Master. @Slice I had some time and added Clover as boot option in my rigs. Please explain me how can I make the latest Clover to boot legacy BIOS Core2 machines. I have 3 of them and I can't reach Clover picker. Always send me to BIOS boot options. Link to comment Share on other sites More sharing options...
Slice Posted January 26 Share Posted January 26 @Stefanalmare, OK, one more explanation. 1. You should format HDD to GUID partition scheme with 200Mb EFI partition (ESP) formatted to FAT32. SIC! It should not be FAT16! Check carefully. 2. Sector 0 of raw device HDD must contain 442 bytes of loader boot0af (first stage loader) 3. Sector 0 of ESP must contain 512 bytes of loader boot1f32 (second stage loader) 4. At the root of ESP there must be file (it can be invisible) BOOT which can be renamed BOOT6 or BOOT7. For Core2 machines BOOT7 is preferable. Rename BOOT7 -> BOOT (third stage loader) 5. This third stage loader will search a file ESP/EFI/CLOVER/CLOVERX64.EFI. It will not search /BOOTX64.EFI. This is Clover GUI. Avoid third party first, second or third loaders because they will bot boot Clover. How to install these loaders read again https://github.com/CloverHackyColor/CloverBootloader/wiki 2 Link to comment Share on other sites More sharing options...
Stefanalmare Posted January 26 Share Posted January 26 (edited) 7 hours ago, Slice said: @Stefanalmare, OK, one more explanation. 1. You should format HDD to GUID partition scheme with 200Mb EFI partition (ESP) formatted to FAT32. SIC! It should not be FAT16! Check carefully. 2. Sector 0 of raw device HDD must contain 442 bytes of loader boot0af (first stage loader) 3. Sector 0 of ESP must contain 512 bytes of loader boot1f32 (second stage loader) 4. At the root of ESP there must be file (it can be invisible) BOOT which can be renamed BOOT6 or BOOT7. For Core2 machines BOOT7 is preferable. Rename BOOT7 -> BOOT (third stage loader) 5. This third stage loader will search a file ESP/EFI/CLOVER/CLOVERX64.EFI. It will not search /BOOTX64.EFI. This is Clover GUI. Avoid third party first, second or third loaders because they will bot boot Clover. How to install these loaders read again https://github.com/CloverHackyColor/CloverBootloader/wiki Thank you! Spoiler Edited January 26 by Stefanalmare 4 Link to comment Share on other sites More sharing options...
chris1111 Posted January 28 Share Posted January 28 Testing macOS Sonoma with Clover ESP Legacy booting on DELL Optiplex 790 base CPU Sandy bridge Graphics Kepler Geforce 710 Works Spoiler 3 Link to comment Share on other sites More sharing options...

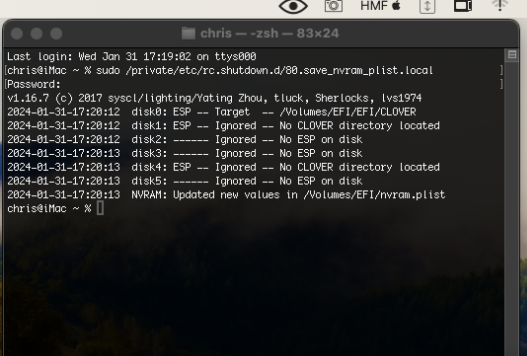

Slice Posted January 28 Share Posted January 28 @chris1111, check please saving NVRAM.plist during reboot (rc.shutdown etc). I remember you know what I am saying about. Link to comment Share on other sites More sharing options...
chris1111 Posted January 28 Share Posted January 28 6 hours ago, Slice said: @chris1111, check please saving NVRAM.plist during reboot (rc.shutdown etc). I remember you know what I am saying about. What is the NVRAM issue? OK I can see but tell me more about because correct me if Iam wrong a lot of change in clover in the NVMAM side from you Link to comment Share on other sites More sharing options...
Slice Posted January 28 Share Posted January 28 5 hours ago, chris1111 said: What is the NVRAM issue? OK I can see but tell me more about because correct me if I am wrong a lot of change in clover in the NVMAM side from you There should be nvram2 utility in /usr/local/bin/ It works similar to native nvram utility but saves more variables. New nvram.plist can be read by Clover 5155+. But I forgot if rc.shutdown should have special permissions. nvram2.zip Link to comment Share on other sites More sharing options...
chris1111 Posted January 28 Share Posted January 28 57 minutes ago, Slice said: There should be nvram2 utility in /usr/local/bin/ It works similar to native nvram utility but saves more variables. New nvram.plist can be read by Clover 5155+. But I forgot if rc.shutdown should have special permissions. nvram2.zip 10.33 kB · 0 downloads With the Clover install Package nvram2 installs well in /usr/local/bin no problem on that side Regarding rc.shutdown and permissions, I don't think there is a problem because I have no Shutdown problem even on Legacy based config 1 Link to comment Share on other sites More sharing options...
Slice Posted January 29 Share Posted January 29 What about real test? Link to comment Share on other sites More sharing options...
chris1111 Posted January 29 Share Posted January 29 4 hours ago, Slice said: What about real test? do you need more? I am going to work I will see this tread tonight Link to comment Share on other sites More sharing options...
Slice Posted January 29 Share Posted January 29 I want to see your nvram.plist saved in EFI during reboot. Link to comment Share on other sites More sharing options...
chris1111 Posted January 29 Share Posted January 29 2 hours ago, Slice said: I want to see your nvram.plist saved in EFI during reboot. Ok I will back to you when iam finish to work Link to comment Share on other sites More sharing options...
chris1111 Posted January 29 Share Posted January 29 @Slice I don't have any nvram.plist but you can't trust me because I'm on a Legacy-based machine, and I even tried to put EmuVariableUefi.efi without success Link to comment Share on other sites More sharing options...
Slice Posted January 29 Share Posted January 29 27 minutes ago, chris1111 said: @Slice I don't have any nvram.plist but you can't trust me because I'm on a Legacy-based machine, and I even tried to put EmuVariableUefi.efi without success So why I asked you. I want to see nvram.plist on legacy-based machine. It looks like rc.shutdown will not work in Sonoma. Some other solution? Link to comment Share on other sites More sharing options...
chris1111 Posted January 29 Share Posted January 29 (edited) 5 hours ago, Slice said: So why I asked you. I want to see nvram.plist on legacy-based machine. It looks like rc.shutdown will not work in Sonoma. Some other solution? It seem not working also in Ventura, I just testing booting Ventura EDIT ***** But it work on Catalina Edited January 30 by chris1111 But it work on Catalina Link to comment Share on other sites More sharing options...
chris1111 Posted January 30 Share Posted January 30 @Slice See my edit post before this one Link to comment Share on other sites More sharing options...
Slice Posted January 30 Share Posted January 30 4 hours ago, chris1111 said: @Slice See my edit post before this one hmmmm, page 1188 doesn't contain your posts. Link to comment Share on other sites More sharing options...
fabiosun Posted January 30 Share Posted January 30 @Slice Is it possible to define SecureBootModel (Enabled/Disabled I mean) in Clover bootloader? Thank you Link to comment Share on other sites More sharing options...
