MacKonsti Posted December 29, 2021 Share Posted December 29, 2021 (edited) Hello @Slice and @Jief_Machak and everyone, season greetings. I updated to r5143 on my NUC8 and it works well. I have been browsing the boot log (in Hackintool) and also compared my config to the sample in the package Slice, and wanted to report my findings for possible fixing: 1. Logging during boot 0:105 0:000 === [ GetDevices ] ============================== [...] 0:105 0:000 Legacy MAC address of LAN #0= FF:FF:FF:FF:FF:FF: 0:105 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\NUC8i7BEH--FF-FF-FF-FF-FF-FF'. Dir doesn't exist. 0:105 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\NUC8BEB\UEFI'. Dir doesn't exist. 0:105 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\NUC8i7BEH'. Dir doesn't exist. 0:106 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\NUC8i7BEH-2300'. Dir doesn't exist. 0:106 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\NUC8BEB'. Dir doesn't exist. 0:106 0:000 _checkOEMPath Look for oem dir at path '\EFI\CLOVER\OEM\NUC8BEB-2300'. Dir doesn't exist. 0:106 0:000 === [ GetUserSettings ] ========================= I think you may want to remove the word _checkOEMPath being displayed, and just leave "Look for oem dir at path" perhaps consider improving it to "Looking for OEM folder at path" 0:106 0:000 === [ GetUserSettings ] ========================= 0:106 0:000 GetDefaultModel()=iMac18,3 0:107 0:000 Using config.plist at path: \EFI\CLOVER 0:108 0:000 Cannot find smbios.plist at path '\EFI\CLOVER' : Not Found 0:108 0:000 '\EFI\CLOVER\smbios.plist' not loaded. Efi error Not Found You may want to consider to make the error reported only once (not found SMBIOS.plist file) ? 38:424 0:000 === [ ACPIPatchedAML ] ========================== 38:424 0:000 Unsorted 38:424 0:000 Inserting SSDT-APPLE.aml from \EFI\CLOVER\ACPI\patched: size=236 OCABC: AllocPages 1 0x6F5BC000 (1) - Success ... Success 38:424 0:000 Inserting SSDT-AWAC.aml from \EFI\CLOVER\ACPI\patched: size=81 OCABC: AllocPages 1 0x6F5BB000 (1) - Success ... Success 38:424 0:000 Inserting SSDT-EC-USBX.aml from \EFI\CLOVER\ACPI\patched: size=377 OCABC: AllocPages 1 0x6F5BA000 (1) - Success ... Success 38:425 0:000 Inserting SSDT-HPTE.aml from \EFI\CLOVER\ACPI\patched: size=74 OCABC: AllocPages 1 0x6F5B9000 (1) - Success ... Success 38:425 0:000 Inserting SSDT-JHL6340.aml from \EFI\CLOVER\ACPI\patched: size=1430 OCABC: AllocPages 1 0x6F5B8000 (1) - Success ... Success 38:425 0:000 Inserting SSDT-NAMES.aml from \EFI\CLOVER\ACPI\patched: size=199 OCABC: AllocPages 1 0x6F5B7000 (1) - Success ... Success 38:425 0:000 Disabled: SSDT-PLUG.aml, skip 38:425 0:000 Inserting SSDT-PMCR.aml from \EFI\CLOVER\ACPI\patched: size=134 OCABC: AllocPages 1 0x6F5B6000 (1) - Success ... Success 38:426 0:000 Inserting SSDT-SBUS.aml from \EFI\CLOVER\ACPI\patched: size=189 OCABC: AllocPages 1 0x6F5B5000 (1) - Success ... Success 38:426 0:000 Inserting SSDT-XOSI.aml from \EFI\CLOVER\ACPI\patched: size=190 OCABC: AllocPages 1 0x6F5B4000 (1) - Success ... Success Same for this one, there is double confirmation not really necessary (I refer to the second ... Success string) or is it different? 2. Missing or not-yet-updated Sample config parameters I know you did not create/add this but it would be useful to include DisabledAML in your sample, Slice, after DisableASPM ? <key>#DisabledAML</key> <array> <string>SSDT-PLUG.aml</string> <string>SSDT-MINE.aml</string> <string>SSDT-OTHER.aml</string> </array> Also the RenameDevices you made us be careful in structure, is still the old version: <key>#RenameDevices</key> <array> <dict> <key>_SB.PCI0.RP09.PXSX</key> <string>SSD0</string> </dict> </array> 3. Quick Questions a) In the definition of SMBIOS, the key ChassisType accepts integers and hex as string? <key>ChassisType</key> <integer>16</integer> or <key>ChassisType</key> <string>0x10</string> These are both valid and correct? b) What does your value "MLB" stand for (means) in the key LocationInChassis? Should we replace it with something custom of ours? c) The value of <key>SmbiosVersion</key> as <string>0x0300</string> is only for iMac? I cannot find reference of value for Macmini8,1... and not sure where it is used/displayed ? Or is it for all Apple firmwares this version? d) There is a bootlog entry 37:907 0:616 Boot option Boot0000 not found in my list. Any idea please where this is coming from? Thank you for reading and considering. Edited December 29, 2021 by MacKonsti Link to comment Share on other sites More sharing options...
Slice Posted December 29, 2021 Share Posted December 29, 2021 @MacKonsti I will account this as TODO but this moment I can't even think about your questions. 2. Yes, it should be updated. 3a) as always in Clover. <integer> decimal and <string> hexadecimal acceptable. 3b) MLB is MotherLogicBoard serial number. 3c) It appear to be no matter. 1 Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted December 29, 2021 Share Posted December 29, 2021 @MacKonsti I used the Rename Devices feature in Clover Configurator and it created the Entries in the correct format: <key>RenameDevices</key> <array> <dict> <key>_SB.PCI0.SAT1</key> <string>SATA</string> </dict> Link to comment Share on other sites More sharing options...
MacKonsti Posted December 29, 2021 Share Posted December 29, 2021 Yes thanks @5T33Z0 it's just that the sample config in the packaged Clover still has the old format without <array> it was a note for Slice or Jief to update on GitHub. However, it seems all this time, I have had LocationInChassis with a wrong value, it was supposed to be the same MLB as in RtVariables and not the word "MLB"? It is still unclear... Link to comment Share on other sites More sharing options...
PG7 Posted December 30, 2021 Share Posted December 30, 2021 Hi Clover r5143 is different at boot in Legacy until r5142 I could install clover in boot6 and it worked in Legacy mode on r5143 if you do it in boot6 it just stays on screen 6_ and doesn't come out of it already with Boot7 it works but the mouse is unusable thank you to all of the team 1 Link to comment Share on other sites More sharing options...
Slice Posted December 30, 2021 Share Posted December 30, 2021 19 hours ago, MacKonsti said: Yes thanks @5T33Z0 it's just that the sample config in the packaged Clover still has the old format without <array> it was a note for Slice or Jief to update on GitHub. However, it seems all this time, I have had LocationInChassis with a wrong value, it was supposed to be the same MLB as in RtVariables and not the word "MLB"? It is still unclear... Yes, it is the bug and I don't remember its origin. Correcting now. 1 Link to comment Share on other sites More sharing options...
Slice Posted December 30, 2021 Share Posted December 30, 2021 4 hours ago, PG7 said: Hi Clover r5143 is different at boot in Legacy until r5142 I could install clover in boot6 and it worked in Legacy mode on r5143 if you do it in boot6 it just stays on screen 6_ and doesn't come out of it already with Boot7 it works but the mouse is unusable thank you to all of the team it looks like the new bug. I always recommend to use an old version of boot6 because it never changed in functions. 1 1 Link to comment Share on other sites More sharing options...
Slice Posted January 2, 2022 Share Posted January 2, 2022 On 12/30/2021 at 3:43 PM, PG7 said: Hi Clover r5143 is different at boot in Legacy until r5142 I could install clover in boot6 and it worked in Legacy mode on r5143 if you do it in boot6 it just stays on screen 6_ and doesn't come out of it already with Boot7 it works but the mouse is unusable thank you to all of the team Test, please, this version. I probably know what is wrong boot6 3 Link to comment Share on other sites More sharing options...
denjohan Posted January 5, 2022 Share Posted January 5, 2022 I was trying to make a Clover USB with BootDiskUtility_v2.1.2020.028b for legacy booting on an HP xw6600 (BIOS 1.46A) but it gets stuck at the "6_" prompt. Unfortunately, there are few older Clover versions with images readable by BDU so I had to make the USB on a Mac with Clover v2.3k_r3911 (newer versions didn't boot either). I replaced the r5143 boot6 created by BDU with the version provided by Slice but it still gets stuck at the "6_" prompt, even if I press "6". The r3911 USB made on the Mac boots into Clover but I can't boot from the non-TPM Windows11 installation USB made with Rufus 3.17.1846. Once I get the legacy booting and Windows11 to work, I'm planning to install MacOS too, hopefully Catalina. Link to comment Share on other sites More sharing options...
LockDown Posted January 5, 2022 Share Posted January 5, 2022 (edited) Is ExtendedFirmwareFeatures & ExtendedFirmwareFeaturesMask are just random characters as long its 35/64 bits? Edited January 5, 2022 by LockDown Link to comment Share on other sites More sharing options...
joevt Posted January 5, 2022 Share Posted January 5, 2022 1 hour ago, LockDown said: Is ExtendedFirmwareFeatures & ExtendedFirmwareFeaturesMask are just random characters as long its 35/64 bits? 0-35 = 36 bits. https://github.com/acidanthera/OpenCorePkg/blob/1cb8490fd60f6b5f983d42e5bbf08e3d2d43d8f6/Include/Apple/IndustryStandard/AppleFeatures.h See the showfirmwarefeatures command in the gfxutil.sh script at https://gist.dreamtobe.cn/joevt/477fe842d16095c2bfd839e2ab4794ff 1 Link to comment Share on other sites More sharing options...
PG7 Posted January 5, 2022 Share Posted January 5, 2022 (edited) On 1/2/2022 at 1:37 PM, Slice said: Test, please, this version. I probably know what is wrong boot6 439.5 kB · 10 downloads @Slice hello, good year to the whole team Slice with this boot did NOT work but then i followed your idea and tested it with the r5142 boot6 and it worked it would be possible to fix the next Clover with this boot6 that is working on pkg r5142 thanks for the solution * google translate logs boot 2022-01-05_20-03_CLOVERX64.EFI.log preboot.log Edited January 5, 2022 by PG7 Link to comment Share on other sites More sharing options...
mnfesq Posted January 13, 2022 Share Posted January 13, 2022 I use Clover on my Windows desktop because my motherboard does not support NVMe drives. The NVMe driver in Clover loads and then allows me to use an NVMe drive as my Windows system drive. I can't tell you how amazing that is to me and I am very grateful to the Clover team who made that possible. I have a question: If Clover can enable an unsupported motherboard to load an NVMe drive, might Clover also be capable of being modified to include something that would allow Windows 11 to be run on a system with a CPU that does not have all of the minimum features required to install Windows 11? My motherboard supports TPM 2.0 but I am using a Haswell (4th Gen.) CPU and Windows 11 requires an 8th Gen. CPU. Thanks. Link to comment Share on other sites More sharing options...
1Revenger1 Posted January 13, 2022 Share Posted January 13, 2022 1 hour ago, Hervé said: I invite you to refer to the dedicated Win11 thread of the Windows section where you'll find existing answers to your particular Win11 query. And no, there's no need of Clover for this. As for your motherboard and NVME, what you state seems impossible to me. By its own very nature, an NVME SSD is basically a PCIe SSD connected over an M.2 physical interface. If your motherboard does not support NVME SSDs, I would expect it supports M.2 SATA SSDs only. Of course, I assume here that your motherboard has M.2 slots for SSD, unless you tell us you actually use some M.2-to-SATA adapter here. There are 2 x types of M.2 SSD: NVME -> PCIe SSDs that use n x lanes (usually 2 or 4) of given PCIe versions (usually 3.0 or 4.0). One usually needs to compare the motherboard's specs to the NVME SSD's specs in order to verify that PCIe versions and number of lanes are aligned. For instance, it's a bit of a waste to fit a PCIe 4.0 x4 NVME SSD to a motherboard with M.2 slots that only supports PCIe 3.0 x2. SATA -> regular SATA-III SSDs of M.2 form but otherwise identical to a regular 2.5" SATA SSD. They can usually be fitted to any motherboard that supports M.2 disks, SATA being usually universally supported on those (it's normally SATA or SATA+NVME, rarely NVME only). Happy to get bashed on the matter of course but I cannot see how Clover would be able to provide support for hardware unsupported by your motherboard. If it does, Slice & other Clover devs should be on a rapid way to amazing fortune. You're probably just missing the necessary driver in your Win (Win10?) bootstrap EFI partition. It could be that the motherboard does not have a UEFI driver for NVMe SSDs, but the hardware supports NVMe SSDs. So adding the NVMe driver through Clover/OC would work. 1 Link to comment Share on other sites More sharing options...
mnfesq Posted January 14, 2022 Share Posted January 14, 2022 Thanks for your input. Actually, I have two PCI-e adapter cards - one is for an mSATA SSD drive and one is a M.2 NVMe drive. I also have SATA connectors to the motherboard. Clover is installed on the mSATA card and Windows 10 is installed on the NVMe drive. BTW, my desktop has the MSI H87-G43 motherboard, the i7-4790 CPU and 32 GB DDR3 RAM. @Hervé I will check out the Windows 11 thread. I have been in the fast lane of the Windows Insider Program for years and would love to put Windows 11 on my desktop and the 3 virtual machines I run on it. I am aware of patches that have attempted to bypass with system check that Windows 11 installer uses but, like with macOS, it would be nice to make all the changes in the boot loader so that I could install vanilla versions of Windows 11 and not have to patch each preview version I test out. Link to comment Share on other sites More sharing options...
Slice Posted January 15, 2022 Share Posted January 15, 2022 On 1/13/2022 at 10:24 PM, mnfesq said: I have a question: If Clover can enable an unsupported motherboard to load an NVMe drive, might Clover also be capable of being modified to include something that would allow Windows 11 to be run on a system with a CPU that does not have all of the minimum features required to install Windows 11? My motherboard supports TPM 2.0 but I am using a Haswell (4th Gen.) CPU and Windows 11 requires an 8th Gen. CPU. Thanks. This time no. To use unsupported CPU in macOS Clover is able to modify macOS kernel. But about Windows 11 there is quite another story. I am not able to modify somehow Windows 11 to change its behaviour. 1 Link to comment Share on other sites More sharing options...
STLVNUB Posted January 15, 2022 Share Posted January 15, 2022 It might just be me BUT why is there a BOOTX64.efi AND CloverX64.efi I know they are both the same file but surely Legacy can boot BOOTX64.efi or am I missing something, besides a brain Link to comment Share on other sites More sharing options...
Slice Posted January 15, 2022 Share Posted January 15, 2022 18 minutes ago, STLVNUB said: It might just be me BUT why is there a BOOTX64.efi AND CloverX64.efi I know they are both the same file but surely Legacy can boot BOOTX64.efi or am I missing something, besides a brain BOOTX64.efi exists for lazy users who don't know what to do with CLOVERX64.efi. In my case BOOTX64.efi is windows bootloader while my BIOS has a priority to boot /EFI/CLOVER/CLOVERX64.EFI. In this case I am not afraid windows updates and permit him to change bootx64.efi. 2 Link to comment Share on other sites More sharing options...
Guest 5T33Z0 Posted January 17, 2022 Share Posted January 17, 2022 So I came across this new build of clover: https://github.com/CloverHackyColor/CloverBootloader/actions/runs/1700957781 I am wondering what this Description actually means: "check default extended features for more models" Link to comment Share on other sites More sharing options...
Slice Posted January 18, 2022 Share Posted January 18, 2022 6 hours ago, 5T33Z0 said: So I came across this new build of clover: https://github.com/CloverHackyColor/CloverBootloader/actions/runs/1700957781 I am wondering what this Description actually means: "check default extended features for more models" Clover has an ability to set some default values for keys absent in config.plist. Where it takes the value? Sometimes from hardware characteristics, sometimes from model set. In this case for model iMacPro1,1 it should set one value for ExtendedFirmwareFeatures and another value for iMac20,2, for example. This commit defines new values for new models. 2 Link to comment Share on other sites More sharing options...
kushwavez Posted January 18, 2022 Share Posted January 18, 2022 (edited) On 1/14/2022 at 7:10 AM, mnfesq said: @Hervé I will check out the Windows 11 thread. I have been in the fast lane of the Windows Insider Program for years and would love to put Windows 11 on my desktop and the 3 virtual machines I run on it. I am aware of patches that have attempted to bypass with system check that Windows 11 installer uses but, like with macOS, it would be nice to make all the changes in the boot loader so that I could install vanilla versions of Windows 11 and not have to patch each preview version I test out. I read somewhere that the newest version of the Win11 installer will allow you to install on older CPUs like Haswell. And indeed, I just installed vanilla Win11 just two days ago on my Lenovo T440 without any modifications. Edited January 18, 2022 by kushwavez 1 2 Link to comment Share on other sites More sharing options...
SavageAUS Posted January 19, 2022 Share Posted January 19, 2022 So I’m not seeing anyone else report the fast animations with clover. Any chance@slice you can take another look into this and see what was wrong?Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...

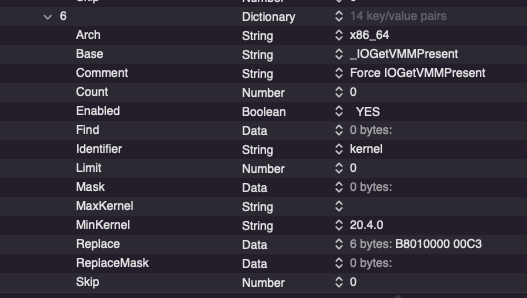

Slice Posted January 20, 2022 Share Posted January 20, 2022 On 1/19/2022 at 3:33 AM, SavageAUS said: So I’m not seeing anyone else report the fast animations with clover. Any chance@slice you can take another look into this and see what was wrong? Sent from my iPhone using Tapatalk It is AMD CPU, yes? Check again kernel patches for AMD. May be you made a mistake here. I see no Clover problems. Link to comment Share on other sites More sharing options...
SavageAUS Posted January 21, 2022 Share Posted January 21, 2022 It is AMD CPU, yes? Check again kernel patches for AMD. May be you made a mistake here. I see no Clover problems.There has been an issue raised for this on GitHub from fabiosun. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
Bassguitarist Posted January 22, 2022 Share Posted January 22, 2022 On 1/5/2022 at 9:23 PM, PG7 said: @Slice hello, good year to the whole team Slice with this boot did NOT work but then i followed your idea and tested it with the r5142 boot6 and it worked it would be possible to fix the next Clover with this boot6 that is working on pkg r5142 thanks for the solution * google translate logs boot 2022-01-05_20-03_CLOVERX64.EFI.log 199.16 kB · 3 downloads preboot.log 52.24 kB · 3 downloads Hi! Could you share your Efi folder with Clover5143and the changed boot6. Thanks! Link to comment Share on other sites More sharing options...
