fryysyd Posted November 29, 2020 Share Posted November 29, 2020 13 hours ago, Slice said: You have to boot from Preboot. @Slice Thank you! Enter the system successfully as you said. But there is another question, I can choose normal system partition to enter with OC, can I only choose preboot to enter with Clover? Link to comment Share on other sites More sharing options...

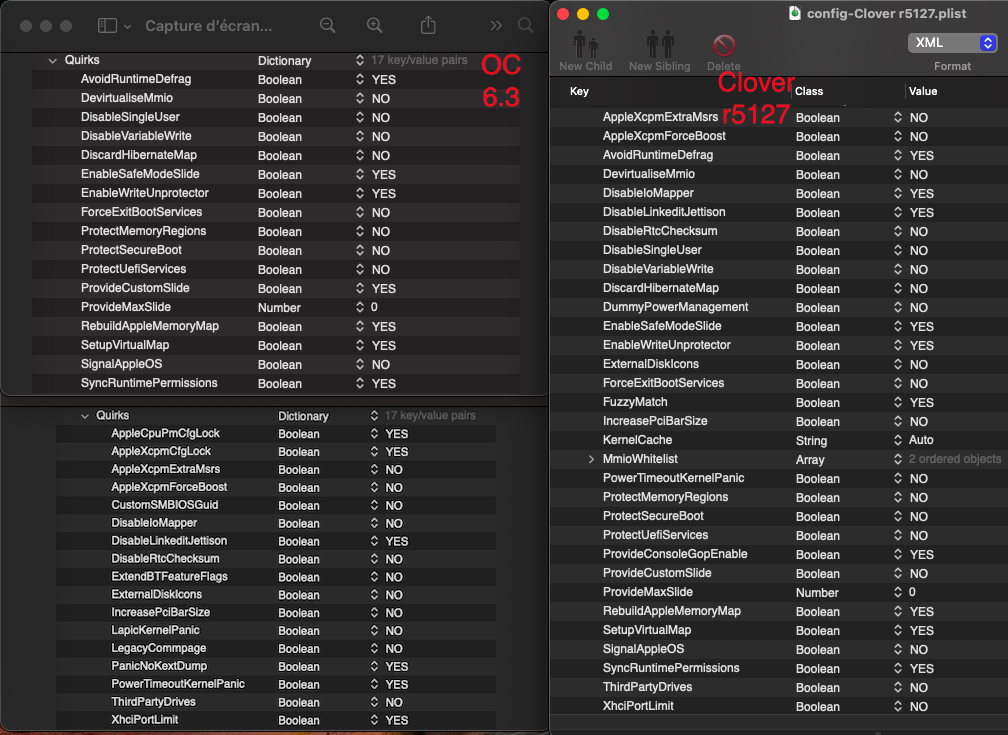

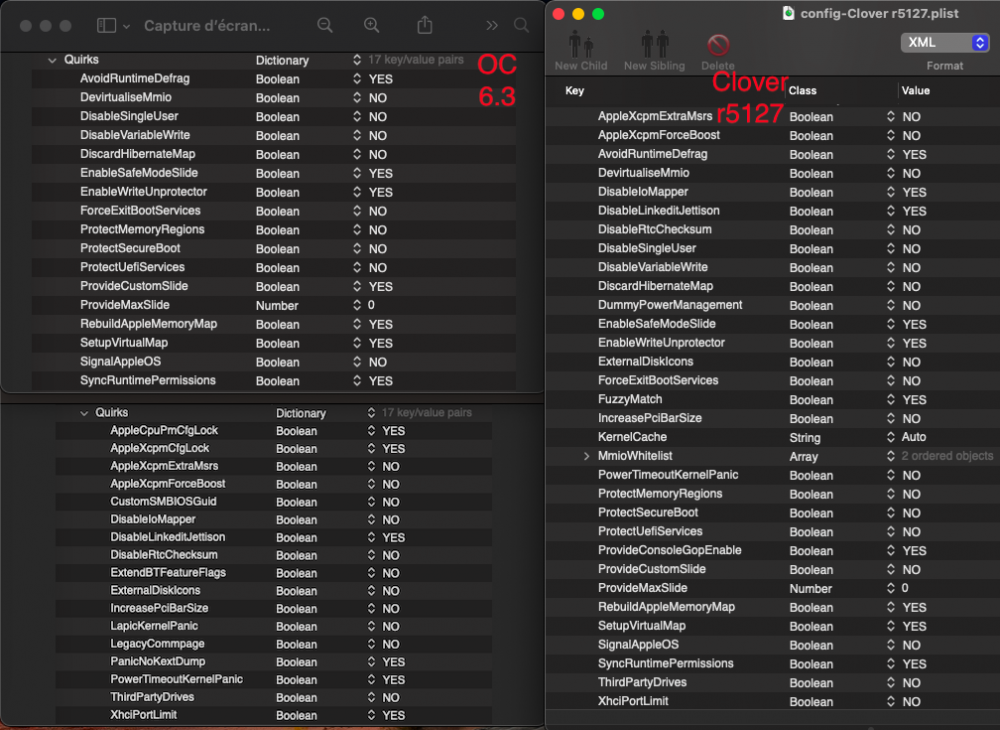

Jief_Machak Posted November 29, 2020 Share Posted November 29, 2020 2 hours ago, fryysyd said: I can choose normal system partition to enter with OC Nope, you can't. OC only boot through Preboot. 4 hours ago, PG7 said: are you asking in Verbose mode? Yes, I have verbose mode at boot, but not anymore at shutdown. In the end, the question is : what is the quirks configuration that mimics AptioMemoryFix ? Link to comment Share on other sites More sharing options...
Slice Posted November 29, 2020 Share Posted November 29, 2020 9 hours ago, Jief_Machak said: When I boot with 5119 (pre-OC), I got the text mode back when I do shutdown or restart. If I boot with 5127, I don't have that. The only difference is that 5119 use AptioMemoryFix and 5127 uses quirks. Anyone has an idea on which quirks I forgot that has the effect of not having the text mode back ? ProvideConsoleGop? 45 minutes ago, Jief_Machak said: Nope, you can't. OC only boot through Preboot. Yes, I have verbose mode at boot, but not anymore at shutdown. In the end, the question is : what is the quirks configuration that mimics AptioMemoryFix ? It is config-sample.plist. But I didn't analyze quirk by quirk. I just found a configuration when it works as before. As well I have to remind that apfs.efi driver from system has huge text output while ApfsDriverLoader no. Link to comment Share on other sites More sharing options...
Slice Posted November 29, 2020 Share Posted November 29, 2020 11 hours ago, Matgen84 said: @Slice Thanks for the fix I can't boot at all with the latest commit dc4a2617: Clover stuck at GUI when I select BS 11.1 HDD or BS 11.0.1 RC USB (no keyboard, no mouse) Maybe I mistaken somewhere !Other test: can't boot any macOS -->Black screen or BIOS boot select (because I use F12) 2020-11-27_16-43-45_BOOTX64.EFI.log 2020-11-27_16-43-45_BOOTX64.EFI(1).log The log tells me that you are trying to boot BigSur Recovery. Wait please, it is not supported yet. Mojave Recovery boot fine. 1 Link to comment Share on other sites More sharing options...
Slice Posted November 29, 2020 Share Posted November 29, 2020 11 hours ago, Matgen84 said: @Slice Thanks for the fix I can't boot at all with the latest commit dc4a2617: Clover stuck at GUI when I select BS 11.1 HDD or BS 11.0.1 RC USB (no keyboard, no mouse) Maybe I mistaken somewhere !Other test: can't boot any macOS -->Black screen or BIOS boot select (because I use F12) 2020-11-27_16-43-45_BOOTX64.EFI.log 2020-11-27_16-43-45_BOOTX64.EFI(1).log What is the kext CtlnaAHCIPort.kext? What is the origin of the kext? 1 Link to comment Share on other sites More sharing options...
naiclub Posted November 29, 2020 Share Posted November 29, 2020 (edited) 51 minutes ago, Slice said: What is the kext CtlnaAHCIPort.kext? What is the origin of the kext? It is a kext driver About SATA HDD or SSD Especially if you don't use this one No HDD or SSD will be seen in the GUIclover menu. Edited November 29, 2020 by naiclub Link to comment Share on other sites More sharing options...
Matgen84 Posted November 29, 2020 Share Posted November 29, 2020 1 hour ago, Slice said: What is the kext CtlnaAHCIPort.kext? What is the origin of the kext? @Slice This CtlnaACHIPort.kext is Big Sur version, to print 11th Intel Series instead of generic SATA. It works fine before, with previous Clover revision. It come from here: CtlnaAHCI Link to comment Share on other sites More sharing options...
Slice Posted November 29, 2020 Share Posted November 29, 2020 4 minutes ago, Matgen84 said: @Slice This CtlnaACHIPort.kext is Big Sur version, to print 11th Intel Series instead of generic SATA. It works fine before, with previous Clover revision. It come from here: CtlnaAHCI Does it comes from sources or it is just ordinary AHCIPort.kext with edited Info.plist? Link to comment Share on other sites More sharing options...
Matgen84 Posted November 29, 2020 Share Posted November 29, 2020 (edited) 12 minutes ago, Slice said: Does it comes from sources or it is just ordinary AHCIPort.kext with edited Info.plist? In fact, I don't really know, but I think so, is only ordinary kext with edited Info.plist. CFBundleVersion is 341.0.2. Edited November 29, 2020 by Matgen84 Link to comment Share on other sites More sharing options...
Slice Posted November 29, 2020 Share Posted November 29, 2020 In this case codeless kext will be preferable. Link to comment Share on other sites More sharing options...
Matgen84 Posted November 29, 2020 Share Posted November 29, 2020 (edited) 49 minutes ago, Slice said: In this case codeless kext will be preferable. How to do ? I am not expert enough. It would be this kext which prevents me from booting ...@Slice Remember that with latest commit, I also can't boot BS Preboot. Edited November 29, 2020 by Matgen84 Link to comment Share on other sites More sharing options...
kushwavez Posted November 29, 2020 Share Posted November 29, 2020 2 hours ago, Slice said: What is the kext CtlnaAHCIPort.kext? What is the origin of the kext? In my case I need this kext for my notebook 1's Intel 100 series internal HDD, SSD. If I don't use this system doesn't recognise my drives and stall with AppleAHCIPort (or smth like that). Before Catalina it was SATA-100-series-unsupported.kext. it's simply injecting some pciids into AppleAHCI I think 2 Link to comment Share on other sites More sharing options...

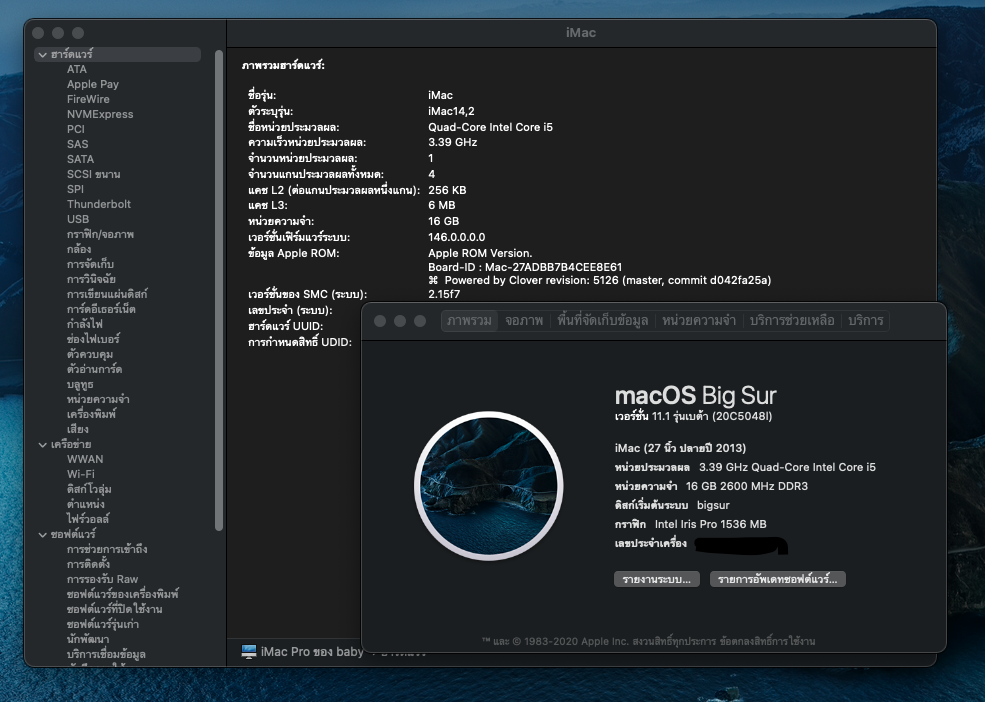

naiclub Posted November 29, 2020 Share Posted November 29, 2020 2 minutes ago, kushwavez said: In my case I need this kext for my notebook 1's Intel 100 series internal HDD, SSD. If I don't use this system doesn't recognise my drives and stall with AppleAHCIPort (or smth like that). Before Catalina it was SATA-100-series-unsupported.kext. it's simply injecting some pciids into AppleAHCI I think And it still works as well as the mountain lions. Link to comment Share on other sites More sharing options...
Slice Posted November 29, 2020 Share Posted November 29, 2020 1 hour ago, kushwavez said: In my case I need this kext for my notebook 1's Intel 100 series internal HDD, SSD. If I don't use this system doesn't recognise my drives and stall with AppleAHCIPort (or smth like that). Before Catalina it was SATA-100-series-unsupported.kext. it's simply injecting some pciids into AppleAHCI I think 100 series? As mine? 2 Link to comment Share on other sites More sharing options...
Slice Posted November 29, 2020 Share Posted November 29, 2020 3 hours ago, Matgen84 said: @Slice Remember that with latest commit, I also can't boot BS Preboot. I can -vv- Take this Clover CLOVERX64.efi.zip 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted November 29, 2020 Share Posted November 29, 2020 21 minutes ago, Slice said: I can -vv- Take this Clover CLOVERX64.efi.zip @Slice I can too. Do you think, it's a bad compilation or a bad installation with previous one (same commit) ! Please, your opinion: theoretically with my Z390, it should be native? what is the best way to see "Intel 11 series SATA" instead of generic SATA. Link to comment Share on other sites More sharing options...
iCanaro Posted November 29, 2020 Share Posted November 29, 2020 6 minutes ago, Matgen84 said: theoretically with my Z390, it should be native? what is the best way to see "Intel 11 series SATA" instead of generic SATA. Z390 is "native" a bit shaky... gigabyte then... brrrrrrr I have the thrills I assume a good AHCI injector is enough 1 Link to comment Share on other sites More sharing options...
iCanaro Posted November 29, 2020 Share Posted November 29, 2020 PS: i checked on big sur 1 Link to comment Share on other sites More sharing options...
Matgen84 Posted November 29, 2020 Share Posted November 29, 2020 16 minutes ago, iCanaro said: PS: i checked on big sur @iCanaro Thanks for your verification. I try this injector with my Aorus Master. But I'm a little be surprise to not found my 'pci8086,a352' for Z390. So the injector don't work for my mobo. Link to comment Share on other sites More sharing options...

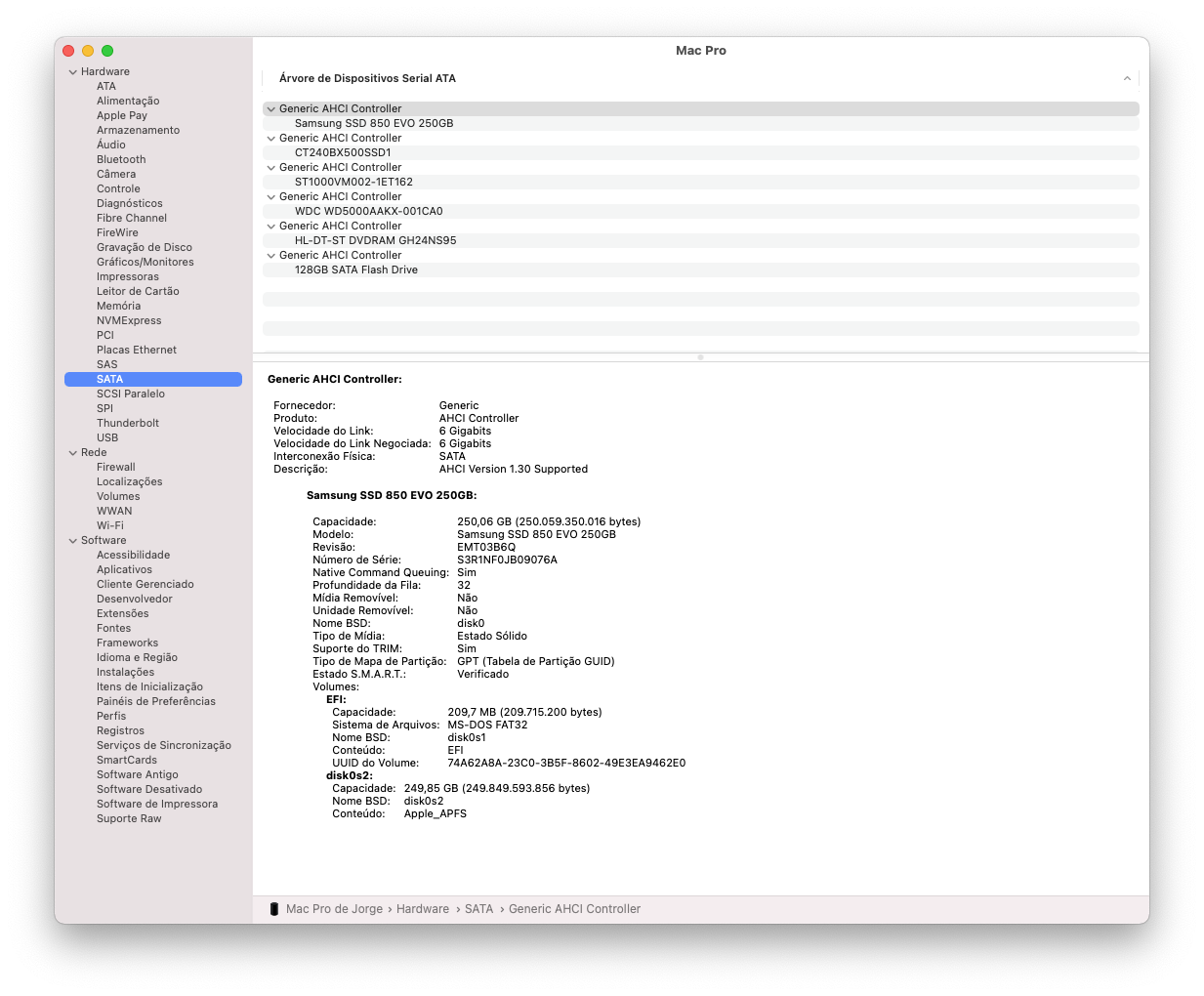

Slice Posted November 29, 2020 Share Posted November 29, 2020 57 minutes ago, Matgen84 said: @Slice I can too. Do you think, it's a bad compilation or a bad installation with previous one (same commit) ! Please, your opinion: theoretically with my Z390, it should be native? what is the best way to see "Intel 11 series SATA" instead of generic SATA. I think a bad compilation. You probably didn't update linked OpenCore. Why Generic AHCi is wrong? It works. Under BigSur I see Generic AHCI While my controller is known for BigSur AHCI kext Link to comment Share on other sites More sharing options...
iCanaro Posted November 29, 2020 Share Posted November 29, 2020 1 hour ago, Matgen84 said: @iCanaro Thanks for your verification. I try this injector with my Aorus Master. But I'm a little be surprise to not found my 'pci8086,a352' for Z390. So the injector don't work for my mobo. OK I added your IDs to the injector, if you tell me I'd be grateful archivio.zip 1 Link to comment Share on other sites More sharing options...

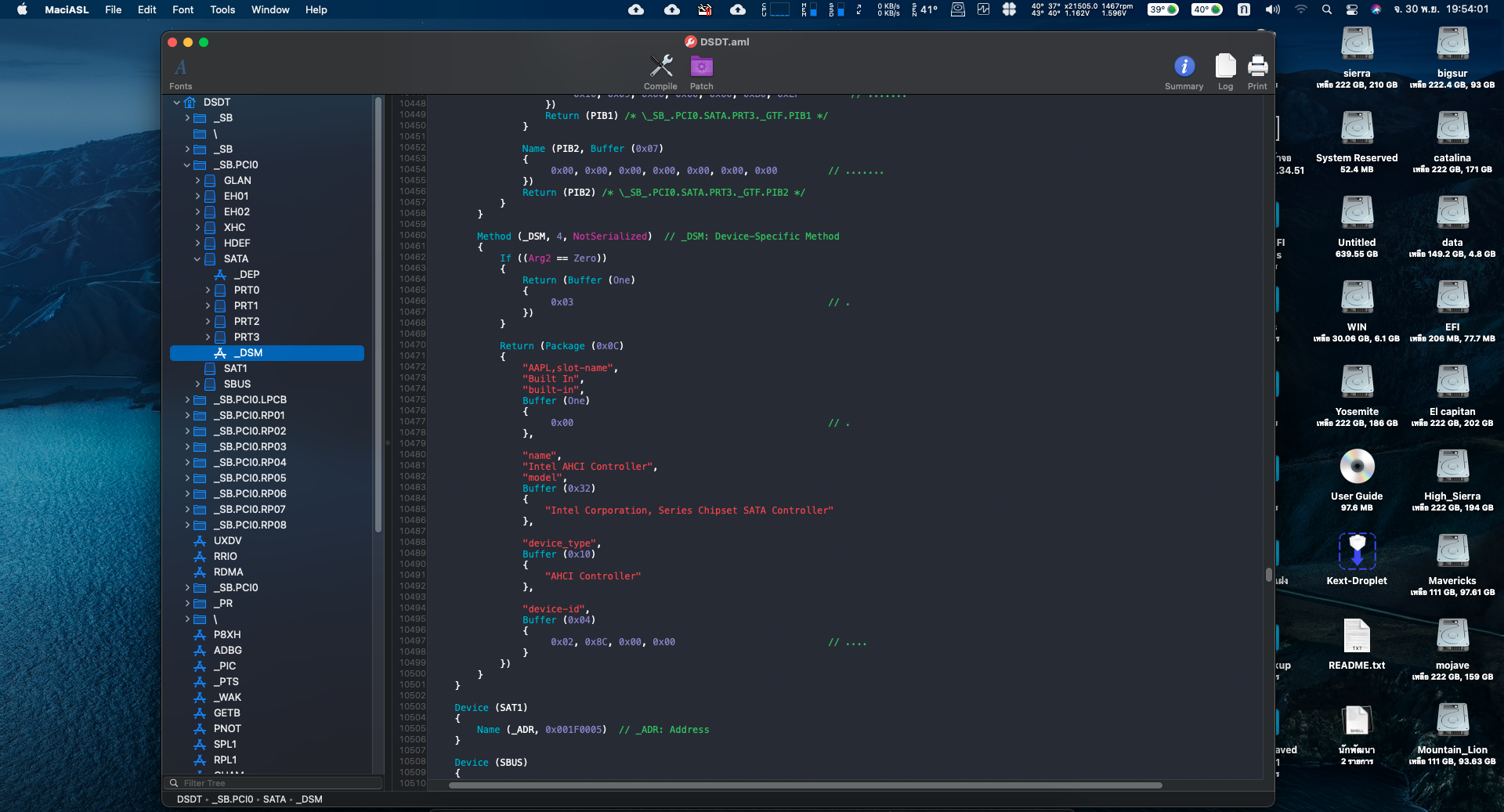

Matgen84 Posted November 29, 2020 Share Posted November 29, 2020 8 minutes ago, Slice said: I think a bad compilation. You probably didn't update linked OpenCore. Why Generic AHCi is wrong? It works. Under BigSur I see Generic AHCI @Slice I think so, it's a bad compilation despite I'm using Buildme script. Today or tomorrow, I will make a clean git clone to be safe. My Z390 SATA is pci8086,a352: Intel 11 Series instead of generic, with kext injector or ssdt, is cosmetic of course. Link to comment Share on other sites More sharing options...
Slice Posted November 29, 2020 Share Posted November 29, 2020 8 minutes ago, Matgen84 said: @Slice I think so, it's a bad compilation despite I'm using Buildme script. Today or tomorrow, I will make a clean git clone to be safe. My Z390 SATA is pci8086,a352: Intel 11 Series instead of generic, with kext injector or ssdt, is cosmetic of course. Yes, a352 is also known for the bigsur kext. Link to comment Share on other sites More sharing options...

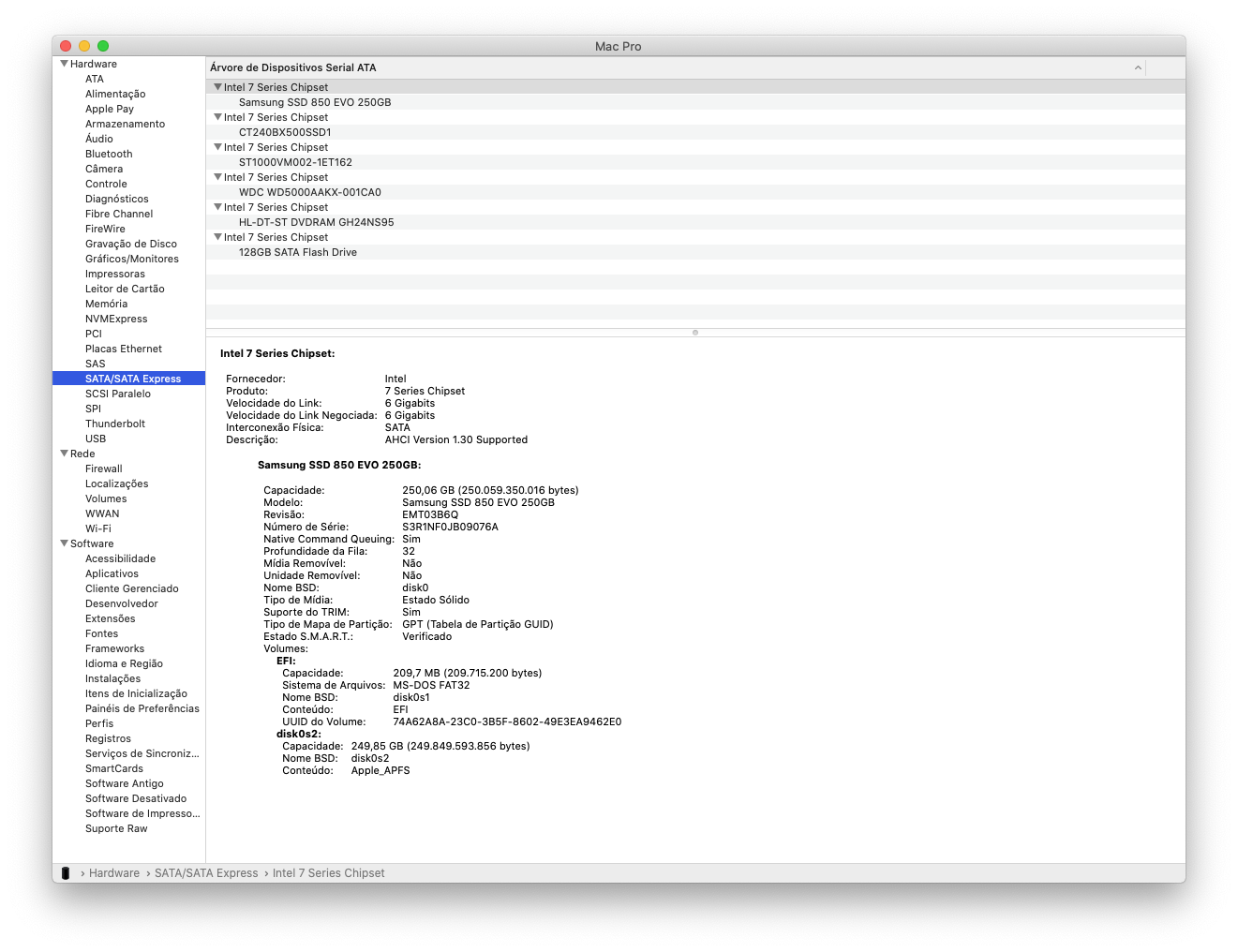

Matgen84 Posted November 29, 2020 Share Posted November 29, 2020 7 minutes ago, Slice said: Yes, a352 is also known for the bigsur kext. Big Sur know it but don't display 11 Series. 17 minutes ago, iCanaro said: OK I added your IDs to the injector, if you tell me I'd be grateful archivio.zip The new one display correctly the Intel chipset for my Z390. 1 Link to comment Share on other sites More sharing options...
Slice Posted November 29, 2020 Share Posted November 29, 2020 As well for my 10 series chipset. But I am sure it is cosmetic. The same kext works the same manner. It is AboutMac.app shows wrong. Vendor name = Generic why? 2 Link to comment Share on other sites More sharing options...
