kushwavez Posted November 24, 2020 Share Posted November 24, 2020 (edited) @Jief_Machak Quite while ago I posted something about FileVault not working. So I was wrong, it's working, but. Now I've had some time and tested again with an encrypted Big Sur drive, it boots to the password input screen but just after an enormously long wait time (2 min). And it's just to the password input, after that the system needs to boot to the desktop. Looking at the debug.log I see these lines, something is happening but I don't know why it is waiting for so long: ... 13:161 0:010 OC: Opening file System with 1 mode gave - Success 13:162 0:001 OC: Opening file Library with 1 mode gave - Success 13:163 0:000 OC: Opening file Caches with 1 mode gave - Success 13:164 0:001 OC: Opening file com.apple.corestorage with 1 mode gave - Success 13:165 0:000 OC: Opening file EFILoginLocalizations with 1 mode gave - Success 13:166 0:001 OC: Opening file loginui.efires with 1 mode gave - Success 142:608 129:442 OC: Opening file System with 1 mode gave - Success 142:610 0:001 OC: Opening file Library with 1 mode gave - Success 142:611 0:001 OC: Opening file Caches with 1 mode gave - Success 142:612 0:000 OC: Opening file com.apple.corestorage with 1 mode gave - Success 142:613 0:000 OC: Opening file EFILoginLocalizations with 1 mode gave - Success 142:614 0:000 OC: Opening file Lucida13White.efires with 1 mode gave - Success 142:954 0:340 OC: Opening file System with 1 mode gave - Success 142:955 0:001 OC: Opening file Library with 1 mode gave - Success 142:956 0:001 OC: Opening file Caches with 1 mode gave - Success 142:958 0:001 OC: Opening file com.apple.corestorage with 1 mode gave - Success 142:958 0:000 OC: Opening file EFILoginLocalizations with 1 mode gave - Success 142:959 0:001 OC: Opening file flag_picker.efires with 1 mode gave - Success 143:141 0:181 OC: Opening file System with 1 mode gave - Success 143:142 0:000 OC: Opening file Library with 1 mode gave - Success 143:143 0:000 OC: Opening file Caches with 1 mode gave - Success 143:144 0:000 OC: Opening file com.apple.corestorage with 1 mode gave - Success 143:145 0:001 OC: Opening file EFILoginLocalizations with 1 mode gave - Success 143:146 0:001 OC: Opening file battery.efires with 1 mode gave - Success 143:167 0:020 OCSMC: SmcReadValue Key 4242494E Size 1 //Then the login screen appeared //Input password //System is booting ... //Arrived at desktop As you can see, there is something at line "142:608 129:442 OC: Opening file System with 1 mode gave - Success" Why is there a huge delay? drivers are in place from off/UEFI/FileVault Here, a full debug.log debug_v5126_filevault.log Edited November 24, 2020 by kushwavez Link to comment Share on other sites More sharing options...
Jief_Machak Posted November 24, 2020 Share Posted November 24, 2020 3 hours ago, kushwavez said: @Jief_Machak Quite while ago I posted something about FileVault not working. So I was wrong, it's working, but. Now I've had some time and tested again with an encrypted Big Sur drive, it boots to the password input screen but just after an enormously long wait time (2 min). And it's just to the password input, after that the system needs to boot to the desktop. Looking at the debug.log I see these lines, something is happening but I don't know why it is waiting for so long: ... 13:161 0:010 OC: Opening file System with 1 mode gave - Success 13:162 0:001 OC: Opening file Library with 1 mode gave - Success 13:163 0:000 OC: Opening file Caches with 1 mode gave - Success 13:164 0:001 OC: Opening file com.apple.corestorage with 1 mode gave - Success 13:165 0:000 OC: Opening file EFILoginLocalizations with 1 mode gave - Success 13:166 0:001 OC: Opening file loginui.efires with 1 mode gave - Success 142:608 129:442 OC: Opening file System with 1 mode gave - Success 142:610 0:001 OC: Opening file Library with 1 mode gave - Success 142:611 0:001 OC: Opening file Caches with 1 mode gave - Success 142:612 0:000 OC: Opening file com.apple.corestorage with 1 mode gave - Success 142:613 0:000 OC: Opening file EFILoginLocalizations with 1 mode gave - Success 142:614 0:000 OC: Opening file Lucida13White.efires with 1 mode gave - Success 142:954 0:340 OC: Opening file System with 1 mode gave - Success 142:955 0:001 OC: Opening file Library with 1 mode gave - Success 142:956 0:001 OC: Opening file Caches with 1 mode gave - Success 142:958 0:001 OC: Opening file com.apple.corestorage with 1 mode gave - Success 142:958 0:000 OC: Opening file EFILoginLocalizations with 1 mode gave - Success 142:959 0:001 OC: Opening file flag_picker.efires with 1 mode gave - Success 143:141 0:181 OC: Opening file System with 1 mode gave - Success 143:142 0:000 OC: Opening file Library with 1 mode gave - Success 143:143 0:000 OC: Opening file Caches with 1 mode gave - Success 143:144 0:000 OC: Opening file com.apple.corestorage with 1 mode gave - Success 143:145 0:001 OC: Opening file EFILoginLocalizations with 1 mode gave - Success 143:146 0:001 OC: Opening file battery.efires with 1 mode gave - Success 143:167 0:020 OCSMC: SmcReadValue Key 4242494E Size 1 //Then the login screen appeared //Input password //System is booting ... //Arrived at desktop As you can see, there is something at line "142:608 129:442 OC: Opening file System with 1 mode gave - Success" Why is there a huge delay? drivers are in place from off/UEFI/FileVault Here, a full debug.log debug_v5126_filevault.log Remove AppleImageCodec.efi from your efi drivers. 1 Link to comment Share on other sites More sharing options...
kushwavez Posted November 24, 2020 Share Posted November 24, 2020 (edited) @Jief_Machak thanks I deleted that, but now it won't start at all. debug log says: ... 8:005 0:001 OCOS: Should use black background 8:013 0:007 OC: Opening file System\Library\Kernels\kernel with 1 mode gave - Not Found 8:013 0:000 OC: Opening file \A838CD58-89D9-41AC-913B-D444CC445D42 with 1 mode gave - Success 8:015 0:001 OC: Opening file \A838CD58-89D9-41AC-913B-D444CC445D42\System\Library\CoreServices\com.apple.Boot.plist with 1 mode gave - Not Found 8:117 0:102 OC: Opening file Library\Preferences\SystemConfiguration\com.apple.Boot.plist with 1 mode gave - Success 8:569 0:451 OC: Opening file \A838CD58-89D9-41AC-913B-D444CC445D42\System\Library\CoreServices\PlatformSupport.plist with 1 mode gave - Success 9:108 0:539 OC: Opening file System\Library\Caches\com.apple.corestorage\EncryptedRoot.plist.wipekey with 1 mode gave - Success 10:156 1:048 OC: Opening file A838CD58-89D9-41AC-913B-D444CC445D42\BaseSystem.dmg with 1 mode gave - Not Found 10:168 0:011 OC: Opening file A838CD58-89D9-41AC-913B-D444CC445D42\BaseSystem.dmg with 1 mode gave - Success 20:754 10:586 OCB: InternalEfiExit 65553218 - Aborted / Unsupported //Exiting in 10 seconds... EDIT: photo Spoiler debug_v5126_fvault_woutimagecodec.log Edited November 24, 2020 by kushwavez Link to comment Share on other sites More sharing options...
Jief_Machak Posted November 24, 2020 Share Posted November 24, 2020 (edited) 12 minutes ago, kushwavez said: @Jief_Machak thanks I deleted that, but now it won't start at all. debug log says: ... 8:005 0:001 OCOS: Should use black background 8:013 0:007 OC: Opening file System\Library\Kernels\kernel with 1 mode gave - Not Found 8:013 0:000 OC: Opening file \A838CD58-89D9-41AC-913B-D444CC445D42 with 1 mode gave - Success 8:015 0:001 OC: Opening file \A838CD58-89D9-41AC-913B-D444CC445D42\System\Library\CoreServices\com.apple.Boot.plist with 1 mode gave - Not Found 8:117 0:102 OC: Opening file Library\Preferences\SystemConfiguration\com.apple.Boot.plist with 1 mode gave - Success 8:569 0:451 OC: Opening file \A838CD58-89D9-41AC-913B-D444CC445D42\System\Library\CoreServices\PlatformSupport.plist with 1 mode gave - Success 9:108 0:539 OC: Opening file System\Library\Caches\com.apple.corestorage\EncryptedRoot.plist.wipekey with 1 mode gave - Success 10:156 1:048 OC: Opening file A838CD58-89D9-41AC-913B-D444CC445D42\BaseSystem.dmg with 1 mode gave - Not Found 10:168 0:011 OC: Opening file A838CD58-89D9-41AC-913B-D444CC445D42\BaseSystem.dmg with 1 mode gave - Success 20:754 10:586 OCB: InternalEfiExit 65553218 - Aborted / Unsupported //Exiting in 10 seconds... debug_v5126_fvault_woutimagecodec.log Deleting AppleImageCodec.efi is really the only change you've made ? Maybe replace ApfsDriverLoader.efi with apfs.efi that you got from BigSur : i've had a lot of problem with that {censored}. It's just an OpenCore bad idea to try to do like Apple. Problem is that it's failing to load to latest version sometimes. Also, I have "AppleUiSupport.efi". Try to add that maybe. Not related but DataHubDxe.efi is not needed anymore, I think. Anyone can confirm ? Edited November 24, 2020 by Jief_Machak 2 Link to comment Share on other sites More sharing options...
iCanaro Posted November 24, 2020 Share Posted November 24, 2020 I confirm; I don't use DataHubDxe.efi in any hacks 3 Link to comment Share on other sites More sharing options...
kushwavez Posted November 24, 2020 Share Posted November 24, 2020 (edited) @Jief_Machak Yes I only deleted that file then tried. But thanks! Deleting "AppleImageCodec.efi" and adding "AppleUiSupport.efi" fixed my problem, booted in a flash. But I needed to grab this .efi from elsewhere, it's not in the Clover.zip However now a red Error msg appears before the Clover GUI says: "Error: Device Error returned from AppleKeyAggregator.efi". Doesn't seems to affect anything tho. And yes, DataHubDxe.efi and FSInject.efi are not needed in my case. They were just there by default and I didn't delete them. Maybe it's a good idea to replace "AppleImageCodec.efi" with "AppleUiSupport.efi" and move DataHubDxe and FSInject to drivers/off in further releases [...] 0:106 0:000 === [ LoadDrivers ] ============================= 0:107 0:000 Loading AppleUiSupport.efi status=Success 0:210 0:103 Loading AppleKeyAggregator.efi status=Success 0:213 0:002 Fatal Error: Device Error returned from AppleKeyAggregator.efi [...] EDIT: after more testing seems like there is no need to delete "AppleImageCodec.efi" only need to add "AppleUiSupport.efi" to get it working. debug_fvault_appleuisupport_working.log Edited November 24, 2020 by kushwavez Link to comment Share on other sites More sharing options...
mnfesq Posted November 24, 2020 Share Posted November 24, 2020 (edited) I'm not sure if this is Clover-related or not but here goes: When I put my custom DSDT.aml in ACPI/Patched, I get a reboot after selecting the OS to boot from within less than 5 seconds of booting up. If I take the same custom DSDT.aml and put it in ACPI/origin, the system boots. Any idea what's going on? I'm using v5126 - the build that can be downloaded as a release from Slice's GitHub. It's happening on a Haswell-based system (Zotac ID92) which I have running as a MacMini7,1. Oh, btw, the reason I am using a custom DSDT is that I have instant wake problems and the wake reason is GLAN. Edited November 24, 2020 by mnfesq Link to comment Share on other sites More sharing options...
iCanaro Posted November 24, 2020 Share Posted November 24, 2020 put the custom DSDT in origin, it has no logic, it must be patched. If patched it results in a boot restart, it's likely not in place for your setup and needs to be refined. I fully agree with OC's philosophy of not using DSDT but only SSDTs From your signature I understand that you have LAN RTL8111, if true, just a few days ago Mieze updated his kext for better operation with big sur Same thing for Clover, you need to use more recent build builds, if you scroll back the pages in this thread, updated Clover has been attached 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted November 25, 2020 Share Posted November 25, 2020 8 hours ago, kushwavez said: after more testing seems like there is no need to delete "AppleImageCodec.efi" only need to add "AppleUiSupport.efi" to get it working. The less you have the better. "AppleImageCodec.efi" seems not needed. "Not needed" is enough to say that there is a need for deleting it. 1 2 Link to comment Share on other sites More sharing options...
Slice Posted November 25, 2020 Share Posted November 25, 2020 AppleUiSupport is a combined driver UI drawing. Make sure that you remove all the legacy drivers implemented in the past. The list includes: AppleImageCodec-64.efi, AppleKeyAggregator-64.efi, AppleKeyMapAggregator.efi, AppleEvent.efi, AppleUITheme-64.efi, EnglishDxe-64.efi, FirmwareVolume-64.efi, HashServiceFix-64.efi Some of them can be loaded separately or we can do as vit9696 and load all as one driver. 2 1 Link to comment Share on other sites More sharing options...
Jief_Machak Posted November 25, 2020 Share Posted November 25, 2020 59 minutes ago, Slice said: AppleUiSupport is a combined driver UI drawing. Make sure that you remove all the legacy drivers implemented in the past. The list includes: AppleImageCodec-64.efi, AppleKeyAggregator-64.efi, AppleKeyMapAggregator.efi, AppleEvent.efi, AppleUITheme-64.efi, EnglishDxe-64.efi, FirmwareVolume-64.efi, HashServiceFix-64.efi Some of them can be loaded separately or we can do as vit9696 and load all as one driver. Do we have to sources of AppleUiSupport ? Link to comment Share on other sites More sharing options...
kushwavez Posted November 25, 2020 Share Posted November 25, 2020 (edited) Thanks @Slice, @Jief_Machak! You're right, I deleted all of the FileVault drivers, put just AppleUiSupport.efi in and it worked fine. That's also explains the red error msg, AppleUiSupport simply initialized AppleKeyAggregator first. Also I found a source if it helps: https://github.com/acidanthera/AppleSupportPkg/releases/tag/2.0.9 Edited November 25, 2020 by kushwavez 2 Link to comment Share on other sites More sharing options...
kushwavez Posted November 25, 2020 Share Posted November 25, 2020 So after some more testing I figured out my PS2 built-in kb doesn't work with AppleUiSupport.efi (because of the built-in AppleKeyAggregator?), so I can't input my password. If I add the separate AppleKeyAggregator.efi the error msg appears as mentioned above, no PS2 kb. I've had to add your "AppleKeyFeeder.efi" to get it working, now with that it's finally okay. 2 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted November 25, 2020 Share Posted November 25, 2020 22 hours ago, PG7 said: put your EFI to try to understand Here you go, hopefully someone can see something wrong. EFI I7-9750H.zip Link to comment Share on other sites More sharing options...

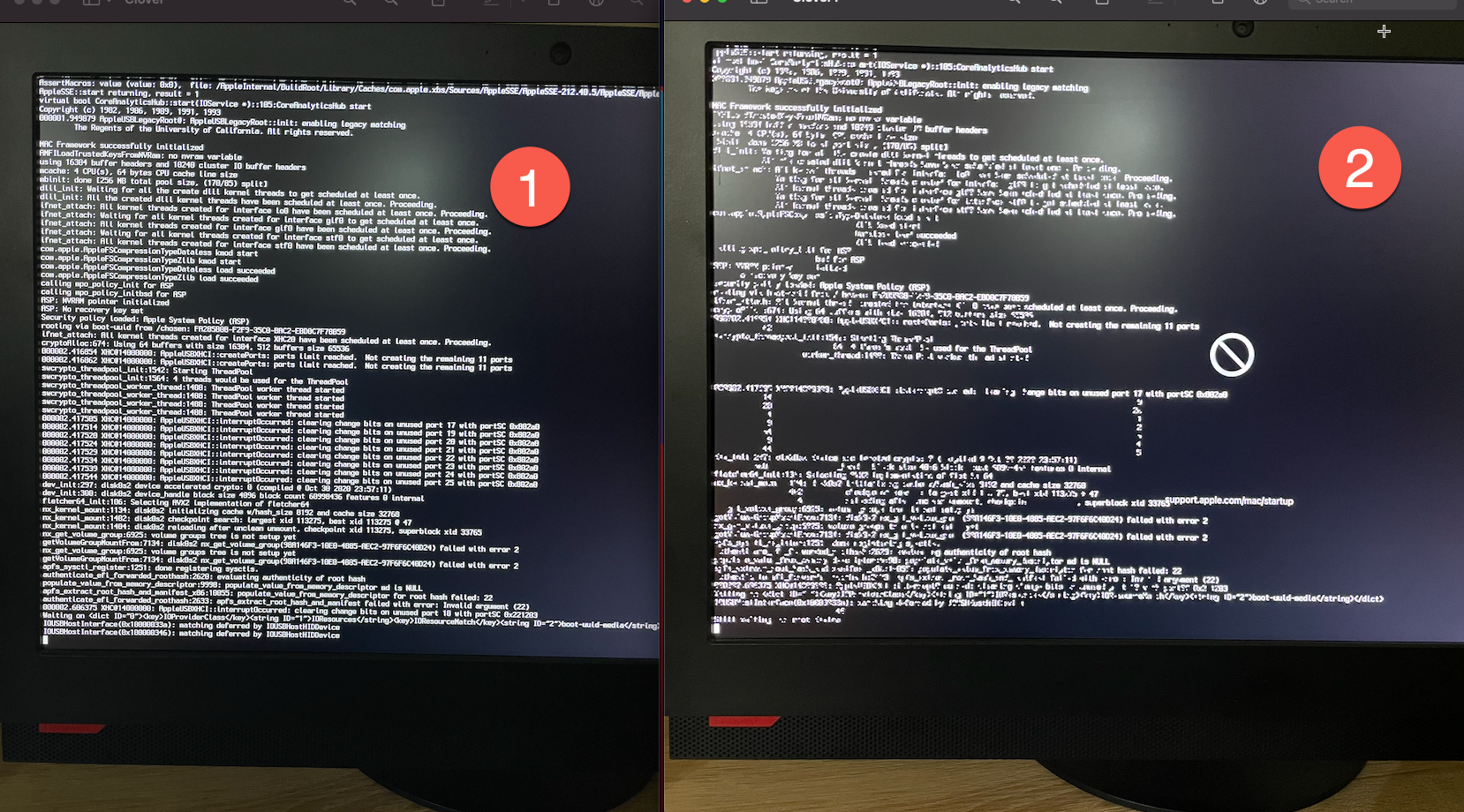

naiclub Posted November 25, 2020 Share Posted November 25, 2020 Spoiler I can use almost all versions. Stuck at the 2nd version only (Mac_OS_X_Lion_10.7.5-Snowleo) that cannot continue. It could be because looking for kext. Not old version Can anyone advise me? Thank you. Link to comment Share on other sites More sharing options...
Slice Posted November 25, 2020 Share Posted November 25, 2020 Some kernel patches is not verified for 10.6 - 10.7 so we can account these systems are no more supported. But Clover versions before 5000 probably still support old systems. 4 Link to comment Share on other sites More sharing options...
Jief_Machak Posted November 25, 2020 Share Posted November 25, 2020 4 hours ago, kushwavez said: I've had to add your "AppleKeyFeeder.efi" That's why I've made it ! 1 1 1 Link to comment Share on other sites More sharing options...
kushwavez Posted November 25, 2020 Share Posted November 25, 2020 You're the best! Is it possible to include your "AppleKeyFeeder.efi" and "AppleUiSupport.efi" in further releases? 1 Link to comment Share on other sites More sharing options...
iCanaro Posted November 25, 2020 Share Posted November 25, 2020 1 hour ago, SavageAUS said: Here you go, hopefully someone can see something wrong. EFI I7-9750H.zip I should see ioreg, but from how the config.plist is set you don't seem to have Power Management If you have reader in fingerprints, you might try adding NoTouchID.kext SMCLightSensor are you sure you need it? Have you tried to use the SSDTs proposed here instead of the DSDT https://dortania.github.io/Getting-Started-With-ACPI/ssdt-methods/ssdt-prebuilt.html#laptop-coffee-and-comet-lake-9th-and-10th-gen 1 Link to comment Share on other sites More sharing options...
PG7 Posted November 25, 2020 Share Posted November 25, 2020 4 hours ago, SavageAUS said: Here you go, hopefully someone can see something wrong. EFI I7-9750H.zip test with EFI as well as going EFI.zip 1 Link to comment Share on other sites More sharing options...
iCanaro Posted November 25, 2020 Share Posted November 25, 2020 Clover 5127 available https://github.com/CloverHackyColor/CloverBootloader/releases/tag/5127 3 3 Link to comment Share on other sites More sharing options...

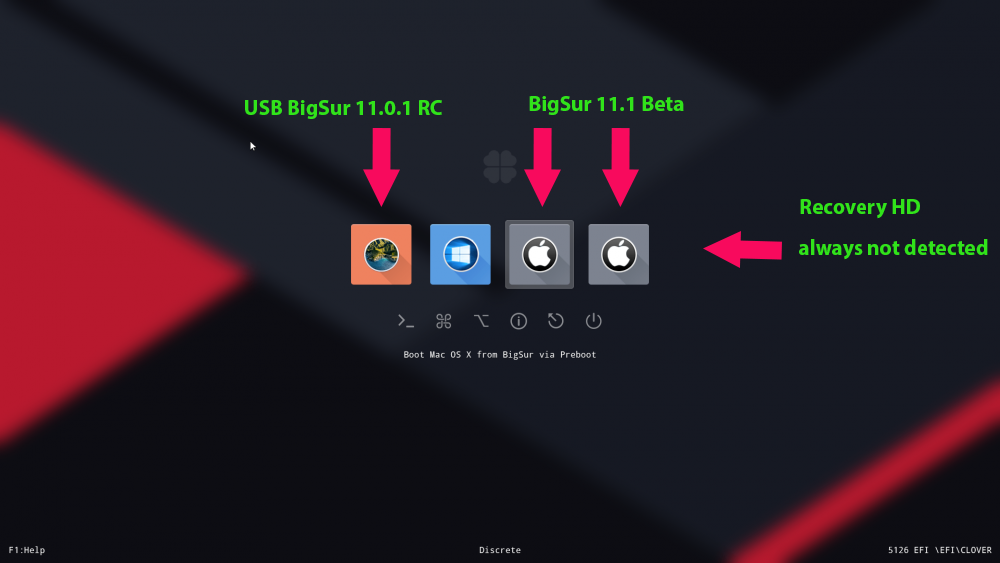

Matgen84 Posted November 25, 2020 Share Posted November 25, 2020 Hi @Slice @Jief_Machak Thanks for Clover r5127 Release, and all the work you do for users Please, when do you plan to solve the problem of icons and detection of BS Recovery ! Since BS 11.0.1 Release and BS Beta 11.1, the Clover GUI don't show correct icons: os_mac instead of os_bigsur 3 Link to comment Share on other sites More sharing options...
kushwavez Posted November 25, 2020 Share Posted November 25, 2020 Working fine on notebook 1, minor thing: Keyboard settings, Display settings are resetted with this update, I had to re-login to iCloud even though I didn't change SMBIOS. At devices it's duplicated, I had two devices with same SMBIOS. Link to comment Share on other sites More sharing options...
Streets Posted November 25, 2020 Share Posted November 25, 2020 Thanks for Clover r5127 Release @Slice Working fine on my hack Link to comment Share on other sites More sharing options...
iCanaro Posted November 25, 2020 Share Posted November 25, 2020 25 minutes ago, Matgen84 said: Please, when do you plan to solve the problem of icons if I understand what you're asking for, you're referring to the double icon in Clover's GUI at boot. Just add name assigned to big sur in config.plist --> GUI --> Hide Volumes for example I called it BUG-SUR, added to the hide list and now I only have one entry 1 1 Link to comment Share on other sites More sharing options...
