dbraun31 Posted October 1, 2013 Share Posted October 1, 2013 I'm unsure of what to do next with BDU. I checked the multi partition in options to format my USB to 1 64mb FAT 32 partition and the other into a larger FAT 16 partition. I have an install.dmg, I'm unsure of how to extract an hfs file from that. When I select the extract hfs partition from dmg file in the tools menu and select my .dmg file and a place to save it, nothing happens. I am also unsure how to make the second partition HFS insead of FAT through BDU. This second partition is invisible to everything but BDU. Link to comment Share on other sites More sharing options...
cvad Posted October 3, 2013 Author Share Posted October 3, 2013 dbraun31, Read the previous posts please - link. Link to comment Share on other sites More sharing options...
dbraun31 Posted October 6, 2013 Share Posted October 6, 2013 dbraun31, Read the previous posts please - link. I have read the previous posts - let me rephrase my problem. The first thing I do in BDU is configure the format options to install clover on a 64 mb partition of a USB drive. This creates a FAT32 64 mb partition that I can boot from and the clover GUI loads successfully. However, the second partition becomes FAT16 which is invisible to explorer. Therefore, when I select Tools - Extract HFS+ partition from DMG image, after selecting my .dmg, I am unable to select the second, FAT16, partition on my USB drive. The menu just shows the 64 mb clover install. I've tried formatting a separate USB to HFS+ with my .dmg image through Transmac. This leaves me with two separate USB drives (One for clover, one with the DMG image). I boot off the clover USB into the clover GUI, but clover does not show the USB with the OSX image as a boot option. - I know for this problem I will probably be referred to the Clover General Discussion where I have to pour through massive amounts of literature on the complex mechanics of the bootloader to find the answer to this seemingly simple problem. In reference to the previous post, I'm assuming that refers to a command for command prompt? (run) 7z.exe (comand) x -tXar -r (archive directory) InstallESD.dmg (output file name) InstallESD.dmg When I do this it tells me it cannot open my .dmg as an archive. But when opening 7z.exe application and doing it through the GUI I can open it no problem. All I'm hoping for is that you, in your infinite wisdom as a coder, can help me, an average user trying to install osx on his pc, or at least point me in the right direction. Link to comment Share on other sites More sharing options...
georgenis Posted November 21, 2013 Share Posted November 21, 2013 Can I get help? I worked fine for me, my pen is prepared now, but when i start this mac os x set up...my system broke up @ "unable to open bootchache playlist.... No such file" What can I do? Link to comment Share on other sites More sharing options...
cvad Posted December 25, 2013 Author Share Posted December 25, 2013 (edited) BootDiskUtility.exev2.0.2013Christmas Editionrev.179b:Clover v2k r2409 & Chameleon r2269 Edited December 25, 2013 by cVaD 4 Link to comment Share on other sites More sharing options...
cvad Posted January 8, 2014 Author Share Posted January 8, 2014 BootDiskUtility.exev2.0.2014rev.181b:Clover v2k r2444 & Chameleon r2286 Include NewWay FixDsdtMask Calculator. 3 Link to comment Share on other sites More sharing options...
SpiderMonkey Posted January 13, 2014 Share Posted January 13, 2014 Thanks cVaD - after a few hours of trying, everything fell in the places. Next step is to configure Clover to run with my new motherboard, which seems like the much bigger task. This is what worked for me: 1. Download, unzip and run BootDiskUtility 2. Insert 8GB or larger USB drive 3. Click on Format Disk, you'll get a warning that all info will be destroyed, which is of course expected when formatting a drive 4. My guess is that this would be a good time to tweak the Clover config and maybe use the Tools->Clover FixDsdtMask Calculator (?) 5. Next run Tools->Extract HSF(HFS+) Partition from DMG-file. This will convert your DMG file to HFS 6. Select Part2 and click on Restore Partition, then select the HFS file created above. This will transfer it to the second partition on your USB drive. This takes time... 7. Eject the drive and you're ready to run it on your hackintosh. 1 Link to comment Share on other sites More sharing options...
cool_recep Posted February 26, 2014 Share Posted February 26, 2014 Any updates for 10.9.2 and updated bootloaders ? Link to comment Share on other sites More sharing options...
Slice Posted March 1, 2014 Share Posted March 1, 2014 Any updates for 10.9.2 and updated bootloaders ? Can't say about Chameleon but Clover is 10.9.2 ready. Proved. Link to comment Share on other sites More sharing options...
theDoor Posted April 4, 2014 Share Posted April 4, 2014 hello Why bootloader is in english and when I select the OSX language is (maybe) russian because I dont undertand anything. thanks theDoor Link to comment Share on other sites More sharing options...
Slice Posted April 4, 2014 Share Posted April 4, 2014 hello Why bootloader is in english and when I select the OSX language is (maybe) russian because I dont undertand anything. thanks theDoor Screenshot? Boot.log? Link to comment Share on other sites More sharing options...
cvad Posted April 9, 2014 Author Share Posted April 9, 2014 BootDiskUtility.exev2.0.2014rev.183b:Latest Clover v2k r2652 & Chameleon r2377 Link to comment Share on other sites More sharing options...
chris1111 Posted April 9, 2014 Share Posted April 9, 2014 The best tools I ever used on Windows ! Umbelivable job Congrats cVaD Link to comment Share on other sites More sharing options...
arwynj55 Posted May 21, 2014 Share Posted May 21, 2014 its the only tool thats gotten me the futhest in osx86 on my pc :laugh: good day Link to comment Share on other sites More sharing options...
ADHDMedia Posted July 15, 2014 Share Posted July 15, 2014 Is there any way I can use this to install r2758? 1 Link to comment Share on other sites More sharing options...
crusher Posted July 23, 2014 Share Posted July 23, 2014 Congratulations!!!!Nice job and nice tools.Just like that continue!!! Link to comment Share on other sites More sharing options...
cvad Posted July 25, 2014 Author Share Posted July 25, 2014 BootDiskUtility.exev2.0.2014rev.184b:Latest Clover v2k r2774 Removed Chameleon bootloader Updated Fix Dsdt Mask Calculator Updated internal Clover Bootloader rev.2774 Enjoy 2 Link to comment Share on other sites More sharing options...
NSCXP2005 Posted July 27, 2014 Share Posted July 27, 2014 cVaD, will this work for Yosemite Public Beta? Link to comment Share on other sites More sharing options...
cvad Posted July 27, 2014 Author Share Posted July 27, 2014 cVaD, will this work for Yosemite Public Beta? Yes. Link to comment Share on other sites More sharing options...
NSCXP2005 Posted July 27, 2014 Share Posted July 27, 2014 Awesome. Thanks Link to comment Share on other sites More sharing options...
Faradis Posted August 24, 2014 Share Posted August 24, 2014 How to install clover to mbr HFS+ partition??... any gide?? Link to comment Share on other sites More sharing options...

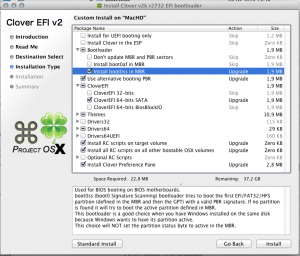

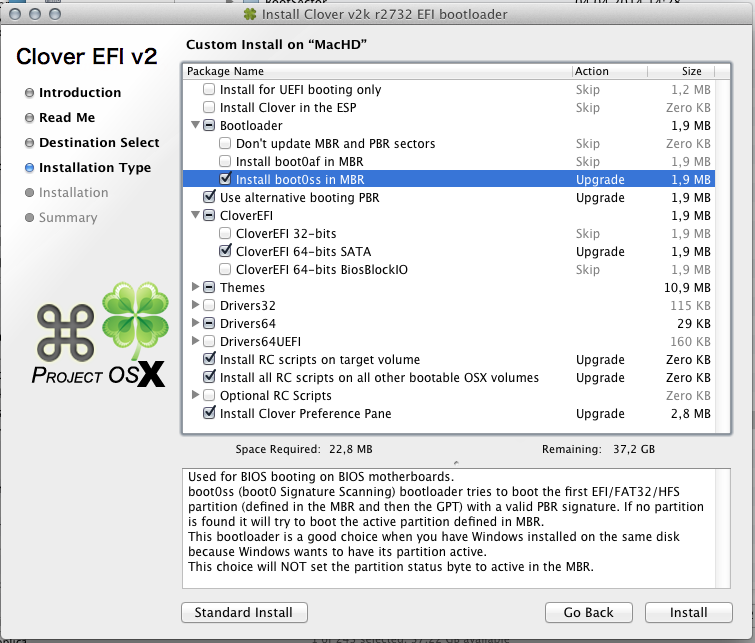

Slice Posted August 26, 2014 Share Posted August 26, 2014 How to install clover to mbr HFS+ partition??... any gide?? Link to comment Share on other sites More sharing options...
fbifido Posted October 19, 2014 Share Posted October 19, 2014 When will you update to : Latest Clover v2k r2953 & Chameleon r2403 Thanks 1 Link to comment Share on other sites More sharing options...
Edwin Moquete Posted November 5, 2014 Share Posted November 5, 2014 Thanks for the utility, very helpful. I have a question. Can i extract the HFS partition from ISO file? I got an OS X iso and i'm wordering if i can extract the OS X installer from it. Link to comment Share on other sites More sharing options...
ace_ventura Posted December 18, 2014 Share Posted December 18, 2014 Can I somehow use this with easy2boot? Link to comment Share on other sites More sharing options...
