blackosx
blackosx
Posted
  • Author
Posted

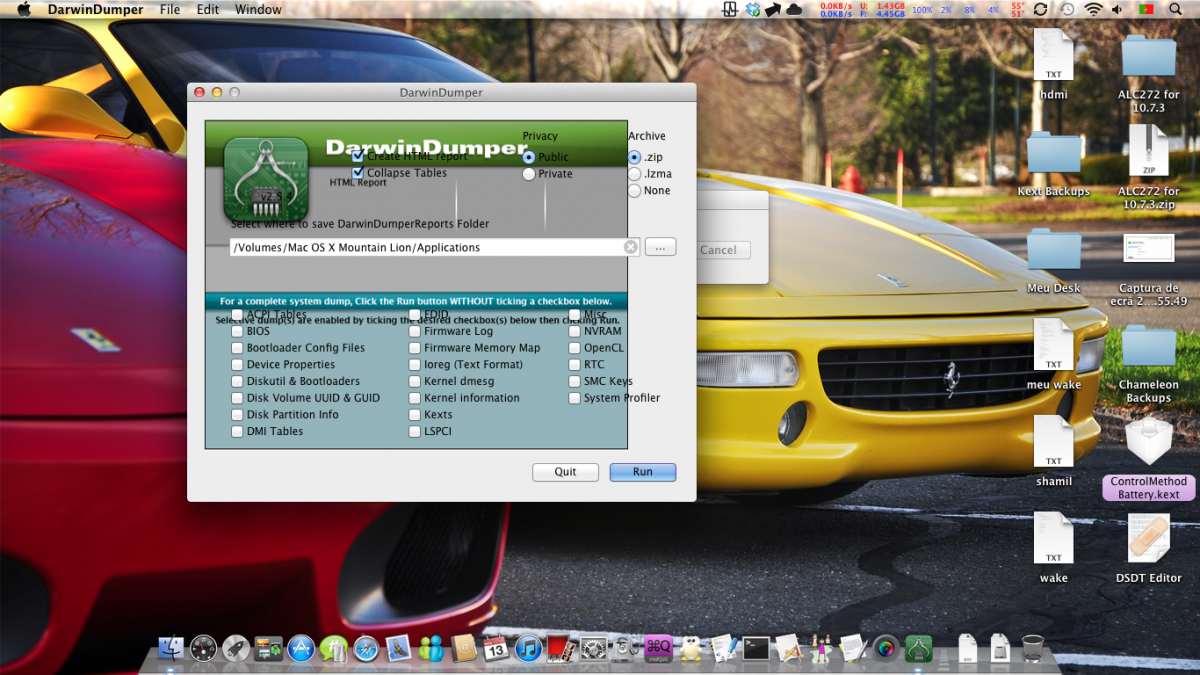

Thanks for the report Mohamed Khairy.

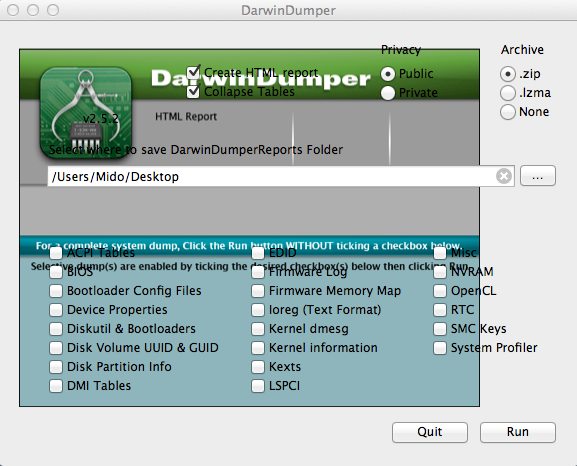

The interface buttons and checkboxes are actually correctly spaced but it looks like the background image has been scaled.

However, I don't understand why that's happened?



I'll run some tests here and see what i can find out.. In the mean time can anybody else confirm is this has happened to them?





EDIT: I've had make a revised version due to an issue with the edid-decode binary. I've attached this new version (v2.5.3) to the opening post. I also adjusted the permissions of the background image. Can you test that to see if that has the same interface issue?



Changes from 2.5.2 -> 2.5.3



- Replaced edid-decode binary by a version complied by Slice.



EDIT: Revised version (v2.5.4) attached to the opening post.



Changes from 2.5.3 -> 2.5.4



- Replaced edid-decode binary by a leo-compatible version complied by Slice.

  • Like 1
Link to comment
Share on other sites
blackosx
blackosx
Posted
  • Author
Posted

Is there a way to get PIO and DMA mode for the hard drives and the kext they are using (same for sound, video etc)?



Without doing any research, I don't know.

But any useful information that's read, decoded or analysed by any tool that you know of can be included in DarwinDumper.



@artur-pt , @Mohamed Khairy

I find it strange how it I don't see the issues you've reported to the DarwinDumper interface on either my iMac or hack. And it must not happen for everyone otherwise I would have seen more reports.

I would however like to nail this so can you give me any more information on the problem to work with? What version of OS X are you running?

Thanks



Maybe this can be a user preference, check if this exists and present a flag in GUI for it.

Good job, this has certainly come a very long way.

Thanks STLVNUB. I may look at doing something with this when I have time but it's not high on my list.

Link to comment
Share on other sites
artur_pt
artur_pt
Posted
Posted

hello blackosx



i'm in 10.8.2 only with last version i have that issue.



i go test in 10.7.5 to see if any thing related to ox version, and report back, perhaps something related with res (1366x768)



thanks

Link to comment
Share on other sites
blackosx
blackosx
Posted
  • Author
Posted

Thanks for testing artur-pt.



After running some tests here, I've managed to replicate the problem by changing my screen resolution. The interface is drawn incorrectly when using both 800x600px and 1280x720px. Though it's correct when using 1024x768px and 1280x1024px. Now I just need to find out why this happens.

Link to comment
Share on other sites
  • 2 weeks later...
blackosx
blackosx
Posted
  • Author
Posted

Revised version (v2.5.7) attached to the opening post.



Changes from 2.5.4 -> 2.5.5



- gatherDiskUtilLoaderinfo.sh - Removed 3rd (suspect) check for finding Clover revision, and replace with string 'unknown'.

- Added CFBundleShortVersionString to app info.plist to show version in Finder (Manually added for now).



Changes from 2.5.5 -> 2.5.6



- gatherDiskUtilLoaderinfo script cleanup for FindListAndCopyCloverDriverFiles().

- gatherDiskUtilLoaderinfo script now ignores stage 0 or stage 1 files beginning with the name 'boot' when looking for stage 2 files.

- gatherDiskUtilLoaderinfo script now has a basic detection for GRUB disk sectors by checking for GRUB string.

- gatherDiskUtilLoaderinfo script now only searches for stage 2 files in the root directory of the volume.

- Diskutil & loader HTML table now shows stage 2 boot filename in bold.

- Diskutil & loader dump no longer prints 'R' or brackets if loader revision is unknown.

- Progress bar window now uses textured fill, and no longer has cancel button.

- Any user-mounted EFI system partitions are left mounted.

- Fixed a path bug with the log file in the gatherDiskUtilLoaderinfo script.

- Added check for existence of dump files. Missing files are reported in log file.

- Updated pciids.

- pciids sever connection is now checked before attempting to update pciids.



Changes from 2.5.6 -> 2.5.7



- fix new bug caused by recent changes to FindListAndCopyCloverDriverFiles()







@artur-pt - Sorry there's no change with regard to the UI when used at smaller screen resolutions. I've found it's a problem with Pashua and images larger than 400px wide. The source code is closed and was last updated almost a year ago.

Link to comment
Share on other sites
  • 3 weeks later...
blackosx
blackosx
Posted
  • Author
Posted

Revised version (v2.5.8) attached to the opening post.



Changes from 2.5.7 -> 2.5.8



- Update to SMC_util3 for complete detection of newer Mac models SMC keys.

- The name 'EFI' is now used instead of the temporary mount point name for EFI system partitions when reporting disk dump info.

- BootSectDump folder is now only created if needed.

- refit.conf files are now included in the Bootloader Config Files dump (though not in the html report).

- Added detection for dmazar's modified boot0 for Clover timing.

- Updated pci.ids.gz file.

- Some code cleanups and revisions.

  • Like 5
Link to comment
Share on other sites
  • 3 weeks later...
  • 2 weeks later...
blackosx
blackosx
Posted
  • Author
Posted

Revised version (v2.6.0) attached to the opening post.



Changes from 2.5.8 -> 2.5.9



- Added current version of IORegistry Web Viewer to DarwinDumper HTML report (Note, this is still in an early development stage).

- Added Audio Codec ID dump option courtesy of AnV's getcodecid tool. If selected, a file name AudioCodecID.txt is saved in the SystemInfo folder.

- Revised the layout of the HTML report header to also include the Audio Codec ID.

- Changed HTML report visited link colour.

- Internal change to HTML report code - added separator lines to make reading easier.

- Revised system_profiler request to get Graphics and Mac Model info for HTML report header.



Changes from 2.5.9 -> 2.6.0



- Amended process launch sequence for IORegistry Dump - it now performs last.

- Replaced ioregwv with a 10.6 compatible version. (This needs testing and confirming it works with 10.6).

- Added string "Not Available" if audio codec ID cannot be read.



Please note - The privacy option does not touch the IORegistry dump so that will still contain private information.

  • Like 3
Link to comment
Share on other sites
  • 2 weeks later...
Andy Vandijck
Andy Vandijck
Posted
Posted

I'm not very familiar with it, but as mentioned by Slice, a linux style audio dump would require a framework which is not available on OSX.

Clover can dump your VideoBIOS by pressing F6 from the GUI if that's any use to you.

Or a kext similar to VoodooHDA which dumps the info in the same manner.

Link to comment
Share on other sites
blackosx
blackosx
Posted
  • Author
Posted

Thanks Andy. Yep - I added VoodooHDA.kext and it's getdump tool in v2.6.1b that was released at projectosx.



For ref:

Changes from 2.6.0 -> 2.6.1b

- Added VoodooHDA.kext and associated getdump tool to provide audio dump.

- Added Audio section to HTML report.

- HTML report header Audio field can now be populated by either Anv's getcodecID or VoodooHDA's getdump tools.

- Updated IORegistryViewer to latest version which includes ioregwv v86.18.

- Updated scripts to build new IOregviewer directory structure.

- Included separate IORegFileViewer.html file for reading outside of the DarwinDumper report file.

- The resulting IORegViewer directory is self contained and can be copied/moved and used by itself outside of DarwinDumper.

- Re-included normal ioreg text dumps for IOService and IODeviceTree as previously had.

- Front end UI background image removed as it caused problems on low-resolution displays.





And since then I've been working on the next version and here's where I am currently at....



Latest v2.6.2 attached to the opening post.

Big overhaul with many tweaks, corrections and additions.



Changes from 2.6.1b -> 2.6.2



Main changes are:

- New user interface (Confirmed working for OS X 10.8, 10.7 and 10.6.8 now).

- Can be run from the command line.

- App will now run without root privilege.

- Private option updated and now working with full IORegistry dump

- Dumps are now only saved to the same directory as the app.






To give more detail:

- The new UI is built using html,css & javascript using an app named macgap . It has yet to be tested under 10.5 so that's still an unknown.

- App will now run without root privileges and dump as much as it can without them. You can still choose to run with root privileges for a complete dump. The interface indicates any dumps requiring root privileges with an asterisk beside it's title.

- IORegistry dump is set to dump using -lw0 and not -lx



To use from the command line:

DarwinDumper.app/Contents/Resources/script ARGUMENTS (See below)



It accepts the following options:

-a Selects the archive option. Expects an argument. Available options are one of:
zip - dumps will be compressed using .zip
lzma - dumps will be compressed using .lzma
none - dumps will not be compressed

-d Selects the dump option. Expects an argument or more separated by a comma (without any spaces).
acpi
audio
bios
devprop
diskLoaderConfigs
diskUtilLoaders
diskVolumeXuid
diskPartitionInfo
dmi
edid
firmlog
firmmemmap
ioreg
kerneldmesg
kernelinfo
kexts
lspci
misc
nvram
opencl
rtc
smc
sysprof

-o Selects the options option. Expects an argument. Available options are one of:
html - generate the html report.
collapsed - html report tables will be collapsed.
private - mask personal information in the dumps.

-p Selects a preconfigured option. NOTE - This option should be used by itself with no other options.
Expects an argument. Available options are one of:
1 - Runs all dumps without root privileges, archiving as .zip, with html report
2 - Runs all dumps with root privileges, archiving as .zip, with html report

-r Selects the root option.



EXAMPLES:

DarwinDumper.app/Contents/Resources/script -p1
DarwinDumper.app/Contents/Resources/script -d acpi,dmi,kexts
DarwinDumper.app/Contents/Resources/script -d acpi,dmi,kexts -o html,collapsed -a lzma
DarwinDumper.app/Contents/Resources/script -r -d bios



Please post if you find any problems.

  • Like 4
Link to comment
Share on other sites
blackosx
blackosx
Posted
  • Author
Posted

I've updated the version in the opening post.



It will now work correctly from a symbolic link. To do that, use:

ln -s /path/to/DarwinDumper.app/Contents/Resources/script /usr/local/bin/darwindumper



v2.6.2 -> 2.6.3



- Changed an initial error message to print to stdout instead of missing log file.

- Checked removal of a temp file which caused launching the UI to fail ( Hopefully this works).

- Command line option now works correctly with symlinks.

- Fixed final moving dump files if no archive option passed as command line argument.

Link to comment
Share on other sites
blackosx
blackosx
Posted
  • Author
Posted

Updated v2.6.4 now in the opening post.



v2.6.3 -> 2.6.4



- Added appropriate headers to the code files.

- Split the javascript and css to individual files.

- Moved the STATUS header text in the UI to the right.

- Added command line usage printout with examples.

- Added help and credits section to the user interface.

- Added asterisks against disk dumps in UI as root privileges required for some operations.

- App launch from Finder should always work now.

- Replaced reference to pashua with macgap in footer of the html report.

- Archive option moved from sidebar to process section of window.

  • Like 1
Link to comment
Share on other sites
Andy Vandijck
Andy Vandijck
Posted
Posted

Updated v2.6.4 now in the opening post.



v2.6.3 -> 2.6.4



- Added appropriate headers to the code files.

- Split the javascript and css to individual files.

- Moved the STATUS header text in the UI to the right.

- Added command line usage printout with examples.

- Added help and credits section to the user interface.

- Added asterisks against disk dumps in UI as root privileges required for some operations.

- App launch from Finder should always work now.

- Replaced reference to pashua with macgap in footer of the html report.

- Archive option moved from sidebar to process section of window.

I really like the way this project is going.

The new UI is awesome too :D

Link to comment
Share on other sites
spakk
spakk
Posted
Posted

Updated v2.6.4 now in the opening post.



v2.6.3 -> 2.6.4



- Added appropriate headers to the code files.

- Split the javascript and css to individual files.

- Moved the STATUS header text in the UI to the right.

- Added command line usage printout with examples.

- Added help and credits section to the user interface.

- Added asterisks against disk dumps in UI as root privileges required for some operations.

- App launch from Finder should always work now.

- Replaced reference to pashua with macgap in footer of the html report.

- Archive option moved from sidebar to process section of window.



its works verry Good on my Hackintosh, many thx blackosx :king:

Link to comment
Share on other sites
