Mavericks kernel testing on AMD (formerly Mountain Lion kernel testing on AMD)

Andy Vandijck · November 3, 2013

Ok, did a debug run with blockkexts=com.apple.driver.AppleHDAController,com.apple.driver.AppleEFIRuntime

Both AppleHDA and AppleEFIRuntime aren't loaded.

I added debugging for testing:

BLDEBUG: blockkext found, arguments: com.apple.driver.AppleHDAController,com.apple.driver.AppleEFIRuntime
BLDEBUG: kext 0 set for blocking, name: com.apple.driver.AppleHDAController
BLDEBUG: kext 1 set for blocking, name: com.apple.driver.AppleEFIRuntime
BLDEBUG: 2 kexts set for blocking

Which resulted in the following 2 statements:

warning: skipping personalities in user blacklisted kext com.apple.driver.AppleEFIRuntime

warning: skipping personalities in user blacklisted kext com.apple.driver.AppleHDAController

So it works.

Gonna remove debug printfs, build the kernel and upload

Ok, it's done.

so new argument blockkexts=com.xxx.yyy,com.xxx.yyy,... controls the user set blacklist

There can be a blocking of up to 16 different user specified kexts

As you can see from the above, it works quite well

Also the cpuid_features bit for SSSE3 gets set on non-SSSE3 cpus...

This should fix that vector code check Sinetek showed us...

@Bronzovka: The code for the new user blacklister is present in IOStartIOKit.cpp, IOCatalogue.h and IOCatalogue.cpp

mach_kernel.zip

SinetekBronzovkAnVoodoo_RC6.diff.zip

Bronya · November 3, 2013

HI !

Cool Andy !

I also adding your code ... =)))

Andy Vandijck · November 3, 2013

HI !

Cool Andy !

I also adding your code ... =)))

Check the new code in the diff.

I revised it somewhat... it is better that way

Mohamed Khairy · November 3, 2013

success boot without blacklisting any kext

the same problem with preview

same panic with raid mode

Bronya · November 3, 2013

Check the new code in the diff.

I revised it somewhat... it is better that way

Ok ! Thank !

Shaneee · November 3, 2013

Ok, did a debug run with blockkexts=com.apple.driver.AppleHDAController,com.apple.driver.AppleEFIRuntime

Both AppleHDA and AppleEFIRuntime aren't loaded.

I added debugging for testing:
BLDEBUG: blockkext found, arguments: com.apple.driver.AppleHDAController,com.apple.driver.AppleEFIRuntime
BLDEBUG: kext 0 set for blocking, name: com.apple.driver.AppleHDAController
BLDEBUG: kext 1 set for blocking, name: com.apple.driver.AppleEFIRuntime
BLDEBUG: 2 kexts set for blocking
Which resulted in the following 2 statements:
warning: skipping personalities in user blacklisted kext com.apple.driver.AppleEFIRuntime
warning: skipping personalities in user blacklisted kext com.apple.driver.AppleHDAController
So it works.

Gonna remove debug printfs, build the kernel and upload

Ok, it's done.

so new argument blockkexts=com.xxx.yyy,com.xxx.yyy,... controls the user set blacklist

There can be a blocking of up to 16 different user specified kexts

As you can see from the above, it works quite well

Also the cpuid_features bit for SSSE3 gets set on non-SSSE3 cpus...

This should fix that vector code check Sinetek showed us...

@Bronzovka: The code for the new user blacklister is present in IOStartIOKit.cpp, IOCatalogue.h and IOCatalogue.cpp

Does this still blacklist AppleIntelPowerManagement or do we have to call it?

Mohamed Khairy · November 3, 2013

Does this still blacklist AppleIntelPowerManagement or do we have to call it?

it is auto blocked

granik · November 3, 2013

nothing has changed on an old non-FX AMD

Clover: KP on lanchd

Chameleon: invalid kernel ip

aplIIc · November 3, 2013

Works Just fine for me guys...

Mac-Pro.local 13.0.0 Darwin Kernel Version 13.0.0: zo  3 nov 2013 19:05:20 CET; SinetekBronzovkAnVoodoo v2.0.0:xnu-2422.1.72-AMD/BUILD/obj/RELEASE_X86_64 x86_64

Edit: I'm happy because now I only had pink launchpad once, with mach_shanee... launchpad is now normal for me. still some glitches on login and will keep an eye out.

aplIIc · November 3, 2013

Open GL Extensions Viewer crash after complete tests

Process:         OpenGL Extensions Viewer [519]
Path:            /Volumes/VOLUME/Applications/OpenGL Extensions Viewer.app/Contents/MacOS/OpenGL Extensions Viewer
Identifier:      com.realtech.openglex
Version:         3.37 (52)
Code Type:       X86-64 (Native)
Parent Process:  launchd [161]
Responsible:     OpenGL Extensions Viewer [519]
User ID:         502


Date/Time:       2013-11-01 18:24:25.405 -0400
OS Version:      Mac OS X 10.9 (13A603)
Report Version:  11




Crashed Thread:  0  Dispatch queue: com.apple.main-thread


Exception Type:  EXC_BAD_ACCESS (SIGSEGV)
Exception Codes: EXC_I386_GPFLT


Thread 0 Crashed:: Dispatch queue: com.apple.main-thread
0   libobjc.A.dylib                0x00000001003d60e6 objc_release + 22
1   libobjc.A.dylib                0x00000001003d565a (anonymous namespace)::AutoreleasePoolPage::pop(void*) + 502
2   com.apple.CoreFoundation       0x00000001005d4d72 _CFAutoreleasePoolPop + 50
3   com.apple.Foundation           0x0000000101c0bda7 -[NSAutoreleasePool drain] + 147
4   com.apple.AppKit               0x000000010090aa78 -[NSApplication run] + 725
5   com.apple.AppKit               0x00000001008f5803 NSApplicationMain + 940
6   com.realtech.openglex          0x0000000100001442 0x100000000 + 5186
7   com.realtech.openglex          0x0000000100001361 0x100000000 + 4961


Thread 1:: Dispatch queue: com.apple.libdispatch-manager
0   libsystem_kernel.dylib         0x000000010237a662 kevent64 + 10
1   libdispatch.dylib              0x00000001021d143d _dispatch_mgr_invoke + 239
2   libdispatch.dylib              0x00000001021d1152 _dispatch_mgr_thread + 52


Thread 2:
0   libsystem_kernel.dylib         0x0000000102375a1a mach_msg_trap + 10
1   libsystem_kernel.dylib         0x0000000102374d18 mach_msg + 64
2   com.apple.CoreFoundation       0x000000010060d315 __CFRunLoopServiceMachPort + 181
3   com.apple.CoreFoundation       0x000000010060c939 __CFRunLoopRun + 1161
4   com.apple.CoreFoundation       0x000000010060c275 CFRunLoopRunSpecific + 309
5   com.apple.AppKit               0x0000000100ab71ce _NSEventThread + 144
6   libsystem_pthread.dylib        0x0000000102471899 _pthread_body + 138
7   libsystem_pthread.dylib        0x000000010247172a _pthread_start + 137
8   libsystem_pthread.dylib        0x0000000102475fc9 thread_start + 13


Thread 3:
0   libsystem_kernel.dylib         0x0000000102379e6a __workq_kernreturn + 10
1   libsystem_pthread.dylib        0x0000000102472f08 _pthread_wqthread + 330
2   libsystem_pthread.dylib        0x0000000102475fb9 start_wqthread + 13


Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0xd000000010ca70a5  rbx: 0x000000010ca70100  rcx: 0x000000010c00ed30  rdx: 0x00000000a1a1a1a1
  rdi: 0x000000010ca70100  rsi: 0x000000010c00e010  rbp: 0x00007fff5fbff6d0  rsp: 0x00007fff5fbff6c0
   r8: 0x00000000000003ff   r9: 0xffff9efffffc80bf  r10: 0x000000010e0684b0  r11: 0x0000000100799701
  r12: 0x00000001003d3000  r13: 0x0000600000044110  r14: 0x000000010c00e040  r15: 0x000000010c00e000
  rip: 0x00000001003d60e6  rfl: 0x0000000000010246  cr2: 0x000000010f984000

Logical CPU:     1
Error Code:      0x00000000
Trap Number:     13




Binary Images:
       0x100000000 -        0x10004cfef +com.realtech.openglex (3.37 - 52) <A483CD47-49A3-DCC0-9245-986ACDBF1FDB> /Volumes/VOLUME/Applications/OpenGL Extensions Viewer.app/Contents/MacOS/OpenGL Extensions Viewer
       0x100087000 -        0x100098ff7  libz.1.dylib (53) <42E0C8C6-CA38-3CA4-8619-D24ED5DD492E> /usr/lib/libz.1.dylib
       0x10009e000 -        0x10009efff  com.apple.Cocoa (6.8 - 20) <E90E99D7-A425-3301-A025-D9E0CD11918E> /System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa
       0x1000a1000 -        0x1000affff  com.apple.opengl (9.0.83 - 9.0.83) <AF467644-7B1D-327A-AC47-CECFCAF61990> /System/Library/Frameworks/OpenGL.framework/Versions/A/OpenGL
       0x1000b7000 -        0x1000b7ff7  com.apple.MessageFramework (7.0 - 1602) <15944A04-EC42-3C20-B416-DA7C3465CC25> /System/Library/Frameworks/Message.framework/Versions/B/Message
       0x1000bb000 -        0x1000fbff7  com.apple.glut (3.6.0 - GLUT-3.6.0) <87683C90-4303-3561-9CC8-5772FDEC16F0> /System/Library/Frameworks/GLUT.framework/Versions/A/GLUT
       0x10016f000 -        0x1002a4ffa  com.apple.WebKit (9537 - 9537.71) <8A07478D-B2CA-3724-81E4-ADC10E1AD3EA> /System/Library/Frameworks/WebKit.framework/Versions/A/WebKit
       0x100398000 -        0x1003affff  com.apple.ScriptingBridge (1.3.1 - 63) <CE24DD07-7A89-3105-AE57-A1BED0189292> /System/Library/Frameworks/ScriptingBridge.framework/Versions/A/ScriptingBridge
       0x1003c2000 -        0x1003c3ff7  libSystem.B.dylib (1197.1.1) <BFC0DC97-46C6-3BE0-9983-54A98734897A> /usr/lib/libSystem.B.dylib
       0x1003ca000 -        0x1003cafff  com.apple.CoreServices (59 - 59) <7A697B5E-F179-30DF-93F2-8B503CEEEFD5> /System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices
       0x1003ce000 -        0x10057bf27  libobjc.A.dylib (551.1) <AD7FD984-271E-30F4-A361-6B20319EC73B> /usr/lib/libobjc.A.dylib
       0x10059c000 -        0x100781ff7  com.apple.CoreFoundation (6.9 - 855.11) <E22C6A1F-8996-349C-905E-96C3BBE07C2F> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
       0x1008f3000 -        0x101467ff7  com.apple.AppKit (6.9 - 1265) <0E9FC8BF-DA3C-34C5-91CC-12BC922B5F01> /System/Library/Frameworks/AppKit.framework/Versions/C/AppKit
       0x101bed000 -        0x101bedfff  com.apple.ApplicationServices (48 - 48) <3E3F01A8-314D-378F-835E-9CC4F8820031> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/ApplicationServices
       0x101bf0000 -        0x101eeffff  com.apple.Foundation (6.9 - 1056) <D608EDFD-9634-3573-9B7E-081C7D085F7A> /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation
       0x10212d000 -        0x102131ff7  libcache.dylib (62) <BDC1E65B-72A1-3DA3-A57C-B23159CAAD0B> /usr/lib/system/libcache.dylib
       0x102136000 -        0x102140fff  libcommonCrypto.dylib (60049) <8C4F0CA0-389C-3EDC-B155-E62DD2187E1D> /usr/lib/system/libcommonCrypto.dylib
       0x10214e000 -        0x102155fff  libcompiler_rt.dylib (35) <4CD916B2-1B17-362A-B403-EF24A1DAC141> /usr/lib/system/libcompiler_rt.dylib
       0x102161000 -        0x102168ff3  libcopyfile.dylib (103) <5A881779-D0D6-3029-B371-E3021C2DDA5E> /usr/lib/system/libcopyfile.dylib
       0x10216f000 -        0x1021bdfff  libcorecrypto.dylib (161.1) <F3973C28-14B6-3006-BB2B-00DD7F09ABC7> /usr/lib/system/libcorecrypto.dylib
       0x1021ce000 -        0x1021e8fff  libdispatch.dylib (339.1.9) <46878A5B-4248-3057-962C-6D4A235EEF31> /usr/lib/system/libdispatch.dylib
       0x102202000 -        0x102205ff7  libdyld.dylib (239.3) <62F4D752-4089-31A8-8B73-B95A68893B3C> /usr/lib/system/libdyld.dylib
       0x10220c000 -        0x10220cff7  libkeymgr.dylib (28) <3AA8D85D-CF00-3BD3-A5A0-E28E1A32A6D8> /usr/lib/system/libkeymgr.dylib
       0x102211000 -        0x102218ff7  liblaunch.dylib (842.1.4) <FCBF0A02-0B06-3F97-9248-5062A9DEB32C> /usr/lib/system/liblaunch.dylib
       0x102220000 -        0x102225fff  libmacho.dylib (845) <1D2910DF-C036-3A82-A3FD-44FF73B5FF9B> /usr/lib/system/libmacho.dylib
       0x10222b000 -        0x10222dff7  libquarantine.dylib (71) <7A1A2BCB-C03D-3A25-BFA4-3E569B2D2C38> /usr/lib/system/libquarantine.dylib
       0x102233000 -        0x102234ffb  libremovefile.dylib (33) <3543F917-928E-3DB2-A2F4-7AB73B4970EF> /usr/lib/system/libremovefile.dylib
       0x10223a000 -        0x10224bff7  libsystem_asl.dylib (217.1.4) <655FB343-52CF-3E2F-B14D-BEBF5AAEF94D> /usr/lib/system/libsystem_asl.dylib
       0x102255000 -        0x102256ff7  libsystem_blocks.dylib (63) <FB856CD1-2AEA-3907-8E9B-1E54B6827F82> /usr/lib/system/libsystem_blocks.dylib
       0x10225b000 -        0x1022e4ff7  libsystem_c.dylib (997.1.1) <61833FAA-7281-3FF9-937F-686B6F20427C> /usr/lib/system/libsystem_c.dylib
       0x102310000 -        0x102312ff3  libsystem_configuration.dylib (596.12) <C4F633D9-94C8-35D9-BB2D-84C5122533C7> /usr/lib/system/libsystem_configuration.dylib
       0x102318000 -        0x102320fff  libsystem_dnssd.dylib (522.1.11) <270DCF6C-502D-389A-AA9F-DE4624A36FF7> /usr/lib/system/libsystem_dnssd.dylib
       0x102327000 -        0x10234effb  libsystem_info.dylib (449.1.3) <7D41A156-D285-3849-A2C3-C04ADE797D98> /usr/lib/system/libsystem_info.dylib
       0x102364000 -        0x102380ff7  libsystem_kernel.dylib (2422.1.72) <D14913DB-47F1-3591-8DAF-D4B4EF5F8818> /usr/lib/system/libsystem_kernel.dylib
       0x1023a3000 -        0x1023d2fd2  libsystem_m.dylib (3047.16) <B7F0E2E4-2777-33FC-A787-D6430B630D54> /usr/lib/system/libsystem_m.dylib
       0x1023dd000 -        0x1023f8ff7  libsystem_malloc.dylib (23.1.10) <FFE5C472-B23A-318A-85BF-77CDE61900D1> /usr/lib/system/libsystem_malloc.dylib
       0x102402000 -        0x102429ff7  libsystem_network.dylib (241.3) <8B1E1F1D-A5CC-3BAE-8B1E-ABC84337A364> /usr/lib/system/libsystem_network.dylib
       0x102445000 -        0x10244eff3  libsystem_notify.dylib (121) <52571EC3-6894-37E4-946E-064B021ED44E> /usr/lib/system/libsystem_notify.dylib
       0x102457000 -        0x10245dff7  libsystem_platform.dylib (24.1.4) <331BA4A5-55CE-3B95-99EB-44E0C89D7FB8> /usr/lib/system/libsystem_platform.dylib
       0x102470000 -        0x102477ff7  libsystem_pthread.dylib (53.1.4) <AB498556-B555-310E-9041-F67EC9E00E2C> /usr/lib/system/libsystem_pthread.dylib
       0x102483000 -        0x102484ff7  libsystem_sandbox.dylib (278.10) <A47E7E11-3C76-318E-B67D-98972B86F094> /usr/lib/system/libsystem_sandbox.dylib
       0x102489000 -        0x10248dfff  libsystem_stats.dylib (93.1.26) <B9E26A9E-FBBC-3938-B8B7-6CF7CA8C99AD> /usr/lib/system/libsystem_stats.dylib
       0x102494000 -        0x102495fff  libunc.dylib (28) <62682455-1862-36FE-8A04-7A6B91256438> /usr/lib/system/libunc.dylib
       0x10249b000 -        0x1024a0ff7  libunwind.dylib (35.3) <78DCC358-2FC1-302E-B395-0155B47CB547> /usr/lib/system/libunwind.dylib
       0x1024a7000 -        0x1024cbfff  libxpc.dylib (300.1.17) <4554927A-9467-365C-91F1-5A116989DD7F> /usr/lib/system/libxpc.dylib
       0x1024e8000 -        0x10252aff7  libauto.dylib (185.5) <F45C36E8-B606-3886-B5B1-B6745E757CA8> /usr/lib/libauto.dylib
       0x102542000 -        0x10256bff7  libc++abi.dylib (48) <8C16158F-CBF8-3BD7-BEF4-022704B2A326> /usr/lib/libc++abi.dylib
       0x102579000 -        0x1025cbfff  libc++.1.dylib (120) <4F68DFC5-2077-39A8-A449-CAC5FDEE7BDE> /usr/lib/libc++.1.dylib
       0x102627000 -        0x102628ff7  libDiagnosticMessagesClient.dylib (100) <4CDB0F7B-C0AF-3424-BC39-495696F0DB1E> /usr/lib/libDiagnosticMessagesClient.dylib
       0x10262d000 -        0x102875fff  com.apple.CoreData (107 - 481) <E5AFBA07-F73E-3B3F-9099-F51224EE8EAD> /System/Library/Frameworks/CoreData.framework/Versions/A/CoreData
       0x10299d000 -        0x1029d5ff7  com.apple.RemoteViewServices (2.0 - 94) <3F34D630-3DDB-3411-BC28-A56A9B55EBDA> /System/Library/PrivateFrameworks/RemoteViewServices.framework/Versions/A/RemoteViewServices
       0x102a0e000 -        0x102b61ff7  com.apple.audio.toolbox.AudioToolbox (1.9 - 1.9) <A0B7B007-9BD8-30E2-B644-47856DA29FEE> /System/Library/Frameworks/AudioToolbox.framework/Versions/A/AudioToolbox
       0x102bf7000 -        0x102bf7ffd  com.apple.audio.units.AudioUnit (1.9 - 1.9) <6E89F3CB-CC41-3728-9F9A-FDFC151E8261> /System/Library/Frameworks/AudioUnit.framework/Versions/A/AudioUnit
       0x102bfd000 -        0x102c61ff3  com.apple.datadetectorscore (5.0 - 354.0) <9ACF24B8-3268-3134-A5BC-D72C9371A195> /System/Library/PrivateFrameworks/DataDetectorsCore.framework/Versions/A/DataDetectorsCore
       0x102ca0000 -        0x102dd0ff7  com.apple.desktopservices (1.8 - 1.8) <09DC9BB8-432F-3C7A-BB08-956A2DDFC2DE> /System/Library/PrivateFrameworks/DesktopServicesPriv.framework/Versions/A/DesktopServicesPriv
       0x102e50000 -        0x1030faffd  com.apple.HIToolbox (2.1 - 695) <C4DE35FF-D0AC-35C3-A7E6-F54CD153825C> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/HIToolbox.framework/Versions/A/HIToolbox
       0x103252000 -        0x1033eeff7  com.apple.QuartzCore (1.8 - 332.0) <994D1E0A-64B6-398C-B9A2-C362F02DE943> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
       0x1034c5000 -        0x10371dff1  com.apple.security (7.0 - 55471) <233831C5-C457-3AD5-AFE7-E3E2DE6929C9> /System/Library/Frameworks/Security.framework/Versions/A/Security
       0x103865000 -        0x10386dff7  com.apple.speech.recognition.framework (4.2.4 - 4.2.4) <98BBB3E4-6239-3EF1-90B2-84EA0D3B8D61> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SpeechRecognition.framework/Versions/A/SpeechRecognition
       0x103877000 -        0x103a2fff3  libicucore.A.dylib (511.25) <3ED7B656-416E-3071-AEC8-E85C90232F78> /usr/lib/libicucore.A.dylib
       0x103ad5000 -        0x103bbcff7  libxml2.2.dylib (26) <A1DADD11-89E5-3DE4-8802-07186225967F> /usr/lib/libxml2.2.dylib
       0x103bf2000 -        0x103cd6fff  com.apple.coreui (2.1 - 231) <432DB40C-6B7E-39C8-9FB5-B95917930056> /System/Library/PrivateFrameworks/CoreUI.framework/Versions/A/CoreUI
       0x103d98000 -        0x103de9ff3  com.apple.audio.CoreAudio (4.2.0 - 4.2.0) <BF4C2FE3-8BC8-30D1-8347-2A7221268794> /System/Library/Frameworks/CoreAudio.framework/Versions/A/CoreAudio
       0x103e0f000 -        0x103e14fff  com.apple.DiskArbitration (2.6 - 2.6) <F8A47F61-83D1-3F92-B7A8-A169E0D187C0> /System/Library/Frameworks/DiskArbitration.framework/Versions/A/DiskArbitration
       0x103e1e000 -        0x103e1ffff  liblangid.dylib (117) <9546E641-F730-3AB0-B3CD-E0E2FDD173D9> /usr/lib/liblangid.dylib
       0x103e23000 -        0x103e35ff7  com.apple.MultitouchSupport.framework (245.13 - 245.13) <D5E7416D-45AB-3690-86C6-CC4B5FCEA2D2> /System/Library/PrivateFrameworks/MultitouchSupport.framework/Versions/A/MultitouchSupport
       0x103e44000 -        0x103eaeff7  com.apple.framework.IOKit (2.0.1 - 907.1.13) <C1E95F5C-B79B-31BE-9F2A-1B25163C1F16> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit
       0x103ee2000 -        0x103f23fff  com.apple.PerformanceAnalysis (1.47 - 47) <784ED7B8-FAE4-36CE-8C76-B7D300316C9F> /System/Library/PrivateFrameworks/PerformanceAnalysis.framework/Versions/A/PerformanceAnalysis
       0x104774000 -        0x10478cff7  com.apple.GenerationalStorage (2.0 - 160.2) <79629AC7-896F-3302-8AC1-4939020F08C3> /System/Library/PrivateFrameworks/GenerationalStorage.framework/Versions/A/GenerationalStorage
       0x10479c000 -        0x1047a9fff  com.apple.Sharing (132.2 - 132.2) <F983394A-226D-3244-B511-FA51FDB6ADDA> /System/Library/PrivateFrameworks/Sharing.framework/Versions/A/Sharing
       0x1047ba000 -        0x1048bffff  com.apple.ImageIO.framework (3.3.0 - 1038) <2C058216-C6D8-3380-A7EA-92A3F04520C1> /System/Library/Frameworks/ImageIO.framework/Versions/A/ImageIO
       0x104927000 -        0x1049e9ff1  com.apple.CoreText (352.0 - 367.15) <E5C70FC8-C861-39B8-A491-595E5B55CFC8> /System/Library/Frameworks/CoreText.framework/Versions/A/CoreText
       0x104a57000 -        0x10537305f  com.apple.CoreGraphics (1.600.0 - 599.7) <7D0FD5A7-A061-39BA-8E00-723825D2C4DD> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/CoreGraphics
       0x10549f000 -        0x105562ff7  com.apple.backup.framework (1.5 - 1.5) <92C8038F-CC00-3202-90D8-3C3AEC90986F> /System/Library/PrivateFrameworks/Backup.framework/Versions/A/Backup
       0x1055e9000 -        0x105759ff6  com.apple.CFNetwork (673.0.3 - 673.0.3) <42CFC3DB-35C8-3652-AF37-4BCC73D8BDEF> /System/Library/Frameworks/CFNetwork.framework/Versions/A/CFNetwork
       0x10585f000 -        0x1058c2ff7  com.apple.SystemConfiguration (1.13 - 1.13) <F05F4149-981B-380B-8F50-51CE804BBB89> /System/Library/Frameworks/SystemConfiguration.framework/Versions/A/SystemConfiguration
       0x1058fd000 -        0x105918ff7  libCRFSuite.dylib (34) <FFAE75FA-C54E-398B-AA97-18164CD9789D> /usr/lib/libCRFSuite.dylib
       0x105922000 -        0x105932fff  libbsm.0.dylib (33) <2CAC00A2-1352-302A-88FA-C567D4D69179> /usr/lib/libbsm.0.dylib
       0x10593b000 -        0x105a25fff  libsqlite3.dylib (158) <00269BF9-43BE-39E0-9C85-24585B9923C8> /usr/lib/libsqlite3.dylib
       0x105a3c000 -        0x105a49ff7  libxar.1.dylib (202) <5572AA71-E98D-3FE1-9402-BB4A84E0E71E> /usr/lib/libxar.1.dylib
       0x105a51000 -        0x105a55fff  libpam.2.dylib (20) <B93CE8F5-DAA8-30A1-B1F6-F890509513CB> /usr/lib/libpam.2.dylib
       0x105a5a000 -        0x105a5affd  libOpenScriptingUtil.dylib (157) <19F0E769-0989-3062-9AFB-8976E90E9759> /usr/lib/libOpenScriptingUtil.dylib
       0x105a5e000 -        0x105a6bff0  libbz2.1.0.dylib (29) <0B98AC35-B138-349C-8063-2B987A75D24C> /usr/lib/libbz2.1.0.dylib
       0x105a71000 -        0x105d5bfff  com.apple.CoreServices.CarbonCore (1077.13 - 1077.13) <21324540-8B84-3333-ADB8-D3D5181D4639> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore
       0x105dd8000 -        0x105e67ff7  com.apple.Metadata (10.7.0 - 800.12) <04486C95-3E49-36C4-89B6-925E925BB417> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/Metadata.framework/Versions/A/Metadata
       0x105ece000 -        0x105f45fff  com.apple.CoreServices.OSServices (600.4 - 600.4) <36B2B009-C35E-3F21-824E-E0D00E7808C7> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/OSServices.framework/Versions/A/OSServices
       0x105fe8000 -        0x106055fff  com.apple.SearchKit (1.4.0 - 1.4.0) <B9B8D510-A27E-36B0-93E9-17146D9E9045> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SearchKit.framework/Versions/A/SearchKit
       0x106099000 -        0x1060f4ffb  com.apple.AE (665.5 - 665.5) <BBA230F9-144C-3CAB-A77A-0621719244CD> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/AE.framework/Versions/A/AE
       0x106123000 -        0x1061ecfff  com.apple.LaunchServices (572.23 - 572.23) <8D955BDE-2C4C-3DD4-B4D7-2D916174FE1D> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/LaunchServices.framework/Versions/A/LaunchServices
       0x106261000 -        0x10628afff  com.apple.DictionaryServices (1.2 - 208) <A539A058-BA57-35EE-AA08-D0B0E835127D> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/DictionaryServices.framework/Versions/A/DictionaryServices
       0x1062ad000 -        0x1062b4fff  com.apple.NetFS (6.0 - 4.0) <8E26C099-CE9D-3819-91A2-64EA929C6137> /System/Library/Frameworks/NetFS.framework/Versions/A/NetFS
       0x1062bc000 -        0x1062c7fff  libkxld.dylib (2422.1.72) <C88EF3E6-B31F-3E12-BE9B-562D912BA733> /usr/lib/system/libkxld.dylib
       0x1062cc000 -        0x1062d7ff7  com.apple.NetAuth (5.0 - 5.0) <C811E662-9EC3-3B74-808A-A75D624F326B> /System/Library/PrivateFrameworks/NetAuth.framework/Versions/A/NetAuth
       0x1062e3000 -        0x1062e6fff  com.apple.TCC (1.0 - 1) <32A075D9-47FD-3E71-95BC-BFB0D583F41C> /System/Library/PrivateFrameworks/TCC.framework/Versions/A/TCC
       0x1062ed000 -        0x106304fff  com.apple.CFOpenDirectory (10.9 - 173.1.1) <3FB4D5FE-860B-3BDE-BAE2-3531D919EF10> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/Frameworks/CFOpenDirectory.framework/Versions/A/CFOpenDirectory
       0x106322000 -        0x10632cff7  com.apple.bsd.ServiceManagement (2.0 - 2.0) <2D27B498-BB9C-3D88-B05A-76908A8A26F3> /System/Library/Frameworks/ServiceManagement.framework/Versions/A/ServiceManagement
       0x106337000 -        0x10635fffb  libxslt.1.dylib (13) <C9794936-633C-3F0C-9E71-30190B9B41C1> /usr/lib/libxslt.1.dylib
       0x10636c000 -        0x1063f8ff7  com.apple.ink.framework (10.9 - 207) <8A50B893-AD03-3826-8555-A54FEAF08F47> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Ink.framework/Versions/A/Ink
       0x10642b000 -        0x10649aff1  com.apple.ApplicationServices.ATS (360 - 363.1) <88976B22-A9B8-3E7B-9AE6-0B8E09A968FC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/ATS
       0x1064c6000 -        0x10654ffff  com.apple.ColorSync (4.9.0 - 4.9.0) <B756B908-9AD1-3F5D-83F9-7A0B068387D2> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ColorSync.framework/Versions/A/ColorSync
       0x106596000 -        0x1065dbff6  com.apple.HIServices (1.22 - 466) <21807AF8-3BC7-32BB-AB96-7C35CB59D7F6> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/HIServices.framework/Versions/A/HIServices
       0x10660e000 -        0x10661dff8  com.apple.LangAnalysis (1.7.0 - 1.7.0) <8FE131B6-1180-3892-98F5-C9C9B79072D4> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LangAnalysis.framework/Versions/A/LangAnalysis
       0x10662b000 -        0x106678ff2  com.apple.print.framework.PrintCore (9.0 - 428) <8D8253E3-302F-3DB2-9C5C-572CB974E8B3> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/PrintCore.framework/Versions/A/PrintCore
       0x1066a5000 -        0x1066deff7  com.apple.QD (3.50 - 298) <C1F20764-DEF0-34CF-B3AB-AB5480D64E66> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/QD.framework/Versions/A/QD
       0x1066fa000 -        0x106703fff  com.apple.speech.synthesis.framework (4.6.2 - 4.6.2) <0AAE45F0-FC6E-36B6-A6A7-73E6950A74AC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/SpeechSynthesis.framework/Versions/A/SpeechSynthesis
       0x106716000 -        0x106719ffc  com.apple.IOSurface (91 - 91) <07CA8A59-1E32-3FB6-B506-18DAF58A8CE0> /System/Library/Frameworks/IOSurface.framework/Versions/A/IOSurface
       0x106722000 -        0x106722fff  com.apple.Accelerate (1.9 - Accelerate 1.9) <509BB27A-AE62-366D-86D8-0B06D217CF56> /System/Library/Frameworks/Accelerate.framework/Versions/A/Accelerate
       0x106725000 -        0x1069f9fc7  com.apple.vImage (7.0 - 7.0) <D241DBFA-AC49-31E2-893D-EAAC31890C90> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/vImage
       0x106a3c000 -        0x106a3cfff  com.apple.Accelerate.vecLib (3.9 - vecLib 3.9) <F8D0CC77-98AC-3B58-9FE6-0C25421827B6> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/vecLib
       0x106a3f000 -        0x106b0afff  libvDSP.dylib (423.32) <3BF732BE-DDE0-38EB-8C54-E4E3C64F77A7> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvDSP.dylib
       0x106b15000 -        0x106bc5ff7  libvMisc.dylib (423.32) <049C0735-1808-39B9-943F-76CB8021744F> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvMisc.dylib
       0x106bd1000 -        0x106fb2ffe  libLAPACK.dylib (1094.5) <7E7A9B8D-1638-3914-BAE0-663B69865986> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLAPACK.dylib
       0x107015000 -        0x107183ff7  libBLAS.dylib (1094.5) <DE93A590-5FA5-32A2-A16C-5D7D7361769F> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
       0x1071ac000 -        0x10729bfff  libFontParser.dylib (111.1) <835A8253-6AB9-3AAB-9CBF-171440DEC486> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontParser.dylib
       0x107311000 -        0x107358fff  libFontRegistry.dylib (127) <A77A0480-AA5D-3CC8-8B68-69985CD546DC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontRegistry.dylib
       0x10737e000 -        0x1073a2ff7  libJPEG.dylib (1038) <86F349A8-882D-3326-A0B0-63257F68B1A7> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib
       0x1073aa000 -        0x107403fff  libTIFF.dylib (1038) <5CBFE0C2-9DD8-340B-BA63-A94CE2E476F2> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libTIFF.dylib
       0x107412000 -        0x10742dff7  libPng.dylib (1038) <EF781AF8-C2E6-3179-B8A1-A584783070F1> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libPng.dylib
       0x107436000 -        0x10743aff7  libGIF.dylib (1038) <C29B4323-1B9E-36B9-96C2-7CEDBAA124F0> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libGIF.dylib
       0x10743f000 -        0x10752dfff  libJP2.dylib (1038) <6C8179F5-8063-3ED6-A7C2-D5603DECDF28> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJP2.dylib
       0x107557000 -        0x107559fff  libRadiance.dylib (1038) <55F99274-5074-3C73-BAC5-AF234E71CF38> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libRadiance.dylib
       0x10755d000 -        0x1075a4ff7  libcups.2.dylib (372) <348EED62-6C20-35D6-8EFB-E80943965100> /usr/lib/libcups.2.dylib
       0x1075b9000 -        0x1075d2ff7  com.apple.Kerberos (3.0 - 1) <F108AFEB-198A-3BAF-BCA5-9DFCE55EFF92> /System/Library/Frameworks/Kerberos.framework/Versions/A/Kerberos
       0x1075eb000 -        0x10761aff5  com.apple.GSS (4.0 - 2.0) <ED98D992-CC14-39F3-9ABC-8D7F986487CC> /System/Library/Frameworks/GSS.framework/Versions/A/GSS
       0x107639000 -        0x107655fff  libresolv.9.dylib (54) <11C2C826-F1C6-39C6-B4E8-6E0C41D4FA95> /usr/lib/libresolv.9.dylib
       0x107660000 -        0x107751ff9  libiconv.2.dylib (41) <BB44B115-AC32-3877-A0ED-AEC6232A4563> /usr/lib/libiconv.2.dylib
       0x107761000 -        0x1077c5ff9  com.apple.Heimdal (4.0 - 2.0) <E7D20A4D-4674-37E1-A949-635FFF7C439A> /System/Library/PrivateFrameworks/Heimdal.framework/Versions/A/Heimdal
       0x1077f1000 -        0x1077f2fff  com.apple.TrustEvaluationAgent (2.0 - 25) <334A82F4-4AE4-3719-A511-86D0B0723E2B> /System/Library/PrivateFrameworks/TrustEvaluationAgent.framework/Versions/A/TrustEvaluationAgent
       0x1077f7000 -        0x1077fbff7  libheimdal-asn1.dylib (323.12) <063A01C2-E547-39D9-BB42-4CC8E64ADE70> /usr/lib/libheimdal-asn1.dylib
       0x107801000 -        0x10780dff7  com.apple.OpenDirectory (10.9 - 173.1.1) <6B78BD7B-5622-38E6-8FC6-86A117E3ACCA> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/OpenDirectory
       0x107822000 -        0x10782bfff  com.apple.CommonAuth (4.0 - 2.0) <1D263127-5F27-3128-996D-7397660D0C6E> /System/Library/PrivateFrameworks/CommonAuth.framework/Versions/A/CommonAuth
       0x107832000 -        0x1078a5ffb  com.apple.securityfoundation (6.0 - 55122) <119D1C53-B292-3378-AEE1-A3B1FB02F43F> /System/Library/Frameworks/SecurityFoundation.framework/Versions/A/SecurityFoundation
       0x1078e5000 -        0x10791fff3  com.apple.bom (12.0 - 192) <989690DB-B9CC-3DB5-89AE-B5D33EDC474E> /System/Library/PrivateFrameworks/Bom.framework/Versions/A/Bom
       0x107932000 -        0x107957ff7  com.apple.CoreVideo (1.8 - 117.2) <4674339E-26D0-35FA-9958-422832B39B12> /System/Library/Frameworks/CoreVideo.framework/Versions/A/CoreVideo
       0x107973000 -        0x107c41ff4  com.apple.CoreImage (9.0.54) <74BB8685-69A9-3A45-8DED-EA26BD39D710> /System/Library/Frameworks/QuartzCore.framework/Versions/A/Frameworks/CoreImage.framework/Versions/A/CoreImage
       0x107d35000 -        0x107d88fff  com.apple.ScalableUserInterface (1.0 - 1) <CF745298-7373-38D2-B3B1-727D5A569E48> /System/Library/Frameworks/QuartzCore.framework/Versions/A/Frameworks/ScalableUserInterface.framework/Versions/A/ScalableUserInterface
       0x107dad000 -        0x107decfff  libGLU.dylib (9.0.83) <8B457205-513B-3477-AE9C-3AD979D5FE11> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLU.dylib
       0x107dfb000 -        0x107e03ffc  libGFXShared.dylib (9.0.83) <11A621C3-37A0-39CE-A69B-8739021BD79D> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGFXShared.dylib
       0x107e0a000 -        0x107e15fff  libGL.dylib (9.0.83) <984A960A-C159-3AE5-8B40-E2B451F6C712> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGL.dylib
       0x107e29000 -        0x107e67ff7  libGLImage.dylib (9.0.83) <C08048A7-03CC-3E40-BCDC-7791D87AC8E4> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLImage.dylib
       0x107e6f000 -        0x107e71fff  libCVMSPluginSupport.dylib (9.0.83) <E2AED858-6EEB-36C6-8C06-C3CF649A3CD5> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCVMSPluginSupport.dylib
       0x107e76000 -        0x107e79fff  libCoreVMClient.dylib (58.1) <EBC36C69-C896-3C3D-8589-3E9023E7E56F> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreVMClient.dylib
       0x107e7f000 -        0x1082b2ffb  com.apple.vision.FaceCore (3.0.0 - 3.0.0) <F42BFC9C-0B16-35EF-9A07-91B7FDAB7FC5> /System/Library/PrivateFrameworks/FaceCore.framework/Versions/A/FaceCore
       0x1084ca000 -        0x1084d4ff7  com.apple.CrashReporterSupport (10.9 - 538) <B487466B-3AA1-3854-A808-A61F049FA794> /System/Library/PrivateFrameworks/CrashReporterSupport.framework/Versions/A/CrashReporterSupport
       0x1084e2000 -        0x108530fff  com.apple.opencl (2.3.57 - 2.3.57) <FC03A80D-543A-3448-83FF-D399C3A240D9> /System/Library/Frameworks/OpenCL.framework/Versions/A/OpenCL
       0x108548000 -        0x108554ff3  com.apple.AppleFSCompression (56 - 1.0) <5652B0D0-EB08-381F-B23A-6DCF96991FB5> /System/Library/PrivateFrameworks/AppleFSCompression.framework/Versions/A/AppleFSCompression
       0x10855c000 -        0x108575ff7  com.apple.Ubiquity (1.3 - 289) <C7F1B734-CE81-334D-BE41-8B20D95A1F9B> /System/Library/PrivateFrameworks/Ubiquity.framework/Versions/A/Ubiquity
       0x108588000 -        0x1085b8fff  com.apple.IconServices (25 - 25.17) <4751127E-FBD5-3ED5-8510-08D4E4166EFE> /System/Library/PrivateFrameworks/IconServices.framework/Versions/A/IconServices
       0x1085e1000 -        0x108606ff7  com.apple.ChunkingLibrary (2.0 - 155.1) <B845DC7A-D1EA-31E2-967C-D1FE0C628036> /System/Library/PrivateFrameworks/ChunkingLibrary.framework/Versions/A/ChunkingLibrary
       0x108612000 -        0x108692fff  com.apple.CoreSymbolication (3.0 - 141) <B018335C-698B-3F87-AF1C-6115C4FA8954> /System/Library/PrivateFrameworks/CoreSymbolication.framework/Versions/A/CoreSymbolication
       0x1086af000 -        0x108707ff7  com.apple.Symbolication (1.4 - 129) <16D42516-7B5E-357C-898A-FAA9EE7642B3> /System/Library/PrivateFrameworks/Symbolication.framework/Versions/A/Symbolication
       0x10874e000 -        0x10877dfff  com.apple.DebugSymbols (106 - 106) <E1BDED08-523A-36F4-B2DA-9D5C712F0AC7> /System/Library/PrivateFrameworks/DebugSymbols.framework/Versions/A/DebugSymbols
       0x108798000 -        0x1088d8fff  com.apple.QTKit (7.7.3 - 2826) <7A110F61-D4DD-3C84-950D-E5F486DE5765> /System/Library/Frameworks/QTKit.framework/Versions/A/QTKit
       0x1089ed000 -        0x108b0fff1  com.apple.avfoundation (2.0 - 651.12) <03E595B7-A559-3D4D-90E9-BCA603E3A39E> /System/Library/Frameworks/AVFoundation.framework/Versions/A/AVFoundation
       0x108c27000 -        0x108c70fff  com.apple.CoreMedia (1.0 - 1273.29) <4ACD30BA-E9FE-3842-A8B7-E3BD63747867> /System/Library/Frameworks/CoreMedia.framework/Versions/A/CoreMedia
       0x108c9e000 -        0x108fb8ff7  com.apple.MediaToolbox (1.0 - 1273.29) <6260E68B-7E50-3D49-8C0A-7145614C13D8> /System/Library/Frameworks/MediaToolbox.framework/Versions/A/MediaToolbox
       0x109063000 -        0x1094b1fff  com.apple.VideoToolbox (1.0 - 1273.29) <6E38291D-7A81-3033-AFB9-61ABD38B6371> /System/Library/Frameworks/VideoToolbox.framework/Versions/A/VideoToolbox
       0x10950c000 -        0x10950cfff  com.apple.Carbon (154 - 157) <45A9A40A-78FF-3EA0-8FAB-A4F81052FA55> /System/Library/Frameworks/Carbon.framework/Versions/A/Carbon
       0x10950f000 -        0x109525fff  com.apple.CoreMediaAuthoring (2.2 - 947) <B01FBACC-DDD5-30A8-BCCF-57CE24ABA329> /System/Library/PrivateFrameworks/CoreMediaAuthoring.framework/Versions/A/CoreMediaAuthoring
       0x10953d000 -        0x109589ffe  com.apple.CoreMediaIO (401.0 - 4544) <44EBC0FE-DAD5-3711-96CB-05250F350A16> /System/Library/Frameworks/CoreMediaIO.framework/Versions/A/CoreMediaIO
       0x1095b1000 -        0x1095c8ffa  libAVFAudio.dylib (32.2) <52DA516B-DE79-322C-9E1B-2658019289D7> /System/Library/Frameworks/AVFoundation.framework/Versions/A/Resources/libAVFAudio.dylib
       0x1095da000 -        0x109706fff  com.apple.MediaControlSender (1.9 - 190.4) <F5E934E1-D004-3C84-815A-961319F8C522> /System/Library/PrivateFrameworks/MediaControlSender.framework/Versions/A/MediaControlSender
       0x10973c000 -        0x10976bff7  com.apple.CoreAVCHD (5.7.0 - 5700.4.3) <404369C0-ED9F-3010-8D2F-BC55285F7808> /System/Library/PrivateFrameworks/CoreAVCHD.framework/Versions/A/CoreAVCHD
       0x109776000 -        0x10977bff7  com.apple.MediaAccessibility (1.0 - 43) <D309D83D-5FAE-37A4-85ED-FFBDA8B66B82> /System/Library/Frameworks/MediaAccessibility.framework/Versions/A/MediaAccessibility
       0x109786000 -        0x109788fff  com.apple.Mangrove (1.0 - 1) <72F5CBC7-4E78-374E-98EA-C3700136904E> /System/Library/PrivateFrameworks/Mangrove.framework/Versions/A/Mangrove
       0x10978e000 -        0x109cfefff  com.apple.CoreAUC (6.22.08 - 6.22.08) <F306D552-2220-3160-88EA-C916193C5EFD> /System/Library/PrivateFrameworks/CoreAUC.framework/Versions/A/CoreAUC
       0x109d0d000 -        0x109d2aff7  com.apple.framework.Apple80211 (9.0 - 900.47) <C897AFE6-DD73-387D-816A-67252A564207> /System/Library/PrivateFrameworks/Apple80211.framework/Versions/A/Apple80211
       0x109d36000 -        0x109d96ff2  com.apple.CoreUtils (1.9 - 190.4) <CBB5B4DC-2801-32B3-A31C-8811CCF99873> /System/Library/PrivateFrameworks/CoreUtils.framework/Versions/A/CoreUtils
       0x109dbd000 -        0x109e1cfff  com.apple.framework.CoreWLAN (4.0 - 400.45.1) <775F9444-8059-30A2-8058-7F7ACD68CCF1> /System/Library/Frameworks/CoreWLAN.framework/Versions/A/CoreWLAN
       0x109e5a000 -        0x109e84ff7  libpcap.A.dylib (42) <91D3FF51-D6FE-3C05-98C9-1182E0EC3D58> /usr/lib/libpcap.A.dylib
       0x109e92000 -        0x109ef8fff  com.apple.framework.CoreWiFi (2.0 - 200.21.1) <5491896D-78C5-30B6-96E9-D8DDECF3BE73> /System/Library/Frameworks/CoreWiFi.framework/Versions/A/CoreWiFi
       0x109f57000 -        0x109fa4fff  com.apple.AppleVAFramework (5.0.27 - 5.0.27) <D01B7D87-4BDC-3E48-A79B-951D05075F9D> /System/Library/PrivateFrameworks/AppleVA.framework/Versions/A/AppleVA
       0x109faf000 -        0x109fb5ff7  com.apple.XPCService (2.0 - 1) <2CE632D7-FE57-36CF-91D4-C57D0F2E0BFE> /System/Library/PrivateFrameworks/XPCService.framework/Versions/A/XPCService
       0x109fbf000 -        0x109fc9fff  com.apple.AppSandbox (3.0 - 1) <55717299-8164-3D79-918F-BD64706735CF> /System/Library/PrivateFrameworks/AppSandbox.framework/Versions/A/AppSandbox
       0x109fd4000 -        0x109ffeff7  libsandbox.1.dylib (278.10) <B4183FA8-F7E2-3301-8BF9-0EEFB793A5D5> /usr/lib/libsandbox.1.dylib
       0x10a007000 -        0x10a01aff7  com.apple.AppContainer (3.0 - 1) <A90C058D-46E8-3BAB-AF17-AF9C7C273069> /System/Library/PrivateFrameworks/AppContainer.framework/Versions/A/AppContainer
       0x10a02f000 -        0x10a031ff7  com.apple.SecCodeWrapper (3.0 - 1) <F5107AD0-20CD-328C-8B2E-74CB6F3169F6> /System/Library/PrivateFrameworks/SecCodeWrapper.framework/Versions/A/SecCodeWrapper
       0x10a037000 -        0x10a03ffff  libMatch.1.dylib (19) <021293AB-407D-309A-87F5-8E782F46753E> /usr/lib/libMatch.1.dylib
       0x10a044000 -        0x10a048fff  com.apple.CommonPanels (1.2.6 - 96) <6B434AFD-50F8-37C7-9A56-162C17E375B3> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/CommonPanels.framework/Versions/A/CommonPanels
       0x10a04f000 -        0x10a052fff  com.apple.help (1.3.3 - 46) <AE763646-D07A-3F9A-ACD4-F5CBD734EE36> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Help.framework/Versions/A/Help
       0x10a058000 -        0x10a06afff  com.apple.ImageCapture (9.0 - 9.0) <BE0B65DA-3031-359B-8BBA-B9803D4ADBF4> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/ImageCapture.framework/Versions/A/ImageCapture
       0x10a085000 -        0x10a09dff7  com.apple.openscripting (1.4 - 157) <B3B037D7-1019-31E6-9D17-08E699AF3701> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/OpenScripting.framework/Versions/A/OpenScripting
       0x10a0af000 -        0x10a0b0ff7  com.apple.print.framework.Print (9.0 - 260) <EE00FAE1-DA03-3EC2-8571-562518C46994> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Print.framework/Versions/A/Print
       0x10a0b5000 -        0x10a0b7ff7  com.apple.securityhi (9.0 - 55005) <405E2BC6-2B6F-3B6B-B48E-2FD39214F052> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SecurityHI.framework/Versions/A/SecurityHI
       0x10a0bd000 -        0x10a433ffa  com.apple.JavaScriptCore (9537 - 9537.65) <7E76880C-832E-385B-9591-ACCF57A68385> /System/Library/Frameworks/JavaScriptCore.framework/Versions/A/JavaScriptCore
       0x10a52c000 -        0x10b378ff5  com.apple.WebCore (9537 - 9537.70) <7A90E9D3-4F26-3049-9C96-C6B8CB1395C8> /System/Library/Frameworks/WebKit.framework/Versions/A/Frameworks/WebCore.framework/Versions/A/WebCore
       0x10bce3000 -        0x10bce4fff  libffi.dylib (18.1) <FEB76C94-97BA-39BC-B713-D086B9757BA5> /usr/lib/libffi.dylib
       0x10bf81000 -        0x10bfadfff  com.apple.CoreServicesInternal (184.8 - 184.8) <707E05AE-DDA8-36FD-B0FF-7F15A061B46A> /System/Library/PrivateFrameworks/CoreServicesInternal.framework/CoreServicesInternal
       0x10bfdf000 -        0x10bfecff4  com.apple.Librarian (1.2 - 1) <F1A2744D-8536-32C7-8218-9972C6300DAE> /System/Library/PrivateFrameworks/Librarian.framework/Librarian
       0x10c9ca000 -        0x10c9cbff7  libodfde.dylib (20) <C00A4EBA-44BC-3C53-BFD0-819B03FFD462> /usr/lib/libodfde.dylib
       0x10c9d5000 -        0x10c9ddff3  libCGCMS.A.dylib (599.7) <92AA4E85-7633-36E2-BAD0-7B1A2E48E75C> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGCMS.A.dylib
       0x10c9e7000 -        0x10c9eaffa  libCGXType.A.dylib (599.7) <2FC9C2BC-B5C5-3C27-93F9-51C6C4512E9D> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGXType.A.dylib
       0x10cc83000 -        0x10ccabffb  libRIP.A.dylib (599.7) <6F528EE3-99F8-3871-BD60-1306495C27D5> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libRIP.A.dylib
       0x10ccf4000 -        0x10ccf7ff7  com.apple.LoginUICore (3.0 - 3.0) <1ECBDA90-D6ED-3333-83EB-9C8232DFAD7C> /System/Library/PrivateFrameworks/LoginUIKit.framework/Versions/A/Frameworks/LoginUICore.framework/Versions/A/LoginUICore
       0x10cfdd000 -        0x10cfebfff  com.apple.CommerceCore (1.0 - 42) <ACC2CE3A-913A-39E0-8344-B76F8F694EF5> /System/Library/PrivateFrameworks/CommerceKit.framework/Versions/A/Frameworks/CommerceCore.framework/Versions/A/CommerceCore
       0x10fe76000 -        0x10fe98fff  com.apple.framework.familycontrols (4.1 - 410) <4FDBCD10-CAA2-3A9C-99F2-06DCB8E81DEE> /System/Library/PrivateFrameworks/FamilyControls.framework/Versions/A/FamilyControls
       0x10feb2000 -        0x10fedeff7  com.apple.framework.SystemAdministration (1.0 - 1.0) <36C562FF-5D91-318C-A19C-6B4453FB78B9> /System/Library/PrivateFrameworks/SystemAdministration.framework/Versions/A/SystemAdministration
       0x10ff08000 -        0x10ff13ff7  com.apple.DirectoryService.Framework (10.9 - 173.1.1) <F8566D1F-450F-3571-911F-75C68E45919F> /System/Library/Frameworks/DirectoryService.framework/Versions/A/DirectoryService
       0x10ff1d000 -        0x10ffeeff1  com.apple.DiskImagesFramework (10.9 - 371.1) <D456ED08-4C1D-341F-BAB8-85E34A7275C5> /System/Library/PrivateFrameworks/DiskImages.framework/Versions/A/DiskImages
       0x11004e000 -        0x110058ff7  libcsfde.dylib (380) <3A54B430-EC05-3DE9-86C3-00C1BEAC7F9B> /usr/lib/libcsfde.dylib
       0x110063000 -        0x110094fff  com.apple.MediaKit (15 - 709) <23E33409-5C39-3F93-9E73-2B0E9EE8883E> /System/Library/PrivateFrameworks/MediaKit.framework/Versions/A/MediaKit
       0x1102d8000 -        0x11051fff4  com.apple.RawCamera.bundle (4.08 - 709) <4BA16655-6A88-351C-863D-8101F0FFE599> /System/Library/CoreServices/RawCamera.bundle/Contents/MacOS/RawCamera
       0x1128e1000 -        0x11296cfff  libCoreStorage.dylib (380) <AE14C2F3-0EF1-3DCD-BF2B-A24D97D3B372> /usr/lib/libCoreStorage.dylib
       0x112994000 -        0x112a4cff7  com.apple.DiscRecording (8.0 - 8000.4.6) <CDAAAD04-A1D0-3C67-ABCC-EFC9E8D44E7E> /System/Library/Frameworks/DiscRecording.framework/Versions/A/DiscRecording
       0x112ab4000 -        0x112af9ff7  libcurl.4.dylib (78) <A722B4F0-1F6C-3E16-9CB1-4C6ADC15221E> /usr/lib/libcurl.4.dylib
       0x112b09000 -        0x112b0bfff  com.apple.EFILogin (2.0 - 2) <C360E8AF-E9BB-3BBA-9DF0-57A92CEF00D4> /System/Library/PrivateFrameworks/EFILogin.framework/Versions/A/EFILogin
       0x112b11000 -        0x112b13ffb  libutil.dylib (34) <DAC4A6CF-A1BB-3874-9569-A919316D30E8> /usr/lib/libutil.dylib
       0x112b19000 -        0x112b1ffff  com.apple.AOSNotification (1.7.0 - 760.3) <7901B867-60F7-3645-BB3E-18C51A6FBCC6> /System/Library/PrivateFrameworks/AOSNotification.framework/Versions/A/AOSNotification
       0x112b2b000 -        0x112b60ffc  com.apple.LDAPFramework (2.4.28 - 194.5) <7E31A674-C6AB-33BE-BD5E-F5E3C6E22894> /System/Library/Frameworks/LDAP.framework/Versions/A/LDAP
       0x112b6f000 -        0x112b7fffb  libsasl2.2.dylib (170) <C8E25710-68B6-368A-BF3E-48EC7273177B> /usr/lib/libsasl2.2.dylib
       0x112b86000 -        0x112c65fff  libcrypto.0.9.8.dylib (50) <B95B9DBA-39D3-3EEF-AF43-44608B28894E> /usr/lib/libcrypto.0.9.8.dylib
       0x112ccd000 -        0x112d01fff  libssl.0.9.8.dylib (50) <B15F967C-B002-36C2-9621-3456D8509F50> /usr/lib/libssl.0.9.8.dylib
       0x112d17000 -        0x112ea4ff7  GLEngine (9.0.83) <26CCE609-D645-3945-A678-517ED5B65785> /System/Library/Frameworks/OpenGL.framework/Resources/GLEngine.bundle/GLEngine
       0x112edf000 -        0x113045fff  libGLProgrammability.dylib (9.0.83) <9C97E814-F674-30F8-8C2D-C45FC1E7D934> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLProgrammability.dylib
       0x11306a000 -        0x11306efff  com.apple.IOAccelerator (98.7.1 - 98.7.1) <C0D16D6F-8729-3110-BEBA-BE4F53444470> /System/Library/PrivateFrameworks/IOAccelerator.framework/Versions/A/IOAccelerator
       0x113076000 -        0x113081fff  libGPUSupportMercury.dylib (9.0.83) <A9DF1DD1-8C1E-3A86-AF96-BF3A7D4C8C1B> /System/Library/PrivateFrameworks/GPUSupport.framework/Versions/A/Libraries/libGPUSupportMercury.dylib
       0x11308a000 -        0x1130b3fff  GLRendererFloat (9.0.83) <1F1160A8-5047-3CEE-AC1E-D29520D0B367> /System/Library/Frameworks/OpenGL.framework/Resources/GLRendererFloat.bundle/GLRendererFloat
       0x1130bc000 -        0x1130c5ff7  libcldcpuengine.dylib (2.3.58) <A2E1ED7B-FC7E-31F6-830A-FF917689766B> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/libcldcpuengine.dylib
    0x123480000000 -     0x123480294ff7  com.apple.AMDRadeonX3000GLDriver (1.14.21 - 1.1.4) <3133F944-09A8-3B30-B8B0-1C68FC2119F2> /System/Library/Extensions/AMDRadeonX3000GLDriver.bundle/Contents/MacOS/AMDRadeonX3000GLDriver
    0x7fff60161000 -     0x7fff60194817  dyld (239.3) <D1DFCF3F-0B0C-332A-BCC0-87A851B570FF> /usr/lib/dyld


External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 1
    thread_create: 0
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 397
    thread_create: 0
    thread_set_state: 0


VM Region Summary:
ReadOnly portion of Libraries: Total=180.2M resident=160.0M(89%) swapped_out_or_unallocated=20.2M(11%)
Writable regions: Total=438.3M written=77.0M(18%) resident=90.0M(21%) swapped_out=0K(0%) unallocated=348.2M(79%)


REGION TYPE                      VIRTUAL
===========                      =======
CG backing stores                  1800K
CG image                           3012K
CG raster data                      172K
CG shared images                    172K
CoreServices                        288K
IOKit                              4096K
Image IO                           3056K
Kernel Alloc Once                     8K
MALLOC                            390.5M
MALLOC (admin)                       32K
Memory Tag 242                       12K
Memory Tag 251                        8K
OpenGL GLSL                        3840K
STACK GUARD                        56.0M
Stack                              9304K
VM_ALLOCATE                        16.4M
__DATA                             24.7M
__IMAGE                             528K
__LINKEDIT                         41.1M
__TEXT                            139.2M
__UNICODE                           544K
mapped file                        49.1M
shared memory                        68K
===========                      =======
TOTAL                             743.3M

tragediana150 · November 3, 2013

Succes booting with no blacklisted any kexts Still red Launchpad and system report is logging me off.

rc5 fix bronya kernel is a little bit faster than andy rc6 kernel. I need to wait for a long time on the gray screen to come login window where I can write my password.

Andy Vandijck · November 3, 2013

@Andy

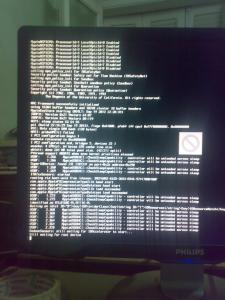

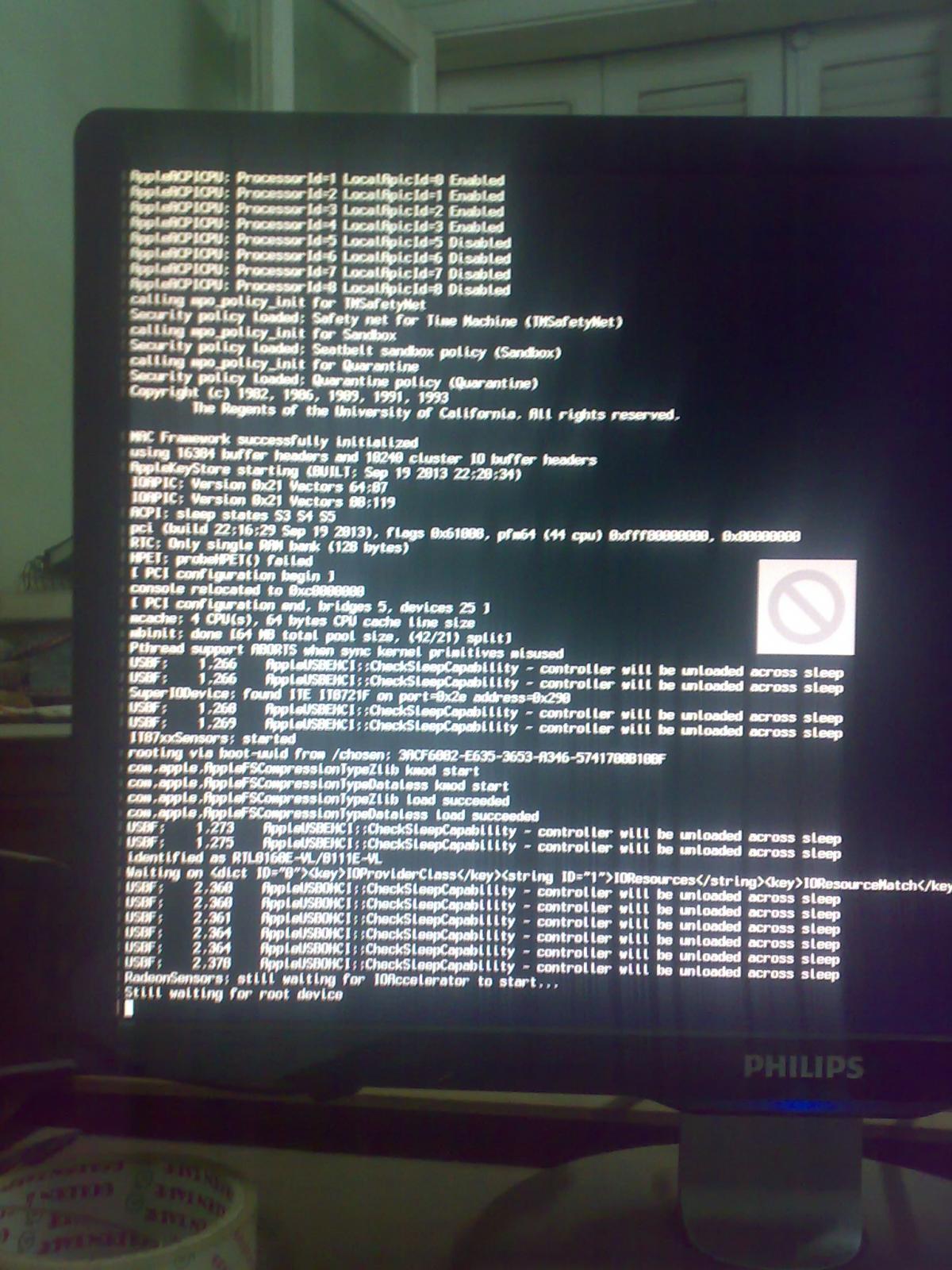

j'ai fait une photo pendant le chargement , elle est de mauvaise qualité , mais il semble que Sandbox est venue bloqué quelque chose ?!

I did a photo during loading, it is of poor quality, but it seems that Sandbox came stuck for something?

It's odd.

I really need that AMD rig from a friend a.s.a.p. so I can do further testing...

It should work just fine.

It was the authd (authentication daemon)

That failed a few times.

Shaneee · November 3, 2013

Working great here still with the odd problem related to the graphics still. IOReg list AMDR8xxGLContext AMDR8xxGLSurface being loaded within the graphics accelerator. Could that be the culprit?

aplIIc · November 3, 2013

Screensaver "Shell" always crashes my system preferences window. Can't seem to find a log either...

Andy Vandijck · November 3, 2013

Working great here still with the odd problem related to the graphics still. IOReg list AMDR8xxGLContext AMDR8xxGLSurface being loaded within the graphics accelerator. Could that be the culprit?

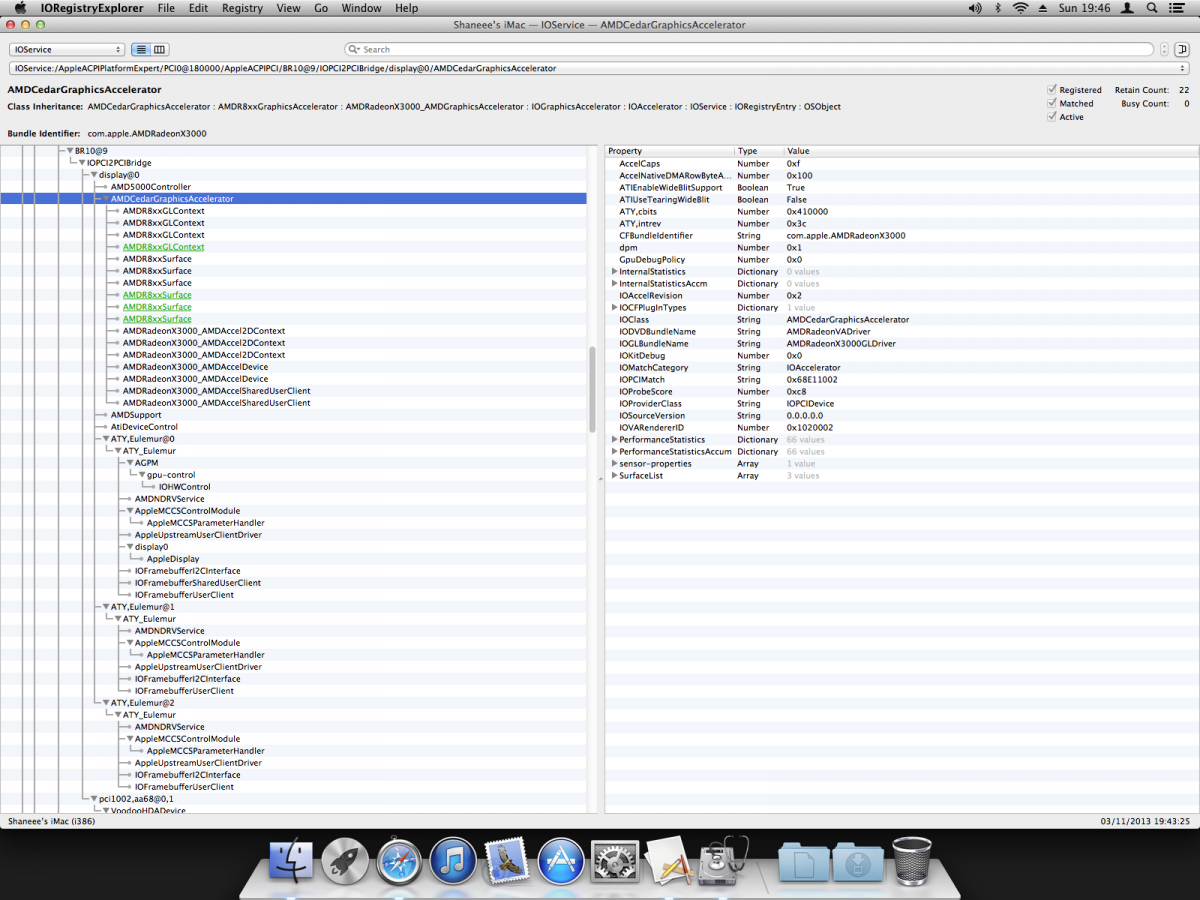

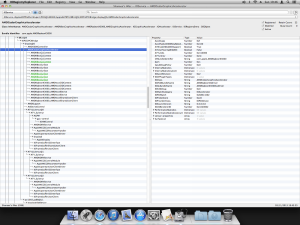

Screen Shot 2013-11-03 at 19.46.39.png

No, that's normal...

I have the same way but R7xx accel.

OpenGL is the main part of the IOAccelerator.

Just disassemble the kext and you'll see all those functions you see into OpenGL extensions viewer.

Shaneee · November 3, 2013

No, that's normal...

I have the same way but R7xx accel.

OpenGL is the main part of the IOAccelerator.

Just disassemble the kext and you'll see all those functions you see into OpenGL extensions viewer.

They are also part of AMDRadeonX3000. I had a peek inside the file but have no idea if anything can be changed to help.

Screensaver "Shell" always crashes my system preferences window. Can't seem to find a log either...

I managed to force it to crash lol here is a log,

Process:         System Preferences [274]
Path:            /Applications/System Preferences.app/Contents/MacOS/System Preferences
Identifier:      com.apple.systempreferences
Version:         12.0 (12.0)
Build Info:      SystemPrefsApp-259000000000000~23
Code Type:       X86-64 (Native)
Parent Process:  launchd [164]
Responsible:     System Preferences [274]
User ID:         501

Date/Time:       2013-11-03 20:00:09.186 +0000
OS Version:      Mac OS X 10.9 (13A603)
Report Version:  11
Anonymous UUID:  666DE57A-E158-0C60-AC88-DDDF5CDC5644


Crashed Thread:  0  Dispatch queue: com.apple.main-thread

Exception Type:  EXC_CRASH (SIGABRT)
Exception Codes: 0x0000000000000000, 0x0000000000000000

Application Specific Information:
com.apple.preference.desktopscreeneffect v.5.1 (Desktop & Screen Saver)
objc[274]: GC: forcing GC OFF because OBJC_DISABLE_GC is set
abort() called
|DesktopPref|-[DesktopPref willUnselect]

Application Specific Signatures:
Graphics hardware encountered an error and was reset: 0xfffffffb

Shell

Thread 0 Crashed:: Dispatch queue: com.apple.main-thread
0   libsystem_kernel.dylib        	0x00007fff8f4b4866 __pthread_kill + 10
1   libsystem_pthread.dylib       	0x00007fff9271c35c pthread_kill + 92
2   libsystem_c.dylib             	0x00007fff918a5bba abort + 125
3   libGPUSupportMercury.dylib    	0x00007fff8c8471b6 gpusKillClient + 111
4   libGPUSupportMercury.dylib    	0x00007fff8c847b3d gpusQueueSubmitDataBuffers + 155
5   com.apple.AMDRadeonX3000GLDriver	0x00001234801eba78 0x123480000000 + 2013816
6   com.apple.AMDRadeonX3000GLDriver	0x00001234801eb95e 0x123480000000 + 2013534
7   com.apple.AMDRadeonX3000GLDriver	0x00001234801ebcfb gldFlushQueue + 37
8   com.apple.opencl              	0x00007fff93e0ad0c 0x7fff93e04000 + 27916
9   com.apple.opencl              	0x00007fff93e26ff2 clFlush + 174
10  com.apple.CoreImage           	0x00007fff8acb69af -[FEOpenCLContext(Buffer) renderUsingGPUWithRenderCallback:destinationFormat:workingFormat:extent:transform:info:] + 595
11  com.apple.CoreImage           	0x00007fff8abace6c -[CICLContextImpl renderWithBounds:matrix:function:info:] + 3993
12  com.apple.CoreImage           	0x00007fff8abb1634 -[CIContextImpl render:] + 230
13  com.apple.CoreImage           	0x00007fff8abaf5c1 -[CIContext drawImage:inRect:fromRect:] + 1558
14  com.apple.CoreImage           	0x00007fff8abaf770 -[CIContext drawImage:atPoint:fromRect:] + 122
15  com.apple.QuartzComposer      	0x00007fff8a65ca6e -[QCBillboard execute:time:arguments:] + 11644
16  com.apple.QuartzComposer      	0x00007fff8a62bf2a -[QCPatch(Private) _renderAtTime:arguments:] + 155
17  com.apple.QuartzComposer      	0x00007fff8a6599b1 -[QCRenderingPatch _renderAtTime:arguments:] + 123
18  com.apple.QuartzComposer      	0x00007fff8a62d396 -[QCRenderingManager renderAtTime:arguments:] + 2070
19  com.apple.QuartzComposer      	0x00007fff8a62ae59 -[QCPatch(Extensions) executeSubpatches:arguments:] + 58
20  com.apple.QuartzComposer      	0x00007fff8a62ae18 -[QCPatch(Customization) execute:time:arguments:] + 44
21  com.apple.QuartzComposer      	0x00007fff8a62bf2a -[QCPatch(Private) _renderAtTime:arguments:] + 155
22  com.apple.QuartzComposer      	0x00007fff8a62d396 -[QCRenderingManager renderAtTime:arguments:] + 2070
23  com.apple.QuartzComposer      	0x00007fff8a62ae59 -[QCPatch(Extensions) executeSubpatches:arguments:] + 58
24  com.apple.QuartzComposer      	0x00007fff8a62ae18 -[QCPatch(Customization) execute:time:arguments:] + 44
25  com.apple.QuartzComposer      	0x00007fff8a62bf2a -[QCPatch(Private) _renderAtTime:arguments:] + 155
26  com.apple.QuartzComposer      	0x00007fff8a632a3e -[QCContext renderPatch:time:arguments:] + 556
27  com.apple.QuartzComposer      	0x00007fff8a6327a9 -[QCGraphicsContext renderPatch:time:arguments:] + 72
28  com.apple.QuartzComposer      	0x00007fff8a63197c -[QCOpenGLContext renderPatch:time:arguments:] + 538
29  com.apple.QuartzComposer      	0x00007fff8a63174c -[QCPatch(Runtime) render:arguments:] + 76
30  com.apple.screensaver.QuartzComposer	0x0000000114814225 0x114810000 + 16933
31  com.apple.screensaver.QuartzComposer	0x0000000114814449 0x114810000 + 17481
32  com.apple.screensaver.QuartzComposer	0x0000000114814991 0x114810000 + 18833
33  com.apple.Foundation          	0x00007fff94ffe094 __NSFireTimer + 96
34  com.apple.CoreFoundation      	0x00007fff8bdc4724 __CFRUNLOOP_IS_CALLING_OUT_TO_A_TIMER_CALLBACK_FUNCTION__ + 20
35  com.apple.CoreFoundation      	0x00007fff8bdc425f __CFRunLoopDoTimer + 1151
36  com.apple.CoreFoundation      	0x00007fff8be3576a __CFRunLoopDoTimers + 298
37  com.apple.CoreFoundation      	0x00007fff8bd7faa5 __CFRunLoopRun + 1525
38  com.apple.CoreFoundation      	0x00007fff8bd7f275 CFRunLoopRunSpecific + 309
39  com.apple.HIToolbox           	0x00007fff8f63ef0d RunCurrentEventLoopInMode + 226
40  com.apple.HIToolbox           	0x00007fff8f63ecb7 ReceiveNextEventCommon + 479
41  com.apple.HIToolbox           	0x00007fff8f63eabc _BlockUntilNextEventMatchingListInModeWithFilter + 65
42  com.apple.AppKit              	0x00007fff8db1928e _DPSNextEvent + 1434
43  com.apple.AppKit              	0x00007fff8db188db -[NSApplication nextEventMatchingMask:untilDate:inMode:dequeue:] + 122
44  com.apple.AppKit              	0x00007fff8e358843 -[NSCollectionView mouseDown:] + 864
45  com.apple.AppKit              	0x00007fff8dd19d9a forwardMethod + 122
46  com.apple.AppKit              	0x00007fff8dd1dd08 -[NSWindow sendEvent:] + 11296
47  com.apple.systempreferences   	0x000000010ff0ea61 0x10ff07000 + 31329
48  com.apple.AppKit              	0x00007fff8dcbc744 -[NSApplication sendEvent:] + 2021
49  com.apple.systempreferences   	0x000000010ff0deb4 0x10ff07000 + 28340
50  com.apple.AppKit              	0x00007fff8db0ca29 -[NSApplication run] + 646
51  com.apple.AppKit              	0x00007fff8daf7803 NSApplicationMain + 940
52  libdyld.dylib                 	0x00007fff8bd0e5fd start + 1

Thread 1:: Dispatch queue: com.apple.libdispatch-manager
0   libsystem_kernel.dylib        	0x00007fff8f4b5662 kevent64 + 10
1   libdispatch.dylib             	0x00007fff8c61243d _dispatch_mgr_invoke + 239
2   libdispatch.dylib             	0x00007fff8c612152 _dispatch_mgr_thread + 52

Thread 2:
0   libsystem_kernel.dylib        	0x00007fff8f4b4e6a __workq_kernreturn + 10
1   libsystem_pthread.dylib       	0x00007fff9271cf08 _pthread_wqthread + 330
2   libsystem_pthread.dylib       	0x00007fff9271ffb9 start_wqthread + 13

Thread 3:: JavaScriptCore::BlockFree
0   libsystem_kernel.dylib        	0x00007fff8f4b4716 __psynch_cvwait + 10
1   libsystem_pthread.dylib       	0x00007fff9271dc3b _pthread_cond_wait + 727
2   com.apple.JavaScriptCore      	0x00007fff8ca77145 JSC::BlockAllocator::blockFreeingThreadMain() + 261
3   com.apple.JavaScriptCore      	0x00007fff8ca6c44f WTF::wtfThreadEntryPoint(void*) + 15
4   libsystem_pthread.dylib       	0x00007fff9271b899 _pthread_body + 138
5   libsystem_pthread.dylib       	0x00007fff9271b72a _pthread_start + 137
6   libsystem_pthread.dylib       	0x00007fff9271ffc9 thread_start + 13

Thread 4:: JavaScriptCore::Marking
0   libsystem_kernel.dylib        	0x00007fff8f4b4716 __psynch_cvwait + 10
1   libsystem_pthread.dylib       	0x00007fff9271dc3b _pthread_cond_wait + 727
2   com.apple.JavaScriptCore      	0x00007fff8ca77bb7 JSC::GCThread::waitForNextPhase() + 119
3   com.apple.JavaScriptCore      	0x00007fff8ca77a48 JSC::GCThread::gcThreadMain() + 88
4   com.apple.JavaScriptCore      	0x00007fff8ca6c44f WTF::wtfThreadEntryPoint(void*) + 15
5   libsystem_pthread.dylib       	0x00007fff9271b899 _pthread_body + 138
6   libsystem_pthread.dylib       	0x00007fff9271b72a _pthread_start + 137
7   libsystem_pthread.dylib       	0x00007fff9271ffc9 thread_start + 13

Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0x0000000000000000  rbx: 0x00007fff79af6310  rcx: 0x00007fff4fcf4608  rdx: 0x0000000000000000
  rdi: 0x0000000000000707  rsi: 0x0000000000000006  rbp: 0x00007fff4fcf4630  rsp: 0x00007fff4fcf4608
   r8: 0x0000000000000002   r9: 0x00007fff918cd900  r10: 0x0000000008000000  r11: 0x0000000000000206
  r12: 0x00007ffaa3953a00  r13: 0x00007fff4fcf4910  r14: 0x0000000000000006  r15: 0x00007ffaa3953a00
  rip: 0x00007fff8f4b4866  rfl: 0x0000000000000206  cr2: 0x00007fff918a5b3d

Logical CPU:     0
Error Code:      0x02000148
Trap Number:     133


Binary Images:
       0x10ff07000 -        0x10ff28ff7  com.apple.systempreferences (12.0 - 12.0) <380DCEB1-718E-3742-B663-71D1EC667EFE> /Applications/System Preferences.app/Contents/MacOS/System Preferences
       0x10ffb1000 -        0x10ffb3fff  com.apple.ScreenSaver.iLifeSlideshows (1.0 - 1) <74157B29-1272-3BEE-B1F6-751CB13E3E76> /System/Library/Frameworks/ScreenSaver.framework/Versions/A/Resources/iLifeSlideshows.saver/Contents/MacOS/iLifeSlideshows
       0x111906000 -        0x111906ff9 +cl_kernels (???) <FAC2BC7C-A49F-4215-8F14-82CB33B627A8> cl_kernels
       0x111923000 -        0x111924ffa +cl_kernels (???) <5C2CC275-A361-4C7B-82B8-61AD3A5C1520> cl_kernels
       0x1140f1000 -        0x1141d7fef  unorm8_bgra.dylib (2.3.58) <9FF943D1-4EF7-36CA-852D-B61C2E554713> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/ImageFormats/unorm8_bgra.dylib
       0x114810000 -        0x114817fff  com.apple.screensaver.QuartzComposer (1.8 - 61) <66B6D982-3985-3596-8337-1CF28C4B1F9E> /System/Library/Frameworks/ScreenSaver.framework/Versions/A/Resources/.Quartz Composer.saver/Contents/MacOS/.Quartz Composer
       0x114a7f000 -        0x114aa0fff  com.apple.QuartzComposer.ExtraPatches (4.1 - 316) <2E4C3E98-2F12-3BFB-BA37-8F3FDC83CCB2> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuartzComposer.framework/Versions/A/Resources/ExtraPatches.plugin/Contents/MacOS/ExtraPatches
       0x114ab5000 -        0x114af0ff2  com.apple.audio.midi.CoreMIDI (1.10 - 88) <AAF5250E-D422-3910-8F94-FE8BAC5B8174> /System/Library/Frameworks/CoreMIDI.framework/Versions/A/CoreMIDI
       0x114b18000 -        0x114b3cfff  com.apple.audio.OpenAL (1.7 - 1.7) <5D2366B5-111B-3BDD-AFB3-5770075659F4> /System/Library/Frameworks/OpenAL.framework/Versions/A/OpenAL
       0x114f67000 -        0x114f67ffd +cl_kernels (???) <43AEF201-6953-4CE9-A206-96988EDDC0B5> cl_kernels
       0x114f69000 -        0x114f6afff  com.apple.preference.desktopscreeneffect (5.1 - 5.1) <2C5E3D04-40A8-3F02-9C8B-DA44FCE3F40C> /System/Library/PreferencePanes/DesktopScreenEffectsPref.prefPane/Contents/MacOS/DesktopScreenEffectsPref
       0x114f75000 -        0x114f75ffd +cl_kernels (???) <49589512-2C49-461C-B8B4-A4AADA0604E1> cl_kernels
       0x114f77000 -        0x115057ff7  unorm8_rgba.dylib (2.3.58) <DDD1AFEB-FD30-34D2-958A-823C3EFD649A> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/ImageFormats/unorm8_rgba.dylib
       0x115099000 -        0x1150abfff  com.apple.frameworks.preferencepanessupport (12.0 - 12.0) <76194568-146C-3019-A5EF-866EC3D5AA85> /System/Library/PrivateFrameworks/PreferencePanesSupport.framework/Versions/A/PreferencePanesSupport
       0x1150c1000 -        0x1150dbff7  com.apple.preference.desktopscreeneffect.desktop (5.1 - 5.1) <33937957-D40C-34E6-A07A-34F0EA420E7D> /System/Library/PreferencePanes/DesktopScreenEffectsPref.prefPane/Contents/Resources/DesktopPictures.prefPane/Contents/MacOS/DesktopPictures
       0x1150f4000 -        0x1150f4fff  com.apple.iLMBAppDefPlugin (2.8.0 - 390) <495EE81B-8E75-3D4A-8E38-A487444AD644> /Library/Application Support/iLifeMediaBrowser/*/iLMBAppDefPlugin
       0x1150f8000 -        0x1150f9fff  com.apple.iLMBFolderPlugin (2.8.0 - 390) <F67FECE5-434E-3D42-BE3D-2BC891025794> /Library/Application Support/iLifeMediaBrowser/*/iLMBFolderPlugin
       0x11555f000 -        0x115566fff  com.apple.iLMBAperturePlugin (2.8.0 - 390) <C09D3733-C350-3163-A9BF-1DB718803F8E> /Library/Application Support/iLifeMediaBrowser/*/iLMBAperturePlugin
       0x11556d000 -        0x115575fff  com.apple.iLMBFinalCutPlugin (2.8.0 - 390) <EACDE0DF-EBC9-31E5-AFFC-E0D3B0291714> /Library/Application Support/iLifeMediaBrowser/*/iLMBFinalCutPlugin
       0x11557c000 -        0x11557fff7  com.apple.iLMBGarageBandPlugin (2.8.0 - 390) <5113EF6B-4E00-3A86-8072-EC8AE8ACC6A3> /Library/Application Support/iLifeMediaBrowser/*/iLMBGarageBandPlugin
       0x115586000 -        0x115586ffb +cl_kernels (???) <6ED8D1B9-5073-4CC3-95FC-8E3177C6BB40> cl_kernels
       0x1155b1000 -        0x1155bbff7  com.apple.iLMBiMoviePlugin (2.8.0 - 390) <B6563774-4C20-385B-AAF6-C819B55D3A54> /Library/Application Support/iLifeMediaBrowser/*/iLMBiMoviePlugin
       0x1155c3000 -        0x1155cafff  com.apple.iLMBiPhotoPlugin (2.8.0 - 390) <CFF590E1-91F8-3B9B-AD7B-DD64653043C8> /Library/Application Support/iLifeMediaBrowser/*/iLMBiPhotoPlugin
       0x1155d1000 -        0x1155d4ff7  com.apple.iLMBLogicPlugin (2.8.0 - 390) <F67E0308-4A04-3A1D-BF10-DBBF8C6B1D60> /Library/Application Support/iLifeMediaBrowser/*/iLMBLogicPlugin
       0x115605000 -        0x115758fff  com.apple.iLMBAperture31Plugin (2.8.0 - 390) <F51C3EDD-DBE7-382C-8247-AC3C99930B2C> /Library/Application Support/iLifeMediaBrowser/*/iLMBAperture31Plugin
       0x1157d9000 -        0x115974ff7  com.apple.iLMBAperturePlugin2012 (2.8.0 - 390) <54AE2C62-7397-3876-9E96-BBC5E3E1C75A> /Library/Application Support/iLifeMediaBrowser/*/iLMBAperturePlugin2012
       0x115a1a000 -        0x115a2bff7  com.apple.iLMBiPhoto8Plugin (2.8.0 - 390) <23513209-9433-37B6-86C4-949A94E2E4FE> /Library/Application Support/iLifeMediaBrowser/*/iLMBiPhoto8Plugin
       0x115a36000 -        0x115b8bfff  com.apple.iLMBiPhoto9Plugin (2.8.0 - 390) <5463914D-D2B6-3F18-9095-401CE1EFC181> /Library/Application Support/iLifeMediaBrowser/*/iLMBiPhoto9Plugin
       0x115c0d000 -        0x115da9fff  com.apple.iLMBiPhotoPlugin2012 (2.8.0 - 390) <5C4182CC-3C39-33DE-B0B2-644156F449FA> /Library/Application Support/iLifeMediaBrowser/*/iLMBiPhotoPlugin2012
       0x115e4f000 -        0x115e55fff  com.apple.iLMBiTunesPlugin (2.8.0 - 390) <9540E733-8A94-3172-907C-18C373802757> /Library/Application Support/iLifeMediaBrowser/*/iLMBiTunesPlugin
       0x115e5c000 -        0x115effff7  com.apple.iTunesAccess (11.1.2 - 11.1.2) <04AF54DE-58B7-310D-940A-86E699C0C4A5> /System/Library/PrivateFrameworks/iTunesAccess.framework/iTunesAccess
       0x115f2e000 -        0x115f2ffff  com.apple.iLMBMoviesFolderPlugin (2.8.0 - 390) <3EF87520-1655-39A9-9746-D956602BA3C7> /Library/Application Support/iLifeMediaBrowser/*/iLMBMoviesFolderPlugin
       0x115f34000 -        0x115f36fff  com.apple.iLMBPhotoBooth2Plugin (2.8.0 - 390) <21B4002D-54A7-3A1F-B85D-0CBDFA895161> /Library/Application Support/iLifeMediaBrowser/*/iLMBPhotoBooth2Plugin
       0x115f3b000 -        0x115f3cfff  com.apple.iLMBPhotoBoothPlugin (2.8.0 - 390) <E0C90F2F-FE56-3B8A-81CA-DAA2196FED2E> /Library/Application Support/iLifeMediaBrowser/*/iLMBPhotoBoothPlugin
       0x117f96000 -        0x117facfff  com.apple.preference.desktopscreeneffect.screeneffects (5.1 - 5.1) <B713FF28-8F14-3FCF-954C-2FDAE8366CFA> /System/Library/PreferencePanes/DesktopScreenEffectsPref.prefPane/Contents/Resources/ScreenEffects.prefPane/Contents/MacOS/ScreenEffects
       0x1181aa000 -        0x1181b1fff  com.apple.Flurry (10.8 - 3) <E9B5916F-36D6-35F5-BE37-1174B8D1B5D9> /System/Library/Screen Savers/Flurry.saver/Contents/MacOS/Flurry
       0x12046b000 -        0x120793ff7  com.apple.Slideshows (3.2.0 - 1198.4) <88FD4B87-370D-3CB7-BB9A-EE666719934F> /System/Library/PrivateFrameworks/Slideshows.framework/Versions/A/Slideshows
    0x123480000000 -     0x123480294ff7  com.apple.AMDRadeonX3000GLDriver (1.14.21 - 1.1.4) <3133F944-09A8-3B30-B8B0-1C68FC2119F2> /System/Library/Extensions/AMDRadeonX3000GLDriver.bundle/Contents/MacOS/AMDRadeonX3000GLDriver
    0x7fff6c238000 -     0x7fff6c26b817  dyld (239.3) <D1DFCF3F-0B0C-332A-BCC0-87A851B570FF> /usr/lib/dyld
    0x7fff87ba4000 -     0x7fff87bfcff7  com.apple.Symbolication (1.4 - 129) <16D42516-7B5E-357C-898A-FAA9EE7642B3> /System/Library/PrivateFrameworks/Symbolication.framework/Versions/A/Symbolication
    0x7fff87bfd000 -     0x7fff87c21fff  com.apple.quartzfilters (1.8.0 - 1.7.0) <39C08086-9866-372F-9420-81F5689149DF> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuartzFilters.framework/Versions/A/QuartzFilters
    0x7fff87c22000 -     0x7fff87c4eff7  com.apple.framework.SystemAdministration (1.0 - 1.0) <36C562FF-5D91-318C-A19C-6B4453FB78B9> /System/Library/PrivateFrameworks/SystemAdministration.framework/Versions/A/SystemAdministration
    0x7fff87c63000 -     0x7fff87c74ff7  libz.1.dylib (53) <42E0C8C6-CA38-3CA4-8619-D24ED5DD492E> /usr/lib/libz.1.dylib
    0x7fff87c75000 -     0x7fff87c76ff7  libsystem_sandbox.dylib (278.10) <A47E7E11-3C76-318E-B67D-98972B86F094> /usr/lib/system/libsystem_sandbox.dylib
    0x7fff87c77000 -     0x7fff87cd7ff2  com.apple.CoreUtils (1.9 - 190.4) <CBB5B4DC-2801-32B3-A31C-8811CCF99873> /System/Library/PrivateFrameworks/CoreUtils.framework/Versions/A/CoreUtils
    0x7fff87cd8000 -     0x7fff87e46ff7  libBLAS.dylib (1094.5) <DE93A590-5FA5-32A2-A16C-5D7D7361769F> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
    0x7fff87e47000 -     0x7fff8876305f  com.apple.CoreGraphics (1.600.0 - 599.7) <7D0FD5A7-A061-39BA-8E00-723825D2C4DD> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/CoreGraphics
    0x7fff88764000 -     0x7fff887edfff  com.apple.ColorSync (4.9.0 - 4.9.0) <B756B908-9AD1-3F5D-83F9-7A0B068387D2> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ColorSync.framework/Versions/A/ColorSync
    0x7fff88bbf000 -     0x7fff88e17ff1  com.apple.security (7.0 - 55471) <233831C5-C457-3AD5-AFE7-E3E2DE6929C9> /System/Library/Frameworks/Security.framework/Versions/A/Security
    0x7fff88fa7000 -     0x7fff890e7fff  com.apple.QTKit (7.7.3 - 2826) <7A110F61-D4DD-3C84-950D-E5F486DE5765> /System/Library/Frameworks/QTKit.framework/Versions/A/QTKit
    0x7fff890e8000 -     0x7fff890effff  com.apple.NetFS (6.0 - 4.0) <8E26C099-CE9D-3819-91A2-64EA929C6137> /System/Library/Frameworks/NetFS.framework/Versions/A/NetFS
    0x7fff890f0000 -     0x7fff893dafff  com.apple.CoreServices.CarbonCore (1077.13 - 1077.13) <21324540-8B84-3333-ADB8-D3D5181D4639> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore
    0x7fff893db000 -     0x7fff8948bff7  libvMisc.dylib (423.32) <049C0735-1808-39B9-943F-76CB8021744F> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvMisc.dylib
    0x7fff8948c000 -     0x7fff89509ff7  com.apple.iLifeMediaBrowser (2.8.0 - 637) <1EFC5EFD-AC09-34E9-A96A-951F1FD3F9BC> /System/Library/PrivateFrameworks/iLifeMediaBrowser.framework/Versions/A/iLifeMediaBrowser
    0x7fff8950a000 -     0x7fff89531ff7  com.apple.shortcut (2.6 - 2.6) <A62BC973-6782-3893-B014-EC6503AB7EAD> /System/Library/PrivateFrameworks/Shortcut.framework/Versions/A/Shortcut
    0x7fff89532000 -     0x7fff895baff7  com.apple.CorePDF (4.0 - 4) <92D15ED1-D2E1-3ECB-93FF-42888219A99F> /System/Library/PrivateFrameworks/CorePDF.framework/Versions/A/CorePDF
    0x7fff895bb000 -     0x7fff895c5ff7  com.apple.bsd.ServiceManagement (2.0 - 2.0) <2D27B498-BB9C-3D88-B05A-76908A8A26F3> /System/Library/Frameworks/ServiceManagement.framework/Versions/A/ServiceManagement
    0x7fff895d1000 -     0x7fff895d5ff7  libcache.dylib (62) <BDC1E65B-72A1-3DA3-A57C-B23159CAAD0B> /usr/lib/system/libcache.dylib
    0x7fff895d6000 -     0x7fff895d8ff3  libsystem_configuration.dylib (596.12) <C4F633D9-94C8-35D9-BB2D-84C5122533C7> /usr/lib/system/libsystem_configuration.dylib
    0x7fff895d9000 -     0x7fff89a27fff  com.apple.VideoToolbox (1.0 - 1273.29) <6E38291D-7A81-3033-AFB9-61ABD38B6371> /System/Library/Frameworks/VideoToolbox.framework/Versions/A/VideoToolbox
    0x7fff89a7e000 -     0x7fff89a91ff7  com.apple.AppContainer (3.0 - 1) <A90C058D-46E8-3BAB-AF17-AF9C7C273069> /System/Library/PrivateFrameworks/AppContainer.framework/Versions/A/AppContainer
    0x7fff89ab0000 -     0x7fff89ab5ff7  libunwind.dylib (35.3) <78DCC358-2FC1-302E-B395-0155B47CB547> /usr/lib/system/libunwind.dylib
    0x7fff89ad5000 -     0x7fff89afcff7  libsystem_network.dylib (241.3) <8B1E1F1D-A5CC-3BAE-8B1E-ABC84337A364> /usr/lib/system/libsystem_network.dylib
    0x7fff89afe000 -     0x7fff89b26ffb  libxslt.1.dylib (13) <C9794936-633C-3F0C-9E71-30190B9B41C1> /usr/lib/libxslt.1.dylib
    0x7fff89b27000 -     0x7fff89b3fff7  com.apple.openscripting (1.4 - 157) <B3B037D7-1019-31E6-9D17-08E699AF3701> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/OpenScripting.framework/Versions/A/OpenScripting
    0x7fff89b40000 -     0x7fff89c24fff  com.apple.coreui (2.1 - 231) <432DB40C-6B7E-39C8-9FB5-B95917930056> /System/Library/PrivateFrameworks/CoreUI.framework/Versions/A/CoreUI
    0x7fff89c25000 -     0x7fff89c85fff  com.apple.ISSupport (1.9.9 - 57) <E1E343D7-222C-3458-9D1F-FC600B7F1C50> /System/Library/PrivateFrameworks/ISSupport.framework/Versions/A/ISSupport
    0x7fff89c86000 -     0x7fff89c8afff  libsystem_stats.dylib (93.1.26) <B9E26A9E-FBBC-3938-B8B7-6CF7CA8C99AD> /usr/lib/system/libsystem_stats.dylib
    0x7fff89c8b000 -     0x7fff89c9dfff  com.apple.ImageCapture (9.0 - 9.0) <BE0B65DA-3031-359B-8BBA-B9803D4ADBF4> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/ImageCapture.framework/Versions/A/ImageCapture
    0x7fff89c9e000 -     0x7fff89d15fff  com.apple.CoreServices.OSServices (600.4 - 600.4) <36B2B009-C35E-3F21-824E-E0D00E7808C7> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/OSServices.framework/Versions/A/OSServices
    0x7fff89f06000 -     0x7fff89f06fff  com.apple.quartzframework (1.5 - 1.5) <3B2A72DB-39FC-3C5B-98BE-605F37777F37> /System/Library/Frameworks/Quartz.framework/Versions/A/Quartz
    0x7fff89f07000 -     0x7fff89f11fff  libcommonCrypto.dylib (60049) <8C4F0CA0-389C-3EDC-B155-E62DD2187E1D> /usr/lib/system/libcommonCrypto.dylib
    0x7fff89fae000 -     0x7fff89fc9ff7  libPng.dylib (1038) <EF781AF8-C2E6-3179-B8A1-A584783070F1> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libPng.dylib
    0x7fff89fca000 -     0x7fff89fe5ff7  libCRFSuite.dylib (34) <FFAE75FA-C54E-398B-AA97-18164CD9789D> /usr/lib/libCRFSuite.dylib
    0x7fff89fe6000 -     0x7fff89ff0ff7  libcsfde.dylib (380) <3A54B430-EC05-3DE9-86C3-00C1BEAC7F9B> /usr/lib/libcsfde.dylib
    0x7fff89ff1000 -     0x7fff8a0a9ff7  com.apple.DiscRecording (8.0 - 8000.4.6) <CDAAAD04-A1D0-3C67-ABCC-EFC9E8D44E7E> /System/Library/Frameworks/DiscRecording.framework/Versions/A/DiscRecording
    0x7fff8a0aa000 -     0x7fff8a0d9fff  com.apple.DebugSymbols (106 - 106) <E1BDED08-523A-36F4-B2DA-9D5C712F0AC7> /System/Library/PrivateFrameworks/DebugSymbols.framework/Versions/A/DebugSymbols
    0x7fff8a0da000 -     0x7fff8a292ff3  libicucore.A.dylib (511.25) <3ED7B656-416E-3071-AEC8-E85C90232F78> /usr/lib/libicucore.A.dylib
    0x7fff8a569000 -     0x7fff8a574fff  libGL.dylib (9.0.83) <984A960A-C159-3AE5-8B40-E2B451F6C712> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGL.dylib
    0x7fff8a575000 -     0x7fff8a5d0ffb  com.apple.AE (665.5 - 665.5) <BBA230F9-144C-3CAB-A77A-0621719244CD> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/AE.framework/Versions/A/AE
    0x7fff8a5d1000 -     0x7fff8a5f5fff  libxpc.dylib (300.1.17) <4554927A-9467-365C-91F1-5A116989DD7F> /usr/lib/system/libxpc.dylib
    0x7fff8a5f6000 -     0x7fff8ab1afff  com.apple.QuartzComposer (5.1 - 316) <B20E93C3-8517-3E5C-83B6-C312C839C5D0> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuartzComposer.framework/Versions/A/QuartzComposer
    0x7fff8ab1b000 -     0x7fff8ab26fff  libkxld.dylib (2422.1.72) <C88EF3E6-B31F-3E12-BE9B-562D912BA733> /usr/lib/system/libkxld.dylib
    0x7fff8ab7b000 -     0x7fff8ae49ff4  com.apple.CoreImage (9.0.54) <74BB8685-69A9-3A45-8DED-EA26BD39D710> /System/Library/Frameworks/QuartzCore.framework/Versions/A/Frameworks/CoreImage.framework/Versions/A/CoreImage
    0x7fff8b14d000 -     0x7fff8b14dffd  com.apple.audio.units.AudioUnit (1.9 - 1.9) <6E89F3CB-CC41-3728-9F9A-FDFC151E8261> /System/Library/Frameworks/AudioUnit.framework/Versions/A/AudioUnit
    0x7fff8b14e000 -     0x7fff8b396fff  com.apple.CoreData (107 - 481) <E5AFBA07-F73E-3B3F-9099-F51224EE8EAD> /System/Library/Frameworks/CoreData.framework/Versions/A/CoreData
    0x7fff8b397000 -     0x7fff8b39cff7  com.apple.MediaAccessibility (1.0 - 43) <D309D83D-5FAE-37A4-85ED-FFBDA8B66B82> /System/Library/Frameworks/MediaAccessibility.framework/Versions/A/MediaAccessibility
    0x7fff8b3df000 -     0x7fff8b3e5fff  com.apple.AOSNotification (1.7.0 - 760.3) <7901B867-60F7-3645-BB3E-18C51A6FBCC6> /System/Library/PrivateFrameworks/AOSNotification.framework/Versions/A/AOSNotification
    0x7fff8b3e6000 -     0x7fff8b3e7fff  com.apple.TrustEvaluationAgent (2.0 - 25) <334A82F4-4AE4-3719-A511-86D0B0723E2B> /System/Library/PrivateFrameworks/TrustEvaluationAgent.framework/Versions/A/TrustEvaluationAgent
    0x7fff8b427000 -     0x7fff8b429fff  libRadiance.dylib (1038) <55F99274-5074-3C73-BAC5-AF234E71CF38> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libRadiance.dylib
    0x7fff8b42a000 -     0x7fff8b42bff7  libSystem.B.dylib (1197.1.1) <BFC0DC97-46C6-3BE0-9983-54A98734897A> /usr/lib/libSystem.B.dylib
    0x7fff8b42c000 -     0x7fff8b430ff7  libheimdal-asn1.dylib (323.12) <063A01C2-E547-39D9-BB42-4CC8E64ADE70> /usr/lib/libheimdal-asn1.dylib
    0x7fff8b457000 -     0x7fff8b45efff  libcompiler_rt.dylib (35) <4CD916B2-1B17-362A-B403-EF24A1DAC141> /usr/lib/system/libcompiler_rt.dylib
    0x7fff8b45f000 -     0x7fff8b45ffff  com.apple.Carbon (154 - 157) <45A9A40A-78FF-3EA0-8FAB-A4F81052FA55> /System/Library/Frameworks/Carbon.framework/Versions/A/Carbon
    0x7fff8b460000 -     0x7fff8b483fff  com.apple.ScreenSaver (5.0 - 5) <AB9FB0CA-2F08-3BF2-A938-F661E4859D46> /System/Library/Frameworks/ScreenSaver.framework/Versions/A/ScreenSaver
    0x7fff8b484000 -     0x7fff8b4f1fff  com.apple.SearchKit (1.4.0 - 1.4.0) <B9B8D510-A27E-36B0-93E9-17146D9E9045> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SearchKit.framework/Versions/A/SearchKit
    0x7fff8b4f2000 -     0x7fff8b4f6ff7  libGIF.dylib (1038) <C29B4323-1B9E-36B9-96C2-7CEDBAA124F0> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libGIF.dylib
    0x7fff8b52c000 -     0x7fff8b59fffb  com.apple.securityfoundation (6.0 - 55122) <119D1C53-B292-3378-AEE1-A3B1FB02F43F> /System/Library/Frameworks/SecurityFoundation.framework/Versions/A/SecurityFoundation
    0x7fff8b603000 -     0x7fff8b631ff7  com.apple.securityinterface (9.0 - 55047) <0346D8A9-2CAA-38F3-A741-5FBA5E9F1E7C> /System/Library/Frameworks/SecurityInterface.framework/Versions/A/SecurityInterface
    0x7fff8b654000 -     0x7fff8b660ff7  com.apple.OpenDirectory (10.9 - 173.1.1) <6B78BD7B-5622-38E6-8FC6-86A117E3ACCA> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/OpenDirectory
    0x7fff8b661000 -     0x7fff8b74ffff  libJP2.dylib (1038) <6C8179F5-8063-3ED6-A7C2-D5603DECDF28> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJP2.dylib
    0x7fff8b750000 -     0x7fff8b752fff  com.apple.Mangrove (1.0 - 1) <72F5CBC7-4E78-374E-98EA-C3700136904E> /System/Library/PrivateFrameworks/Mangrove.framework/Versions/A/Mangrove
    0x7fff8b753000 -     0x7fff8b78cff7  com.apple.QD (3.50 - 298) <C1F20764-DEF0-34CF-B3AB-AB5480D64E66> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/QD.framework/Versions/A/QD
    0x7fff8b78d000 -     0x7fff8b7beff7  libtidy.A.dylib (15.12) <BF757E3C-733A-3B6B-809A-A3949D46466E> /usr/lib/libtidy.A.dylib
    0x7fff8b7cc000 -     0x7fff8b968ff7  com.apple.QuartzCore (1.8 - 332.0) <994D1E0A-64B6-398C-B9A2-C362F02DE943> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
    0x7fff8b9fd000 -     0x7fff8ba01fff  libpam.2.dylib (20) <B93CE8F5-DAA8-30A1-B1F6-F890509513CB> /usr/lib/libpam.2.dylib
    0x7fff8ba02000 -     0x7fff8ba03fff  liblangid.dylib (117) <9546E641-F730-3AB0-B3CD-E0E2FDD173D9> /usr/lib/liblangid.dylib
    0x7fff8bc8b000 -     0x7fff8bcafff7  libJPEG.dylib (1038) <86F349A8-882D-3326-A0B0-63257F68B1A7> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib
    0x7fff8bcb0000 -     0x7fff8bcfdfff  com.apple.AppleVAFramework (5.0.27 - 5.0.27) <D01B7D87-4BDC-3E48-A79B-951D05075F9D> /System/Library/PrivateFrameworks/AppleVA.framework/Versions/A/AppleVA
    0x7fff8bd04000 -     0x7fff8bd0aff7  libsystem_platform.dylib (24.1.4) <331BA4A5-55CE-3B95-99EB-44E0C89D7FB8> /usr/lib/system/libsystem_platform.dylib
    0x7fff8bd0b000 -     0x7fff8bd0eff7  libdyld.dylib (239.3) <62F4D752-4089-31A8-8B73-B95A68893B3C> /usr/lib/system/libdyld.dylib
    0x7fff8bd0f000 -     0x7fff8bef4ff7  com.apple.CoreFoundation (6.9 - 855.11) <E22C6A1F-8996-349C-905E-96C3BBE07C2F> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
    0x7fff8bf11000 -     0x7fff8bf14fff  com.apple.help (1.3.3 - 46) <AE763646-D07A-3F9A-ACD4-F5CBD734EE36> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Help.framework/Versions/A/Help
    0x7fff8bf47000 -     0x7fff8c0b7ff6  com.apple.CFNetwork (673.0.3 - 673.0.3) <42CFC3DB-35C8-3652-AF37-4BCC73D8BDEF> /System/Library/Frameworks/CFNetwork.framework/Versions/A/CFNetwork
    0x7fff8c0b8000 -     0x7fff8c1daff1  com.apple.avfoundation (2.0 - 651.12) <03E595B7-A559-3D4D-90E9-BCA603E3A39E> /System/Library/Frameworks/AVFoundation.framework/Versions/A/AVFoundation
    0x7fff8c1db000 -     0x7fff8c21afff  libGLU.dylib (9.0.83) <8B457205-513B-3477-AE9C-3AD979D5FE11> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLU.dylib
    0x7fff8c21b000 -     0x7fff8c21effa  libCGXType.A.dylib (599.7) <2FC9C2BC-B5C5-3C27-93F9-51C6C4512E9D> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGXType.A.dylib
    0x7fff8c21f000 -     0x7fff8c21ffff  com.apple.ApplicationServices (48 - 48) <3E3F01A8-314D-378F-835E-9CC4F8820031> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/ApplicationServices
    0x7fff8c22f000 -     0x7fff8c2fafff  libvDSP.dylib (423.32) <3BF732BE-DDE0-38EB-8C54-E4E3C64F77A7> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvDSP.dylib
    0x7fff8c2fb000 -     0x7fff8c342fff  libFontRegistry.dylib (127) <A77A0480-AA5D-3CC8-8B68-69985CD546DC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontRegistry.dylib
    0x7fff8c3da000 -     0x7fff8c3ddfff  com.apple.AppleSystemInfo (3.0 - 3.0) <4D032152-AA40-350E-BB96-44BC55C5C69C> /System/Library/PrivateFrameworks/AppleSystemInfo.framework/Versions/A/AppleSystemInfo
    0x7fff8c3e0000 -     0x7fff8c3ebff7  com.apple.NetAuth (5.0 - 5.0) <C811E662-9EC3-3B74-808A-A75D624F326B> /System/Library/PrivateFrameworks/NetAuth.framework/Versions/A/NetAuth
    0x7fff8c3f2000 -     0x7fff8c458fff  com.apple.framework.CoreWiFi (2.0 - 200.21.1) <5491896D-78C5-30B6-96E9-D8DDECF3BE73> /System/Library/Frameworks/CoreWiFi.framework/Versions/A/CoreWiFi
    0x7fff8c459000 -     0x7fff8c45aff7  com.apple.print.framework.Print (9.0 - 260) <EE00FAE1-DA03-3EC2-8571-562518C46994> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Print.framework/Versions/A/Print
    0x7fff8c4b8000 -     0x7fff8c4d1ff7  com.apple.Ubiquity (1.3 - 289) <C7F1B734-CE81-334D-BE41-8B20D95A1F9B> /System/Library/PrivateFrameworks/Ubiquity.framework/Versions/A/Ubiquity
    0x7fff8c4d5000 -     0x7fff8c4deff7  libcldcpuengine.dylib (2.3.58) <A2E1ED7B-FC7E-31F6-830A-FF917689766B> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/libcldcpuengine.dylib
    0x7fff8c4df000 -     0x7fff8c4f6fff  com.apple.CFOpenDirectory (10.9 - 173.1.1) <3FB4D5FE-860B-3BDE-BAE2-3531D919EF10> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/Frameworks/CFOpenDirectory.framework/Versions/A/CFOpenDirectory
    0x7fff8c4f7000 -     0x7fff8c514ff7  com.apple.framework.Apple80211 (9.0 - 900.47) <C897AFE6-DD73-387D-816A-67252A564207> /System/Library/PrivateFrameworks/Apple80211.framework/Versions/A/Apple80211
    0x7fff8c609000 -     0x7fff8c60efff  libmacho.dylib (845) <1D2910DF-C036-3A82-A3FD-44FF73B5FF9B> /usr/lib/system/libmacho.dylib
    0x7fff8c60f000 -     0x7fff8c629fff  libdispatch.dylib (339.1.9) <46878A5B-4248-3057-962C-6D4A235EEF31> /usr/lib/system/libdispatch.dylib
    0x7fff8c62a000 -     0x7fff8c642ff7  com.apple.GenerationalStorage (2.0 - 160.2) <79629AC7-896F-3302-8AC1-4939020F08C3> /System/Library/PrivateFrameworks/GenerationalStorage.framework/Versions/A/GenerationalStorage
    0x7fff8c643000 -     0x7fff8c7d0ff7  GLEngine (9.0.83) <26CCE609-D645-3945-A678-517ED5B65785> /System/Library/Frameworks/OpenGL.framework/Versions/A/Resources/GLEngine.bundle/GLEngine
    0x7fff8c7d1000 -     0x7fff8c7ddff3  com.apple.AppleFSCompression (56 - 1.0) <5652B0D0-EB08-381F-B23A-6DCF96991FB5> /System/Library/PrivateFrameworks/AppleFSCompression.framework/Versions/A/AppleFSCompression
    0x7fff8c7de000 -     0x7fff8c7e2fff  com.apple.IOAccelerator (98.7.1 - 98.7.1) <C0D16D6F-8729-3110-BEBA-BE4F53444470> /System/Library/PrivateFrameworks/IOAccelerator.framework/Versions/A/IOAccelerator
    0x7fff8c840000 -     0x7fff8c841ff7  libDiagnosticMessagesClient.dylib (100) <4CDB0F7B-C0AF-3424-BC39-495696F0DB1E> /usr/lib/libDiagnosticMessagesClient.dylib
    0x7fff8c845000 -     0x7fff8c850fff  libGPUSupportMercury.dylib (9.0.83) <A9DF1DD1-8C1E-3A86-AF96-BF3A7D4C8C1B> /System/Library/PrivateFrameworks/GPUSupport.framework/Versions/A/Libraries/libGPUSupportMercury.dylib
    0x7fff8c85a000 -     0x7fff8c868fff  com.apple.opengl (9.0.83 - 9.0.83) <AF467644-7B1D-327A-AC47-CECFCAF61990> /System/Library/Frameworks/OpenGL.framework/Versions/A/OpenGL
    0x7fff8c9be000 -     0x7fff8ca52ff7  com.apple.Bluetooth (4.2.0 - 4.2.0f6) <94BCC858-0582-3C2F-8A43-486896564758> /System/Library/Frameworks/IOBluetooth.framework/Versions/A/IOBluetooth
    0x7fff8ca53000 -     0x7fff8ca62ff8  com.apple.LangAnalysis (1.7.0 - 1.7.0) <8FE131B6-1180-3892-98F5-C9C9B79072D4> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LangAnalysis.framework/Versions/A/LangAnalysis
    0x7fff8ca63000 -     0x7fff8cdd9ffa  com.apple.JavaScriptCore (9537 - 9537.65) <7E76880C-832E-385B-9591-ACCF57A68385> /System/Library/Frameworks/JavaScriptCore.framework/Versions/A/JavaScriptCore
    0x7fff8cdda000 -     0x7fff8ce03fff  GLRendererFloat (9.0.83) <1F1160A8-5047-3CEE-AC1E-D29520D0B367> /System/Library/Frameworks/OpenGL.framework/Versions/A/Resources/GLRendererFloat.bundle/GLRendererFloat
    0x7fff8ce8b000 -     0x7fff8d3fbfff  com.apple.CoreAUC (6.22.08 - 6.22.08) <F306D552-2220-3160-88EA-C916193C5EFD> /System/Library/PrivateFrameworks/CoreAUC.framework/Versions/A/CoreAUC
    0x7fff8d3fc000 -     0x7fff8d404ffc  libGFXShared.dylib (9.0.83) <11A621C3-37A0-39CE-A69B-8739021BD79D> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGFXShared.dylib
    0x7fff8d405000 -     0x7fff8d4effff  libsqlite3.dylib (158) <00269BF9-43BE-39E0-9C85-24585B9923C8> /usr/lib/libsqlite3.dylib
    0x7fff8d4f0000 -     0x7fff8d4f3ffc  com.apple.IOSurface (91 - 91) <07CA8A59-1E32-3FB6-B506-18DAF58A8CE0> /System/Library/Frameworks/IOSurface.framework/Versions/A/IOSurface
    0x7fff8d4f4000 -     0x7fff8d501fff  com.apple.Sharing (132.2 - 132.2) <F983394A-226D-3244-B511-FA51FDB6ADDA> /System/Library/PrivateFrameworks/Sharing.framework/Versions/A/Sharing
    0x7fff8d502000 -     0x7fff8d543fff  com.apple.PerformanceAnalysis (1.47 - 47) <784ED7B8-FAE4-36CE-8C76-B7D300316C9F> /System/Library/PrivateFrameworks/PerformanceAnalysis.framework/Versions/A/PerformanceAnalysis
    0x7fff8d546000 -     0x7fff8d5a5fff  com.apple.framework.CoreWLAN (4.0 - 400.45.1) <775F9444-8059-30A2-8058-7F7ACD68CCF1> /System/Library/Frameworks/CoreWLAN.framework/Versions/A/CoreWLAN
    0x7fff8d5a6000 -     0x7fff8d5f7fff  com.apple.QuickLookFramework (5.0 - 622.3) <AB6CCD09-ECDF-3F01-9C42-34B37DDCF12D> /System/Library/Frameworks/QuickLook.framework/Versions/A/QuickLook
    0x7fff8d68b000 -     0x7fff8d6b7fff  com.apple.CoreServicesInternal (184.8 - 184.8) <707E05AE-DDA8-36FD-B0FF-7F15A061B46A> /System/Library/PrivateFrameworks/CoreServicesInternal.framework/Versions/A/CoreServicesInternal
    0x7fff8d6b8000 -     0x7fff8d6b8fff  com.apple.Cocoa (6.8 - 20) <E90E99D7-A425-3301-A025-D9E0CD11918E> /System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa
    0x7fff8d6c9000 -     0x7fff8d6cfff7  com.apple.XPCService (2.0 - 1) <2CE632D7-FE57-36CF-91D4-C57D0F2E0BFE> /System/Library/PrivateFrameworks/XPCService.framework/Versions/A/XPCService
    0x7fff8d6d0000 -     0x7fff8d6d2ff7  com.apple.SecCodeWrapper (3.0 - 1) <F5107AD0-20CD-328C-8B2E-74CB6F3169F6> /System/Library/PrivateFrameworks/SecCodeWrapper.framework/Versions/A/SecCodeWrapper
    0x7fff8d6d3000 -     0x7fff8d6eaffa  libAVFAudio.dylib (32.2) <52DA516B-DE79-322C-9E1B-2658019289D7> /System/Library/Frameworks/AVFoundation.framework/Versions/A/Resources/libAVFAudio.dylib
    0x7fff8d6eb000 -     0x7fff8d6fbffb  libsasl2.2.dylib (170) <C8E25710-68B6-368A-BF3E-48EC7273177B> /usr/lib/libsasl2.2.dylib
    0x7fff8d6fc000 -     0x7fff8daddffe  libLAPACK.dylib (1094.5) <7E7A9B8D-1638-3914-BAE0-663B69865986> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLAPACK.dylib
    0x7fff8daf5000 -     0x7fff8e669ff7  com.apple.AppKit (6.9 - 1265) <0E9FC8BF-DA3C-34C5-91CC-12BC922B5F01> /System/Library/Frameworks/AppKit.framework/Versions/C/AppKit
    0x7fff8e66a000 -     0x7fff8e699ff7  com.apple.CoreAVCHD (5.7.0 - 5700.4.3) <404369C0-ED9F-3010-8D2F-BC55285F7808> /System/Library/PrivateFrameworks/CoreAVCHD.framework/Versions/A/CoreAVCHD
    0x7fff8e69a000 -     0x7fff8e6dfff7  libcurl.4.dylib (78) <A722B4F0-1F6C-3E16-9CB1-4C6ADC15221E> /usr/lib/libcurl.4.dylib
    0x7fff8e6e0000 -     0x7fff8e708ffb  libRIP.A.dylib (599.7) <6F528EE3-99F8-3871-BD60-1306495C27D5> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libRIP.A.dylib
    0x7fff8e709000 -     0x7fff8e7d9ff7  com.apple.PubSub (1.0.5 - 65.36) <26189018-1C77-3C56-84E8-56C6A400187F> /System/Library/Frameworks/PubSub.framework/Versions/A/PubSub
    0x7fff8e7da000 -     0x7fff8e7ecfff  com.apple.login (3.0 - 3.0) <B825A996-7F9C-3F47-B76F-A0F9B4BEB373> /System/Library/PrivateFrameworks/login.framework/Versions/A/login
    0x7fff8e7ed000 -     0x7fff8e817ff7  libsandbox.1.dylib (278.10) <B4183FA8-F7E2-3301-8BF9-0EEFB793A5D5> /usr/lib/libsandbox.1.dylib
    0x7fff8e818000 -     0x7fff8e848fff  com.apple.IconServices (25 - 25.17) <4751127E-FBD5-3ED5-8510-08D4E4166EFE> /System/Library/PrivateFrameworks/IconServices.framework/Versions/A/IconServices
    0x7fff8e849000 -     0x7fff8e853fff  com.apple.AppSandbox (3.0 - 1) <55717299-8164-3D79-918F-BD64706735CF> /System/Library/PrivateFrameworks/AppSandbox.framework/Versions/A/AppSandbox
    0x7fff8e854000 -     0x7fff8e870fff  libresolv.9.dylib (54) <11C2C826-F1C6-39C6-B4E8-6E0C41D4FA95> /usr/lib/libresolv.9.dylib
    0x7fff8e871000 -     0x7fff8e8bffff  libcorecrypto.dylib (161.1) <F3973C28-14B6-3006-BB2B-00DD7F09ABC7> /usr/lib/system/libcorecrypto.dylib
    0x7fff8e8c3000 -     0x7fff8e9f8ffa  com.apple.WebKit (9537 - 9537.71) <8A07478D-B2CA-3724-81E4-ADC10E1AD3EA> /System/Library/Frameworks/WebKit.framework/Versions/A/WebKit
    0x7fff8f382000 -     0x7fff8f389ff7  liblaunch.dylib (842.1.4) <FCBF0A02-0B06-3F97-9248-5062A9DEB32C> /usr/lib/system/liblaunch.dylib
    0x7fff8f43f000 -     0x7fff8f447ff3  libCGCMS.A.dylib (599.7) <92AA4E85-7633-36E2-BAD0-7B1A2E48E75C> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGCMS.A.dylib
    0x7fff8f448000 -     0x7fff8f450fff  libMatch.1.dylib (19) <021293AB-407D-309A-87F5-8E782F46753E> /usr/lib/libMatch.1.dylib
    0x7fff8f451000 -     0x7fff8f49eff2  com.apple.print.framework.PrintCore (9.0 - 428) <8D8253E3-302F-3DB2-9C5C-572CB974E8B3> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/PrintCore.framework/Versions/A/PrintCore
    0x7fff8f49f000 -     0x7fff8f4bbff7  libsystem_kernel.dylib (2422.1.72) <D14913DB-47F1-3591-8DAF-D4B4EF5F8818> /usr/lib/system/libsystem_kernel.dylib
    0x7fff8f4bc000 -     0x7fff8f60fff7  com.apple.audio.toolbox.AudioToolbox (1.9 - 1.9) <A0B7B007-9BD8-30E2-B644-47856DA29FEE> /System/Library/Frameworks/AudioToolbox.framework/Versions/A/AudioToolbox
    0x7fff8f610000 -     0x7fff8f8baffd  com.apple.HIToolbox (2.1 - 695) <C4DE35FF-D0AC-35C3-A7E6-F54CD153825C> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/HIToolbox.framework/Versions/A/HIToolbox
    0x7fff8f8bb000 -     0x7fff8fa68f27  libobjc.A.dylib (551.1) <AD7FD984-271E-30F4-A361-6B20319EC73B> /usr/lib/libobjc.A.dylib
    0x7fff8fa69000 -     0x7fff8fae9fff  com.apple.CoreSymbolication (3.0 - 141) <B018335C-698B-3F87-AF1C-6115C4FA8954> /System/Library/PrivateFrameworks/CoreSymbolication.framework/Versions/A/CoreSymbolication
    0x7fff8faea000 -     0x7fff8fe04ff7  com.apple.MediaToolbox (1.0 - 1273.29) <6260E68B-7E50-3D49-8C0A-7145614C13D8> /System/Library/Frameworks/MediaToolbox.framework/Versions/A/MediaToolbox
    0x7fff8fe05000 -     0x7fff8fe5efff  libTIFF.dylib (1038) <5CBFE0C2-9DD8-340B-BA63-A94CE2E476F2> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libTIFF.dylib
    0x7fff8fec2000 -     0x7fff8ff13ff3  com.apple.audio.CoreAudio (4.2.0 - 4.2.0) <BF4C2FE3-8BC8-30D1-8347-2A7221268794> /System/Library/Frameworks/CoreAudio.framework/Versions/A/CoreAudio
    0x7fff8ff14000 -     0x7fff8ff78ff3  com.apple.datadetectorscore (5.0 - 354.0) <9ACF24B8-3268-3134-A5BC-D72C9371A195> /System/Library/PrivateFrameworks/DataDetectorsCore.framework/Versions/A/DataDetectorsCore
    0x7fff8ff88000 -     0x7fff8ff9efff  com.apple.CoreMediaAuthoring (2.2 - 947) <B01FBACC-DDD5-30A8-BCCF-57CE24ABA329> /System/Library/PrivateFrameworks/CoreMediaAuthoring.framework/Versions/A/CoreMediaAuthoring
    0x7fff8ff9f000 -     0x7fff8ffa2fff  com.apple.TCC (1.0 - 1) <32A075D9-47FD-3E71-95BC-BFB0D583F41C> /System/Library/PrivateFrameworks/TCC.framework/Versions/A/TCC
    0x7fff8ffde000 -     0x7fff90008ff7  libpcap.A.dylib (42) <91D3FF51-D6FE-3C05-98C9-1182E0EC3D58> /usr/lib/libpcap.A.dylib
    0x7fff90034000 -     0x7fff9011bff7  libxml2.2.dylib (26) <A1DADD11-89E5-3DE4-8802-07186225967F> /usr/lib/libxml2.2.dylib
    0x7fff9011c000 -     0x7fff90168ffe  com.apple.CoreMediaIO (401.0 - 4544) <44EBC0FE-DAD5-3711-96CB-05250F350A16> /System/Library/Frameworks/CoreMediaIO.framework/Versions/A/CoreMediaIO
    0x7fff90a39000 -     0x7fff90a39ff7  libkeymgr.dylib (28) <3AA8D85D-CF00-3BD3-A5A0-E28E1A32A6D8> /usr/lib/system/libkeymgr.dylib
    0x7fff9118a000 -     0x7fff91196ff7  com.apple.HelpData (2.1.4 - 90) <BEA1C549-40D3-35BF-9204-CB679FCB0648> /System/Library/PrivateFrameworks/HelpData.framework/Versions/A/HelpData
    0x7fff91197000 -     0x7fff912fdfff  libGLProgrammability.dylib (9.0.83) <9C97E814-F674-30F8-8C2D-C45FC1E7D934> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLProgrammability.dylib
    0x7fff912fe000 -     0x7fff913efff9  libiconv.2.dylib (41) <BB44B115-AC32-3877-A0ED-AEC6232A4563> /usr/lib/libiconv.2.dylib
    0x7fff9181f000 -     0x7fff91848fff  com.apple.DictionaryServices (1.2 - 208) <A539A058-BA57-35EE-AA08-D0B0E835127D> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/DictionaryServices.framework/Versions/A/DictionaryServices
    0x7fff91849000 -     0x7fff918d2ff7  libsystem_c.dylib (997.1.1) <61833FAA-7281-3FF9-937F-686B6F20427C> /usr/lib/system/libsystem_c.dylib
    0x7fff918d3000 -     0x7fff918d3fff  com.apple.Accelerate.vecLib (3.9 - vecLib 3.9) <F8D0CC77-98AC-3B58-9FE6-0C25421827B6> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/vecLib
    0x7fff918d4000 -     0x7fff918dcfff  libsystem_dnssd.dylib (522.1.11) <270DCF6C-502D-389A-AA9F-DE4624A36FF7> /usr/lib/system/libsystem_dnssd.dylib
    0x7fff918dd000 -     0x7fff919aeff1  com.apple.DiskImagesFramework (10.9 - 371.1) <D456ED08-4C1D-341F-BAB8-85E34A7275C5> /System/Library/PrivateFrameworks/DiskImages.framework/Versions/A/DiskImages
    0x7fff919af000 -     0x7fff91c10ff7  com.apple.imageKit (2.5 - 770) <33BCF627-EB1A-3CC1-98AB-2324B6DFB329> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/ImageKit.framework/Versions/A/ImageKit
    0x7fff91c38000 -     0x7fff91c41fff  com.apple.CommonAuth (4.0 - 2.0) <1D263127-5F27-3128-996D-7397660D0C6E> /System/Library/PrivateFrameworks/CommonAuth.framework/Versions/A/CommonAuth
    0x7fff91c42000 -     0x7fff91ccdfff  libCoreStorage.dylib (380) <AE14C2F3-0EF1-3DCD-BF2B-A24D97D3B372> /usr/lib/libCoreStorage.dylib
    0x7fff91cce000 -     0x7fff91cd7ffb  libCGInterfaces.dylib (271) <68EFBEFE-7506-3235-99A2-5B69EDBFD7B8> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/Resources/libCGInterfaces.dylib
    0x7fff91cd8000 -     0x7fff91cffffb  libsystem_info.dylib (449.1.3) <7D41A156-D285-3849-A2C3-C04ADE797D98> /usr/lib/system/libsystem_info.dylib
    0x7fff91d00000 -     0x7fff91d0dff7  libxar.1.dylib (202) <5572AA71-E98D-3FE1-9402-BB4A84E0E71E> /usr/lib/libxar.1.dylib
    0x7fff91d0e000 -     0x7fff91d1bff4  com.apple.Librarian (1.2 - 1) <F1A2744D-8536-32C7-8218-9972C6300DAE> /System/Library/PrivateFrameworks/Librarian.framework/Versions/A/Librarian
    0x7fff91d1c000 -     0x7fff91d2cfff  libbsm.0.dylib (33) <2CAC00A2-1352-302A-88FA-C567D4D69179> /usr/lib/libbsm.0.dylib
    0x7fff91d2d000 -     0x7fff92160ffb  com.apple.vision.FaceCore (3.0.0 - 3.0.0) <F42BFC9C-0B16-35EF-9A07-91B7FDAB7FC5> /System/Library/PrivateFrameworks/FaceCore.framework/Versions/A/FaceCore
    0x7fff92161000 -     0x7fff9218aff7  libc++abi.dylib (48) <8C16158F-CBF8-3BD7-BEF4-022704B2A326> /usr/lib/libc++abi.dylib
    0x7fff9218b000 -     0x7fff9225cff7  com.apple.QuickLookUIFramework (5.0 - 622.3) <9741E66B-3978-35F6-8846-B6C528945611> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuickLookUI.framework/Versions/A/QuickLookUI
    0x7fff9225d000 -     0x7fff9225dffd  libOpenScriptingUtil.dylib (157) <19F0E769-0989-3062-9AFB-8976E90E9759> /usr/lib/libOpenScriptingUtil.dylib
    0x7fff92261000 -     0x7fff9229bff3  com.apple.bom (12.0 - 192) <989690DB-B9CC-3DB5-89AE-B5D33EDC474E> /System/Library/PrivateFrameworks/Bom.framework/Versions/A/Bom
    0x7fff9229c000 -     0x7fff9229efff  com.apple.loginsupport (1.0 - 1) <4772DFF0-E8FD-3F27-9C3B-39563B904E1C> /System/Library/PrivateFrameworks/login.framework/Versions/A/Frameworks/loginsupport.framework/Versions/A/loginsupport
    0x7fff9229f000 -     0x7fff922a8fff  com.apple.speech.synthesis.framework (4.6.2 - 4.6.2) <0AAE45F0-FC6E-36B6-A6A7-73E6950A74AC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/SpeechSynthesis.framework/Versions/A/SpeechSynthesis
    0x7fff922a9000 -     0x7fff922f4fff  com.apple.ImageCaptureCore (5.0 - 5.0) <F529EDDC-E2F5-30CA-9938-AF23296B5C5B> /System/Library/Frameworks/ImageCaptureCore.framework/Versions/A/ImageCaptureCore
    0x7fff92336000 -     0x7fff923f9ff7  com.apple.backup.framework (1.5 - 1.5) <92C8038F-CC00-3202-90D8-3C3AEC90986F> /System/Library/PrivateFrameworks/Backup.framework/Versions/A/Backup
    0x7fff923fa000 -     0x7fff926cefc7  com.apple.vImage (7.0 - 7.0) <D241DBFA-AC49-31E2-893D-EAAC31890C90> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/vImage
    0x7fff9271a000 -     0x7fff92721ff7  libsystem_pthread.dylib (53.1.4) <AB498556-B555-310E-9041-F67EC9E00E2C> /usr/lib/system/libsystem_pthread.dylib
    0x7fff92722000 -     0x7fff9273dff7  libsystem_malloc.dylib (23.1.10) <FFE5C472-B23A-318A-85BF-77CDE61900D1> /usr/lib/system/libsystem_malloc.dylib
    0x7fff9273e000 -     0x7fff92744ff7  libCGXCoreImage.A.dylib (599.7) <AC38090E-BA96-33C0-92F3-8EF6231582C4> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGXCoreImage.A.dylib
    0x7fff927ef000 -     0x7fff927f6ff3  libcopyfile.dylib (103) <5A881779-D0D6-3029-B371-E3021C2DDA5E> /usr/lib/system/libcopyfile.dylib
    0x7fff927f7000 -     0x7fff92828fff  com.apple.MediaKit (15 - 709) <23E33409-5C39-3F93-9E73-2B0E9EE8883E> /System/Library/PrivateFrameworks/MediaKit.framework/Versions/A/MediaKit
    0x7fff92852000 -     0x7fff928b6ff9  com.apple.Heimdal (4.0 - 2.0) <E7D20A4D-4674-37E1-A949-635FFF7C439A> /System/Library/PrivateFrameworks/Heimdal.framework/Versions/A/Heimdal
    0x7fff928b7000 -     0x7fff928f9ff7  libauto.dylib (185.5) <F45C36E8-B606-3886-B5B1-B6745E757CA8> /usr/lib/libauto.dylib
    0x7fff92913000 -     0x7fff92914ffb  libremovefile.dylib (33) <3543F917-928E-3DB2-A2F4-7AB73B4970EF> /usr/lib/system/libremovefile.dylib
    0x7fff92920000 -     0x7fff929fffff  libcrypto.0.9.8.dylib (50) <B95B9DBA-39D3-3EEF-AF43-44608B28894E> /usr/lib/libcrypto.0.9.8.dylib
    0x7fff92a00000 -     0x7fff92a03ff7  com.apple.LoginUICore (3.0 - 3.0) <1ECBDA90-D6ED-3333-83EB-9C8232DFAD7C> /System/Library/PrivateFrameworks/LoginUIKit.framework/Versions/A/Frameworks/LoginUICore.framework/Versions/A/LoginUICore
    0x7fff92a04000 -     0x7fff92a05ff7  libsystem_blocks.dylib (63) <FB856CD1-2AEA-3907-8E9B-1E54B6827F82> /usr/lib/system/libsystem_blocks.dylib
    0x7fff92a5c000 -     0x7fff92ac6ff7  com.apple.framework.IOKit (2.0.1 - 907.1.13) <C1E95F5C-B79B-31BE-9F2A-1B25163C1F16> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit
    0x7fff92ac7000 -     0x7fff92ad8ff7  libsystem_asl.dylib (217.1.4) <655FB343-52CF-3E2F-B14D-BEBF5AAEF94D> /usr/lib/system/libsystem_asl.dylib
    0x7fff92ad9000 -     0x7fff92ad9fff  com.apple.Accelerate (1.9 - Accelerate 1.9) <509BB27A-AE62-366D-86D8-0B06D217CF56> /System/Library/Frameworks/Accelerate.framework/Versions/A/Accelerate
    0x7fff92ada000 -     0x7fff92c06fff  com.apple.MediaControlSender (1.9 - 190.4) <F5E934E1-D004-3C84-815A-961319F8C522> /System/Library/PrivateFrameworks/MediaControlSender.framework/Versions/A/MediaControlSender
    0x7fff92c21000 -     0x7fff92c84ff7  com.apple.SystemConfiguration (1.13 - 1.13) <F05F4149-981B-380B-8F50-51CE804BBB89> /System/Library/Frameworks/SystemConfiguration.framework/Versions/A/SystemConfiguration
    0x7fff92c85000 -     0x7fff92c88fff  libCoreVMClient.dylib (58.1) <EBC36C69-C896-3C3D-8589-3E9023E7E56F> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreVMClient.dylib
    0x7fff92c89000 -     0x7fff92cbeffc  com.apple.LDAPFramework (2.4.28 - 194.5) <7E31A674-C6AB-33BE-BD5E-F5E3C6E22894> /System/Library/Frameworks/LDAP.framework/Versions/A/LDAP
    0x7fff92cbf000 -     0x7fff92d12fff  com.apple.ScalableUserInterface (1.0 - 1) <CF745298-7373-38D2-B3B1-727D5A569E48> /System/Library/Frameworks/QuartzCore.framework/Versions/A/Frameworks/ScalableUserInterface.framework/Versions/A/ScalableUserInterface
    0x7fff92d36000 -     0x7fff92d48ff7  com.apple.MultitouchSupport.framework (245.13 - 245.13) <D5E7416D-45AB-3690-86C6-CC4B5FCEA2D2> /System/Library/PrivateFrameworks/MultitouchSupport.framework/Versions/A/MultitouchSupport
    0x7fff92d49000 -     0x7fff92d92fff  com.apple.CoreMedia (1.0 - 1273.29) <4ACD30BA-E9FE-3842-A8B7-E3BD63747867> /System/Library/Frameworks/CoreMedia.framework/Versions/A/CoreMedia
    0x7fff92f4f000 -     0x7fff92f54fff  com.apple.DiskArbitration (2.6 - 2.6) <F8A47F61-83D1-3F92-B7A8-A169E0D187C0> /System/Library/Frameworks/DiskArbitration.framework/Versions/A/DiskArbitration
    0x7fff92fd6000 -     0x7fff93028fff  libc++.1.dylib (120) <4F68DFC5-2077-39A8-A449-CAC5FDEE7BDE> /usr/lib/libc++.1.dylib
    0x7fff93029000 -     0x7fff93061ff7  com.apple.RemoteViewServices (2.0 - 94) <3F34D630-3DDB-3411-BC28-A56A9B55EBDA> /System/Library/PrivateFrameworks/RemoteViewServices.framework/Versions/A/RemoteViewServices
    0x7fff93062000 -     0x7fff9312bfff  com.apple.LaunchServices (572.23 - 572.23) <8D955BDE-2C4C-3DD4-B4D7-2D916174FE1D> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/LaunchServices.framework/Versions/A/LaunchServices
    0x7fff9312c000 -     0x7fff9315bfd2  libsystem_m.dylib (3047.16) <B7F0E2E4-2777-33FC-A787-D6430B630D54> /usr/lib/system/libsystem_m.dylib
    0x7fff9315c000 -     0x7fff9315efff  com.apple.EFILogin (2.0 - 2) <C360E8AF-E9BB-3BBA-9DF0-57A92CEF00D4> /System/Library/PrivateFrameworks/EFILogin.framework/Versions/A/EFILogin
    0x7fff9315f000 -     0x7fff9319dff7  libGLImage.dylib (9.0.83) <C08048A7-03CC-3E40-BCDC-7791D87AC8E4> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLImage.dylib
    0x7fff9319e000 -     0x7fff931c3ff7  com.apple.ChunkingLibrary (2.0 - 155.1) <B845DC7A-D1EA-31E2-967C-D1FE0C628036> /System/Library/PrivateFrameworks/ChunkingLibrary.framework/Versions/A/ChunkingLibrary
    0x7fff9320a000 -     0x7fff93451ff4  com.apple.RawCamera.bundle (4.08 - 709) <4BA16655-6A88-351C-863D-8101F0FFE599> /System/Library/CoreServices/RawCamera.bundle/Contents/MacOS/RawCamera
    0x7fff93696000 -     0x7fff936edfff  com.apple.ViewBridge (1.0 - 46) <C49FDC96-7087-3B2F-AEC3-039F7B2CB50C> /System/Library/PrivateFrameworks/ViewBridge.framework/Versions/A/ViewBridge
    0x7fff936ee000 -     0x7fff93700ff7  com.apple.CoreBluetooth (1.0 - 1) <67A00F44-563E-3C55-9187-34D502D84DDE> /System/Library/Frameworks/IOBluetooth.framework/Versions/A/Frameworks/CoreBluetooth.framework/Versions/A/CoreBluetooth
    0x7fff93701000 -     0x7fff93703fff  libCVMSPluginSupport.dylib (9.0.83) <E2AED858-6EEB-36C6-8C06-C3CF649A3CD5> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCVMSPluginSupport.dylib
    0x7fff939a3000 -     0x7fff939adff7  com.apple.CrashReporterSupport (10.9 - 538) <B487466B-3AA1-3854-A808-A61F049FA794> /System/Library/PrivateFrameworks/CrashReporterSupport.framework/Versions/A/CrashReporterSupport
    0x7fff939ae000 -     0x7fff93a49ff7  com.apple.PDFKit (2.9 - 2.9) <AD968A31-6567-30A7-A699-154C88DB56D0> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/PDFKit.framework/Versions/A/PDFKit
    0x7fff93a4a000 -     0x7fff93b7aff7  com.apple.desktopservices (1.8 - 1.8) <09DC9BB8-432F-3C7A-BB08-956A2DDFC2DE> /System/Library/PrivateFrameworks/DesktopServicesPriv.framework/Versions/A/DesktopServicesPriv
    0x7fff93b7b000 -     0x7fff93b88ff0  libbz2.1.0.dylib (29) <0B98AC35-B138-349C-8063-2B987A75D24C> /usr/lib/libbz2.1.0.dylib
    0x7fff93bdd000 -     0x7fff93c69ff7  com.apple.ink.framework (10.9 - 207) <8A50B893-AD03-3826-8555-A54FEAF08F47> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Ink.framework/Versions/A/Ink
    0x7fff93c94000 -     0x7fff93c9fff7  com.apple.DirectoryService.Framework (10.9 - 173.1.1) <F8566D1F-450F-3571-911F-75C68E45919F> /System/Library/Frameworks/DirectoryService.framework/Versions/A/DirectoryService
    0x7fff93ca0000 -     0x7fff93d62ff1  com.apple.CoreText (352.0 - 367.15) <E5C70FC8-C861-39B8-A491-595E5B55CFC8> /System/Library/Frameworks/CoreText.framework/Versions/A/CoreText
    0x7fff93d63000 -     0x7fff93dd2ff1  com.apple.ApplicationServices.ATS (360 - 363.1) <88976B22-A9B8-3E7B-9AE6-0B8E09A968FC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/ATS
    0x7fff93dd3000 -     0x7fff93dd5ffb  libutil.dylib (34) <DAC4A6CF-A1BB-3874-9569-A919316D30E8> /usr/lib/libutil.dylib
    0x7fff93e04000 -     0x7fff93e52fff  com.apple.opencl (2.3.57 - 2.3.57) <FC03A80D-543A-3448-83FF-D399C3A240D9> /System/Library/Frameworks/OpenCL.framework/Versions/A/OpenCL
    0x7fff93e53000 -     0x7fff93e82ff5  com.apple.GSS (4.0 - 2.0) <ED98D992-CC14-39F3-9ABC-8D7F986487CC> /System/Library/Frameworks/GSS.framework/Versions/A/GSS
    0x7fff93e83000 -     0x7fff93ed1ff9  libstdc++.6.dylib (60) <0241E6A4-1368-33BE-950B-D0A175C41F54> /usr/lib/libstdc++.6.dylib
    0x7fff93ed2000 -     0x7fff93ed4ff7  libquarantine.dylib (71) <7A1A2BCB-C03D-3A25-BFA4-3E569B2D2C38> /usr/lib/system/libquarantine.dylib
    0x7fff93ed5000 -     0x7fff93ed9fff  com.apple.ServerInformation (2.0 - 1) <E628F08A-0F6F-384B-AFD5-1BC1BBF56F1F> /System/Library/PrivateFrameworks/ServerInformation.framework/Versions/A/ServerInformation
    0x7fff93eda000 -     0x7fff93ef6fff  com.apple.frameworks.preferencepanes (16.0 - 16.0) <059E99D8-67C2-3B59-B5E7-850DD7A92D75> /System/Library/Frameworks/PreferencePanes.framework/Versions/A/PreferencePanes
    0x7fff93ef7000 -     0x7fff93ffcfff  com.apple.ImageIO.framework (3.3.0 - 1038) <2C058216-C6D8-3380-A7EA-92A3F04520C1> /System/Library/Frameworks/ImageIO.framework/Versions/A/ImageIO
    0x7fff94000000 -     0x7fff94004fff  com.apple.CommonPanels (1.2.6 - 96) <6B434AFD-50F8-37C7-9A56-162C17E375B3> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/CommonPanels.framework/Versions/A/CommonPanels
    0x7fff94010000 -     0x7fff94010fff  com.apple.CoreServices (59 - 59) <7A697B5E-F179-30DF-93F2-8B503CEEEFD5> /System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices
    0x7fff94011000 -     0x7fff9401afff  com.apple.DisplayServicesFW (2.8 - 360.8.14) <816A9CED-1BC0-3C76-8103-1B9BE0F723BB> /System/Library/PrivateFrameworks/DisplayServices.framework/Versions/A/DisplayServices
    0x7fff94020000 -     0x7fff94028ff7  com.apple.speech.recognition.framework (4.2.4 - 4.2.4) <98BBB3E4-6239-3EF1-90B2-84EA0D3B8D61> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SpeechRecognition.framework/Versions/A/SpeechRecognition
    0x7fff94029000 -     0x7fff940b8ff7  com.apple.Metadata (10.7.0 - 800.12) <04486C95-3E49-36C4-89B6-925E925BB417> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/Metadata.framework/Versions/A/Metadata
    0x7fff940b9000 -     0x7fff94f05ff5  com.apple.WebCore (9537 - 9537.70) <7A90E9D3-4F26-3049-9C96-C6B8CB1395C8> /System/Library/Frameworks/WebKit.framework/Versions/A/Frameworks/WebCore.framework/Versions/A/WebCore
    0x7fff94f64000 -     0x7fff94f98fff  libssl.0.9.8.dylib (50) <B15F967C-B002-36C2-9621-3456D8509F50> /usr/lib/libssl.0.9.8.dylib
    0x7fff94f99000 -     0x7fff95298fff  com.apple.Foundation (6.9 - 1056) <D608EDFD-9634-3573-9B7E-081C7D085F7A> /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation
    0x7fff95299000 -     0x7fff952a2ff3  libsystem_notify.dylib (121) <52571EC3-6894-37E4-946E-064B021ED44E> /usr/lib/system/libsystem_notify.dylib
    0x7fff952a3000 -     0x7fff952e8ff6  com.apple.HIServices (1.22 - 466) <21807AF8-3BC7-32BB-AB96-7C35CB59D7F6> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/HIServices.framework/Versions/A/HIServices
    0x7fff952e9000 -     0x7fff9530eff7  com.apple.CoreVideo (1.8 - 117.2) <4674339E-26D0-35FA-9958-422832B39B12> /System/Library/Frameworks/CoreVideo.framework/Versions/A/CoreVideo
    0x7fff9530f000 -     0x7fff95356ff7  libcups.2.dylib (372) <348EED62-6C20-35D6-8EFB-E80943965100> /usr/lib/libcups.2.dylib
    0x7fff95357000 -     0x7fff9536ffff  libexpat.1.dylib (12) <97F4A9A7-CB3E-3BBF-9314-4997FC770E52> /usr/lib/libexpat.1.dylib
    0x7fff95370000 -     0x7fff95372ff7  com.apple.securityhi (9.0 - 55005) <405E2BC6-2B6F-3B6B-B48E-2FD39214F052> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SecurityHI.framework/Versions/A/SecurityHI
    0x7fff953c7000 -     0x7fff953e0ff7  com.apple.Kerberos (3.0 - 1) <F108AFEB-198A-3BAF-BCA5-9DFCE55EFF92> /System/Library/Frameworks/Kerberos.framework/Versions/A/Kerberos
    0x7fff95412000 -     0x7fff95501fff  libFontParser.dylib (111.1) <835A8253-6AB9-3AAB-9CBF-171440DEC486> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontParser.dylib
    0x7fff95502000 -     0x7fff95503fff  libunc.dylib (28) <62682455-1862-36FE-8A04-7A6B91256438> /usr/lib/system/libunc.dylib
    0x7fff95504000 -     0x7fff95505ff7  libodfde.dylib (20) <C00A4EBA-44BC-3C53-BFD0-819B03FFD462> /usr/lib/libodfde.dylib

External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 1
    thread_create: 0
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 159
    thread_create: 1
    thread_set_state: 2

VM Region Summary:
ReadOnly portion of Libraries: Total=234.0M resident=150.2M(64%) swapped_out_or_unallocated=83.9M(36%)
Writable regions: Total=1.2G written=45.0M(4%) resident=68.6M(6%) swapped_out=0K(0%) unallocated=1.1G(94%)

REGION TYPE                        VIRTUAL
===========                        =======
CG backing stores                    3020K
CG image                             3156K
CG raster data                         88K
CG shared images                      172K
CoreAnimation                         660K
CoreImage                              84K
CoreServices                           32K
Foundation                              4K
IOKit                                41.6M
IOKit (reserved)                      576K        reserved VM address space (unallocated)
Image IO                              964K
JS JIT generated code               256.0M
JS JIT generated code (reserved)    768.0M        reserved VM address space (unallocated)
JS VM register file                  4096K
JS garbage collector                 1280K
Kernel Alloc Once                       8K
MALLOC                              130.7M
MALLOC (admin)                         32K
Memory Tag 242                         12K
Memory Tag 251                         16K
OpenCL                                 44K
OpenGL GLSL                          3840K
STACK GUARD                          56.0M
Stack                                9824K
VM_ALLOCATE                          16.9M
WebKit Malloc                        1232K
__DATA                               30.5M
__IMAGE                               528K
__LINKEDIT                           68.4M
__TEXT                              165.6M
__UNICODE                             544K
mapped file                          75.6M
shared memory                          68K
===========                        =======
TOTAL                                 1.6G
TOTAL, minus reserved VM space      870.4M


Model: MacPro5,1, BootROM MP51.007F.B03, 2 processors, Intel Core 2 Duo, 2.71 GHz, 6 GB, SMC 1.30f3
Graphics: ATI Radeon HD 5450, ATI Radeon HD 5450, PCIe, 1024 MB
Memory Module: BANK0/DIMM0, 4 GB, DDR3, 1066 MHz, 0000000000009801, 99U5471-020.A00LF
Memory Module: BANK1/DIMM1, 2 GB, DDR3, 1066 MHz, 0000000000009801, 9905471-001.A00LF
AirPort: spairport_wireless_card_type_airport_extreme (0x168C, 0xE006), Atheros 9280: 4.0.74.0-P2P
Bluetooth: Version 4.2.0f6 12982, 3 services, 22 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
Serial ATA Device: hp      DVD-RAM GH40L
Serial ATA Device: ST2000DM001-9YN164, 2 TB
Serial ATA Device: WDC WD6400AAKS-65A7B2, 640.14 GB
USB Device: Microsoft LifeCam VX-5000
USB Device: BT2.0
USB Device: Microsoft® 2.4GHz Transceiver v8.0
Thunderbolt Bus:

eadm · November 3, 2013

I have tried 3 kernels but every time I got the same problem

OS X 10.9 installs without problems, but when I trying to launch it from chameleon computer just reboots and I again get to the screen with chameleon

Amd fx 8350

Radeon HD7970

Gigabyte ga970-ud3

Flags: -v npci=0x2000 GraphicsEnabler=No

Shaneee · November 3, 2013

I have tried 3 kernels but every time I got the same problem

OS X 10.9 installs without problems, but when I trying to launch it from chameleon computer just reboots and I again get to the screen with chameleon

Amd fx 8350

Radeon HD7970

Gigabyte ga970-ud3

Flags: -v npci=0x2000 GraphicsEnabler=No

Post in the help topic this is kernel development...

awkimballjr · November 3, 2013

I have tried 3 kernels but every time I got the same problem

OS X 10.9 installs without problems, but when I trying to launch it from chameleon computer just reboots and I again get to the screen with chameleon

Amd fx 8350

Radeon HD7970

Gigabyte ga970-ud3

Flags: -v npci=0x2000 GraphicsEnabler=No

I know this isn't the place for you to have asked this, but make sure you copy the new kernel to the hard drive. The installer doesn't copy it's working AMD kernel, it will install the default intel kernel. Do this through terminal with something like

sudo rm -R /Volumes/(your osx HDD)/mach_kernel

sudo cp /mach_kernel /Volumes/(HDD)/mach_kernel

reboot

tragediana150 · November 3, 2013

3 ??

j'en ai 8 !!!

a lot of kernels :D :hysterical:

I have tried 3 kernels but every time I got the same problem

OS X 10.9 installs without problems, but when I trying to launch it from chameleon computer just reboots and I again get to the screen with chameleon

Amd fx 8350

Radeon HD7970

Gigabyte ga970-ud3

Flags: -v npci=0x2000 GraphicsEnabler=No

Maybe corecrpto.kext?

awkimballjr · November 3, 2013

So Andy I tested your newest kernel

FX-8350

Radeon HD7850

All is working perfectly except for gfx glitches on chrome, safari, finder. audio still only works with VoodooHDA but that could be my fault too.

aplIIc · November 3, 2013

I managed to force it to crash lol here is a log,

yeah.. had to do same... lol...

here's mine:

Process:         System Preferences [551]
Path:            /Applications/System Preferences.app/Contents/MacOS/System Preferences
Identifier:      com.apple.systempreferences
Version:         12.0 (12.0)
Build Info:      SystemPrefsApp-259000000000000~23
Code Type:       X86-64 (Native)
Parent Process:  launchd [159]
Responsible:     System Preferences [551]
User ID:         502

Date/Time:       2013-11-03 15:16:58.858 -0500
OS Version:      Mac OS X 10.9 (13A603)
Report Version:  11
Anonymous UUID:  A322F3A8-CA8D-B777-E34A-930A22B6E2E0


Crashed Thread:  0  Dispatch queue: com.apple.main-thread

Exception Type:  EXC_CRASH (SIGABRT)
Exception Codes: 0x0000000000000000, 0x0000000000000000

Application Specific Information:
com.apple.preference.desktopscreeneffect v.5.1 (Desktop & Screen Saver)
objc[551]: GC: forcing GC OFF because OBJC_DISABLE_GC is set
abort() called

Application Specific Signatures:
Shell
Graphics hardware encountered an error and was reset: 0xfffffffb


Thread 0 Crashed:: Dispatch queue: com.apple.main-thread
0   libsystem_kernel.dylib         0x00007fff867bc866 __pthread_kill + 10
1   libsystem_pthread.dylib        0x00007fff8e00a35c pthread_kill + 92
2   libsystem_c.dylib              0x00007fff87c68bba abort + 125
3   libGPUSupportMercury.dylib     0x00007fff8b8791b6 gpusKillClient + 111
4   libGPUSupportMercury.dylib     0x00007fff8b879b3d gpusQueueSubmitDataBuffers + 155
5   com.apple.AMDRadeonX3000GLDriver 0x00001234801eba78 0x123480000000 + 2013816
6   com.apple.AMDRadeonX3000GLDriver 0x00001234801eb95e 0x123480000000 + 2013534
7   com.apple.AMDRadeonX3000GLDriver 0x00001234801ebcfb gldFlushQueue + 37
8   com.apple.opencl               0x00007fff8f527d0c 0x7fff8f521000 + 27916
9   com.apple.opencl               0x00007fff8f543ff2 clFlush + 174
10  com.apple.CoreImage            0x00007fff878299af -[FEOpenCLContext(Buffer) renderUsingGPUWithRenderCallback:destinationFormat:workingFormat:extent:transform:info:] + 595
11  com.apple.CoreImage            0x00007fff8771fe6c -[CICLContextImpl renderWithBounds:matrix:function:info:] + 3993
12  com.apple.CoreImage            0x00007fff87724634 -[CIContextImpl render:] + 230
13  com.apple.CoreImage            0x00007fff877225c1 -[CIContext drawImage:inRect:fromRect:] + 1558
14  com.apple.CoreImage            0x00007fff87722770 -[CIContext drawImage:atPoint:fromRect:] + 122
15  com.apple.QuartzComposer       0x00007fff88c5fa6e -[QCBillboard execute:time:arguments:] + 11644
16  com.apple.QuartzComposer       0x00007fff88c2ef2a -[QCPatch(Private) _renderAtTime:arguments:] + 155
17  com.apple.QuartzComposer       0x00007fff88c5c9b1 -[QCRenderingPatch _renderAtTime:arguments:] + 123
18  com.apple.QuartzComposer       0x00007fff88c30396 -[QCRenderingManager renderAtTime:arguments:] + 2070
19  com.apple.QuartzComposer       0x00007fff88c2de59 -[QCPatch(Extensions) executeSubpatches:arguments:] + 58
20  com.apple.QuartzComposer       0x00007fff88c2de18 -[QCPatch(Customization) execute:time:arguments:] + 44
21  com.apple.QuartzComposer       0x00007fff88c2ef2a -[QCPatch(Private) _renderAtTime:arguments:] + 155
22  com.apple.QuartzComposer       0x00007fff88c30396 -[QCRenderingManager renderAtTime:arguments:] + 2070
23  com.apple.QuartzComposer       0x00007fff88c2de59 -[QCPatch(Extensions) executeSubpatches:arguments:] + 58
24  com.apple.QuartzComposer       0x00007fff88c2de18 -[QCPatch(Customization) execute:time:arguments:] + 44
25  com.apple.QuartzComposer       0x00007fff88c2ef2a -[QCPatch(Private) _renderAtTime:arguments:] + 155
26  com.apple.QuartzComposer       0x00007fff88c35a3e -[QCContext renderPatch:time:arguments:] + 556
27  com.apple.QuartzComposer       0x00007fff88c357a9 -[QCGraphicsContext renderPatch:time:arguments:] + 72
28  com.apple.QuartzComposer       0x00007fff88c3497c -[QCOpenGLContext renderPatch:time:arguments:] + 538
29  com.apple.QuartzComposer       0x00007fff88c3474c -[QCPatch(Runtime) render:arguments:] + 76
30  com.apple.screensaver.QuartzComposer 0x000000011266a225 0x112666000 + 16933
31  com.apple.screensaver.QuartzComposer 0x000000011266a449 0x112666000 + 17481
32  com.apple.screensaver.QuartzComposer 0x000000011266a991 0x112666000 + 18833
33  com.apple.Foundation           0x00007fff8dc4bc57 __NSFireDelayedPerform + 333
34  com.apple.CoreFoundation       0x00007fff8c633724 __CFRUNLOOP_IS_CALLING_OUT_TO_A_TIMER_CALLBACK_FUNCTION__ + 20
35  com.apple.CoreFoundation       0x00007fff8c63325f __CFRunLoopDoTimer + 1151
36  com.apple.CoreFoundation       0x00007fff8c6a476a __CFRunLoopDoTimers + 298
37  com.apple.CoreFoundation       0x00007fff8c5eeaa5 __CFRunLoopRun + 1525
38  com.apple.CoreFoundation       0x00007fff8c5ee275 CFRunLoopRunSpecific + 309
39  com.apple.HIToolbox            0x00007fff8bb98f0d RunCurrentEventLoopInMode + 226
40  com.apple.HIToolbox            0x00007fff8bb98b85 ReceiveNextEventCommon + 173
41  com.apple.HIToolbox            0x00007fff8bb98abc _BlockUntilNextEventMatchingListInModeWithFilter + 65
42  com.apple.AppKit               0x00007fff8546428e _DPSNextEvent + 1434
43  com.apple.AppKit               0x00007fff854638db -[NSApplication nextEventMatchingMask:untilDate:inMode:dequeue:] + 122
44  com.apple.AppKit               0x00007fff854579cc -[NSApplication run] + 553
45  com.apple.AppKit               0x00007fff85442803 NSApplicationMain + 940
46  libdyld.dylib                  0x00007fff8eda15fd start + 1

Thread 1:: Dispatch queue: com.apple.libdispatch-manager
0   libsystem_kernel.dylib         0x00007fff867bd662 kevent64 + 10
1   libdispatch.dylib              0x00007fff8e0e043d _dispatch_mgr_invoke + 239
2   libdispatch.dylib              0x00007fff8e0e0152 _dispatch_mgr_thread + 52

Thread 2:
0   libsystem_kernel.dylib         0x00007fff867bce6a __workq_kernreturn + 10
1   libsystem_pthread.dylib        0x00007fff8e00af08 _pthread_wqthread + 330
2   libsystem_pthread.dylib        0x00007fff8e00dfb9 start_wqthread + 13

Thread 3:
0   libsystem_kernel.dylib         0x00007fff867bce6a __workq_kernreturn + 10
1   libsystem_pthread.dylib        0x00007fff8e00af08 _pthread_wqthread + 330
2   libsystem_pthread.dylib        0x00007fff8e00dfb9 start_wqthread + 13

Thread 4:
0   libsystem_kernel.dylib         0x00007fff867bce6a __workq_kernreturn + 10
1   libsystem_pthread.dylib        0x00007fff8e00af08 _pthread_wqthread + 330
2   libsystem_pthread.dylib        0x00007fff8e00dfb9 start_wqthread + 13

Thread 5:: Dispatch queue: NSOperationQueue Serial Queue
0   libsystem_kernel.dylib         0x00007fff867bc716 __psynch_cvwait + 10
1   libsystem_pthread.dylib        0x00007fff8e00bc3b _pthread_cond_wait + 727
2   com.apple.Foundation           0x00007fff8dc4ba39 -[NSCondition wait] + 237
3   com.apple.Foundation           0x00007fff8dc1821e -[NSObject(NSThreadPerformAdditions) performSelector:onThread:withObject:waitUntilDone:modes:] + 749
4   com.apple.Foundation           0x00007fff8dc17e6f -[NSObject(NSThreadPerformAdditions) performSelectorOnMainThread:withObject:waitUntilDone:] + 134
5   com.apple.AppKit               0x00007fff857ff281 ____NSAppKitFinalizeThreadData_block_invoke_2 + 89
6   com.apple.Foundation           0x00007fff8dc10055 -[NSBlockOperation main] + 75
7   com.apple.Foundation           0x00007fff8dbef591 -[__NSOperationInternal _start:] + 631
8   com.apple.Foundation           0x00007fff8dbef23b __NSOQSchedule_f + 64
9   libdispatch.dylib              0x00007fff8e0de2ad _dispatch_client_callout + 8
10  libdispatch.dylib              0x00007fff8e0e068f _dispatch_queue_drain + 451
11  libdispatch.dylib              0x00007fff8e0e19dd _dispatch_queue_invoke + 110
12  libdispatch.dylib              0x00007fff8e0dffa3 _dispatch_root_queue_drain + 75
13  libdispatch.dylib              0x00007fff8e0e1193 _dispatch_worker_thread2 + 40
14  libsystem_pthread.dylib        0x00007fff8e00aef8 _pthread_wqthread + 314
15  libsystem_pthread.dylib        0x00007fff8e00dfb9 start_wqthread + 13

Thread 6:: JavaScriptCore::BlockFree
0   libsystem_kernel.dylib         0x00007fff867bc716 __psynch_cvwait + 10
1   libsystem_pthread.dylib        0x00007fff8e00bc3b _pthread_cond_wait + 727
2   com.apple.JavaScriptCore       0x00007fff90454145 JSC::BlockAllocator::blockFreeingThreadMain() + 261
3   com.apple.JavaScriptCore       0x00007fff9044944f WTF::wtfThreadEntryPoint(void*) + 15
4   libsystem_pthread.dylib        0x00007fff8e009899 _pthread_body + 138
5   libsystem_pthread.dylib        0x00007fff8e00972a _pthread_start + 137
6   libsystem_pthread.dylib        0x00007fff8e00dfc9 thread_start + 13

Thread 7:: JavaScriptCore::Marking
0   libsystem_kernel.dylib         0x00007fff867bc716 __psynch_cvwait + 10
1   libsystem_pthread.dylib        0x00007fff8e00bc3b _pthread_cond_wait + 727
2   com.apple.JavaScriptCore       0x00007fff90454bb7 JSC::GCThread::waitForNextPhase() + 119
3   com.apple.JavaScriptCore       0x00007fff90454a48 JSC::GCThread::gcThreadMain() + 88
4   com.apple.JavaScriptCore       0x00007fff9044944f WTF::wtfThreadEntryPoint(void*) + 15
5   libsystem_pthread.dylib        0x00007fff8e009899 _pthread_body + 138
6   libsystem_pthread.dylib        0x00007fff8e00972a _pthread_start + 137
7   libsystem_pthread.dylib        0x00007fff8e00dfc9 thread_start + 13

Thread 8:: JavaScriptCore::Marking
0   libsystem_kernel.dylib         0x00007fff867bc716 __psynch_cvwait + 10
1   libsystem_pthread.dylib        0x00007fff8e00bc3b _pthread_cond_wait + 727
2   com.apple.JavaScriptCore       0x00007fff90454bb7 JSC::GCThread::waitForNextPhase() + 119
3   com.apple.JavaScriptCore       0x00007fff90454a48 JSC::GCThread::gcThreadMain() + 88
4   com.apple.JavaScriptCore       0x00007fff9044944f WTF::wtfThreadEntryPoint(void*) + 15
5   libsystem_pthread.dylib        0x00007fff8e009899 _pthread_body + 138
6   libsystem_pthread.dylib        0x00007fff8e00972a _pthread_start + 137
7   libsystem_pthread.dylib        0x00007fff8e00dfc9 thread_start + 13

Thread 9:: JavaScriptCore::Marking
0   libsystem_kernel.dylib         0x00007fff867bc716 __psynch_cvwait + 10
1   libsystem_pthread.dylib        0x00007fff8e00bc3b _pthread_cond_wait + 727
2   com.apple.JavaScriptCore       0x00007fff90454bb7 JSC::GCThread::waitForNextPhase() + 119
3   com.apple.JavaScriptCore       0x00007fff90454a48 JSC::GCThread::gcThreadMain() + 88
4   com.apple.JavaScriptCore       0x00007fff9044944f WTF::wtfThreadEntryPoint(void*) + 15
5   libsystem_pthread.dylib        0x00007fff8e009899 _pthread_body + 138
6   libsystem_pthread.dylib        0x00007fff8e00972a _pthread_start + 137
7   libsystem_pthread.dylib        0x00007fff8e00dfc9 thread_start + 13

Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0x0000000000000000  rbx: 0x00007fff76017310  rcx: 0x00007fff55f9dc48  rdx: 0x0000000000000000
  rdi: 0x0000000000000707  rsi: 0x0000000000000006  rbp: 0x00007fff55f9dc70  rsp: 0x00007fff55f9dc48
   r8: 0x0000000000000002   r9: 0x00007fff87c90900  r10: 0x0000000008000000  r11: 0x0000000000000206
  r12: 0x00007f8fdc0e6a00  r13: 0x00007fff55f9df50  r14: 0x0000000000000006  r15: 0x00007f8fdc0e6a00
  rip: 0x00007fff867bc866  rfl: 0x0000000000000206  cr2: 0x00007fff7505c640

Logical CPU:     0
Error Code:      0x02000148
Trap Number:     133


Binary Images:
       0x109c5e000 -        0x109c7fff7  com.apple.systempreferences (12.0 - 12.0) <380DCEB1-718E-3742-B663-71D1EC667EFE> /Applications/System Preferences.app/Contents/MacOS/System Preferences
       0x10b6ea000 -        0x10b6eaff9 +cl_kernels (???) <A995B407-2EB8-4AA4-8967-0D4C3D0FFE4A> cl_kernels
       0x10b6f4000 -        0x10b7dafef  unorm8_bgra.dylib (2.3.58) <9FF943D1-4EF7-36CA-852D-B61C2E554713> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/ImageFormats/unorm8_bgra.dylib
       0x10b82f000 -        0x10b830ffa +cl_kernels (???) <31459AFF-BC9F-4ABB-A32C-E326800CCFAD> cl_kernels
       0x110a81000 -        0x110a81ffd +cl_kernels (???) <666AEFAC-C455-49C3-9BC3-08B181EEA9BE> cl_kernels
       0x110a83000 -        0x110a84fff  com.apple.preference.desktopscreeneffect (5.1 - 5.1) <2C5E3D04-40A8-3F02-9C8B-DA44FCE3F40C> /System/Library/PreferencePanes/DesktopScreenEffectsPref.prefPane/Contents/MacOS/DesktopScreenEffectsPref
       0x110a89000 -        0x110a89fff  com.apple.iLMBAppDefPlugin (2.8.0 - 390) <495EE81B-8E75-3D4A-8E38-A487444AD644> /Library/Application Support/iLifeMediaBrowser/*/iLMBAppDefPlugin
       0x110a8f000 -        0x110a8fffd +cl_kernels (???) <5A2529A8-C54C-4CA9-BD09-65A64B6829C7> cl_kernels
       0x110a91000 -        0x110b71ff7  unorm8_rgba.dylib (2.3.58) <DDD1AFEB-FD30-34D2-958A-823C3EFD649A> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/ImageFormats/unorm8_rgba.dylib
       0x110bb3000 -        0x110bc5fff  com.apple.frameworks.preferencepanessupport (12.0 - 12.0) <76194568-146C-3019-A5EF-866EC3D5AA85> /System/Library/PrivateFrameworks/PreferencePanesSupport.framework/Versions/A/PreferencePanesSupport
       0x110bdb000 -        0x110bf1fff  com.apple.preference.desktopscreeneffect.screeneffects (5.1 - 5.1) <B713FF28-8F14-3FCF-954C-2FDAE8366CFA> /System/Library/PreferencePanes/DesktopScreenEffectsPref.prefPane/Contents/Resources/ScreenEffects.prefPane/Contents/MacOS/ScreenEffects
       0x110c03000 -        0x110f2bff7  com.apple.Slideshows (3.2.0 - 1198.4) <88FD4B87-370D-3CB7-BB9A-EE666719934F> /System/Library/PrivateFrameworks/Slideshows.framework/Versions/A/Slideshows
       0x1110c3000 -        0x111216fff  com.apple.iLMBAperture31Plugin (2.8.0 - 390) <F51C3EDD-DBE7-382C-8247-AC3C99930B2C> /Library/Application Support/iLifeMediaBrowser/*/iLMBAperture31Plugin
       0x1112b8000 -        0x1112bffff  com.apple.iLMBAperturePlugin (2.8.0 - 390) <C09D3733-C350-3163-A9BF-1DB718803F8E> /Library/Application Support/iLifeMediaBrowser/*/iLMBAperturePlugin
       0x1112c6000 -        0x111461ff7  com.apple.iLMBAperturePlugin2012 (2.8.0 - 390) <54AE2C62-7397-3876-9E96-BBC5E3E1C75A> /Library/Application Support/iLifeMediaBrowser/*/iLMBAperturePlugin2012
       0x111507000 -        0x11150ffff  com.apple.iLMBFinalCutPlugin (2.8.0 - 390) <EACDE0DF-EBC9-31E5-AFFC-E0D3B0291714> /Library/Application Support/iLifeMediaBrowser/*/iLMBFinalCutPlugin
       0x111516000 -        0x111517fff  com.apple.iLMBFolderPlugin (2.8.0 - 390) <F67FECE5-434E-3D42-BE3D-2BC891025794> /Library/Application Support/iLifeMediaBrowser/*/iLMBFolderPlugin
       0x11151c000 -        0x11151fff7  com.apple.iLMBGarageBandPlugin (2.8.0 - 390) <5113EF6B-4E00-3A86-8072-EC8AE8ACC6A3> /Library/Application Support/iLifeMediaBrowser/*/iLMBGarageBandPlugin
       0x111524000 -        0x11152eff7  com.apple.iLMBiMoviePlugin (2.8.0 - 390) <B6563774-4C20-385B-AAF6-C819B55D3A54> /Library/Application Support/iLifeMediaBrowser/*/iLMBiMoviePlugin
       0x111536000 -        0x111547ff7  com.apple.iLMBiPhoto8Plugin (2.8.0 - 390) <23513209-9433-37B6-86C4-949A94E2E4FE> /Library/Application Support/iLifeMediaBrowser/*/iLMBiPhoto8Plugin
       0x111552000 -        0x1116a7fff  com.apple.iLMBiPhoto9Plugin (2.8.0 - 390) <5463914D-D2B6-3F18-9095-401CE1EFC181> /Library/Application Support/iLifeMediaBrowser/*/iLMBiPhoto9Plugin
       0x111729000 -        0x111730fff  com.apple.iLMBiPhotoPlugin (2.8.0 - 390) <CFF590E1-91F8-3B9B-AD7B-DD64653043C8> /Library/Application Support/iLifeMediaBrowser/*/iLMBiPhotoPlugin
       0x111737000 -        0x1118d3fff  com.apple.iLMBiPhotoPlugin2012 (2.8.0 - 390) <5C4182CC-3C39-33DE-B0B2-644156F449FA> /Library/Application Support/iLifeMediaBrowser/*/iLMBiPhotoPlugin2012
       0x111979000 -        0x11197ffff  com.apple.iLMBiTunesPlugin (2.8.0 - 390) <9540E733-8A94-3172-907C-18C373802757> /Library/Application Support/iLifeMediaBrowser/*/iLMBiTunesPlugin
       0x111986000 -        0x111a29ff7  com.apple.iTunesAccess (11.1 - 11.1) <8DE387E7-4A75-3503-A13B-8EB9D31F9BFE> /System/Library/PrivateFrameworks/iTunesAccess.framework/iTunesAccess
       0x111a58000 -        0x111a5bff7  com.apple.iLMBLogicPlugin (2.8.0 - 390) <F67E0308-4A04-3A1D-BF10-DBBF8C6B1D60> /Library/Application Support/iLifeMediaBrowser/*/iLMBLogicPlugin
       0x111a60000 -        0x111a61fff  com.apple.iLMBMoviesFolderPlugin (2.8.0 - 390) <3EF87520-1655-39A9-9746-D956602BA3C7> /Library/Application Support/iLifeMediaBrowser/*/iLMBMoviesFolderPlugin
       0x111a66000 -        0x111a68fff  com.apple.iLMBPhotoBooth2Plugin (2.8.0 - 390) <21B4002D-54A7-3A1F-B85D-0CBDFA895161> /Library/Application Support/iLifeMediaBrowser/*/iLMBPhotoBooth2Plugin
       0x111a6d000 -        0x111a6efff  com.apple.iLMBPhotoBoothPlugin (2.8.0 - 390) <E0C90F2F-FE56-3B8A-81CA-DAA2196FED2E> /Library/Application Support/iLifeMediaBrowser/*/iLMBPhotoBoothPlugin
       0x111ecf000 -        0x111ed6fff  com.apple.Flurry (10.8 - 3) <E9B5916F-36D6-35F5-BE37-1174B8D1B5D9> /System/Library/Screen Savers/Flurry.saver/Contents/MacOS/Flurry
       0x112666000 -        0x11266dfff  com.apple.screensaver.QuartzComposer (1.8 - 61) <66B6D982-3985-3596-8337-1CF28C4B1F9E> /System/Library/Frameworks/ScreenSaver.framework/Versions/A/Resources/.Quartz Composer.saver/Contents/MacOS/.Quartz Composer
       0x11268a000 -        0x1126abfff  com.apple.QuartzComposer.ExtraPatches (4.1 - 316) <2E4C3E98-2F12-3BFB-BA37-8F3FDC83CCB2> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuartzComposer.framework/Versions/A/Resources/ExtraPatches.plugin/Contents/MacOS/ExtraPatches
       0x1126c0000 -        0x1126fbff2  com.apple.audio.midi.CoreMIDI (1.10 - 88) <AAF5250E-D422-3910-8F94-FE8BAC5B8174> /System/Library/Frameworks/CoreMIDI.framework/Versions/A/CoreMIDI
       0x112723000 -        0x112747fff  com.apple.audio.OpenAL (1.7 - 1.7) <5D2366B5-111B-3BDD-AFB3-5770075659F4> /System/Library/Frameworks/OpenAL.framework/Versions/A/OpenAL
    0x123480000000 -     0x123480294ff7  com.apple.AMDRadeonX3000GLDriver (1.14.21 - 1.1.4) <3133F944-09A8-3B30-B8B0-1C68FC2119F2> /System/Library/Extensions/AMDRadeonX3000GLDriver.bundle/Contents/MacOS/AMDRadeonX3000GLDriver
    0x7fff689c0000 -     0x7fff689f3817  dyld (239.3) <D1DFCF3F-0B0C-332A-BCC0-87A851B570FF> /usr/lib/dyld
    0x7fff841da000 -     0x7fff84244ff7  com.apple.framework.IOKit (2.0.1 - 907.1.13) <C1E95F5C-B79B-31BE-9F2A-1B25163C1F16> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit
    0x7fff84245000 -     0x7fff84276fff  com.apple.MediaKit (15 - 709) <23E33409-5C39-3F93-9E73-2B0E9EE8883E> /System/Library/PrivateFrameworks/MediaKit.framework/Versions/A/MediaKit
    0x7fff84277000 -     0x7fff84292ff7  libCRFSuite.dylib (34) <FFAE75FA-C54E-398B-AA97-18164CD9789D> /usr/lib/libCRFSuite.dylib
    0x7fff84293000 -     0x7fff8431efff  libCoreStorage.dylib (380) <AE14C2F3-0EF1-3DCD-BF2B-A24D97D3B372> /usr/lib/libCoreStorage.dylib
    0x7fff8431f000 -     0x7fff8433bfff  libresolv.9.dylib (54) <11C2C826-F1C6-39C6-B4E8-6E0C41D4FA95> /usr/lib/libresolv.9.dylib
    0x7fff8433c000 -     0x7fff84346ff7  com.apple.bsd.ServiceManagement (2.0 - 2.0) <2D27B498-BB9C-3D88-B05A-76908A8A26F3> /System/Library/Frameworks/ServiceManagement.framework/Versions/A/ServiceManagement
    0x7fff8434a000 -     0x7fff8434fff7  com.apple.MediaAccessibility (1.0 - 43) <D309D83D-5FAE-37A4-85ED-FFBDA8B66B82> /System/Library/Frameworks/MediaAccessibility.framework/Versions/A/MediaAccessibility
    0x7fff84350000 -     0x7fff844c0ff6  com.apple.CFNetwork (673.0.3 - 673.0.3) <42CFC3DB-35C8-3652-AF37-4BCC73D8BDEF> /System/Library/Frameworks/CFNetwork.framework/Versions/A/CFNetwork
    0x7fff844c1000 -     0x7fff84592ff7  com.apple.QuickLookUIFramework (5.0 - 622.3) <9741E66B-3978-35F6-8846-B6C528945611> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuickLookUI.framework/Versions/A/QuickLookUI
    0x7fff845a8000 -     0x7fff84634ff7  com.apple.ink.framework (10.9 - 207) <8A50B893-AD03-3826-8555-A54FEAF08F47> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Ink.framework/Versions/A/Ink
    0x7fff8464b000 -     0x7fff84654ff7  libcldcpuengine.dylib (2.3.58) <A2E1ED7B-FC7E-31F6-830A-FF917689766B> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/libcldcpuengine.dylib
    0x7fff84655000 -     0x7fff84655fff  com.apple.Accelerate.vecLib (3.9 - vecLib 3.9) <F8D0CC77-98AC-3B58-9FE6-0C25421827B6> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/vecLib
    0x7fff84656000 -     0x7fff847e3ff7  GLEngine (9.0.83) <26CCE609-D645-3945-A678-517ED5B65785> /System/Library/Frameworks/OpenGL.framework/Versions/A/Resources/GLEngine.bundle/GLEngine
    0x7fff847e4000 -     0x7fff847e6ffb  libutil.dylib (34) <DAC4A6CF-A1BB-3874-9569-A919316D30E8> /usr/lib/libutil.dylib
    0x7fff847e7000 -     0x7fff848aaff7  com.apple.backup.framework (1.5 - 1.5) <92C8038F-CC00-3202-90D8-3C3AEC90986F> /System/Library/PrivateFrameworks/Backup.framework/Versions/A/Backup
    0x7fff848c7000 -     0x7fff848fcffc  com.apple.LDAPFramework (2.4.28 - 194.5) <7E31A674-C6AB-33BE-BD5E-F5E3C6E22894> /System/Library/Frameworks/LDAP.framework/Versions/A/LDAP
    0x7fff848fd000 -     0x7fff84922ff7  com.apple.CoreVideo (1.8 - 117.2) <4674339E-26D0-35FA-9958-422832B39B12> /System/Library/Frameworks/CoreVideo.framework/Versions/A/CoreVideo
    0x7fff84991000 -     0x7fff84a20ff7  com.apple.Metadata (10.7.0 - 800.12) <04486C95-3E49-36C4-89B6-925E925BB417> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/Metadata.framework/Versions/A/Metadata
    0x7fff84a49000 -     0x7fff84aadff3  com.apple.datadetectorscore (5.0 - 354.0) <9ACF24B8-3268-3134-A5BC-D72C9371A195> /System/Library/PrivateFrameworks/DataDetectorsCore.framework/Versions/A/DataDetectorsCore
    0x7fff84aae000 -     0x7fff84abbff0  libbz2.1.0.dylib (29) <0B98AC35-B138-349C-8063-2B987A75D24C> /usr/lib/libbz2.1.0.dylib
    0x7fff84abc000 -     0x7fff84ad9ff7  com.apple.framework.Apple80211 (9.0 - 900.47) <C897AFE6-DD73-387D-816A-67252A564207> /System/Library/PrivateFrameworks/Apple80211.framework/Versions/A/Apple80211
    0x7fff84ada000 -     0x7fff84ae4fff  com.apple.AppSandbox (3.0 - 1) <55717299-8164-3D79-918F-BD64706735CF> /System/Library/PrivateFrameworks/AppSandbox.framework/Versions/A/AppSandbox
    0x7fff84ae5000 -     0x7fff84b36ff3  com.apple.audio.CoreAudio (4.2.0 - 4.2.0) <BF4C2FE3-8BC8-30D1-8347-2A7221268794> /System/Library/Frameworks/CoreAudio.framework/Versions/A/CoreAudio
    0x7fff84b37000 -     0x7fff84b38ff7  libsystem_blocks.dylib (63) <FB856CD1-2AEA-3907-8E9B-1E54B6827F82> /usr/lib/system/libsystem_blocks.dylib
    0x7fff84b39000 -     0x7fff84b3bfff  libRadiance.dylib (1038) <55F99274-5074-3C73-BAC5-AF234E71CF38> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libRadiance.dylib
    0x7fff84b3c000 -     0x7fff84b3efff  com.apple.loginsupport (1.0 - 1) <4772DFF0-E8FD-3F27-9C3B-39563B904E1C> /System/Library/PrivateFrameworks/login.framework/Versions/A/Frameworks/loginsupport.framework/Versions/A/loginsupport
    0x7fff84b3f000 -     0x7fff84b3ffff  com.apple.quartzframework (1.5 - 1.5) <3B2A72DB-39FC-3C5B-98BE-605F37777F37> /System/Library/Frameworks/Quartz.framework/Versions/A/Quartz
    0x7fff84b40000 -     0x7fff84b74fff  libssl.0.9.8.dylib (50) <B15F967C-B002-36C2-9621-3456D8509F50> /usr/lib/libssl.0.9.8.dylib
    0x7fff84d8e000 -     0x7fff84d8effd  libOpenScriptingUtil.dylib (157) <19F0E769-0989-3062-9AFB-8976E90E9759> /usr/lib/libOpenScriptingUtil.dylib
    0x7fff84dc4000 -     0x7fff84dfdff7  com.apple.QD (3.50 - 298) <C1F20764-DEF0-34CF-B3AB-AB5480D64E66> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/QD.framework/Versions/A/QD
    0x7fff84dfe000 -     0x7fff84dfffff  libunc.dylib (28) <62682455-1862-36FE-8A04-7A6B91256438> /usr/lib/system/libunc.dylib
    0x7fff84e00000 -     0x7fff84e4dff2  com.apple.print.framework.PrintCore (9.0 - 428) <8D8253E3-302F-3DB2-9C5C-572CB974E8B3> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/PrintCore.framework/Versions/A/PrintCore
    0x7fff84f21000 -     0x7fff84f3dfff  com.apple.frameworks.preferencepanes (16.0 - 16.0) <059E99D8-67C2-3B59-B5E7-850DD7A92D75> /System/Library/Frameworks/PreferencePanes.framework/Versions/A/PreferencePanes
    0x7fff84f3e000 -     0x7fff84f91fff  com.apple.ScalableUserInterface (1.0 - 1) <CF745298-7373-38D2-B3B1-727D5A569E48> /System/Library/Frameworks/QuartzCore.framework/Versions/A/Frameworks/ScalableUserInterface.framework/Versions/A/ScalableUserInterface
    0x7fff84f92000 -     0x7fff84faaff7  com.apple.openscripting (1.4 - 157) <B3B037D7-1019-31E6-9D17-08E699AF3701> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/OpenScripting.framework/Versions/A/OpenScripting
    0x7fff85277000 -     0x7fff8527affc  com.apple.IOSurface (91 - 91) <07CA8A59-1E32-3FB6-B506-18DAF58A8CE0> /System/Library/Frameworks/IOSurface.framework/Versions/A/IOSurface
    0x7fff8534c000 -     0x7fff8537bfff  com.apple.DebugSymbols (106 - 106) <E1BDED08-523A-36F4-B2DA-9D5C712F0AC7> /System/Library/PrivateFrameworks/DebugSymbols.framework/Versions/A/DebugSymbols
    0x7fff853a3000 -     0x7fff853efffe  com.apple.CoreMediaIO (401.0 - 4544) <44EBC0FE-DAD5-3711-96CB-05250F350A16> /System/Library/Frameworks/CoreMediaIO.framework/Versions/A/CoreMediaIO
    0x7fff853f0000 -     0x7fff85435ff6  com.apple.HIServices (1.22 - 466) <21807AF8-3BC7-32BB-AB96-7C35CB59D7F6> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/HIServices.framework/Versions/A/HIServices
    0x7fff85436000 -     0x7fff85439fff  com.apple.AppleSystemInfo (3.0 - 3.0) <4D032152-AA40-350E-BB96-44BC55C5C69C> /System/Library/PrivateFrameworks/AppleSystemInfo.framework/Versions/A/AppleSystemInfo
    0x7fff85440000 -     0x7fff85fb4ff7  com.apple.AppKit (6.9 - 1265) <0E9FC8BF-DA3C-34C5-91CC-12BC922B5F01> /System/Library/Frameworks/AppKit.framework/Versions/C/AppKit
    0x7fff860e5000 -     0x7fff86158ffb  com.apple.securityfoundation (6.0 - 55122) <119D1C53-B292-3378-AEE1-A3B1FB02F43F> /System/Library/Frameworks/SecurityFoundation.framework/Versions/A/SecurityFoundation
    0x7fff86159000 -     0x7fff86222fff  com.apple.LaunchServices (572.23 - 572.23) <8D955BDE-2C4C-3DD4-B4D7-2D916174FE1D> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/LaunchServices.framework/Versions/A/LaunchServices
    0x7fff86223000 -     0x7fff86224ff7  libSystem.B.dylib (1197.1.1) <BFC0DC97-46C6-3BE0-9983-54A98734897A> /usr/lib/libSystem.B.dylib
    0x7fff86295000 -     0x7fff8629cff7  liblaunch.dylib (842.1.4) <FCBF0A02-0B06-3F97-9248-5062A9DEB32C> /usr/lib/system/liblaunch.dylib
    0x7fff86300000 -     0x7fff8674efff  com.apple.VideoToolbox (1.0 - 1273.29) <6E38291D-7A81-3033-AFB9-61ABD38B6371> /System/Library/Frameworks/VideoToolbox.framework/Versions/A/VideoToolbox
    0x7fff8674f000 -     0x7fff8675cfff  com.apple.Sharing (132.2 - 132.2) <F983394A-226D-3244-B511-FA51FDB6ADDA> /System/Library/PrivateFrameworks/Sharing.framework/Versions/A/Sharing
    0x7fff8675d000 -     0x7fff86760fff  com.apple.help (1.3.3 - 46) <AE763646-D07A-3F9A-ACD4-F5CBD734EE36> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Help.framework/Versions/A/Help
    0x7fff86761000 -     0x7fff86772ff7  libsystem_asl.dylib (217.1.4) <655FB343-52CF-3E2F-B14D-BEBF5AAEF94D> /usr/lib/system/libsystem_asl.dylib
    0x7fff86773000 -     0x7fff867a2fd2  libsystem_m.dylib (3047.16) <B7F0E2E4-2777-33FC-A787-D6430B630D54> /usr/lib/system/libsystem_m.dylib
    0x7fff867a3000 -     0x7fff867a6ffa  libCGXType.A.dylib (599.7) <2FC9C2BC-B5C5-3C27-93F9-51C6C4512E9D> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGXType.A.dylib
    0x7fff867a7000 -     0x7fff867c3ff7  libsystem_kernel.dylib (2422.1.72) <D14913DB-47F1-3591-8DAF-D4B4EF5F8818> /usr/lib/system/libsystem_kernel.dylib
    0x7fff867dc000 -     0x7fff867e4ff7  com.apple.speech.recognition.framework (4.2.4 - 4.2.4) <98BBB3E4-6239-3EF1-90B2-84EA0D3B8D61> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SpeechRecognition.framework/Versions/A/SpeechRecognition
    0x7fff867e5000 -     0x7fff86832fff  com.apple.AppleVAFramework (5.0.27 - 5.0.27) <D01B7D87-4BDC-3E48-A79B-951D05075F9D> /System/Library/PrivateFrameworks/AppleVA.framework/Versions/A/AppleVA
    0x7fff86833000 -     0x7fff8684eff7  libsystem_malloc.dylib (23.1.10) <FFE5C472-B23A-318A-85BF-77CDE61900D1> /usr/lib/system/libsystem_malloc.dylib
    0x7fff86872000 -     0x7fff86872fff  com.apple.Cocoa (6.8 - 20) <E90E99D7-A425-3301-A025-D9E0CD11918E> /System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa
    0x7fff868a5000 -     0x7fff8692efff  com.apple.ColorSync (4.9.0 - 4.9.0) <B756B908-9AD1-3F5D-83F9-7A0B068387D2> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ColorSync.framework/Versions/A/ColorSync
    0x7fff8692f000 -     0x7fff86930ff7  libDiagnosticMessagesClient.dylib (100) <4CDB0F7B-C0AF-3424-BC39-495696F0DB1E> /usr/lib/libDiagnosticMessagesClient.dylib
    0x7fff86931000 -     0x7fff8693cfff  libkxld.dylib (2422.1.72) <C88EF3E6-B31F-3E12-BE9B-562D912BA733> /usr/lib/system/libkxld.dylib
    0x7fff8693d000 -     0x7fff8693efff  com.apple.TrustEvaluationAgent (2.0 - 25) <334A82F4-4AE4-3719-A511-86D0B0723E2B> /System/Library/PrivateFrameworks/TrustEvaluationAgent.framework/Versions/A/TrustEvaluationAgent
    0x7fff8693f000 -     0x7fff86951fff  com.apple.login (3.0 - 3.0) <B825A996-7F9C-3F47-B76F-A0F9B4BEB373> /System/Library/PrivateFrameworks/login.framework/Versions/A/login
    0x7fff86952000 -     0x7fff86a23ff1  com.apple.DiskImagesFramework (10.9 - 371.1) <D456ED08-4C1D-341F-BAB8-85E34A7275C5> /System/Library/PrivateFrameworks/DiskImages.framework/Versions/A/DiskImages
    0x7fff86a24000 -     0x7fff86a83fff  com.apple.framework.CoreWLAN (4.0 - 400.45.1) <775F9444-8059-30A2-8058-7F7ACD68CCF1> /System/Library/Frameworks/CoreWLAN.framework/Versions/A/CoreWLAN
    0x7fff86a84000 -     0x7fff86bb4ff7  com.apple.desktopservices (1.8 - 1.8) <09DC9BB8-432F-3C7A-BB08-956A2DDFC2DE> /System/Library/PrivateFrameworks/DesktopServicesPriv.framework/Versions/A/DesktopServicesPriv
    0x7fff86dc7000 -     0x7fff8701fff1  com.apple.security (7.0 - 55471) <233831C5-C457-3AD5-AFE7-E3E2DE6929C9> /System/Library/Frameworks/Security.framework/Versions/A/Security
    0x7fff870bf000 -     0x7fff870cbff7  com.apple.OpenDirectory (10.9 - 173.1.1) <6B78BD7B-5622-38E6-8FC6-86A117E3ACCA> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/OpenDirectory
    0x7fff870cc000 -     0x7fff871d1fff  com.apple.ImageIO.framework (3.3.0 - 1038) <2C058216-C6D8-3380-A7EA-92A3F04520C1> /System/Library/Frameworks/ImageIO.framework/Versions/A/ImageIO
    0x7fff871d3000 -     0x7fff874a7fc7  com.apple.vImage (7.0 - 7.0) <D241DBFA-AC49-31E2-893D-EAAC31890C90> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/vImage
    0x7fff876da000 -     0x7fff876e7ff7  libxar.1.dylib (202) <5572AA71-E98D-3FE1-9402-BB4A84E0E71E> /usr/lib/libxar.1.dylib
    0x7fff876ee000 -     0x7fff879bcff4  com.apple.CoreImage (9.0.54) <74BB8685-69A9-3A45-8DED-EA26BD39D710> /System/Library/Frameworks/QuartzCore.framework/Versions/A/Frameworks/CoreImage.framework/Versions/A/CoreImage
    0x7fff879ca000 -     0x7fff87ab9fff  libFontParser.dylib (111.1) <835A8253-6AB9-3AAB-9CBF-171440DEC486> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontParser.dylib
    0x7fff87aba000 -     0x7fff87ac2ff3  libCGCMS.A.dylib (599.7) <92AA4E85-7633-36E2-BAD0-7B1A2E48E75C> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGCMS.A.dylib
    0x7fff87ac3000 -     0x7fff87ac6fff  libCoreVMClient.dylib (58.1) <EBC36C69-C896-3C3D-8589-3E9023E7E56F> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreVMClient.dylib
    0x7fff87ac7000 -     0x7fff87b2bff9  com.apple.Heimdal (4.0 - 2.0) <E7D20A4D-4674-37E1-A949-635FFF7C439A> /System/Library/PrivateFrameworks/Heimdal.framework/Versions/A/Heimdal
    0x7fff87b2c000 -     0x7fff87b2dff7  libsystem_sandbox.dylib (278.10) <A47E7E11-3C76-318E-B67D-98972B86F094> /usr/lib/system/libsystem_sandbox.dylib
    0x7fff87be3000 -     0x7fff87c0bffb  libxslt.1.dylib (13) <C9794936-633C-3F0C-9E71-30190B9B41C1> /usr/lib/libxslt.1.dylib
    0x7fff87c0c000 -     0x7fff87c95ff7  libsystem_c.dylib (997.1.1) <61833FAA-7281-3FF9-937F-686B6F20427C> /usr/lib/system/libsystem_c.dylib
    0x7fff87c96000 -     0x7fff88206fff  com.apple.CoreAUC (6.22.08 - 6.22.08) <F306D552-2220-3160-88EA-C916193C5EFD> /System/Library/PrivateFrameworks/CoreAUC.framework/Versions/A/CoreAUC
    0x7fff88207000 -     0x7fff8836dfff  libGLProgrammability.dylib (9.0.83) <9C97E814-F674-30F8-8C2D-C45FC1E7D934> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLProgrammability.dylib
    0x7fff8836e000 -     0x7fff8874fffe  libLAPACK.dylib (1094.5) <7E7A9B8D-1638-3914-BAE0-663B69865986> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLAPACK.dylib
    0x7fff88750000 -     0x7fff888fdf27  libobjc.A.dylib (551.1) <AD7FD984-271E-30F4-A361-6B20319EC73B> /usr/lib/libobjc.A.dylib
    0x7fff8893c000 -     0x7fff88945ff3  libsystem_notify.dylib (121) <52571EC3-6894-37E4-946E-064B021ED44E> /usr/lib/system/libsystem_notify.dylib
    0x7fff88946000 -     0x7fff8895cfff  com.apple.CoreMediaAuthoring (2.2 - 947) <B01FBACC-DDD5-30A8-BCCF-57CE24ABA329> /System/Library/PrivateFrameworks/CoreMediaAuthoring.framework/Versions/A/CoreMediaAuthoring
    0x7fff88976000 -     0x7fff8897efff  libsystem_dnssd.dylib (522.1.11) <270DCF6C-502D-389A-AA9F-DE4624A36FF7> /usr/lib/system/libsystem_dnssd.dylib
    0x7fff8897f000 -     0x7fff88a69fff  libsqlite3.dylib (158) <00269BF9-43BE-39E0-9C85-24585B9923C8> /usr/lib/libsqlite3.dylib
    0x7fff88a6a000 -     0x7fff88a6eff7  libGIF.dylib (1038) <C29B4323-1B9E-36B9-96C2-7CEDBAA124F0> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libGIF.dylib
    0x7fff88a6f000 -     0x7fff88b3afff  libvDSP.dylib (423.32) <3BF732BE-DDE0-38EB-8C54-E4E3C64F77A7> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvDSP.dylib
    0x7fff88b3b000 -     0x7fff88b94fff  libTIFF.dylib (1038) <5CBFE0C2-9DD8-340B-BA63-A94CE2E476F2> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libTIFF.dylib
    0x7fff88b95000 -     0x7fff88bf8ff7  com.apple.SystemConfiguration (1.13 - 1.13) <F05F4149-981B-380B-8F50-51CE804BBB89> /System/Library/Frameworks/SystemConfiguration.framework/Versions/A/SystemConfiguration
    0x7fff88bf9000 -     0x7fff8911dfff  com.apple.QuartzComposer (5.1 - 316) <B20E93C3-8517-3E5C-83B6-C312C839C5D0> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuartzComposer.framework/Versions/A/QuartzComposer
    0x7fff8911e000 -     0x7fff891ceff7  libvMisc.dylib (423.32) <049C0735-1808-39B9-943F-76CB8021744F> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvMisc.dylib
    0x7fff891cf000 -     0x7fff8922fff2  com.apple.CoreUtils (1.9 - 190.4) <CBB5B4DC-2801-32B3-A31C-8811CCF99873> /System/Library/PrivateFrameworks/CoreUtils.framework/Versions/A/CoreUtils
    0x7fff89230000 -     0x7fff89249ff7  com.apple.Ubiquity (1.3 - 289) <C7F1B734-CE81-334D-BE41-8B20D95A1F9B> /System/Library/PrivateFrameworks/Ubiquity.framework/Versions/A/Ubiquity
    0x7fff894fc000 -     0x7fff89e1805f  com.apple.CoreGraphics (1.600.0 - 599.7) <7D0FD5A7-A061-39BA-8E00-723825D2C4DD> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/CoreGraphics
    0x7fff8a31a000 -     0x7fff8a3aeff7  com.apple.Bluetooth (4.2.0 - 4.2.0f6) <94BCC858-0582-3C2F-8A43-486896564758> /System/Library/Frameworks/IOBluetooth.framework/Versions/A/IOBluetooth
    0x7fff8a3b6000 -     0x7fff8a3deffb  libRIP.A.dylib (599.7) <6F528EE3-99F8-3871-BD60-1306495C27D5> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libRIP.A.dylib
    0x7fff8a3e2000 -     0x7fff8a3e9fff  com.apple.NetFS (6.0 - 4.0) <8E26C099-CE9D-3819-91A2-64EA929C6137> /System/Library/Frameworks/NetFS.framework/Versions/A/NetFS
    0x7fff8a3ea000 -     0x7fff8a401ffa  libAVFAudio.dylib (32.2) <52DA516B-DE79-322C-9E1B-2658019289D7> /System/Library/Frameworks/AVFoundation.framework/Versions/A/Resources/libAVFAudio.dylib
    0x7fff8a402000 -     0x7fff8a524ff1  com.apple.avfoundation (2.0 - 651.12) <03E595B7-A559-3D4D-90E9-BCA603E3A39E> /System/Library/Frameworks/AVFoundation.framework/Versions/A/AVFoundation
    0x7fff8a575000 -     0x7fff8a5c3ff9  libstdc++.6.dylib (60) <0241E6A4-1368-33BE-950B-D0A175C41F54> /usr/lib/libstdc++.6.dylib
    0x7fff8a5c4000 -     0x7fff8a8aefff  com.apple.CoreServices.CarbonCore (1077.13 - 1077.13) <21324540-8B84-3333-ADB8-D3D5181D4639> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore
    0x7fff8b173000 -     0x7fff8b198ff7  com.apple.ChunkingLibrary (2.0 - 155.1) <B845DC7A-D1EA-31E2-967C-D1FE0C628036> /System/Library/PrivateFrameworks/ChunkingLibrary.framework/Versions/A/ChunkingLibrary
    0x7fff8b199000 -     0x7fff8b19aff7  com.apple.print.framework.Print (9.0 - 260) <EE00FAE1-DA03-3EC2-8571-562518C46994> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Print.framework/Versions/A/Print
    0x7fff8b246000 -     0x7fff8b37bffa  com.apple.WebKit (9537 - 9537.71) <8A07478D-B2CA-3724-81E4-ADC10E1AD3EA> /System/Library/Frameworks/WebKit.framework/Versions/A/WebKit
    0x7fff8b37c000 -     0x7fff8b518ff7  com.apple.QuartzCore (1.8 - 332.0) <994D1E0A-64B6-398C-B9A2-C362F02DE943> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
    0x7fff8b519000 -     0x7fff8b5dbff1  com.apple.CoreText (352.0 - 367.15) <E5C70FC8-C861-39B8-A491-595E5B55CFC8> /System/Library/Frameworks/CoreText.framework/Versions/A/CoreText
    0x7fff8b5dc000 -     0x7fff8b5e7ff7  com.apple.DirectoryService.Framework (10.9 - 173.1.1) <F8566D1F-450F-3571-911F-75C68E45919F> /System/Library/Frameworks/DirectoryService.framework/Versions/A/DirectoryService
    0x7fff8b607000 -     0x7fff8b60cff7  libunwind.dylib (35.3) <78DCC358-2FC1-302E-B395-0155B47CB547> /usr/lib/system/libunwind.dylib
    0x7fff8b60d000 -     0x7fff8b65ffff  libc++.1.dylib (120) <4F68DFC5-2077-39A8-A449-CAC5FDEE7BDE> /usr/lib/libc++.1.dylib
    0x7fff8b660000 -     0x7fff8b671ff7  libz.1.dylib (53) <42E0C8C6-CA38-3CA4-8619-D24ED5DD492E> /usr/lib/libz.1.dylib
    0x7fff8b672000 -     0x7fff8b6b4ff7  libauto.dylib (185.5) <F45C36E8-B606-3886-B5B1-B6745E757CA8> /usr/lib/libauto.dylib
    0x7fff8b6b5000 -     0x7fff8b6e3ff7  com.apple.securityinterface (9.0 - 55047) <0346D8A9-2CAA-38F3-A741-5FBA5E9F1E7C> /System/Library/Frameworks/SecurityInterface.framework/Versions/A/SecurityInterface
    0x7fff8b6e4000 -     0x7fff8b6e8fff  com.apple.ServerInformation (2.0 - 1) <E628F08A-0F6F-384B-AFD5-1BC1BBF56F1F> /System/Library/PrivateFrameworks/ServerInformation.framework/Versions/A/ServerInformation
    0x7fff8b6e9000 -     0x7fff8b7d0ff7  libxml2.2.dylib (26) <A1DADD11-89E5-3DE4-8802-07186225967F> /usr/lib/libxml2.2.dylib
    0x7fff8b7db000 -     0x7fff8b7e8ff4  com.apple.Librarian (1.2 - 1) <F1A2744D-8536-32C7-8218-9972C6300DAE> /System/Library/PrivateFrameworks/Librarian.framework/Versions/A/Librarian
    0x7fff8b828000 -     0x7fff8b876fff  libcorecrypto.dylib (161.1) <F3973C28-14B6-3006-BB2B-00DD7F09ABC7> /usr/lib/system/libcorecrypto.dylib
    0x7fff8b877000 -     0x7fff8b882fff  libGPUSupportMercury.dylib (9.0.83) <A9DF1DD1-8C1E-3A86-AF96-BF3A7D4C8C1B> /System/Library/PrivateFrameworks/GPUSupport.framework/Versions/A/Libraries/libGPUSupportMercury.dylib
    0x7fff8b883000 -     0x7fff8b93bff7  com.apple.DiscRecording (8.0 - 8000.4.6) <CDAAAD04-A1D0-3C67-ABCC-EFC9E8D44E7E> /System/Library/Frameworks/DiscRecording.framework/Versions/A/DiscRecording
    0x7fff8b93c000 -     0x7fff8b9a2fff  com.apple.framework.CoreWiFi (2.0 - 200.21.1) <5491896D-78C5-30B6-96E9-D8DDECF3BE73> /System/Library/Frameworks/CoreWiFi.framework/Versions/A/CoreWiFi
    0x7fff8bb6a000 -     0x7fff8be14ffd  com.apple.HIToolbox (2.1 - 695) <C4DE35FF-D0AC-35C3-A7E6-F54CD153825C> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/HIToolbox.framework/Versions/A/HIToolbox
    0x7fff8be15000 -     0x7fff8bf03fff  libJP2.dylib (1038) <6C8179F5-8063-3ED6-A7C2-D5603DECDF28> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJP2.dylib
    0x7fff8bf04000 -     0x7fff8bf4bff7  libcups.2.dylib (372) <348EED62-6C20-35D6-8EFB-E80943965100> /usr/lib/libcups.2.dylib
    0x7fff8bf4c000 -     0x7fff8bf52ff7  com.apple.XPCService (2.0 - 1) <2CE632D7-FE57-36CF-91D4-C57D0F2E0BFE> /System/Library/PrivateFrameworks/XPCService.framework/Versions/A/XPCService
    0x7fff8bf6a000 -     0x7fff8bf74ff7  libcsfde.dylib (380) <3A54B430-EC05-3DE9-86C3-00C1BEAC7F9B> /usr/lib/libcsfde.dylib
    0x7fff8bf94000 -     0x7fff8c00bfff  com.apple.CoreServices.OSServices (600.4 - 600.4) <36B2B009-C35E-3F21-824E-E0D00E7808C7> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/OSServices.framework/Versions/A/OSServices
    0x7fff8c00c000 -     0x7fff8c017ff7  com.apple.NetAuth (5.0 - 5.0) <C811E662-9EC3-3B74-808A-A75D624F326B> /System/Library/PrivateFrameworks/NetAuth.framework/Versions/A/NetAuth
    0x7fff8c018000 -     0x7fff8c018fff  com.apple.Carbon (154 - 157) <45A9A40A-78FF-3EA0-8FAB-A4F81052FA55> /System/Library/Frameworks/Carbon.framework/Versions/A/Carbon
    0x7fff8c02d000 -     0x7fff8c085ff7  com.apple.Symbolication (1.4 - 129) <16D42516-7B5E-357C-898A-FAA9EE7642B3> /System/Library/PrivateFrameworks/Symbolication.framework/Versions/A/Symbolication
    0x7fff8c086000 -     0x7fff8c098ff7  com.apple.CoreBluetooth (1.0 - 1) <67A00F44-563E-3C55-9187-34D502D84DDE> /System/Library/Frameworks/IOBluetooth.framework/Versions/A/Frameworks/CoreBluetooth.framework/Versions/A/CoreBluetooth
    0x7fff8c09b000 -     0x7fff8c4ceffb  com.apple.vision.FaceCore (3.0.0 - 3.0.0) <F42BFC9C-0B16-35EF-9A07-91B7FDAB7FC5> /System/Library/PrivateFrameworks/FaceCore.framework/Versions/A/FaceCore
    0x7fff8c4dc000 -     0x7fff8c4e4ffc  libGFXShared.dylib (9.0.83) <11A621C3-37A0-39CE-A69B-8739021BD79D> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGFXShared.dylib
    0x7fff8c4e5000 -     0x7fff8c4eefff  com.apple.DisplayServicesFW (2.8 - 360.8.14) <816A9CED-1BC0-3C76-8103-1B9BE0F723BB> /System/Library/PrivateFrameworks/DisplayServices.framework/Versions/A/DisplayServices
    0x7fff8c4ef000 -     0x7fff8c4f1fff  com.apple.EFILogin (2.0 - 2) <C360E8AF-E9BB-3BBA-9DF0-57A92CEF00D4> /System/Library/PrivateFrameworks/EFILogin.framework/Versions/A/EFILogin
    0x7fff8c4f2000 -     0x7fff8c51efff  com.apple.CoreServicesInternal (184.8 - 184.8) <707E05AE-DDA8-36FD-B0FF-7F15A061B46A> /System/Library/PrivateFrameworks/CoreServicesInternal.framework/Versions/A/CoreServicesInternal
    0x7fff8c57e000 -     0x7fff8c763ff7  com.apple.CoreFoundation (6.9 - 855.11) <E22C6A1F-8996-349C-905E-96C3BBE07C2F> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
    0x7fff8c764000 -     0x7fff8c76bfff  libcompiler_rt.dylib (35) <4CD916B2-1B17-362A-B403-EF24A1DAC141> /usr/lib/system/libcompiler_rt.dylib
    0x7fff8c76c000 -     0x7fff8c776ff7  com.apple.CrashReporterSupport (10.9 - 538) <B487466B-3AA1-3854-A808-A61F049FA794> /System/Library/PrivateFrameworks/CrashReporterSupport.framework/Versions/A/CrashReporterSupport
    0x7fff8c784000 -     0x7fff8c863fff  libcrypto.0.9.8.dylib (50) <B95B9DBA-39D3-3EEF-AF43-44608B28894E> /usr/lib/libcrypto.0.9.8.dylib
    0x7fff8c8bd000 -     0x7fff8d709ff5  com.apple.WebCore (9537 - 9537.70) <7A90E9D3-4F26-3049-9C96-C6B8CB1395C8> /System/Library/Frameworks/WebKit.framework/Versions/A/Frameworks/WebCore.framework/Versions/A/WebCore
    0x7fff8d70a000 -     0x7fff8d70eff7  libheimdal-asn1.dylib (323.12) <063A01C2-E547-39D9-BB42-4CC8E64ADE70> /usr/lib/libheimdal-asn1.dylib
    0x7fff8d70f000 -     0x7fff8d957fff  com.apple.CoreData (107 - 481) <E5AFBA07-F73E-3B3F-9099-F51224EE8EAD> /System/Library/Frameworks/CoreData.framework/Versions/A/CoreData
    0x7fff8d958000 -     0x7fff8da49ff9  libiconv.2.dylib (41) <BB44B115-AC32-3877-A0ED-AEC6232A4563> /usr/lib/libiconv.2.dylib
    0x7fff8da8c000 -     0x7fff8dab5ff7  libc++abi.dylib (48) <8C16158F-CBF8-3BD7-BEF4-022704B2A326> /usr/lib/libc++abi.dylib
    0x7fff8dab6000 -     0x7fff8dacfff7  com.apple.Kerberos (3.0 - 1) <F108AFEB-198A-3BAF-BCA5-9DFCE55EFF92> /System/Library/Frameworks/Kerberos.framework/Versions/A/Kerberos
    0x7fff8db11000 -     0x7fff8db35ff7  libJPEG.dylib (1038) <86F349A8-882D-3326-A0B0-63257F68B1A7> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib
    0x7fff8db36000 -     0x7fff8db77fff  com.apple.PerformanceAnalysis (1.47 - 47) <784ED7B8-FAE4-36CE-8C76-B7D300316C9F> /System/Library/PrivateFrameworks/PerformanceAnalysis.framework/Versions/A/PerformanceAnalysis
    0x7fff8db78000 -     0x7fff8dbd3ffb  com.apple.AE (665.5 - 665.5) <BBA230F9-144C-3CAB-A77A-0621719244CD> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/AE.framework/Versions/A/AE
    0x7fff8dbd4000 -     0x7fff8dbe0ff3  com.apple.AppleFSCompression (56 - 1.0) <5652B0D0-EB08-381F-B23A-6DCF96991FB5> /System/Library/PrivateFrameworks/AppleFSCompression.framework/Versions/A/AppleFSCompression
    0x7fff8dbe1000 -     0x7fff8dbe6fff  libmacho.dylib (845) <1D2910DF-C036-3A82-A3FD-44FF73B5FF9B> /usr/lib/system/libmacho.dylib
    0x7fff8dbe7000 -     0x7fff8dee6fff  com.apple.Foundation (6.9 - 1056) <D608EDFD-9634-3573-9B7E-081C7D085F7A> /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation
    0x7fff8dff9000 -     0x7fff8e007fff  com.apple.opengl (9.0.83 - 9.0.83) <AF467644-7B1D-327A-AC47-CECFCAF61990> /System/Library/Frameworks/OpenGL.framework/Versions/A/OpenGL
    0x7fff8e008000 -     0x7fff8e00fff7  libsystem_pthread.dylib (53.1.4) <AB498556-B555-310E-9041-F67EC9E00E2C> /usr/lib/system/libsystem_pthread.dylib
    0x7fff8e010000 -     0x7fff8e037ffb  libsystem_info.dylib (449.1.3) <7D41A156-D285-3849-A2C3-C04ADE797D98> /usr/lib/system/libsystem_info.dylib
    0x7fff8e041000 -     0x7fff8e059ff7  com.apple.GenerationalStorage (2.0 - 160.2) <79629AC7-896F-3302-8AC1-4939020F08C3> /System/Library/PrivateFrameworks/GenerationalStorage.framework/Versions/A/GenerationalStorage
    0x7fff8e05a000 -     0x7fff8e05ffff  com.apple.DiskArbitration (2.6 - 2.6) <F8A47F61-83D1-3F92-B7A8-A169E0D187C0> /System/Library/Frameworks/DiskArbitration.framework/Versions/A/DiskArbitration
    0x7fff8e060000 -     0x7fff8e0c0fff  com.apple.ISSupport (1.9.9 - 57) <E1E343D7-222C-3458-9D1F-FC600B7F1C50> /System/Library/PrivateFrameworks/ISSupport.framework/Versions/A/ISSupport
    0x7fff8e0dd000 -     0x7fff8e0f7fff  libdispatch.dylib (339.1.9) <46878A5B-4248-3057-962C-6D4A235EEF31> /usr/lib/system/libdispatch.dylib
    0x7fff8e0f8000 -     0x7fff8e0fbff7  com.apple.LoginUICore (3.0 - 3.0) <1ECBDA90-D6ED-3333-83EB-9C8232DFAD7C> /System/Library/PrivateFrameworks/LoginUIKit.framework/Versions/A/Frameworks/LoginUICore.framework/Versions/A/LoginUICore
    0x7fff8e0fc000 -     0x7fff8e12dff7  libtidy.A.dylib (15.12) <BF757E3C-733A-3B6B-809A-A3949D46466E> /usr/lib/libtidy.A.dylib
    0x7fff8e12e000 -     0x7fff8e137fff  com.apple.CommonAuth (4.0 - 2.0) <1D263127-5F27-3128-996D-7397660D0C6E> /System/Library/PrivateFrameworks/CommonAuth.framework/Versions/A/CommonAuth
    0x7fff8e138000 -     0x7fff8e13aff7  com.apple.SecCodeWrapper (3.0 - 1) <F5107AD0-20CD-328C-8B2E-74CB6F3169F6> /System/Library/PrivateFrameworks/SecCodeWrapper.framework/Versions/A/SecCodeWrapper
    0x7fff8e13b000 -     0x7fff8e1c3ff7  com.apple.CorePDF (4.0 - 4) <92D15ED1-D2E1-3ECB-93FF-42888219A99F> /System/Library/PrivateFrameworks/CorePDF.framework/Versions/A/CorePDF
    0x7fff8ed9e000 -     0x7fff8eda1ff7  libdyld.dylib (239.3) <62F4D752-4089-31A8-8B73-B95A68893B3C> /usr/lib/system/libdyld.dylib
    0x7fff8eda2000 -     0x7fff8eda8ff7  libCGXCoreImage.A.dylib (599.7) <AC38090E-BA96-33C0-92F3-8EF6231582C4> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGXCoreImage.A.dylib
    0x7fff8eda9000 -     0x7fff8ee26ff7  com.apple.iLifeMediaBrowser (2.8.0 - 637) <1EFC5EFD-AC09-34E9-A96A-951F1FD3F9BC> /System/Library/PrivateFrameworks/iLifeMediaBrowser.framework/Versions/A/iLifeMediaBrowser
    0x7fff8ee27000 -     0x7fff8ef67fff  com.apple.QTKit (7.7.3 - 2826) <7A110F61-D4DD-3C84-950D-E5F486DE5765> /System/Library/Frameworks/QTKit.framework/Versions/A/QTKit
    0x7fff8ef68000 -     0x7fff8ef6cfff  com.apple.CommonPanels (1.2.6 - 96) <6B434AFD-50F8-37C7-9A56-162C17E375B3> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/CommonPanels.framework/Versions/A/CommonPanels
    0x7fff8ef6d000 -     0x7fff8ef6dfff  com.apple.CoreServices (59 - 59) <7A697B5E-F179-30DF-93F2-8B503CEEEFD5> /System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices
    0x7fff8ef6e000 -     0x7fff8ef89ff7  libPng.dylib (1038) <EF781AF8-C2E6-3179-B8A1-A584783070F1> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libPng.dylib
    0x7fff8ef8a000 -     0x7fff8f142ff3  libicucore.A.dylib (511.25) <3ED7B656-416E-3071-AEC8-E85C90232F78> /usr/lib/libicucore.A.dylib
    0x7fff8f143000 -     0x7fff8f181ff7  libGLImage.dylib (9.0.83) <C08048A7-03CC-3E40-BCDC-7791D87AC8E4> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLImage.dylib
    0x7fff8f182000 -     0x7fff8f18afff  libMatch.1.dylib (19) <021293AB-407D-309A-87F5-8E782F46753E> /usr/lib/libMatch.1.dylib
    0x7fff8f18b000 -     0x7fff8f18dfff  com.apple.Mangrove (1.0 - 1) <72F5CBC7-4E78-374E-98EA-C3700136904E> /System/Library/PrivateFrameworks/Mangrove.framework/Versions/A/Mangrove
    0x7fff8f18e000 -     0x7fff8f194ff7  libsystem_platform.dylib (24.1.4) <331BA4A5-55CE-3B95-99EB-44E0C89D7FB8> /usr/lib/system/libsystem_platform.dylib
    0x7fff8f195000 -     0x7fff8f196ff7  libodfde.dylib (20) <C00A4EBA-44BC-3C53-BFD0-819B03FFD462> /usr/lib/libodfde.dylib
    0x7fff8f1dd000 -     0x7fff8f20cff7  com.apple.CoreAVCHD (5.7.0 - 5700.4.3) <404369C0-ED9F-3010-8D2F-BC55285F7808> /System/Library/PrivateFrameworks/CoreAVCHD.framework/Versions/A/CoreAVCHD
    0x7fff8f20d000 -     0x7fff8f20efff  liblangid.dylib (117) <9546E641-F730-3AB0-B3CD-E0E2FDD173D9> /usr/lib/liblangid.dylib
    0x7fff8f20f000 -     0x7fff8f239ff7  libpcap.A.dylib (42) <91D3FF51-D6FE-3C05-98C9-1182E0EC3D58> /usr/lib/libpcap.A.dylib
    0x7fff8f23a000 -     0x7fff8f481ff4  com.apple.RawCamera.bundle (4.08 - 709) <4BA16655-6A88-351C-863D-8101F0FFE599> /System/Library/CoreServices/RawCamera.bundle/Contents/MacOS/RawCamera
    0x7fff8f482000 -     0x7fff8f484ff3  libsystem_configuration.dylib (596.12) <C4F633D9-94C8-35D9-BB2D-84C5122533C7> /usr/lib/system/libsystem_configuration.dylib
    0x7fff8f485000 -     0x7fff8f520ff7  com.apple.PDFKit (2.9 - 2.9) <AD968A31-6567-30A7-A699-154C88DB56D0> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/PDFKit.framework/Versions/A/PDFKit
    0x7fff8f521000 -     0x7fff8f56ffff  com.apple.opencl (2.3.57 - 2.3.57) <FC03A80D-543A-3448-83FF-D399C3A240D9> /System/Library/Frameworks/OpenCL.framework/Versions/A/OpenCL
    0x7fff8f570000 -     0x7fff8f6deff7  libBLAS.dylib (1094.5) <DE93A590-5FA5-32A2-A16C-5D7D7361769F> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
    0x7fff8f70a000 -     0x7fff8f7daff7  com.apple.PubSub (1.0.5 - 65.36) <26189018-1C77-3C56-84E8-56C6A400187F> /System/Library/Frameworks/PubSub.framework/Versions/A/PubSub
    0x7fff8f7db000 -     0x7fff8f7dffff  com.apple.IOAccelerator (98.7.1 - 98.7.1) <C0D16D6F-8729-3110-BEBA-BE4F53444470> /System/Library/PrivateFrameworks/IOAccelerator.framework/Versions/A/IOAccelerator
    0x7fff8f7e0000 -     0x7fff8f7eafff  libcommonCrypto.dylib (60049) <8C4F0CA0-389C-3EDC-B155-E62DD2187E1D> /usr/lib/system/libcommonCrypto.dylib
    0x7fff8f7eb000 -     0x7fff8f825ff3  com.apple.bom (12.0 - 192) <989690DB-B9CC-3DB5-89AE-B5D33EDC474E> /System/Library/PrivateFrameworks/Bom.framework/Versions/A/Bom
    0x7fff8f828000 -     0x7fff8f829ffb  libremovefile.dylib (33) <3543F917-928E-3DB2-A2F4-7AB73B4970EF> /usr/lib/system/libremovefile.dylib
    0x7fff8f82a000 -     0x7fff8f82cfff  libCVMSPluginSupport.dylib (9.0.83) <E2AED858-6EEB-36C6-8C06-C3CF649A3CD5> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCVMSPluginSupport.dylib
    0x7fff8f82d000 -     0x7fff8f911fff  com.apple.coreui (2.1 - 231) <432DB40C-6B7E-39C8-9FB5-B95917930056> /System/Library/PrivateFrameworks/CoreUI.framework/Versions/A/CoreUI
    0x7fff8f912000 -     0x7fff8fa65ff7  com.apple.audio.toolbox.AudioToolbox (1.9 - 1.9) <A0B7B007-9BD8-30E2-B644-47856DA29FEE> /System/Library/Frameworks/AudioToolbox.framework/Versions/A/AudioToolbox
    0x7fff8fa66000 -     0x7fff8fa6dff3  libcopyfile.dylib (103) <5A881779-D0D6-3029-B371-E3021C2DDA5E> /usr/lib/system/libcopyfile.dylib
    0x7fff8fd0d000 -     0x7fff8fd0dfff  com.apple.ApplicationServices (48 - 48) <3E3F01A8-314D-378F-835E-9CC4F8820031> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/ApplicationServices
    0x7fff8fd95000 -     0x7fff8fdb8fff  com.apple.ScreenSaver (5.0 - 5) <AB9FB0CA-2F08-3BF2-A938-F661E4859D46> /System/Library/Frameworks/ScreenSaver.framework/Versions/A/ScreenSaver
    0x7fff8fdb9000 -     0x7fff8fde9fff  com.apple.IconServices (25 - 25.17) <4751127E-FBD5-3ED5-8510-08D4E4166EFE> /System/Library/PrivateFrameworks/IconServices.framework/Versions/A/IconServices
    0x7fff90146000 -     0x7fff90155ff8  com.apple.LangAnalysis (1.7.0 - 1.7.0) <8FE131B6-1180-3892-98F5-C9C9B79072D4> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LangAnalysis.framework/Versions/A/LangAnalysis
    0x7fff90156000 -     0x7fff9016efff  libexpat.1.dylib (12) <97F4A9A7-CB3E-3BBF-9314-4997FC770E52> /usr/lib/libexpat.1.dylib
    0x7fff9016f000 -     0x7fff901c0fff  com.apple.QuickLookFramework (5.0 - 622.3) <AB6CCD09-ECDF-3F01-9C42-34B37DDCF12D> /System/Library/Frameworks/QuickLook.framework/Versions/A/QuickLook
    0x7fff9025f000 -     0x7fff902ceff1  com.apple.ApplicationServices.ATS (360 - 363.1) <88976B22-A9B8-3E7B-9AE6-0B8E09A968FC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/ATS
    0x7fff902cf000 -     0x7fff902d8fff  com.apple.speech.synthesis.framework (4.6.2 - 4.6.2) <0AAE45F0-FC6E-36B6-A6A7-73E6950A74AC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/SpeechSynthesis.framework/Versions/A/SpeechSynthesis
    0x7fff90440000 -     0x7fff907b6ffa  com.apple.JavaScriptCore (9537 - 9537.65) <7E76880C-832E-385B-9591-ACCF57A68385> /System/Library/Frameworks/JavaScriptCore.framework/Versions/A/JavaScriptCore
    0x7fff907b7000 -     0x7fff907fefff  libFontRegistry.dylib (127) <A77A0480-AA5D-3CC8-8B68-69985CD546DC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontRegistry.dylib
    0x7fff907ff000 -     0x7fff90801ff7  libquarantine.dylib (71) <7A1A2BCB-C03D-3A25-BFA4-3E569B2D2C38> /usr/lib/system/libquarantine.dylib
    0x7fff90802000 -     0x7fff90831ff5  com.apple.GSS (4.0 - 2.0) <ED98D992-CC14-39F3-9ABC-8D7F986487CC> /System/Library/Frameworks/GSS.framework/Versions/A/GSS
    0x7fff90832000 -     0x7fff90845ff7  com.apple.AppContainer (3.0 - 1) <A90C058D-46E8-3BAB-AF17-AF9C7C273069> /System/Library/PrivateFrameworks/AppContainer.framework/Versions/A/AppContainer
    0x7fff90848000 -     0x7fff9084cff7  libcache.dylib (62) <BDC1E65B-72A1-3DA3-A57C-B23159CAAD0B> /usr/lib/system/libcache.dylib
    0x7fff9084d000 -     0x7fff90b67ff7  com.apple.MediaToolbox (1.0 - 1273.29) <6260E68B-7E50-3D49-8C0A-7145614C13D8> /System/Library/Frameworks/MediaToolbox.framework/Versions/A/MediaToolbox
    0x7fff90b96000 -     0x7fff90bbdff7  libsystem_network.dylib (241.3) <8B1E1F1D-A5CC-3BAE-8B1E-ABC84337A364> /usr/lib/system/libsystem_network.dylib
    0x7fff90c30000 -     0x7fff90c33fff  com.apple.TCC (1.0 - 1) <32A075D9-47FD-3E71-95BC-BFB0D583F41C> /System/Library/PrivateFrameworks/TCC.framework/Versions/A/TCC
    0x7fff90c34000 -     0x7fff90c4bfff  com.apple.CFOpenDirectory (10.9 - 173.1.1) <3FB4D5FE-860B-3BDE-BAE2-3531D919EF10> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/Frameworks/CFOpenDirectory.framework/Versions/A/CFOpenDirectory
    0x7fff90c4c000 -     0x7fff90c95fff  com.apple.CoreMedia (1.0 - 1273.29) <4ACD30BA-E9FE-3842-A8B7-E3BD63747867> /System/Library/Frameworks/CoreMedia.framework/Versions/A/CoreMedia
    0x7fff90cf5000 -     0x7fff90d75fff  com.apple.CoreSymbolication (3.0 - 141) <B018335C-698B-3F87-AF1C-6115C4FA8954> /System/Library/PrivateFrameworks/CoreSymbolication.framework/Versions/A/CoreSymbolication
    0x7fff90d76000 -     0x7fff90de3fff  com.apple.SearchKit (1.4.0 - 1.4.0) <B9B8D510-A27E-36B0-93E9-17146D9E9045> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SearchKit.framework/Versions/A/SearchKit
    0x7fff90de4000 -     0x7fff90e08fff  com.apple.quartzfilters (1.8.0 - 1.7.0) <39C08086-9866-372F-9420-81F5689149DF> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuartzFilters.framework/Versions/A/QuartzFilters
    0x7fff90e18000 -     0x7fff90e18ffd  com.apple.audio.units.AudioUnit (1.9 - 1.9) <6E89F3CB-CC41-3728-9F9A-FDFC151E8261> /System/Library/Frameworks/AudioUnit.framework/Versions/A/AudioUnit
    0x7fff90e19000 -     0x7fff90e1bff7  com.apple.securityhi (9.0 - 55005) <405E2BC6-2B6F-3B6B-B48E-2FD39214F052> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SecurityHI.framework/Versions/A/SecurityHI
    0x7fff90e1c000 -     0x7fff90e2efff  com.apple.ImageCapture (9.0 - 9.0) <BE0B65DA-3031-359B-8BBA-B9803D4ADBF4> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/ImageCapture.framework/Versions/A/ImageCapture
    0x7fff90e2f000 -     0x7fff90e67ff7  com.apple.RemoteViewServices (2.0 - 94) <3F34D630-3DDB-3411-BC28-A56A9B55EBDA> /System/Library/PrivateFrameworks/RemoteViewServices.framework/Versions/A/RemoteViewServices
    0x7fff90e68000 -     0x7fff90e73fff  libGL.dylib (9.0.83) <984A960A-C159-3AE5-8B40-E2B451F6C712> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGL.dylib
    0x7fff911ad000 -     0x7fff911bfff7  com.apple.MultitouchSupport.framework (245.13 - 245.13) <D5E7416D-45AB-3690-86C6-CC4B5FCEA2D2> /System/Library/PrivateFrameworks/MultitouchSupport.framework/Versions/A/MultitouchSupport
    0x7fff91209000 -     0x7fff91219ffb  libsasl2.2.dylib (170) <C8E25710-68B6-368A-BF3E-48EC7273177B> /usr/lib/libsasl2.2.dylib
    0x7fff9121a000 -     0x7fff9123efff  libxpc.dylib (300.1.17) <4554927A-9467-365C-91F1-5A116989DD7F> /usr/lib/system/libxpc.dylib
    0x7fff9123f000 -     0x7fff91284ff7  libcurl.4.dylib (78) <A722B4F0-1F6C-3E16-9CB1-4C6ADC15221E> /usr/lib/libcurl.4.dylib
    0x7fff91285000 -     0x7fff912aefff  com.apple.DictionaryServices (1.2 - 208) <A539A058-BA57-35EE-AA08-D0B0E835127D> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/DictionaryServices.framework/Versions/A/DictionaryServices
    0x7fff912af000 -     0x7fff912d8fff  GLRendererFloat (9.0.83) <1F1160A8-5047-3CEE-AC1E-D29520D0B367> /System/Library/Frameworks/OpenGL.framework/Versions/A/Resources/GLRendererFloat.bundle/GLRendererFloat
    0x7fff9137f000 -     0x7fff9137fff7  libkeymgr.dylib (28) <3AA8D85D-CF00-3BD3-A5A0-E28E1A32A6D8> /usr/lib/system/libkeymgr.dylib
    0x7fff9144d000 -     0x7fff9148cfff  libGLU.dylib (9.0.83) <8B457205-513B-3477-AE9C-3AD979D5FE11> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLU.dylib
    0x7fff91826000 -     0x7fff91852ff7  com.apple.framework.SystemAdministration (1.0 - 1.0) <36C562FF-5D91-318C-A19C-6B4453FB78B9> /System/Library/PrivateFrameworks/SystemAdministration.framework/Versions/A/SystemAdministration
    0x7fff9186d000 -     0x7fff91999fff  com.apple.MediaControlSender (1.9 - 190.4) <F5E934E1-D004-3C84-815A-961319F8C522> /System/Library/PrivateFrameworks/MediaControlSender.framework/Versions/A/MediaControlSender
    0x7fff91a44000 -     0x7fff91a48fff  libsystem_stats.dylib (93.1.26) <B9E26A9E-FBBC-3938-B8B7-6CF7CA8C99AD> /usr/lib/system/libsystem_stats.dylib
    0x7fff91a49000 -     0x7fff91a59fff  libbsm.0.dylib (33) <2CAC00A2-1352-302A-88FA-C567D4D69179> /usr/lib/libbsm.0.dylib
    0x7fff91a64000 -     0x7fff91a64fff  com.apple.Accelerate (1.9 - Accelerate 1.9) <509BB27A-AE62-366D-86D8-0B06D217CF56> /System/Library/Frameworks/Accelerate.framework/Versions/A/Accelerate
    0x7fff91a76000 -     0x7fff91aa0ff7  libsandbox.1.dylib (278.10) <B4183FA8-F7E2-3301-8BF9-0EEFB793A5D5> /usr/lib/libsandbox.1.dylib
    0x7fff91ab4000 -     0x7fff91abafff  com.apple.AOSNotification (1.7.0 - 760.3) <7901B867-60F7-3645-BB3E-18C51A6FBCC6> /System/Library/PrivateFrameworks/AOSNotification.framework/Versions/A/AOSNotification
    0x7fff91b44000 -     0x7fff91b8ffff  com.apple.ImageCaptureCore (5.0 - 5.0) <F529EDDC-E2F5-30CA-9938-AF23296B5C5B> /System/Library/Frameworks/ImageCaptureCore.framework/Versions/A/ImageCaptureCore
    0x7fff91b90000 -     0x7fff91b94fff  libpam.2.dylib (20) <B93CE8F5-DAA8-30A1-B1F6-F890509513CB> /usr/lib/libpam.2.dylib
    0x7fff91b95000 -     0x7fff91becfff  com.apple.ViewBridge (1.0 - 46) <C49FDC96-7087-3B2F-AEC3-039F7B2CB50C> /System/Library/PrivateFrameworks/ViewBridge.framework/Versions/A/ViewBridge
    0x7fff91bed000 -     0x7fff91e4eff7  com.apple.imageKit (2.5 - 770) <33BCF627-EB1A-3CC1-98AB-2324B6DFB329> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/ImageKit.framework/Versions/A/ImageKit

External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 1
    thread_create: 0
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 1240
    thread_create: 0
    thread_set_state: 0

VM Region Summary:
ReadOnly portion of Libraries: Total=233.6M resident=85.9M(37%) swapped_out_or_unallocated=147.7M(63%)
Writable regions: Total=1.2G written=21.7M(2%) resident=31.2M(3%) swapped_out=0K(0%) unallocated=1.1G(97%)

REGION TYPE                        VIRTUAL
===========                        =======
CG backing stores                    2904K
CG image                             2968K
CG raster data                         68K
CG shared images                      172K
CoreAnimation                         220K
CoreImage                              88K
CoreServices                           16K
Foundation                              4K
IOKit                                14.1M
IOKit (reserved)                       64K        reserved VM address space (unallocated)
Image IO                              900K
JS JIT generated code               128.0M
JS JIT generated code (reserved)    896.0M        reserved VM address space (unallocated)
JS VM register file                  4096K
JS garbage collector                 1280K
Kernel Alloc Once                       8K
MALLOC                              117.1M
MALLOC (admin)                         32K
Memory Tag 242                         12K
OpenCL                                 36K
STACK GUARD                          56.0M
Stack                                12.1M
VM_ALLOCATE                          16.6M
WebKit Malloc                        1232K
__DATA                               30.3M
__IMAGE                               528K
__LINKEDIT                           68.4M
__TEXT                              165.2M
__UNICODE                             544K
mapped file                          76.3M
shared memory                          68K
===========                        =======
TOTAL                                 1.6G
TOTAL, minus reserved VM space      699.1M


Model: MacPro5,1, BootROM MP51.007F.B03, 4 processors, Quad-Core Intel Xeon, 3.62 GHz, 4 GB, SMC 1.30f3
Graphics: ATI Radeon HD 5770, ATI Radeon HD 5770, PCIe, 1024 MB
Memory Module: A1_BANK1/A1_DIMM1, 2 GB, DDR3, 1333 MHz, A-DATA, HY63I1B16
Memory Module: A1_BANK3/A1_DIMM3, 2 GB, DDR3, 1333 MHz, A-DATA, HY63I1B16
Bluetooth: Version 4.2.0f6 12982, 3 services, 15 devices, 1 incoming serial ports
Serial ATA Device: TSSTcorp CDDVDW SH-S223C
Serial ATA Device: ST31500541AS, 1.5 TB
Serial ATA Device: WDC WD2500JS-60NCB1, 250.06 GB
USB Device: 2.4G RF Keyboard & Mouse
USB Device: Turtle Beach USB Audio
Thunderbolt Bus:

Mohamed Khairy · November 3, 2013

wow iam really so suprised :blink:

tried to play with UEFI

and yes get clover on UEFI to work

and reached to desktop normally

this on sata ahci mode

then tried raid mode with UEFI raid rom so clover read my hard disk

and the surprise is that no kernel panic just waiting for root device

Bronya · November 3, 2013

I added new code from AnV in kernel ! But i modified my IOCatalogue.cpp and working ...

In archive added files.diff ...

If no flags , then default disabled blacklist !

If flag -blacklist , it enable auto blacklist !

If flag blockkexts=....... , you block driver .

mach_rc6_blockkexts.zip

P.S. @Andy , you can see in my files.diff - in your's files.diff don't work
flag "blacklist" , i corrected and is working

Edited November 3, 2013 by Bronya

Mohamed Khairy · November 3, 2013

I added new code from AnV in kernel ! But i modified my IOCatalogue.cpp and working ...

In archive added files.diff ...

If no flags , then default disabled blacklist !

If flag -blacklist , it enable auto blacklist !

If flag blockkexts=....... , you block driver .

mach_rc6_blockkexts.zip

P.S. @Andy , you can see in my files.diff - in your's files.diff don't work

flag "blacklist" , i corrected and is working

so rapid boot with out blocking any kext even intelpowermanagment

that is what i was wanting

nearly less than 20 sec

but not stable may because of intelpowermanagment will investigate

Mavericks kernel testing on AMD (formerly Mountain Lion kernel testing on AMD)

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
