Latest release with GPU sensor re-enabled for ATI 7xxx, not working on 7970, same KP at login that was present in earlier versions before it was disabled.



Could you please attach IORegistryExploer.app dump? I have HD5450 but still can't make it work with GTX680 together. I want to see if successfully initialized ATI card has rom present somewhere to parse it in monitoring driver.

Link to comment
Share on other sites

Here is my debug form latest revision.I hope that can help you.

1/10/13 3:50:13.000 PM kernel[0]: RadeonSensors (pci1@0): found ATI Radeon 0x68b8
1/10/13 3:50:13.000 PM kernel[0]: RadeonSensors (pci1@0): ATOMBIOS detected
1/10/13 3:50:13.000 PM kernel[0]: RadeonSensors (pci1@0): ATOM BIOS: JUNIPER
1/10/13 3:50:13.000 PM kernel[0]: RadeonSensors (pci1@0): [Warning] thermal sensor type not specified using default configuration


Link to comment
Share on other sites

10/01/13 09:25:33,000 kernel[0]: RadeonSensors (pci1@0): found ATI Radeon 0x68b8
10/01/13 09:25:33,000 kernel[0]: RadeonSensors (pci1@0): [Error] unable to locate ATY,bin_image



With the latest version I'm seeing this error, but it still reports the GPU temp like before so I guess it's just visible now in debug mode.



Why is it that AppleGeek's video bios is detected but not mine? Perhaps it's a Clover/Chameleon thing?

Link to comment
Share on other sites

Here is my debug form latest revision.I hope that can help you.

1/10/13 3:50:13.000 PM kernel[0]: RadeonSensors (pci1@0): found ATI Radeon 0x68b8
1/10/13 3:50:13.000 PM kernel[0]: RadeonSensors (pci1@0): ATOMBIOS detected
1/10/13 3:50:13.000 PM kernel[0]: RadeonSensors (pci1@0): ATOM BIOS: JUNIPER
1/10/13 3:50:13.000 PM kernel[0]: RadeonSensors (pci1@0): [Warning] thermal sensor type not specified using default configuration




Yes, thanks, It will help. Maybe I'll force thermal type detection regarding to bios name



10/01/13 09:25:33,000 kernel[0]: RadeonSensors (pci1@0): found ATI Radeon 0x68b8
10/01/13 09:25:33,000 kernel[0]: RadeonSensors (pci1@0): [Error] unable to locate ATY,bin_image



With the latest version I'm seeing this error, but it still reports the GPU temp like before so I guess it's just visible now in debug mode.



Why is it that AppleGeek's video bios is detected but not mine? Perhaps it's a Clover/Chameleon thing?



I am not sure. Just bought my first AMD card HD5450, made specific injector, set FB name in chameleon and nothing in clover and it works and injects ATY,bin_image

  • Like 2
Link to comment
Share on other sites

  • 3 weeks later...

Could have been more specific if you wanted to give heads up.



Thou art correct





1/30/13 10:36:40.469 PM com.apple.kextd[12]: Load org.hwsensors.driver.CPUSensors failed; removing personalities from kernel.

1/30/13 10:36:40.522 PM com.apple.kextd[12]: Load org.hwsensors.driver.LPCSensors failed; removing personalities from kernel.

1/30/13 10:36:40.549 PM com.apple.kextd[12]: Load org.hwsensors.driver.GPUSensors failed; removing personalities from kernel.

1/30/13 10:36:40.000 PM kernel[0]: Kext org.hwsensors.driver.CPUSensors - library kext org.netkas.driver.FakeSMC not compatible with requested version 4.3.23.

1/30/13 10:36:40.000 PM kernel[0]: Can't load kext org.hwsensors.driver.CPUSensors - failed to resolve library dependencies.

1/30/13 10:36:40.000 PM kernel[0]: Kext org.hwsensors.driver.CPUSensors failed to load (0xdc00800e).

Link to comment
Share on other sites

  • 2 weeks later...

Hi - I'm jumping into this thread way late in the game but have been using the HW Monitor on my HP Envy 17t-3200 CTO since I got it in December 2012. I'm running version 1.0.123, and get some sensor data to show up, but not nearly as much as most people in this thread. My reason for posting is that I am not happy with the CPU temps and the lack of fan control. I have the Intel HM76 Express chipset and no apparent fan sensor information. Whenever I run a fan controller, such as SMCFan Control, it shows the fan running -1 rpm and has no ability to increase the fan speed. Any suggestions to get my fan to cool the CPU better?




Link to comment
Share on other sites

Using the latest code from git (c5414419e2), multi-GPU monitoring is working great. Nice job! I'm now able to see the clocks, voltages, and temperatures of both my GeForce GTX 570s. However I noticed that fan speed sensing is gone for both GPUs. Looking through the commit logs I can't see anything that might be specific to this. But could this be related to the fix for multi-GPU monitoring? Back when multi-GPU monitoring wasn't working, fan speeds were the only thing that worked for both GPUs. While all the other GPU sensors only displayed GPU1, fan speeds were shown for both GPU0 and GPU1. How that all the other sensors work for both GPUs, both fan speeds are gone. Any idea which commit might be relevant to this?

Link to comment
Share on other sites

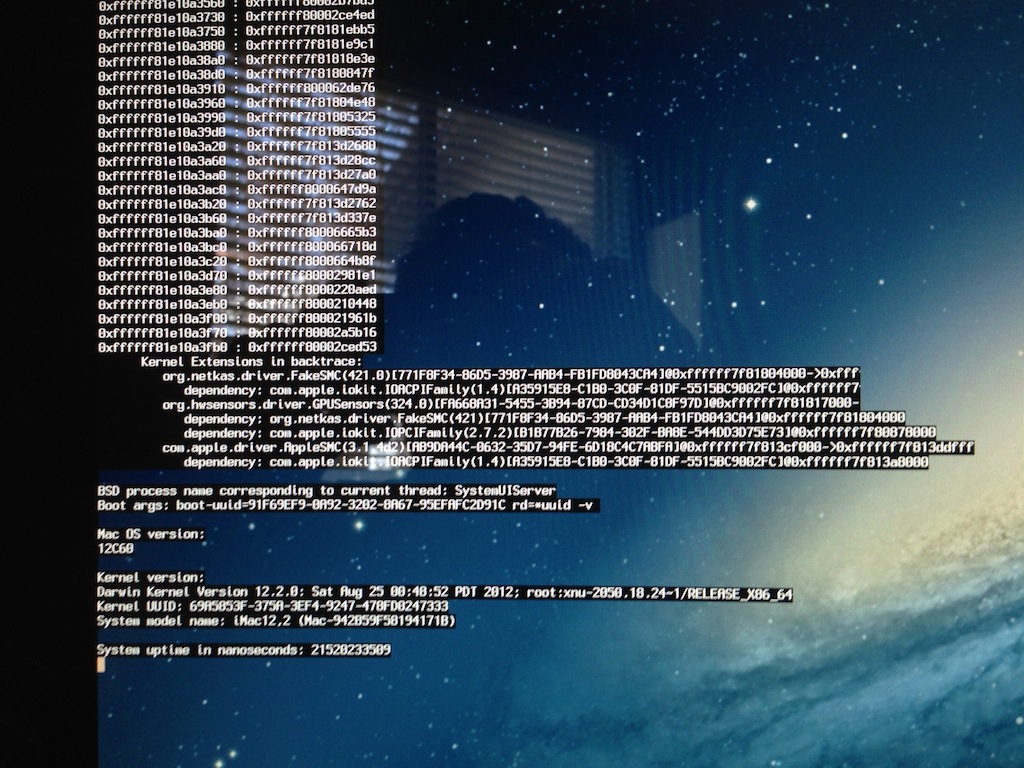

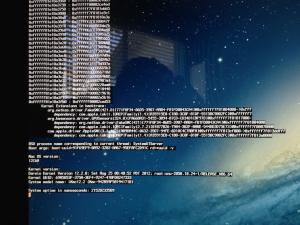

Randomly I get this (no kernel panic or strange behavior):



Feb 17 12:22:46 localhost kernel[0]: waitForSystemMapper

Feb 17 12:22:46 localhost kernel[0]: Backtrace 0xffffff8000650cdf 0xffffff8000650859 0xffffff80006507c0 0xffffff7f810edc2b 0xffffff7f810ed860 0xffffff800063108c 0xffffff800062d2d0

Feb 17 12:22:46 localhost kernel[0]: Kernel Extensions in backtrace:

Feb 17 12:22:46 localhost kernel[0]: org.netkas.driver.FakeSMC(4.3.51)[C6291092-F627-3270-BC7D-F6127D569608]@0xffffff7f810e9000->0xffffff7f810fbfff

Feb 17 12:22:46 localhost kernel[0]: dependency: com.apple.iokit.IOACPIFamily(1.4)[A35915E8-C1B0-3C0F-81DF-5515BC9002FC]@0xffffff7f80de8000

Feb 17 12:22:46 localhost kernel[0]: [ PCI configuration begin ]

Feb 17 12:22:46 localhost kernel[0]: FakeSMCDevice: 15 preconfigured key(s) added

Feb 17 12:22:46 localhost kernel[0]: SMC: successfully initialized

Link to comment
Share on other sites

Just compiled the latest source from Github and installed FakeSMC with only CPUSensors plugin. Everything worked fine. Then i added GPUSensors and reboot. Got to the login screen. Immediately after logging in i got a KP with the GPUSensors as the culprit. I'm running a Gigabyte GTX670. I thought that the Nvidia code had been updated to support the GTX 6xx cards. Is that not correct?


Link to comment
Share on other sites
