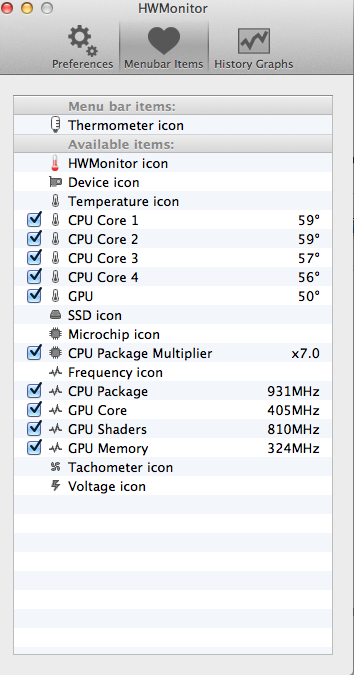

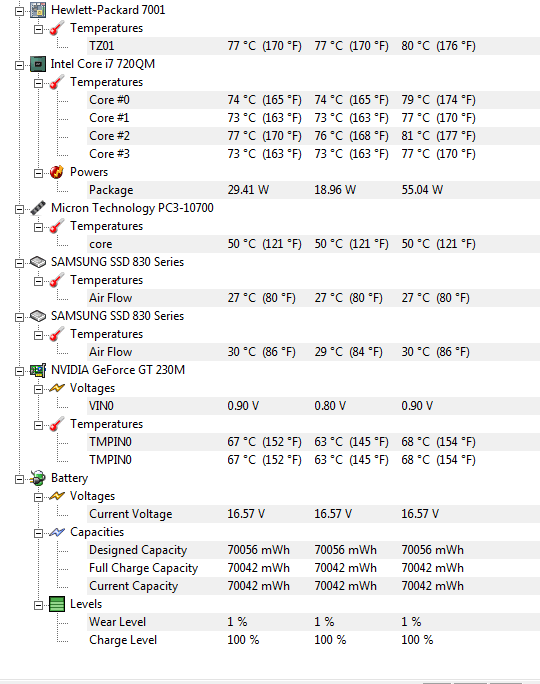

Peter_sm Posted October 21, 2012 Share Posted October 21, 2012 Comparing with W7 it's missing some information, is this possible to fix ? See attache image //Peter Link to comment Share on other sites More sharing options...

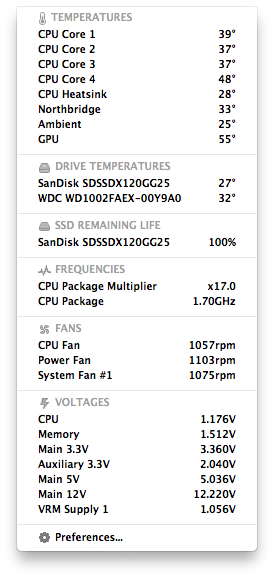

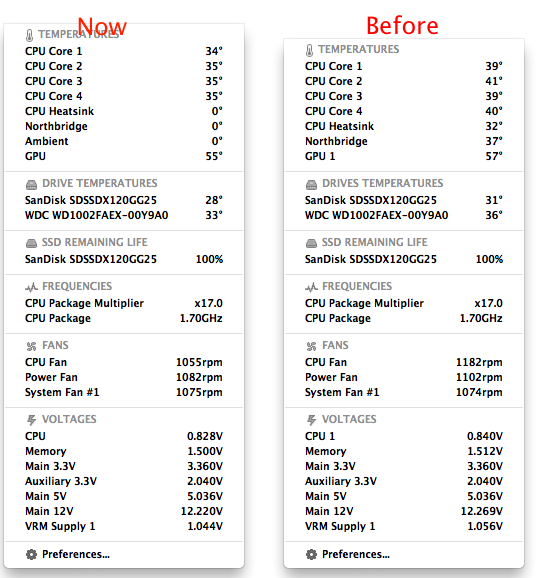

AppleGeek Posted October 21, 2012 Share Posted October 21, 2012 With the latest version I lost my values for CPU Heatsink, Nortbridge and Ambient.Before to update my plugins I have used commit 982e18f61f. from Sep 07, 2012. How to fix that ? //Edit Thank you for fix.With current version everything works fine Link to comment Share on other sites More sharing options...

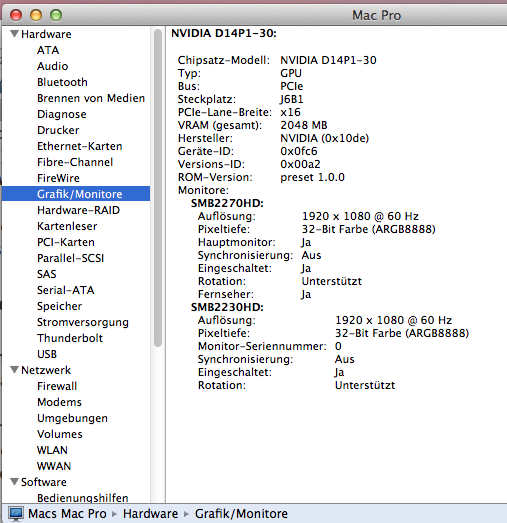

Carstiman Posted October 27, 2012 Share Posted October 27, 2012 hello, first thx a lot for your plugin! with my GTX 650 2 GB i´ve got these error message: FakeSMCDevice: 13 preconfigured key(s) added SMC: successfully initialized CPUSensors: CPU family 0x6, model 0x3a, stepping 0x9, cores 4, threads 4, TJmax 105 GeForceSensors (0): [Debug] memory mapped successfully GeForceSensors (0): [Debug] identifying the chipset GeForceSensors (0): [Debug] BOOT0 : 0x0e7060a2 GeForceSensors (0): [Debug] chipset: GK107 (NVE7) family: NVE0 GeForceSensors (0): [Debug] crystal freq: 27000KHz GeForceSensors (0): [Debug] trying to shadow bios GeForceSensors (0): [Debug] shadowing bios from PRAMIN GeForceSensors (0): [Debug] shadowing bios from PROM SuperIODevice: found ITE IT8728F on port=0x2e address=0xa30 IT87xxSensors: started GeForceSensors (0): [Debug] VBIOS appears to be valid GeForceSensors (0): [Debug] VBIOS successfully read from PROM GeForceSensors (0): [Debug] parsing VBIOS GeForceSensors (0): [Debug] VBIOS BIT signature found GeForceSensors (0): [Debug] VBIOS version 80.07.35.00 GeForceSensors (0): [Debug] initializing monitoring driver GeForceSensors (0): [Debug] voltage table 0x50 unknown GeForceSensors (0): chipset: GK107 (NVE7) bios: 80.07.35.00 GeForceSensors (0): [Debug] registering temperature sensors... GeForceSensors (0): [Debug] registering PWM sensors... GeForceSensors (0): [Debug] DCB_GPIO_FAN_SENSE func not found GeForceSensors (0): started would be great if you could add this sensor again. thx in advance Macs Mac Pro.ioreg.zip SMC.rtf Link to comment Share on other sites More sharing options...
kirasir Posted October 29, 2012 Share Posted October 29, 2012 Good day, Kozlek. DPLM on iMac with sandy, ivy etc. = 00 00 00 00 (CPUPlimit, GPUPlimit, MemPlimit, IGPUPlimit) но увы не работает. SMC_util -l Num: b0=0 b1=0 b2=0 b3=27 size=4 #KEY [ui32] 39 (bytes 00 00 00 27) $Adr [ui32] 0 (bytes 00 00 03 00) MSSD [si8 ] (bytes 05) OSK0 [ch8*] (bytes 6f 75 72 68 61 72 64 77 6f 72 6b 62 79 74 68 65 73 65 77 6f 72 64 73 67 75 61 72 64 65 64 70 6c) $Num [ui8 ] (bytes 0c) REV [{rev] (bytes 01 72 0f 00 00 02) RVBF [{rev] (bytes 01 72 0f 00 00 02) RVUF [{rev] (bytes 01 72 0f 00 00 02) NTOK [ui8 ] (bytes 01) FNum [ui8 ] (bytes 01) NATi [ui16] 0 (bytes 00 00) DPLM [{lim] (bytes 00 00 00) NATJ [ui8 ] (bytes 00) MSSP [si8 ] (bytes 05) OSK1 [ch8*] (bytes 65 61 73 65 64 6f 6e 74 73 74 65 61 6c 28 63 29 41 70 70 6c 65 43 6f 6d 70 75 74 65 72 49 6e 63) TC0D [sp78] (bytes 23 00) TC1D [sp78] (bytes 24 00) TC2D [sp78] (bytes 24 00) TC3D [sp78] (bytes 1f 00) MlCP [fp88] (bytes 10 00) CCPC [ui32] 64 (bytes 00 00 06 40) TG0P [sp78] (bytes 34 00) Th0H [sp78] (bytes 1e 00) TA0P [sp78] (bytes 21 00) TN0P [sp78] (bytes 21 00) VC0C [fp2e] (bytes 3c 6a) VM0R [fp2e] (bytes 3f 7c) Vp2C [fp4c] (bytes 34 bc) Vp3C [fp4c] (bytes 34 fd) Vp4C [fp4c] (bytes 10 00) Vp5C [fp4c] (bytes 20 a3) Vp6C [fp4c] (bytes 0d d2) Vp7C [fp4c] (bytes 36 45) Vp8C [fp4c] (bytes 34 fd) F0Ac [fpe2] 924 (bytes 0e 70) CLKT [ui32] 80 (bytes 00 00 32 50) CLKH [{clh] (bytes 00 00 70 80 00 01 19 40) MSDW [flag] (bytes 01) LSSS [{lso] (bytes 02 00) Link to comment Share on other sites More sharing options...
duffs Posted November 3, 2012 Share Posted November 3, 2012 Hi all. thx for great update. almost perfect sensors reading except for voltages and mobo temp. info from aida in windows if it's of any help. Winbond W83667HG mb-product = P7H55-M PRO mb-manufacturer = ASUS Aida64-Sensors.txt HWMonitor.txt Link to comment Share on other sites More sharing options...
joshhh Posted November 5, 2012 Share Posted November 5, 2012 Hello! I've got an instant reboot with latest builds when I try to run HWMonitor and laptop is not stable after sleep. It freeze within 3-5-10 minutes after OSX wake and only hard reset helps. There is no info in log after reboot Latest stable releases of FakeSMC dated in beginning of august and attached below Hope You can help how to figure out what is wrong in this case SMC.zip Link to comment Share on other sites More sharing options...
D-an-W Posted November 5, 2012 Share Posted November 5, 2012 kozlek, is it no longer possible to do a manual install now the binaries have been removed? Link to comment Share on other sites More sharing options...
Riley Freeman Posted November 5, 2012 Share Posted November 5, 2012 You could extract them from the pkg file with Pacifist and then install them manually. In the long run though it's probably best (ie less work) to go with the new installer route, at least if you update regularly. Link to comment Share on other sites More sharing options...
D-an-W Posted November 5, 2012 Share Posted November 5, 2012 Thanks, I'll give it a go. I much prefer to do this type of thing manually. Link to comment Share on other sites More sharing options...

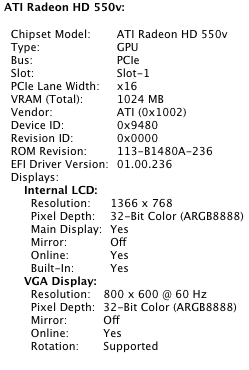

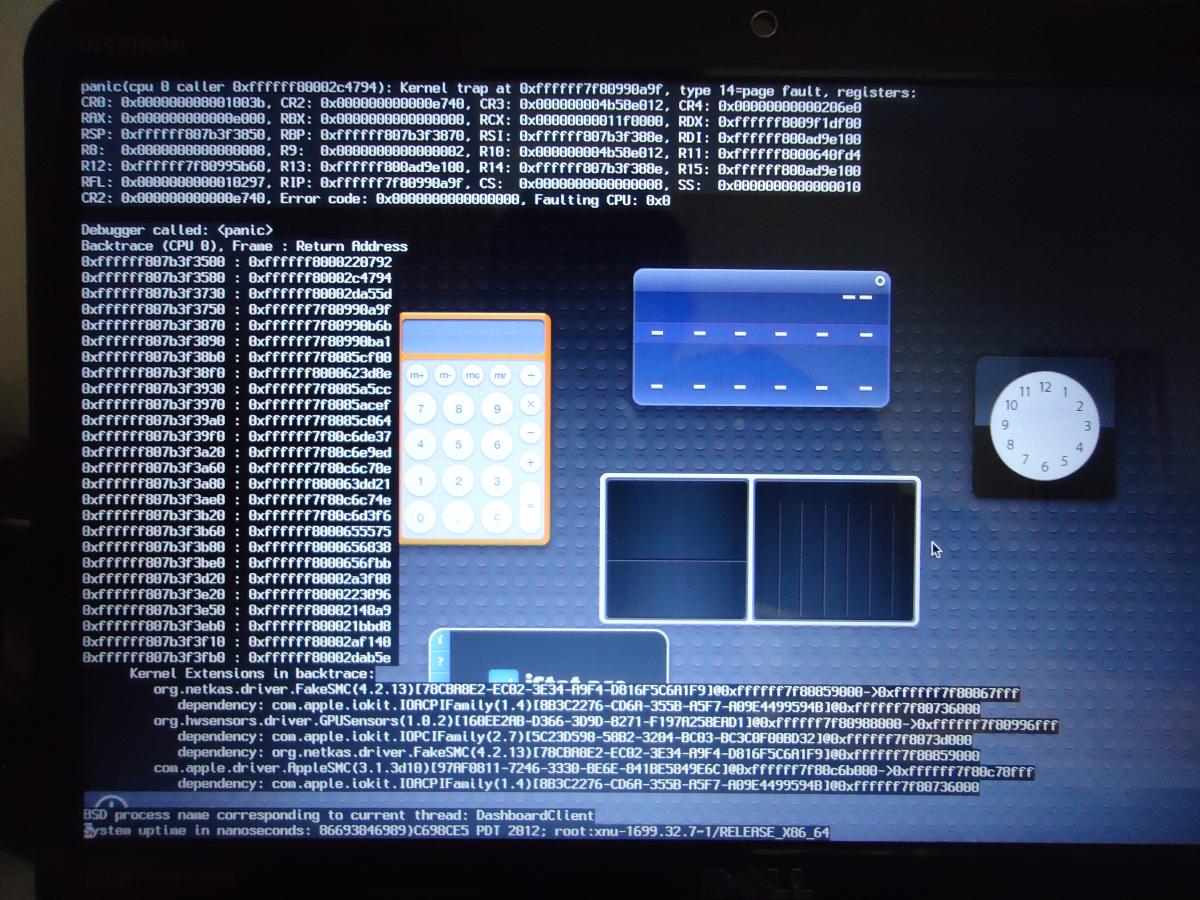

plsh2me Posted November 6, 2012 Share Posted November 6, 2012 Hi kozlek, On Dell inspiron N5010, After restarts when start HW Monitor.app got this panic Chipset: Intel Ibex Peck-M HM57, Intel Ironlake-M. Graphics: ATI Mobility Radeon HD 550v (1002_9480) on board M96. I think GPU ID yet not entered. Please consider it. Thank you. Link to comment Share on other sites More sharing options...
joshhh Posted November 6, 2012 Share Posted November 6, 2012 Looks like my problem, but my laptop just reboots instant on HWMonitor start without KP and traces in log Hi kozlek, On Dell inspiron N5010, After restarts when start HW Monitor.app got this panic Chipset: Intel Ibex Peck-M HM57, Intel Ironlake-M. Graphics: ATI Mobility Radeon HD 550v (1002_9480) on board M96. I think GPU ID yet not entered. Please consider it. Thank you. Link to comment Share on other sites More sharing options...
joe2108 Posted November 10, 2012 Share Posted November 10, 2012 nice, thank/ i'll try it Link to comment Share on other sites More sharing options...

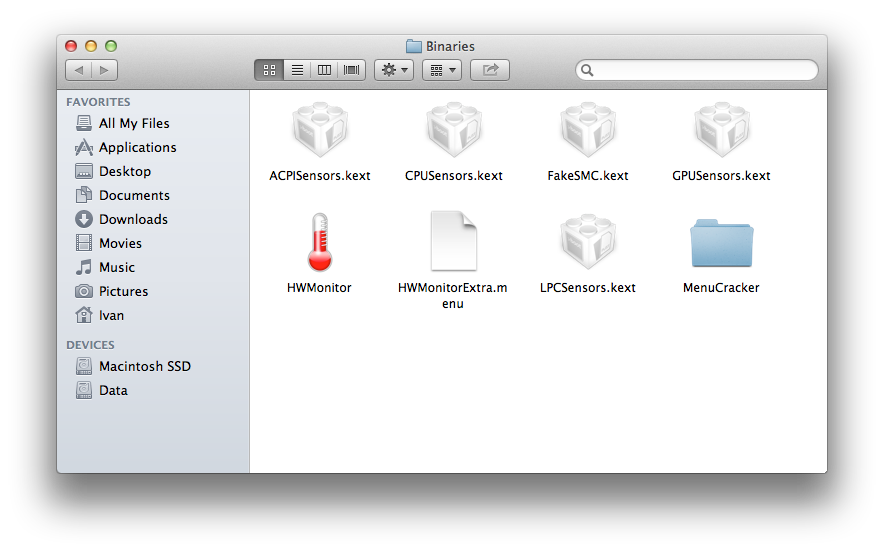

p.H Posted November 10, 2012 Share Posted November 10, 2012 Well, kozlek. I hope when you provide the pkg installer, you can also provide the kext files just like before. I try to find the kexts in Binary folder but I can't find it. I can only find menucracker. Hope you read this and provide it Link to comment Share on other sites More sharing options...
stefano.85 Posted November 10, 2012 Share Posted November 10, 2012 Well, kozlek. I hope when you provide the pkg installer, you can also provide the kext files just like before. I try to find the kexts in Binary folder but I can't find it. I can only find menucracker. Hope you read this and provide it +1 here pls! and thx for your work! Link to comment Share on other sites More sharing options...
D-an-W Posted November 10, 2012 Share Posted November 10, 2012 You can get them with Pacifist (As I found out recently) but I would still prefer just the kexts also. Link to comment Share on other sites More sharing options...
p.H Posted November 10, 2012 Share Posted November 10, 2012 You can get them with Pacifist (As I found out recently) but I would still prefer just the kexts also. i know the method of using pacifist. But i don't prefer it. I'd rather the kext files just like what they used to be. Link to comment Share on other sites More sharing options...

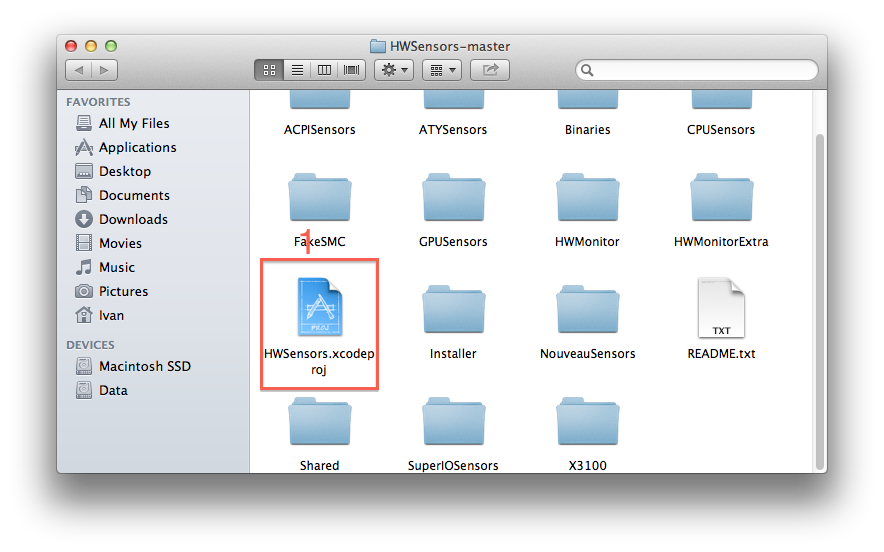

AppleGeek Posted November 11, 2012 Share Posted November 11, 2012 p.H You can build it from project file. 1 Link to comment Share on other sites More sharing options...
p.H Posted November 20, 2012 Share Posted November 20, 2012 p.H You can build it from project file. Thanks for you info. I used to build it manually but failed. But this time, it succeeded. But there is only HWsensor app. I can't find the separate kexts. Link to comment Share on other sites More sharing options...

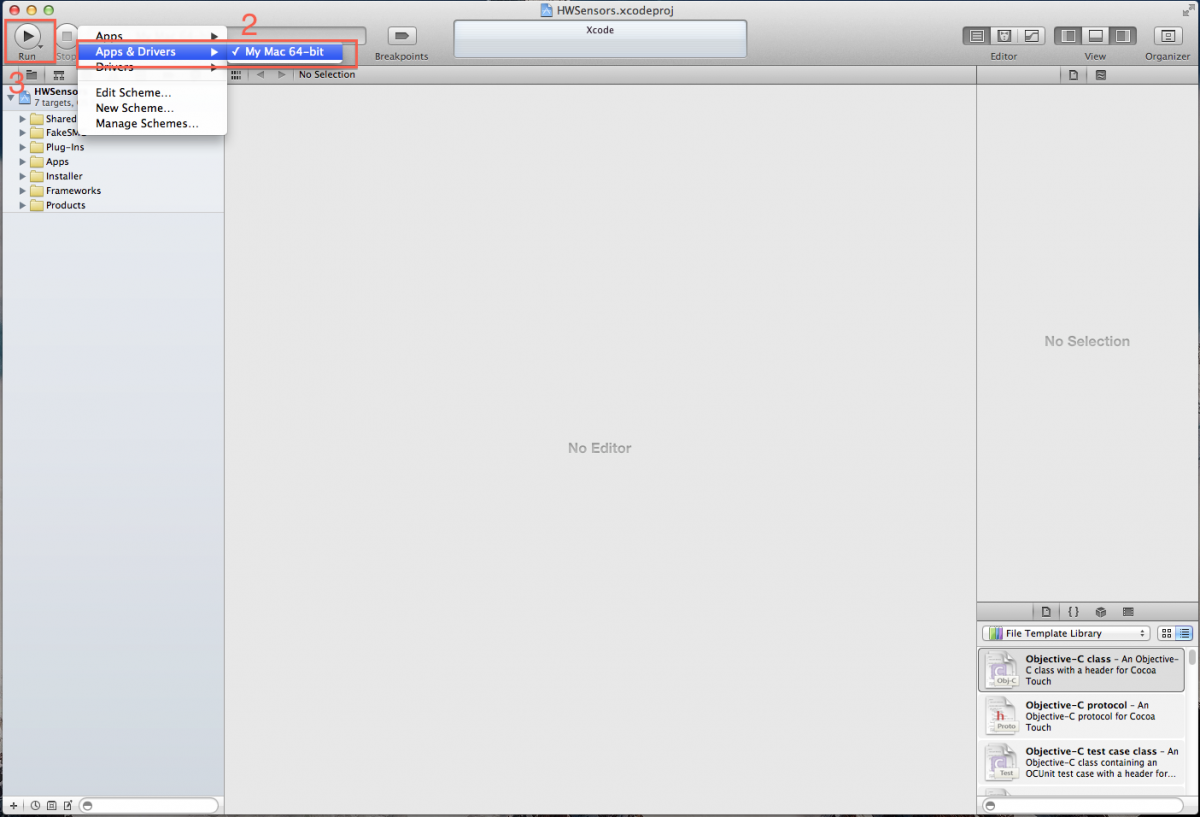

Riley Freeman Posted November 20, 2012 Share Posted November 20, 2012 But this time, it succeeded. But there is only HWsensor app. I can't find the separate kexts. Look at AppleGeek's second picture. You have to build apps and drivers. The xcode project defaults to building just the app. Link to comment Share on other sites More sharing options...
p.H Posted November 20, 2012 Share Posted November 20, 2012 Look at AppleGeek's second picture. You have to build apps and drivers. The xcode project defaults to building just the app. Thanks, I didn't notice that before~ Link to comment Share on other sites More sharing options...
haxzion Posted November 23, 2012 Share Posted November 23, 2012 Good job on the project. thank you Is there a way to monitor the voltage of my AMD 6850? Link to comment Share on other sites More sharing options...
oswaldini Posted November 25, 2012 Share Posted November 25, 2012 Can't use it with ML - 10.8.2 won't boot. Link to comment Share on other sites More sharing options...
D-an-W Posted November 25, 2012 Share Posted November 25, 2012 The latest build works good with 10.8.2 here. Link to comment Share on other sites More sharing options...
RehabMan Posted November 25, 2012 Share Posted November 25, 2012 Can't use it with ML - 10.8.2 won't boot. I had a similar experience when I tried using it on my HP Probook 4530s. That was a month ago, using a version I built from the repo -- I intend to someday try the latest again. Currently using Slice's version built from sources without problems. Strange thing was, booting would work "ignore caches" -f (sensors were not working though), but not using kernel cache. It would always hard hang during boot. Some other folks with Probook were able to get it to work, but they had more advanced chips (chips with VT-d enabled). I have just an i3-2310m on my Probook so no VT-d. So it could have something to do with that. Eventually, when I have time, I'll try again, as my desktop (i7-2600) works fine with 10.8.2 and kozlek's branch of FakeSMC.kext, but not the laptop. Link to comment Share on other sites More sharing options...
Slice Posted November 26, 2012 Share Posted November 26, 2012 Good job on the project. thank you Is there a way to monitor the voltage of my AMD 6850? Do you have any info how to do this? Any samples from Linux? If yes I can add this functionality and then kozlek may add to his branch. I am owner of HD6670 and so I am interesting to monitor more on Radeons. Link to comment Share on other sites More sharing options...
