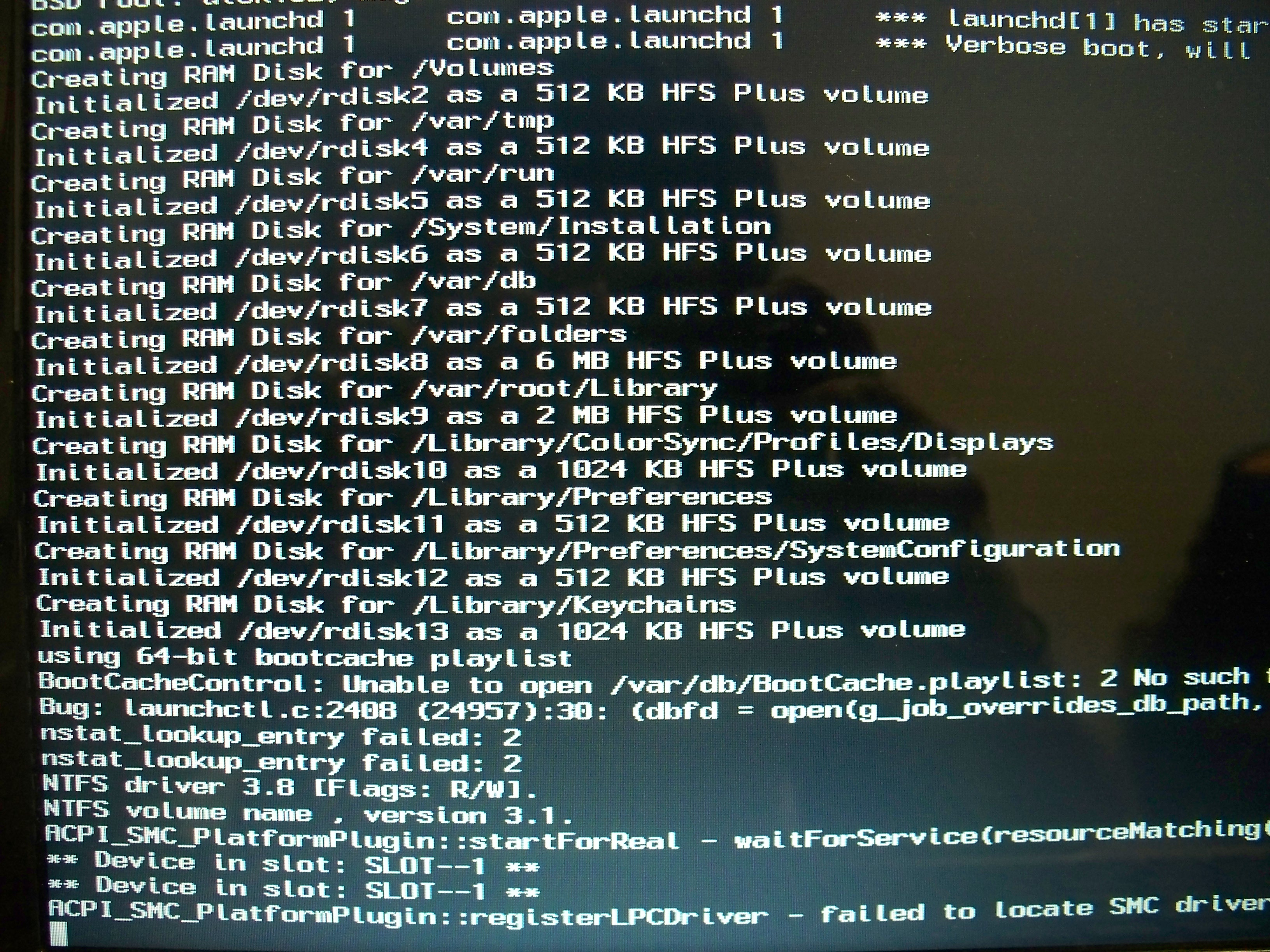

Jugz Posted November 14, 2011 Share Posted November 14, 2011 Hello InsanelyMac community, I am attempting to install Lion so that I may be able to get my 5650 card working. But, I cannot install Lion because of my graphics card! Screenie: The "ACPI_bla_bla_bla" is not the issue as I have gotten rid of this issue.. The issue is "Device in slot: :SLOT--1" which oddly enough repeats twice (and once it came up three times). Slot 1 is where graphics are or at least from what I have read up on. Other users of the 5650 card could install Lion, why can I not do the same? For the forum: Has anyone ever had this problem? Can I do something to get around this problem? Any suggestions/tips are greatly appreciated. -Jugz P.S. Things I have tried: 1. GraphicsEnabler=No -x -f -v cpus=1 AtiConfig=Null,Eulemur,Hoolock,Baboon and several combinations.. Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/ Share on other sites More sharing options...
iFIRE Posted November 15, 2011 Share Posted November 15, 2011 Test this: 1 - Boot with -s flag (single user mode) remove the boot caches: sudo rm /System/Library/Caches/com.apple.kernelcaches/* 2 - Boot with -s flag (single user mode) mount -uw / rm -rf /System/Library/Extensions/NV* rm -rf /System/Library/Extensions/ATI* 3 - reboot -f -x Good Luck Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1770791 Share on other sites More sharing options...
Jugz Posted November 15, 2011 Author Share Posted November 15, 2011 Is this for a person with Lion already installed or just booting up from USB drive? Either way, I can only try from the USB at the moment and thank you for a speedy reply. EDIT: When I boot off USB, with -s, it goes goes through a few screens of text then comes single user mode; in any attempt to type in any text whatsoever, nothing. No text that I type appears. So, no luck with that fix. Anybody have another idea? Again, I do not have Lion installed yet, only Snow Leo 10.6.3. Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1770810 Share on other sites More sharing options...
FX. Sammy Posted November 22, 2011 Share Posted November 22, 2011 Hello Jagz, I also use a HP Pavilion DV6-6168TX and have a error massage : "Device in slot: :SLOT--1", but i still can finish the first step installation. the error massage meant that our RAM at the slot 1 (Upper Slot of RAM) can't pass the POST, but when i check on the System Profile from the Utility Menu the RAM is in OK status. And i were using the code: cpus=1 busratio=20 PCIRootUID=0 -v -f, then i can finish first step installation. But after reboot and boot using Lion HDD install i got blank screen only. Until now i just don't know what i must to do about that. Btw, maybe u can use code above mention. Thx, Sammy Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1772605 Share on other sites More sharing options...
Jugz Posted December 2, 2011 Author Share Posted December 2, 2011 Sammy, I tried your boot flags with the exception of busratio=18 for me. Still nothing. Just stalls and hangs like every other time to install. For everyone now, If in fact it is a RAM error, should I remove one of my RAM cards? Would this stall be because I have one 2GB ram and another 4GB ram card? Thanks InsanelyMac community, -Jugz Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1775181 Share on other sites More sharing options...
Jugz Posted December 11, 2011 Author Share Posted December 11, 2011 Sammy, I finally was able to install Lion with iAtkos L2. I used cpus=1 AtiConfig=Eulemur maxmem=2048 -v, and it booted in and I installed. I booted up from USB again, then selected OSXRepair as that was where I installed my Lion too, then used flags -v maxmem=2048 cpus=1 AtiConfig=Eulemur and then I get stuck on the attached pic, and it stalls out there. I know that it stalls, because when I hit my "Enter" key, it goes down the page until you cannot see anymore text. Does anyone have anymore advice? Again, I have successfully installed Lion, but it will not boot. It just hangs at: Device in slot: :SLOT--1 Thanks. -Jugz Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1777667 Share on other sites More sharing options...
artur_pt Posted December 11, 2011 Share Posted December 11, 2011 hello try to boot -v GraphicsEnabler=No and see this http://olarila.com/forum/viewtopic.php?f=18&t=736 good hack Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1777670 Share on other sites More sharing options...

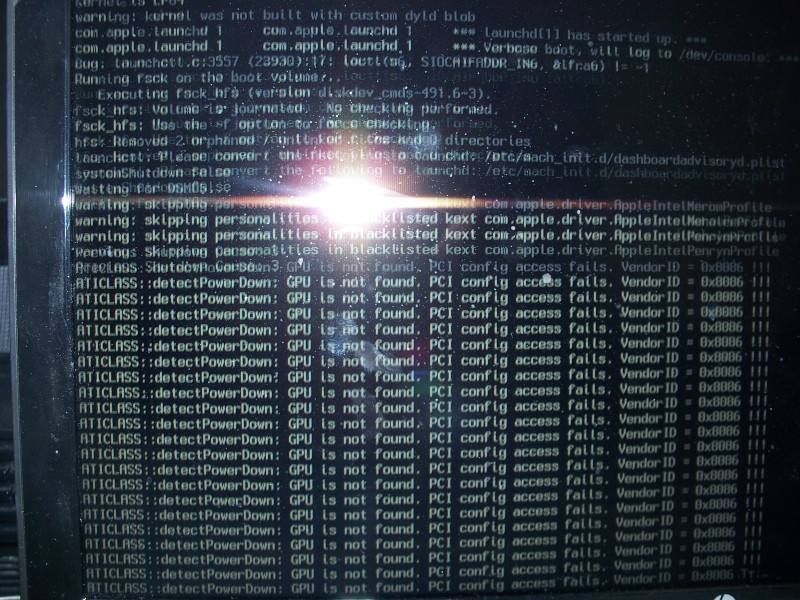

Jugz Posted January 22, 2012 Author Share Posted January 22, 2012 Okay artur-pt, I deleted all graphics kexts in S/L/E and voilà, Lion desktop greets me. Now, I am onto Olaria the link you have posted. Here are the 4 kexts I need and I believe I have edited them correctly but just to make sure, could you look at them for me? Hello. My Device ID for ATI Mobility Radeon HD 5650M graphics is: 68C1 My Vendor ID is: 1002 I did not know if I needed my sub sys ID in there too… : 144A103C I edited the Info.plist in ATI5000Controller.kext, ATIX3000.kext, and ATISupport.kext under: IOKitPersonalities Controller (ATI5000) IOPCIMatch 0x68C11002 0x144A103C ATIRadeonX3000 (obvious) IOPCIMatch 0x68C11002 0x144A103C ATI Support (again, obvious) IOPCIMatch 0x00001002&0x0000FFFF */ADDED THIS:\* 0x68C11002 0x144A103C Does this look accurate? Correct? Please and thank you. Been trying to get my ATI to work for a while, and your tips have been very helpful. -Jugz EDITED KEXTS FOR 0x68C11002: JugzATIkexts.zip ****************EDIT******************* I went ahead and installed .kexts and added graphicsenabler=yes and aticonfig=hoolock to org.cham.plist..... DISASTROUS result. I googled the error and there is seriously NOTHING on this error. Here is some background: I have NO graphics .kexts at all in /S/L/E/ and then installed ATI5000, ATIX3000, ATISupport, and ATIFramebuffer using Kext Wizard. Just to make sure, I repaired permissions on my partition and then rebooted. I did -v so I could see what happened, and this is the result: Has anyone ever even seen this? What can I do to get my graphics card to work?! -Jugz Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1788282 Share on other sites More sharing options...
kizwan Posted January 23, 2012 Share Posted January 23, 2012 Do you have fakesmc.kext in /E/E or /S/L/E? This is likely because you have 32-bit fakesmc.kext & you try to boot in 64-bit mode. Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1788628 Share on other sites More sharing options...
Jugz Posted January 24, 2012 Author Share Posted January 24, 2012 kizwan, I have FakeSMC.kext in /S/L/E/ and it is x64 bit. Should I try booting using arch=i386? Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1788914 Share on other sites More sharing options...
kizwan Posted January 24, 2012 Share Posted January 24, 2012 I'm sure your FakeSMC.kext is 32-bit. If not, you shouldn't get ACPI_SMC_PlatformPlugin error. You should be able to boot with arch=i386. If you want 64-bit fakesmc.kext, please click "Lion" link in my signature & go to 2nd post. Download my Extra file. Link to comment https://www.insanelymac.com/forum/topic/272168-device-in-slot-slot-1-error-and-hangup/#findComment-1788948 Share on other sites More sharing options...
