On 12/31/2018 at 6:45 PM, Hervé said:

Try the following:

  1. Replace your DSDT with this one where I've removed the snb-layout-id injection (done through Clover): DSDT.aml.zip
  2. Remove your SSDT-4.aml table from Clover's ACPI/patched folder
  3. Generate your CPU-specific power management SSDT with Pike R Alpha's well-known generator script (place it as "ssdt.aml" in ACPI/patched folder)
  4. Replace your Clover config with this one: config.plist.zip



If you still don't get any graphics acceleration, try faking HD3000 0x0126 again through Clover. Use latest version of Clover Configurator.



hi,Hervé

thank you for your help.

I tried your method,Replace my file with your file.

but I still don't get any graphics acceleration,so I try faking hd3000  0x0126 (By modifying intelGFX = 0x01268086 ) and 0x0116 (By modifying intelGFX = 0x01168086 ),but The result is still not fixed,The problem still exists.



When S/L/E have : AppleIntelSNBGraphicsFB.kext

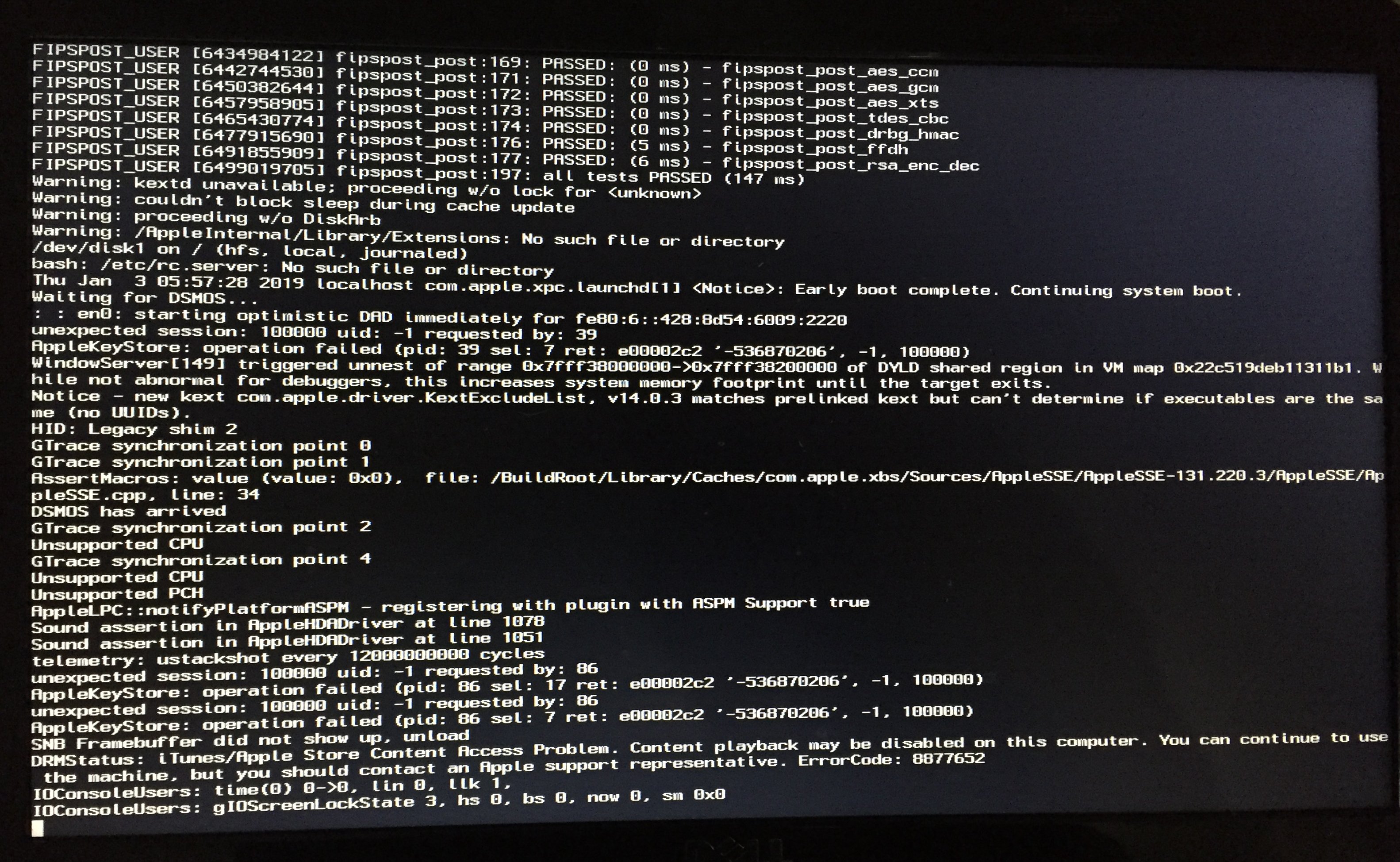

I can't enter my computer, the computer is stuck at

IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0






So I delete AppleIntelSNBGraphicsFB.kext Then I can enter my computer.

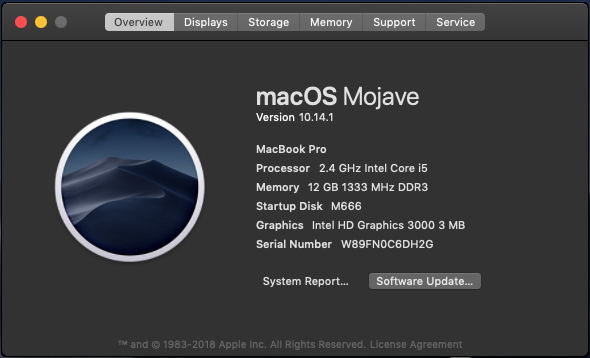

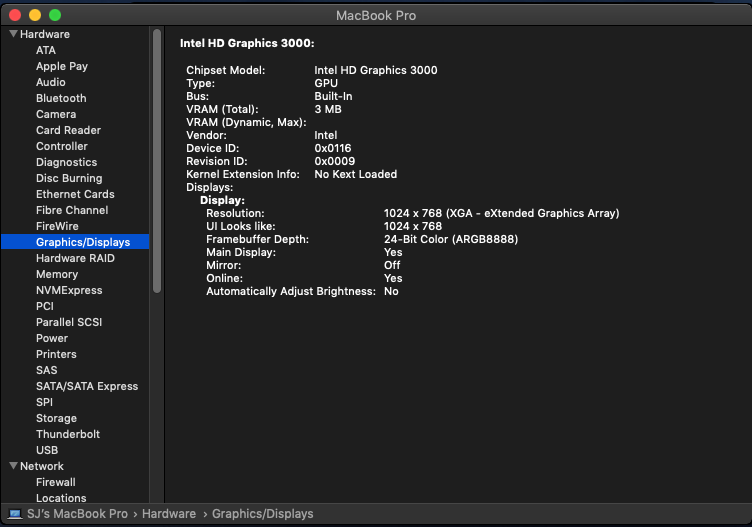

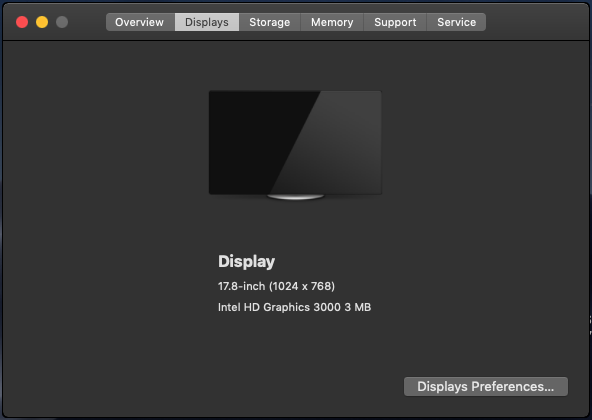

But My computer resolution is only 1024*768, my graphics card hd 3000 memory is only 3MB
















Thank you for spending so much time helping me solve the problem. thank you very much!

Link to comment
Share on other sites

Hi ameen, what version do you want to install ?, have you read the posts? I recommend you start reading from page 1 to understand the bases and try installing Yosemite. Once understood, you can move on to other versions. There are also the instructions to have dual boot. MacOS and Windows 10

Link to comment
Share on other sites

On ‎11‎/‎16‎/‎2018 at 9:13 AM, Hervé said:

You can perfectly run OS X/macOS/Mojave with BIOS in legacy mode. All my Hacks run in that mode, not in UEFI. AHCI disk mode has been a must for a number of years. For Virtualization, you can keep it enabled but disabling it for Direct I/O is highly recommended.



Hi Hervé, you could explain how to install Mojave with BIOS in legacy mode. Thank you in advance

Link to comment
Share on other sites

On 1/19/2019 at 2:57 PM, Hervé said:

Bog standard installation, nothing specific. No UEFI path to setup anywhere and no need for UEFI drivers in Clover. You just install the standard 64bit drivers, that's all.

Hi Hervé, in MacOS Mojavese can you enable the VGA and HDMI port of our HD3000 graphics card? Greetings and thanks in advance. Dell Inspiron N5110

Edited by Kakaro
Link to comment
Share on other sites

Hi Hervé, is it possible to format the SSD as APFS, create three partitions, one for Windows 10 to then delete formatted volume as NTFS and install, the second partition for Mojave with APFS and the third as NTFS for recording documents?

Link to comment
Share on other sites

  • 4 weeks later...
6 hours ago, remonsaeed said:

hi there

can help me plz

my laptop dell n5110 core i5 have nividia vga 525m system os mojave

thank you

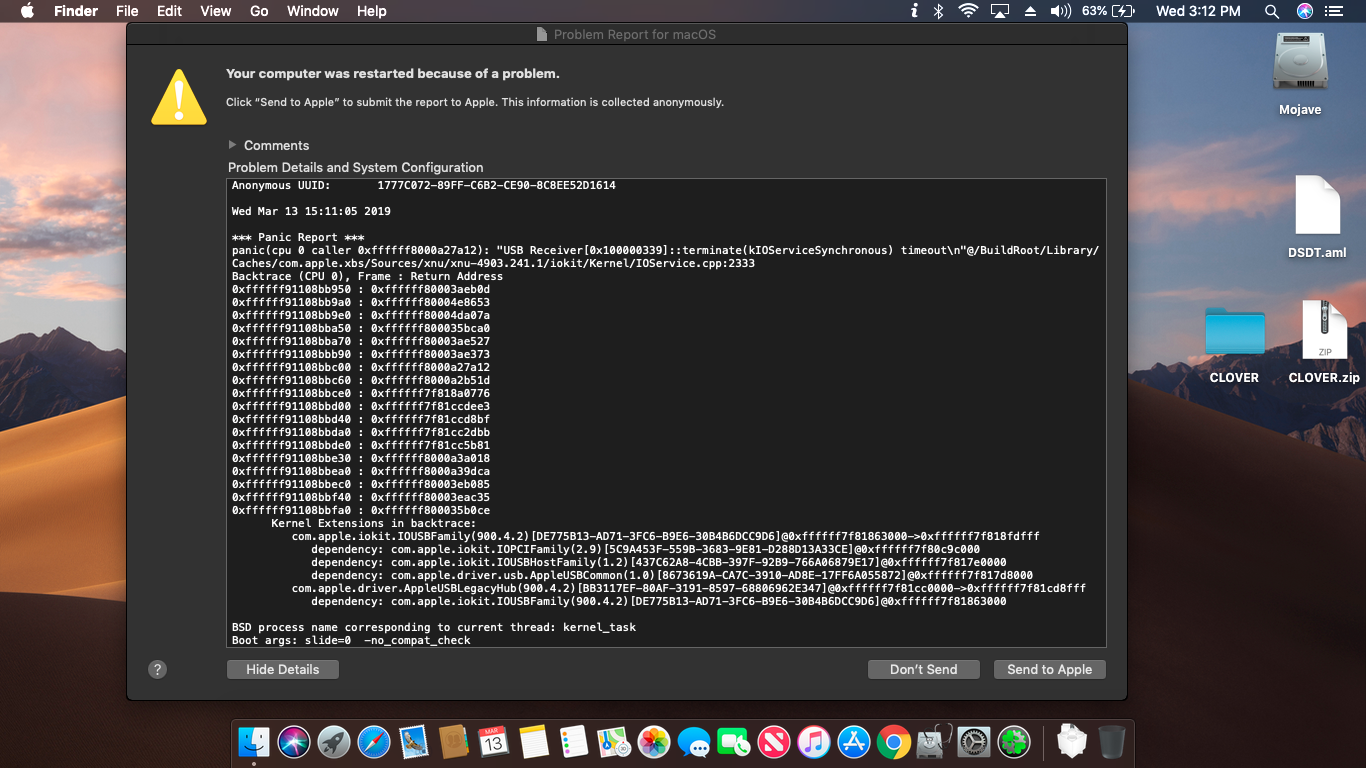

this error

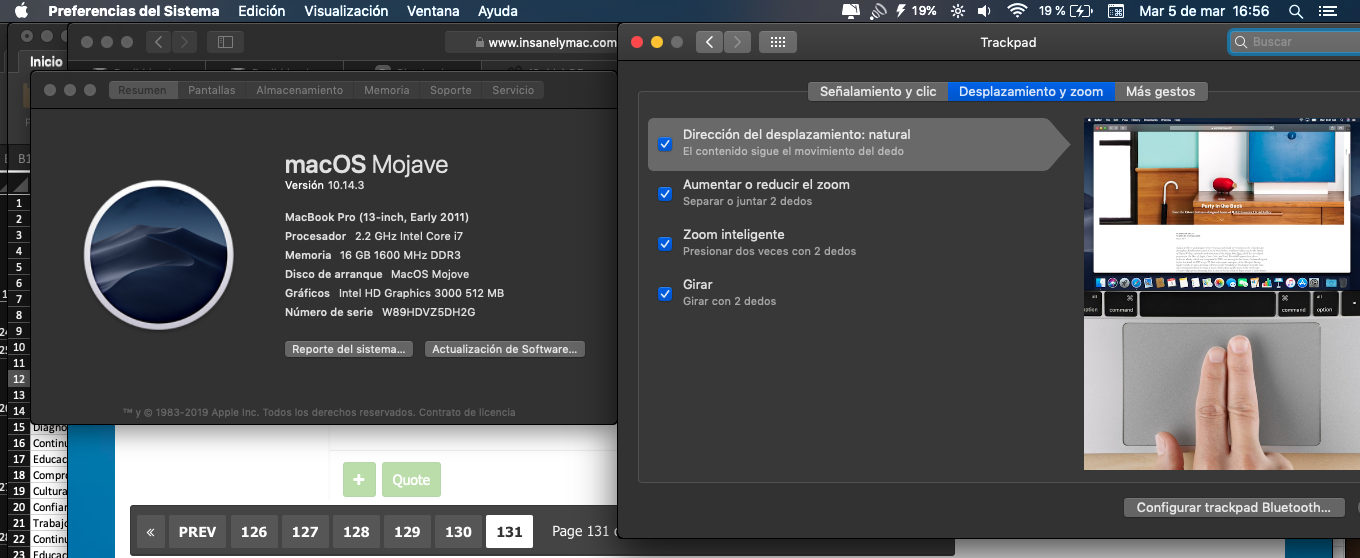

Use this clover folder, only replace DSDT and SSDT in ACPI patched Core i5. My laptop use core i7 2670QM don´t work in your N5110. Don't install or use more kexts.  Refer to this guide http://dosdude1.com/mojave/ to install correctly.

Mojave don´t funtion with HD3000 (N5110)

Visit post #1 to obtain DSDT and SSDT (pre–install)

CLOVER.zip

Edited by Kakaro
Link to comment
Share on other sites

15 hours ago, Kakaro said:

Use this clover folder, only replace DSDT and SSDT in ACPI patched Core i5. My laptop use core i7 2670QM don´t work in your N5110. Don't install or use more kexts.  Refer to this guide http://dosdude1.com/mojave/ to install correctly.

 Mojave don´t funtion with HD3000 (N5110)

Visit post #1 to obtain DSDT and SSDT (pre–install)

CLOVER.zip

thank you bro

Link to comment
