nanotech
nanotech
Posted
Posted
18 minutes ago, mohammed-dirdasawi said:

i will trying it very soon... thanks :)

When I tried to install MacOS on my windows 10 HDD the installer  error message told me that my installation may destroy my windows and makes it not bootable ,which assure that the Sierra installer knows exactly what OS we already installed on our system, its defiantly checks for boot entries in the boot sector of the HDD ,SO if you formatted your target partition  without removing Sierra boot entries it my consider that you have Sierra already installed and throws this odd error.

Link to comment
Share on other sites
nanotech
nanotech
Posted
Posted
On 11/14/2018 at 10:19 PM, Kakaro said:

It is also failing the screen, dashes or pixels are all, the battery indicator fails, every time the key does not appear and you have to enter system preferences, save energy and check in to show the status of the battery in the bar of menus. The load indicator also fails, it freezes and you have to enter the icon and uncheck and redial in show percentage, this will be by the kext ACPIBatteryManager.kext?

Does the same thing happen to you?

Regarding artifacts in Mojave ,its fundamental after each major MacOS release . not only for Hackintosh but also for real MAC systems.

for this case there is a nice workaround using SwitchResX start from here

by the way , I have replaced my lcd module ( 65.2 kHz pixel clock ) with LG lcd module ( 71.2 kHz pixel clock) ,which dramatically reduced artifacts in mountain lion and all newer MacOS , you can change pixel  clock with SwitchResX

without any need to replace your LCD module





Link to comment
Share on other sites
Kakaro
Kakaro
Posted
Posted (edited)
On 11/15/2018 at 8:48 AM, styrian said:

Hello!



I have seveeral times read, that ACPIPoller.kext of Rehabman could solve promlems with acpi readout for battery etc. Could be found on his BitBucket.



Have fun.

ACPIPoller.kext the solution, thanks styrian

Edited by Kakaro
  • Like 2
Link to comment
Share on other sites
  • 2 weeks later...
nanotech
nanotech
Posted
Posted
On 11/30/2018 at 3:07 AM, Kakaro said:

Hello everyone, since installing the ACPIPoller kext I have not had any system freezes, it's Mojave l

uxury. How are you doing, report

Thanks for your feedback , its rarly freezes with me , ACPIPoller kext got things much more better

  • Thanks 1
Link to comment
Share on other sites
nanotech
nanotech
Posted
Posted (edited)
20 hours ago, mers-08 said:

What about sleep mode?

what exactly happens easly described as

The system perfectly sleeps  but the problem  is walking from a sleep.( i have monitord the system and found that it performs all sleeping kernel calls and indeed its sleeps perfectly well )

One big assumption is :

One or some of ducedude1's  platform patching are not walking from a sleep so that the kernal is sureprized that the system is not compatibale !! To Mojave

So it goes into endless looping of checking .

This is just an assumption .

If we  intiated artificial kernel panic we can see what exactly dosdude1's patching kexts and processes are loaded , so we may find any clues.



Edited by nanotech
Link to comment
Share on other sites
mers-08
mers-08
Posted
Posted
15 hours ago, Kakaro said:

The sleep mode does not work for me. The fan runs at many revolutions and quickly drains the battery

The same problem.  And after installing ACPIPoller kext in the S/L/E directory, the battery icon periodically disappear. I have to put a tick in the energy settings.

Link to comment
Share on other sites
  • 3 weeks later...
PetrusDeMelo
PetrusDeMelo
Posted
Posted

I was able to install Mojave successfully! But I had to look for tutorials for Intel HD 3000 and Wifi. I suggest anyone trying to make it update the drivers of post_install and pre_install with the latest versions of the internet. You do not need the MOD BIOS, just install Clover in Legacy.

  • Like 1
Link to comment
Share on other sites
omdsmr
omdsmr
Posted
Posted (edited)

Hello  nanotech,  my N5110 with spects:

  • Intel Core i5-2430M processor
  • 15.6-inch 1366×768 display with LED backlighting.
  • Intel HD 3000  integrated graphics  & Nvidia GT525m .
  • 12GB DDR3 memory (1333MHz).
  • 128G SSD .



with your 127 page  guide, I can install MacOS Mojave,
 But I have encountered some problems and can't solve it all the time.



I have already installed all SNB/HD3000 kexts  from a previous macOS version  to /S/L/E:

AppleIntelHD3000Graphics.kext

AppleIntelHD3000GraphicsGA.plugin

AppleIntelHD3000GraphicsGLDriver.bundle

AppleIntelHD3000GraphicsVADriver.bundle

AppleIntelSNBGraphicsFB.kext

AppleIntelSNBVA.bundle

But

When S/L/E have : AppleIntelSNBGraphicsFB.kext

I can't enter my computer, the computer is stuck at

“IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0”



So I delete AppleIntelSNBGraphicsFB.kext Then I can enter my computer.

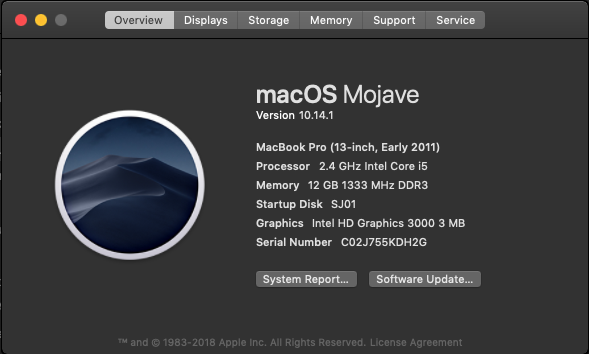

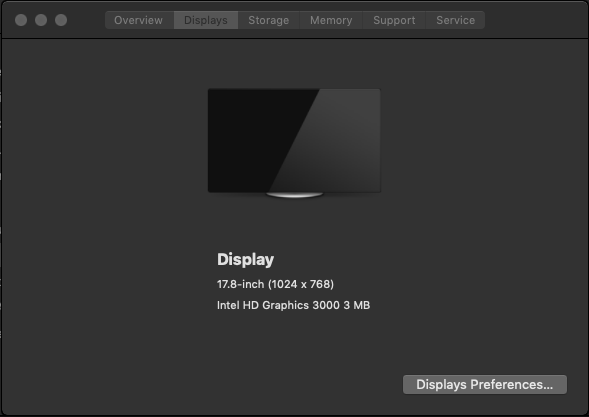

But My computer resolution is only 1024*768, my graphics card hd 3000 memory is only 3MB ：

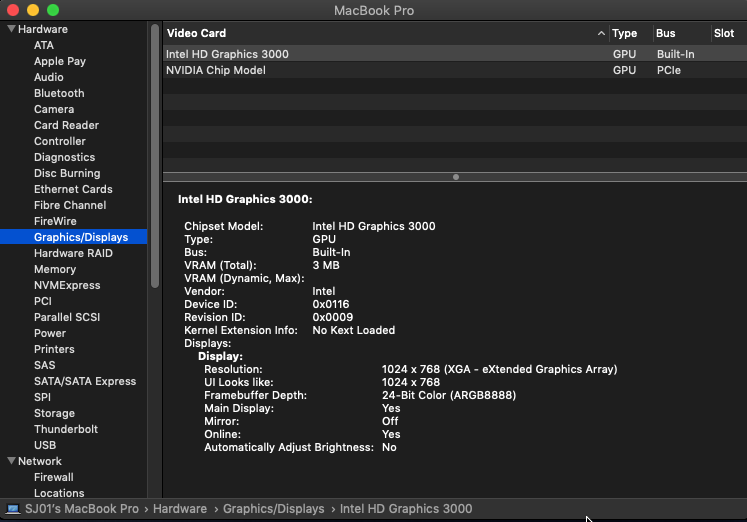

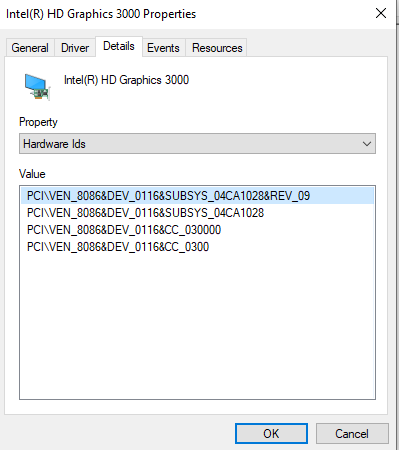

My graphics card hd 3000 configuration：






My EFI file:



EFI-clover-4722.zip







can you help me? thank you very much！





Edited by omdsmr
Link to comment
Share on other sites
ezee
ezee
Posted
Posted
2 hours ago, omdsmr said:

Hello  nanotech,  my N5110 with spects:

  • Intel Core i5-2430M processor
  • 15.6-inch 1366×768 display with LED backlighting.
  • Intel HD 3000  integrated graphics  & Nvidia GT525m .
  • 12GB DDR3 memory (1333MHz).
  • 128G SSD .



with your 127 page  guide, I can install MacOS Mojave,
but But I have encountered some problems and can't solve it all the time.

When S/L/E have : AppleIntelSNBGraphicsFB.kext

I can't enter my computer, the computer is stuck at

“IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0”



So I delete AppleIntelSNBGraphicsFB.kext Then I can enter my computer.

But My computer resolution is only 1024*768, my graphics card hd 3000 memory is only 3MB ：













My graphics card hd 3000 configuration：






My EFI file:



EFI-clover-4722.zip







can you help me? thank you very much！





Use whatevergreen.kext. There are two SNB kext in 10.12.x use both not just one. I am not seeing any issue in light mode.



Anybody has got nice touchpad? please share kext. I don't know how to tune-up ps2controller kext to suite our touchpad.

Link to comment
Share on other sites
omdsmr
omdsmr
Posted
Posted
7 hours ago, Hervé said:

You need to install all SNB/HD3000 kexts as provided here:

https://osxlatitude.com/forums/topic/10726-macos-1014-mojave-betas-releases/?do=findComment&comment=83039

hey，Hervé ，I have already installed all SNB/HD3000 kexts  from a previous macOS version  to /S/L/E:

AppleIntelHD3000Graphics.kext

AppleIntelHD3000GraphicsGA.plugin

AppleIntelHD3000GraphicsGLDriver.bundle

AppleIntelHD3000GraphicsVADriver.bundle

AppleIntelSNBGraphicsFB.kext

AppleIntelSNBVA.bundle



but

When S/L/E have : AppleIntelSNBGraphicsFB.kext

I can't enter my computer, the computer is stuck at

“IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0”



So I delete AppleIntelSNBGraphicsFB.kext Then I can enter my computer.

But My computer resolution is only 1024*768, my graphics card hd 3000 memory is only 3MB .

Sad, I still can't fix it.

Why





Link to comment
Share on other sites
omdsmr
omdsmr
Posted
Posted (edited)



On 11/4/2018 at 12:51 PM, nanotech said:

Hello KaKaro, yes it is, N5110 with spects:

  • Intel Core i5-2430M processor (2.3GHz, 3MB cache, 3.0GHz Turbo Boost)
  • 15.6-inch 1366×768 display with LED backlighting.
  • 6GB DDR3 memory (1333MHz).
  • 500GB 5400rpm HDD.
  • Intel HD 3000  integrated graphics.
  • with Nvidia GT525m .
  • 8X Tray Load CD/DVD Burner.
  • Hint:1st post guide in this thread is no longer valid  completely for Mojave  it needs some update Modifications , I created a master boot record fat32 flash USB disk 8gb, installed latest clover boot loader , toked , my SSDT-4 and DSDT files   according to my configuration and used them as described in the video from the first post but I  put them into the clover/ ACPI/patched of the EFI folder of the newly installed  latest clover boot loader USB flash disk ,I did not use the EFI folder from the video of the first post, its outdated, my aspects are closely related to MacBook Pro 8.1 so I have edited the config.plist extracted according to the video from the first post, now it looks like this :
  • <key>SMBIOS</key>
        <dict>
            <key>BiosVendor</key>
            <string>Apple Inc.</string>
            <key>BiosVersion</key>
            <string>MBP81.88Z.0047.B0E.1104221557</string>
            <key>BiosReleaseDate</key>
            <string>04/22/11</string>
            <key>Manufacturer</key>
            <string>Apple Inc.</string>
            <key>ProductName</key>
            <string>MacBookPro8,1</string>
            <key>Version</key>
            <string>1.0</string>
            <key>Family</key>
            <string>MacBook Pro</string>
            <key>SerialNumber</key>
            <string>put your serial here </string>
            <key>BoardManufacturer</key>
            <string>Apple Inc.</string>
            <key>Board-ID</key>
            <string>94245B3640C91C86</string>
        </dict>
        <key>Boot</key>
  • created my 8.1 SMBIOS by the chameleon app from the pre install folder from the first post ,saved it in documents then replaced all the values of SMBIOS  in the  extracted config.plist( from the first post it was MacBook Pro 8.2) with the values of Macbook pro 8.1 SMBIOS. left the rest of config.plist as it is in the  EFI. folder I put latest FakeSMC.kext(google is your friend) , latest RehabMan VoodooPS2Controller.kext, (ACPIBatteryManager.kext and RealtekRTL8100.kext those tow kexts are from the guide of the first post )
  • then used dosdude1 guid installing Mojave on unsupported Macs
  • after complete  I have installed wifi and usb3
  • USB flash disk was only for boot loader boating I restored Mojave installer on GUID portion map  usb external hdd via dosdude1 Mojave patcher app and followed dosdude1s guide for that
  • USB 3.0 ports works although they are not listed in system information  still speed is not tested
  •



Hello  nanotech,  my N5110 with spects:

  • Intel Core i5-2430M processor
  • 15.6-inch 1366×768 display with LED backlighting.
  • Intel HD 3000  integrated graphics  & Nvidia GT525m .
  • 12GB DDR3 memory (1333MHz).
  • 128G SSD .



with your 127 page  guide, I can install MacOS Mojave,
 But I have encountered some problems and can't solve it all the time.



I have already installed all SNB/HD3000 kexts  from a previous macOS version  to /S/L/E:

AppleIntelHD3000Graphics.kext

AppleIntelHD3000GraphicsGA.plugin

AppleIntelHD3000GraphicsGLDriver.bundle

AppleIntelHD3000GraphicsVADriver.bundle

AppleIntelSNBGraphicsFB.kext

AppleIntelSNBVA.bundle

But

When S/L/E have : AppleIntelSNBGraphicsFB.kext

I can't enter my computer, the computer is stuck at

“IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0”



So I delete AppleIntelSNBGraphicsFB.kext Then I can enter my computer.

But My computer resolution is only 1024*768, my graphics card hd 3000 memory is only 3MB ：













My graphics card hd 3000 configuration：






My EFI file:



EFI-clover-4722.zip







can you help me? thank you very much！

Edited by omdsmr
Link to comment
Share on other sites
ezee
ezee
Posted
Posted (edited)

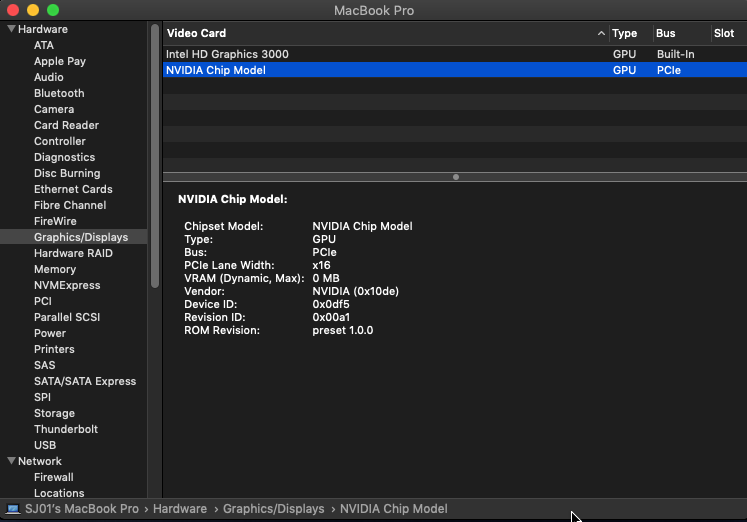

why there you have Nvidia showing ? use this patch

SSDT_DGPU.aml



Also in BIOS

  1. Set Initial Display Output to IGFX
  2. Set Internal Graphics to Auto/Enabled
  3. Set DVMT Pre-Allocated to 64MB
  4. Set DVMT Total Gfx Memory to 256/128MB
Edited by ezee
Link to comment
Share on other sites
Sender
Sender
Posted
Posted (edited)

Hi guys! Could you send me a working EFI with Clover, kexts, konfig.plist and patches for Hight Sierra.

Thank you in advanse



  • Intel Core i5-2430M processor
  • 15.6-inch 1366×768 display with LED backlighting.
  • Intel HD 3000  integrated graphics  & Nvidia GT525m .
  • 12GB DDR3 memory (1333MHz).
Edited by Sender
Link to comment
Share on other sites
omdsmr
omdsmr
Posted
Posted
On 1/1/2019 at 2:13 PM, ezee said:

why there you have Nvidia showing ? use this patch

SSDT_DGPU.aml



Also in BIOS

  1. Set Initial Display Output to IGFX
  2. Set Internal Graphics to Auto/Enabled
  3. Set DVMT Pre-Allocated to 64MB
  4. Set DVMT Total Gfx Memory to 256/128MB

thank you for your help! Through your  patch

now my computer  only has hd3000 graphics card




but Unfortunately, I still didn't solve my problem.



When S/L/E have : AppleIntelSNBGraphicsFB.kext

I can't enter my computer, the computer is stuck at

“IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0”



So I delete AppleIntelSNBGraphicsFB.kext Then I can enter my computer.

But My computer resolution is only 1024*768, my graphics card hd 3000 memory is only 3MB ：





I tried a lot of methods through Google, but still can't solve it. Really desperate,sad







Link to comment
Share on other sites
