[Guide] Lion on GA-EP45-UD3R - very close to perfection

Bandes · September 20, 2012

10.8.2. is out.

Anyone tried to upgrade ?

xopher · October 1, 2012

10.8.2. is out.

Anyone tried to upgrade ?

I just did. Everything worked out after some fiddling around.

I initially encountered a non-booting system because of OemSMBIOS.kext. I changed my whole FakeSMC setup to a different one (as read here: http://www.insanelym...00#entry1855095). That way I didn't have to downgrade AppleACPIPlatform.kext, which has been touted as a solution by some.

After changing to this other branch of FakeSMC, my system booted (sans safe mode), and I just had to fix audio to get things up and running as per usual.

Edit: I also updated my Chameleon to r2064. Don't think that had anything to do with any of my problems (or solutions) though.

Edited October 19, 2012 by xopher

Bandes · October 14, 2012

Upgraded too. Could not boot after that. Constant reboots, kernel panic like freeze. So i rolled back to previous AppleACPIPlatform.kext using install dvd, and now it boots again. Sound works still without any patching and all the rest too.

Update: The system can't boot only if i choose Ignore Caches. Otherwise it gets rebooting in the middle of boot process. Something is wrong with the kext cache, and it seems no easy way there to fix it anymore (?)

Update2: Finally kextcache was rebuilt. New AppleHDA(10.8.2) is not working, i had a previous version loaded all the time (from 10.6.2 named AppleHDA1062.kext which was from the iAtkos Lion install disk). I am using now version 10.6.8. its fine too. Will upgrade to a patched 10.8.2. version some time since HDA Patcher not working with this one yet. Meanwhile the fragile HFS file system got damaged again. Luckily Disk Utility fixed it as it looks from my Lion install DVD. But there are problems still. Quicktime does not start. Console and Reminders app crashes. Others ran into this too. There seems to be a solution, but i haven't started on that. I am just happy i can boot at least now. This b!tch OS with its b!tch filesystem..

xopher · October 19, 2012

Sad to see you too ran into problems.

Anyway, I installed the 10.8.2 supplemental update, which didn't cause any additional havoc on my setup.

Bandes · March 21, 2013

10.8.3. is out.

might try to upgrade to that soon.

xopher · May 28, 2013

10.8.3. is out.
might try to upgrade to that soon.

I upgraded to 10.8.3 now. All is good.

Only the audio fixes and TRIM enabler needed to be redone for me.

I have updated Chameleon (and fakesmc plugins) to the latest versions as well.

My system feels snappier now, maybe just placebo though. Can anyone confirm possible performance improvements?

Cheers.

xopher · June 24, 2013

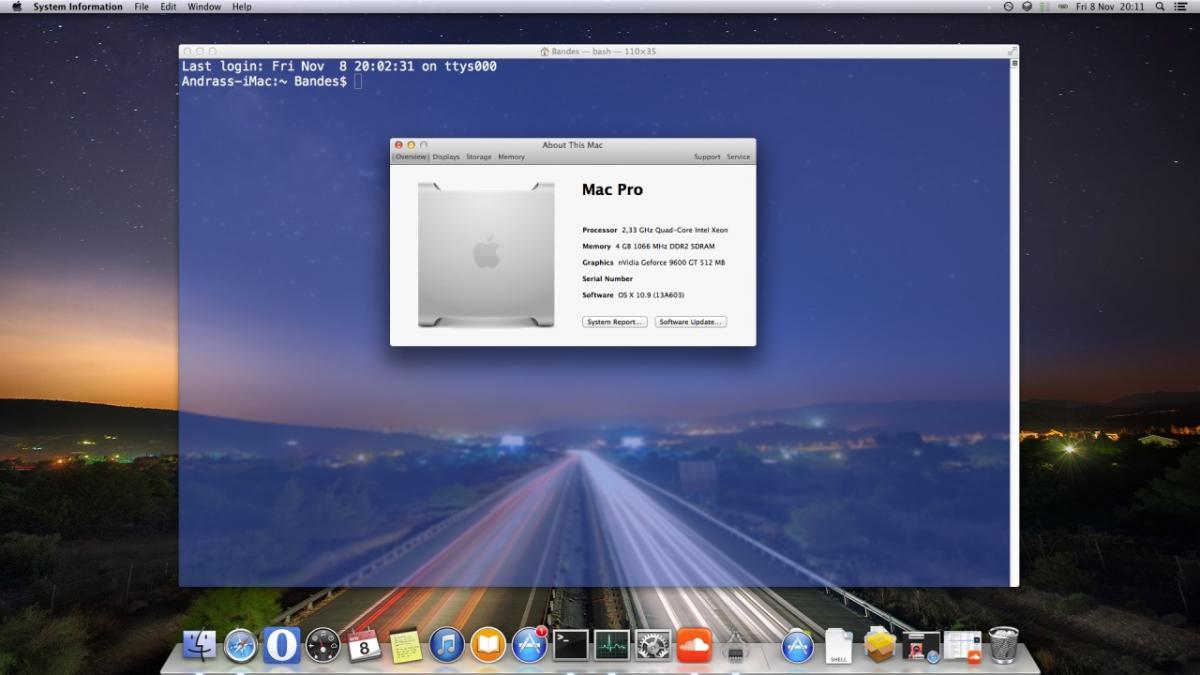

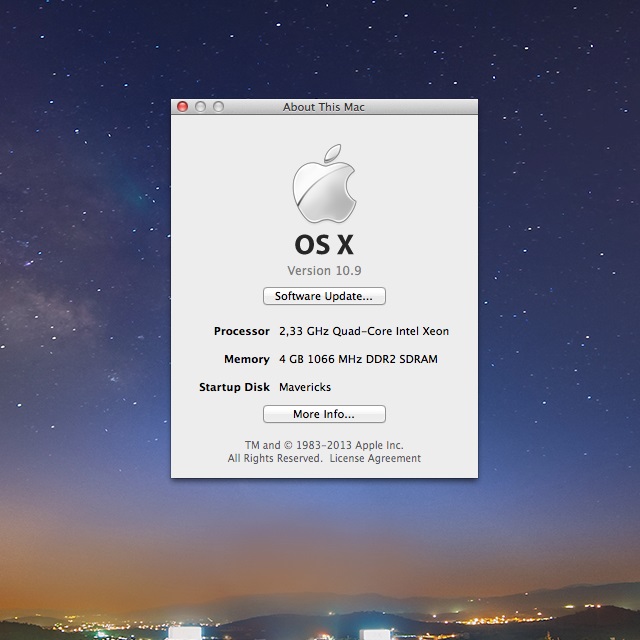

Okay, so I installed Mavericks - just to see if it works, and how well it works. Successfully I might add.

I followed this guide:

http://www.insanelymac.com/forum/topic/289062-109-mavericks-simple-vanilla-hackintosh-install-guide/

I have the latest Chameleon (2.2 r2251)

kozleks FakeSMC and HWSensors https://bitbucket.org/kozlek/hwsensors/downloads

lnx2mac's driver for ethernet http://lnx2mac.blogspot.fi/p/realtekrtl81xx-osx-driver.html

and these kexts for audio: https://www.dropbox.com/s/1fox4hfgiy87nsx/EP45-UD3R-ALC889a.zip

Everything seems to be running just fine, but I'm sure there's something missing or in need of tweaking. Where's the fun otherwise

This is my bdmesg:

Chameleon 2.2svn (svn-r2251) [2013-06-23 23:03:56]
msr(454): ia32_perf_stat 0x06000825
max: 8 current: 8
CPU: Brand String:             Intel(R) Core(TM)2 Quad CPU    Q8400  @ 2.66GHz
CPU: Vendor/Family/ExtFamily:  0x756e6547/0x6/0x0
CPU: Model/ExtModel/Stepping:  0x17/0x1/0xa
CPU: MaxCoef/CurrCoef:         0x8/0x8
CPU: MaxDiv/CurrDiv:           0x0/0x0
CPU: TSCFreq:                  3200MHz
CPU: FSBFreq:                  400MHz
CPU: CPUFreq:                  3200MHz
CPU: NoCores/NoThreads:        4/4
CPU: Features:                 0x0000025f
Attempting to read GPT
Read GPT
Reading GPT partition 1, type C12A7328-F81F-11D2-BA4B-00A0C93EC93B
Reading GPT partition 2, type 48465300-0000-11AA-AA11-00306543ECAC
Read HFS+ file: [hd(0,2)/System/Library/CoreServices/SystemVersion.plist] 478 bytes.
Read HFS+ file: [hd(0,2)/Extra/org.chameleon.Boot.plist] 588 bytes.
Attempting to read GPT
Read GPT
Reading GPT partition 1, type C12A7328-F81F-11D2-BA4B-00A0C93EC93B
Reading GPT partition 2, type 48465300-0000-11AA-AA11-00306543ECAC
Attempting to read GPT
Read GPT
Reading GPT partition 1, type C12A7328-F81F-11D2-BA4B-00A0C93EC93B
Reading GPT partition 2, type 48465300-0000-11AA-AA11-00306543ECAC
Reading GPT partition 3, type EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
Read HFS+ file: [hd(2,2)/System/Library/CoreServices/SystemVersion.plist] 476 bytes.
Attempting to read GPT
Read GPT
Reading GPT partition 1, type C12A7328-F81F-11D2-BA4B-00A0C93EC93B
Reading GPT partition 2, type 48465300-0000-11AA-AA11-00306543ECAC
Read HFS+ file: [hd(3,2)/System/Library/CoreServices/SystemVersion.plist] 476 bytes.
Module 'Symbols.dylib' by 'Chameleon' Loaded.
	Description: Chameleon symbols for linking
	Version: 0
	Compat:  0
Read HFS+ file: [hd(0,2)/Extra/modules/FileNVRAM.dylib] 56068 bytes.
Module 'FileNVRAM.dylib' by 'Unknown' Loaded.
	Description:
	Version: 0
	Compat:  0
Read HFS+ file: [hd(0,2)/Extra/modules/Keylayout.dylib] 13464 bytes.
Module 'Keylayout.dylib' by 'Unknown' Loaded.
	Description:
	Version: 0
	Compat:  0
Read HFS+ file: [hd(0,2)/Extra/Keymaps/mac-se.lyt] 464 bytes.
Read HFS+ file: [hd(0,2)/Extra/modules/Sata.dylib] 12980 bytes.
Module 'Sata.dylib' by 'Unknown' Loaded.
	Description:
	Version: 0
	Compat:  0
Read HFS+ file: [hd(2,2)/Extra/nvram.00000000-0000-0000-0000-001fd0d4825b.plist] 1226 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/theme.plist] 2709 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/background.png] 2938 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/logo.png] 3016 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_generic.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_hfsplus.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_ext3.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_fat16.png] 24086 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_fat32.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_ntfs.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_cdrom.png] 24086 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_selection.png] 6079 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_scroll_prev.png] 4061 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_scroll_next.png] 3968 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_boot.png] 621 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_verbose.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_ignore_caches.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_single_user.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_memory_info.png] 621 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_video_info.png] 621 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_help.png] 621 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_verbose_disabled.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_ignore_caches_disabled.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_single_user_disabled.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_selection.png] 3220 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/progress_bar.png] 2806 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/progress_bar_background.png] 2801 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/text_scroll_prev.png] 2935 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/text_scroll_next.png] 2940 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/font_console.png] 13715 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/font_small.png] 8303 bytes.
Read HFS+ file: [hd(2,2)/Library/Preferences/SystemConfiguration/com.apple.Boot.plist] 232 bytes.
Read HFS+ file: [hd(2,2)/Extra/org.chameleon.Boot.plist] 638 bytes.
Loading Darwin 10.9
Loading kernel cache /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache
Read HFS+ file: [hd(2,2)/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache] 4096 bytes.
Read HFS+ file: [hd(2,2)/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache] 17343204 bytes.
Read HFS+ file: [hd(2,2)/Extra/DSDT.aml] 15917 bytes.
Using PCI-Root-UID value: 1
Framebuffer @0xE0000000  MMIO @0xFDDC0000	I/O Port @0x0000EE00 ROM Addr @0x00000000
ATI card POSTed, reading Video BIOS from legacy space
Framebuffer set to device's default: Duckweed
# of ports set to framebuffer's default: 4
ATI Barts AMD Radeon HD 6870 Series 1024MB (Duckweed) [1002:6738] (subsys [1043:03b0]):: PciRoot(0x1)/Pci(0x1,0x0)/Pci(0x0,0x0)
LAN Controller [10ec:8168] :: PciRoot(0x1)/Pci(0x1c,0x4)/Pci(0x0,0x0)
Setting up lan keys
Read HFS+ file: [hd(2,2)/Extra/smbios.plist] 814 bytes.
Intel P45/G45 DRAM Controller [8086:2e20] at 00:00.0
Frequency detected: 533 MHz (1066) Dual Channel
	CAS:5 tRC:5 tRP:5 RAS:15 (5-5-5-15)
SMBus CmdReg: 0x3
Scanning SMBus [8086:3a30], mmio: 0xfdffc004, ioport: 0x500, hostc: 0x1
SPD[0] (size): 255 @0x50
SPD[0] (size): 128 @0x51
Slot: 1 Type 19 2048MB (DDR2 SDRAM) 1066MHz Vendor=Kingston
      PartNo=2G-UDIMM SerialNo=D9CCA793
SPD[0] (size): 255 @0x52
SPD[0] (size): 128 @0x53
Slot: 3 Type 19 2048MB (DDR2 SDRAM) 1066MHz Vendor=Kingston
      PartNo=2G-UDIMM SerialNo=BBCCD75F
SPD[0] (size): 255 @0x54
SPD[0] (size): 255 @0x55
SPD[0] (size): 255 @0x56
SPD[0] (size): 255 @0x57
CPU is Intel(R) Core(TM)2 Quad CPU    Q8400  @ 2.66GHz, family 0x6, model 0x17

Type: 0, Length: 24, Handle: 0x0
BIOSInformation:
	vendor: Apple Computer, Inc.
	version: MP31.88Z.006C.B05.0802291410
	releaseDate: 02/29/08

Type: 1, Length: 27, Handle: 0x1
SystemInformation:
	manufacturer: Apple Computer, Inc.
	productName: MacPro3,1
	version: 1.0
	serialNumber: CK941606XYL
	uuid: 00000000-0000-0000-0000-001FD0D4825B
	wakeupReason: 0x6
	skuNumber: Ë
	family: Mac Pro

Type: 2, Length: 8, Handle: 0x2
BaseBoard:
	manufacturer: Apple Inc.
	product: Mac-F42C88C8
	version: x.x
	serialNumber: Ë
	assetTagNumber:
	locationInChassis:
	boardType: 0x20

Type: 3, Length: 17, Handle: 0x3
SystemEnclosure:
	manufacturer: Gigabyte Technology Co., Ltd.
	type: 3
	version:
	serialNumber:
	assetTagNumber:

Type: 4, Length: 35, Handle: 0x4
ProcessorInformation:
	socketDesignation: Socket 775
	processorType: 3
	processorFamily: 0x1
	manufacturer: Intel
	processorID: 0x1067A
	processorVersion: Intel(R) Core(TM)2 Quad CPU
	externalClock: 400MHz
	maximumClock: 3200MHz
	currentClock: 3200MHz
	serialNumber: Ë
	assetTag: Ë
	partNumber: Ë

Type: 5, Length: 24, Handle: 0x5
Type: 6, Length: 12, Handle: 0x6
Type: 6, Length: 12, Handle: 0x7
Type: 6, Length: 12, Handle: 0x8
Type: 6, Length: 12, Handle: 0x9
Type: 7, Length: 19, Handle: 0xa
Type: 7, Length: 19, Handle: 0xb
Type: 8, Length: 9, Handle: 0xc
Type: 8, Length: 9, Handle: 0xd
Type: 8, Length: 9, Handle: 0xe
Type: 8, Length: 9, Handle: 0xf
Type: 8, Length: 9, Handle: 0x10
Type: 8, Length: 9, Handle: 0x11
Type: 8, Length: 9, Handle: 0x12
Type: 8, Length: 9, Handle: 0x13
Type: 8, Length: 9, Handle: 0x14
Type: 8, Length: 9, Handle: 0x15
Type: 9, Length: 13, Handle: 0x16
Type: 9, Length: 13, Handle: 0x17
Type: 9, Length: 13, Handle: 0x18
Type: 13, Length: 22, Handle: 0x19
Type: 16, Length: 15, Handle: 0x1a
Type: 17, Length: 27, Handle: 0x1b
MemoryDevice:
	deviceLocator: A0
	bankLocator: Bank0/1
	memoryType: RAM
	memorySpeed: 0MHz
	manufacturer: N/A
	serialNumber: N/A
	assetTag: Ë
	partNumber: N/A

Type: 17, Length: 27, Handle: 0x1c
MemoryDevice:
	deviceLocator: A1
	bankLocator: Bank2/3
	memoryType: DDR2 SDRAM
	memorySpeed: 1066MHz
	manufacturer: Kingston
	serialNumber: D9CCA793
	assetTag: Ë
	partNumber: 2G-UDIMM

Type: 17, Length: 27, Handle: 0x1d
MemoryDevice:
	deviceLocator: A2
	bankLocator: Bank4/5
	memoryType: RAM
	memorySpeed: 0MHz
	manufacturer: N/A
	serialNumber: N/A
	assetTag: Ë
	partNumber: N/A

Type: 17, Length: 27, Handle: 0x1e
MemoryDevice:
	deviceLocator: A3
	bankLocator: Bank6/7
	memoryType: DDR2 SDRAM
	memorySpeed: 1066MHz
	manufacturer: Kingston
	serialNumber: BBCCD75F
	assetTag: Ë
	partNumber: 2G-UDIMM

Type: 19, Length: 15, Handle: 0x1f
Type: 20, Length: 19, Handle: 0x20
Type: 20, Length: 19, Handle: 0x21
Type: 20, Length: 19, Handle: 0x22
Type: 20, Length: 19, Handle: 0x23
Type: 32, Length: 11, Handle: 0x24
Type: 64, Length: 22, Handle: 0x25
Type: 131, Length: 6, Handle: 0x25
AppleProcessorType:
	ProcessorType: 0x501

Type: 127, Length: 4, Handle: 0x26

Customizing SystemID with : 00000000-0000-0000-0000-001fd0d4825b
Read HFS+ file: [hd(2,2)/Extra/DSDT.aml] 15917 bytes.
ACPI table not found: SSDT.aml
FADT: ACPI Restart Fix applied!
FADT: Using custom DSDT!
Found ACPI CPU: CPU0
Found ACPI CPU: CPU1
Found ACPI CPU: CPU2
Found ACPI CPU: CPU3
SSDT with CPU C-States generated successfully
SSDT with CPU P-States generated successfully
RSDT: Added 2 SSDT table(s)
LoadDrivers: Loading from [/Extra/Extensions.mkext]
Read HFS+ file: [hd(2,2)/Extra/Extensions.mkext] 4096 bytes.
Read HFS+ file: [hd(2,2)/Extra/Extensions.mkext] 183839 bytes.
Starting Darwin x86_64
Boot Args: boot-uuid=12950918-281B-3BF0-812B-BB7A2C24C700 rd=*uuid -v darkwake=0

Bandes · June 24, 2013

I upgraded to 10.8.3 now. All is good.

Only the audio fixes and TRIM enabler needed to be redone for me.

I have updated Chameleon (and fakesmc plugins) to the latest versions as well.

My system feels snappier now, maybe just placebo though. Can anyone confirm possible performance improvements?

Cheers.

Fine! I did not try until now cause i read some negative comments about the update somewhere. It's always a stress for me since i have no real backup system and i had quite some times that i had to mess around with single user mode and drivers etc. after an update. Meanwhile 10.8.4. is out already.

I haven't find a AppleHDA patcher for ML yet, altough there should be one now. What AppleHDA version do you have on your 10.8.3 system by the way ?

Okay, so I installed Mavericks - just to see if it works, and how well it works. Successfully I might add.

I followed this guide:

http://www.insanelymac.com/forum/topic/289062-109-mavericks-simple-vanilla-hackintosh-install-guide/

I have the latest Chameleon (2.2 r2251)

kozleks FakeSMC and HWSensors https://bitbucket.org/kozlek/hwsensors/downloads

lnx2mac's driver for ethernet http://lnx2mac.blogspot.fi/p/realtekrtl81xx-osx-driver.html

and these kexts for audio: https://www.dropbox.com/s/1fox4hfgiy87nsx/EP45-UD3R-ALC889a.zip

Everything seems to be running just fine, but I'm sure there's something missing or in need of tweaking. Where's the fun otherwise

This is my bdmesg:

Chameleon 2.2svn (svn-r2251) [2013-06-23 23:03:56]
msr(454): ia32_perf_stat 0x06000825
max: 8 current: 8
CPU: Brand String:             Intel(R) Core(TM)2 Quad CPU    Q8400  @ 2.66GHz
CPU: Vendor/Family/ExtFamily:  0x756e6547/0x6/0x0
CPU: Model/ExtModel/Stepping:  0x17/0x1/0xa
CPU: MaxCoef/CurrCoef:         0x8/0x8
CPU: MaxDiv/CurrDiv:           0x0/0x0
CPU: TSCFreq:                  3200MHz
CPU: FSBFreq:                  400MHz
CPU: CPUFreq:                  3200MHz
CPU: NoCores/NoThreads:        4/4
CPU: Features:                 0x0000025f
Attempting to read GPT
Read GPT
Reading GPT partition 1, type C12A7328-F81F-11D2-BA4B-00A0C93EC93B
Reading GPT partition 2, type 48465300-0000-11AA-AA11-00306543ECAC
Read HFS+ file: [hd(0,2)/System/Library/CoreServices/SystemVersion.plist] 478 bytes.
Read HFS+ file: [hd(0,2)/Extra/org.chameleon.Boot.plist] 588 bytes.
Attempting to read GPT
Read GPT
Reading GPT partition 1, type C12A7328-F81F-11D2-BA4B-00A0C93EC93B
Reading GPT partition 2, type 48465300-0000-11AA-AA11-00306543ECAC
Attempting to read GPT
Read GPT
Reading GPT partition 1, type C12A7328-F81F-11D2-BA4B-00A0C93EC93B
Reading GPT partition 2, type 48465300-0000-11AA-AA11-00306543ECAC
Reading GPT partition 3, type EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
Read HFS+ file: [hd(2,2)/System/Library/CoreServices/SystemVersion.plist] 476 bytes.
Attempting to read GPT
Read GPT
Reading GPT partition 1, type C12A7328-F81F-11D2-BA4B-00A0C93EC93B
Reading GPT partition 2, type 48465300-0000-11AA-AA11-00306543ECAC
Read HFS+ file: [hd(3,2)/System/Library/CoreServices/SystemVersion.plist] 476 bytes.
Module 'Symbols.dylib' by 'Chameleon' Loaded.
	Description: Chameleon symbols for linking
	Version: 0
	Compat:  0
Read HFS+ file: [hd(0,2)/Extra/modules/FileNVRAM.dylib] 56068 bytes.
Module 'FileNVRAM.dylib' by 'Unknown' Loaded.
	Description:
	Version: 0
	Compat:  0
Read HFS+ file: [hd(0,2)/Extra/modules/Keylayout.dylib] 13464 bytes.
Module 'Keylayout.dylib' by 'Unknown' Loaded.
	Description:
	Version: 0
	Compat:  0
Read HFS+ file: [hd(0,2)/Extra/Keymaps/mac-se.lyt] 464 bytes.
Read HFS+ file: [hd(0,2)/Extra/modules/Sata.dylib] 12980 bytes.
Module 'Sata.dylib' by 'Unknown' Loaded.
	Description:
	Version: 0
	Compat:  0
Read HFS+ file: [hd(2,2)/Extra/nvram.00000000-0000-0000-0000-001fd0d4825b.plist] 1226 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/theme.plist] 2709 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/background.png] 2938 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/logo.png] 3016 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_generic.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_hfsplus.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_ext3.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_fat16.png] 24086 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_fat32.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_ntfs.png] 16789 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_cdrom.png] 24086 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_selection.png] 6079 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_scroll_prev.png] 4061 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/device_scroll_next.png] 3968 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_boot.png] 621 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_verbose.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_ignore_caches.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_single_user.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_memory_info.png] 621 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_video_info.png] 621 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_help.png] 621 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_verbose_disabled.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_ignore_caches_disabled.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_single_user_disabled.png] 2817 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/menu_selection.png] 3220 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/progress_bar.png] 2806 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/progress_bar_background.png] 2801 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/text_scroll_prev.png] 2935 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/text_scroll_next.png] 2940 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/font_console.png] 13715 bytes.
Read HFS+ file: [hd(0,2)/Extra/Themes/Default/font_small.png] 8303 bytes.
Read HFS+ file: [hd(2,2)/Library/Preferences/SystemConfiguration/com.apple.Boot.plist] 232 bytes.
Read HFS+ file: [hd(2,2)/Extra/org.chameleon.Boot.plist] 638 bytes.
Loading Darwin 10.9
Loading kernel cache /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache
Read HFS+ file: [hd(2,2)/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache] 4096 bytes.
Read HFS+ file: [hd(2,2)/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache] 17343204 bytes.
Read HFS+ file: [hd(2,2)/Extra/DSDT.aml] 15917 bytes.
Using PCI-Root-UID value: 1
Framebuffer @0xE0000000  MMIO @0xFDDC0000	I/O Port @0x0000EE00 ROM Addr @0x00000000
ATI card POSTed, reading Video BIOS from legacy space
Framebuffer set to device's default: Duckweed
# of ports set to framebuffer's default: 4
ATI Barts AMD Radeon HD 6870 Series 1024MB (Duckweed) [1002:6738] (subsys [1043:03b0]):: PciRoot(0x1)/Pci(0x1,0x0)/Pci(0x0,0x0)
LAN Controller [10ec:8168] :: PciRoot(0x1)/Pci(0x1c,0x4)/Pci(0x0,0x0)
Setting up lan keys
Read HFS+ file: [hd(2,2)/Extra/smbios.plist] 814 bytes.
Intel P45/G45 DRAM Controller [8086:2e20] at 00:00.0
Frequency detected: 533 MHz (1066) Dual Channel
	CAS:5 tRC:5 tRP:5 RAS:15 (5-5-5-15)
SMBus CmdReg: 0x3
Scanning SMBus [8086:3a30], mmio: 0xfdffc004, ioport: 0x500, hostc: 0x1
SPD[0] (size): 255 @0x50
SPD[0] (size): 128 @0x51
Slot: 1 Type 19 2048MB (DDR2 SDRAM) 1066MHz Vendor=Kingston
      PartNo=2G-UDIMM SerialNo=D9CCA793
SPD[0] (size): 255 @0x52
SPD[0] (size): 128 @0x53
Slot: 3 Type 19 2048MB (DDR2 SDRAM) 1066MHz Vendor=Kingston
      PartNo=2G-UDIMM SerialNo=BBCCD75F
SPD[0] (size): 255 @0x54
SPD[0] (size): 255 @0x55
SPD[0] (size): 255 @0x56
SPD[0] (size): 255 @0x57
CPU is Intel(R) Core(TM)2 Quad CPU    Q8400  @ 2.66GHz, family 0x6, model 0x17

Type: 0, Length: 24, Handle: 0x0
BIOSInformation:
	vendor: Apple Computer, Inc.
	version: MP31.88Z.006C.B05.0802291410
	releaseDate: 02/29/08

Type: 1, Length: 27, Handle: 0x1
SystemInformation:
	manufacturer: Apple Computer, Inc.
	productName: MacPro3,1
	version: 1.0
	serialNumber: CK941606XYL
	uuid: 00000000-0000-0000-0000-001FD0D4825B
	wakeupReason: 0x6
	skuNumber: Ë
	family: Mac Pro

Type: 2, Length: 8, Handle: 0x2
BaseBoard:
	manufacturer: Apple Inc.
	product: Mac-F42C88C8
	version: x.x
	serialNumber: Ë
	assetTagNumber:
	locationInChassis:
	boardType: 0x20

Type: 3, Length: 17, Handle: 0x3
SystemEnclosure:
	manufacturer: Gigabyte Technology Co., Ltd.
	type: 3
	version:
	serialNumber:
	assetTagNumber:

Type: 4, Length: 35, Handle: 0x4
ProcessorInformation:
	socketDesignation: Socket 775
	processorType: 3
	processorFamily: 0x1
	manufacturer: Intel
	processorID: 0x1067A
	processorVersion: Intel(R) Core(TM)2 Quad CPU
	externalClock: 400MHz
	maximumClock: 3200MHz
	currentClock: 3200MHz
	serialNumber: Ë
	assetTag: Ë
	partNumber: Ë

Type: 5, Length: 24, Handle: 0x5
Type: 6, Length: 12, Handle: 0x6
Type: 6, Length: 12, Handle: 0x7
Type: 6, Length: 12, Handle: 0x8
Type: 6, Length: 12, Handle: 0x9
Type: 7, Length: 19, Handle: 0xa
Type: 7, Length: 19, Handle: 0xb
Type: 8, Length: 9, Handle: 0xc
Type: 8, Length: 9, Handle: 0xd
Type: 8, Length: 9, Handle: 0xe
Type: 8, Length: 9, Handle: 0xf
Type: 8, Length: 9, Handle: 0x10
Type: 8, Length: 9, Handle: 0x11
Type: 8, Length: 9, Handle: 0x12
Type: 8, Length: 9, Handle: 0x13
Type: 8, Length: 9, Handle: 0x14
Type: 8, Length: 9, Handle: 0x15
Type: 9, Length: 13, Handle: 0x16
Type: 9, Length: 13, Handle: 0x17
Type: 9, Length: 13, Handle: 0x18
Type: 13, Length: 22, Handle: 0x19
Type: 16, Length: 15, Handle: 0x1a
Type: 17, Length: 27, Handle: 0x1b
MemoryDevice:
	deviceLocator: A0
	bankLocator: Bank0/1
	memoryType: RAM
	memorySpeed: 0MHz
	manufacturer: N/A
	serialNumber: N/A
	assetTag: Ë
	partNumber: N/A

Type: 17, Length: 27, Handle: 0x1c
MemoryDevice:
	deviceLocator: A1
	bankLocator: Bank2/3
	memoryType: DDR2 SDRAM
	memorySpeed: 1066MHz
	manufacturer: Kingston
	serialNumber: D9CCA793
	assetTag: Ë
	partNumber: 2G-UDIMM

Type: 17, Length: 27, Handle: 0x1d
MemoryDevice:
	deviceLocator: A2
	bankLocator: Bank4/5
	memoryType: RAM
	memorySpeed: 0MHz
	manufacturer: N/A
	serialNumber: N/A
	assetTag: Ë
	partNumber: N/A

Type: 17, Length: 27, Handle: 0x1e
MemoryDevice:
	deviceLocator: A3
	bankLocator: Bank6/7
	memoryType: DDR2 SDRAM
	memorySpeed: 1066MHz
	manufacturer: Kingston
	serialNumber: BBCCD75F
	assetTag: Ë
	partNumber: 2G-UDIMM

Type: 19, Length: 15, Handle: 0x1f
Type: 20, Length: 19, Handle: 0x20
Type: 20, Length: 19, Handle: 0x21
Type: 20, Length: 19, Handle: 0x22
Type: 20, Length: 19, Handle: 0x23
Type: 32, Length: 11, Handle: 0x24
Type: 64, Length: 22, Handle: 0x25
Type: 131, Length: 6, Handle: 0x25
AppleProcessorType:
	ProcessorType: 0x501

Type: 127, Length: 4, Handle: 0x26

Customizing SystemID with : 00000000-0000-0000-0000-001fd0d4825b
Read HFS+ file: [hd(2,2)/Extra/DSDT.aml] 15917 bytes.
ACPI table not found: SSDT.aml
FADT: ACPI Restart Fix applied!
FADT: Using custom DSDT!
Found ACPI CPU: CPU0
Found ACPI CPU: CPU1
Found ACPI CPU: CPU2
Found ACPI CPU: CPU3
SSDT with CPU C-States generated successfully
SSDT with CPU P-States generated successfully
RSDT: Added 2 SSDT table(s)
LoadDrivers: Loading from [/Extra/Extensions.mkext]
Read HFS+ file: [hd(2,2)/Extra/Extensions.mkext] 4096 bytes.
Read HFS+ file: [hd(2,2)/Extra/Extensions.mkext] 183839 bytes.
Starting Darwin x86_64
Boot Args: boot-uuid=12950918-281B-3BF0-812B-BB7A2C24C700 rd=*uuid -v darkwake=0

Great Job! Great News

Yeah there should not be any dramatic change to the system itself, only the system softwares are getting updates and new functionalities now. These newest OS X system updates does not seem so big as Leopard or Snow Leopard and Lion were..

I need to get a new hard drive for Mavericks though. So everythinks looks fine then for the fall release.

xopher · June 27, 2013

What AppleHDA version do you have on your 10.8.3 system by the way ?

I have no idea. The kext I linked to in my last post is something I've been using since I guess Lion. But it works great in both ML and Mavericks :-) It enables plug detection, microphone and everything even optical should work, haven't tried that though.

I would prefer a native solution though, but haven't played around with dsdt edits for a while. If you have a solution for that, I'd be grateful.

xopher · July 11, 2013

By the way, any idea on why I might have some USB-related problems? My USB-sticks sometimes get disconnected, some ports don't function reliably etc.

Bandes · July 12, 2013

I have no idea. The kext I linked to in my last post is something I've been using since I guess Lion. But it works great in both ML and Mavericks :-) It enables plug detection, microphone and everything even optical should work, haven't tried that though.

I would prefer a native solution though, but haven't played around with dsdt edits for a while. If you have a solution for that, I'd be grateful.

Yeah, there was a great patcher for Snow Leopard which patched every new AppleHDA.kext for this specific soundcard. Which does not work anymore for Lion and up. Although there was some saying they are working on it..

I am using a Snow Leopard version AppleHDA too. It works, but a newer one would be nice.

By the way, any idea on why I might have some USB-related problems? My USB-sticks sometimes get disconnected, some ports don't function reliably etc.

Have no idea. I did not notice anything like that. Is it on Mountain Lion ?

Only place it might be fixed is in DSDT i guess.

Bandes · July 20, 2013

Upgraded to 10.8.3

Could not boot again.

Only to Safe Mode.

I could upgrade to 10.8.4. from there

still no booting

only to safe mode. otherwise freeze or reboot.

iousb, applertc, applehda, mbsensors, fakesmc kernel panics

reverted to older fakesmc. removed applehda and hdaenabler

i have no graphics hardware acceleration in safe mode, no sound(even with older kext), only networking works, and installing stuff..

tryed to downgrade to 10.8.2 but installer does not revert.

now downloading 10.8.4 combo update. maybe that works ?

by the way 10.8.3 and 10.8.4 installers both reported "installation failed" instead of succeded.

although files got updated, there was some error. but i cannot know what. if that would verbose something at least...

Bandes · July 22, 2013

Ooooook. Finally fixed it. 10.8.4 running. No more problems with Console, Quicktime and Reminders.

I had to revert again to an older AppleAPCIPlatform.kext in order to boot the system normally.

Interesting, that you had no such problems as it looks xopher.

I will give some more details about my config. It looks like we have some differencies.

I cannot use newest FakeSMC. It cause kernel panic at boot. So i copied back an old one..

xopher · July 29, 2013

I cannot use newest FakeSMC. It cause kernel panic at boot. So i copied back an old one..

What version of Chameleon are you running?

Edit: I just updated to the latest FakeSMC, and got greeted with a panic Don't know what's up, but after reverting to the older one it works again. I might try to reinstall it without the plugins, to see if I can narrow it down more.

Bandes · July 29, 2013

What version of Chameleon are you running?

Edit: I just updated to the latest FakeSMC, and got greeted with a panic Don't know what's up, but after reverting to the older one it works again. I might try to reinstall it without the plugins, to see if I can narrow it down more.

Chimera 2.1

it was 1.something for long time, but i updated it a few weeks ago.

Yes, there is definietly something wrong with the new fakesmc. I guess the plugins. MbSensors got renamed to LPC and so on.

I was thinking of removing the plugins one by one to see which one is causing the problem.

The old ones were working fine though, so why would we need the newest anyway..

Bandes · September 13, 2013

10.8.5. is out!

i have serious problems now with Safari on 10.8.4.

Had multiple rude crashes with certain sites.

The whole GUI collapsed! Total freeze! Very crazy.

Will post some screenshots soon.

I have a small hope it won't happen in 10.8.5. but i have my doubts.

Hootch · October 5, 2013

Note to self: when you upgrade in the future, please consider simply using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] instead of jumping through thousands of loops to get sound working again.

xopher · October 8, 2013

Note to self: when you upgrade in the future, please consider simply using ##### instead of jumping through thousands of loops to get sound working again.

Or, save the kext(s) in question for future use and/or upgrades

Any progress with Mavericks guys?

Bandes · October 8, 2013

Note to self: when you upgrade in the future, please consider simply using ##### instead of jumping through thousands of loops to get sound working again.

actually the last time i downloaded a file from that site, that killed my snow leopard system, and i had to reinstall it.

it was a 'proven' dsdt for my mobo, same bios version. after boot it said "pci configuration begin" and started doing something with my hard drive for long seconds.

i became angry and pushed the reset button. the system did not boot anymore. and the filesystem got so corrupted that even disk utility could not repair it. files and folders were inaccessible and lost.

but i checked that updater package application now, and found that it has a Realtek AppleHDA patcher for Mountain Lion. so i will try only that in the next days. It's called toleda patcher if i remember right..

Or, save the kext(s) in question for future use and/or upgrades

Any progress with Mavericks guys?

I was looking around today about Mavericks, and found some useful things.

There is already a nice golden master usb installer image made by a spanish guy(i guess ), Olarila. I used his Mountain Lion image for the last install already.

Also there is a new bootloader called Clover (which is default on that installer). I have read into that and it looks very cool and advanced.

They say if you your system runs Mountain Lion, it should run easily Mavericks too.

So everything looks okay for now. There are some small problems like ML AppleHDA kexts not working anymore, but there seem to be new patching methods listed at the Clover bootloader already. I would start to put it on now, but i need a new drive/partition. I won't delete my ML install to drop Mavericks on that..

So i am trying to get a new Hard Disk or SSD before. Ah yeah, and i need a USB Flash drive too

Bandes · October 24, 2013

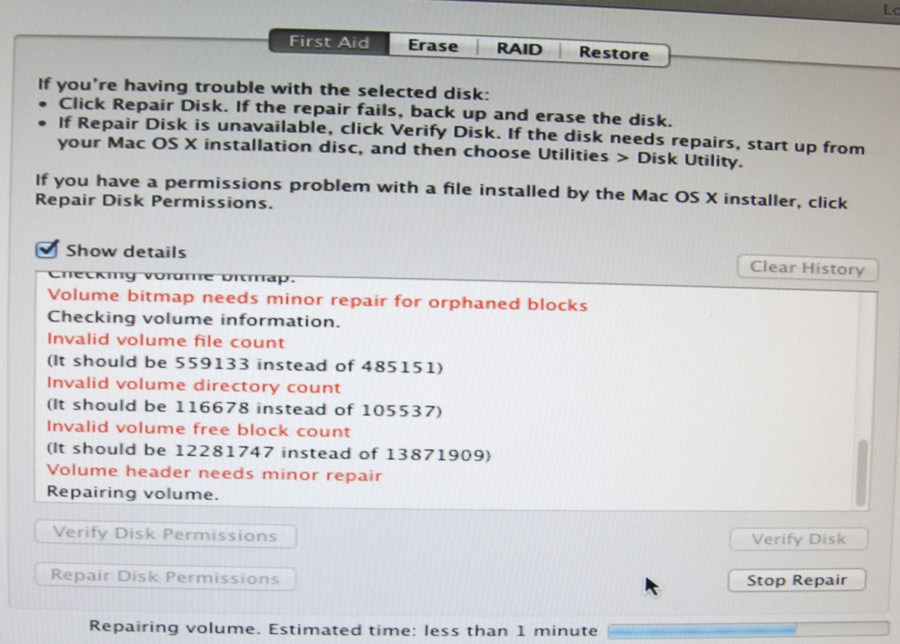

Ok so i won't post any screenshots now, cause my system killed itself. Mother{censored}ing weak fragile vulnerable {censored} HFS file system once again !

It took me one day to boot into windows cause the bootloader was on that HFS partition too. And now its the 5th day i am suffering with RAM errors. I had about 120 BSODs in these days.

My old RAM settings suddenly just don't work. It was stable on 2.2 Volt(2x2Gb Geil PC8500). Now its only running on 1.92 Volt, but still not stable. On every other Voltage settings its more worse.

Running memtest and prime95 so angry about this whole thing. I could not recover any {censored} file from that HFS partition yet. Although there is a software which shows the folders it {censored} saving files.

Application folder and System folder gone for sure. Disk Utility is the {censored}. Tried to recover the partition with that it only made it worse. So freakin upset now. I am loosing my patience.

Oh yeah, it was because i was trying out sleep mode on ML. On wake up it cleared the CMOS. And my RAM settings gone. Everything was on AUTO, and was working, now nothing works.

Very dissapointed.

Bandes · November 8, 2013

Very busy two weeks behind me. It took me 10 days to find new stable working settings for my -as it looks like slightly damaged- memory modules. I was getting losing hope on that.

I also managed to repair my Windows bootloader after trying many methods out, and finally i was able to recover all the needed files from my Mountain Lion HFS partition. This way i did not need a new partition since ML killed itself.. So i bought a USB Flash Drive, collected all the kexts and tools that was likely to be needed, took a deep breath and started installing Mavericks.

After two days, i am nearly there. System is running fine. I have some minor issues, but nothing serious. I am still using Flash Drive to boot into Mavericks, but i will install Clover to my Hard Drive in the next days. Configuring it was not so easy, but i managed it with some work. Now it really looks a bit more advanced than Chameleon/Chimera. When i am finished with everything, i will make a small GUIDE about installing Mavericks for UD3LR. There are lot of tweaks needed for my taste which are not always OSX86 related. Such as turned off Key Repeating, Automatic Saving of editing documents (!) and other weird things which are present on 10.9.

Bandes · November 9, 2013

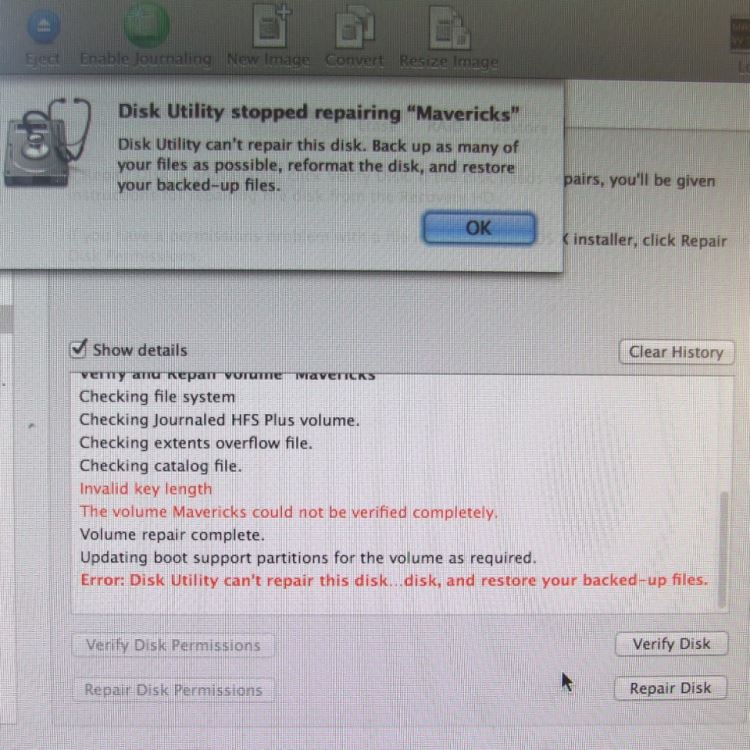

And Today :

Bandes · November 13, 2013

I started a topic about my experiences over the last week :

http://www.insanelymac.com/forum/topic/293854-mac-hfs-drive-getting-damaged-sooo-easily/

audio geek · November 15, 2014

Awesome simple Install Process. Seemed to work fine with 10.7.5 install dmg.

Another Cartri 08 bios user thinking of flashing back to Gigabyte Bios.

With Cartri Bios I was able to get 10.6 to see audio with LegacyHDA that Cartri suggested. This was on my "boot" file chameleon partition RC5

I had another partition with 10.6.8 that doesn't see Audio chipset. rrrr

I'm using this for a Pro Tools rig so I don't need onboard audio anyways.

Thanks for the Thread.!

rashan · August 12, 2015

If there was any chance of installing mac osx on my lenovo x100e I would be even happier:-)

+1 want to know this too.

Old thread doesn't mean it's bad. That's silly. Rather bump an old thread than make a new one when there ALREADY is one.

[Guide] Lion on GA-EP45-UD3R - very close to perfection

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
