faithie999 Posted August 18, 2011 Share Posted August 18, 2011 i installed an AR9280 in my older mac book pro, as you did. i have the same experience--it takes about 30 seconds after bootup or awakening from sleep for the card to discover my network. also, it never automatically connects to the network. i have to do it manually. this is ok when booting, but it's a pain to do every time it wakes from sleep. i don't think its a matter of 2 antennae rather than 3. after it connects i have a strong signal. i think it has something to do with the kext. i have added the device ID of the AR9280 to the plist in the Atheros40.kext but that doesn't help. ironically, i have the same card in a hack and it works perfectly. same OS, same version of the kext. i didn't modify the kext with the device id--the card "just worked" when i plugged it in (using a mini pic-e adapter, of course). sure would like to figure this out, so i don't need to drop $50 on an apple-branded broadcom card. ken quote name='splonk' date='Aug 16 2011, 08:17 AM' post='1735527'] The two wifi cards I ordered from eBay as linked by MiniHack in post #23 arrived today and both exactly as depicted in the link. Placed one in my MacBook Pro (Santa Rosa 2.4GHz) and rebooted. Airdrop is active. Two caveats. The AR9280 only has two aerial connectors as opposed to the three used on the existing card. I left the middle cable unattached. If your MBP was already struggling to get a connection, this might be an issue for you. I haven't changed any kexts or changed any settings, but the wifi takes a little while to connect to my default router (about 30 secs after boot up). Otherwise, all as it should be. Link to comment Share on other sites More sharing options...
splonk Posted August 18, 2011 Share Posted August 18, 2011 i installed an AR9280 in my older mac book pro, as you did. i have the same experience--it takes about 30 seconds after bootup or awakening from sleep for the card to discover my network. also, it never automatically connects to the network. i have to do it manually. this is ok when booting, but it's a pain to do every time it wakes from sleep. This only happens, or rather, happened on my Santa Rosa MBP. I also put the other AR9280 in a Macbook 2,1 with zero problems. I think it is a Lion issue. I also run Snow Leopard on my MBP and that connects automatically straight away. Updating to 10.7.1 seems to have cleared it as I don't get the delays any more and it autoconnects without any prompting from me. Link to comment Share on other sites More sharing options...
faithie999 Posted August 18, 2011 Share Posted August 18, 2011 i was hoping that the update to 10.7.1 would have fixed it for me, but to no avail. just for grins, i'll download the 10.7.1 update and run it again--the first time i just took the update offered by system updates. what's that line about doing the same thing repeatedly and expecting different results?!?!? thanks ken Link to comment Share on other sites More sharing options...
artsin Posted August 20, 2011 Share Posted August 20, 2011 Hi Users, ich habe mir diesen WLAN-Adapter und diese Atheros AR5009 AR5BXB92 Wireless Mini Pci-e gekauft. Soweit läuft alles gut aber wenn ich den Sleep auslöse und dann wieder beende findet die Atheros AR5009 AR5BXB92 Wireless Mini Pci-e keine Netzwerke mehr. Gibt es da eine Lösung für? I have this wireless adapter and bought as appropriate to Atheros AR5009 Wireless Mini Pci-e AR5BXB92. So far everything is going well but when I trigger the sleep and then finish the Atheros AR5009 Wireless Mini is AR5BXB92 Pci-e no longer networks. Is there a solution? Mein System: OS: Lion 10.7.1 (Build 11B26) Motherboard: Gigabyte GA-P35-DS4 CPU: Intel Q6600 @ 2.44GHz CPU Lüfter: Arctic Cooling Freezer 7 Pro Rev 2 Bluetooh: Belkin Mini Bluetooth-Adapter GPU: ATI Radeon™ HD 5770 Graphics Sound on Board: Realtek ALC889A Lan on Board: RTL 8111B Wlan: Atheros AR5009 AR5BXB92 Wireless Mini Pci-e AGN 300mbps Arbeitsspeicher: 4x 2GB DDR2 800MHz SATA: 3x500GB(HDD), 1x1TB(HDD), 1x60GB(SSD) DVD-Brenner: HL-DT-ST DVDRAM GH22NS40 Keyboard: Apple Keyboard (MB110D/A) Mouse: Mighty Mouse (Wireless) (MA272ZM/A) TrackPad: Apple Magic Trackpad Mousepad: Razer Pro Pad Netzteil: 530W be quiet! Pure Power L7 80+ Link to comment Share on other sites More sharing options...

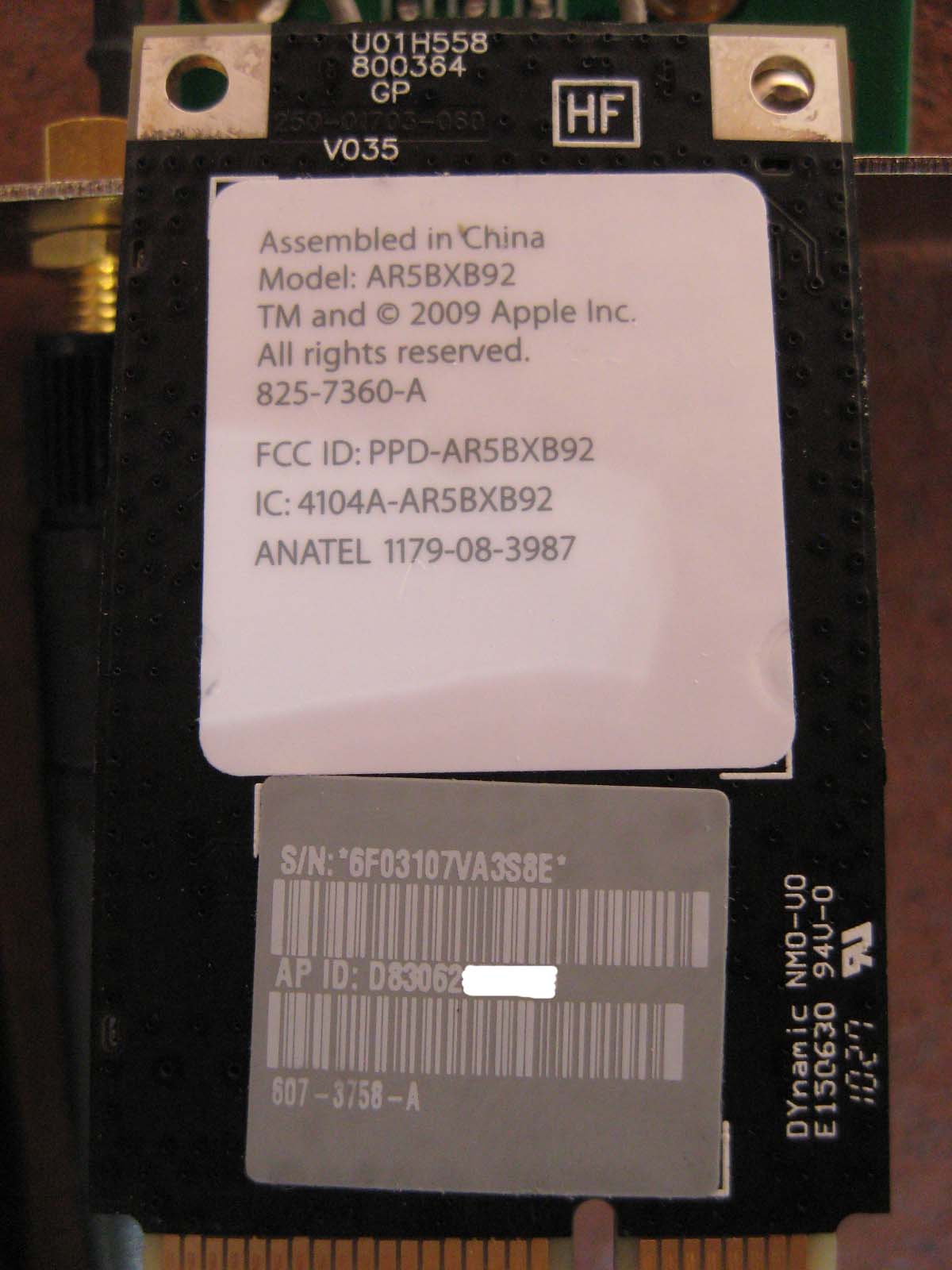

polum Posted August 26, 2011 Share Posted August 26, 2011 This is my card: New Apple Atheros AR9280 AR5BXB92 Mini Pci-e AGN 300Mbp This is the adaptor: mini PCI-E to PCI-E x1 wireless adapter with w antenna My system running Lion 10.7.1 Not runnig at all with IO80211Family.kext 4.0 / 4.1 Need IO80211Family.kext 3.2 to work ! But No Airdrop !!! Versiones de software: CoreWLAN: 2.0 (200.46) CoreWLANKit: 1.0 (100.43) Menú Extra: 7.0 (700.42) Módulo configd: 7.0 (700.57) Perfil de Sistema: 7.0 (700.3) Familia IO80211: 3.2 (320.1) Diagnóstico de Wi-Fi: 1.0 (100.26) Utilidad AirPort: 5.5.3 (553.20) Interfaces: en0: Tipo de tarjeta: AirPort Extreme (0x168C, 0x8F) Versión del firmware: Atheros 9280: 2.1.14.6 Dirección MAC: d8:30:62:xx:xx:xx Configuración regional: FCC Código del país: ES Modos PHY compatibles: 802.11 a/b/g/n Canales admitidos: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 Wake on Wireless: Compatible Estado: Servicio de red inactivo Could you see any differences with the working one? P2P firmware needed for Airdrop? It´s possible to upgrade firmware? Any help would be great... Thanks Link to comment Share on other sites More sharing options...
bulabula2001 Posted August 27, 2011 Share Posted August 27, 2011 Macbidouille has some news via xl8yourmac about which cards are compatible. With regard to the BCM94322MC, you need to make sure you have this ref: 487330-001. With regard to the AR9280, you need to have this model AR5BXB92 AGN. eBay is pot luck as to what you get. Bonne chance a tous. Hi, this worked for me OOTB for the BCM94322MC card. Recognized by Lion as "Third-Party Wireless". Link to comment Share on other sites More sharing options...
JBraddock Posted August 29, 2011 Share Posted August 29, 2011 This is my card:New Apple Atheros AR9280 AR5BXB92 Mini Pci-e AGN 300Mbp This is the adaptor: mini PCI-E to PCI-E x1 wireless adapter with w antenna My system running Lion 10.7.1 Not runnig at all with IO80211Family.kext 4.0 / 4.1 Need IO80211Family.kext 3.2 to work ! But No Airdrop !!! Versiones de software: CoreWLAN: 2.0 (200.46) CoreWLANKit: 1.0 (100.43) Menú Extra: 7.0 (700.42) Módulo configd: 7.0 (700.57) Perfil de Sistema: 7.0 (700.3) Familia IO80211: 3.2 (320.1) Diagnóstico de Wi-Fi: 1.0 (100.26) Utilidad AirPort: 5.5.3 (553.20) Interfaces: en0: Tipo de tarjeta: AirPort Extreme (0x168C, 0x8F) Versión del firmware: Atheros 9280: 2.1.14.6 Dirección MAC: d8:30:62:xx:xx:xx Configuración regional: FCC Código del país: ES Modos PHY compatibles: 802.11 a/b/g/n Canales admitidos: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 Wake on Wireless: Compatible Estado: Servicio de red inactivo Could you see any differences with the working one? P2P firmware needed for Airdrop? It´s possible to upgrade firmware? Any help would be great... Thanks Not sure if it would make any difference but here is the firmware version on iMac11,1. (This might later have been updated.) Card Type: AirPort Extreme (0x168C, 0x8F) Firmware Version: Atheros 9280: 2.1.8.11 The one I am using (HP Atheros 9280): AirPort Extreme (0x168C, 0x8F) Firmware Version: Atheros 9280: 4.0.55.4-P2P Link to comment Share on other sites More sharing options...
Il Francy MacPc Posted September 18, 2011 Share Posted September 18, 2011 I got AirDrop in Finder, see Post #19 for DSDT added ARPT device. This card should be 2.4 GHz only, thus further testing is required for full functionality, as soon as I pair it with another AirDrop capable rig. Credits go to JBraddock. D-Link DWA-547 Rev. 1a Interface: PCI Device Information: 168c:0023 Subsystem ID: 1186:3a6b Was seen as: Card Type: AirPort Extreme (0x168C, 0x3A6B) Firmware Version: Atheros 5416: 2.1.14.9 Now seen as: Card Type: AirPort Extreme (0x168C, 0x8F) Firmware Version: Atheros 5416: 4.0.55.4-P2P There is also another trick: AirDrop with unsupported Wireless or Ethernet! Link to comment Share on other sites More sharing options...
-CEOS- Posted November 14, 2011 Share Posted November 14, 2011 I got a DWA 547, too. but i can't apply the DSDT fix, because i use cartri's mod Bios. would it be possible to modify Atherosfix.kext to get Airdrop working ? Link to comment Share on other sites More sharing options...
lifelike27 Posted November 16, 2011 Share Posted November 16, 2011 I found a quick fix, I'm not sure if it's the most ideal though: http://www.macworld.com/article/162407/201...op_any_mac.html Link to comment Share on other sites More sharing options...
teme Posted March 6, 2012 Share Posted March 6, 2012 I'm using an Atheros AR5BXB112 gets recognized as airport extreme working nicely so far. Also got a rebranded Broadcom 4322 and works with Airdrop no problems Link to comment Share on other sites More sharing options...
amsart Posted October 3, 2012 Share Posted October 3, 2012 does anyone now how activate airdrop on mountain lion with apple airport card ar5bxb72 again ? it seem it drop on ML, it works on Lion flawlessly Link to comment Share on other sites More sharing options...
