yehia2amer Posted July 21, 2013 Share Posted July 21, 2013 Clover does indeed boot non-EFI Windows 7. I'm dual booting Windows and OSX in non-EFI/MBR mode. And, as a bonus, if you pick the right options during install you can also install Chameleon as an additional boot loader and Clover can boot-strap it if you hold down a key at boot so you can test under either loader. However, I mainly use Clover now that I've added auto-LAPIC patching to it Really, this is my hybrid GPT/MBR Partion map and i use "LegacyBoot" Parameter <key>LegacyBoot</key> <string>LegacyBiosDefault</string> i also tried PBR ِI am also using those drivers "NTFS.efi" & "PartitionDxe-64.efi" ------- #: TYPE NAME SIZE IDENTIFIER 0: GUID_partition_scheme *750.2 GB disk0 1: EFI 209.7 MB disk0s1 2: Apple_HFS Mac 250.0 GB disk0s2 (Mac OS Extended) 3: Microsoft Basic Data Untitled 100.0 GB disk0s3 (NTFS) 4: Microsoft Basic Data DATA 399.8 GB disk0s4 (NTFS) ----- do i miss something !!! Apprectate your help Link to comment Share on other sites More sharing options...

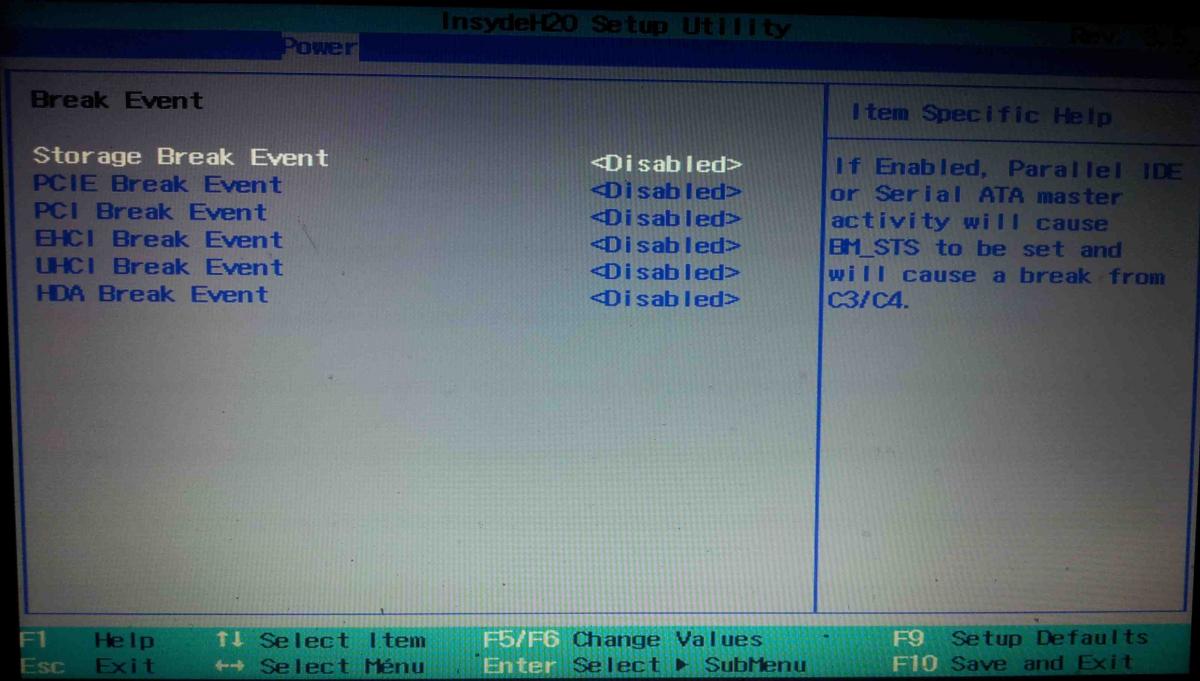

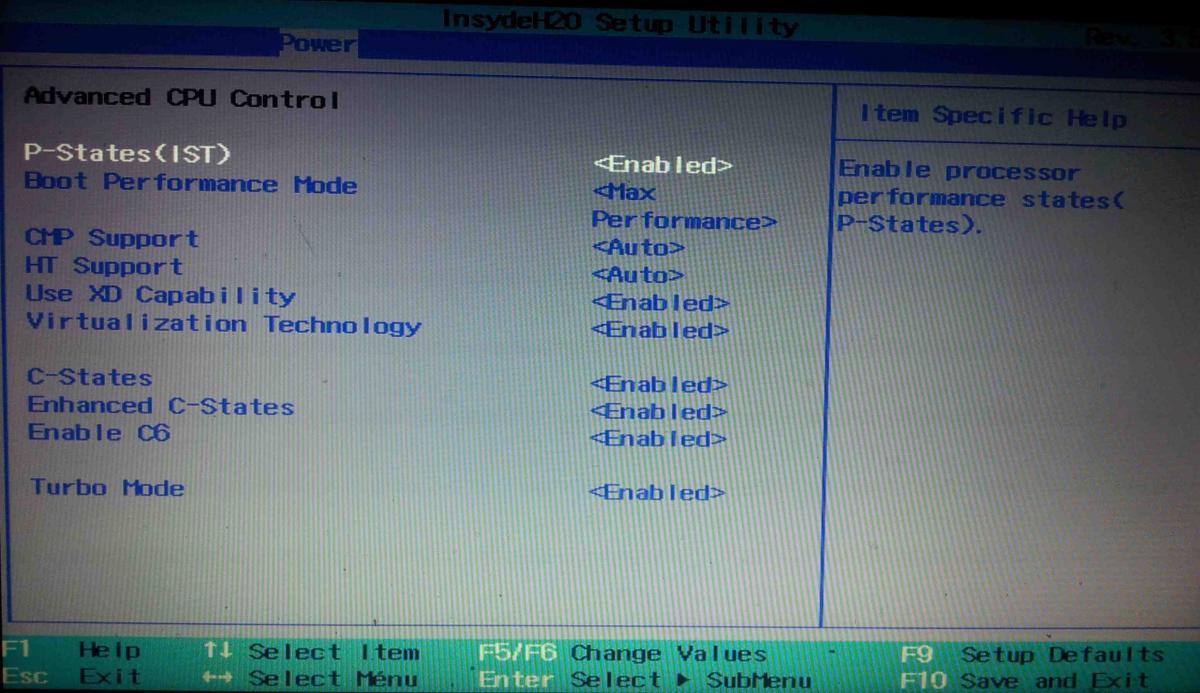

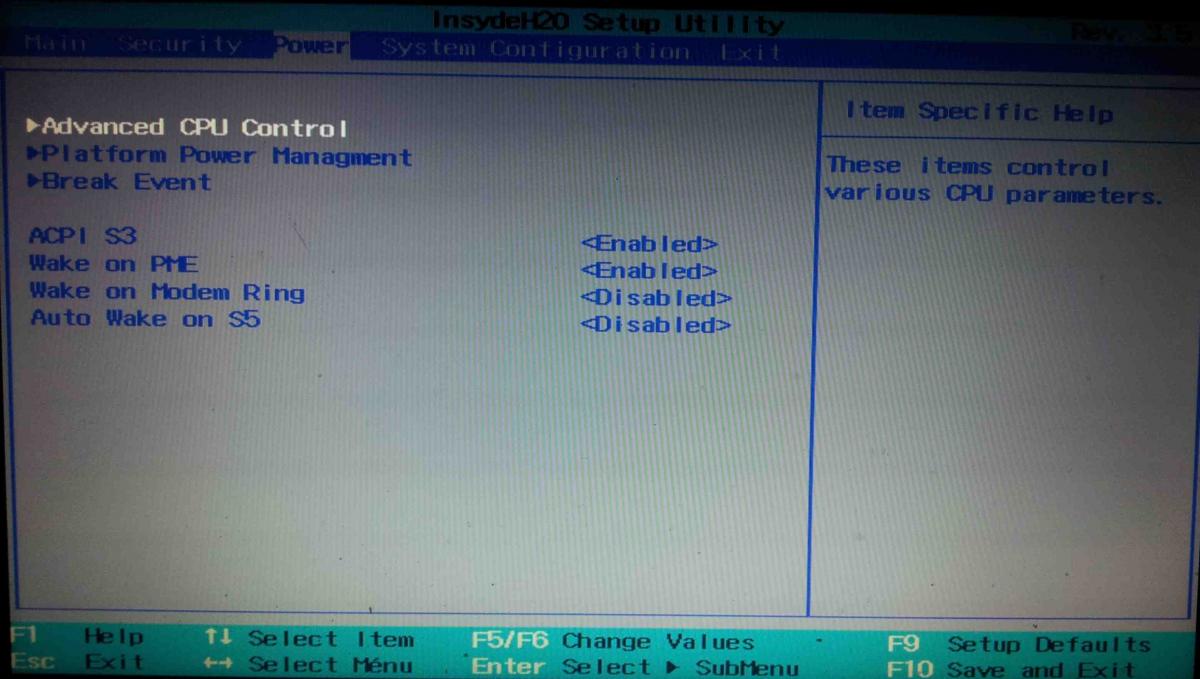

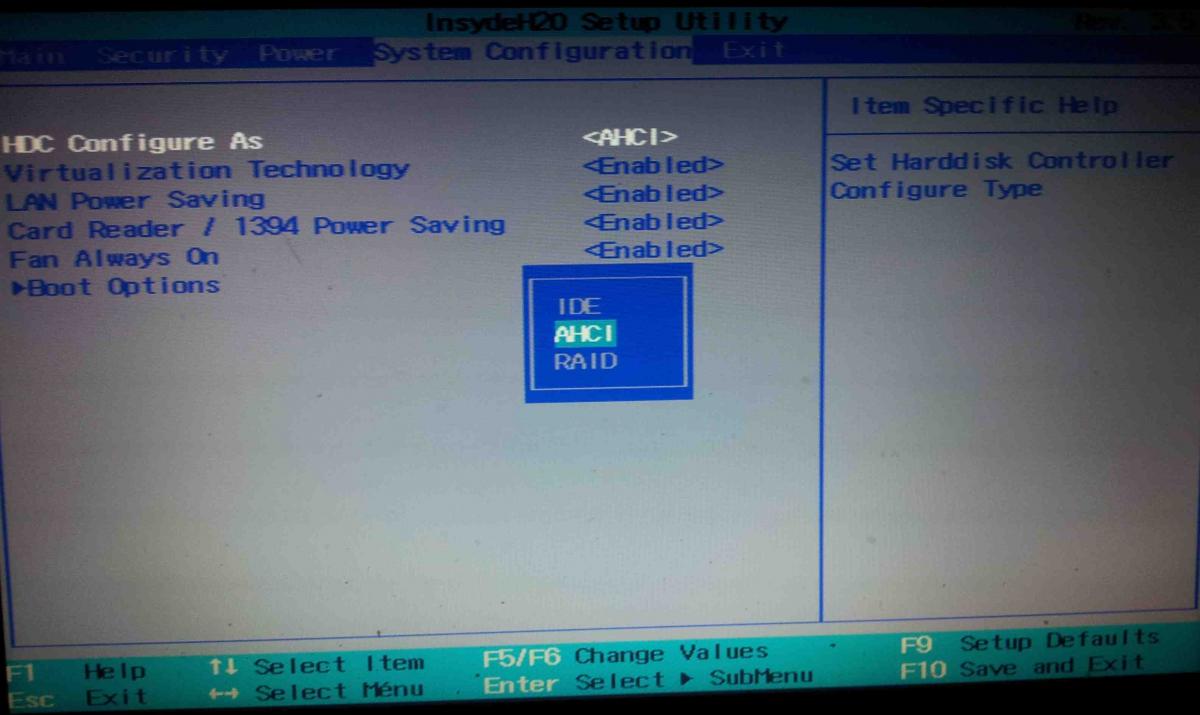

yehia2amer Posted July 23, 2013 Share Posted July 23, 2013 Some Updates:Our Insyde Bios is a True UEFI Bios- HP uses UEFI BIOS Since late 2008 and in all Laptops distributed with Windows 8 and 7 (Reference)- Our Systems is pre-equipped with a Partition called "HP_TOOLS" which is a EFI Partition - I think Insyde only makes UEFI Bios !There is a website Called bios-mods I found a mod for my Bios which remove whitelist and unlock Hidden Options- My Bios Version is "F.1C A" (Link for the mod Bios)- For more Versions (you can Find your Latest Bios Version in HP Support Website)The EFI Partition Must be called "HP_TOOLS" or it won't work There is a Tool Called "HP UEFI Support Environment" To Creat a bootable UEFI Support USB but i can't Configure it to work !can anyone Configure Clover to Boot in UEFI !!!Good Luck All Link to comment Share on other sites More sharing options...
macq Posted July 26, 2013 Share Posted July 26, 2013 Some Updates: Our Insyde Bios is a True UEFI Bios - HP uses UEFI BIOS Since late 2008 and in all Laptops distributed with Windows 8 and 7 (Reference) - Our Systems is pre-equipped with a Partition called "HP_TOOLS" which is a EFI Partition - I think Insyde only makes UEFI Bios ! There is a website Called bios-mods I found a mod for my Bios which remove whitelist and unlock Hidden Options - My Bios Version is "F.1C A" (Link for the mod Bios) - For more Versions (you can Find your Latest Bios Version in HP Support Website) The EFI Partition Must be called "HP_TOOLS" or it won't work There is a Tool Called "HP UEFI Support Environment" To Creat a bootable UEFI Support USB but i can't Configure it to work ! can anyone Configure Clover to Boot in UEFI !!! Good Luck All Hi Yehia Amer, Just wanted to know a couple of things. Is your patched f.1c bios stable since you have applied it and importantly what all is available by using the patched bios like wireless etc? Have you ever had blue screens or complete non booting while on the patched bios,that has required you to reinstall the default HP f.1c bios to make the laptop boot again? I am asking cos I read some where on the HP forums that the patched bios is not fully patched and it may lead to complete non boots at time requiring reflasing with the default HP bios to make the laptop usable. Secondly it is correct that ours is a uefi based bios but we need to install both windows and os x in the uefi environment and dual boot via chameleon or clover and I havent seen a guide or some one actually being able to do so. If you have any info regarding this please do share?? Thanks Link to comment Share on other sites More sharing options...
yehia2amer Posted July 26, 2013 Share Posted July 26, 2013 Hi Yehia Amer, Just wanted to know a couple of things. Is your patched f.1c bios stable since you have applied it and importantly what all is available by using the patched bios like wireless etc? Have you ever had blue screens or complete non booting while on the patched bios,that has required you to reinstall the default HP f.1c bios to make the laptop boot again? I am asking cos I read some where on the HP forums that the patched bios is not fully patched and it may lead to complete non boots at time requiring reflasing with the default HP bios to make the laptop usable. Secondly it is correct that ours is a uefi based bios but we need to install both windows and os x in the uefi environment and dual boot via chameleon or clover and I havent seen a guide or some one actually being able to do so. If you have any info regarding this please do share?? Thanks First: No i don't face any problems till now whitelist is removed (not tested) Some Screen shots of the added features Second: http://olarila.com/forum/viewtopic.php?f=28&t=3405 Link to comment Share on other sites More sharing options...
macq Posted July 27, 2013 Share Posted July 27, 2013 @yehia Thanks for the prompt response and info. Link to comment Share on other sites More sharing options...
yehia2amer Posted July 29, 2013 Share Posted July 29, 2013 @yehia Thanks for the prompt response and info. you are welcome Update: I installed "windows 7 x64 EFI" Successfully and the Partition map is Pure GPT now I used a program called "rufus" and just copied "efi\boot\bootx64.efi" to the root of the Bootable USB Link to comment Share on other sites More sharing options...
macq Posted July 31, 2013 Share Posted July 31, 2013 you are welcome Update: I installed "windows 7 x64 EFI" Successfully and the Partition map is Pure GPT now I used a program called "rufus" and just copied "efi\boot\bootx64.efi" to the root of the Bootable USB could you post a brief guide for the benefit of all of us . Thanks Link to comment Share on other sites More sharing options...
yehia2amer Posted August 2, 2013 Share Posted August 2, 2013 could you post a brief guide for the benefit of all of us . Thanks The Most important Benefit for our systems is that you will have got pure GUID Partition Table (GPT) So no need to hybrid GPT/MBR, which causes alot of problems for me Other benefits http://windows.microsoft.com/en-us/windows-8/what-uefi !!! Link to comment Share on other sites More sharing options...
macq Posted August 3, 2013 Share Posted August 3, 2013 The Most important Benefit for our systems is that you will have got pure GUID Partition Table (GPT) So no need to hybrid GPT/MBR, which causes alot of problems for me Other benefits http://windows.microsoft.com/en-us/windows-8/what-uefi !!! @Yehia Hi, Sorry if my question was not clear. I was asking about how you went about doing it ,like how many partitions you made,where did you install the bootloader,any specifics about the partitioning scheme,installed which os first etcetra?. Basically how to dual boot both mac os x and win efi gpt on the same drive. Not a general guide but your specific method? Link to comment Share on other sites More sharing options...

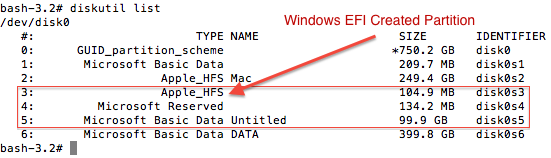

yehia2amer Posted August 5, 2013 Share Posted August 5, 2013 @Yehia Hi, Sorry if my question was not clear. I was asking about how you went about doing it ,like how many partitions you made,where did you install the bootloader,any specifics about the partitioning scheme,installed which os first etcetra?. Basically how to dual boot both mac os x and win efi gpt on the same drive. Not a general guide but your specific method? First : Clover 1) install clover on your EFI partition 2) Make sure it's working good with your mac 3) leave the partition you will use for mac not partitioned Second: Prepear your windows USB installation 1) you can use "rufus" 2) in the Partition scheme and target system type, Choose GPT for UEFI in file system, choose NTFS 3) choose the windows iso and Start the process 4) After it's done copy "efi\boot\bootx64.efi" to the root of the Bootable USB Third: Boot From clover 1) Boot from clover EFI windows USB (if you don't find it, use ("boot from file" which you will find in Boot Maintence Manager) and choose the "bootx64.efi" on USB root 2) when you boot windows creat Partition in the empty space and start installation 3) windows will Create 3 Partitions (EFI Partition, System Reserved Partition, windows Partition) 2 Link to comment Share on other sites More sharing options...
macq Posted August 9, 2013 Share Posted August 9, 2013 @Yehia Thanks Link to comment Share on other sites More sharing options...
gsly Posted August 9, 2013 Share Posted August 9, 2013 Thanks @Yehia Amer. I haven't had the time to redo my DV8 in pure UEFI mode yet but I started planning for it and this helps The biggest problem (IMHO) is finding the tools that understand UEFI and GPT so that when (for example) you create the Windows installation USB, it boots in the correct UEFI mode (vs. MBR) but you can also do it yourself if you look at the UEFI standards and ensure that your media is FAT32 only (UEFI requirement) and GPT partitioned (no MBR for sofware to see and *assume*). At least OSX assumes UEFI on install and you have to hack it if you really want MBR, so that's another benefit of running Clover. Another problem is the order of installation and partitioning. Although the UEFI standard clearly supports multiple operating systems to exist and boot, the vendors have implemented their installations like the old MBR world, stomping on each other. Did you notice that installing OSX after Windows will format/delete the FAT32 boot partition? Make sure to backup the boot partition after each OS install is the rule here. Now I just have to decide if I should wait for OSX 10.9 official and Windows 8.1 before I invest the time to rebuild... I will try and record my steps when I do and post here... 1 Link to comment Share on other sites More sharing options...
yehia2amer Posted August 13, 2013 Share Posted August 13, 2013 (edited) Thanks @Yehia Amer. I haven't had the time to redo my DV8 in pure UEFI mode yet but I started planning for it and this helps The biggest problem (IMHO) is finding the tools that understand UEFI and GPT so that when (for example) you create the Windows installation USB, it boots in the correct UEFI mode (vs. MBR) but you can also do it yourself if you look at the UEFI standards and ensure that your media is FAT32 only (UEFI requirement) and GPT partitioned (no MBR for sofware to see and *assume*). At least OSX assumes UEFI on install and you have to hack it if you really want MBR, so that's another benefit of running Clover. Another problem is the order of installation and partitioning. Although the UEFI standard clearly supports multiple operating systems to exist and boot, the vendors have implemented their installations like the old MBR world, stomping on each other. Did you notice that installing OSX after Windows will format/delete the FAT32 boot partition? Make sure to backup the boot partition after each OS install is the rule here. Now I just have to decide if I should wait for OSX 10.9 official and Windows 8.1 before I invest the time to rebuild... I will try and record my steps when I do and post here... i think we should wait till 10.9 so we can test at the same time, i still need to backup my machine take a look at this reference for installing windows using Bootcamp (Russian) Boot Camp Ð уководство по установке и настройке.pdf Edited August 13, 2013 by yehia Amer 1 Link to comment Share on other sites More sharing options...
intergalatico Posted September 13, 2013 Share Posted September 13, 2013 Hi There, I installed and updated my HP DV5 1190eg with the Mammoth Methode the Snow Leopard 10.6.7. I didn't use any DSDT and the MIID was a generic one for the Dv5. All went well, besides the fact that the touchpad didn't worked. I used a USB mouse. (I didn't try sound, firewire, VGA, DVI) Then I installed Windows 7 and want to go back to OSx to restore the Chameleon partition. I realized that my USB Mouse didn't worked anymore and also any of my usb ports (the usb flash with my MIID didn't showed up either). Can someone please help me? If i have to install some kexts, how I will bring this to the OSx without a usb? (I'm also until now not familiarized with the kexts installs) Thanx a lot! Cheers! Link to comment Share on other sites More sharing options...
tutticris Posted October 23, 2013 Share Posted October 23, 2013 Hi There, I installed and updated my HP DV5 1190eg with the Mammoth Methode the Snow Leopard 10.6.7. I didn't use any DSDT and the MIID was a generic one for the Dv5. All went well, besides the fact that the touchpad didn't worked. I used a USB mouse. (I didn't try sound, firewire, VGA, DVI) Then I installed Windows 7 and want to go back to OSx to restore the Chameleon partition. I realized that my USB Mouse didn't worked anymore and also any of my usb ports (the usb flash with my MIID didn't showed up either). Can someone please help me? If i have to install some kexts, how I will bring this to the OSx without a usb? (I'm also until now not familiarized with the kexts installs) Thanx a lot! Cheers! try with this, it is mountain lion http://iatkos.me/forum/viewtopic.php?f=77&t=23105 it runs for me with a similar dv5 (1113es) Link to comment Share on other sites More sharing options...
yehia2amer Posted October 29, 2013 Share Posted October 29, 2013 Mavericks is out, anyone tried it yet !!! Link to comment Share on other sites More sharing options...
JL6569 Posted October 30, 2013 Share Posted October 30, 2013 I’m currently running Mavericks on my HP DV8t. I was using Mountain Lion 10.7.5 . Only problem i am having is that it won’t restart or shut down completely unless I press power button. I downloaded from Appstore and created a bootable usb installer. I then booted the usb with cpus=1 GraphicsEnabler=yes . Once it installed i booted into Mavericks using my Chameleon boot drive used the cpus=1 GraphicsEnabler=Yes . After set up i used Lapic Kernel Patcher 0.7 and then i tried different kexts found in this forum to get most things working. I put the kexts that worked for me in the included zip. Kexts for Mavericks DV8t.zip 1 Link to comment Share on other sites More sharing options...
Peter_sm Posted October 30, 2013 Share Posted October 30, 2013 Mavericks is out, anyone tried it yet !!!Yrs, i have. Running perfect ? but I trying to use clover instead of Cham. But it's a pain to boot. Anyone Else have installed clover om DV8? If so, how have you configured clover? Link to comment Share on other sites More sharing options...
yehia2amer Posted November 7, 2013 Share Posted November 7, 2013 Yrs, i have. Running perfect ? but I trying to use clover instead of Cham. But it's a pain to boot. Anyone Else have installed clover om DV8? If so, how have you configured clover? simply use this config file only change serial number for your mac Good Luck config.plist.zip 1 Link to comment Share on other sites More sharing options...
Peter_sm Posted November 7, 2013 Share Posted November 7, 2013 Thanks, how about the dsdt ? I got kernel panic if I use it, maybe I need to know where It shall be located ? Do you use the dsdt ? simply use this config file only change serial number for your mac Good Luck I can't see the attachment ;-) 1 Link to comment Share on other sites More sharing options...
wael Posted November 10, 2013 Share Posted November 10, 2013 I’m currently running Mavericks on my HP DV8t. I was using Mountain Lion 10.7.5 . Only problem i am having is that it won’t restart or shut down completely unless I press power button. I downloaded from Appstore and created a bootable usb installer. I then booted the usb with cpus=1 GraphicsEnabler=yes . Once it installed i booted into Mavericks using my Chameleon boot drive used the cpus=1 GraphicsEnabler=Yes . After set up i used Lapic Kernel Patcher 0.7 and then i tried different kexts found in this forum to get most things working. I put the kexts that worked for me in the included zip. sooo easy thanx for your information and file it was the easy time i install mac on my hp laptop i wonder really did apple decided to support hackintosh world LOL Link to comment Share on other sites More sharing options...
macq Posted November 10, 2013 Share Posted November 10, 2013 simply use this config file only change serial number for your mac Good Luck config.plist.zip Hi.yehia amer Your config has lapic fix selected but I still need cpus=1 to boot,also even if I select lapic fix in clover option,I still have lapic kernel panic if I dont boot with cpus=1. Does it not patch the kernel on the fly. Could you briefly describe what things need to be put in what folder in Clover installation. Thanks PS : I am not using it in EFI Mmode. Link to comment Share on other sites More sharing options...
n00bsss Posted November 19, 2013 Share Posted November 19, 2013 Would one of you gurus please tell me how well a hackintosh build would run on this HP notebook? Also, links to compatiable DSDTs would be appreciated, thanks! HP Pavilion dv6t-6c00 CTO Select Edition Entertainment Notebook BIOS: InsydeH2O Version 03.60.48F.1C Processor: Intel® Core i5-2450M CPU @ 2.50GHz (4 CPUs), ~2.5GHz Memory: 8GB GFX: Intel® HD Graphics 3000, Radeon HD 7690M XT Wifi: Realtek RTL8188CE 802.11b/g/n WiFi Adapter Link to comment Share on other sites More sharing options...
yehia2amer Posted November 25, 2013 Share Posted November 25, 2013 Hi.yehia amer Your config has lapic fix selected but I still need cpus=1 to boot,also even if I select lapic fix in clover option,I still have lapic kernel panic if I dont boot with cpus=1. Does it not patch the kernel on the fly. Could you briefly describe what things need to be put in what folder in Clover installation. Thanks PS : I am not using it in EFI Mmode. I think it's clover version, just download the latest version of clover check this : http://sourceforge.net/p/cloverefiboot/discussion/1726372/thread/8ccb0334/ Link to comment Share on other sites More sharing options...
yehia2amer Posted December 11, 2013 Share Posted December 11, 2013 This Post is To Keep All of us up to date with the latest and greatest kexts (drivers) for our HackBook First of all I Use clover as the primary Bootloader : http://sourceforge.net/projects/cloverefiboot/This is My Clover Config File : Amer config.zip updated Config File 14/3/2014: config 14:3:2014.plist.zip Latest Update to add Sound on-the-fly-Patching 20/4/2014: config.plist.zip This is My DSDT : Amer DSDT.zip update: DSDT with working Wifi : DSDT with working WIFI.aml.zip Latest Update 20/4/2014: to Replace Sound Layout-id: Amer DSDT.zip ------ Kexts To use :Essential Drivers:FakeSMC & HWSensors : Essential Kext for any mac with integrated hardware monitoring features Graphics:The Good News is GT 230M Kexts works out of the Box in Mavericks Network:Lnx2Mac's Realtek RTL81xx : Ported Linux RTL81xx driver to Mac OS X ( working Great with our machine)Audio:AppleHDA by Taptun : Fixed Audio Kext to our Machines (must use fixed DSDT) - HDMI audio not working since Mavericks AppleHDA: Amer AppleHDAIDT.kext.zip All Problems Related to sound are now fixed, Also Now we don't have to Replace the sound Kext in every update and we let Clover do the Patching Now Speaker works, LineOut works, mic Works, HDMI Works, LineIn not Tested, and finally there is no sound assertion errors Battery:HP DVx ACPI 3.x/4.x Battery Driver (10.6/10.7) : This Kext is used to Show Battery Status correctly using (ACPI based battery manager kernel extension) Screen backlight:ACPI Backlight Driver : This Kext is used for laptops which backlight are controlled by ACPI Methods PS/2 Keyboard and synaptics TouchPad:RehabMan updated Voodoo PS/2 Controller, improved Keyboard & Synaptics TouchPad : Kexts driver for PS/2 Keyboard and synaptics TouchPad MultiTouch GesturesJmicron JMB38x card readers:Rxnix IOSDHCIBlockDevice : This is the only working 64 bit driver (Buggy but working)Jmicron official driver : It should work but it don't !!!Display Override:Add the file to "/System/Library/Displays/Overrides/"Already made for DV8Already made for DV7 : DisplayProductID-3651.zip To install the Kext and generate your own Override use FixEDID --------For Any other kexts that i forgot to add, please share your knowledge 4 Link to comment Share on other sites More sharing options...
