Taptun
Taptun
Posted
Posted
@Taptun,

Thanks for all the help my friend.

I have all the kexts in the correct places,Genericbrightness and your AppleHDA.kext in S/L/E but only the sound works ,the brightness slider appears but no change occurs with slider movement.



.But the problem is that even this works only with Chamaleon v2 rc5 1083 build,if I install a newer build of Chamaleon I lose my graphics(need enabler=yes),no slider, and no sound. :)

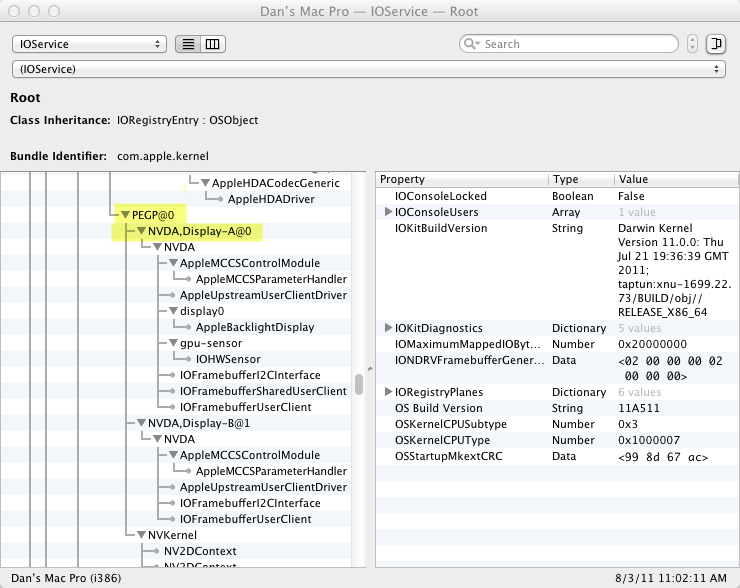

My ioreg is attached.

Please look into it.

Thanks for your time.



Which system is ?

This DSDT for 10.6.8 or Lyon :)



for 10.6.7 - the other DSDT ;)



The difference - there is



@Taptun :D

Link to comment
Share on other sites
pablo101
pablo101
Posted
Posted
Hi pablo101,

Try this DSDT. It's the same one you posted, with a few tweaks. Get Taptun's AppleHDA.Kext from above (Post #705). Remove all other sound kext's from E/E. Install Taptun's AppleHDA'kext S/L/E. Repair disk permissions. Reboot with GraphicsEnabler=No.

pablo101New.zip







Hi,

What are your system specs? Did you have Snow Leopard Working?



sorry that DSDT doesn't work, I reboot and it tells me I have a 7mb graphics card :)

Link to comment
Share on other sites
Peter_sm
Peter_sm
Posted
Posted

Hi All :)





Please have a look below, any one else see these "issues"?



Or should I just ignore that ? I don't have these errors in my SL log.



Some files is attached for your reference :wallbash:





Aug  3 07:17:34 localhost kernel[0]: Kext com.apple.driver.AudioAUUC - library kext com.apple.iokit.IOGraphicsFamily not found.
Aug  3 07:17:34 localhost kernel[0]: Can't load kext com.apple.driver.AudioAUUC - failed to resolve library dependencies.
Aug  3 07:17:34 localhost kernel[0]: Kext com.apple.driver.AudioAUUC failed to load (0xdc00800e).
Aug  3 07:17:34 localhost kernel[0]: Failed to load kext com.apple.driver.AudioAUUC (error 0xdc00800e).
Aug  3 07:17:34 localhost kernel[0]: Couldn't alloc class "AudioAUUCDriver"
Aug  3 07:17:34 localhost kernel[0]: No interval found for . Using 8000000
Aug  3 07:17:34 localhost kernel[0]: AppleIntelCPUPowerManagementClient: readyidentified as RTL8168D/8111D
Aug  3 07:17:34 localhost kernel[0]: 0		0 AppleUSBCDC: start - initDevice failed
Aug  3 07:17:34 localhost kernel[0]: Atheros: mac 128.2 phy 13.0 radio 12.0
Aug  3 07:17:34 localhost kernel[0]: 0		0 AppleUSBCDC: start - initDevice failed





Aug  3 07:17:34 localhost kernel[0]: Kext com.apple.driver.AppleHDAController - library kext com.apple.iokit.IOGraphicsFamily not found.FakeSMC: Opensource SMC device emulator by netkas (C) 2009
Aug  3 07:17:34 localhost kernel[0]: FakeSMC: Modified for plugins support by mozodojo (C) 2010 v3.0
Aug  3 07:17:34 localhost kernel[0]: FakeSMC: Idea of FakeSMC plugins and code sample by usr-sse2
Aug  3 07:17:34 localhost kernel[0]: FakeSMC: Thanks to slice for help with hardware support code and plugins
Aug  3 07:17:34 localhost kernel[0]: FakeSMCDevice: 17 keys added
Aug  3 07:17:34 localhost kernel[0]: Can't load kext com.apple.driver.AppleHDAController - failed to resolve library dependencies.
Aug  3 07:17:34 localhost kernel[0]: Kext com.apple.driver.AppleHDAController failed to load (0xdc00800e).
Aug  3 07:17:34 localhost kernel[0]: Failed to load kext com.apple.driver.AppleHDAController (error 0xdc00800e).
Aug  3 07:17:34 localhost kernel[0]: Couldn't alloc class "AppleHDAController"
Aug  3 07:17:34 localhost kernel[0]: Kext com.apple.GeForce - library kext com.apple.NVDAResman not found.
Aug  3 07:17:34 localhost kernel[0]: Can't load kext com.apple.GeForce - failed to resolve library dependencies.
Aug  3 07:17:34 localhost kernel[0]: Kext com.apple.GeForce failed to load (0xdc00800e).
Aug  3 07:17:34 localhost kernel[0]: Failed to load kext com.apple.GeForce (error 0xdc00800e).
Aug  3 07:17:34 localhost kernel[0]: Couldn't alloc class "NVKernel"

my_files.zip

Link to comment
Share on other sites
nami
nami
Posted
Posted
Hi nami,

Injected IDT Sound into your DSDT. Remove VoodooHDA and install Taptun's AppleHDA into S/L/E (back up original first).

Get VoodooPS2Controller.kext.zip and AppleHDA.kext.zip from above.

Sorry can't help with ATI Video...... I got nVidia.



Hope this helps

nami.dsdt.zip



Do i need some kind of enabler ? HDAEnabler ? Sound is not working, it says something like "sound assertion failed" during boot.

Link to comment
Share on other sites
dgrx
dgrx
Posted
Posted
sorry that DSDT doesn't work, I reboot and it tells me I have a 7mb graphics card :(





Ok, The DSDT injection is in the wrong place. Your system is so close to mine, I thought the same tweak would work for you. Look in IORegistryExplorer with GraphicsEnabler=Yes. Find out where your video card is loading from. It should be under PCIO - GFX1 - (????).

You may have to use your original DSDT to get full res video. That is where the DSDT injection needs to be to get full graphics and brightness control.






Do i need some kind of enabler ? HDAEnabler ? Sound is not working, it says something like "sound assertion failed" during boot.



If you see the "sound assertion", the IDT is being injected.... But it can't find tha AppleHDA .kext. In System Profiler, under Audio (Built In) do you see anything? It sould also be listed under PCI Cards. Did you install Taptun"s AppleHDA.kext in S/L/E?



I don't need any kind of an enabler for sound. I'll look over your DSDT again.... maybe I missed something :unsure:




Link to comment
Share on other sites
blackbumer
blackbumer
Posted
Posted

Hello guys.



I tryed run installer on HP Pavilion dv6-6160er but stick with some message during boot

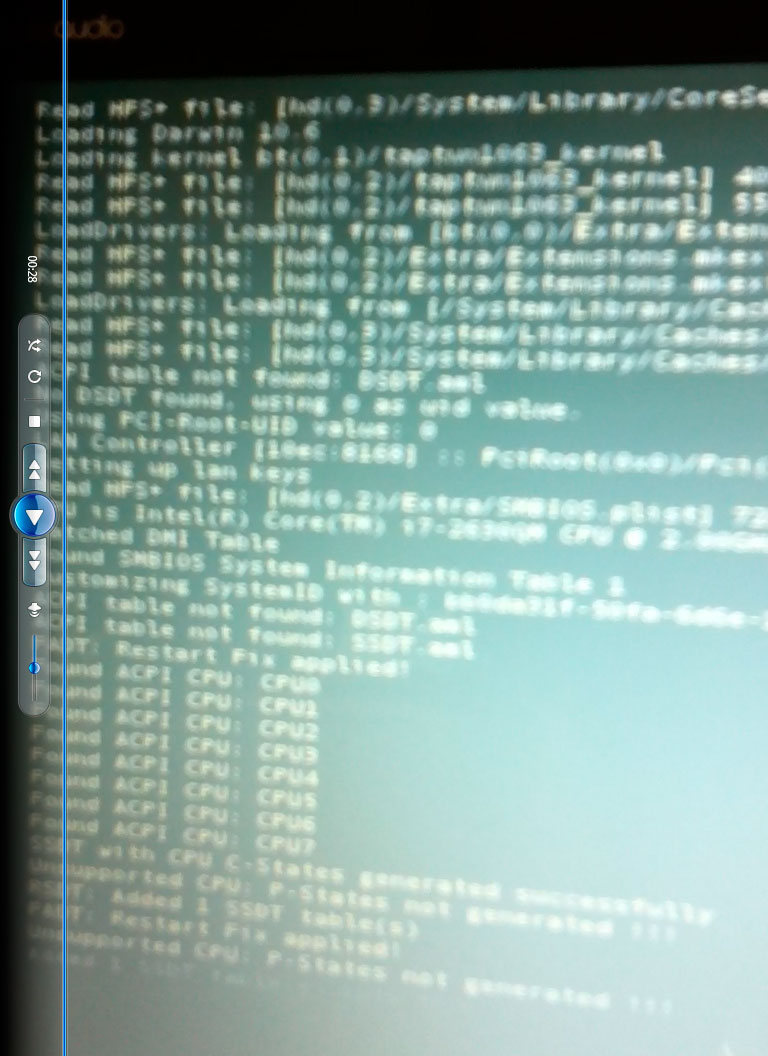

Unsupported CPU: P-states not generated!!!







i've boot in ubuntu x64 and used acpidump to get pure dsdt and converted it to binary format



but with dsdt autopatcher it didn't patched... even i tryied patch pack from first posts for core i7...



always much errors during aplying patches..



so my problem as i see to create dsdt for this laptop



could some one help with it or maybe someone already has been success with it?



i attach my pure dsdt.aml

and dump (from acpidump , before i've converted it to binary)





with pure dsdt.aml








without any dsdt(result is same)


DSDT.zip

dump.zip

Link to comment
Share on other sites
Peter_sm
Peter_sm
Posted
Posted
Hi guys

Updated DSDT patcher for DVx with Core i7!

Supports the new battery kext from here http://www.insanelymac.com/forum/index.php?showtopic=264597

Run from Windows or Linux.

Use the HP -> DV6-i7-bleeding-nixin pack.

A lot of improvements in the patcher (but didn't update the changelog yet)



Cool, But I think the new battery is for SL, Have you tried this on LION ?



Thanks for your great work,`?



What do you think of my error in the log file, see some post above :hysterical:



//Peter

Link to comment
Share on other sites
Taptun
Taptun
Posted
Posted
Hello guys.



I tryed run installer on HP Pavilion dv6-6160er but stick with some message during boot

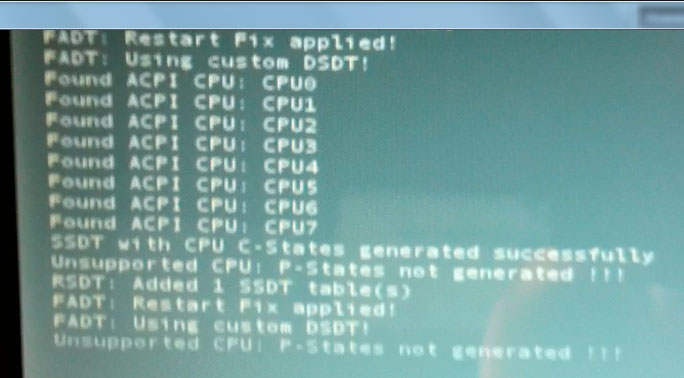

Unsupported CPU: P-states not generated!!!







i've boot in ubuntu x64 and used acpidump to get pure dsdt and converted it to binary format



but with dsdt autopatcher it didn't patched... even i tryied patch pack from first posts for core i7...



always much errors during aplying patches..



so my problem as i see to create dsdt for this laptop



could some one help with it or maybe someone already has been success with it?



i attach my pure dsdt.aml

and dump (from acpidump , before i've converted it to binary)



Try it

blackbumer.zip



@Taptun

Link to comment
Share on other sites
AgentSlash
AgentSlash
Posted
Posted

Hello.

Please help fix my DSDT to work in Lion without GraphicsEnable=Yes, working control screen brightness and working sound via HDMI.

I writed an audio section in DSDT and sound work from internal speaker, but I can not make working video card. I tried to do the instructions from Taptun (http://www.insanelymac.com/forum/index.php?showtopic=250849&st=700#), but does not work.

Maybe there is some necessary corrections that can be applied for better performance MacOs?



DSDT_agentslash.aml.zip



Thanks!



And yet, I tried different kexts (VoodooPS2Controller.kext, ApplePS2Controller.kext) but I can not use trackpad preferences panel. A window opens with the:"Wait for a Bluetooth trackpad to be discovered. No trackpad found". What can i do?



P.S.

Sorry for my bad english

Link to comment
Share on other sites
Peter_sm
Peter_sm
Posted
Posted
Hi guys

Updated DSDT patcher for DVx with Core i7!

Supports the new battery kext from here http://www.insanelymac.com/forum/index.php?showtopic=264597

Run from Windows or Linux.

Use the HP -> DV6-i7-bleeding-nixin pack.

A lot of improvements in the patcher (but didn't update the changelog yet)



NIXin, FYi, I got a error message when running from W7.

[Line 12635 type Error message parse error ]



But perhaps this is not for a DV8 machine :)



		  If (LEqual (S3DS, One))
{
	Name (_S3, Package (0x04)
	{		////This is line 12635 ////
		0x05,
		Zero,
		Zero,
		Zero
	})
}
Name (_S4, Package (0x04)



EDIT



Using DV8 Core i works.



//Peter

Link to comment
Share on other sites
oskr66
oskr66
Posted
Posted

Great help here , thanks to every one who made this topic awesome !



Has any one made the little card reader work yet ? I thing that is the only thing left to make our system almost perfect . I know I had it working on SL with 32 bits kext from Voodoo .



Any help will be appreciated ........ :)

Link to comment
Share on other sites
Taptun
Taptun
Posted
Posted
Hello.

Please help fix my DSDT to work in Lion without GraphicsEnable=Yes, working control screen brightness and working sound via HDMI.

I writed an audio section in DSDT and sound work from internal speaker, but I can not make working video card. I tried to do the instructions from Taptun (http://www.insanelymac.com/forum/index.php?showtopic=250849&st=700#), but does not work.

Maybe there is some necessary corrections that can be applied for better performance MacOs?



DSDT_agentslash.aml.zip



Thanks!



Try it

AgentSlash.zip



@Taptun

Link to comment
Share on other sites
NIXin
NIXin
Posted
Posted
NIXin, FYi, I got a error message when running from W7.

[Line 12635 type Error message parse error ]

EDIT



Using DV8 Core i works.



//Peter

Hi Peter,

Yes, I haven't made the fix for DV8 yet. It's a simple change though.

The DV8 Core i is an older version of the fix and doesn't include latest changes.

I'll keep you posted.



Has any one made the little card reader work yet ? I thing that is the only thing left to make our system almost perfect

I'm working on getting the card reader support at the moment, as few days ago jMicron released official drivers for Mac for the JMB38X chip. Problem is, they're not working out of box, neither with DSDT device-id injection (the driver is for a slightly different dev-id).

If any of you want to debug the problem, feel free to download the driver from the public jMicron ftp (ftp://driver.jmicron.com.tw/)

Link to comment
Share on other sites
AgentSlash
AgentSlash
Posted
Posted
Try it

AgentSlash.zip



@Taptun



@Taptun



As I understand it's not my DSDT, but on a similar laptop? Still not working HDMI sound, brightness is not changed (Fn+F7 \ Fn+F8). The trackpad as before "Wait for a Bluetooth trackpad to be discovered. No trackpad found".



By the way, if i leave CPU section by default gigbench show 3400, and if i write CPU section from the spoiler - the 6400. 2 times faster. Can anyone come in handy.







   Scope (_PR)
   {
       Name (PSS, Package (0x07)
       {
           Package (0x06)
           {
               0x0640,
               0xAFC8,
               0x0A,
               0x0A,
               0x0D,
               0x0D
           },
           Package (0x06)
           {
               0x063F,
               0xAFC8,
               0x0A,
               0x0A,
               0x0C,
               0x0C
           },
           Package (0x06)
           {
               0x05BA,
               0xA20D,
               0x0A,
               0x0A,
               0x0B,
               0x0B
           },
           Package (0x06)
           {
               0x0535,
               0x94E0,
               0x0A,
               0x0A,
               0x0A,
               0x0A
           },
           Package (0x06)
           {
               0x04AF,
               0x87F6,
               0x0A,
               0x0A,
               0x09,
               0x09
           },
           Package (0x06)
           {
               0x042A,
               0x7B14,
               0x0A,
               0x0A,
               0x08,
               0x08
           },
           Package (0x06)
           {
               0x03A5,
               0x6EB5,
               0x0A,
               0x0A,
               0x07,
               0x07
           }
       })
       Name (PSD, Package (0x05)
       {
           0x05,
           Zero,
           Zero,
           0xFC,
           TCNT
       })
       Name (CST, Package (0x03)
       {
           0x02,
           Package (0x04)
           {
               ResourceTemplate ()
               {
                   Register (FFixedHW,
                       0x01,               // Bit Width
                       0x02,               // Bit Offset
                       0x0000000000000000, // Address
                       0x01,               // Access Size
                       )
               },
               One,
               One,
               0x03E8
           },
           Package (0x04)
           {
               ResourceTemplate ()
               {
                   Register (FFixedHW,
                       0x01,               // Bit Width
                       0x02,               // Bit Offset
                       0x0000000000000020, // Address
                       0x01,               // Access Size
                       )
               },
               0x03,
               0x39,
               0x015E
           }
       })
       Name (PPC, Zero)
       Processor (CPU0, 0x01, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU1, 0x02, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU2, 0x03, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU3, 0x04, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU4, 0x05, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU5, 0x06, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU6, 0x07, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU7, 0x08, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
   }





Link to comment
Share on other sites
Taptun
Taptun
Posted
Posted
hi taptun i am use your patched applehda in lion its work great but have one problem my sound not working after wake up from sleep.

plz can you see my dsdt?

thanks



Hi



insert

			Device (HDEF)
			 ............

			 Method (_PRW, 0, NotSerialized)
			 {
				 Return (Package (0x02)
				 {
					 0x0D,
					 0x04
				 })
			 }



@Taptun

Link to comment
Share on other sites
AgentSlash
AgentSlash
Posted
Posted
@Taptun



As I understand it's not my DSDT, but on a similar laptop? Still not working HDMI sound, brightness is not changed (Fn+F7 \ Fn+F8). The trackpad as before "Wait for a Bluetooth trackpad to be discovered. No trackpad found".



By the way, if i leave CPU section by default gigbench show 3400, and if i write CPU section from the spoiler - the 6400. 2 times faster. Can anyone come in handy.







   Scope (_PR)
   {
       Name (PSS, Package (0x07)
       {
           Package (0x06)
           {
               0x0640,
               0xAFC8,
               0x0A,
               0x0A,
               0x0D,
               0x0D
           },
           Package (0x06)
           {
               0x063F,
               0xAFC8,
               0x0A,
               0x0A,
               0x0C,
               0x0C
           },
           Package (0x06)
           {
               0x05BA,
               0xA20D,
               0x0A,
               0x0A,
               0x0B,
               0x0B
           },
           Package (0x06)
           {
               0x0535,
               0x94E0,
               0x0A,
               0x0A,
               0x0A,
               0x0A
           },
           Package (0x06)
           {
               0x04AF,
               0x87F6,
               0x0A,
               0x0A,
               0x09,
               0x09
           },
           Package (0x06)
           {
               0x042A,
               0x7B14,
               0x0A,
               0x0A,
               0x08,
               0x08
           },
           Package (0x06)
           {
               0x03A5,
               0x6EB5,
               0x0A,
               0x0A,
               0x07,
               0x07
           }
       })
       Name (PSD, Package (0x05)
       {
           0x05,
           Zero,
           Zero,
           0xFC,
           TCNT
       })
       Name (CST, Package (0x03)
       {
           0x02,
           Package (0x04)
           {
               ResourceTemplate ()
               {
                   Register (FFixedHW,
                       0x01,               // Bit Width
                       0x02,               // Bit Offset
                       0x0000000000000000, // Address
                       0x01,               // Access Size
                       )
               },
               One,
               One,
               0x03E8
           },
           Package (0x04)
           {
               ResourceTemplate ()
               {
                   Register (FFixedHW,
                       0x01,               // Bit Width
                       0x02,               // Bit Offset
                       0x0000000000000020, // Address
                       0x01,               // Access Size
                       )
               },
               0x03,
               0x39,
               0x015E
           }
       })
       Name (PPC, Zero)
       Processor (CPU0, 0x01, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU1, 0x02, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU2, 0x03, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU3, 0x04, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU4, 0x05, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU5, 0x06, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU6, 0x07, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
       Processor (CPU7, 0x08, 0x00000410, 0x06)
       {
           Alias (PSS, _PSS)
           Alias (PSD, _PSD)
           Alias (CST, _CST)
           Alias (PPC, _PPC)
       }
   }

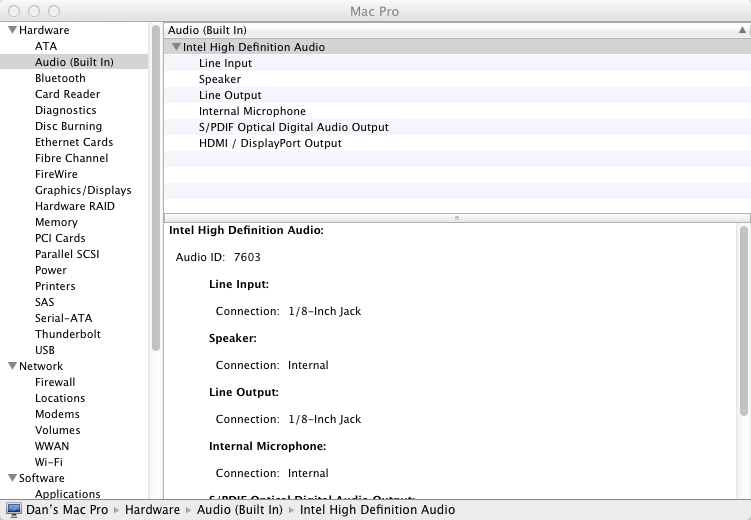

I found what was the problem why I did not have sound via HDMI. In the PCI0->P0P2 device HDAU should be after the device PEGP. As soon as I moved the device HDAU below the PEGP - in audio I have a new output (HDMI / DisplayPort Output).

The remaining issues not yet decided.

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
