Hi righteye,



My NIC is BCM57785(pci14e4,16b5) too. I tried to you install your new and previous Kext to 10.8 but all failed.

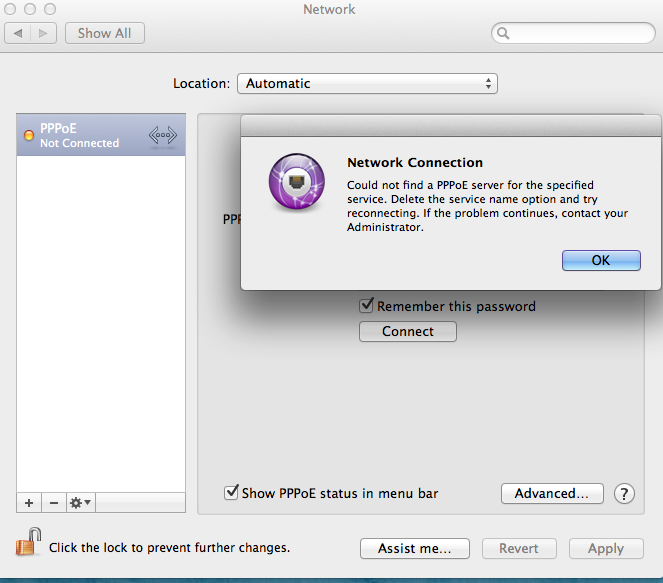

The system can recognize the card successfully but failed to get the IP by DHCP.

If I bind the IP to the card manually, I can ping it successfully. If I ping the gateway or others IP in the same network, it failed.

The physical line and router are good.

Any thing I can try just let me know.

Link to comment
Share on other sites
  • 2 months later...
  • 2 months later...
  • 2 weeks later...
Alex009988
Alex009988
Posted
Posted

I did a new BCM5722d.kext. I just a little change the source code. It's only do for x64-systems.

I also fixed the stop after an intence traffic, but I can mistaking. So that/

Let me know if my fix doesn't work(I'll try to correct it)

#define DEVICEID_BCM5722 0x165A
#define DEVICEID_BCM5754 0x167A
#define DEVICEID_BCM5754M 0x1672
#define DEVICEID_BCM5755 0x167B
#define DEVICEID_BCM5755M 0x1673
#define DEVICEID_BCM5787 0x169B
#define DEVICEID_BCM5787M 0x1693
#define DEVICEID_BCM5906 0x1712
#define DEVICEID_BCM5906M 0x1713
#define DEVICEID_BCM57780 0x1692

Put this driver into the IONetworkingFamily->Plugins->.

http://www.osx86.net...do=file&id=3605

BCM5722D.kext.zip

Link to comment
Share on other sites
adlan
adlan
Posted
  • Author
Posted

sorry for the long hiatus, I really don't have much time to maintain it. Now i have a bit time to get back into it.

I'm aware of the problem. However I cannot promise any fix anytime soon as I'll have to dig through the code again after a long time.

Link to comment
Share on other sites
  • 4 weeks later...
ajochope
ajochope
Posted
Posted (edited)

BCM5722D.kext

156.876 bytes 164 KB

i386 and x86_64 version



BCM5722D.kext

Not working (I am rookie hackintosh)

78Kb

x86_64 version only



Dell Optiplex 330 with Mountain Lion 10.8.2 working!!!

Install on S/L/E using Kext Wizard

Edited by ajochope
Link to comment
Share on other sites
  • 2 weeks later...
Alex009988
Alex009988
Posted
Posted

I think that the problem is with the Global maximum connection.

The point is that when I use transmission(bittorrent client) with 370 connections. I downloaded easily 6.5Gb. But when I had set up 600 connections, BCM5722D stopped working.

kFlowControlDisabled = 1,
.....
kMediumTypeIndexAuto = 1,
It didn't help
kMaxPacketSize = kIOEthernetMaxPacketSize + 4,
kTxBDCount = 512,
kRxBDCount = 512,
kTxMaxSegmentCount = 384, // 0.75 *ring size(512) = 384
kRxMaxSegmentCount = 1,
kWatchDogTimeout = 5000 // ms
Increasing of these numbers lead to the Kernel panic
Maybe should we increase the global limit of connection.
Maybe should we increase these number. I didn't understand what is that.
enum
{
kAutoNegotiationDelay = 50,
kAutoNegotiationTimeout = 10000
};

Does that part of code correlate with number of connections?

Link to comment
Share on other sites
  • 1 month later...
Alex009988
Alex009988
Posted
Posted

Hi everybody. I have a good news. It seems that problem with stoping during an intense traffic was solved with the help of apianti.

Immense thanks him for it.

http://www.projectos...rt=0#entry29694

Was

DebugLog("%lu -> %u segments, %u free, consumer index: %u",
            mbuf_pkthdr_len(m),
            segmentCount,
            txFreeSlot,
            txLocalConsumerIdx);
status = kIOReturnOutputStall;

became


DebugLog("%lu -> %u segments, %u free, consumer index: %u",
mbuf_pkthdr_len(m),
segmentCount,
txFreeSlot,
txLocalConsumerIdx);

status = kIOReturnOutputDropped;

Change the BCM5722D.ccp.

I ask to check this.

You can download new driver from here as well

http://www.osx86.net/downloads.php?do=file&id=3605

V2_ForLionBCM5722D.kext.zip

V2_ForMountainLionBCM5722D.kext.zip

V2_soursesBCM5722D-master.zip

Link to comment
Share on other sites
Alex009988
Alex009988
Posted
Posted

Added more devices. Now driver supports 13 devices :thumbsup_anim::dev:

{ DEVICEID_BCM5722, "BCM5722 NetXtreme Server Gigabit Ethernet" },
{ DEVICEID_BCM5754, "BCM5754 NetXtreme Gigabit Ethernet" },
{ DEVICEID_BCM5754M, "BCM5754M NetXtreme Gigabit Ethernet" },
{ DEVICEID_BCM5755, "BCM5755 NetXtreme Gigabit Ethernet" },
{ DEVICEID_BCM5755M, "BCM5755M NetXtreme Gigabit Ethernet" },
{ DEVICEID_BCM5787, "BCM5787 NetLink (TM) Gigabit Ethernet" },
{ DEVICEID_BCM5787M, "BCM5787M NetLink (TM) Gigabit Ethernet" },
{ DEVICEID_BCM5906, "BCM5906 NetLink (TM) Fast Ethernet" },
{ DEVICEID_BCM5906M, "BCM5906M NetLink (TM) Fast Ethernet" },
{ DEVICEID_BCM57788, "BCM57788 NetLink (TM) Gigabit Ethernet" },
{ DEVICEID_BCM5784, "BCM5784 NetLink Gigabit Ethernet" },
{ DEVICEID_BCM57785, "BCM57785 NetLink (TM) Gigabit Ethernet" },
{ DEVICEID_BCM57781, "BCM57781 NetLink (TM) Gigabit Ethernet" },
{ DEVICEID_BCM57780, "BCM57780 NetLink (TM) Gigabit Ethernet" },


#define DEVICEID_BCM5722				 0x165A
#define DEVICEID_BCM5754				 0x167A
#define DEVICEID_BCM5754M				 0x1672
#define DEVICEID_BCM5755				 0x167B
#define DEVICEID_BCM5755M				 0x1673
#define DEVICEID_BCM5787				 0x169B
#define DEVICEID_BCM5787M				 0x1693
#define DEVICEID_BCM5906				 0x1712
#define DEVICEID_BCM5906M				 0x1713
#define DEVICEID_BCM57788				 0x1691
#define DEVICEID_BCM5784				 0x1698
#define DEVICEID_BCM57785				 0x16b5
#define DEVICEID_BCM57781				 0x16b1
#define DEVICEID_BCM57780				 0x1692

V2.2forMountainLionBCM5722D.kext.zip

V2.2forLionBCM5722D.kext.zip

V2.2soursesBCM5722D-master.zip

Link to comment
Share on other sites
  • 4 weeks later...
seige232
seige232
Posted
Posted

The driver is still having the same load issue. I'm working on a hard drive that needed information migrated through the network, namely 97GB on full duplex at 1000baseT, and it cuts out every single time, also interrupts wireless. Once the driver cuts out, I lose all remote access to the Latitude D630 (NVidia). I have it running Lion 10.7.5. All updates applied. Installed this driver in place of the old Adlan one, and that is the result. Any thoughts?



It is a problem, because that is the only machine that can do this job that we have, and I have it deployed across the city at my office, which closes its doors at 5p everyday, and its a pain to have to keep driving 40 minutes to reset the machine to reinitialize the driver for limited access.



Any help is appreciated.



-Seige

Link to comment
Share on other sites
Alex009988
Alex009988
Posted
Posted

The driver is still having the same load issue. I'm working on a hard drive that needed information migrated through the network, namely 97GB on full duplex at 1000baseT, and it cuts out every single time, also interrupts wireless. Once the driver cuts out, I lose all remote access to the Latitude D630 (NVidia). I have it running Lion 10.7.5. All updates applied. Installed this driver in place of the old Adlan one, and that is the result. Any thoughts?



It is a problem, because that is the only machine that can do this job that we have, and I have it deployed across the city at my office, which closes its doors at 5p everyday, and its a pain to have to keep driving 40 minutes to reset the machine to reinitialize the driver for limited access.



Any help is appreciated.



-Seige

Try this.

kFlowControlDisabled = 1,
kMediumTypeIndexAuto = 1,

Is your Lion x32 or x64? What type of card do your have exactly?

How work BCM5722d with the last modification(v2.2)

Does it stop during working of torrent-client?

If test1BCM5722d doesn't help, write about the problem here, please.

http://www.projectosx.com/forum/index.php?showtopic=2665&pid=29694&mode=threaded&start=0#entry29694

test1BCM5722D.kext.zip

Link to comment
Share on other sites
Tinkergnome
Tinkergnome
Posted
Posted

Hey Alex i have yet to try your version of the drive but i am running into the device not built in issue on my 5752 do you think it would fix it or do you have any pointers to fix it



i am on 10.8.2 Dell Precision 690 2 x4 xeon 16GB ram ASUS HD6670



have tried kernelflag builtin=yes with deleting files as well as interfaces rebooting and re-adding them

have added efi code into bootloader

neither have seemed to fix the issue will try you version 2.3 on new install partition when i finish making a new installer

  • Like 1
Link to comment
Share on other sites
Alex009988
Alex009988
Posted
Posted

Hey Alex i have yet to try your version of the drive but i am running into the device not built in issue on my 5752 do you think it would fix it or do you have any pointers to fix it



i am on 10.8.2 Dell Precision 690 2 x4 xeon 16GB ram ASUS HD6670



have tried kernelflag builtin=yes with deleting files as well as interfaces rebooting and re-adding them

have added efi code into bootloader

neither have seemed to fix the issue will try you version 2.3 on new install partition when i finish making a new installer

Hello. I added your card to the code{ DEVICEID_BCM5752, "BCM5752 NetLink Gigabit Ethernet" },. Are your device id 1600? If so, please try this one that I've attached.

test1.zip

  • Like 1
Link to comment
Share on other sites
mattrk
mattrk
Posted
Posted

Thanks for writing this driver. It saved me a ton of time. This driver is working on the following system:



Dell Precision 390

-OS X Mountain Lion 10.8.3

-Core 2 Duo

-Broadcom 5754 NIC



I used Kext Wizard to install. Worked immediately after a reboot.



Thanks again!

Link to comment
Share on other sites
