382jsl881 Posted May 2, 2011 Share Posted May 2, 2011 After five days success "yesss" working 4570 mobility (dev-id: 0x95531002)Thanks guys Please add to http://www.insanelymac.com/forum/index.php?showtopic=253132 Link to comment Share on other sites More sharing options...

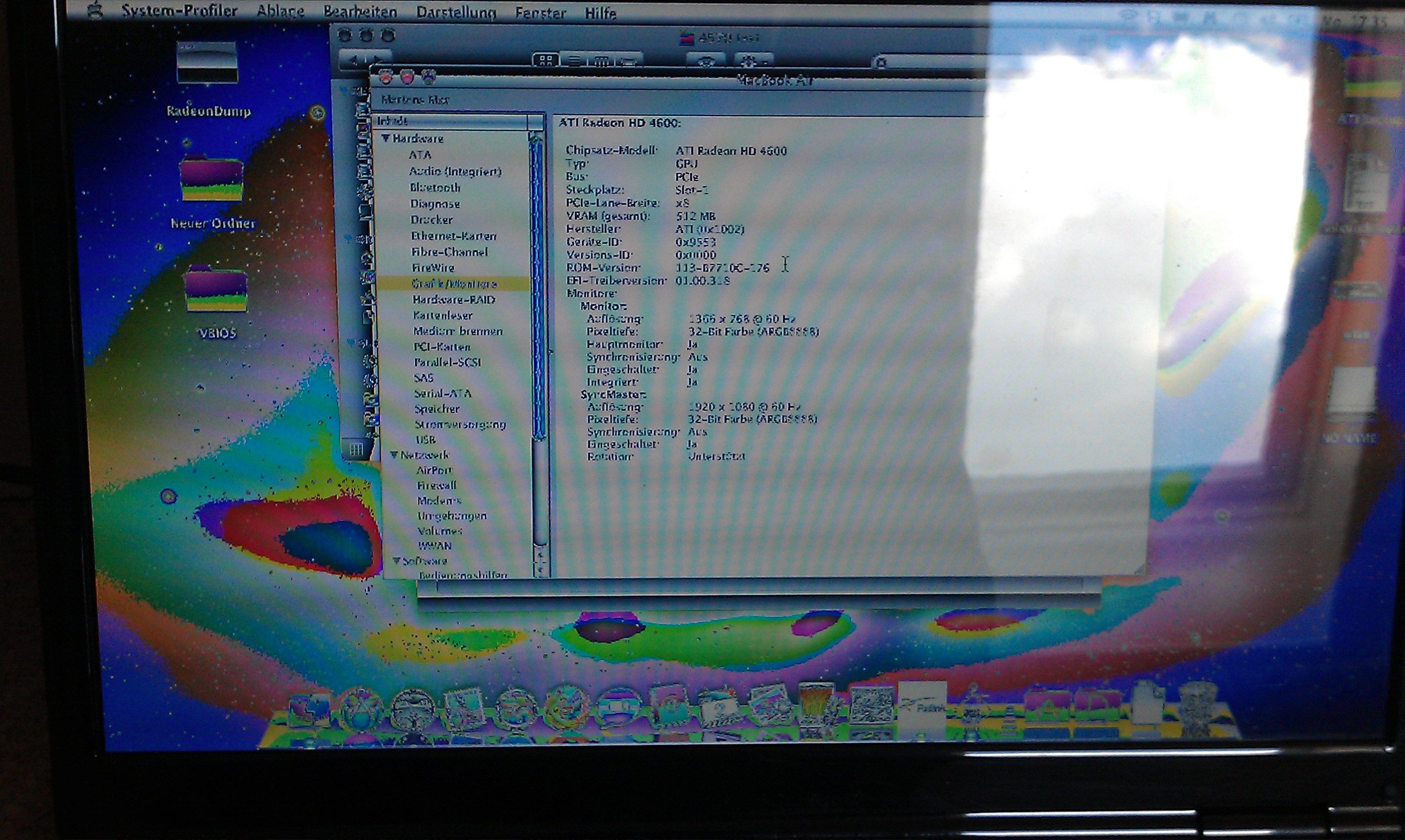

Martuzki Posted May 2, 2011 Share Posted May 2, 2011 How can i fix this? State (with this kexts): Internal LVDS Display has crazy colors (Attached pic) External VGA works (1920x1080) No QE/CI pls help P.S: Can someone help me over TeamViewer? Link to comment Share on other sites More sharing options...
Martuzki Posted May 3, 2011 Share Posted May 3, 2011 Can someone read out the BIOS Infos with Radeondump of this VBIOS file: http://db.tt/OxSn7vR (It's a 4570 mobility) bash-3.2# ./radeondump > 1002_9553.rom Usage: ./radeondump [-d] [regnum] [-r start,end] -d dump Radeon card BIOS ROM regnum dump Radeon card IO register values at regnum -r start,end dump Radeon card IO register values in the range of [start,end] -i dump EDID bash-3.2# Link to comment Share on other sites More sharing options...
crazybirdy Posted May 5, 2011 Share Posted May 5, 2011 Can someone read out the BIOS Infos with Radeondump of this VBIOS file:http://db.tt/OxSn7vR (It's a 4570 mobility) bash-3.2# ./radeondump > 1002_9553.rom Usage: ./radeondump [-d] [regnum] [-r start,end] -d dump Radeon card BIOS ROM regnum dump Radeon card IO register values at regnum -r start,end dump Radeon card IO register values in the range of [start,end] -i dump EDID bash-3.2# mac$ ./radeondump < 9553.0301.00E0.vga.rom ATOM BIOS Rom: SubsystemVendorID: 0x1019 SubsystemID: 0x2379 IOBaseAddress: 0x9000 Filename: BR033553.004 BIOS Bootup Message: BR033553.004 M92 DDR2 64bit 500e/500m Connector at index 0 type: VGA (1) Connector's i2cid: 90 Connector at index 1 type: LVDS (7) Connector's i2cid: 91 Try this. Transmitter, Encoder, Port, and SenseLine like this. 02 00 00 00 40 00 00 00 09 01 00 00 12 00 01 02 LVDS 10 00 00 00 10 00 00 00 00 01 00 00 00 10 00 01 VGA use HexEdit to find Peregrine 00 02 00 00 04 02 00 00 00 00 00 00 02 01 04 05 00 04 00 00 00 01 00 00 00 00 00 00 20 00 02 02 and replace to yours. 02 00 00 00 40 00 00 00 09 01 00 00 12 00 01 02 10 00 00 00 10 00 00 00 00 01 00 00 00 10 00 01 Replace two locations for both 32bits & 64bits. Don't use kexts from 10.6.6 MBP 2011 or Lion. Link to comment Share on other sites More sharing options...
Martuzki Posted May 6, 2011 Share Posted May 6, 2011 Thanks! I'll try it What does "MBP" mean? Is that my BIOS? Link to comment Share on other sites More sharing options...
AkimoA Posted May 6, 2011 Share Posted May 6, 2011 What does "MBP" mean? MacBookPro Link to comment Share on other sites More sharing options...
Martuzki Posted May 6, 2011 Share Posted May 6, 2011 Okay I use the Stock SL Kexts from Retail DVD/10.6.6 Combo. Right? Link to comment Share on other sites More sharing options...
Martuzki Posted May 6, 2011 Share Posted May 6, 2011 Thanks, but it doesn't work When i boot mac os x with this "GraphicsEnnabler=Yes AtiConfig=Peregrine -v" the Screen will go of after the VerboseLog (also VGA out dont'work (no signal)) and the Screen's Backlight goes of :/ Can this help?: martens-mac:vbios Marten$ ./radeondump -i Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/AGP@1/IOPCI2PCIBridge/VGA@0/RadeonPCI it matched on name "ATY_GPU" Detected unknown Card (device id: 0x9553) It's not in known card list, treat as card with device id: 0x9511 Detect EDID may fail for this card. Start I2C dump ATOM BIOS detected ATOM BIOS Rom: SubsystemVendorID: 0x1019 SubsystemID: 0x2379 IOBaseAddress: 0x9000 Filename: BR033553.004 BIOS Bootup Message: BR033553.004 M92 DDR2 64bit 500e/500m object id 0005 01 src object id 2115 21 record type 1 rhdAtomParseI2CRecord: I2C Record: GPIO_ID 9 EngineID: 0 I2CAddr: 0 ddc_line from ATOMBIOS: 0x0 record type 4 object id 000e 01 src object id 2121 33 record type 1 rhdAtomParseI2CRecord: I2C Record: HW_Line 9 EngineID: 0 I2CAddr: 0 ddc_line from ATOMBIOS: 0x0 record type 4 martens-mac:vbios Marten$ EDIT: KExt loaded: ATIFramebuffer.kext ATIRadeonX2000.kext ATI4600Controller.kext ATISupport.kext Aviable Res: 800x600 1024x768 1280x1024 1680x1050 Graka will be detected but no Screens EDIT2: With LionKexts i can use both Displays (VGA, Internal) with the right res. but no QE/CI and on the Internal Screen there are Crazy colours and a "nervous" screen Link to comment Share on other sites More sharing options...
SliderSD Posted May 6, 2011 Share Posted May 6, 2011 Hi folks, what can I do if the video bios dump does not show an i2cid valud for the LVDS connector? I have a mobility radeon 4650 in my laptop. Here is the dump: ATOM BIOS Rom: SubsystemVendorID: 0x104d SubsystemID: 0x9035 IOBaseAddress: 0xd000 Filename: BR34169.001 BIOS Bootup Message: Sony_M764_M96M2LP_gDDR3 M96 GDDR3 128bit 450e/600m PCI ID: 1002:9480 Connector at index 0 Type [@offset 46098]: LVDS (7) Encoder [@offset 46102]: INTERNAL_UNIPHY2 (0x21) Connector at index 1 Type [@offset 46108]: VGA (1) Encoder [@offset 46112]: INTERNAL_KLDSCP_DAC1 (0x15) i2cid [@offset 46179]: 0x90, OSX senseid: 0x1 Connector at index 2 Type [@offset 46118]: HDMI-A (11) Encoder [@offset 46122]: INTERNAL_UNIPHY (0x1e) i2cid [@offset 46202]: 0x94, OSX senseid: 0x5 Any ideas? Kind regards an thanks in advance Link to comment Share on other sites More sharing options...
Martuzki Posted May 15, 2011 Share Posted May 15, 2011 Can someone help me? I can't get QE & CI on my 4570 Mobility to work I tried this: Peregrine: VGA 02 00 00 00 40 00 00 00 09 01 00 00 02 01 01 02 LVDS 10 00 00 00 10 00 00 00 00 01 00 00 00 10 00 01 Both will work and i can change the res to 1366x768. On the VGA Output the screen is not centred. How can i get QE/CI to work? Some Infos: Kexts loaded: ATIFramebuffer.kext ATI4600Controller.kext ATIRadeonX2000.kext ATISupport.kext Sys Profiler: ATI Radeon 4500 Mobility Series: Chipsatz-Modell: ATI Radeon 4500 Mobility Series Typ: GPU Bus: PCIe Steckplatz: Slot-1 PCIe-Lane-Breite: x8 VRAM (gesamt): 512 MB Hersteller: ATI (0x1002) Geräte-ID: 0x9553 Versions-ID: 0x0000 ROM-Version: 113-B7710C-176 EFI-Treiberversion: 01.00.318 Monitore: Monitor: Auflösung: 1366 x 768 @ 60 Hz Pixeltiefe: 32-Bit Farbe (ARGB8888) Hauptmonitor: Ja Synchronisierung: Aus Eingeschaltet: Ja Integriert: Ja SyncMaster: Auflösung: 1920 x 1080 @ 60 Hz Pixeltiefe: 32-Bit Farbe (ARGB8888) Synchronisierung: Aus Eingeschaltet: Ja Rotation: Unterstützt BIOS Dump: ATOM BIOS Rom: SubsystemVendorID: 0x1019 SubsystemID: 0x2379 IOBaseAddress: 0x9000 Filename: BR033553.004 BIOS Bootup Message: BR033553.004 M92 DDR2 64bit 500e/500m PCI ID: 1002:9553 Connector at index 0 Type [@offset 45504]: VGA (1) Encoder [@offset 45508]: INTERNAL_KLDSCP_DAC1 (0x15) i2cid [@offset 45548]: 0x90, OSX senseid: 0x1 Connector at index 1 Type [@offset 45514]: LVDS (7) Encoder [@offset 45518]: INTERNAL_UNIPHY2 (0x21) i2cid [@offset 45571]: 0x91, OSX senseid: 0x2 Thanks for any help! Link to comment Share on other sites More sharing options...
spac3man Posted May 16, 2011 Share Posted May 16, 2011 Hi all!We finally succeeded in getting Mobility Radeon HD 4xxx working with QE/CI ... Great work, but I think there're too many people who don't understand how to get their cards working I've been trying to get QE/CL on my Mobility HD 4330, I tried different ways, and now I use kexts from that topic: http://www.insanelymac.com/forum/index.php?showtopic=255976 The problem is that I can't use GraphicsEnabler=Yes, because I got the screen full of colored blocks (you can see it in attachment). Also, you can read what I did in this topic: http://www.insanelymac.com/forum/index.php...t&p=1683842 Can you at least upload your kexts? Maybe some magic will happen... Anyway, thanks! Link to comment Share on other sites More sharing options...
Martuzki Posted May 20, 2011 Share Posted May 20, 2011 What about the Fan? It runs all the time (100%). EDIT: Maybe it's the FAn of the mobility graphic? Or is it the CPU Fan? I dont know if my laptop have an Graphiccard fan Link to comment Share on other sites More sharing options...
c0ke Posted May 20, 2011 Share Posted May 20, 2011 What about the Fan?It runs all the time (100%). EDIT: Maybe it's the FAn of the mobility graphic? Or is it the CPU Fan? I dont know if my laptop have an Graphiccard fan Yes is the GPU fan, also in mine is very noisy... actually I think there's no way to control it in osx, but flashing the card's rom, but my card doesn't allow it.. take a look here: http://www.insanelymac.com/forum/index.php?showtopic=227787 little offtopic, how did you manage to let the sound card work? (send me a PM if you want..) Link to comment Share on other sites More sharing options...
Martuzki Posted May 21, 2011 Share Posted May 21, 2011 And when i modify it it will run quiet? Link to comment Share on other sites More sharing options...
c0ke Posted May 22, 2011 Share Posted May 22, 2011 And when i modify it it will run quiet? With that method you can rearrange the curve of the fan's speed in the way you think is better see point 10. Link to comment Share on other sites More sharing options...
Martuzki Posted May 23, 2011 Share Posted May 23, 2011 Okay thanks! I've tried this but the Butten "Fan Settings" is not clickable. Maybe its the CPU Fan? Link to comment Share on other sites More sharing options...
tommac_osx86 Posted May 23, 2011 Share Posted May 23, 2011 Is there any pre-edite graphic-kext for Lenovo IdeaPad U450P (M23L6GE)? Or some simple instructions on setting up a working kext for ATI Mobility 4330 HD? Link to comment Share on other sites More sharing options...
Martuzki Posted May 23, 2011 Share Posted May 23, 2011 Is there any pre-edite graphic-kext for Lenovo IdeaPad U450P (M23L6GE)?Or some simple instructions on setting up a working kext for ATI Mobility 4330 HD? Try this: http://www.insanelymac.com/forum/index.php...t=0&start=0 or look here, maybe one of them work: http://www.insanelymac.com/forum/index.php?showtopic=253132 Link to comment Share on other sites More sharing options...
leo.eg Posted May 26, 2011 Share Posted May 26, 2011 Sstem up with black screen, ATI Radeon Mobility 4300 HD.. Dell Inspiron 1654 i3, I don't know what else should I do? Link to comment Share on other sites More sharing options...
thanh hoang Posted June 2, 2011 Share Posted June 2, 2011 i NEED HELP in ati.c: 208 { 0x9498, 0x24511682, CHIP_FAMILY_RV730, "ATI Radeon HD 4650", kNull }, 209 { 0x9498, 0x24521682, CHIP_FAMILY_RV730, "ATI Radeon HD 4650", kNull }, 210 { 0x9498, 0x24541682, CHIP_FAMILY_RV730, "ATI Radeon HD 4650", kNull My card is Mobility radeon HD 4650 but i not see: change: { 0x10029552, "Peregrine"} , to: { 0x10029552, "Flicker"} , How to modify it. Sory my bad English Link to comment Share on other sites More sharing options...
meisam_629 Posted June 6, 2011 Share Posted June 6, 2011 Any luck with LVDS on ATI mobility radeon hd 3450???? Link to comment Share on other sites More sharing options...
meisam_629 Posted June 6, 2011 Share Posted June 6, 2011 Hi everyone, this is my ati dump from ubuntu: [ 0.000000] Linux version 2.6.32-21-generic) [ 2.397854] [drm] Initialized drm 1.1.0 20060810 [ 3.379081] [drm] radeon defaulting to kernel modesetting. [ 3.379083] [drm] radeon kernel modesetting enabled. [ 3.379941] [drm] radeon: Initializing kernel modesetting. [ 3.380015] [drm] register mmio base: 0xFC000000 [ 3.380017] [drm] register mmio size: 65536 [ 3.380125] [drm] Clocks initialized ! [ 3.381866] [drm] Detected VRAM RAM=256M, BAR=256M [ 3.381868] [drm] RAM width 64bits DDR [ 3.381978] [drm] radeon: 256M of VRAM memory ready [ 3.381979] [drm] radeon: 512M of GTT memory ready. [ 3.382052] [drm] radeon: using MSI. [ 3.382083] [drm] radeon: irq initialized. [ 3.382085] [drm] GART: num cpu pages 131072, num gpu pages 131072 [ 3.382267] [drm] Loading RV620 Microcode [ 3.417946] [drm] ring test succeeded in 1 usecs [ 3.418068] [drm] radeon: ib pool ready. [ 3.418130] [drm] ib test succeeded in 0 usecs [ 3.418132] [drm] Enabling audio support [ 3.418253] [drm] Radeon Display Connectors [ 3.418255] [drm] Connector 0: [ 3.418256] [drm] VGA [ 3.418258] [drm] DDC: 0x7e20 0x7e20 0x7e24 0x7e24 0x7e28 0x7e28 0x7e2c 0x7e2c [ 3.418260] [drm] Encoders: [ 3.418261] [drm] CRT1: INTERNAL_KLDSCP_DAC1 [ 3.418263] [drm] Connector 1: [ 3.418264] [drm] LVDS [ 3.418266] [drm] DDC: 0x7e40 0x7e40 0x7e44 0x7e44 0x7e48 0x7e48 0x7e4c 0x7e4c [ 3.418267] [drm] Encoders: [ 3.418268] [drm] LCD1: INTERNAL_KLDSCP_LVTMA [ 3.418270] [drm] Connector 2: [ 3.418271] [drm] HDMI-A [ 3.418272] [drm] HPD1 [ 3.418274] [drm] DDC: 0x7e60 0x7e60 0x7e64 0x7e64 0x7e68 0x7e68 0x7e6c 0x7e6c [ 3.418275] [drm] Encoders: [ 3.418277] [drm] DFP1: INTERNAL_UNIPHY [ 3.553591] [drm] fb mappable at 0xD0141000 [ 3.553593] [drm] vram apper at 0xD0000000 [ 3.553594] [drm] size 4096000 [ 3.553595] [drm] fb depth is 24 [ 3.553596] [drm] pitch is 5120 [ 3.553668] fb0: radeondrmfb frame buffer device [ 3.553673] [drm] Initialized radeon 2.0.0 20080528 for 0000:01:00.0 on minor 0 so what's next?? where can I find a good tutorial about personalities and how to edit them?? Thanks Link to comment Share on other sites More sharing options...
SoundBlaster Posted June 6, 2011 Share Posted June 6, 2011 Hi, everybody! Can this solution run my mobily HD4270? (HP Omni 100 PC 5130) Link to comment Share on other sites More sharing options...
psygnosis Posted June 8, 2011 Share Posted June 8, 2011 can someone please tell me what framebuffer I have to patch to try on Mobility radeon hd 3450? and than use it with native kext from lion, please? thanks in advance I would like to help the community with this unlucky GC but I don't know how... Link to comment Share on other sites More sharing options...
thanh hoang Posted June 9, 2011 Share Posted June 9, 2011 Get the module_system branche by typing at terminal: svn co http://forge.voodooprojects.org/svn/chameleon/branches/module_system you will find source files at your home folder, then replace ati.c file by the one i modded but before compiling make sure to include your device id & default fb as i shrinked that part. for me it just inject more entries into ioreg (cosmetic), i don't see any difference (but my system is good already), may be it can bring something new for you. i have tried DSDT injection before but no go too Him mucha, when I paste this code, i have see svn: URL 'http://forge.voodooprojects.org/svn/chameleon/branches/module_system' doesn't exist help me Link to comment Share on other sites More sharing options...
