DSDT Auto-Patcher


MaLd0n
 Share

5,753 posts in this topic

Recommended Posts

No! Either Internal Speakers or both Line out, nothing.



I tested front and back jacks, also nothing...



After running the DSDT Auto-pacther, I just dropped the kext into Extra/Extensions and restarted.



I missed something?

the problem must be with the kext

should not work for you



send me your DSDT

Link to comment
Share on other sites

the problem must be with the kext

should not work for you



send me your DSDT



Here is, the DSDT.aml (zipped) that was generated by the Auto Patcher.



dsdt.aml.zip



My audio board is AD1988B (according to the ASUS P5K Premium Wi-fi Edition User's Manual).

Link to comment
Share on other sites



It works great!!! Thanks!!! What you did with that DSDT.aml file?



Only the frontal head-phone jack doesn't works...



I'm pretty ok with that, but I gotta ask: is there a solution for this too?



Is this related to BIOS configuration?



Because the motherboard BIOS has a item named "High Definition Audio", wich can be turned on or off. And when it's turned ON (my case), there are two options: [AC97] or [HD Audio] (I'm using the last option by default).



What do you think?

Link to comment
Share on other sites

Device (HDEF)
           {
               Name (_ADR, 0x001B0000)
               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x08)
                       {
                           "codec-id",
                           Buffer (0x04)
                           {
                               0x9B, 0x82, 0x43, 0x10
                           },

                           "layout-id",
                           Buffer (0x04)
                           {
                               0x0C, 0x00, 0x00, 0x00
                           },

                           "device-type",
                           Buffer (0x17)
                           {
                               "Analog Devices AD1988B"
                           },

                           "PinConfigurations",
                           Buffer (0x24)
                           {
                               /* 0000 */    0x30, 0x40, 0x21, 0x01, 0x10, 0x40, 0x11, 0x01,
                               /* 0008 */    0x40, 0x90, 0xA1, 0x01, 0x50, 0x30, 0x81, 0x01,
                               /* 0010 */    0x60, 0x10, 0x01, 0x01, 0x20, 0x90, 0xA0, 0x90,
                               /* 0018 */    0x80, 0xF1, 0x45, 0x01, 0x90, 0xF1, 0xC5, 0x01,
                               /* 0020 */    0x70, 0x60, 0x01, 0x01
                           }
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }
           }





It works great!!! Thanks!!! What you did with that DSDT.aml file?



Only the frontal head-phone jack doesn't works...



I'm pretty ok with that, but I gotta ask: is there a solution for this too?



Is this related to BIOS configuration?



Because the motherboard BIOS has a item named "High Definition Audio", wich can be turned on or off. And when it's turned ON (my case), there are two options: [AC97] or [HD Audio] (I'm using the last option by default).



What do you think?



I really do not know

;)

Link to comment
Share on other sites

Use nativePM, see the first post

dsdt.BloodyVlad.zip



OpenHaltRestart, Disabler, PlatformUUID, SleepEnabler

Collection? post-557433-1299688231.png



read firts post





try it

dsdt.dawiinci.zip



use SleepEnabler



Thanks a LOT. Removed mentioned kexts, did not touch them before, because of wrong DSDT. Sleep does not work with your DSDT. Black screen and can't wake.

Link to comment
Share on other sites

Here is my DSDT. Its from a DFI X58 T3H6 board. I currently have trouble with post install so I hope the

edited DSDT will sort out the issues I have.

dsdt.rectifier23.zip

OP REG PX40

DTGP

HID/CID

HPET

IRQs

LPC

REMOVE

RTC

SMBUS

SHUTDOWN

WAK





Thanks a LOT. Removed mentioned kexts, did not touch them before, because of wrong DSDT. Sleep does not work with your DSDT. Black screen and can't wake.

send me new kextstat

Link to comment
Share on other sites

@MaLd0n

Do you have any idea what I could try to get sleep working?

I have no idea



you need to do some tests

the ideal is to do a fresh install

use a HD to do the tests



do not use [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] etc.

use Extra

http://www.insanelymac.com/forum/index.php...st&id=79503

and Chameleon RC5

http://www.insanelymac.com/forum/index.php...t&p=1634096

Link to comment
Share on other sites

I have no idea



you need to do some tests

the ideal is to do a fresh install

use a HD to do the tests



do not use [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] etc.

use Extra

http://www.insanelymac.com/forum/index.php...st&id=79503

and Chameleon RC5

http://www.insanelymac.com/forum/index.php...t&p=1634096

Well basically this system is a fresh install directly from retail.



I just installed Chameleon 2.0 RC5 r747 and added FakeSMC.kext (latest version) along with these:

/Extra/Extensions/AppleATIATA.kext

/Extra/Extensions/AppleATIPATA.kext



Not sure if the LegacyAppleAHCIPort.kext would help in any way. Would this replace AppleATIATA.kext and AppleATIPATA.kext? (or on another system AppleVIAATA.kext)

Link to comment
Share on other sites

/Extra/Extensions/AppleATIATA.kext

/Extra/Extensions/AppleATIPATA.kext

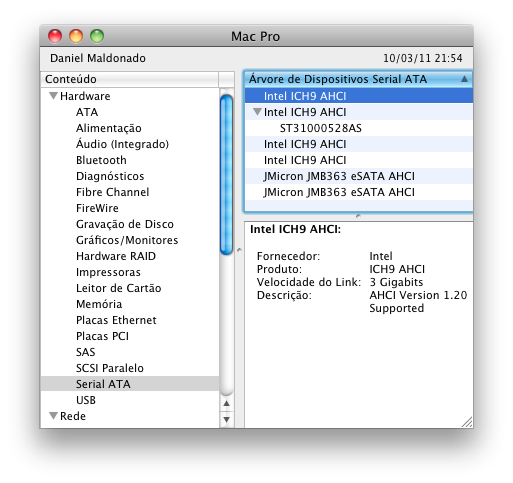

You do not need those kexts

AHCI Enabled



LegacyAHCI


only use this if you need kext

if the information appears correct you do not need

Link to comment
Share on other sites

You do not need those kexts

AHCI Enabled



LegacyAHCI


only use this if you need kext

if the information appears correct you do not need

Hey MaLdOn

I used the fakesmc files you listed on the last page and now I cant boot normally or with a boot disk. I'm using the dsdt you made for me a couple of months ago on a DG41RQ intel motherboard. I am running 10.6.6. Any ideas on how to boot now? THanks C

it says something about fintek and f718. What kext's have those? You really are a master, I've gone through some of the 123 pages you've given advice on. I dont do that much work at my job, and I'm good at it. You really do rock

Link to comment
Share on other sites

Hey MaLdOn

I used the fakesmc files you listed on the last page and now I cant boot normally or with a boot disk. I'm using the dsdt you made for me a couple of months ago on a DG41RQ intel motherboard. I am running 10.6.6. Any ideas on how to boot now? THanks C

what happens?

kp?

Link to comment
Share on other sites

what happens?

kp?

Yes a KP or it just stops. I left for 1/2 an hour and it was still on the f718 thing. I just removed that plug

in from the kext. Yes? No?



Yes a KP or it just stops. I left for 1/2 an hour and it was still on the f718 thing. I just removed that plug

in from the kext. Yes? No?

I have the new fakesmc intelCPUmonitor and intelthermal, nvclock, superiofamil and x3100. I am taking them out one at a time. as I should have put them in.

Link to comment
Share on other sites

Yes a KP or it just stops. I left for 1/2 an hour and it was still on the f718 thing. I just removed that plug

in from the kext. Yes? No?





I have the new fakesmc intelCPUmonitor and intelthermal, nvclock, superiofamil and x3100. I am taking them out one at a time. as I should have put them in.



Use FakeSMC.kext, IntelCPUMonitor.kext, SuperIOFamily.kext( look the I/O Controller) and kext for video(only one)

Link to comment
Share on other sites

Removed NullCPUPower - goes to sleep, but black screen on wake. Can it be because of GraphicsEnabler is used but not NVEnabler? I have Geforce G310 512Mb.

I can't use native AppleCpuPowerManagement because my P6100 CPU doesn't support SSE4. But AFAIK I can't delete it, or I'll get a KP.

Removed VoodooPower also and upgraded Chameleon to r747. Disabled GraphicsEnabler and installed G310 NVEnabler. Same thing - black screen after wake.

Link to comment
Share on other sites

You do not need those kexts

AHCI Enabled



LegacyAHCI


only use this if you need kext

if the information appears correct you do not need

But an AMD system doesn't have AHCI. Remember I don't need this for my P5Q but for two AMD machines.



Maybe I don't understand you right but without this kexts I couldn't boot. Would LegacyAHCI fake AMD to be Intel?

Link to comment
Share on other sites
