DSDT Auto-Patcher

MaLd0n

By MaLd0n,
in Patches

 Share
5,753 posts in this topic

Recommended Posts

René_
René_
Posted
Posted
dsdt.reneJR.zip



I applied what was missing

and will be updated

test



ioreg -lw0 | grep CSTInfo



Sorry MaLd0n,

No change, CPU fan and hard disk keeps running.





Before:
iRene:~ rene$ ioreg -lw0 | grep CSTInfo
| |   |	 "CSTInfo" = 19136773

After:
Last login: Tue Jan 11 17:29:32 on console
iRene:~ rene$ ioreg -lw0 | grep CSTInfo
| |   |	 "CSTInfo" = 19136773

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Sorry MaLd0n,

No change, CPU fan and hard disk keeps running.





Before:
iRene:~ rene$ ioreg -lw0 | grep CSTInfo
| |   |	 "CSTInfo" = 19136773

After:
Last login: Tue Jan 11 17:29:32 on console
iRene:~ rene$ ioreg -lw0 | grep CSTInfo
| |   |	 "CSTInfo" = 19136773



you will have to find

there's nothing wrong with the DSDT

I see that you updated the system

must be prepared for these things

Link to comment
Share on other sites
Alex_Nik
Alex_Nik
Posted
Posted
your video enabled?



no. :)



1280*800 over "Graphics Mode = 1280x800x32", but graphics acceleration not working. original x3100 kexts not load.



"GraphicsEnabler = yes" - no effect



my x3100 (0x2a02), working only after replacement appleintelGMAX3100FB.kext from 10.5.2

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
So next try, I hope now it is ok.

I used aida64



Asus_P6TD_Deluxe.zip

dsdt.HAL_9k.zip



no. :)



1280*800 over "Graphics Mode = 1280x800x32", but graphics acceleration not working. original x3100 kexts not load.



"GraphicsEnabler = yes" - no effect



my x3100 (0x2a02), working only after replacement appleintelGMAX3100FB.kext from 10.5.2

activate

Link to comment
Share on other sites
René_
René_
Posted
Posted
you will have to find

there's nothing wrong with the DSDT

I see that you updated the system

must be prepared for these things



Hi MaLd0n,



Can you help?



In BIOS I've got:

ACPI -> S3(STR)

HPET support -> Enabled

HPET mode -> 64-bit mode



In System Prefs->Energy Saver I've got:

Put the hard disk to sleep when possible->Enabled

Wake for Ethernet network acces->Disabled

Allow power button to put the computer to sleep->Enabled

Start up automatically after a power failure->Enabled



Installed 10.6.0 again with the latest DSDT from you.

Still same problem. Monitor goes to sleep.

CPU fans and hard disk keeps running.



When I press powerbutton computer goes very quickly to sleep, seems to work.

Wake with powerbutton, computer starts, hard disk is running. No monitor and USB mouse light does not light up.

Hardware reset does not help. Have to put system down by pressing the power button for a while.



Can also wake the computer by pressing the mouse button, but no monitor . . . enz.



What can I try more? Any ideas?



Thanks

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Hi MaLd0n,



Can you help?



In BIOS I've got:

ACPI -> S3(STR)

HPET support -> Enabled

HPET mode -> 64-bit mode



In System Prefs->Energy Saver I've got:

Put the hard disk to sleep when possible->Enabled

Wake for Ethernet network acces->Disabled

Allow power button to put the computer to sleep->Enabled

Start up automatically after a power failure->Enabled



Installed 10.6.0 again with the latest DSDT from you.

Still same problem. Monitor goes to sleep.

CPU fans and hard disk keeps running.



When I press powerbutton computer goes very quickly to sleep, seems to work.

Wake with powerbutton, computer starts, hard disk is running. No monitor and USB mouse light does not light up.

Hardware reset does not help. Have to put system down by pressing the power button for a while.



Can also wake the computer by pressing the mouse button, but no monitor . . . enz.



What can I try more? Any ideas?



Thanks



I have no idea



if it worked

must also work now



"load optimized defaults" in bios

Enable AHCI and HPET

Link to comment
Share on other sites
René_
René_
Posted
Posted
Please give me your C.A.B.P , your Kernel is a 64bit or 32 bit?



Tried both 32 bits and 64 bits.



<key>Boot Banner</key>

<string>No</string>

<key>GenerateCStates</key>

<string>Yes</string>

<key>GeneratePStates</key>

<string>Yes</string>

<key>Kernel</key>

<string>mach_kernel</string>

<key>Kernel Flags</key>

<string>arch=i386 -v</string>

<key>Rescan</key>

<string>Yes</string>



Thanks ;)

Link to comment
Share on other sites
magnifico
magnifico
Posted
Posted
Tried both 32 bits and 64 bits.



<key>Boot Banner</key>

<string>No</string>

<key>GenerateCStates</key>

<string>Yes</string>

<key>GeneratePStates</key>

<string>Yes</string>

<key>Kernel</key>

<string>mach_kernel</string>

<key>Kernel Flags</key>

<string>arch=i386 -v</string>

<key>Rescan</key>

<string>Yes</string>



Thanks ;)



Your system at 32 bit , test OpenHaltRestart. Kext

Link to comment
Share on other sites
René_
René_
Posted
Posted
I have no idea



if it worked

must also work now



"load optimized defaults" in bios

Enable AHCI and HPET

Thanks MaLd0n,

Didn't work, will keep seaching and let you know if I find something ;)



Your system at 32 bit , test OpenHaltRestart. Kext



Tried it but did not helped.



Thanks, will let you know if I can find something. ;)



DSDT is so nice, this is the only thing that bothers me :)

Link to comment
Share on other sites
SmoothMC
SmoothMC
Posted
Posted

@MaLd0n



sooo on



Now i have re-managed my USB Boot-Stick



It now runs with your DSDT and the following kexts








Here the Bug-list :D



1. i have changed the FakeSMC with this one fakesmc_rev.405 because it hangs on boot. I think your fakesmc was for SnowLeo. Isn't it?



2. the Systems runs now but sleep works only over menu. On Powerbutton the System freeze.



3. Wake from USB doesn't work.



4. Wake on Lan doesn't work from standby (It worked only if the is System complete Off)



5. Bonjour doesn't work. As you can see in Screenshot (Home Server also a Device). I have no kext loaded for LAN

except the 8169 retail loaded by system.



thanks for your help and your patience. :blush:

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
@MaLd0n



sooo on



Now i have re-managed my USB Boot-Stick



It now runs with your DSDT and the following kexts








Here the Bug-list ;)



1. i have changed the FakeSMC with this one fakesmc_rev.405 because it hangs on boot. I think your fakesmc was for SnowLeo. Isn't it?



2. the Systems runs now but sleep works only over menu. On Powerbutton the System freeze.



3. Wake from USB doesn't work.



4. Wake on Lan doesn't work from standby (It worked only if the is System complete Off)

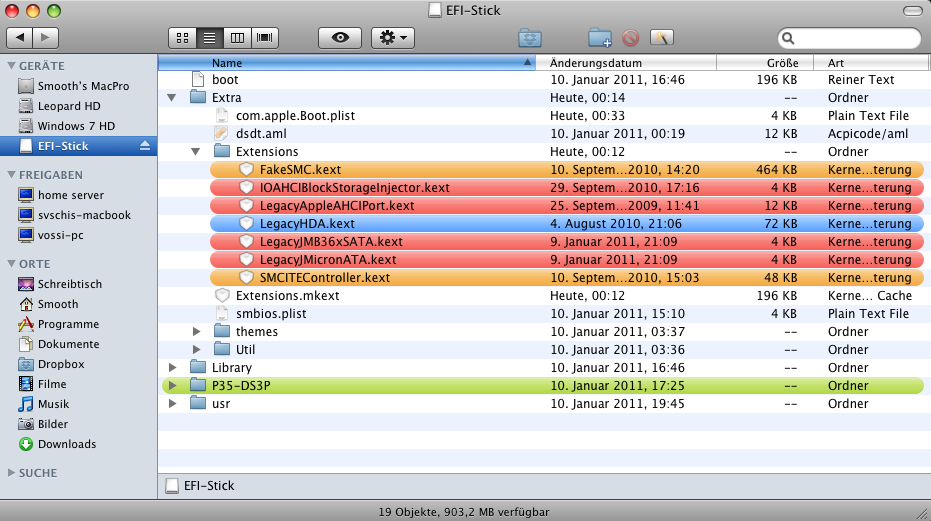

5. Bonjour doesn't work. As you can see in Screenshot (Home Server also a Device). I have no kext loaded for LAN

except the 8169 retail loaded by system.



thanks for your help and your patience. :P



Man

Snow 10.6.6

:wub:

Link to comment
Share on other sites
Mitch Matrixx
Mitch Matrixx
Posted
Posted

Maldon,



Thanks big time! The dsdt from post #1504 has fixed my sleep problems, completely apparently...(I'm using Voodoo P-state kext in S/L/E, don't know if I should be, but it seems to be working correctly :( )

However, I don't know if you injected any HDA info, but upon using new dsdt, I started getting KP for VoodooHDA.

I prompltly removed it using trust Nawcom boot disc, and did the usual repairs etc...

I can boot fine, but now lack sound :rolleyes:

My question is if you did make audio changes in dsdt, should I be trying to use a custom applehda (I have vanilla applehda in S/L/E, but apparently its not working) or should I be looking for something else like AppleAzalia kext?



I'll be doing some experimenting... If anyone else can answer, feel free.



Thanks again for your efforts

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
With a ATI 3870 ??? :(



???



Maldon,



Thanks big time! The dsdt from post #1504 has fixed my sleep problems, completely apparently...(I'm using Voodoo P-state kext in S/L/E, don't know if I should be, but it seems to be working correctly ;) )

However, I don't know if you injected any HDA info, but upon using new dsdt, I started getting KP for VoodooHDA.

I prompltly removed it using trust Nawcom boot disc, and did the usual repairs etc...

I can boot fine, but now lack sound :rolleyes:

My question is if you did make audio changes in dsdt, should I be trying to use a custom applehda (I have vanilla applehda in S/L/E, but apparently its not working) or should I be looking for something else like AppleAzalia kext?



I'll be doing some experimenting... If anyone else can answer, feel free.



Thanks again for your efforts



if you use the voodooHda

remove AppleHda



the ideal is to use a AppleHda prepared for your codec(binary and plist)



or



AppleHda patched + legacyHda

Link to comment
Share on other sites
Mitch Matrixx
Mitch Matrixx
Posted
Posted
???







if you use the voodooHda

remove AppleHda



the ideal is to use a AppleHda prepared for your codec(binary and plist)



or



AppleHda patched + legacyHda





Thanks for the quick response, I have sound back, and am looking for the appropriate kexts for a permanent solution.



Keep up the good work...



"Maldon the great - Creating great DSDTs since 2009 :rolleyes: ."

Link to comment
Share on other sites
Guest
