MaLd0n Posted July 27, 2011 Author Share Posted July 27, 2011 Where would I check LPC loading ok? I didn't see it in the verbose boot log before it hung. Do you have a link to a AppleTYMCE disabler by chance? LPC kextstat | grep LPC AppleTy Disabler http://www.insanelymac.com/forum/index.php...st&id=89307 CST in 10.6.8 or Lion ioreg -lw0 | grep AICPMVers 1 Link to comment Share on other sites More sharing options...
MotoR6 Posted July 27, 2011 Share Posted July 27, 2011 Hi Maldon, I need help with my system, I was able to install and update to 10.6.8 (and then downloaded Lion, which I have not installed). Thanks! My system - Acer Aspire M5800 Desktop - Intel Core2Quad Q9400 - Motherboard Acer EG43m - Intel Chipser P45/P43 (not sure) - Currently 4gig DDR3 ram (will install 4 more when sys is more stable) - nvidia GeForce GT230 1.5gig Obrigado - Thanks in advance send_me.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted July 27, 2011 Author Share Posted July 27, 2011 Acer Aspire M5800 Desktop dsdt.MotoR6.zip remove EvOreboot and NullCPUPowerManagement add in boot.plist <key>GeneratePStates</key> <string>Yes</string> <key>GenerateCStates</key> <string>Yes</string> Link to comment Share on other sites More sharing options...
MaLd0n Posted July 27, 2011 Author Share Posted July 27, 2011 dsdt.stuckwithme247.zip Link to comment Share on other sites More sharing options...

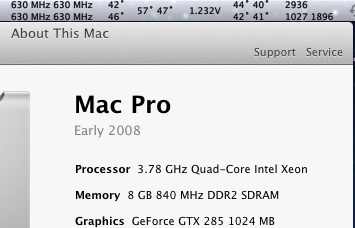

D-an-W Posted July 27, 2011 Share Posted July 27, 2011 Does anyone know if K-Stat-i has a maximum CPU speed it can display? 3750MHz shows fine, 3780MHz only shows as a three digit number e.g.: 630MHz to 945MHz (Speedstep enabled). Everywhere else the cpu speed is displayed correctly... Link to comment Share on other sites More sharing options...
MaLd0n Posted July 27, 2011 Author Share Posted July 27, 2011 Does anyone know if K-Stat-i has a maximum CPU speed it can display? 3750MHz shows fine, 3780MHz only shows as a three digit number e.g.: 630MHz to 945MHz (Speedstep enabled). Everywhere else the cpu speed is displayed correctly... Run GeekBench Link to comment Share on other sites More sharing options...

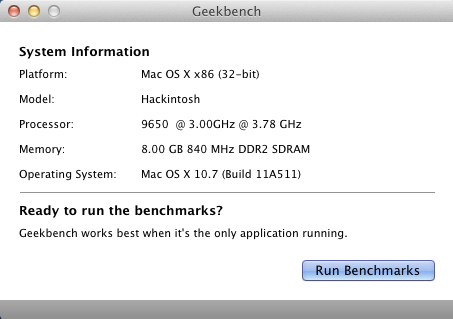

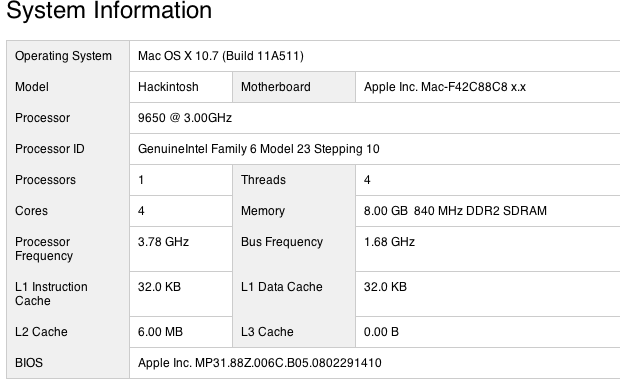

D-an-W Posted July 27, 2011 Share Posted July 27, 2011 I get a score of 8132... Link to comment Share on other sites More sharing options...
MaLd0n Posted July 27, 2011 Author Share Posted July 27, 2011 I get a score of 8132... it solves? SMexternalclock = fsb (400x4=1600) and SMmaximalclock = processor clock in smbios Link to comment Share on other sites More sharing options...
D-an-W Posted July 27, 2011 Share Posted July 27, 2011 At work now, I'll give it a shot when I get home...thanks. Link to comment Share on other sites More sharing options...
drmixkma Posted July 27, 2011 Share Posted July 27, 2011 Big thanks for dsdt you made for me Maldon. First time I got KP, will Null it works, but no sleep, no ethernet. Here all the files from ubuntu MySystem.zip. Can u help me to make my system optimize (sleep, ethernet, etc) as best as possible? I am very grateful to you. Link to comment Share on other sites More sharing options...
bigpoppa206 Posted July 27, 2011 Share Posted July 27, 2011 Upgraded my GA-EP45C-UD3R (Xeon Core 2 Quad) to Lion, restarts ok but shutdown is a problem. Screen does black and system still running. Didn't have this under Snow leopard. Link to comment Share on other sites More sharing options...
stuckwithme247 Posted July 27, 2011 Share Posted July 27, 2011 dsdt.stuckwithme247.zip Thanks, works like a charm. Sorry about the PM. Link to comment Share on other sites More sharing options...
etch04 Posted July 27, 2011 Share Posted July 27, 2011 Hi Maldon, I need help with my system, I was able generate dsdt.aml for my HP DV5 1120tx using HP HDX18,which has almost identical hardware but the problem is HP HDX18 has Full HD 1920x1080 resolution and my DV5 support only 1280x800.everything works as far as i know but when i boot into snow the resolution is set at 1920x1080, i manage to change the resolution in the display setting to 1280x800 but the resolution always revert to 1920x1080 after a boot .so, can u pliz tell how to fix this.thanks in advance. My system - HP DV5 1120TX , Intel Core2Duo T5800, Motherboard-Intel Cantiga PM45 ,RAM- 3GB, Graphic Card-nvidia GeForce 9600MGT 512MB Link to comment Share on other sites More sharing options...
MaLd0n Posted July 27, 2011 Author Share Posted July 27, 2011 Big thanks for dsdt you made for me Maldon. First time I got KP, will Null it works, but no sleep, no ethernet. Here all the files from ubuntu MySystem.zip. Can u help me to make my system optimize (sleep, ethernet, etc) as best as possible? I am very grateful to you. KP post photo Ethernet Use kext, use search forum Upgraded my GA-EP45C-UD3R (Xeon Core 2 Quad) to Lion, restarts ok but shutdown is a problem. Screen does black and system still running. Didn't have this under Snow leopard. send me files http://www.insanelymac.com/forum/index.php...st&id=81816 Hi Maldon, I need help with my system, I was able generate dsdt.aml for my HP DV5 1120tx using HP HDX18,which has almost identical hardware but the problem is HP HDX18 has Full HD 1920x1080 resolution and my DV5 support only 1280x800.everything works as far as i know but when i boot into snow the resolution is set at 1920x1080, i manage to change the resolution in the display setting to 1280x800 but the resolution always revert to 1920x1080 after a boot .so, can u pliz tell how to fix this.thanks in advance. My system - HP DV5 1120TX , Intel Core2Duo T5800, Motherboard-Intel Cantiga PM45 ,RAM- 3GB, Graphic Card-nvidia GeForce 9600MGT 512MB I have no idea sorry use search forum Link to comment Share on other sites More sharing options...
korjing Posted July 27, 2011 Share Posted July 27, 2011 try itdsdt_korjing.zip use system in 32 bit arch=i386 tried already and i got "PCI Configuration Begin" then it just hang there. Try 1 : Boot direct without any flag ==> failed Try 2 : Boot with -f -x -v -arch=i386 ==> stuck at "PCI Configuration Begin" Try 3 : Boot with -f -x -v -arch=i386 npci=0x2000 ==> also stuck at "PCI Configuration Begin" I used [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] 3.8.0 to install this DSDT. Please kindly advice on how to fix this problem. And many many thanks Link to comment Share on other sites More sharing options...

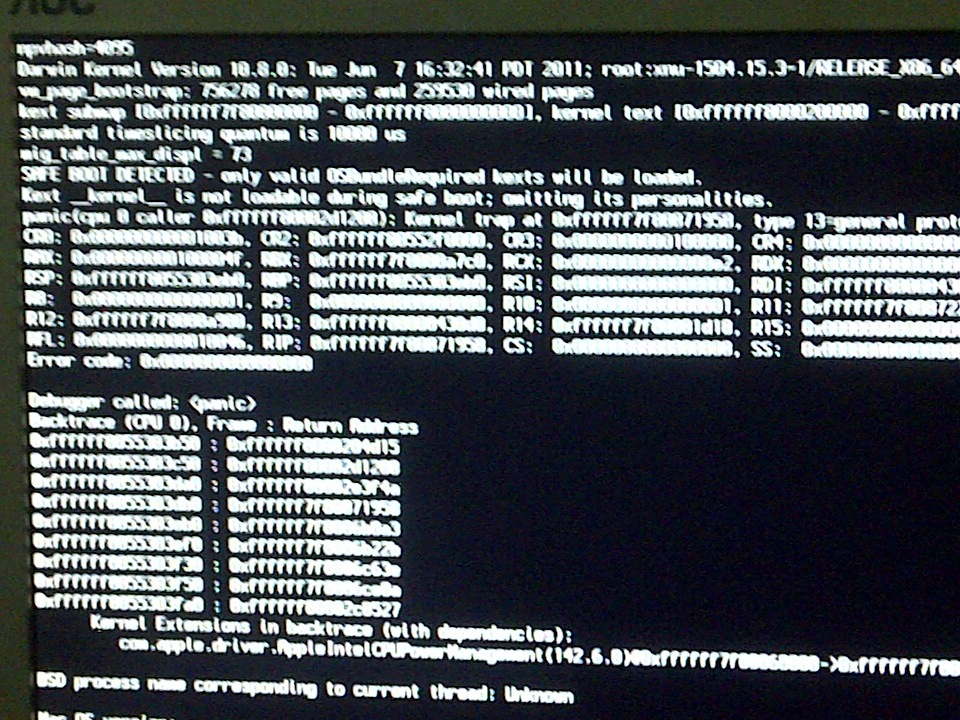

drmixkma Posted July 27, 2011 Share Posted July 27, 2011 Maldon, here's the KP's photo . Thanks before. Link to comment Share on other sites More sharing options...
D-an-W Posted July 27, 2011 Share Posted July 27, 2011 it solves?SMexternalclock = fsb (400x4=1600) and SMmaximalclock = processor clock in smbios No, doesn't work. 419x9 works ok with K-Stat-i, anything >419 (tried 420, 421, 422) and K-Stat-i doesn't show the correct CPU speed even with this is in the SMBIOS.plist... <key>SMexternalclock</key> <string>422</string> <key>SMmaximalclock</key> <string>3798</string> Link to comment Share on other sites More sharing options...
MaLd0n Posted July 27, 2011 Author Share Posted July 27, 2011 tried already and i got "PCI Configuration Begin" then it just hang there. Try 1 : Boot direct without any flag ==> failed Try 2 : Boot with -f -x -v -arch=i386 ==> stuck at "PCI Configuration Begin" Try 3 : Boot with -f -x -v -arch=i386 npci=0x2000 ==> also stuck at "PCI Configuration Begin" I used [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] 3.8.0 to install this DSDT. Please kindly advice on how to fix this problem. And many many thanks I do not use [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] I know what I install you know? Maldon, here's the KP's photo . Thanks before. http://www.insanelymac.com/forum/index.php...258611&st=0 Link to comment Share on other sites More sharing options...
vkd Posted July 27, 2011 Share Posted July 27, 2011 send me files OK, here's the send_me.zip. Thanks for your help. send_me.zip Link to comment Share on other sites More sharing options...
MotoR6 Posted July 27, 2011 Share Posted July 27, 2011 MaLd0n, Valeu! Muito Obrigado. I still have a lot to learn but I will hopefully be updating my DSDT soon and have a stable system. Thanks for the quick response. Link to comment Share on other sites More sharing options...
tamorgen Posted July 27, 2011 Share Posted July 27, 2011 bug DSDTextract from windows http://www.insanelymac.com/forum/index.php?showtopic=223205 let me know what chipset MaLd0n, Will the Windows extraction give me different information than the Ubunto I already provided? I can do this, but I need to replace the hard drive, which is somewhat a challenge on my laptop. Also, is there any way to determine the chipset? I honestly don't know, as, like I said, it's a laptop. I only know the processor. Link to comment Share on other sites More sharing options...
RYIK Posted July 27, 2011 Share Posted July 27, 2011 dsdt.RYIK.zip http://www.insanelymac.com/forum/index.php?showtopic=252525 Thanks! I will try it! Link to comment Share on other sites More sharing options...
MaLd0n Posted July 27, 2011 Author Share Posted July 27, 2011 OK, here's the send_me.zip. Thanks for your help. dsdt.vkd.zip MaLd0n,Will the Windows extraction give me different information than the Ubunto I already provided? I can do this, but I need to replace the hard drive, which is somewhat a challenge on my laptop. Also, is there any way to determine the chipset? I honestly don't know, as, like I said, it's a laptop. I only know the processor. Extract from Windows, Linux or Mac no difference use System info http://www.insanelymac.com/forum/index.php?showtopic=219584 Link to comment Share on other sites More sharing options...
bigpoppa206 Posted July 27, 2011 Share Posted July 27, 2011 send me files Here you go! Link to comment Share on other sites More sharing options...
kup Posted July 27, 2011 Share Posted July 27, 2011 LPC kextstat | grep LPC AppleTy Disabler http://www.insanelymac.com/forum/index.php...st&id=89307 CST in 10.6.8 or Lion ioreg -lw0 | grep AICPMVers Just got it working, it was failing and hanging at Resetting IOCatalogue but as soon as I removed GraphicsEnabler it booted right up. I'll check for these bits now. Link to comment Share on other sites More sharing options...
