MaLd0n
MaLd0n
Posted
  • Author
Posted
Ok here is what you asked for :P.



ok

vou ver o que eu posso fazer




EDIT



dsdt.micr0nf4.zip

ALIAS

DTGP

HID/CID

IRQs

LAN

REMOVE

RENAME

SMBUS

SHUTDOWN

FIX WARNINGS



Dear MaLd0n, Hi and please excuse me for my intervention or interference :P , but as hannibal1969 said, he point to you to HERE ;), the .dsl inside the HP8710w_DSDT.zip. Because the other (rapidshare) came original, with a lot of typic HP bioses horrors (sorry errors :D ). Thats why the same errors come back after compile... :P Thanks for yours contributions.



Hi juanerson

thanks for that



I'll start work :P



EDIT



WoW

Great Job

:D

Link to comment
Share on other sites
Plucka
Plucka
Posted
Posted

G'Day MaldOn



Could I ask you a question regarding my motherboard? I have an ASUS P5B Green version, I noticed that there was a DSDT for a P5B Deluxe/WiFi in your list at the top of this topic.



My question is as follows: Can I use your DSDT patcher for the P5B deluxe to rectify my nagging USB problems (not all working) and onboard sound (working with a patch from Mistico)?



If not would it be possible to compile a DSDT for a normal P5B board, I know a lot of members have these boards, if you need any additional info from me I would be only to happy to supply you with it.



Thank you for your time, have a great day/night wherever you are, cheers mate, Plucka :D

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
G'Day MaldOn



Could I ask you a question regarding my motherboard? I have an ASUS P5B Green version, I noticed that there was a DSDT for a P5B Deluxe/WiFi in your list at the top of this topic.



My question is as follows: Can I use your DSDT patcher for the P5B deluxe to rectify my nagging USB problems (not all working) and onboard sound (working with a patch from Mistico)?



If not would it be possible to compile a DSDT for a normal P5B board, I know a lot of members have these boards, if you need any additional info from me I would be only to happy to supply you with it.



Thank you for your time, have a great day/night wherever you are, cheers mate, Plucka :rolleyes:



Send me your original DSDT

Run on terminal

perl -e 'open(CMD, "ioreg -lw0 \| grep DSDT|") or die; while(<CMD>) { chomp; if($_ =~ /\"DSDT\.?\d?\"=<([^>]*)>/) { $buff = $1; open(PIP, "|xxd -r -p > ~/Desktop/dsdt.aml") or die; print PIP "$1"; } }'



kextstat

kextstat



ioreg output

ioreg -fl



Log

cat /var/log/kernel.log

Link to comment
Share on other sites
pasha_infest
pasha_infest
Posted
Posted
Hi pasha_infest



if you send me the patch

I can do



here i find code



  Device (PCI0)
	 {
		 Device (PEGP)
		 {
			 Name (_ADR, 0x00010000)
			 Device (GFX0)
			 {
				 Name (_ADR, Zero)
				 Name (_SUN, One)
				 Method (_DSM, 4, NotSerialized)
				 {
					 Store (Package (0x16)
						 {
							 "@0,compatible",
							 Buffer (0x0B)
							 {
								 "NVDA,NVMac"
							 },

							 "@0,device_type",
							 Buffer (0x08)
							 {
								 "display"
							 },

							 "@0,name",
							 Buffer (0x0F)
							 {
								 "NVDA,Display-A"
							 },

							 "@1,compatible",
							 Buffer (0x0B)
							 {
								 "NVDA,NVMac"
							 },

							 "@1,device_type",
							 Buffer (0x08)
							 {
								 "display"
							 },

							 "@1,name",
							 Buffer (0x0F)
							 {
								 "NVDA,Display-B"
							 },

							 "NVCAP",
							 Buffer (0x18)
							 {
								 /* 0000 */	0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x00,
								 /* 0008 */	0x0C, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07,
								 /* 0010 */	0x00, 0x00, 0x00, 0x00
							 },

							 "VRAM,totalsize",
							 Buffer (0x04)
							 {
								 0x00, 0x00, 0x00, 0x20
							 },

							 "device_type",
							 Buffer (0x0D)
							 {
								 "NVDA,GeForce"
							 },

							 "model",
							 Buffer (0x17)
							 {
								 "nVidia GeForce 9600 GT"
							 },

							 "rom-revision",
							 Buffer (0x25)
							 {
								 "nVidia GeForce 9600 GT OpenGL Engine"
							 }
						 }, Local0)
					 DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					 Return (Local0)
				 }
			 }
		 }





dsdt file added below ... :rolleyes:



and question. can i compile ssdt by your pather?

dsdt.aml.zip

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
here i find code

dsdt file added below ... :P



and question. can i compile ssdt by your pather?



send me ioreg output :D



Ok mate, thank you very much I will make screens of the terminal windows and pm them to you. Cheers once again, Plucka



:)

Link to comment
Share on other sites
micr0nf4
micr0nf4
Posted
Posted
ok

vou ver o que eu posso fazer




EDIT



dsdt.micr0nf4.zip

ALIAS

DTGP

HID/CID

IRQs

LAN

REMOVE

RENAME

SMBUS

SHUTDOWN

FIX WARNINGS



Installed this DSDT to /EXTRA



So far so good. If anyone is on Bios version 1702 and wants to test this DSDT with your P7P55D.



I am having power management issues with my motherboard/bios, I can only force sleep the PC either in Win 7 or OS X, it doesn't matter which one I boot too. Auto-sleep won't work.



You'll need to install Chameleon RC5, remove CPUPowermanagement.kext and EvoReboot.kext from /EXTRA/Extensions and remove SleepEnabler.kext from /SYSTEM/Library/Extensions if you already installed.



You will need to add:



<key>GeneratePStates</key>

<string>Yes</string>

<key>GenerateCStates</key>

<string>Yes</string>



to boot.plist in /EXTRA



Thanks for everything MaLd0n. VC e um fenomeno!!!!

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
here



:(







Installed this DSDT to /EXTRA



So far so good. If anyone is on Bios version 1702 and wants to test this DSDT with your P7P55D.



I am having power management issues with my motherboard/bios, I can only force sleep the PC either in Win 7 or OS X, it doesn't matter which one I boot too. Auto-sleep won't work.



You'll need to install Chameleon RC5, remove CPUPowermanagement.kext and EvoReboot.kext from /EXTRA/Extensions and remove SleepEnabler.kext from /SYSTEM/Library/Extensions if you already installed.



You will need to add:



GeneratePStates

Yes

GenerateCStates

Yes



to boot.plist in /EXTRA



Thanks for everything MaLd0n. VC e um fenomeno!!!!



http://www.insanelymac.com/forum/index.php?showtopic=182535

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Madl0n,



Any news for the HP8710w with horror dsdt ?



Grtz



dsdt.hannibal1969.zip



DTGP

EHCI

UHCI

HPET

IRQs

LAN

LPC

PNLF

SBUS

SHUTDOWN

AC



unfortunately I have no way to test this







here



dsdt.pasha_infest.zip

read it

http://tonymacx86.blogspot.com/2010/01/adv...a-graphics.html

Link to comment
Share on other sites
Pluskat5000Schiffe
Pluskat5000Schiffe
Posted
Posted

Madl0n,



Thanks for your work,



Just tested your DSDT.AML and the AHCI powermanagement is not working.



I see in "bdmesg" Invalid character found in ProcessorOP 0x2e!



I think that the cpu definition in the DSDT is still crappy.



I have put all important things togehter in a new archive. See here:



http://rapidshare.com/files/432708868/ForMald0n.zip



The brightness slider is there but flips back to maximum.



Forgot SMBios.plist

<dict>
<key>SMbiosvendor</key>
<string>Apple Inc.</string>
<key>SMproductname</key>
<string>MacBookPro5,3</string>

</dict>

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Just tested your DSDT.AML and the AHCI powermanagement is not working.

???

http://www.insanelymac.com/forum/index.php...st&id=80240



I see in "bdmesg" Invalid character found in ProcessorOP 0x2e!

I think that the cpu definition in the DSDT is still crappy.



http://www.insanelymac.com/forum/index.php...t&p=1457429



The brightness slider is there but flips back to maximum.

http://www.insanelymac.com/forum/index.php?showtopic=236835





send me

kextstat

kextstat|grep LPC

kextstat|grep SMBus







okey thx! work great. but test with dsdt injection= test with graphicsenabler! :D



thx a lot 4 your support! ;)



Yep

no difference




I use nvenabler :P

Link to comment
Share on other sites
Pluskat5000Schiffe
Pluskat5000Schiffe
Posted
Posted



Sorry I meant ACPI powermanagement wasnt working,



I have the latest AnVal boot



Attached kextstat information all in one file. Thx for helping man!



P.S. the CPU definition part in the source dsdt is that part correct or full of {censored} ? It seems that my cpu isnt detected correct by the AnVal boot en because of that the P-C states aren't loaded. But once again im just a noob ...

kextstat.rtf.zip

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Sorry I meant ACPI powermanagement wasnt working,



I have the latest AnVal boot



Attached kextstat information all in one file. Thx for helping man!



P.S. the CPU definition part in the source dsdt is that part correct or full of {censored} ? It seems that my cpu isnt detected correct by the AnVal boot en because of that the P-C states aren't loaded. But once again im just a noob ...



no problem ;)

We're all here to have fun and learn from each other!



send me a log

cat /var/log/kernel.log

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
here you go

:)

com.apple.driver.AppleIntelCPUPowerManagement
com.apple.driver.AppleIntelCPUPowerManagementClient
com.apple.driver.AppleLPC
com.apple.driver.AppleHPET

everything is loaded as it should

why do you think that the native power management not working?

explain to me what is happening

ioreg -lw0 | grep PerformanceStateArray
ioreg -lw0 | grep CSTInfo



SMBUS

com.apple.iokit.IOSMBusFamily
com.apple.driver.AppleSMBusPCI
com.apple.driver.AppleSMBusController



the log is clean

do you use vmware?




delete OSXRestart.kext(RC5) and LegacyAppleRTC.kext(=2)



USB ok?

Link to comment
Share on other sites
Chrisfromiowa
Chrisfromiowa
Posted
Posted

Good Evening MaLd0n,

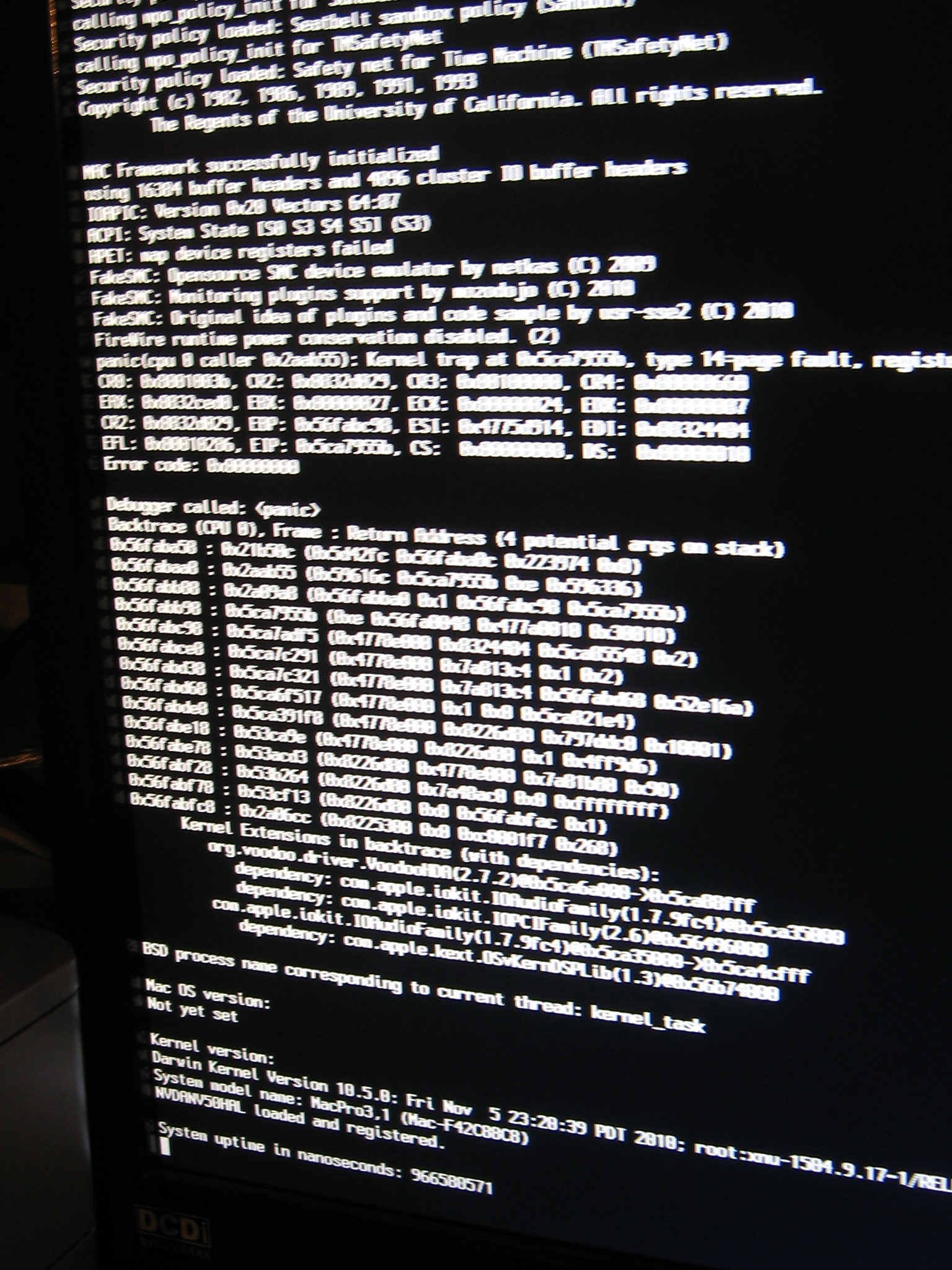

Is it springtime where you are? Hey, this is a jpeg of what happens. Can you see enough info or should I take another. This is the best of 5 pictures, I suck at photographing computer screens. Thank you for all of your help, really- you rock. Regards CFIpost-635276-1290568504_thumb.jpg

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Good Evening MaLd0n,

Is it springtime where you are? Hey, this is a jpeg of what happens. Can you see enough info or should I take another. This is the best of 5 pictures, I suck at photographing computer screens. Thank you for all of your help, really- you rock. Regards CFIIMG_4815.jpg



VoodooHda.kext

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
This is way off topic but does everyone get the same banner ads? I had to laugh at this one. That google ad logarithm really does work. Screen_shot_2010_11_23_at_9.16.22_PM.JPG





remove along with nullcpu?



:)





remove along with nullcpu?



Remove VoodooHda



you've added to the boot.plist?

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>



if the answer is yes

also remove nullcpu

Link to comment
Share on other sites
joshs85
joshs85
Posted
Posted
Look it

Extra/DSDT

ASUS_RAMP_III_FORM.zip



AHCI ICH10

ALIAS

DTGP

EHCI

FRWR

HID/CID

IRQs

LAN0

LPC

REMOVE

RENAME

SBUS

SHUTDOWN

FIX WARNINGS



use native power management ;)

http://www.insanelymac.com/forum/index.php?showtopic=225766







;)



This works.. however, If I change my smbios.plist to show a MacPro 5,1 with the i7 processor using [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url], the machine will freeze at the apple loading screen at boot. I have also attached the /Extra folder as I had to make a few changes to it to get things working. oh, and I am running OSX 10.5.6. Any ideas?

Extra.zip

Link to comment
Share on other sites
