Komuri Posted May 30, 2011 Share Posted May 30, 2011 Hi MaLd0n! My system is the following: Biostar Tpower x58 i7-920 XFX 5870 ATI Radeon 1GB In Windows Audio says ALC888/1200 I have been testing and managed to get working audio with voodooHDA, but it is very poor and sometimes KP. Ethernet and USBs are working fine I think... Also Graphics are working Ok. send_me.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2011 Author Share Posted May 30, 2011 Biostar Tpower x58 dsdt.Komuri.zip remove EvOreboot and NullCPUPowerManagement add in boot.plist <key>GeneratePStates</key> <string>Yes</string> <key>GenerateCStates</key> <string>Yes</string> Audio Use VoodooHda(different version) and AppleHdaDisabler in S/L/E Link to comment Share on other sites More sharing options...
Larx Posted May 30, 2011 Share Posted May 30, 2011 Mobo? Video try AppleGraphicsPowerManagement 10.6.3 http://www.insanelymac.com/forum/index.php...st&id=88849 temporary solution Hi MaLd0n, Mobo is Asus P5P43TD ... Memory is ok. I tested with memtest86...! HELP !!! With 6 GB works fine, but with 8GB PROBLEMS ! Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2011 Author Share Posted May 30, 2011 Asus P5P43TD install memory and extract a new DSDT(from Windows) reapply the patches Link to comment Share on other sites More sharing options...
Komuri Posted May 30, 2011 Share Posted May 30, 2011 Thanks for the quick response ! The audio can't be fixed to use just applehda (HDEF for 5.1 o.o?)? I'm currently using latest voodooHDA and have tried other versions but still have not found something that works well. Link to comment Share on other sites More sharing options...
Larx Posted May 30, 2011 Share Posted May 30, 2011 install memoryand extract a new DSDT(from Windows) reapply the patches reapply the patches? Sorry MaLd0n, but how to do that! I never tryed that! Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2011 Author Share Posted May 30, 2011 reapply the patches? Sorry MaLd0n, but how to do that! I never tryed that! Use DSDT Auto-Patcher Link to comment Share on other sites More sharing options...
Larx Posted May 30, 2011 Share Posted May 30, 2011 Use DSDT Auto-Patcher Aha Thanks MaLd0n ! I'm so stupid ! Ok, i will try now ! Thanks ! Link to comment Share on other sites More sharing options...
Komuri Posted May 30, 2011 Share Posted May 30, 2011 I've tried the atached DSDT but it KP at boot: "CPU 7 has no HPET assigned to it" Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2011 Author Share Posted May 30, 2011 I've tried the atached DSDT but it KP at boot:"CPU 7 has no HPET assigned to it" Try it dsdt.Komuri.zip Enable HPET in bios setup Link to comment Share on other sites More sharing options...
Larx Posted May 30, 2011 Share Posted May 30, 2011 Aha Thanks MaLd0n ! I'm so stupid ! Ok, i will try now ! Thanks ! Hm, the problem was memory frequency. My DDR3 on 1333MHz, but for some reason the system is unstable. When I put the memory to 1111 MHz, the computer runs without any problems. All four memory modules are the same. Interesting. MaLd0n, I just wanted to tell you this. The same happened with Windows7. Amazing! Thank you for your efforts MaLd0n! Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2011 Author Share Posted May 30, 2011 Hm, the problem was memory frequency. My DDR3 on 1333MHz, but for some reason the system is unstable. When I put the memory to 1111 MHz, the computer runs without any problems. All four memory modules are the same. Interesting. MaLd0n, I just wanted to tell you this. The same happened with Windows7. Amazing! Thank you for your efforts MaLd0n! Link to comment Share on other sites More sharing options...
Komuri Posted May 30, 2011 Share Posted May 30, 2011 Try itdsdt.Komuri.zip Enable HPET in bios setup It worked! Now it boots fine and also shuts down properly. But when I put it to sleep it just shuts down, my sleep mode in the bios is set to S3 (STR). Also, the audio can't be fixed (without voodooHDA)? Can you help me with that, or do you know a guide that I can follow? Thanks so much for your help! Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2011 Author Share Posted May 30, 2011 It worked! Now it boots fine and also shuts down properly. But when I put it to sleep it just shuts down, my sleep mode in the bios is set to S3 (STR). Also, the audio can't be fixed (without voodooHDA)? Can you help me with that, or do you know a guide that I can follow? Wake from power button or mouse/keyboard USB Try it Audio http://www.projectosx.com/forum/index.php?showtopic=465 Link to comment Share on other sites More sharing options...
hato Posted May 30, 2011 Share Posted May 30, 2011 dsdt.hato.zip Wait for NativePM in Chameleon RC5(for SandyBridge) Hey gordoalac You're Welcome Big Thanks MaLd0n Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2011 Author Share Posted May 30, 2011 Big Thanks MaLd0n You're Welcome We're all here to have fun and learn from each other! Link to comment Share on other sites More sharing options...
manmal Posted May 30, 2011 Share Posted May 30, 2011 run on terminal ioreg -lw0 | grep PerformanceStateArray ioreg -lw0 | grep CSTInfo hi, IT gives me 5a0900000000000000a0000000a000000000280900000000100000 and other 4 numbers like that (pstates) and cstinfo=19136773 . In all my systems where i have powermanagement working , pmset -g log returns some values ... Here IT doesn't give any result... And sleep is not working any clue? Mal Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2011 Author Share Posted May 30, 2011 any clue? I do not remember what your Hardware USB built in? Link to comment Share on other sites More sharing options...
Komuri Posted May 30, 2011 Share Posted May 30, 2011 Wake from power button or mouse/keyboard USBTry it Audio http://www.projectosx.com/forum/index.php?showtopic=465 Thanks for the link! Will try that! Also I'd tried waking up with the power button, but the computer just acts like it was shutted down . Link to comment Share on other sites More sharing options...
MaLd0n Posted May 30, 2011 Author Share Posted May 30, 2011 Thanks for the link! Will try that!Also I'd tried waking up with the power button, but the computer just acts like it was shutted down . a quick tap the power button does not wake the pc? Link to comment Share on other sites More sharing options...
toleda Posted May 30, 2011 Share Posted May 30, 2011 Hi MaLd0n, GA-H67N-USB3-B3-F2/i7-2600K/6870 Thanks. send_me.zip Link to comment Share on other sites More sharing options...

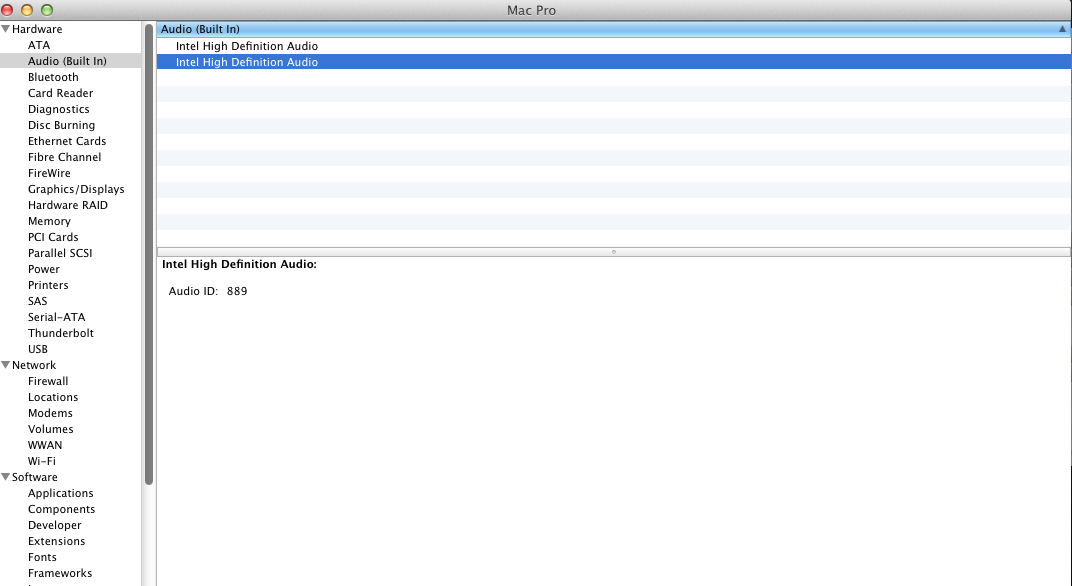

joshs85 Posted May 31, 2011 Share Posted May 31, 2011 MaLd0n, FYI, I am using the dsdt generated in windows by your latest copy of the auto patcher (Rampage III Formula, last modified Apr 23) Not sure if this is a problem or not, but the audio device shows up three times in the system information screen.. and twice when the audio device is disabled in the bios. See the screenshot below. Thanks. Link to comment Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Author Share Posted May 31, 2011 Hi MaLd0n, GA-H67N-USB3-B3-F2/i7-2600K/6870 Thanks. dsdt.toleda.zip DTGP AZAL 2 HDEF HID/CID HPET RTC IRQs SMBUS SHUTDOWN REMOVE LPC FIX WARNINGS HDEF GIGABYTE http://www.insanelymac.com/forum/index.php...st&id=92438 FYI, I am using the dsdt generated in windows by your latest copy of the auto patcher (Rampage III Formula, last modified Apr 23) Not sure if this is a problem or not, but the audio device shows up three times in the system information screen.. and twice when the audio device is disabled in the bios. See the screenshot below. Thanks. send me DSDT Link to comment Share on other sites More sharing options...
manmal Posted May 31, 2011 Share Posted May 31, 2011 I do not remember what your Hardware USB built in? Yes, USB built-in. You already patched dsdt for it : ASUS Pundit barebon with 945 chipset & 950 graphics + intel E6600 core2duo cpu... you had to add the HPET feature, since it was not present and i added ForceHPET=Yes . Now it's going better but no sleep at all , it doesn't sleep and it doesn't awake (and if i type pmset -g log it doesn't give me any result). Mal Link to comment Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Author Share Posted May 31, 2011 Yes, USB built-in. You already patched dsdt for it : ASUS Pundit barebon with 945 chipset & 950 graphics + intel E6600 core2duo cpu... you had to add the HPET feature, since it was not present and i added ForceHPET=Yes . Now it's going better but no sleep at all , it doesn't sleep and it doesn't awake (and if i type pmset -g log it doesn't give me any result). Mal aaa I realized something that whenever we use this scheme (ForceHPET. ..) lose sleep Link to comment Share on other sites More sharing options...
