DSDT Auto-Patcher

MaLd0n

By MaLd0n,
in Patches

 Share
5,753 posts in this topic

Recommended Posts

Larx
Larx
Posted
Posted

MaLdOn,



Can you help me to enable powermenagement?

I use RC5 750 with Pstate and Cstate but my processor standing still 1500 MHz i need 2500 MHz.

After ioreg -lw0 | grep PerformanceStateArray i got this:



| | | "PerformanceStateArray" = (<df090000000000000a0000000a0000001b49000001000000>,<5a090000000000000a0000000a0000001b09000002000000>,<d5080000000000000a0000000a0000001b48000003000000>,<50080000000000000a0000000a0000001b08000004000000>,<cb070000000000000a0000000a0000001b47000005000000>,<46070000000000000a0000000a0000001b07000006000000>,<c1060000000000000a0000000a0000001b46000007000000>,<3c060000000000000a0000000a0000001b06000008000000>)



than:ioreg -lw0 | grep CSTInfo

Nothing happends !



and: kextstat | grep LPC got this

81 0 0x5521f000 0x3000 0x2000 com.apple.driver.AppleLPC (1.4.12) <14 5 4 3>



Can you help me plaese ! Thanks !

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Here You go :

dsdt.aml.zip

Look it




see where you applied




I'm thinking that you have not read this link

http://www.insanelymac.com/forum/index.php?showtopic=252525



Install the nVidia Fermi drivers

Edit the distribution file inside the mpkg and remove the check, or add MacBookPro6,2 to the list of supported models

-show package contents

-edit distribution.dist

var system_models = ["MacPro3,1", "MacPro4,1", "MacPro5,1", "MacBookPro6,2"]; for example



* Copy the mpkg to the desktop, if you edit it inside the dmg you won't be able to save the changes



than:ioreg -lw0 | grep CSTInfo

Nothing happends !



try clean install



-Copy Extra folder first post to root of the HD

-Copy DSDT to Extra folder

-Install Chameleon RC5

reboot



What is your processor

Link to comment
Share on other sites
Larx
Larx
Posted
Posted
try clean install



-Copy Extra folder first post to root of the HD

-Copy DSDT to Extra folder

-Install Chameleon RC5

reboot



What is your processor



Thanks MaLd0n ! I changed smbios.plist from iMac 8,1 to MacPro 3,1... now works perfect ! Thanks !!!!

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
Thanks MaLd0n ! I changed smbios.plist from iMac 8,1 to MacPro 3,1... now works perfect ! Thanks !!!!

Great :)



thanks

here is the kextstat:

NullCPUPowerManagement.kext



remove



Add in boot.plist

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>



Use chameleon RC5

Link to comment
Share on other sites
kiana
kiana
Posted
Posted
Great :)





NullCPUPowerManagement.kext <---- ???



remove



Add in boot.plist

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>



Use chameleon RC5



thanks



done that get KP:



Panic(CPU 1 caller 0x7904c5ed): "i386_pmgetdeadline:null pointer\n"@/sourcecache/appleintelcpupowermangment/appleintelcpupowermangment-105.13/pmdispatch.c:130



help its like chinese...

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
thanks



done that get KP:



Panic(CPU 1 caller 0x7904c5ed): "i386_pmgetdeadline:null pointer\n"@/sourcecache/appleintelcpupowermangment/appleintelcpupowermangment-105.13/pmdispatch.c:130



help its like chinese...

post a photo



My GPU is Ati 6870 toxic...or you want to know other information?

Try it

dsdt.ATI.zip

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
I must change also the C.A.B.P, I have need of a key in it?



This?



AtiConfig

Duckweed



I think not

you are injecting into DSDT(Duckweed)

why you should use the boot.plist?

Link to comment
Share on other sites
kiana
kiana
Posted
Posted

QUOTE (kiana @ Apr 30 2011, 05:35 PM)

thanks



done that get KP:



Panic(CPU 1 caller 0x7904c5ed): "i386_pmgetdeadline:null pointer\n"@/sourcecache/appleintelcpupowermangment/appleintelcpupowermangment-105.13/pmdispatch.c:130



help its like chinese...

post a photo



i removed the sleepenabler kext and now no KP, but sleep issue is the same.

Link to comment
Share on other sites
Chrystopher
Chrystopher
Posted
Posted

Hey Guys, It's me again ;)



I have stuck on W7 coz' can't get osx boot since I put a VTX 3D Radeon HD 5670 into my config.



I have tried fresh istalls and a lot of things.



I have extracted my dsdt under windwows with "iasl -g" and I've attached it to my post.



Please fix it for me. This is my last chance and idea to get booted to my system with full QE/CI. I don't wanna trade it for an equal nvidia one.



Thanks

dsdt.rar

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
i removed the sleepenabler kext and now no KP, but sleep issue is the same.



I have no idea



use forum search



ok..have only asked for curiosity, I listen to I am working with Camaleon r700… that you say I must to change the version of camaleon?

use the latest version

Link to comment
Share on other sites
echo7117
echo7117
Posted
Posted
http://code.google.com/p/iats/







send me your DSDT







send me a new kextstat, run on terminal



and



ioreg -lw0 | grep PerformanceStateArray



ioreg -lw0 | grep CSTInfo







send me a new kextstat



PS2?

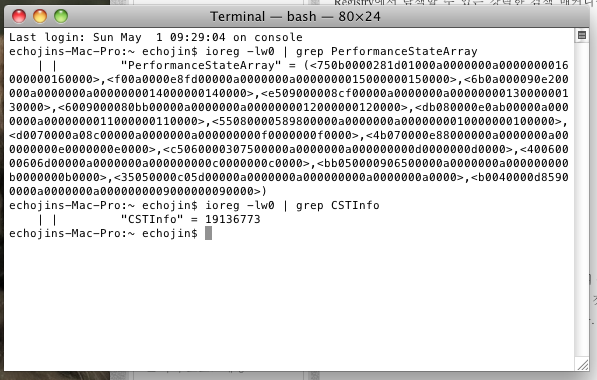

here's my new kextstat and captured screen for "ioreg"s



i really hope that you can take care of this prlbms...



thx in advance. you are getting my mac life saver :)


kextstat.txt

Link to comment
Share on other sites
Noam AA
Noam AA
Posted
Posted



WOoOW!!! you are a total hero on this stuff man!!



sorry to bother, but i have one more little problem with shutdown,

i don't know what caused this, but at some point during this mac time, my pc was totally worked like a charm, i have sleep with 99.9% no issues (now with the lan driver you gave me it perfect on that aspect)

but 2 strange things happened while using the osx here,

first (which i already post something like 2 month earlier) i lost the autosleep, which is no real biggy cause there are workarounds (but still strange, checked with fresh install with or without any hardware other then the necessary, even got far as to try with or without led connected, or with the all q connector, in short, i think i tried everything, somehow it gone)



second one start happening not so long ago, my restart/shutdown is partial working, which was never happened to me even with leopard with no dsdt.

sometimes it's going great as usual, sometime it's just stuck on a black screen until i reset it manually



if u can help will be great if not, nevermind cause you already did so much!

Link to comment
Share on other sites
fc bayern
fc bayern
Posted
Posted
Look it




see where you applied




I'm thinking that you have not read this link

http://www.insanelymac.com/forum/index.php?showtopic=252525



Install the nVidia Fermi drivers

Edit the distribution file inside the mpkg and remove the check, or add MacBookPro6,2 to the list of supported models

-show package contents

-edit distribution.dist

var system_models = ["MacPro3,1", "MacPro4,1", "MacPro5,1", "MacBookPro6,2"]; for example



* Copy the mpkg to the desktop, if you edit it inside the dmg you won't be able to save the changes



I've been playing for 6 hours or so, without success.

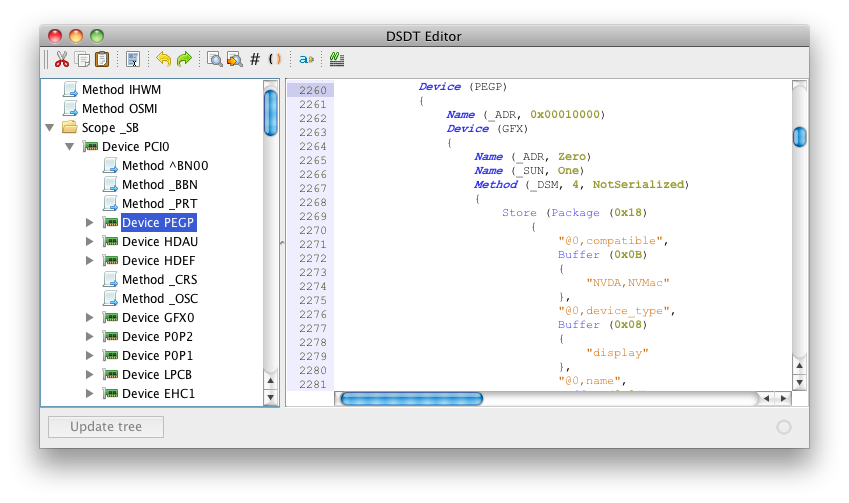

I have Device GFX0 ubder PCIO, when i tried to update that and delete PEGP , compiling error

Also I have tried to move the PEGP inot POP2, no success ,No Graphics Injection

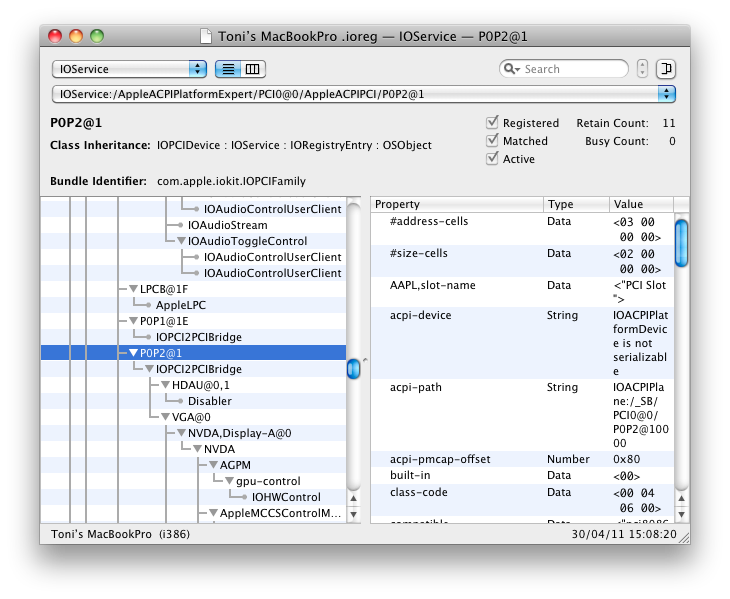

Im confused, i have device VGA ubde POP2, also device GFXO - what shoul stay, what shoul be updated - I have no Idea

Also HDAU is present as device (under device VGA), should it be only once present or twice.

I know You wanna make me learn, im willing to also - but this is simply to much for me

PLS be so kind an post updated DSDT for me

IF You wanna PLS correct the thing that You've mentioned in the post above , if not THANKS anyway.

By the way Fermi drivers are installed - without them no QE/CI, no rezolution change at all - i dont understand what You're suggesting.

I am pationed about this thing and willing to learn more and more, but sorry i can not handle this - im confused



Tnaks MaLdOn

Attached mu latest DSDt (pegp moved into POP2 section, but no injection ???)

dsdt.aml.zip

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted
here's my new kextstat and captured screen for "ioreg"s



- can't detect my pci sound card /echo gina 3g



Try with clean install



my restart/shutdown is partial working



send me DSDT



restart --> Chameleon RC5, Shutdown --> DSDT



...



if the devices are already

just the _DSM

facilitate things and use GraphicsEnabler=Yes + drivers fermi



I'm with a lot of work

You need to test

I'm not sure about it(Nvidia 420M)

the result is the same(DSDT or GraphicsEnabler)

Link to comment
Share on other sites
echo7117
echo7117
Posted
Posted
- can't detect my pci sound card /echo gina 3g <--- use kext and try in "32", arch=i386



Try with clean install







tried 32bit mode.. but failed...:(

i really don't know how to do..

do i gotta give it up........;;;? any other things you think up with...







also

you know how to fix the booting key press issue??

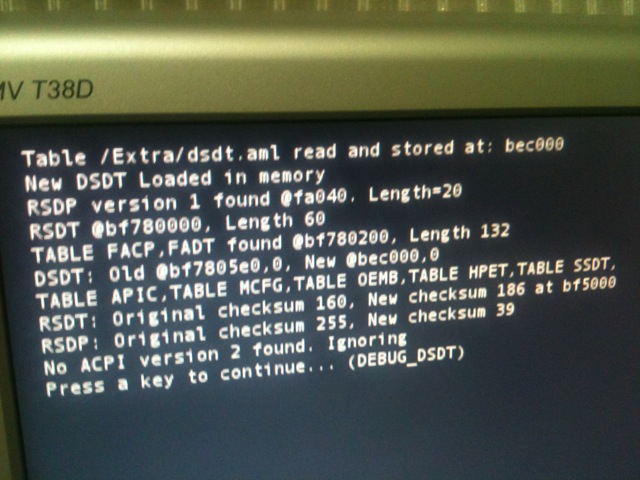

everytime i try to boot, i gotta press any key to continue like the captured (DEBUG_DSDT)



at least i wanna boot without pressing any key..







sorry for keeping asking you...

but now that i'm gone far from my own to your advice.....

plz help me out of here...





thx thx thx in advance.


Link to comment
Share on other sites
fc bayern
fc bayern
Posted
Posted

I've been playing for 6 hours or so, without success.

I have Device GFX0 ubder PCIO, when i tried to update that and delete PEGP , compiling error

Also I have tried to move the PEGP inot POP2, no success ,No Graphics Injection

Im confused, i have device VGA ubde POP2, also device GFXO - what shoul stay, what shoul be updated - I have no Idea

Also HDAU is present as device (under device VGA), should it be only once present or twice.

I know You wanna make me learn, im willing to also - but this is simply to much for me

PLS be so kind an post updated DSDT for me

IF You wanna PLS correct the thing that You've mentioned in the post above .

By the way Fermi drivers are installed - without them no QE/CI, no rezolution change at all - i dont understand what You're suggesting.

I am pationed about this thing and willing to learn more and more, but sorry i can not handle this - im confused



Tnaks MaLdOn

Attached mu latest DSDt (pegp moved into POP2 section, but no injection ???)

dsdt.aml.zip

Link to comment
Share on other sites
gerard71
gerard71
Posted
Posted

hello Maldon i have finished my testing of the Intel DP55SB has provided to the first BIOS

3822 it works perfectly at 100% even Lion it works 100%



Here's the dsdt for DP55SB Bios 3822, must use only this bios to have the POWER

MANAGEMENT

The dsdt includes:

DTGP

HID/CID

HPET

IRQs

RENAMED DEVICES

SMBUS

SHUTDOWN

REMOVED DEVICES

LPC

FIX WARNINGS

ALC 889



Thank Maldon for dsdt auto patcher



Apple Bluetooth keyboard does not work perfectly it loses the match is restarted and

Bluetooth incorporates a motherboard is no deactivation in the bios



Apple Trackpad ok

dsdt.aml.zip

Link to comment
Share on other sites
Guest
