DSDT Auto-Patcher

[omniatlas]

Look at the EnergySaver

select "Start up automatically after a power failure"



Hi Maldon, I enabled Start up Automatically after a power failure; computer sleeps, but when I try and wake up the screen is now black, power is on -- and I have to do a hard reset (power off power on) to turn back on the computer.



I previously had sleep working with even wake on bluetooth devices. Now its only the USB devices that register when the computer is sleeping, and even then it can't wake from sleep.

[MaLd0n]

Hi Maldon, I enabled Start up Automatically after a power failure; computer sleeps, but when I try and wake up the screen is now black, power is on -- and I have to do a hard reset (power off power on) to turn back on the computer.



I previously had sleep working with even wake on bluetooth devices. Now its only the USB devices that register when the computer is sleeping, and even then it can't wake from sleep.



I have a similar problem

I use the second DVI port and works well

I do not know how to solve this

Sorry

[omniatlas]

I have a similar problem

I use the second DVI port and works well

I do not know how to solve this

Sorry



I think it works now! I had sleepenabler put back in for some reason; I removed it, ran kext utility again, and now its waking up on sleep (although bluetooth is not working).



Will try and experiment more, thanks!

[MaLd0n]

I think it works now! I had sleepenabler put back in for some reason; I removed it, ran kext utility again, and now its waking up on sleep (although bluetooth is not working).



Will try and experiment more, thanks!





Use kextstat

see what is loaded

to not have this problem



[omniatlas]

Sorry Maldon, but one of my biggest problems is the performance hit using the newly generated DSDT with autopatcher -- I ran some cinebench scores, and I get nearly double the amount of FPS on my computer (my computer is shaded yellow) with nullcpumanagement.kext installed:





I might have to revert to my old dsdt which I got from http://osx86.co/f57/guide-retail-snow-leop...for-g31m-t3672/ , I guess I am the only one having this problem?

[MaLd0n]

Sorry Maldon, but one of my biggest problems is the performance hit using the newly generated DSDT with autopatcher -- I ran some cinebench scores, and I get nearly double the amount of FPS on my computer (my computer is shaded yellow) with nullcpumanagement.kext installed:





I might have to revert to my old dsdt which I got from http://osx86.co/f57/guide-retail-snow-leop...for-g31m-t3672/ , I guess I am the only one having this problem?



P-States & C-States generation for native power managment --> http://www.insanelymac.com/forum/index.php?showtopic=225766



Read it

http://www.insanelymac.com/forum/index.php?showtopic=181631



Auto-Patcher is in charge of HPET, LPC and many others patches, no power management

Auto-patcher applies fixs needed for that

you must do your part





Hello MLO,

I tried again and it worked. Thank you. I've restarted it many times and it ran a time machine backup while I was at work. I still cant wake from sleep and it crashes system profiler when I hit the USB tab. It has something to do with my HP 6310 all in one. THe printer and scanner work and I know it has something to do with the driver. Anyway thanks again for the help. Regards CFI



Hi Chrisfromiowa



send me your DSDT

[KiD KuN]

the HDEF is in your DSDT

codec...

"IDT 92HD71B7"

use legacy and AppleHda modified for its codec



Hey bro! thanks alot for the DSDT edit for audio. But all i do now is get modified kext for my codec and then jsut replace the one in S/L/E and it work because i have the entry in DSDT? or what? by the way what do you mean by "use legacy and AppleHda modified for its codec" sorry i did not get you!

Thanks alot Daniel! because of you my OSX dream is coming true! thanks you very much!

[anibalin]

61 0 0xffffff7f808b6000 0x2000 0x2000 com.apple.driver.AppleSMBusPCI (1.0.8d0) <9 5 4 3>
77 1 0xffffff7f810aa000 0x2000 0x2000 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3>
78 0 0xffffff7f810ac000 0xb000 0xb000 com.apple.driver.AppleSMBusController (1.0.8d0) <77 9 8 5 4 3>


60 0 0xffffff7f808b3000 0x3000 0x3000 com.apple.driver.AppleLPC (1.4.12) <9 5 4 3>

[efimac]

What is the command line DSDT extractor for MAC? Is ioreg good enough?



I'm remote logging in to my Hacintosh and trying to extract the DSDT manually.



TIA

[MaLd0n]

61 0 0xffffff7f808b6000 0x2000 0x2000 com.apple.driver.AppleSMBusPCI (1.0.8d0) <9 5 4 3>
77 1 0xffffff7f810aa000 0x2000 0x2000 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3>
78 0 0xffffff7f810ac000 0xb000 0xb000 com.apple.driver.AppleSMBusController (1.0.8d0) <77 9 8 5 4 3>


60 0 0xffffff7f808b3000 0x3000 0x3000 com.apple.driver.AppleLPC (1.4.12) <9 5 4 3>





What is the command line DSDT extractor for MAC? Is ioreg good enough?



I'm remote logging in to my Hacintosh and trying to extract the DSDT manually.



TIA



perl -e 'open(CMD, "ioreg -lw0 \| grep DSDT|") or die; while(<CMD>) { chomp; if($_ =~ /\"DSDT\.?\d?\"=<([^>]*)>/) { $buff = $1; open(PIP, "|xxd -r -p > ~/Desktop/dsdt.aml") or die; print PIP "$1"; } }'



kextstat

kextstat



ioreg output

ioreg -fl



But all i do now is get modified kext for my codec and then jsut replace the one in S/L/E and it work because i have the entry in DSDT? or what? by the way what do you mean by "use legacy and AppleHda modified for its codec" sorry i did not get you!

read it

http://www.insanelymac.com/forum/index.php...t&p=1497732

[efimac]

Ok I finally extracted my DSDT remotely and did all the other commands. Please find the attached files.



Rgds



I zipped the files as I am having problem uploading attachments.

[MaLd0n]

@Efi Gy



dsdt.Efi_Gy.zip



AHCI ICH10

DTGP

HID/CID

LAN

LPC

REMOVE

RENAMED

SBUS

SHUTDOWN

FIX WARNINGS



I think this DSDT that you sent me is not original

has some modifications

[Chrisfromiowa]

Hi Chrisfromiowa



send me your DSDT





Hey

Here it is, thanks for the help. Regards CFI

[efimac]

@Efi Gy



dsdt.Efi_Gy.zip



AHCI ICH10

DTGP

HID/CID

LAN

LPC

REMOVE

RENAMED

SBUS

SHUTDOWN

FIX WARNINGS



I think this DSDT that you sent me is not original

has some modifications







You are correct because I use OSX to extract the DSDT. I don't think there is a way to extract a virgin DSDT from OSX when the system is running with modified one. I will try to boot to linux and extract it from there by remotely logging to my system again.



Thanks.

[MaLd0n]

Hi Chrisfromiowa



send me your DSDT





Hey

Here it is, thanks for the help. Regards CFI



????



You are correct because I use OSX to extract the DSDT. I don't think there is a way to extract a virgin DSDT from OSX when the system is running with modified one. I will try to boot to linux and extract it from there by remotely logging to my system again.



Thanks.



Windows



DSDT Editor and patcher

http://www.insanelymac.com/forum/index.php?showtopic=223205



Everest

http://www.insanelymac.com/forum/index.php?showtopic=225991

[Chrisfromiowa]

????

Hello MaLdOn

I thought I had attached it, I'm at work now but I'll do it again tonight. Thanks CFI

[mackyreddy]

Hi MaLd0n i have a dell Inspiron 1525 ICH8 with X3100, i have added a lot of patches and modiffied my dsdt.dsl but still HPET and USB doesnt seems to be working. hope u just have a look at it and if possible please optimize it. also added unmodified dsdt for reference



cheers

ICH8_INSPIRON_1525.txt

UNMODIFFIED_DSDT.txt

[MaLd0n]

Hello MaLdOn

I thought I had attached it, I'm at work now but I'll do it again tonight. Thanks CFI



OK



Hi MaLd0n i have a dell Inspiron 1525 ICH8 with X3100, i have added a lot of patches and modiffied my dsdt.dsl but still HPET and USB doesnt seems to be working. hope u just have a look at it and if possible please optimize it. also added unmodified dsdt for reference



cheers

dsdt.Mahesh_Kondraju.zip



SBUS

IPIC

HPET

*LPC

[shenor]

Hi,

I have a problem.I'm using fixed dsdt from tonymac.In my E/E folder fakesmc,jmicron36xsata and legacy889hda kext

when i use kext utilty give me KP, if i change extensions.mkext backwards it's ok or boot with -f is ok.what would be my problem.sory for english and thanks for answer.

[MaLd0n]

Hi,

I have a problem.I'm using fixed dsdt from tonymac.In my E/E folder fakesmc,jmicron36xsata and legacy889hda kext

when i use kext utilty give me KP, if i change extensions.mkext backwards it's ok or boot with -f is ok.what would be my problem.sory for english and thanks for answer.



use the -v

see the error

[shenor]

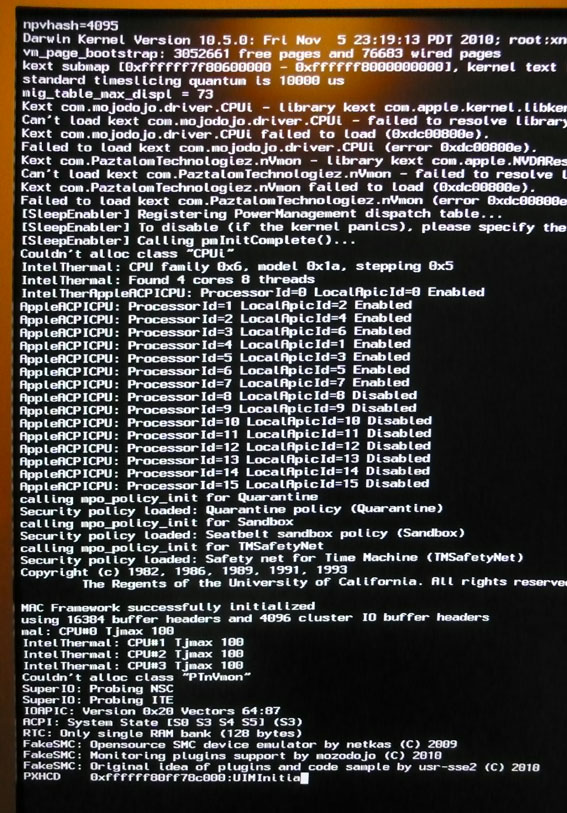

I'm stuck here



Thanks a lot.

[CooSee]

I'm stuck here



Thanks a lot.



remove ' CPUi.kext ' please !!!



and did you read this ???



HowTo Install FakeSMC !!!



CooSee ' Ya

[shenor]

remove ' CPUi.kext ' please !!!



and did you read this ???



HowTo Install FakeSMC !!!



CooSee ' Ya

I can't find cpui kext looking E/E and S/L/E

[MaLd0n]

gigabyte x58a ud5

Send me your original DSDT

Run on terminal

perl -e 'open(CMD, "ioreg -lw0 \| grep DSDT|") or die; while(<CMD>) { chomp; if($_ =~ /\"DSDT\.?\d?\"=<([^>]*)>/) { $buff = $1; open(PIP, "|xxd -r -p > ~/Desktop/dsdt.aml") or die; print PIP "$1"; } }'



kextstat

kextstat



ioreg output

ioreg -fl

[shenor]

here it is

dsdtshenor.aml.zip
