This is good :)

Where do I put this? Does it work from Extra folder?

I need to remove HDEF and Legacy HDA first I guess.

This is meant to be put in /System/Library/Extensions/

and yes those other audio related kexts (apple's & legacy) need to be removed. But no need to remove HDEF from dsdt.

Link to comment
Share on other sites

well, in the meantime I patched voodoohda's nodes. and since then no kps (since some days).

If u want to test it is hereVoodooHDA.kext.zip

:) At first, I had with problem recreating caches as it gave kp and wouldn't start without -x. But then I noticed that I hadn't removed AppleHDA.kext. Instead of removing this kext, I removed HDEF from DSDT, which actually loads AppleHDA.

I hope it was totally because of AppleHDA as it seems so.



Now, it seems to work fine except mute. It changes audio icon to muted but I have still sound coming from speakers. I use play/stop button to mute sound while using ITunes. Audio after sleep is working :) Also it seems to be a clean kext as I don't have any error on Console in both booting and while playing a song.



Lets hope that it doesn't give us no more KP.



Edit: When I said that mute wasn't working I meant the touch button. Otherwise, pulling the volume level icon to the bottom from menu bar mutes sound.

Link to comment
Share on other sites

When I said that mute wasn't working I meant the touch button
Mine is working. I also had cleaner sound; plus I've managed to get bottom subwoofer working.
Link to comment
Share on other sites

Mine is working. I also had cleaner sound; plus I've managed to get bottom subwoofer working.

Hmm. in my case it is not working. I tried it by touch button and also by clicking on Mute in Sound Preferences.

Are you able to use play/pause button like me?

Also, how do you test if subfoower is working?



Do you think that we have some nodes different?



Edit: Subfoower is vibrating :)

Link to comment
Share on other sites

Are you able to use play/pause button like me
yep.
Also, how do you test if subfoower is working?

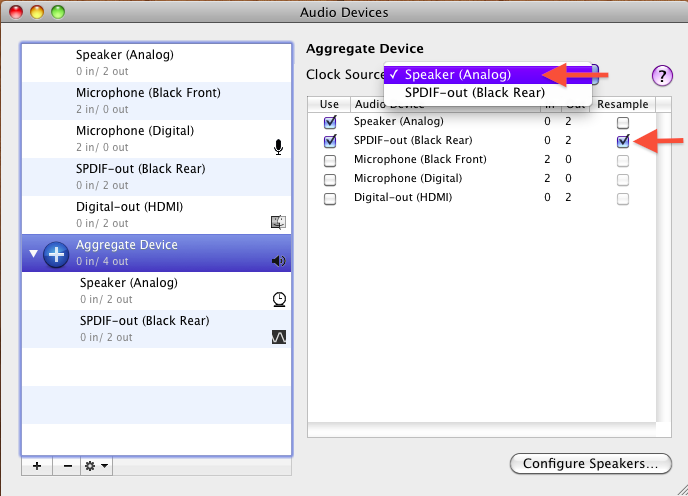

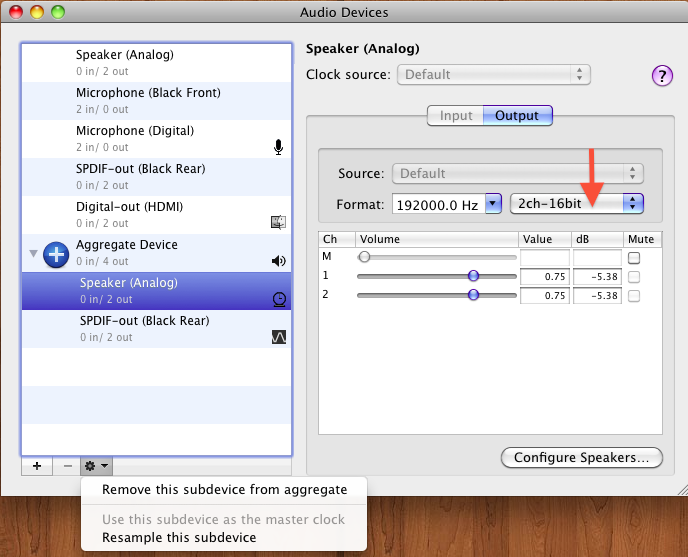

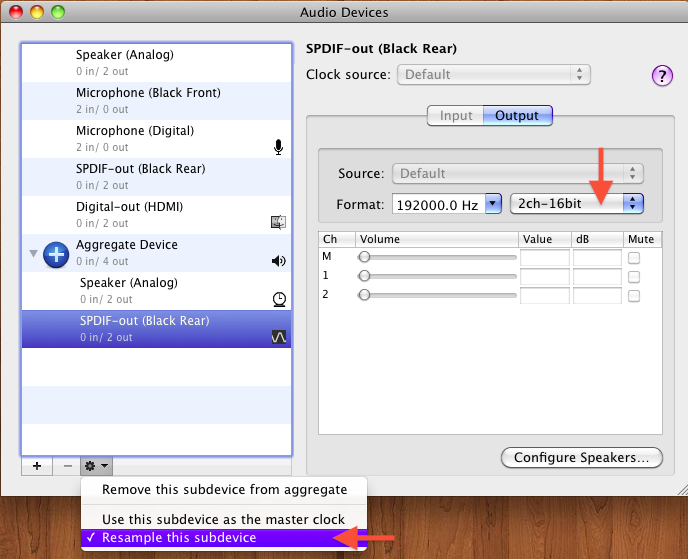

this is what I did after aggregating devices on Audio MIDI Setup Utility:

post-498884-1293192614_thumb.pngpost-498884-1293192625_thumb.pngpost-498884-1293192634_thumb.png

I don't know if this has any effect on subwoofer, but sound is 100% crackle free.

Do you think that we have some nodes different?
If it would be the case, I can help you by ;)
Link to comment
Share on other sites

yep.this is what I did after aggregating devices on Audio MIDI Setup Utility:

I don't know if this has any effect on subwoofer, but sound is 100% crackle free.

If it would be the case, I can help you by ;)

I tried to do the same settings in Audi Midi Utility. However, I can't have audio icon appear in Aggregate Device. In order to do this, I have to right click and then choose "use this device for sound sound output". But when I do this, the volume icon becomes greyed out and volume control button don't work. Audio is still working and I can change format to 16 Bit and it takes effect though.




Also, today also I witnessed KPs during boot which didn't let me to boot without -x. I did restart the machine and once i'd managed to start the OSX with -x and it booted normally. Here is the screenshot.




I also tried to dump the codec info. There were two utilities to do the job and I used both of them. I dumped the codec after making the changes you'd suggested.

Probing codec #0...
HDA Codec #0: IDT 92HD71B7
HDA Codec ID: 0x111d76b2
      Vendor: 0x111d
      Device: 0x76b2
    Revision: 0x03
    Stepping: 0x02
PCI Subvendor: 0x361b103c
startNode=1 endNode=2
Found audio FG nid=1 startNode=10 endNode=41 total=31

Processing audio FG cad=0 nid=1...
Powering up...
Parsing audio FG...
GPIO: 0xc0000008 NumGPIO=8 NumGPO=0 NumGPI=0 GPIWake=1 GPIUnsol=1
nid 10 0x0221101f as  1 seq 15    Headphones  Jack jack  1 loc  2 color   Black misc 0
nid 11 0x02a11020 as  2 seq  0    Microphone  Jack jack  1 loc  2 color   Black misc 0
nid 12 0x40f000f0 as 15 seq  0         Other  None jack  0 loc  0 color Unknown misc 0
nid 13 0x90171110 as  1 seq  0       Speaker Fixed jack  7 loc 16 color   Black misc 1
nid 14 0x28a1102e as  2 seq 14    Microphone  Jack jack  1 loc 40 color   Black misc 0
nid 15 0x40f000f2 as 15 seq  2         Other  None jack  0 loc  0 color Unknown misc 0
nid 20 0x40f000f3 as 15 seq  3         Other  None jack  0 loc  0 color Unknown misc 0
nid 24 0x90a60370 as  7 seq  0    Microphone Fixed jack  6 loc 16 color Unknown misc 3
nid 25 0x40f000f5 as 15 seq  5         Other  None jack  0 loc  0 color Unknown misc 0
nid 30 0x214410a0 as 10 seq  0     SPDIF-out  Jack jack  4 loc 33 color   Black misc 0
nid 31 0x40f100f5 as 15 seq  5         Other  None jack  1 loc  0 color Unknown misc 0
nid 32 0x40f100f6 as 15 seq  6         Other  None jack  1 loc  0 color Unknown misc 0
nid 39 0x40f000f7 as 15 seq  7         Other  None jack  0 loc  0 color Unknown misc 0
Parsing vendor patch...
VHDevice NID=10 Config=0221101f Type=00000004 Cap=0000001c Ctrl=00000000 -- Conns: 0=16 1=17 2=23
VHDevice NID=11 Config=02a11020 Type=00000004 Cap=00001724 Ctrl=00000000 -- Conns:
VHDevice NID=12 Config=40f000f0 Type=00000004 Cap=00001724 Ctrl=00000000 -- Conns:
VHDevice NID=13 Config=90171110 Type=00000004 Cap=00000014 Ctrl=00000000 -- Conns: 0=16 1=17 2=23
VHDevice NID=14 Config=28a1102e Type=00000004 Cap=00001724 Ctrl=00000000 -- Conns:
VHDevice NID=15 Config=40f000f2 Type=00000004 Cap=00000014 Ctrl=00000000 -- Conns: 0=16 1=17 2=23
VHDevice NID=16 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=17 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=18 Config=00000000 Type=00000001 Cap=00000000 Ctrl=00000000 -- Conns: 0=28
VHDevice NID=19 Config=00000000 Type=00000001 Cap=00000000 Ctrl=00000000 -- Conns: 0=29
VHDevice NID=20 Config=40f000f3 Type=00000004 Cap=00000010 Ctrl=00000000 -- Conns: 0=22
VHDevice NID=21 Config=00000000 Type=00000003 Cap=00000000 Ctrl=00000000 -- Conns: 0=16 1=17 2=23
VHDevice NID=22 Config=00000000 Type=00000002 Cap=00000000 Ctrl=00000000 -- Conns: 0=21
VHDevice NID=23 Config=00000000 Type=00000002 Cap=00000000 Ctrl=00000000 -- Conns: 0=16 1=17 2=39 3=26 4=27
VHDevice NID=24 Config=90a60370 Type=00000004 Cap=00000020 Ctrl=00000000 -- Conns:
VHDevice NID=25 Config=40f000f5 Type=00000004 Cap=00000020 Ctrl=00000000 -- Conns:
VHDevice NID=26 Config=00000000 Type=00000003 Cap=00000000 Ctrl=00000000 -- Conns: 0=11 1=12 2=14
VHDevice NID=27 Config=00000000 Type=00000003 Cap=00000000 Ctrl=00000000 -- Conns: 0=11 1=12 2=14
VHDevice NID=28 Config=00000000 Type=00000003 Cap=00000000 Ctrl=00000000 -- Conns: 0=26 1=23 2=24 3=25
VHDevice NID=29 Config=00000000 Type=00000003 Cap=00000000 Ctrl=00000000 -- Conns: 0=27 1=23 2=24 3=25
VHDevice NID=30 Config=214410a0 Type=00000004 Cap=00000010 Ctrl=00000000 -- Conns: 0=36
VHDevice NID=31 Config=40f100f5 Type=00000004 Cap=00010010 Ctrl=00000000 -- Conns: 0=36 1=37
VHDevice NID=32 Config=40f100f6 Type=00000004 Cap=00000010 Ctrl=00000000 -- Conns: 0=37
VHDevice NID=33 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=34 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=35 Config=00000000 Type=0000000f Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=36 Config=00000000 Type=00000003 Cap=00000000 Ctrl=00000000 -- Conns: 0=33 1=28 2=29
VHDevice NID=37 Config=00000000 Type=00000003 Cap=00000000 Ctrl=00000000 -- Conns: 0=34 1=28 2=29
VHDevice NID=38 Config=00000000 Type=00000007 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=39 Config=40f000f7 Type=00000004 Cap=00000020 Ctrl=00000000 -- Conns:
VHDevice NID=40 Config=00000000 Type=00000006 Cap=00000000 Ctrl=00000000 -- Conns: 0=16 1=17
Disabling nonaudio...
Disabling nid 40 due to it's non-audio type.
Disabling useless...
Disabling pin nid 12 due to None connectivity.
Disabling pin nid 15 due to None connectivity.
Disabling pin nid 20 due to None connectivity.
Disabling pin nid 25 due to None connectivity.
Disabling pin nid 31 due to None connectivity.
Disabling pin nid 32 due to None connectivity.
Disabling pin nid 39 due to None connectivity.
Disabling nid 22 due to all it's consumers disabled.
Disabling nid 23 connection 2 due to disabled child widget.
Disabling nid 26 connection 1 due to disabled child widget.
Disabling nid 27 connection 1 due to disabled child widget.
Disabling nid 28 connection 3 due to disabled child widget.
Disabling nid 29 connection 3 due to disabled child widget.
Disabling nid 37 due to all it's consumers disabled.
Disabling nid 21 due to all it's consumers disabled.
Patched pins configuration:
nid 10 0x0221101f as  1 seq 15    Headphones  Jack jack  1 loc  2 color   Black misc 0
nid 11 0x02a11020 as  2 seq  0    Microphone  Jack jack  1 loc  2 color   Black misc 0
nid 12 0x40f000f0 as 15 seq  0         Other  None jack  0 loc  0 color Unknown misc 0 [DISABLED]
nid 13 0x90171110 as  1 seq  0       Speaker Fixed jack  7 loc 16 color   Black misc 1
nid 14 0x28a1102e as  2 seq 14    Microphone  Jack jack  1 loc 40 color   Black misc 0
nid 15 0x40f000f2 as 15 seq  2         Other  None jack  0 loc  0 color Unknown misc 0 [DISABLED]
nid 20 0x40f000f3 as 15 seq  3         Other  None jack  0 loc  0 color Unknown misc 0 [DISABLED]
nid 24 0x90a60370 as  7 seq  0    Microphone Fixed jack  6 loc 16 color Unknown misc 3
nid 25 0x40f000f5 as 15 seq  5         Other  None jack  0 loc  0 color Unknown misc 0 [DISABLED]
nid 30 0x214410a0 as 10 seq  0     SPDIF-out  Jack jack  4 loc 33 color   Black misc 0
nid 31 0x40f100f5 as 15 seq  5         Other  None jack  1 loc  0 color Unknown misc 0 [DISABLED]
nid 32 0x40f100f6 as 15 seq  6         Other  None jack  1 loc  0 color Unknown misc 0 [DISABLED]
nid 39 0x40f000f7 as 15 seq  7         Other  None jack  0 loc  0 color Unknown misc 0 [DISABLED]
Parsing pin associations...
4 associations found:
Association 0 (1) out:
Pin nid=13 seq=0
Pin nid=10 seq=15
  Redir type=0 jack=15 def=0
Association 1 (2) in:
Pin nid=11 seq=0
Pin nid=14 seq=14
  Redir type=0 jack=14 def=0
Association 2 (7) in:
Pin nid=24 seq=0
  Redir type=-1 jack=-1 def=0
Association 3 (10) out:
Pin nid=30 seq=0
  Redir type=-1 jack=0 def=0
Building AFG tree...
Tracing association 0 (1)
Tracing pin 13 with min nid 0
 tracing via nid 13
  tracing via nid 16
  nid 16 returned 16
  tracing via nid 17
  nid 17 returned 17
  tracing via nid 23
   tracing via nid 16
   nid 16 returned 16
   tracing via nid 17
   nid 17 returned 17
   tracing via nid 26
    tracing via nid 11
    tracing via nid 14
   tracing via nid 27
    tracing via nid 11
    tracing via nid 14
  nid 23 returned 16
 nid 13 returned 16
Pin 13 traced to DAC 16
Tracing pin 10 with min nid 0 and hpredir 0
 tracing via nid 10
  tracing via nid 16
  nid 16 returned 16
 nid 10 returned 16
Pin 10 traced to DAC 16 and hpredir 0
Association 0 (1) trace succeeded
Tracing association 1 (2)
Tracing pin 11 to ADC 18
 tracing via nid 11
  tracing via nid 26
   tracing via nid 23
    tracing via nid 10
    nid 10 busy by association 0
    tracing via nid 13
    nid 13 busy by association 0
    tracing via nid 28
     tracing via nid 18
     nid 18 returned 1
     tracing via nid 36
      tracing via nid 30
      nid 30 returned 0
     nid 36 returned 0
    nid 28 returned 1
    tracing via nid 29
     tracing via nid 19
     nid 19 returned 0
     tracing via nid 36
      tracing via nid 30
      nid 30 returned 0
     nid 36 returned 0
    nid 29 returned 0
   nid 23 returned 1
   tracing via nid 28
    tracing via nid 18
    nid 18 returned 1
    tracing via nid 36
     tracing via nid 30
     nid 30 returned 0
    nid 36 returned 0
   nid 28 returned 1
  nid 26 returned 1
  tracing via nid 27
   tracing via nid 23
    tracing via nid 10
    nid 10 busy by association 0
    tracing via nid 13
    nid 13 busy by association 0
    tracing via nid 28
     tracing via nid 18
     nid 18 returned 1
     tracing via nid 36
      tracing via nid 30
      nid 30 returned 0
     nid 36 returned 0
    nid 28 returned 1
    tracing via nid 29
     tracing via nid 19
     nid 19 returned 0
     tracing via nid 36
      tracing via nid 30
      nid 30 returned 0
     nid 36 returned 0
    nid 29 returned 0
   nid 23 returned 1
   tracing via nid 29
    tracing via nid 19
    nid 19 returned 0
    tracing via nid 36
     tracing via nid 30
     nid 30 returned 0
    nid 36 returned 0
   nid 29 returned 0
  nid 27 returned 1
 nid 11 returned 1
Pin 11 traced to ADC 18
Tracing pin 14 to ADC 18
 tracing via nid 14
  tracing via nid 26
   tracing via nid 23
    tracing via nid 10
    nid 10 busy by association 0
    tracing via nid 13
    nid 13 busy by association 0
    tracing via nid 28
     tracing via nid 18
     nid 18 returned 1
     tracing via nid 36
      tracing via nid 30
      nid 30 returned 0
     nid 36 returned 0
    nid 28 returned 1
    tracing via nid 29
     tracing via nid 19
     nid 19 returned 0
     tracing via nid 36
      tracing via nid 30
      nid 30 returned 0
     nid 36 returned 0
    nid 29 returned 0
   nid 23 returned 1
   tracing via nid 28
    tracing via nid 18
    nid 18 returned 1
    tracing via nid 36
     tracing via nid 30
     nid 30 returned 0
    nid 36 returned 0
   nid 28 returned 1
  nid 26 returned 1
  tracing via nid 27
   tracing via nid 23
    tracing via nid 10
    nid 10 busy by association 0
    tracing via nid 13
    nid 13 busy by association 0
    tracing via nid 28
     tracing via nid 18
     nid 18 returned 1
     tracing via nid 36
      tracing via nid 30
      nid 30 returned 0
     nid 36 returned 0
    nid 28 returned 1
    tracing via nid 29
     tracing via nid 19
     nid 19 returned 0
     tracing via nid 36
      tracing via nid 30
      nid 30 returned 0
     nid 36 returned 0
    nid 29 returned 0
   nid 23 returned 1
   tracing via nid 29
    tracing via nid 19
    nid 19 returned 0
    tracing via nid 36
     tracing via nid 30
     nid 30 returned 0
    nid 36 returned 0
   nid 29 returned 0
  nid 27 returned 1
 nid 14 returned 1
Pin 14 traced to ADC 18
Association 1 (2) trace succeeded
Tracing association 2 (7)
Tracing pin 24 to ADC 19
 tracing via nid 24
  tracing via nid 28
  nid 28 busy by association 1
  tracing via nid 29
   tracing via nid 19
   nid 19 returned 1
   tracing via nid 36
    tracing via nid 30
    nid 30 returned 0
   nid 36 returned 0
  nid 29 returned 1
 nid 24 returned 1
Pin 24 traced to ADC 19
Association 2 (7) trace succeeded
Tracing association 3 (10)
Tracing pin 30 with min nid 0
 tracing via nid 30
  tracing via nid 36
   tracing via nid 33
   nid 33 returned 33
   tracing via nid 28
   nid 28 busy by association 1
   tracing via nid 29
   nid 29 busy by association 2
  nid 36 returned 33
 nid 30 returned 33
Pin 30 traced to DAC 33
Association 3 (10) trace succeeded
Tracing input monitor
Tracing nid 23 to out
 tracing via nid 23
  tracing via nid 10
  nid 10 found output association 0
  tracing via nid 13
  nid 13 found output association 0
  tracing via nid 28
  nid 28 busy by input association 1
  tracing via nid 29
  nid 29 busy by input association 2
 nid 23 returned 1
nid 23 is input monitor
Tracing other input monitors
Tracing nid 11 to out
 tracing via nid 11
  tracing via nid 26
  nid 26 busy by input association 1
  tracing via nid 27
  nid 27 busy by input association 1
 nid 11 returned 0
Tracing nid 14 to out
 tracing via nid 14
  tracing via nid 26
  nid 26 busy by input association 1
  tracing via nid 27
  nid 27 busy by input association 1
 nid 14 returned 0
Tracing nid 24 to out
 tracing via nid 24
  tracing via nid 28
  nid 28 busy by input association 1
  tracing via nid 29
  nid 29 busy by input association 2
 nid 24 returned 0
Tracing beeper
Tracing nid 38 to out
 tracing via nid 38
 nid 38 returned 0
Disabling unassociated widgets...
Disabling unassociated nid 17.
Disabling unassociated nid 34.
Disabling unassociated nid 35.
Disabling nonselected inputs...
Disabling unselected connection nid 10 conn 1.
Disabling unselected connection nid 10 conn 2.
Disabling unselected connection nid 13 conn 1.
Disabling unselected connection nid 13 conn 2.
Disabling unselected connection nid 36 conn 1.
Disabling unselected connection nid 36 conn 2.
Disabling useless...
Disabling nid 23 connection 1 due to disabled child widget.
Disabling crossassociated connections...
Disabling crossassociated connection nid 28 conn 2 cnid 24.
Disabling crossassociated connection nid 29 conn 0 cnid 27.
Disabling crossassociated connection nid 29 conn 1 cnid 23.
Disabling useless...
Binding associations to channels...
Assigning names to signal sources...
Parsing Ctls...
Assigning mixers to the tree...
 trace dest nid 10
  trace dest nid 16
nid 11 is audioCtlSourceAmp
 trace source, nid 11
  trace source, nid 26
   trace source, nid 23
   trace source, nid 28
    trace source, nid 18
  trace source, nid 27
   trace source, nid 23
 trace dest nid 13
  trace dest nid 16
 trace source, nid 14
  trace source, nid 26
   trace source, nid 23
   trace source, nid 28
    trace source, nid 18
  trace source, nid 27
   trace source, nid 23
 trace source, nid 16
 add out ossmask pcm
  trace source, nid 10
  trace source, nid 13
  trace source, nid 23
  add in ossmask pcm
 trace dest nid 18
  trace dest nid 28
  add out ossmask rec
   trace dest nid 26
   trace dest nid 23
   add out ossmask rec
    trace dest nid 16
   add out ossmask rec
    trace dest nid 26
   add out ossmask rec
    trace dest nid 27
    add out ossmask rec
     trace dest nid 11
     trace dest nid 14
 trace dest nid 19
  trace dest nid 29
  add out ossmask rec
   trace dest nid 24
   trace goed to pin complex
 trace dest nid 23
 add out ossmask igain
  trace dest nid 26
 trace dest nid 23
 add out ossmask igain
  trace dest nid 27
  add out ossmask igain
   trace dest nid 11
   trace dest nid 14
 trace source, nid 24
  trace source, nid 29
  add out ossmask line
   trace source, nid 19
 trace dest nid 30
  trace dest nid 36
   trace dest nid 33
 trace source, nid 33
  trace source, nid 36
   trace source, nid 30
 trace source, nid 38
 add out ossmask speaker
Preparing pin controls...
AFG commit...
Creating PCM devices...
pcmAttach: HDA IDT 92HD71B7 PCM #0 Analog at cad 0 nid 1
+--------------------------------------+
| DUMPING PCM Playback/Record Channels |
+--------------------------------------+

Playback:

    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz
           DAC: 16

Record:

    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz
           ADC: 18

+-------------------------------+
| DUMPING Playback/Record Paths |
+-------------------------------+

Playback:

   nid=13 [pin: Speaker (Analog)]
     |
     + <- nid=16 [audio output] [src: pcm] bindSeq=00008001

   nid=10 [pin: Headphones (Black Front)]
     |
     + <- nid=16 [audio output] [src: pcm] bindSeq=00008001

Record:

   nid=18 [audio input]
     |
     + <- nid=28 [audio selector] [src: mic, monitor] bindSeq=00004001
            |
            + <- nid=26 [audio selector] [src: mic, monitor] bindSeq=00004001
                   |
                   + <- nid=11 [pin: Microphone (Black Front)] [src: mic] bindSeq=00000001
                   + <- nid=14 [pin: Microphone (Black Rear)] [src: monitor] bindSeq=00004000
            + <- nid=23 [audio mixer]

+-------------------------+
| DUMPING Volume Controls |
+-------------------------+

PCM Volume (OSS: pcm)
  |
  +- control  1 (nid  16 out):    dir - out oss: pcm -95/+0dB (128 steps) + mute
  +- control  2 (nid  23 in   0): dir - in oss: pcm, rec -34/+12dB (32 steps) + mute

Speaker/Beep Volume (OSS: speaker)
  |
  +- control 10 (nid  38 out):    dir - none oss: speaker -18/+0dB (4 steps) + mute

Recording Level (OSS: rec)
  |
  +- control  2 (nid  23 in   0): dir - in oss: pcm, rec -34/+12dB (32 steps) + mute
  +- control  7 (nid  27 out):    dir - in oss: rec, igain +0/+30dB (4 steps)
  +- control  8 (nid  28 out):    dir - in oss: rec +0/+22dB (16 steps) + mute

Input Monitoring Level (OSS: igain)
  |
  +- control  3 (nid  23 in   3): dir - in oss: igain -34/+12dB (32 steps) + mute
  +- control  4 (nid  23 in   4): dir - in oss: igain -34/+12dB (32 steps) + mute
  +- control  7 (nid  27 out):    dir - in oss: rec, igain +0/+30dB (4 steps)

OSS mixer initialization...
Recsel (line, mic, cd, monitor): nid 26 source 0 select
Recsel (line, mic, cd, monitor): nid 28 source 0 select
Registering PCM channels...
pcmAttach: HDA IDT 92HD71B7 PCM #1 Analog at cad 0 nid 1
+--------------------------------------+
| DUMPING PCM Playback/Record Channels |
+--------------------------------------+

Record:

    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz
           ADC: 19

+-------------------------------+
| DUMPING Playback/Record Paths |
+-------------------------------+

Record:

   nid=19 [audio input]
     |
     + <- nid=29 [audio selector] [src: line] bindSeq=00000001
            |
            + <- nid=24 [pin: Microphone (Digital)] [src: line] bindSeq=00000001

+-------------------------+
| DUMPING Volume Controls |
+-------------------------+

Line-in Volume (OSS: line)
  |
  +- control  9 (nid  29 out):    dir - in oss: line, rec +0/+22dB (16 steps) + mute

Recording Level (OSS: rec)
  |
  +- control  9 (nid  29 out):    dir - in oss: line, rec +0/+22dB (16 steps) + mute

OSS mixer initialization...
Recsel (line, mic, cd, monitor): nid 29 source 2 select
Registering PCM channels...
pcmAttach: HDA IDT 92HD71B7 PCM #2 Digital at cad 0 nid 1
+--------------------------------------+
| DUMPING PCM Playback/Record Channels |
+--------------------------------------+

Playback:

    Stream cap: 0x00000005
                AC3 PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz
           DAC: 33

+-------------------------------+
| DUMPING Playback/Record Paths |
+-------------------------------+

Playback:

   nid=30 [pin: SPDIF-out (Black Rear)]
     |
     + <- nid=36 [audio selector] [src: pcm] bindSeq=00000001
            |
            + <- nid=33 [audio output] [src: pcm] bindSeq=00000001

+-------------------------+
| DUMPING Volume Controls |
+-------------------------+

OSS mixer initialization...
Registering PCM channels...
FG config/quirks: forcestereo ivref50 ivref80 ivref100 ivref
HP switch init...

+-------------------+
| DUMPING HDA NODES |
+-------------------+

Default Parameter
-----------------
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz
        IN amp: 0x80000000
       OUT amp: 0x80027f7f

           nid: 10
          Name: pin: Headphones (Black Front)
    Widget cap: 0x00400181
                UNSOL STEREO
   Association: 0 (0x00008000)
       Pin cap: 0x0000001c
                PDC HP OUT
    Pin config: 0x0221101f
   Pin control: 0x000000c0 HP OUT
   connections: 3 enabled 1
         |
         + <- nid=16 [audio output] (selected)
         + [DISABLED] <- nid=17 [audio output] [DISABLED]
         + [DISABLED] <- nid=23 [audio mixer]

           nid: 11
          Name: pin: Microphone (Black Front)
    Widget cap: 0x00400081
                UNSOL STEREO
   Association: 1 (0x00000001)
           OSS: mic (mic)
       Pin cap: 0x00001724
                PDC IN VREF[ 50 80 GROUND HIZ ]
    Pin config: 0x02a11020
   Pin control: 0x00000024 IN VREFs

           nid: 12 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400081
                UNSOL STEREO
       Pin cap: 0x00001724
                PDC IN VREF[ 50 80 GROUND HIZ ]
    Pin config: 0x40f000f0
   Pin control: 0x00000000

           nid: 13
          Name: pin: Speaker (Analog)
    Widget cap: 0x00400181
                UNSOL STEREO
   Association: 0 (0x00000001)
       Pin cap: 0x00000014
                PDC OUT
    Pin config: 0x90171110
   Pin control: 0x00000040 OUT
   connections: 3 enabled 1
         |
         + <- nid=16 [audio output] (selected)
         + [DISABLED] <- nid=17 [audio output] [DISABLED]
         + [DISABLED] <- nid=23 [audio mixer]

           nid: 14
          Name: pin: Microphone (Black Rear)
    Widget cap: 0x00400081
                UNSOL STEREO
   Association: 1 (0x00004000)
           OSS: monitor (monitor)
       Pin cap: 0x00001724
                PDC IN VREF[ 50 80 GROUND HIZ ]
    Pin config: 0x28a1102e
   Pin control: 0x00000024 IN VREFs

           nid: 15 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400181
                UNSOL STEREO
       Pin cap: 0x00000014
                PDC OUT
    Pin config: 0x40f000f2
   Pin control: 0x00000000
   connections: 3 enabled 3
         |
         + <- nid=16 [audio output] (selected)
         + <- nid=17 [audio output] [DISABLED]
         + <- nid=23 [audio mixer]

           nid: 16
          Name: audio output
    Widget cap: 0x000d0c05
                LRSWAP PWR STEREO
   Association: 0 (0x00008001)
           OSS: pcm (pcm)
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz
    Output amp: 0x80027f7f
                mute=1 step=127 size=2 offset=127
    Output val: [0x72 0x72]

           nid: 17 [DISABLED]
          Name: audio output
    Widget cap: 0x000d0c05
                LRSWAP PWR STEREO
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz
    Output amp: 0x80027f7f
                mute=1 step=127 size=2 offset=127
    Output val: [0xFF 0xFF]

           nid: 18
          Name: audio input
    Widget cap: 0x001d0541
                PWR PROC STEREO
   Association: 1 (0x00004001)
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz
   connections: 1 enabled 1
         |
         + <- nid=28 [audio selector]

           nid: 19
          Name: audio input
    Widget cap: 0x001d0541
                PWR PROC STEREO
   Association: 2 (0x00000001)
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz
   connections: 1 enabled 1
         |
         + <- nid=29 [audio selector]

           nid: 20 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400100
       Pin cap: 0x00000010
                OUT
    Pin config: 0x40f000f3
   Pin control: 0x00000000
   connections: 1 enabled 1
         |
         + <- nid=22 [audio mixer] [DISABLED]

           nid: 21 [DISABLED]
          Name: audio selector
    Widget cap: 0x00300101
                STEREO
   connections: 3 enabled 3
         |
         + <- nid=16 [audio output] (selected)
         + <- nid=17 [audio output] [DISABLED]
         + <- nid=23 [audio mixer]

           nid: 22 [DISABLED]
          Name: audio mixer
    Widget cap: 0x00200100
   connections: 1 enabled 1
         |
         + <- nid=21 [audio selector] [DISABLED]

           nid: 23
          Name: audio mixer
    Widget cap: 0x0020010b
                STEREO
   Association: 1 (0x00004001)
           OSS:  (igain)
     Input amp: 0x80051f17
                mute=1 step=31 size=5 offset=23
     Input val: [0x15 0x15] [0x97 0x97] [0x97 0x97] [0x19 0x19] [0x19 0x19]
   connections: 5 enabled 3
         |
         + <- nid=16 [audio output]
         + [DISABLED] <- nid=17 [audio output] [DISABLED]
         + [DISABLED] <- nid=39 [pin: Other (None)] [DISABLED]
         + <- nid=26 [audio selector]
         + <- nid=27 [audio selector]

           nid: 24
          Name: pin: Microphone (Digital)
    Widget cap: 0x0040000d
                STEREO
   Association: 2 (0x00000001)
           OSS: line (line)
       Pin cap: 0x00000020
                IN
    Pin config: 0x90a60370
   Pin control: 0x00000020 IN
    Output amp: 0x00270300
                mute=0 step=3 size=39 offset=0
    Output val: [0x00 0x00]

           nid: 25 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x0040000d
                STEREO
       Pin cap: 0x00000020
                IN
    Pin config: 0x40f000f5
   Pin control: 0x00000000
    Output amp: 0x00270300
                mute=0 step=3 size=39 offset=0
    Output val: [0x00 0x00]

           nid: 26
          Name: audio selector
    Widget cap: 0x0030010d
                STEREO
   Association: 1 (0x00004001)
           OSS: mic, monitor
    Output amp: 0x00270300
                mute=0 step=3 size=39 offset=0
    Output val: [0x00 0x00]
   connections: 3 enabled 2
         |
         + <- nid=11 [pin: Microphone (Black Front)] (selected)
         + [DISABLED] <- nid=12 [pin: Other (None)] [DISABLED]
         + <- nid=14 [pin: Microphone (Black Rear)]

           nid: 27
          Name: audio selector
    Widget cap: 0x0030010d
                STEREO
   Association: 1 (0x00004001)
           OSS: mic, monitor
    Output amp: 0x00270300
                mute=0 step=3 size=39 offset=0
    Output val: [0x02 0x02]
   connections: 3 enabled 2
         |
         + <- nid=11 [pin: Microphone (Black Front)] (selected)
         + [DISABLED] <- nid=12 [pin: Other (None)] [DISABLED]
         + <- nid=14 [pin: Microphone (Black Rear)]

           nid: 28
          Name: audio selector
    Widget cap: 0x0030090d
                LRSWAP STEREO
   Association: 1 (0x00004001)
           OSS: mic, monitor
    Output amp: 0x80050f00
                mute=1 step=15 size=5 offset=0
    Output val: [0x0B 0x0B]
   connections: 4 enabled 2
         |
         + <- nid=26 [audio selector] (selected)
         + <- nid=23 [audio mixer]
         + [DISABLED] <- nid=24 [pin: Microphone (Digital)]
         + [DISABLED] <- nid=25 [pin: Other (None)] [DISABLED]

           nid: 29
          Name: audio selector
    Widget cap: 0x0030090d
                LRSWAP STEREO
   Association: 2 (0x00000001)
           OSS: line
    Output amp: 0x80050f00
                mute=1 step=15 size=5 offset=0
    Output val: [0x08 0x08]
   connections: 4 enabled 1
         |
         + [DISABLED] <- nid=27 [audio selector]
         + [DISABLED] <- nid=23 [audio mixer]
         + <- nid=24 [pin: Microphone (Digital)] (selected)
         + [DISABLED] <- nid=25 [pin: Other (None)] [DISABLED]

           nid: 30
          Name: pin: SPDIF-out (Black Rear)
    Widget cap: 0x00400301
                DIGITAL STEREO
   Association: 3 (0x00000001)
       Pin cap: 0x00000010
                OUT
    Pin config: 0x214410a0
   Pin control: 0x00000040 OUT
   connections: 1 enabled 1
         |
         + <- nid=36 [audio selector]

           nid: 31 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400701
                PWR DIGITAL STEREO
       Pin cap: 0x00010010
                OUT EAPD
    Pin config: 0x40f100f5
   Pin control: 0x00000000
          EAPD: 0x00000002
   connections: 2 enabled 2
         |
         + <- nid=36 [audio selector] (selected)
         + <- nid=37 [audio selector] [DISABLED]

           nid: 32 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400301
                DIGITAL STEREO
       Pin cap: 0x00000010
                OUT
    Pin config: 0x40f100f6
   Pin control: 0x00000000
   connections: 1 enabled 1
         |
         + <- nid=37 [audio selector] [DISABLED]

           nid: 33
          Name: audio output
    Widget cap: 0x00040211
                DIGITAL STEREO
   Association: 3 (0x00000001)
           OSS: pcm (pcm)
    Stream cap: 0x00000005
                AC3 PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz

           nid: 34 [DISABLED]
          Name: audio output
    Widget cap: 0x00040211
                DIGITAL STEREO
    Stream cap: 0x00000005
                AC3 PCM
       PCM cap: 0x000e07e0
                16 20 24 bits, 44 48 88 96 176 192 KHz

           nid: 35 [DISABLED]
          Name: vendor widget
    Widget cap: 0x00f00000

           nid: 36
          Name: audio selector
    Widget cap: 0x00300101
                STEREO
   Association: 3 (0x00000001)
           OSS: pcm
   connections: 3 enabled 1
         |
         + <- nid=33 [audio output] (selected)
         + [DISABLED] <- nid=28 [audio selector]
         + [DISABLED] <- nid=29 [audio selector]

           nid: 37 [DISABLED]
          Name: audio selector
    Widget cap: 0x00300101
                STEREO
   connections: 3 enabled 3
         |
         + <- nid=34 [audio output] [DISABLED] (selected)
         + <- nid=28 [audio selector]
         + <- nid=29 [audio selector]

           nid: 38
          Name: beep widget
    Widget cap: 0x0070000c
   Association: -2 (0x00000000)
           OSS: speaker (speaker)
    Output amp: 0x80170303
                mute=1 step=3 size=23 offset=3
    Output val: [0x03 0x00]

           nid: 39 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400000
       Pin cap: 0x00000020
                IN
    Pin config: 0x40f000f7
   Pin control: 0x00000000

           nid: 40 [DISABLED]
          Name: volume widget
    Widget cap: 0x00600000
   connections: 2 enabled 2
         |
         + <- nid=16 [audio output] (selected)
         + <- nid=17 [audio output] [DISABLED]


Probing codec #2...
HDA Codec #2: NVidia MCP78 HDMI
HDA Codec ID: 0x10de0006
      Vendor: 0x10de
      Device: 0x0006
    Revision: 0x00
    Stepping: 0x00
PCI Subvendor: 0x361b103c
startNode=1 endNode=2
Found audio FG nid=1 startNode=4 endNode=14 total=10

Processing audio FG cad=2 nid=1...
Powering up...
Parsing audio FG...
GPIO: 0x00000000 NumGPIO=0 NumGPO=0 NumGPI=0 GPIWake=0 GPIUnsol=0
nid  5 0x18560110 as  1 seq  0   Digital-out  Jack jack  6 loc 24 color Unknown misc 1
nid  7 0x58560121 as  2 seq  1   Digital-out  None jack  6 loc 24 color Unknown misc 1
nid  9 0x58560122 as  2 seq  2   Digital-out  None jack  6 loc 24 color Unknown misc 1
nid 11 0x58560123 as  2 seq  3   Digital-out  None jack  6 loc 24 color Unknown misc 1
nid 13 0x58560124 as  2 seq  4   Digital-out  None jack  6 loc 24 color Unknown misc 1
Parsing vendor patch...
VHDevice NID=4 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=5 Config=18560110 Type=00000004 Cap=00000014 Ctrl=00000000 -- Conns: 0=4
VHDevice NID=6 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=7 Config=58560121 Type=00000004 Cap=00000014 Ctrl=00000000 -- Conns: 0=6
VHDevice NID=8 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=9 Config=58560122 Type=00000004 Cap=00000014 Ctrl=00000000 -- Conns: 0=8
VHDevice NID=10 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=11 Config=58560123 Type=00000004 Cap=00000014 Ctrl=00000000 -- Conns: 0=10
VHDevice NID=12 Config=00000000 Type=00000000 Cap=00000000 Ctrl=00000000 -- Conns:
VHDevice NID=13 Config=58560124 Type=00000004 Cap=00000014 Ctrl=00000000 -- Conns: 0=12
Disabling nonaudio...
Disabling useless...
Disabling pin nid 7 due to None connectivity.
Disabling pin nid 9 due to None connectivity.
Disabling pin nid 11 due to None connectivity.
Disabling pin nid 13 due to None connectivity.
Patched pins configuration:
nid  5 0x18560110 as  1 seq  0   Digital-out  Jack jack  6 loc 24 color Unknown misc 1
nid  7 0x58560121 as  2 seq  1   Digital-out  None jack  6 loc 24 color Unknown misc 1 [DISABLED]
nid  9 0x58560122 as  2 seq  2   Digital-out  None jack  6 loc 24 color Unknown misc 1 [DISABLED]
nid 11 0x58560123 as  2 seq  3   Digital-out  None jack  6 loc 24 color Unknown misc 1 [DISABLED]
nid 13 0x58560124 as  2 seq  4   Digital-out  None jack  6 loc 24 color Unknown misc 1 [DISABLED]
Parsing pin associations...
1 associations found:
Association 0 (1) out:
Pin nid=5 seq=0
  Redir type=-1 jack=-1 def=0
Building AFG tree...
Tracing association 0 (1)
Tracing pin 5 with min nid 0
 tracing via nid 5
  tracing via nid 4
  nid 4 returned 4
 nid 5 returned 4
Pin 5 traced to DAC 4
Association 0 (1) trace succeeded
Tracing input monitor
Tracing other input monitors
Tracing beeper
Disabling unassociated widgets...
Disabling unassociated nid 6.
Disabling unassociated nid 8.
Disabling unassociated nid 10.
Disabling unassociated nid 12.
Disabling nonselected inputs...
Disabling useless...
Disabling crossassociated connections...
Disabling useless...
Binding associations to channels...
Assigning names to signal sources...
Parsing Ctls...
Assigning mixers to the tree...
 trace source, nid 4
  trace source, nid 5
 trace dest nid 5
  trace dest nid 4
Preparing pin controls...
AFG commit...
Creating PCM devices...
pcmAttach: HDA NVidia MCP78 HDMI PCM #0 Digital at cad 2 nid 1
+--------------------------------------+
| DUMPING PCM Playback/Record Channels |
+--------------------------------------+

Playback:

    Stream cap: 0x00000005
                AC3 PCM
       PCM cap: 0x000f00c0
                8 16 20 24 bits, 48 88 KHz
           DAC: 4

+-------------------------------+
| DUMPING Playback/Record Paths |
+-------------------------------+

Playback:

   nid=5 [pin: Digital-out (HDMI)]
     |
     + <- nid=4 [audio output] [src: pcm] bindSeq=00000001

+-------------------------+
| DUMPING Volume Controls |
+-------------------------+

OSS mixer initialization...
Registering PCM channels...
FG config/quirks: forcestereo ivref50 ivref80 ivref100 ivref
HP switch init...

+-------------------+
| DUMPING HDA NODES |
+-------------------+

Default Parameter
-----------------
        IN amp: 0x00000000
       OUT amp: 0x00000000

           nid: 4
          Name: audio output
    Widget cap: 0x00000211
                DIGITAL STEREO
   Association: 0 (0x00000001)
           OSS: pcm (pcm)
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000f00c0
                8 16 20 24 bits, 48 88 KHz

           nid: 5
          Name: pin: Digital-out (HDMI)
    Widget cap: 0x00400381
                DIGITAL UNSOL STEREO
   Association: 0 (0x00000001)
       Pin cap: 0x00000014
                PDC OUT
    Pin config: 0x18560110
   Pin control: 0x00000040 OUT
   connections: 1 enabled 1
         |
         + <- nid=4 [audio output]

           nid: 6 [DISABLED]
          Name: audio output
    Widget cap: 0x00000211
                DIGITAL STEREO
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000f00c0
                8 16 20 24 bits, 48 88 KHz

           nid: 7 [DISABLED]
          Name: pin: Digital-out (HDMI)
    Widget cap: 0x00400381
                DIGITAL UNSOL STEREO
       Pin cap: 0x00000014
                PDC OUT
    Pin config: 0x58560121
   Pin control: 0x00000000
   connections: 1 enabled 1
         |
         + <- nid=6 [audio output] [DISABLED]

           nid: 8 [DISABLED]
          Name: audio output
    Widget cap: 0x00000211
                DIGITAL STEREO
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000f00c0
                8 16 20 24 bits, 48 88 KHz

           nid: 9 [DISABLED]
          Name: pin: Digital-out (HDMI)
    Widget cap: 0x00400381
                DIGITAL UNSOL STEREO
       Pin cap: 0x00000014
                PDC OUT
    Pin config: 0x58560122
   Pin control: 0x00000000
   connections: 1 enabled 1
         |
         + <- nid=8 [audio output] [DISABLED]

           nid: 10 [DISABLED]
          Name: audio output
    Widget cap: 0x00000211
                DIGITAL STEREO
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000f00c0
                8 16 20 24 bits, 48 88 KHz

           nid: 11 [DISABLED]
          Name: pin: Digital-out (HDMI)
    Widget cap: 0x00400381
                DIGITAL UNSOL STEREO
       Pin cap: 0x00000014
                PDC OUT
    Pin config: 0x58560123
   Pin control: 0x00000000
   connections: 1 enabled 1
         |
         + <- nid=10 [audio output] [DISABLED]

           nid: 12 [DISABLED]
          Name: audio output
    Widget cap: 0x00000211
                DIGITAL STEREO
    Stream cap: 0x00000001
                PCM
       PCM cap: 0x000f00c0
                8 16 20 24 bits, 48 88 KHz

           nid: 13 [DISABLED]
          Name: pin: Digital-out (HDMI)
    Widget cap: 0x00400381
                DIGITAL UNSOL STEREO
       Pin cap: 0x00000014
                PDC OUT
    Pin config: 0x58560124
   Pin control: 0x00000000
   connections: 1 enabled 1
         |
         + <- nid=12 [audio output] [DISABLED]



This is the second one.

Codec # 0

Default Parameter
-----------------
        IN amp: 0x80000000
       OUT amp: 0x80027f7f

           nid: 10
          Name: pin: Headphones (Black Front)
    Widget cap: 0x00400181
                UNSOL STEREO
   Association: 0 (0x00008000)
       Pin cap: 0x0000001c
                PDC HP OUT
    Pin config: 0x0221101f
   Pin control: 0x00000080 HP
   connections: 3
         |
         + <- nid=16 [audio output] (selected)
         + [DISABLED] <- nid=17 [audio output] [DISABLED]
         + [DISABLED] <- nid=23 [audio mixer]

           nid: 11
          Name: pin: Microphone (Black Front)
    Widget cap: 0x00400081
                UNSOL STEREO
   Association: 1 (0x00000001)
           OSS: mic (mic)
       Pin cap: 0x00001724
                PDC IN VREF[ 50 80 GROUND HIZ ]
    Pin config: 0x02a11020
   Pin control: 0x00000024 IN VREFs

           nid: 12 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400081
                UNSOL STEREO
       Pin cap: 0x00001724
                PDC IN VREF[ 50 80 GROUND HIZ ]
    Pin config: 0x40f000f0
   Pin control: 0x00000000

           nid: 13
          Name: pin: Speaker (Analog)
    Widget cap: 0x00400181
                UNSOL STEREO
   Association: 0 (0x00000001)
       Pin cap: 0x00000014
                PDC OUT
    Pin config: 0x90171110
   Pin control: 0x00000040 OUT
   connections: 3
         |
         + <- nid=16 [audio output] (selected)
         + [DISABLED] <- nid=17 [audio output] [DISABLED]
         + [DISABLED] <- nid=23 [audio mixer]

           nid: 14
          Name: pin: Microphone (Black Rear)
    Widget cap: 0x00400081
                UNSOL STEREO
   Association: 1 (0x00004000)
           OSS: monitor (monitor)
       Pin cap: 0x00001724
                PDC IN VREF[ 50 80 GROUND HIZ ]
    Pin config: 0x28a1102e
   Pin control: 0x00000024 IN VREFs

           nid: 15 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400181
                UNSOL STEREO
       Pin cap: 0x00000014
                PDC OUT
    Pin config: 0x40f000f2
   Pin control: 0x00000000
   connections: 3
         |
         + <- nid=16 [audio output] (selected)
         + <- nid=17 [audio output] [DISABLED]
         + <- nid=23 [audio mixer]

           nid: 16
          Name: audio output
    Widget cap: 0x000d0c05
                LRSWAP PWR STEREO
   Association: 0 (0x00008001)
           OSS: pcm (pcm)
    Output amp: 0x80027f7f
                mute=1 step=127 size=2 offset=127
    Output val: [0x5F 0x5F]

           nid: 17 [DISABLED]
          Name: audio output
    Widget cap: 0x000d0c05
                LRSWAP PWR STEREO
    Output amp: 0x80027f7f
                mute=1 step=127 size=2 offset=127
    Output val: [0xFF 0xFF]

           nid: 18
          Name: audio input
    Widget cap: 0x001d0541
                PWR PROC STEREO
   Association: 1 (0x00004001)
   connections: 1
         |
         + <- nid=28 [audio selector]

           nid: 19
          Name: audio input
    Widget cap: 0x001d0541
                PWR PROC STEREO
   Association: 2 (0x00000001)
   connections: 1
         |
         + <- nid=29 [audio selector]

           nid: 20 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400100
       Pin cap: 0x00000010
                OUT
    Pin config: 0x40f000f3
   Pin control: 0x00000000
   connections: 1
         |
         + <- nid=22 [audio mixer] [DISABLED]

           nid: 21 [DISABLED]
          Name: audio selector
    Widget cap: 0x00300101
                STEREO
   connections: 3
         |
         + <- nid=16 [audio output] (selected)
         + <- nid=17 [audio output] [DISABLED]
         + <- nid=23 [audio mixer]

           nid: 22 [DISABLED]
          Name: audio mixer
    Widget cap: 0x00200100
   connections: 1
         |
         + <- nid=21 [audio selector] [DISABLED]

           nid: 23
          Name: audio mixer
    Widget cap: 0x0020010b
                STEREO
   Association: 1 (0x00004001)
           OSS:  (igain)
     Input amp: 0x80051f17
                mute=1 step=31 size=5 offset=23
     Input val: [0x11 0x11] [0x97 0x97] [0x97 0x97] [0x19 0x19] [0x19 0x19]
   connections: 5
         |
         + <- nid=16 [audio output]
         + [DISABLED] <- nid=17 [audio output] [DISABLED]
         + [DISABLED] <- nid=39 [pin: Other (None)] [DISABLED]
         + <- nid=26 [audio selector]
         + <- nid=27 [audio selector]

           nid: 24
          Name: pin: Microphone (Digital)
    Widget cap: 0x0040000d
                STEREO
   Association: 2 (0x00000001)
           OSS: line (line)
       Pin cap: 0x00000020
                IN
    Pin config: 0x90a60370
   Pin control: 0x00000020 IN
    Output amp: 0x00270300
                mute=0 step=3 size=39 offset=0
    Output val: [0x00 0x00]

           nid: 25 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x0040000d
                STEREO
       Pin cap: 0x00000020
                IN
    Pin config: 0x40f000f5
   Pin control: 0x00000000
    Output amp: 0x00270300
                mute=0 step=3 size=39 offset=0
    Output val: [0x00 0x00]

           nid: 26
          Name: audio selector
    Widget cap: 0x0030010d
                STEREO
   Association: 1 (0x00004001)
           OSS: mic, monitor
    Output amp: 0x00270300
                mute=0 step=3 size=39 offset=0
    Output val: [0x00 0x00]
   connections: 3
         |
         + <- nid=11 [pin: Microphone (Black Front)] (selected)
         + [DISABLED] <- nid=12 [pin: Other (None)] [DISABLED]
         + <- nid=14 [pin: Microphone (Black Rear)]

           nid: 27
          Name: audio selector
    Widget cap: 0x0030010d
                STEREO
   Association: 1 (0x00004001)
           OSS: mic, monitor
    Output amp: 0x00270300
                mute=0 step=3 size=39 offset=0
    Output val: [0x02 0x02]
   connections: 3
         |
         + <- nid=11 [pin: Microphone (Black Front)] (selected)
         + [DISABLED] <- nid=12 [pin: Other (None)] [DISABLED]
         + <- nid=14 [pin: Microphone (Black Rear)]

           nid: 28
          Name: audio selector
    Widget cap: 0x0030090d
                LRSWAP STEREO
   Association: 1 (0x00004001)
           OSS: mic, monitor
    Output amp: 0x80050f00
                mute=1 step=15 size=5 offset=0
    Output val: [0x0B 0x0B]
   connections: 4
         |
         + <- nid=26 [audio selector] (selected)
         + <- nid=23 [audio mixer]
         + [DISABLED] <- nid=24 [pin: Microphone (Digital)]
         + [DISABLED] <- nid=25 [pin: Other (None)] [DISABLED]

           nid: 29
          Name: audio selector
    Widget cap: 0x0030090d
                LRSWAP STEREO
   Association: 2 (0x00000001)
           OSS: line
    Output amp: 0x80050f00
                mute=1 step=15 size=5 offset=0
    Output val: [0x08 0x08]
   connections: 4
         |
         + [DISABLED] <- nid=27 [audio selector]
         + [DISABLED] <- nid=23 [audio mixer]
         + <- nid=24 [pin: Microphone (Digital)] (selected)
         + [DISABLED] <- nid=25 [pin: Other (None)] [DISABLED]

           nid: 30
          Name: pin: SPDIF-out (Black Rear)
    Widget cap: 0x00400301
                DIGITAL STEREO
   Association: 3 (0x00000001)
       Pin cap: 0x00000010
                OUT
    Pin config: 0x214410a0
   Pin control: 0x00000040 OUT
   connections: 1
         |
         + <- nid=36 [audio selector]

           nid: 31 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400701
                PWR DIGITAL STEREO
       Pin cap: 0x00010010
                OUT EAPD
    Pin config: 0x40f100f5
   Pin control: 0x00000000
          EAPD: 0x00000002
   connections: 2
         |
         + <- nid=36 [audio selector] (selected)
         + <- nid=37 [audio selector] [DISABLED]

           nid: 32 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400301
                DIGITAL STEREO
       Pin cap: 0x00000010
                OUT
    Pin config: 0x40f100f6
   Pin control: 0x00000000
   connections: 1
         |
         + <- nid=37 [audio selector] [DISABLED]

           nid: 33
          Name: audio output
    Widget cap: 0x00040211
                DIGITAL STEREO
   Association: 3 (0x00000001)
           OSS: pcm (pcm)

           nid: 34 [DISABLED]
          Name: audio output
    Widget cap: 0x00040211
                DIGITAL STEREO

           nid: 35 [DISABLED]
          Name: vendor widget
    Widget cap: 0x00f00000

           nid: 36
          Name: audio selector
    Widget cap: 0x00300101
                STEREO
   Association: 3 (0x00000001)
           OSS: pcm
   connections: 3
         |
         + <- nid=33 [audio output] (selected)
         + [DISABLED] <- nid=28 [audio selector]
         + [DISABLED] <- nid=29 [audio selector]

           nid: 37 [DISABLED]
          Name: audio selector
    Widget cap: 0x00300101
                STEREO
   connections: 3
         |
         + <- nid=34 [audio output] [DISABLED] (selected)
         + <- nid=28 [audio selector]
         + <- nid=29 [audio selector]

           nid: 38
          Name: beep widget
    Widget cap: 0x0070000c
   Association: -2 (0x00000000)
           OSS: speaker (speaker)
    Output amp: 0x80170303
                mute=1 step=3 size=23 offset=3
    Output val: [0x03 0x00]

           nid: 39 [DISABLED]
          Name: pin: Other (None)
    Widget cap: 0x00400000
       Pin cap: 0x00000020
                IN
    Pin config: 0x40f000f7
   Pin control: 0x00000000

           nid: 40 [DISABLED]
          Name: volume widget
    Widget cap: 0x00600000
   connections: 2
         |
         + <- nid=16 [audio output] (selected)
         + <- nid=17 [audio output] [DISABLED]


PCM Devices 3 count
+-------------------------+
| DUMPING Volume Controls |
+-------------------------+
+-------------------------+
+  PCM  #0               +
+-------------------------+

PCM Volume (OSS: pcm)
  |
  +- control  1 (nid  16 out):    -95/+0dB (128 steps) + mute
  +- control  2 (nid  23 in   0): -34/+12dB (32 steps) + mute

Speaker/Beep Volume (OSS: speaker)
  |
  +- control 10 (nid  38 out):    -18/+0dB (4 steps) + mute

Recording Level (OSS: rec)
  |
  +- control  2 (nid  23 in   0): -34/+12dB (32 steps) + mute
  +- control  7 (nid  27 out):    +0/+30dB (4 steps)
  +- control  8 (nid  28 out):    +0/+22dB (16 steps) + mute

Unknown Ctl (OSS: igain)
  |
  +- control  3 (nid  23 in   3): -34/+12dB (32 steps) + mute
  +- control  4 (nid  23 in   4): -34/+12dB (32 steps) + mute
  +- control  7 (nid  27 out):    +0/+30dB (4 steps)

+-------------------------+
+  PCM  #1               +
+-------------------------+

Line-in Volume (OSS: line)
  |
  +- control  9 (nid  29 out):    +0/+22dB (16 steps) + mute

Recording Level (OSS: rec)
  |
  +- control  9 (nid  29 out):    +0/+22dB (16 steps) + mute

+-------------------------+
+  PCM  #2               +
+-------------------------+



Do you see anything unusual?



Edit: I found a post from Slice related to KPs which reads

And one more thought. May be panic related to /System/Library/Extensions/OSvKernDSPLib.kext? Do we need it? VoodooHDA uses own DSPlib

And also this one.

It seems KP arises when the driver wants to send some command to non-existing address/device/node.



What do you think?

Also you said that the format changes fixed the crackling sound but I didn't have that problem in the first place. I play songs from ITunes and it seems to handle it well.



Edit: It seems like VoodooHDA tries to load itself too early. I can boot into OSX with -f or -x. Normal booting is not working. I tried a couple of times.

Link to comment
Share on other sites

I feel like we 're having different Node-IDs. I fix them for u if u'd provide me with some dumps from windows. Do u have it already installed mate ? or maybe someone with same machine as u, has it ?



btw, did u try to rebuild caches (again) after placing it on /S/L/E/ ?

Link to comment
Share on other sites

I feel like we 're having different Node-IDs. I fix them for u if u'd provide me with some dumps from windows. Do u have it already installed mate ? or maybe someone with same machine as u, has it ?

btw, did u try to rebuild caches (again) after placing it on /S/L/E/ ?

Unfortunately I don't have Windows installed. But I have a live linux dvd, would that do the job?

I rebuilt caches for many times.

Link to comment
Share on other sites

Unfortunately I don't have Windows installed. But I have a live linux dvd, would that do the job?

I rebuilt caches for many times.

propably yes!

I'll get back to you asap.

Link to comment
Share on other sites

Unfortunately I don't have Windows installed. But I have a live linux dvd, would that do the job?

I rebuilt caches for many times.

do u mate use the GenericBrightness.kext from ivik ?

btw, u can go to this topic, at the end of the first post u can download a script to dump those values (for sound) made by hoob. boot with live cd, launch it (need internet access) and get me those dumps.

Link to comment
Share on other sites

do u mate use the GenericBrightness.kext from ivik ?

btw, u can go to this topic, at the end of the first post u can download a script to dump those values (for sound) made by hoob. boot with live cd, launch it (need internet access) and get me those dumps.

No I don't use that. I was planing to give it a try when I had a full backup though. Did it work for you?

BTW, I saw your topic in Andy's new Voodookeyboard topic. Do you use it?



I downloaded the utility but I need to make sure that I have ethernet cable ready as otherwise I couldn't connect to internet. I'll do this tomorrow hopefully.

Link to comment
Share on other sites

No I don't use that. I was planing to give it a try when I had a full backup though. Did it work for you?

BTW, I saw your topic in Andy's new Voodookeyboard topic. Do you use it?



I downloaded the utility but I need to make sure that I have ethernet cable ready as otherwise I couldn't connect to internet. I'll do this tomorrow hopefully.

no problem, but u should know that wifi is not a problem for ubuntu (or was it another distrib that u own)



edit: I tried brightness but never got it to work natively. so only way is the menu-let app & command-line up. never tried latest attempts though. And for now, I preferred to take my hands out of it till I get more free time to play with. I asked, because in the past, it made some struggles with boot order and so.



regarding Andy's latest voodoops2, I don't have a chance neither to test it.

Let's make from sound a priority. will see next for those nifty things.

Link to comment
Share on other sites

no problem, but u should know that wifi is not a problem for ubuntu (or was it another distrib that u own)



edit: I tried brightness but never got it to work natively. so only way is the menu-let app & command-line up. never tried latest attempts though. And for now, I preferred to take my hands out of it till I get more free time to play with. I asked, because in the past, it made some struggles with boot order and so.



regarding Andy's latest voodoops2, I don't have a chance neither to test it.

Let's make from sound a priority. will see next for those nifty things.

Yes I noticed that wifi is working on Ubuntu. Also I realised that I missed built-in wifi working on OS :rolleyes: Xmas+bad weather, I couldn't collect the delivery of the wifi card yet.



Anyway, I managed to dump the system information. It took me for a while to figure out that I needed to put bash at the beginning of a shell script to run it on terminal. I attached all the files that had been extracted in case you might need them for your bootloader work.

361B.tar.gz



Yes you are right, lets try to do one thing at a time.

Thanks,

Link to comment
Share on other sites

Well Ive been at this for a little over 3 or 4 days now and finally decided to post. Ive tried just about everything, followed your guide to the letter and have one compile error. Ive even tried starting fresh over 10 times and still cant get it to compile.



I have an HP HDX 18T Btw.



Getting this Error:

Intel ACPI Component Architecture
ASL Optimizing Compiler version 20091214 [Dec 16 2009]
Copyright © 2000 - 2009 Intel Corporation
Supports ACPI Specification Revision 4.0

/Users/Brandon/Library/Application Support/EvOSoftware/DSDT/DSDTFiles/dsdt.dsl 11432: [*** iASL: Read error on source code temp file /Users/Brandon/Library/Application Support/EvOSoftware/DSDT/DSDTFiles/dsdt.src ***]
Error	4096 -										syntax error, unexpected $end ^

ASL Input:  /Users/Brandon/Library/Application Support/EvOSoftware/DSDT/DSDTFiles/dsdt.dsl - 11433 lines, 422587 bytes, 5580 keywords
Compilation complete. 1 Errors, 0 Warnings, 0 Remarks, 0 Optimizations



Just getting really frustrated because obviously Im doing somthing wrong some place and Im soo close to a fully working Hackintosh.



I was wondering if you dont mind, could you take a look at my DSDT file. It would really be apretiated if you can point me in the right direction with this before i pull my hair out :D Its the link below:



My DSDT





Thanks in Advance,

Silver

Link to comment
Share on other sites

It would really be apretiated if you can point me in the right direction with this before i pull my hair out :)

u can try auto-patcher from our friend MaLd0n here, he did merge those edits onto his app.

Link to comment
Share on other sites

Holy {censored}! Today, I used compressed air to clean the dust from the fan and airflow of HDX. Guess, how much difference it did make (: Now temperature is around 38-44.
nice! also, u should have known that the hdx18's case is badly designed by hp (dunno about 16). I gained about 4ºC when I elevated the mobo from the desk (about 6cm). Pay attention to not block the any airflow.
Link to comment
Share on other sites

Hi Guys,

@Valv,@JBraddock: Gr8 guide for DSDT patching and making our HDX almost vanilla. Now my HDX 16 can sleep/wake. Thanks guys for making this poosible.



And I want to bring your attention to the following post I found the other day:



Many of you are looking for wifi support here with either broadcom or atheros chip based cards. People having HDX 16/18 with F32 bios version(latest version) and 361B motherboard, can flash their bios with this modified one (no more 104 error on any card). No need to add dev id, vend id, just swap it with another card and you are good to go. You can obtain the modded version of bios from the download link below.





All the credits to the guy who made this mod. (http://forums.mydigitallife.info/threads/2...9415#post349415)



Cheers! :thumbsup_anim:

HP__HDX_1x_sp46073_SLIC21_no_whitelist_by_TYAV134.zip

Link to comment
Share on other sites

Hi Guys,

@Valv,@JBraddock: Gr8 guide for DSDT patching and making our HDX almost vanilla. Now my HDX 16 can sleep/wake. Thanks guys for making this poosible.



And I want to bring your attention to the following post I found the other day:



Many of you are looking for wifi support here with either broadcom or atheros chip based cards. People having HDX 16/18 with F32 bios version(latest version) and 361B motherboard, can flash their bios with this modified one (no more 104 error on any card). No need to add dev id, vend id, just swap it with another card and you are good to go. You can obtain the modded version of bios from the download link below.





All the credits to the guy who made this mod. (http://forums.mydigitallife.info/threads/2...9415#post349415)



Cheers! :huh:

Wow, that's good. I ordered the wifi card anyway but if it fails to work, I'll try that (:

Did you try to install it?

Link to comment
Share on other sites

Wow, that's good. I ordered the wifi card anyway but if it fails to work, I'll try that (: Did you try to install it?

Happy new year guys:D

I have it installed on my HDX 16, and have tried bcm4312mcg (my friends) with the bcm43xx enabler script. I don't get 104 error at all. The card is recognized as Airport card. You can flash your bios without any worries.

Greets!!

Link to comment
Share on other sites

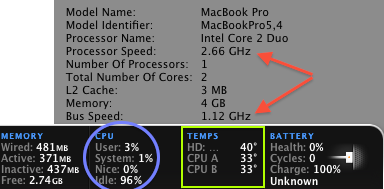

I never thought one day I could go that far


and That after 2h30 of operation. :shock:

Even-though my hdx is running over-clocked :)

Now look at my geekbench64:



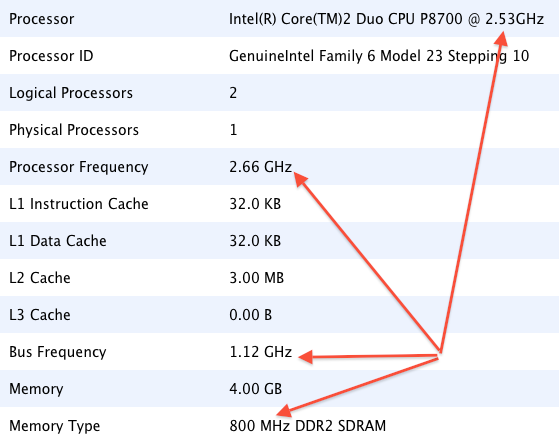

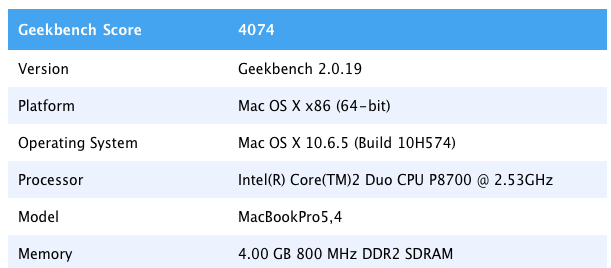

and this from mark-i:


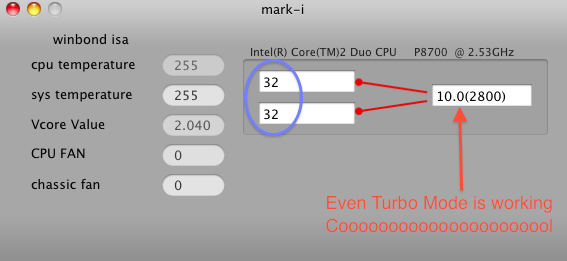

Link to comment
Share on other sites

I never thought one day I could go that far


and That after 2h30 of operation. :shock:

Even-though my hdx is running over-clocked :D

Now look at my geekbench64:

(: Nice. Instead of over-clocking actually I am more interested in reducing the temp as much as possible so that's my main concern. But, hey, I would welcome to challenge!

Did you only try to over-clock or also try to do some kind of magic of yours as well (:

Also, I remember you'd told me that I needed to run in 32 bit for the new power states feature. Not that I use 64 Bit on a daily basis but I'd just like to know.



Finally, since you have a usb thumb for testing purposes, would you take a look at this post and tell me if what Slice tells is something easy to do.



This HDX thing is getting more and more exciting (:

Thank you guys,



Edit: Are you using a different version of FakeSMC with plugin support?



Happy new year guys:D

I have it installed on my HDX 16, and have tried bcm4312mcg (my friends) with the bcm43xx enabler script. I don't get 104 error at all. The card is recognized as Airport card. You can flash your bios without any worries.

Greets!!

Hmm nice. :)

Just a side note, to my knowledge, BCM43xx series is very old. I have one of those card on my previous laptop. Why don't you try to use a wireless-n compatible card?

Link to comment
Share on other sites

(: Nice. Instead of over-clocking actually I am more interested in reducing the temp as much as possible so that's my main concern. But, hey, I would welcome to challenge!

Did you only try to over-clock or also try to do some kind of magic of yours as well (:

:gathering: no magic of mine, really. but penryn is known to be good oc candidates. Thus, sometimes I do things w/o being 100% sure it would not break my mobo. so...
Also, I remember you'd told me that I needed to run in 32 bit for the new power states feature. Not that I use 64 Bit on a daily basis but I'd just like to know.
you were right to ask. But, u got me wrong. What I tried to tell u was: if u want to see the impact of the boot-loader's tweaks on the cpu, u could use msrtools (that runs in 32bit mode only). Those tweaks are there, in 32/64bit mode.
Finally, since you have a usb thumb for testing purposes, would you take a look at this post and tell me if what Slice tells is something easy to do.
doable. thus I 'd give myself time to test it out (maybe tomorrow).
Edit: Are you using a different version of FakeSMC with plugin support?
tried it for a wile. Then reverted back to the old one.
Hmm nice. :)

Just a side note, to my knowledge, BCM43xx series is very old. I have one of those card on my previous laptop. Why don't you try to use a wireless-n compatible card?

keep in mind (in case u want to go that far) that the wifi button could become unusable (as somebody previously mentioned).



p.s: regarding voodoohda, I could not go any further. probably, because I needed u to dump from a linux with alsa drivers (latest) installed.

Link to comment
Share on other sites

 Share

×
×
  • Create New...
