AppleNForceATA x32/x64 new SL version recompiled.


sulphide
 Share

64 posts in this topic

Recommended Posts

I have experienced no problems using AppleNForceATA.imkbit.kext with OS X Yosemite on my 650i nForce MOBO with 8GB RAM and multiple internal SATA HDDs. What specific issues are you having?

  • Like 1
Link to comment
Share on other sites

MeDevil left the OSx86 scene a long time ago and never posted the source code for his 32 bit AppleNForceATA.kext.TEST (which for many nForce MOBOs enabled SATA optical disk reading but not writing) so other developers cannot produce a 32bit version and now more importantly a 64 bit version that enables reliable SATA CD/DVD read AND write for all nForce chipset MOBOs.......that is why an IDE (PATA) DVDRW drive set up as Master is recommended for most nForce chipset MOBOs.......

  • Like 1
Link to comment
Share on other sites

I have experienced no problems using AppleNForceATA.imkbit.kext with OS X Yosemite on my 650i nForce MOBO with 8GB RAM and multiple internal SATA HDDs. What specific issues are you having?



using AppleNForceATA.imk  in 650i SATA DVD can work it ?????



You are using AHCI mode or SATA mode ?????



My test results In nForce630a (NOAHCI)

http://www.insanelymac.com/forum/topic/211866-applenforceata-104-optimized-for-sl-3264bit/page-2



and AnV Problem Description (this is Kext Imperfect)

http://www.insanelymac.com/forum/topic/302075-amd-yosemite-kernel-testing-for-help-use-the-help-topic/page-27?do=findComment&comment=2100443



AppleNForceATA.imk.kext = AnV AppleNForceATA 1.0.4 optimized for SL 32/64bit

imk ver just addon function activateDMAEngine()

Because AnV Source Forgot to add function activateDMAEngine()

  • Like 1
Link to comment
Share on other sites

I was the opinion that Savva_Mitrofanov also in this kext for NForce was involved, see



http://www.insanelymac.com/forum/topic/206494-applenforceata-x32x64-new-sl-version-recompiled/?p=2061091



Therefore I am  assumed that the Kext provided for Maverick also on Yosemite be adapted can

AMD Phenom II X3 720

Asus, M2N-SLI Deluxe

Nvidia GeForce GTX 650

Sound Behringer, UCA222

Yosemite 10.10.1





oh !!  use UFO 202 , good audio card  :yes:  but low :)







Link to comment
Share on other sites

@ 虎千代



using AppleNForceATA.imk  in 650i SATA DVD can work it ?????





Only when using IDE (PATA) CD/DVDRW device for the reasons I said in my earlier post.



You are using AHCI mode or SATA mode ?????





SATA with RAID enabled but not RAID not used gives implicit AHCI functionality.



I use the AppleNForceATA.imk.kext because it works for OS X Snow Leopard and later.



I would try AppleNforceATA-1.0.4-HWUPD if it was also OS X Snow Leopard compatible but what more does it offer than the AppleNForceATA.imk.kext?

Link to comment
Share on other sites

@ 虎千代





Only when using IDE (PATA) CD/DVDRW device for the reasons I said in my earlier post.





SATA with RAID enabled but not RAID not used gives implicit AHCI functionality.



I use the AppleNForceATA.imk.kext because it works for OS X Snow Leopard and later.



I would try AppleNforceATA-1.0.4-HWUPD if it was also OS X Snow Leopard compatible but what more does it offer than the AppleNForceATA.imk.kext?



AppleNForceATA.imk.kext == AnV AppleNForceATA 1.0.4 optimized for SL 32/64bit



The difference is to add support for hardware



You can view the source



But this is only for new hardware to work (MPC67 73 77/78 79 89)





This kext build on Lion with Xcode 4.4(10.7SDK)

may be Snow Leopard not compatible

You can test it or rebuild

Kext try to build on the old OS X

Because the new OS X compatible old Kext

old OS X may be Not compatible new Kext
Link to comment
Share on other sites



AMD Phenom II X3 720

Asus, M2N-SLI Deluxe

Nvidia GeForce GTX 650

Sound Behringer, UCA222

Yosemite 10.10.1





oh !!  use UFO 202 , good audio card  :yes:  but low :)

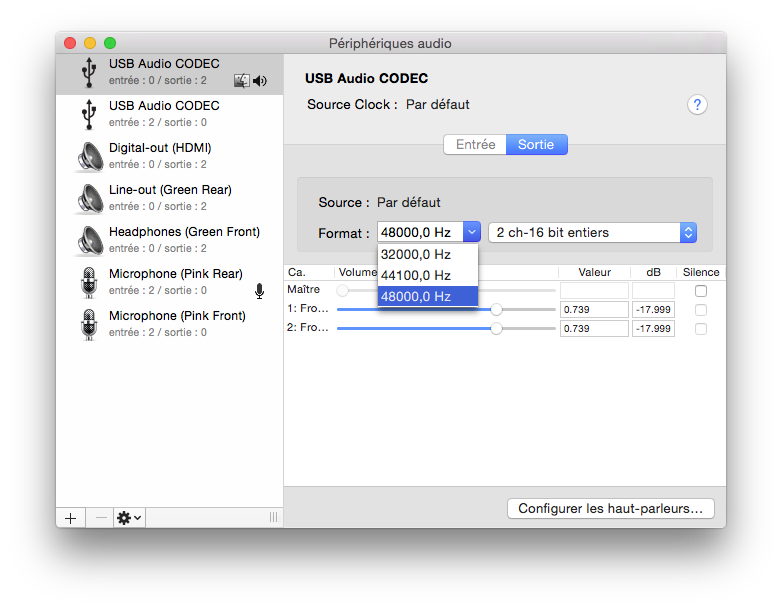

yes, usb sound card is ok



AppleNforceATA 1.0.4 Support Hardware Updates for Lion or later

Based on AnV 1.0.4 32/64 Version

Support hardware Updates list


NFORCE MCP55

But SATA DVD NO FIX ˇ ˇ

include kext & Source





yes, no error on the start from yosemite  (fast start)   :yes:  :D

I Tunes opened with Audio CD, Music cannot be played unfortunately.

DVD not works :poster_oops:



Are there possibilities at DVD problem to modify ?



Thank you

Link to comment
Share on other sites

yes, usb sound card is ok



yes, no error on the start from yosemite  (fast start)   :yes:  :D

I Tunes opened with Audio CD, Music cannot be played unfortunately.

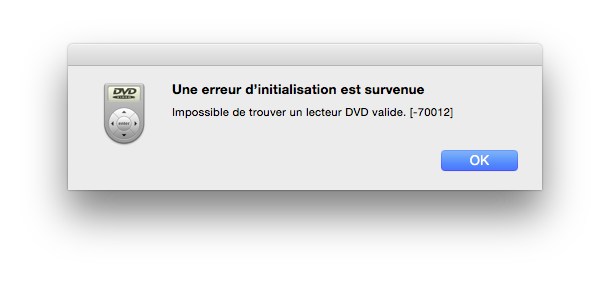

DVD not works :poster_oops:



Are there possibilities at DVD problem to modify ?



Thank you

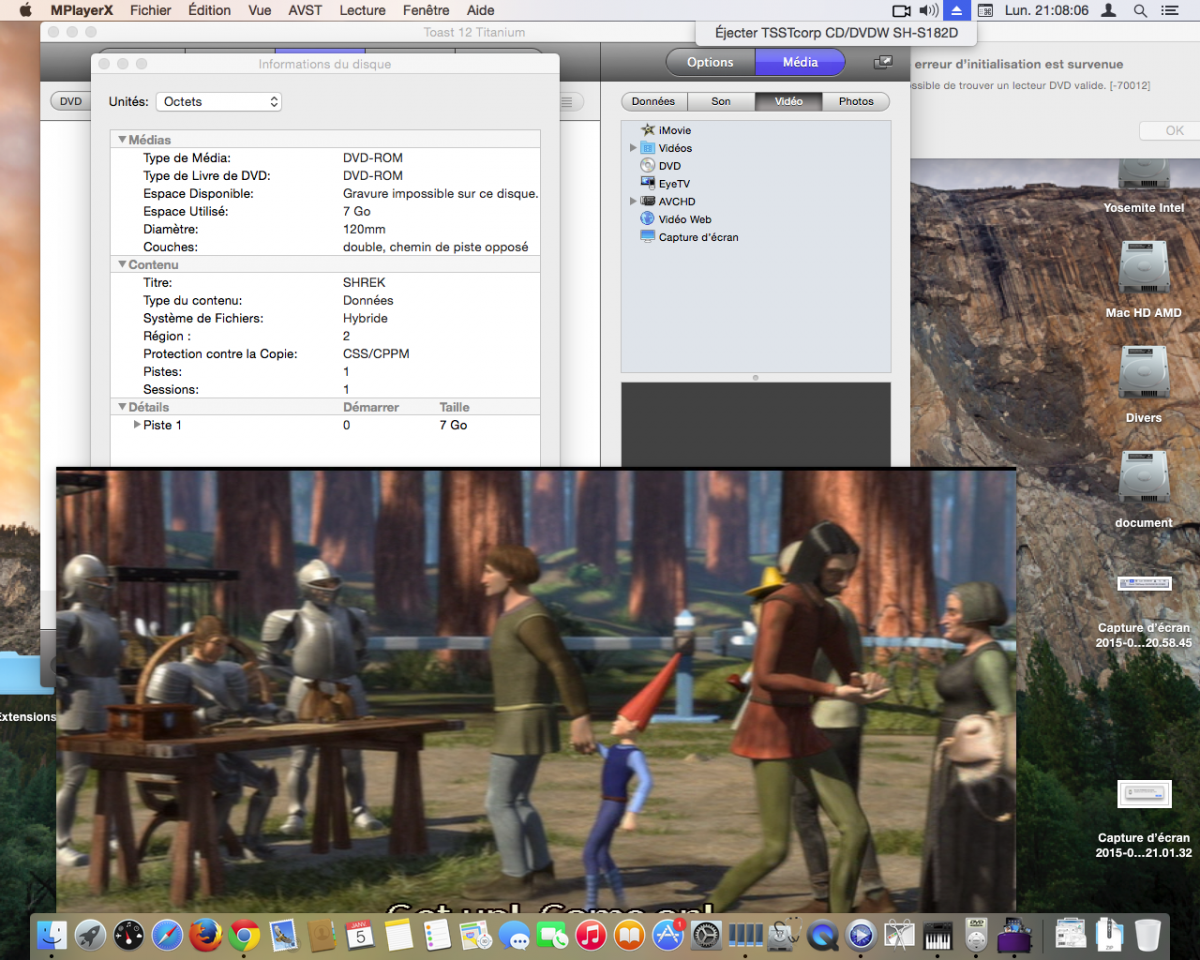

I successfully Fixed nForce SATA DVD face45.gifface62.gifface62.gif014.gif014.gif



http://www.insanelymac.com/forum/topic/303792-applenforceata-104-sata-dvd-fix/

  • Like 1
Link to comment
Share on other sites

@verdant



:)



hello ,



the MSI MS 7369 (K9NneoV3 AM2) works good with Phenom II x2 555 AM2+/AM3 80 w  :D



bios : A7369NMS.30R  :thumbsup_anim:



use unibootin usb key option c:  :D









option AHCI good !!

option HPET good !!



chipset NV 560 / sata2

machdep.user_idle_level: 0
machdep.cpu.max_basic: 5
machdep.cpu.max_ext: 2147483675
machdep.cpu.vendor: AuthenticAMD
machdep.cpu.brand_string: AMD Phenom(tm) II X2 555 Processor
machdep.cpu.family: 16
machdep.cpu.model: 4
machdep.cpu.extmodel: 0
machdep.cpu.extfamily: 1
machdep.cpu.stepping: 3
machdep.cpu.feature_bits: 36064020440808447
machdep.cpu.extfeature_bits: 61572378786815
machdep.cpu.signature: 1052483
machdep.cpu.brand: 0
machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH MMX FXSR SSE SSE2 HTT SSE3 MON CX16 POPCNT
machdep.cpu.extfeatures: SYSCALL 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI
machdep.cpu.logical_per_package: 2
machdep.cpu.cores_per_package: 2
machdep.cpu.microcode_version: 21
machdep.cpu.processor_flag: 1
machdep.cpu.mwait.linesize_min: 64
machdep.cpu.mwait.linesize_max: 64
machdep.cpu.mwait.extensions: 3
machdep.cpu.mwait.sub_Cstates: 0
machdep.cpu.cache.linesize: 64
machdep.cpu.cache.L2_associativity: 16
machdep.cpu.cache.size: 524288
machdep.cpu.tlb.inst.small: 32
machdep.cpu.tlb.inst.large: 16
machdep.cpu.tlb.data.small: 48
machdep.cpu.tlb.data.small_level1: 512
machdep.cpu.tlb.data.large: 48
machdep.cpu.tlb.data.large_level1: 128
machdep.cpu.address_bits.physical: 48
machdep.cpu.address_bits.virtual: 48
machdep.cpu.core_count: 2
machdep.cpu.thread_count: 2
machdep.vectors.timer: 221
machdep.vectors.IPI: 222
machdep.pmap.hashwalks: 546784
machdep.pmap.hashcnts: 1391423
machdep.pmap.hashmax: 38
machdep.pmap.kernel_text_ps: 2097152
machdep.pmap.kern_pv_reserve: 4000
machdep.memmap.Conventional: 4294307840
machdep.memmap.RuntimeServices: 0
machdep.memmap.ACPIReclaim: 57344
machdep.memmap.ACPINVS: 139264
machdep.memmap.PalCode: 0
machdep.memmap.Reserved: 2277376
machdep.memmap.Unusable: 0
machdep.memmap.Other: 0
machdep.tsc.frequency: 3183779720
machdep.tsc.deep_idle_rebase: 1
machdep.tsc.nanotime.tsc_base: 195064900542
machdep.tsc.nanotime.ns_base: 0
machdep.tsc.nanotime.scale: 1349015218
machdep.tsc.nanotime.shift: 0
machdep.tsc.nanotime.generation: 2
machdep.misc.panic_restart_timeout: 1266874889
machdep.misc.interrupt_latency_max: 0x0 0x73 0x3615e
machdep.misc.machine_check_panic:
machdep.misc.timer_queue_trace:
machdep.misc.nmis: 0
machdep.eager_timer_evaluations: 62
machdep.eager_timer_evaluation_max: 233571
Mac-Pro-de-gils:~ gils$

Link to comment
Share on other sites

@ gils83



Glad to know it as I would hate to have misdirected you on the compatibility.......:)

Link to comment
Share on other sites
