thepawn
thepawn
Posted
Posted

gigabyte GA-P55A-UD4 +i5 750 + GB HD5770

booted using tony's ATI-5xxx-2, installed with original SL, updated to 10.6.4, then, in [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] 2.0.5 i've enabled these options:

UserDSDT (DSDT.aml on the "desktop")

ALC889

jmicron36xsata

realtekr1000sl

fakesmc

chameleon 2.0 rc4

10.3.1 supported kernel

32 bit apple boot screen

smbios.plist: imac 11.1 core i5 & all osx86 software

then i rebooted, and the system won't boot due to vga

then, with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url], i've booted up and installed (with kext helper b7) the ATY_Init (vervet) with the 7 drivers (supplied by kill_mark)

prior to reboot, i've been trying to change the /extra/com.apple.boot.plist to disable the graphicsenabler, but the system freezed.

now i can't boot it (even with the [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url]); i've tried feeding graphicsenabler=no to chameleon at boot time, but it didn't work..

i've tried booting in safe mode, but the system hangs in the same manner

there's something I didn't take care off?

i'm waiting for the new [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] for trying again the whole procedure..

dunno if would be better with the asere's bootloader instead of aty_init..that would go for 64 bit

Link to comment
Share on other sites
kamidake50
kamidake50
Posted
Posted

After copying over the netkas drivers, I get a KP on boot. Basically it is complaining about dependencys





Jul 14 17:09:33 localhost kernel[0]: Kext com.apple.ATIRadeonX3000 - library kext com.apple.iokit.IONDRVSupport not found.

Jul 14 17:09:33 localhost kernel[0]: Can't load kext com.apple.ATIRadeonX3000 - failed to resolve library dependencies.

Jul 14 17:09:33 localhost kernel[0]: Kext com.apple.ATIRadeonX3000 failed to load (0xdc00800e).

Jul 14 17:09:33 localhost kernel[0]: Failed to load kext com.apple.ATIRadeonX3000 (error 0xdc00800e).

Jul 14 17:09:33 localhost kernel[0]: Couldn't alloc class "ATIRadeonX3000"



Also hangs on IOGraphicsFamily........ Any ideas? This is a Sapphire 5770

  • Like 1
Link to comment
Share on other sites
kamidake50
kamidake50
Posted
Posted
I looked at your sig that you have an nVidia graphic card.



Please read this post what I did on my EP35-DS3P & 8800GT. I hope this will give you some idea.



Yeah, I had a 9800GT. But this I got today is a Sapphire 5770 1GB... However, I am starting to think the Mobo got fried today somehow during the install as everything is starting to corrupt and having weird issues.. Going to buy a new one tomorrow and report back

Link to comment
Share on other sites
Neo_01
Neo_01
Posted
Posted

Sorry, do to the fact that not all the forum members are skilled with MAC OS someone expert could please make a guideline in order to easy install the drivers for ATI 5770 graphic card starting after the installation of IAKTOS S3 installation.

Many thanks in advice

Link to comment
Share on other sites
atlee
atlee
Posted
Posted
Sorry, do to the fact that not all the forum members are skilled with MAC OS someone expert could please make a guideline in order to easy install the drivers for ATI 5770 graphic card starting after the installation of IAKTOS S3 installation.

Many thanks in advice



Neo and Isnob allo the info required are within these 11 pages, Can't help you if your not willing to put in a little bit of work yourself.

Link to comment
Share on other sites
sendblink23
sendblink23
Posted
Posted
So is it safe to assume that all of these kext for the 5xxx will only work for SL? I'm curently running ideneb v1.6 lite (Leopard 10.5.8) and every single one i've tried has not worked.



My specs

AMD PII 945 3.2

8gigs ram

XFX 5770 1gig

GB ga-ma790XT-ud4p

OSX86 iDeneb v1.6 lite (OS X 10.5.8)



pfff very simple bro



Download Hazard's 10.6.2 distro (the one with the name server intel/amd)

Very simple what you need to choose to install it...

boot the DVD with: maxmem=4098 busratio=20 -v -x



Format your hard drive to GUID - journalized



PM me to help you out on the customization selections I have another build with your very same motherboard & AMD PII X4 965BE C3, 8gb DDR3-1600 Ram, XFX 5770

Link to comment
Share on other sites
iSnob
iSnob
Posted
Posted
pfff very simple bro



Download Hazard's 10.6.2 distro (the one with the name server intel/amd)

Very simple what you need to choose to install it...

boot the DVD with: maxmem=4098 busratio=20 -v -x



Format your hard drive to GUID - journalized



PM me to help you out on the customization selections I have another build with your very same motherboard & AMD PII X4 965BE C3, 8gb DDR3-1600 Ram, XFX 5770

excellent, I also try this proceudura, since I have an AMD mobo m4a785td and have never been able to use snow leopard, ps you know that I put in the bios settings?

pm me!

edit:Nothing, snow hazard I restarted almost immediately to load kext: (

Link to comment
Share on other sites
Taitac
Taitac
Posted
Posted

Every time i let my system boot by itself i am getting the default Hold the button to restart screen, but when i press F8 and then type :



arch=i386 "Graphics Mode"="1680x1050x32" it starts normally :(



How can i make it do that by default ?

This is my com.apple.Boot.plist in Library/Preferences/SystemConfiguration



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple Computer//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>Kernel</key>
<string>mach_kernel</string>
<key>Kernel Flags</key>
<string></string>
<key>Boot Graphics</key>
<string>Yes</string>
	<key>Quiet Boot</key>
	<string>No</string>
	<key>Timeout</key>
	<string>5</string>
<key>Graphics Mode</key>
<string>1680x1050x32</string>
<key>GraphicsEnabler/key>
<string>Yes</string>
</dict>
</plist>



I have an ASUS 5770 1Gig graphics card and a P5B Premium motherboard.

ps: I am a noob when it come to mac :)

-thanks



Edit: i managed to get it working once by setting GraphicsEnabler to No in the plist file but since then it wont even start with -v anymore.

I an writing from my ipod touch now :(

Link to comment
Share on other sites
_Jay_
_Jay_
Posted
Posted
Every time i let my system boot by itself i am getting the default Hold the button to restart screen, but when i press F8 and then type :



arch=i386 "Graphics Mode"="1680x1050x32" it starts normally :(



How can i make it do that by default ?

This is my com.apple.Boot.plist in Library/Preferences/SystemConfiguration



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple Computer//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>Kernel</key>
<string>mach_kernel</string>
<key>Kernel Flags</key>
<string></string>
<key>Boot Graphics</key>
<string>Yes</string>
	<key>Quiet Boot</key>
	<string>No</string>
	<key>Timeout</key>
	<string>5</string>
<key>Graphics Mode</key>
<string>1680x1050x32</string>
<key>GraphicsEnabler/key>
<string>Yes</string>
</dict>
</plist>



I have an ASUS 5770 1Gig graphics card and a P5B Premium motherboard.

ps: I am a noob when it come to mac :)

-thanks



Edit: i managed to get it working once by setting GraphicsEnabler to No in the plist file but since then it wont even start with -v anymore.

I an writing from my ipod touch now :(





Add the string you type into chameleon at boot, into your boo.plist file and change graphicsenabler to NO.







For those having trouble doing fresh install of SL with an HD5770. After you get into SL and update, you HAVE TO delete all NVIDIA kext files. Or you'll be KP on reboot. Just make sure that your GraphicsEnabler is set to NO and your drivers are installed after your 10.6.4 update. It's hard but you can't waste time or else you'll KP. Reboot with -x32-v so you can repair permissions in SL. Use Kill_marks' ATI.zip package found on page 10 I think. It already has all the fixes needed in the kext files. Just install them to your /s/l/e folder.



I recommend just updating to 10.6.4 and remove the NVIDIA kext and reboot BEFORE installing the kexts for the ATI card. If you can't reboot after 10.6.4, then try using [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url]-ati5xxx from Tonymac.



Edit: Here is a better explanation taken directly from Tonymac's blog. I take no credit for this, just sharing information to help!!!



TonyMacx86 Post begin....

I got that same Kernal Panic whenever I would try to install all of the ATI kexts for 5xxx series (by Netkas) using Kext Helper.



It took me serveral hours of trial and error, but I was able to get the correct resolution on my XFX Radeon HD 5770 XXX Edition 1GB by installing just these three kext using Kext Helper b7:



ATI5000Controller.kext

ATIFramebuffer.kext

ATISupport.kext



ATIRadeonX3000.kext Caused Kernal Panic

ATIRadeonX3000GA.plugin Caused Kernal Panic

ATIRadeonX3000GLDriver.bundle Caused Kernal Panic

ATIRadeonX3000VADriver.bundle Caused Kernal Panic



Copy ATY_Init.kext (Can be found here) to /Extra/Extensions



Navigate to /Extra/com.apple.Boot.plist and copy "com.apple.Boot.plist" to desktop.



Edit com.apple.Boot.plist that's on the the desktop.



Change GraphicsEnabler to No



It should look like this:

Code:

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">

<plist version="1.0">

<dict>

<key>Kernel</key>

<string>mach_kernel</string>

<key>Kernel Flags</key>

<string>arch=i386</string>

<key>GraphicsEnabler</key>

<string>No</string>

<key>Timeout</key>

<string>1</string>

<key>Legacy Logo</key>

<string>Yes</string>

<key>EthernetBuiltIn</key>

<string>Yes</string>

</dict>

</plist>





Save "com.apple.Boot.plist"

Then replace /Extra/com.apple.Boot.plist with the one you just edited on the desktop.



Then navigate to /System/Library/Extensions/ and remove the 4 files that begin with NV*



Finally run Kext Utility to repair kexts permissions.



Reboot and Pray...



Issues: I had to manually install a kext for my Realtek 8168 onboard ethernet.

I can't get Dual DVI working so I just have One Monitor (1280x1024) active in OSX.

OSX is unable to wake from Sleep probably because I don't have a DSDT for my motherboard.

Sound worked out of the box.



Its probably best that you completely reinstall OSX if you intend to follow these directions.



Goodluck

TonyMacx86 Post End...







Good luck.



Jay

Link to comment
Share on other sites
JaS
JaS
Posted
Posted

For me the process was simple, grab the kexts from netkas. Change The Framebuffer to Vervet (This allows you to not need a dongle, also allows HDMI out) in the info.plist of ATY_Init, drop all the kexts into /s/l/e/ and run pfix on the OS X partition. set "arch"="i386" as a kernel flag and set "Graphics Enabler"="no".



Taitac try this

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>Graphics Mode</key>
<string>1680x1050x32@60</string>
	<key>Timeout</key>
	<string>0</string>
<key>Kernel</key>
<string>mach_kernel</string>
<key>Kernel Flags</key>
<string>"arch"="i386"</string>
<key>GUI</key>
<string>Yes</string>
<key>Legacy Logo</key>
<string>Yes</string>
	<key>Graphics Enabler</key>
	<string>No</string>
</dict>
</plist>







Every time i let my system boot by itself i am getting the default Hold the button to restart screen, but when i press F8 and then type :



arch=i386 "Graphics Mode"="1680x1050x32" it starts normally :rolleyes:



How can i make it do that by default ?

This is my com.apple.Boot.plist in Library/Preferences/SystemConfiguration



I have an ASUS 5770 1Gig graphics card and a P5B Premium motherboard.

ps: I am a noob when it come to mac ;)

-thanks



Edit: i managed to get it working once by setting GraphicsEnabler to No in the plist file but since then it wont even start with -v anymore.

I an writing from my ipod touch now :wacko:





Link to comment
Share on other sites
WhizZ
WhizZ
Posted
Posted

I cant seem to install ATI5000controller.kext.

I'm running 10.6.2 do I have to update to 10.6.4 ?

Also I cant get my device ID from OSX86 tools, is there another way to find that? ( also running win7 )



Thanks

Link to comment
Share on other sites
_Jay_
_Jay_
Posted
Posted
I cant seem to install ATI5000controller.kext.

I'm running 10.6.2 do I have to update to 10.6.4 ?

Also I cant get my device ID from OSX86 tools, is there another way to find that? ( also running win7 )



Thanks





On page 10 of this thread you will see a file uploaded by Kill_mark...called ATI.zip. Download that and unzip. Install the kexts inside with kextutilty or equivalent installer.

I am not sure if it will work for 10.6.2 but it defnitely works on 10.6.4.



Jay

Link to comment
Share on other sites
Hacktivist
Hacktivist
Posted
Posted
I cant seem to install ATI5000controller.kext.

I'm running 10.6.2 do I have to update to 10.6.4 ?

Also I cant get my device ID from OSX86 tools, is there another way to find that? ( also running win7 )



Thanks

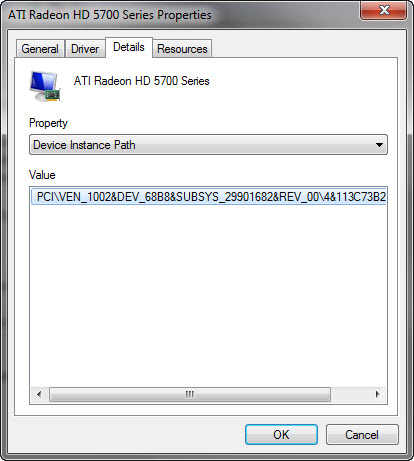

In windows, open Control Panel, then open up the Device Manager. Find your Graphics card, open up the properties on it. Click on the Details tab. You should have “Device Instance Path” selected in the drop down. What you will see is something like PCI\VEN_1002&DEV_68B8&SUBSYS… Now what you need is the numbers/letters following VEN and DEV. These are your vender and device ID numbers. My Vendor ID is 1002 and my Device ID is 68B8.


Link to comment
Share on other sites
le jean
le jean
Posted
Posted

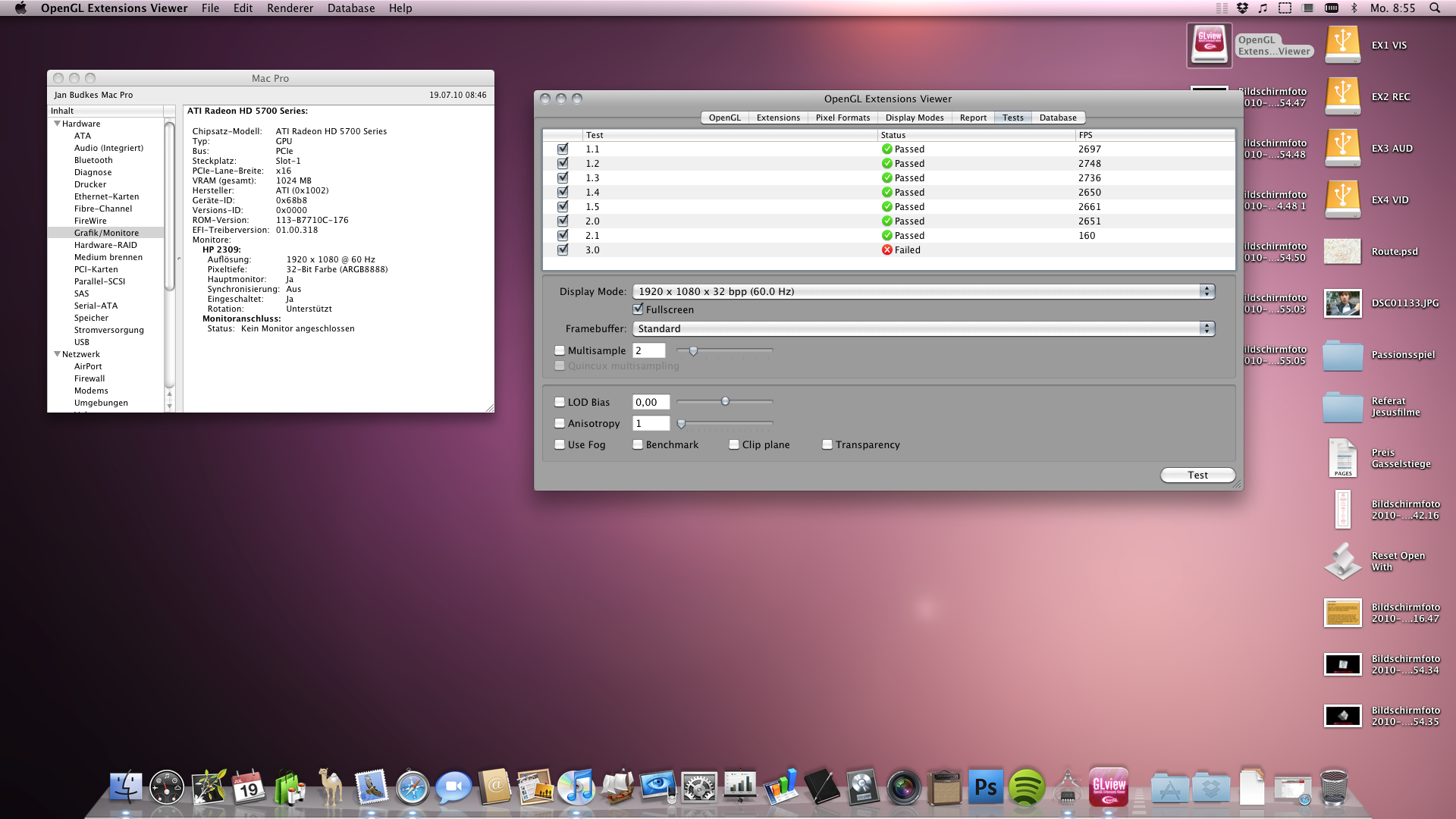

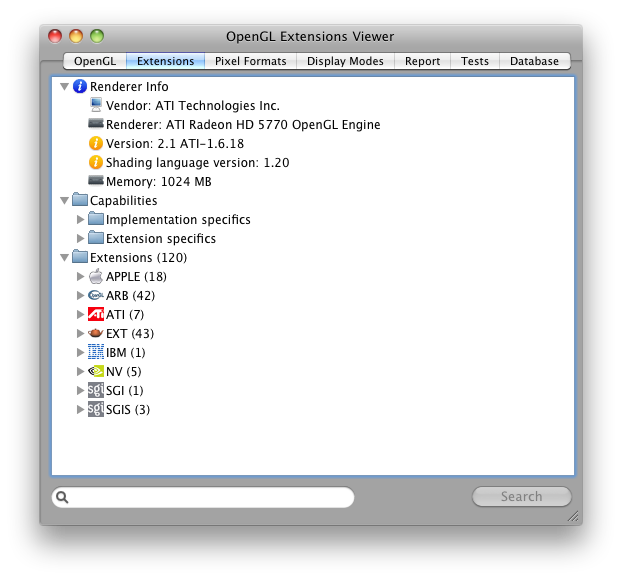

I finally managed to get it working on MSI R5770 HAWK (which is a great card because it is extremely quiet)



Due to a typing mistake in boot.plist I encountered lots of Kernel Panics before i found i typed architure=i368 instead of i386 ;)

Also keep in mind that for 32Bit mode some Mainboards have to be configured in Bios as HPET 32 Bit (i.e. Gigabyte EP45-UD3)



I uploaded the Files I used here: http://najekdub.macbay.de/downloads/ATI5770HAWK32BIT.zip



This is what my boot.plist looks like:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>Kernel</key>
<string>mach_kernel</string>
<key>Kernel Flags</key>
<string>-v arch=i386</string>
<key>Timeout</key>
<string>3</string>
<key>Theme</key>
<string>Default</string>
<key>GraphicsEnabler</key>
<string>No</string>
<key>EthernetBuiltIn</key>
<string>Yes</string>
<key>RestartFix</key>
<string>Yes</string>
</dict>
</plist>




Link to comment
Share on other sites
JaS
JaS
Posted
Posted
I finally managed to get it working on MSI R5770 HAWK (which is a great card because it is extremely quiet)



Due to a typing mistake in boot.plist I encountered lots of Kernel Panics before i found i typed architure=i368 instead of i386 :rolleyes:

Also keep in mind that for 32Bit mode some Mainboards have to be configured in Bios as HPET 32 Bit (i.e. Gigabyte EP45-UD3)

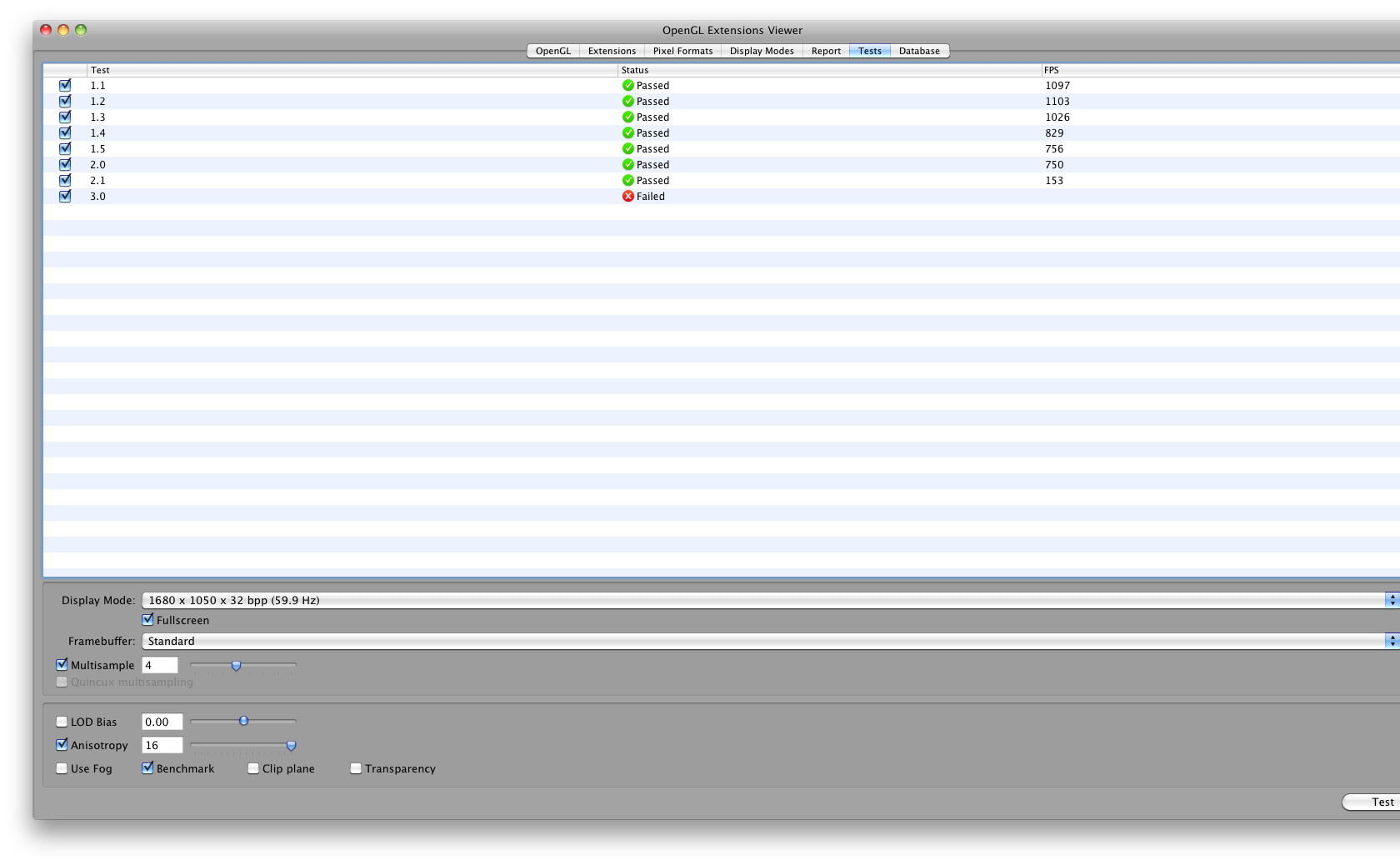

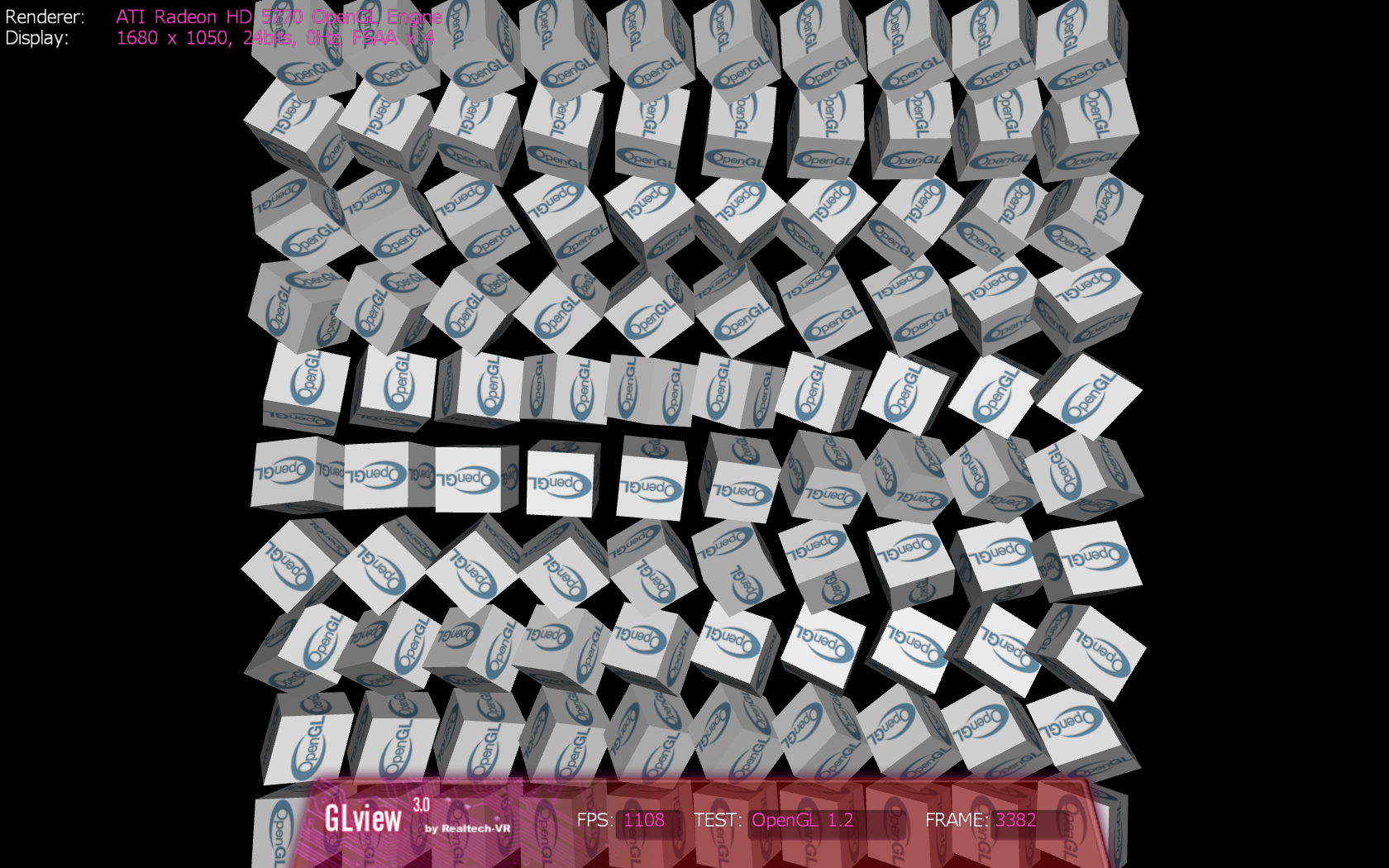

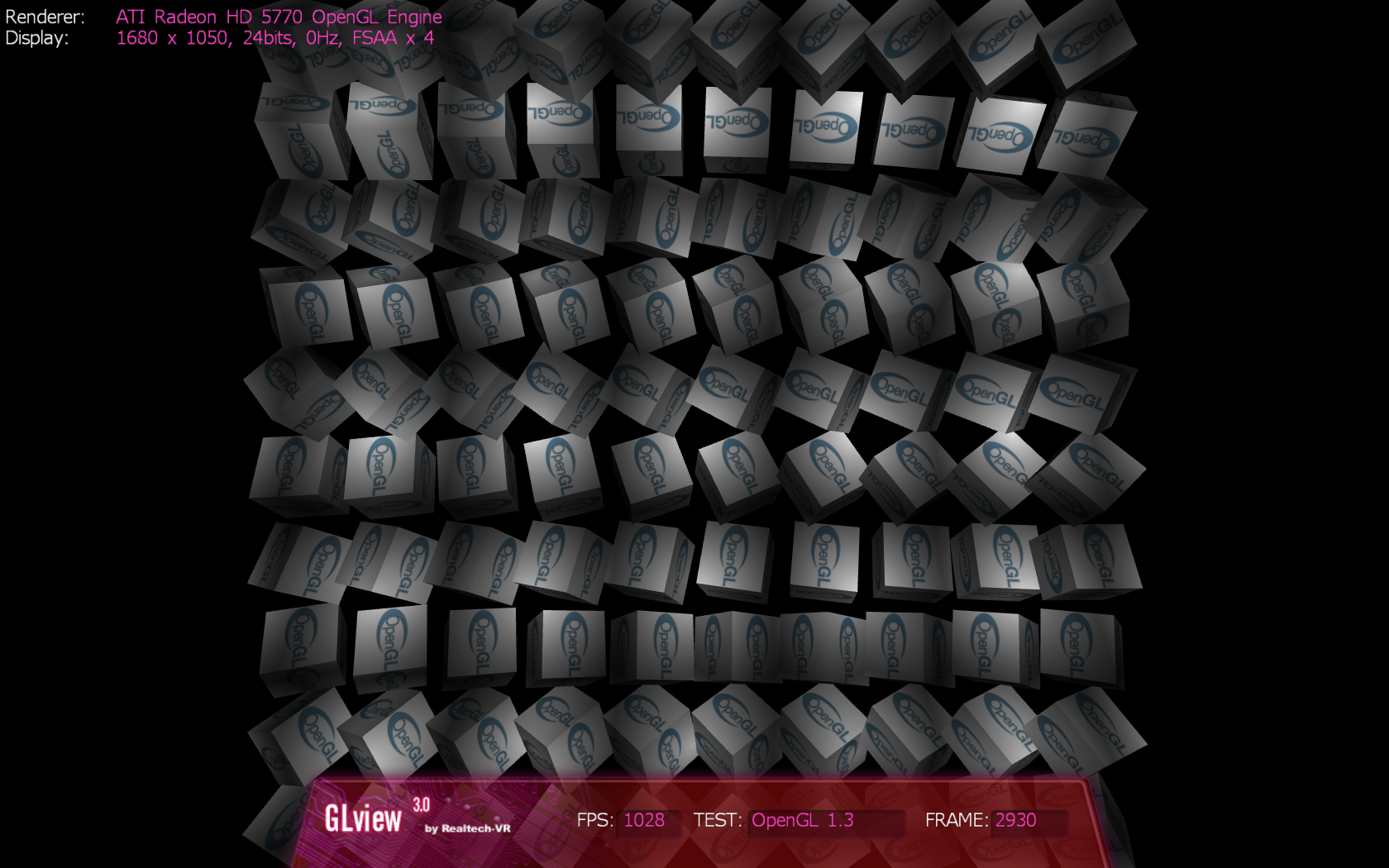

try that test with multisampling x4 and af 16 in benchmark mode, if you would pls.

Link to comment
Share on other sites
atlee
atlee
Posted
Posted
try that test with multisampling x4 and af 16 in benchmark mode, if you would pls.



JaS have you tried testing turning your screen off, turning back on after 30min or 1hr then its fuzzy, pull out dvi put it back in then its normal again? or screen goes to standby then when i try to move mouse and back on it doesn't always come back so have to do the same thing as above, Nothing goes wrong just these small issues :(

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
