ATI HD 5770

ralfhome

By ralfhome,
in ATi

 Share
1,160 posts in this topic

Recommended Posts

VCH888
VCH888
Posted
Posted

more info: eyefinity

http://www.widescreengamingforum.com/forum...=64&t=16942





update: new MacPros available



Tech Specs





Connections and audio


  • Four FireWire 800 ports (two on front panel, two on back panel)
  • Five USB 2.0 ports (two on front panel, three on back panel)
  • Two USB 2.0 ports on included keyboard
  • Front-panel headphone minijack and internal speaker
  • Optical digital audio input and output TOSLINK ports
  • Analog stereo line-level input and output minijacks
  • Multichannel audio through Mini DisplayPort <--------- What are you thinking?

Link to comment
Share on other sites
FKA
FKA
Posted
Posted
What are you thinking?





I'm thinking these guys using voodooHDA that have HDMI audio working haven't told us which port is carrying the audio :(



I guess they have it on the HDMI and the mini display port?! as the Macpro 5770 only has 2 DP and 2 dvi



My 5770 card didn't arrive today. will be tomorrow night before I can start messing around with it!

Link to comment
Share on other sites
atlee
atlee
Posted
Posted
more info: eyefinity

http://www.widescreengamingforum.com/forum...=64&t=16942





update: new MacPros available



Tech Specs





Connections and audio


  • Four FireWire 800 ports (two on front panel, two on back panel)
  • Five USB 2.0 ports (two on front panel, three on back panel)
  • Two USB 2.0 ports on included keyboard
  • Front-panel headphone minijack and internal speaker
  • Optical digital audio input and output TOSLINK ports
  • Analog stereo line-level input and output minijacks
  • Multichannel audio through Mini DisplayPort <--------- What are you thinking?



if this is true then Apple just might support multichannel then we can work on AppleHDA with more ports, I don't have a DP cable so cannot test it, also my led monitor only supports dvi, even if i get a dp 2 dvi connector it wouldn't bring audio so no point.

Link to comment
Share on other sites
sch8mid
sch8mid
Posted
Posted
http://www.megaupload.com/?d=GD553MYQ posted in fermi thread, contains new ATI ketxs. this is the graphics update. weight of package 65mb ;)



it speeds up a little in tests, nothing huge, but anyway everything works fine.





atlee

Wonder,

any caveats - how did you install ? whole package with the new frameworks (Opengl-OpenCL-Quartz) , or just the new driver kexts ?



Thanx

armin

EDIT : First installed only drivers and got a garb. screen... then



pulled the pl. and installed the whole bunch and ...BINGO





Benchmarks seem only marginal better : went from 24.0 fr + 25.1 fr. in Cinebench OpenGL 11.5



best



armin

Link to comment
Share on other sites
sch8mid
sch8mid
Posted
Posted
ive got 33.49 fps in Cinebench OpenGL 11.5



see



Cinema 4D OpenGl benches



depend not only from your 5770 , but from your cpu as well



I use a 1,8 - 2,49 GHz (downclocked ) Q9550



scaling very well .-)



19 fr. @ 1,8 Ghz

22 fr. @ 2,2 GHz

25 fr. @ 2,4 Ghz





and b.tw. do you use 10.5 or 10.6.0



Your benches may be higher......

Link to comment
Share on other sites
Dreamboy21
Dreamboy21
Posted
Posted
see



Cinema 4D OpenGl benches



depend not only from your 5770 , but from your cpu as well



I use a 2,49 GHz (downclocked ) Q9550



scaling very well .-)



19 fr. @ 1,8 Ghz

22 fr. @ 2,2 GHz

25 fr. @ 2,4 Ghz





and b.tw. do you use 10.5 or 10.6.0



Your benches may be higher......





well im using snow leopard 10.6.4



AMD PHENOM 955BE 3.2@3.58GHZ [4Cores]

4GB DDR3 1600MHZ

ASUS M4A785TD-EVO

ASUS EAX5770 Radeon 1GB GDDR5 CuCore



using Legacy Kernel for AMD SYSTEMs

Link to comment
Share on other sites
FKA
FKA
Posted
Posted

EDIT - just installed my 5770.



Works perfectly - using tmongkol's latest DSDT code for 3 monitors (many thanks.) and the latest Graphicsupdate package that atlee (many thanks too.) posted a few days ago.



I have my LCD monitor to one DVI (nearest GPU MB) and LCD TV to the HDMI port.

Both DVI ports work with HDMI but havent tried with all 3 monitors/eyefinity.

Sleep is broken and I get a horizontal split in video when played, in mirror mode on my HDMI connected LCD TV. I had this problem with the gtx260 only the split was on my LCD monitor and I'm generally watching films on my TV!



Video plays fine on both in split desktop.



Need to try other framebuffers.

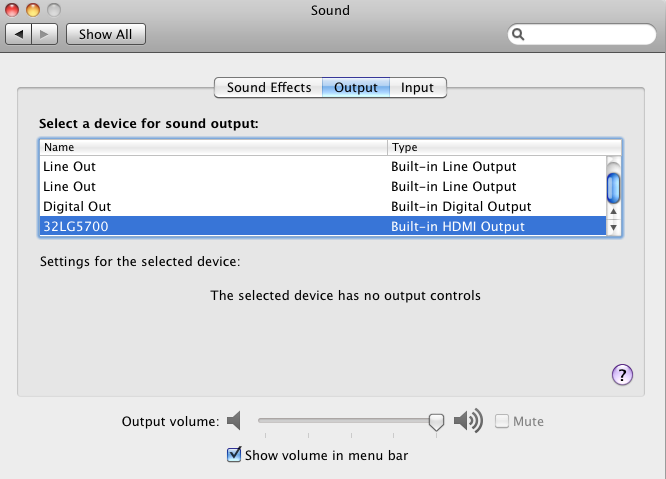

HDMI audio works ! ;) (I have onboard alc888T and am using tmongkol' AppleHDA 1.8.7f1 ALC888 LayoutID 888.)






EFI_DSDT_10_08_10.dsl.zip



GPU Model (HD-577A-ZNFA)



D

Link to comment
Share on other sites
sch8mid
sch8mid
Posted
Posted
yeah xD hey whats the difference between your 5770 bios mod and the normal one ?



I use the 5770 in my HTPC (OsX 10.6.4 / Win 7)



to get almost silence the bios is flashed :



a. 200/300 desktop - 2D .... Fan@ 20 % ..0,9 V GPU

b. 300/800 UVD / HDTV card/1080p ...... Fan@ 20%...0,9 V GPU

c. 600/1000 3D/ Games........Fan@ 30-50% ...1,0 V GPU



Temps :



a.< 45 degr. C

b.< 50 degr. C

c. 60-85 degr.C



best

a

Link to comment
Share on other sites
atlee
atlee
Posted
Posted
I use the 5770 in my HTPC (OsX 10.6.4 / Win 7)



to get almost silence the bios is flashed :



a. 200/300 desktop - 2D .... Fan@ 20 % ..0,9 V GPU

b. 300/800 UVD / HDTV card/1080p ...... Fan@ 20%...0,9 V GPU

c. 600/1000 3D/ Games........Fan@ 30-50% ...1,0 V GPU



Temps :



a.< 45 degr. C

b.< 50 degr. C

c. 60-85 degr.C



best

a



Just use the graphics update i posted few posts back that contains new ati kexts and frameworks and it's installer package from Apple. I originally did it the long way, installed new kexts 7 of them, then copy and pasted .frameworks inside framework folder then repaired permissions, worked straight away, but pkg is so much faster.

Link to comment
Share on other sites
cellfanatic
cellfanatic
Posted
Posted
Just use the graphics update i posted few posts back that contains new ati kexts and frameworks and it's installer package from Apple. I originally did it the long way, installed new kexts 7 of them, then copy and pasted .frameworks inside framework folder then repaired permissions, worked straight away, but pkg is so much faster.



I currently use the 9800GT 512MB edition, but I am very interested in the 5770 after following your posts. With the new snow_leopard_graphics_update_10f2074.dmg now available, what would be the best steps to take to get the 5770 up and running?



Currently I am using the NVEnabler 64.kext to get the 9800GT, should I remove the kext and then install the graphics update? Shutdown the machine, install the 5770, reboot?



Or should I install the 5770, boot the machine, install the software update and then remove the NVEnabler 64.kext?



Any advice would be greatly appreciated.

Link to comment
Share on other sites
atlee
atlee
Posted
Posted
I currently use the 9800GT 512MB edition, but I am very interested in the 5770 after following your posts. With the new snow_leopard_graphics_update_10f2074.dmg now available, what would be the best steps to take to get the 5770 up and running?



Currently I am using the NVEnabler 64.kext to get the 9800GT, should I remove the kext and then install the graphics update? Shutdown the machine, install the 5770, reboot?



Or should I install the 5770, boot the machine, install the software update and then remove the NVEnabler 64.kext?



Any advice would be greatly appreciated.



Read about Nvidia/ATI dual setup, not sure if you can run one as main monitor and one as extended, You might be able to. You probably will need a special efi string. I used to have efi for 9800gt.

Link to comment
Share on other sites
FKA
FKA
Posted
Posted
Hey guys-



Thought I'd let you all know that I spun up a new [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] ATI, updated with support for ATI 5xxx. Just making it one step simpler to install for peeps with the 5xxx cards. Thanks to netkas, we can all use the drivers: http://netkas.org/?p=465



[url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url]-ATI-5xxx

http://www.tonymacx86.com/viewtopic.php?f=22&t=3651



Confirmed Working:

HD 5770

HD 5850



Hi tonymac



I had to resort to this last night when I made a mistake on my main install.

It worked perfectly with GraphicsEnabler=Yes (no DSDT.aml loading.)



Many Thanks :)



D

Link to comment
Share on other sites
_Jay_
_Jay_
Posted
Posted
HDMI does work ;) already tested i dont need any adapters, but with eyefinity not sure :D







Trust me VoodooHDA is the worst kext's you could use for your HD soundcards, You just cannot compare the quality between AppleHDA and VoodooHDA, AppleHDA {censored}es all over everything, I could work on a AppleHDA that picks both ALC888 and ATI HDMI R600 Audio or ALC889a and ATI HDMI but i'm just busy at the moment and hands full but i will work on it when have few weeks gap :)





I just tried using the audio kexts you provided and I lost my audio. Not sure why but weird that only VoodooHDA works for me. Any comment?





Jay

Link to comment
Share on other sites
FKA
FKA
Posted
Posted
I just tried using the audio kexts you provided and I lost my audio. Not sure why but weird that only VoodooHDA works for me. Any comment?

Jay



Do you have a working patched AppleHDA for your alc892 chipset?

Link to comment
Share on other sites
_Jay_
_Jay_
Posted
Posted
Do you have a working patched AppleHDA for your alc892 chipset?



No I don't, thought he had already patched the files for the 888 which is what I actually have, unless Gigabyte lied to me and so is System Profiler. :);)

Link to comment
Share on other sites
FKA
FKA
Posted
Posted
No I don't, thought he had already patched the files for the 888 which is what I actually have, unless Gigabyte lied to me and so is System Profiler. :D:)



Odd, i just looked your MB up on the Gigabyte site and it says alc892 in the manual?



EDIT - rev1.0 of your board has alc888 but your sig' says you have rev2.0 which has alc892 !



Rev1.0 manual



Rev2.0 manual



D

Link to comment
Share on other sites
_Jay_
_Jay_
Posted
Posted

Then something is extremely mixed up because on the site itself for the rev. 2.0 it says ALC888 but in the manual it says ALC892. My hardware on both mac and windows(astra32) says ALC888. On my motherboard the print says rev. 2.0



Jay

Link to comment
Share on other sites
FKA
FKA
Posted
Posted
Then something is extremely mixed up because on the site itself for the rev. 2.0 it says ALC888 but in the manual it says ALC892. My hardware on both mac and windows(astra32) says ALC888. On my motherboard the print says rev. 2.0



Jay



that's irritating!



but you must have alc888 then?! what AppleHDA have you tried?



I use tmongkols 888 for 10.6.4 (linked a few posts back.) with this in DSDT:



            Device (HDEF)
           {
               Name (_ADR, 0x001B0000)
               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x04)
                       {
                           "layout-id",
                           Buffer (0x04)
                           {
                               0x78, 0x03, 0x00, 0x00
                           },

                           "PinConfigurations",
                           Buffer (Zero) {}
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }
           }



D

Link to comment
Share on other sites
Trauma!
Trauma!
Posted
Posted

Hi,



Do you guys have sleep working fine with HD 5770 ?



Could someone post his ioregistry explorer save, while running ATY_Init.kext please?



And a last question, does the 57x0 card works fine while using only one monitor ? (with Vervet at last)



Thanks.



PS: what are the video modes supported in Chameleon pls.

Link to comment
Share on other sites
erikcpp
erikcpp
Posted
Posted

Hi!



Have tried to get my XFX HD 5750 512 mb work on my Hackintosh for a month now.



now ive decided to reward the person who help me to get it fully working.



The reward is a Steam Account with the following games:



Counter Strike Source

Half life 2

Half life 2 Deathmatch

Halflife Source

Halflife detahmatch Source

Halflife 2 Lost Coast



The reward is only for the one tht really get it to work. First come, first served



Many many thanks



// Erik



You can contact me via email if you want to: eriikn@live.se
