AppleIntelE1000e.kext for 10.8/10.7/10.6/10.5

hnak

By hnak,
in LAN and Wireless

 Share
751 posts in this topic

Recommended Posts

sea_man
sea_man
Posted
Posted

I updated to 10.8.2 and the new kext , youtube and all is working very fine!



Thanks hnak !



dmesg show me this :



AppleIntelE1000e(Info): Interrupt Throttling Rate (ints/sec) set to dynamic conservative mode
AppleIntelE1000e(Info): changing MTU from 0 to 1500
AppleIntelE1000e(Info): Link is Up 1000 Mbps Full Duplex, Flow Control: Rx/Tx
AppleIntelE1000e(Info): AppleIntelE1000e:WOL = 2

Link to comment
Share on other sites
khe91
khe91
Posted
Posted

82571EB (0x10dc8086) is supported by Apple ? By Intel82574L.kext ?



From SystemInformation.app:





ethernet:



Type: Ethernet Controller

Bus: PCI

Vendor ID: 0x8086

Device ID: 0x105e

Subsystem Vendor ID: 0x103c

Subsystem ID: 0x7044

Revision ID: 0x0006

Link Width: x4

BSD name: en3

Kext name: AppleIntel8254XEthernet.kext

Location: //System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleIntel8254XEthernet.kext

Version: 3.1.1b1

Link to comment
Share on other sites
Rogier
Rogier
Posted
Posted

I got it working on 10.8.2.



For everyone who has a Asus p8z68v-pro motherboard and textbeast didn't work, try the following.



I replaced the AppleIntelE1000e.text which is located at /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleIntelE1000e.kext with the 2.1.7 text from the front page. (not the one at /System/Library/Extensions/AppleIntelE1000e.kext, that one is 2.1.7 aswel but system report says it's using the version 2.0.0 one in IONetworkingFamily.kext).



Reboot and use UseKernelCache=0 for first reboot.



Now everything is fine and Youtube, Skype and Counter Strike are working without any lag and choke!



Thanks!

Link to comment
Share on other sites
hnak
hnak
Posted
  • Author
Posted



From SystemInformation.app:





ethernet:



Type: Ethernet Controller

Bus: PCI

Vendor ID: 0x8086

Device ID: 0x105e

Subsystem Vendor ID: 0x103c

Subsystem ID: 0x7044

Revision ID: 0x0006

Link Width: x4

BSD name: en3

Kext name: AppleIntel8254XEthernet.kext

Location: //System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleIntel8254XEthernet.kext

Version: 3.1.1b1

I did not know that the driver supports 82571, as 8254x are PCI cards. Should I remove the ID in the next release ?
Link to comment
Share on other sites
sea_man
sea_man
Posted
Posted

From my system report



Intel(R) 82579V PCI-E Gigabit:
 Name: ethernet
 Type: Ethernet Controller
 Bus: PCI
 Slot: Internal
 Vendor ID: 0x8086
 Device ID: 0x1503
 Subsystem Vendor ID: 0x1043
 Subsystem ID: 0x849c
 Revision ID: 0x0005
 BSD name: en0
 Kext name: AppleIntelE1000e.kext
 Location: /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleIntelE1000e.kext
 Version: 2.1.7

Link to comment
Share on other sites
khe91
khe91
Posted
Posted

I did not know that the driver supports 82571, as 8254x are PCI cards. Should I remove the ID in the next release ?



Yes, please. Then we will see if the HP card is the reason for the Kernel Panic in the kext.

Link to comment
Share on other sites
khe91
khe91
Posted
Posted

You can do it now by editing AppleIntelE1000e.kext/Contents/info.plist.



I removed the 0x105e8086 from the info.plist.

Repaired Disk Permissions to rebuild the kernel cache.

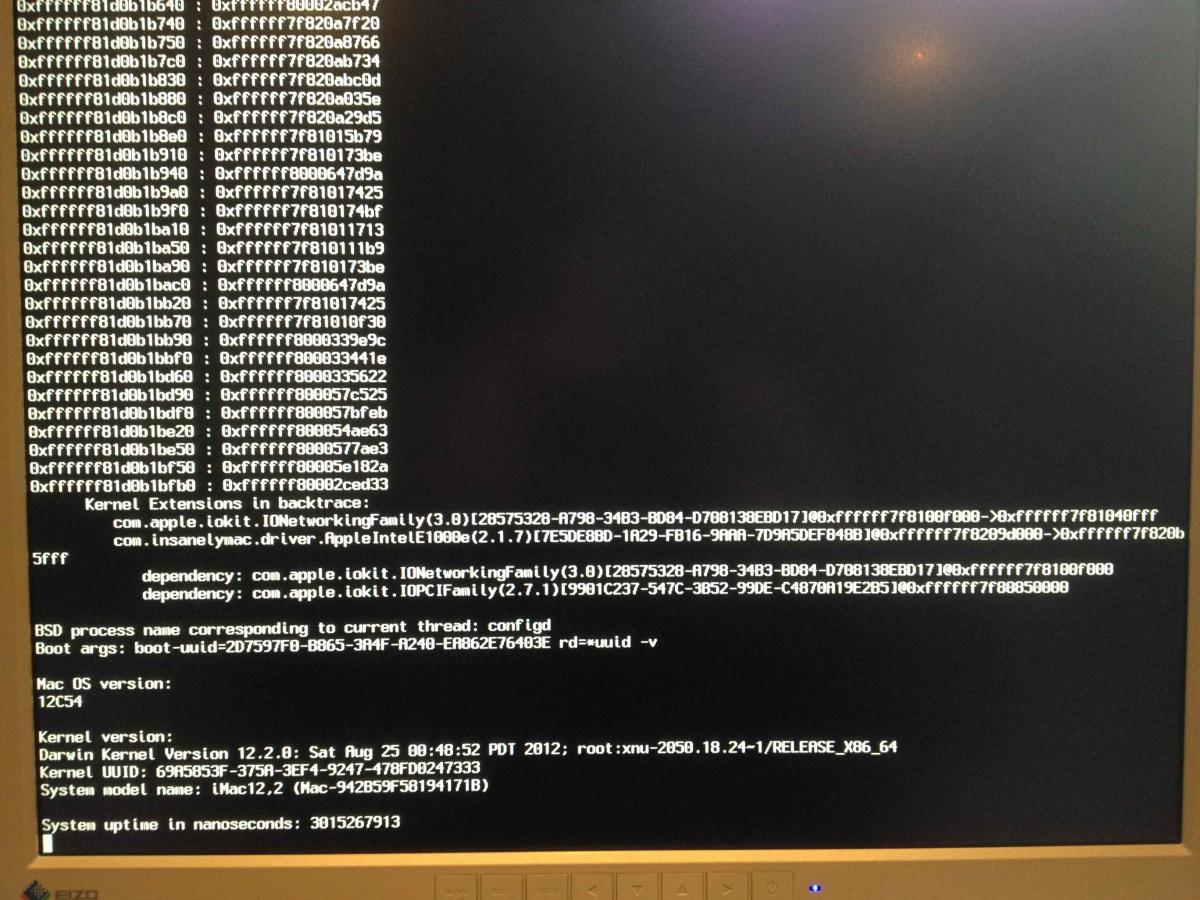

Still the same Kernel Panic like in the screen shot of my first posting.



If I remove the HP NC360T it works.

If I remove the AppleIntelE1000e.kext then the NC360T works, but not my onboard Ethernet port.

Link to comment
Share on other sites
hnak
hnak
Posted
  • Author
Posted

I removed the 0x105e8086 from the info.plist.

Repaired Disk Permissions to rebuild the kernel cache.

Still the same Kernel Panic like in the screen shot of my first posting.



If I remove the HP NC360T it works.

If I remove the AppleIntelE1000e.kext then the NC360T works, but not my onboard Ethernet port.

If the ID ( = 0x105e8086) does not exist in Info.plist, AppleIntelE1000e.kext will never be loaded unless you have another Intel NIC - which you have onboard. What's the ID of the NIC ?

Or, are they sharing the same IRQ ?

Link to comment
Share on other sites
khe91
khe91
Posted
Posted

If the ID ( = 0x105e8086) does not exist in Info.plist, AppleIntelE1000e.kext will never be loaded unless you have another Intel NIC - which you have onboard. What's the ID of the NIC ?



I understand this and don't understand why the KP still occurs, can you see anything from the Kernel Panic screenshoot or can I enable any more debug logs ?

Link to comment
Share on other sites
hnak
hnak
Posted
  • Author
Posted

I understand and don't understand why the KP still occurs, can you see anything from the Kernel Panic screenshoot or can I enable any more debug logs ?

You should build the kext from the source ( "Debug" build ) to enable verbose logging, possibly adding the hardware ID output .
Link to comment
Share on other sites
hnak
hnak
Posted
  • Author
Posted

hnak, I noticed that AppleIntel8254XEthernet.kext is loading here even though my 82579V is using your kext (it doesn't work OOTB with the Apple kext). Is this normal?

AppleIntel8254XEthernet is ( if the meaning whose name implies is correct) not supposed to work with 82579V ( or other PCI express cards ).

I am actually surprised to know that 82571EB works with the stock driver. The kext is loaded whenever PCI ethernet class device is detected ( as it does not explicitly specify "PCIPrimaryMatch" ), so the kind of supported device is completely up to the driver's code.

Link to comment
Share on other sites
maleorderbride
maleorderbride
Posted
Posted

I updated to 10.8.2 and the new kext , youtube and all is working very fine!



Thanks hnak !



dmesg show me this :



AppleIntelE1000e(Info): Interrupt Throttling Rate (ints/sec) set to dynamic conservative mode
AppleIntelE1000e(Info): changing MTU from 0 to 1500
AppleIntelE1000e(Info): Link is Up 1000 Mbps Full Duplex, Flow Control: Rx/Tx
AppleIntelE1000e(Info): AppleIntelE1000e:WOL = 2





I noticed that you have WoL (or I assume that is what it means). I do not have a WoL choice in Energy Saver in System Preferences. Is this a problem with my DSDT or is WoL only enabled for some of the chipsets that E1000E supports?



I have an X79 P9x79 Pro with 82579V running 10.7.5.





(Thanks Hnak! This driver is working great for me)

Link to comment
Share on other sites
hnak
hnak
Posted
  • Author
Posted

I noticed that you have WoL (or I assume that is what it means). I do not have a WoL choice in Energy Saver in System Preferences. Is this a problem with my DSDT or is WoL only enabled for some of the chipsets that E1000E supports?



I have an X79 P9x79 Pro with 82579V running 10.7.5.





(Thanks Hnak! This driver is working great for me)

It is a WOL setting value set by BIOS. I display the value just for reference.
  • Like 1
Link to comment
Share on other sites
Mull7965
Mull7965
Posted
Posted

The issue was (probably) that Mac OS X did not check the actual value of UDP checksum once the driver reports the sum is verified - until 10.8.

Intel hardware "complements the payload checksum" ( as written in the original source file) , so it must be undo-ed for the host which re-checks the value for consistency.

I simply disabled hardware UDP checksum and let the OS do it.



Thanks for the change hnak. One question: did you commit the code? I'm looking at SourceForge (http://sourceforge.net/p/osx86drivers/code/45/log/) and the last commit is from late June. Am i missing something?

Link to comment
Share on other sites
hnak
hnak
Posted
  • Author
Posted

hnak



This is off-topic. But i was just wondering if you can port this Ralink 2860 linux driver to work on OSX x32 and x64.

Last time they updated this was for Leopard.



Thank You :)

It is practically impossible, as :

1. I do not have the hardware

2. There's no sample source for USB network driver ( not like PCI).



If the source for old Mac OS X driver is available, it should not be too difficult...

Link to comment
Share on other sites
