GA-EX58 and GA-X58A DSDT native power management modifications

[Rody Nunes]

send me ur full Clover folder



Is attached the link, the forum did not allow file above 10mb



https://drive.google.com/file/d/0B0qK_BAxSGqeb0RIZW5qQ3ZLeWM/view?usp=sharing

[MaLd0n]

[Rody Nunes]

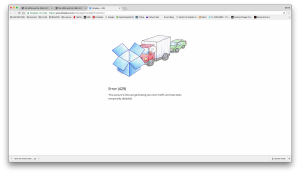

MaLd0n 2017-03-15 às 12.42.05.png

Send now google drive, click again on link



https://drive.google.com/file/d/0B0qK_BAxSGqeb0RIZW5qQ3ZLeWM/view?usp=sharing

[MaLd0n]

try it

CLOVER.zip

replace full folder

replace config.plist inside folder

config.plist.zip

[Rody Nunes]

try it

CLOVER.zip

replace full folder

replace config.plist inside folder

config.plist.zip



After replace clover full folder the computer open screen select users, but display black and reboot loop.



initiate other HD with system and replace confit.plist, no have shutdown, only intermittent.

[MaLd0n]

u need remove patches in Acpi clover section and other things in cpu section

[Rody Nunes]

u need remove patches in Acpi clover section and other things in cpu section



My ACPI section you send to me fix clear tab 01 and tab 02 set FixRegions_10000000



On section CPU is clear to.

[MaLd0n]

i think problem is native pm, i remove nullcpupm

U can extract for me ur original tables with f4 in Clover boot screen?

[Rody Nunes]

i think problem is native pm, i remove nullcpupm

U can extract for me ur original tables with f4 in Clover boot screen?



I extract config.list clicking generate config because F4 no effect.



About nullcpupm this option is on drop tables tab?

[Moorre]

DSDT + SSDT for X58A-UD7







DefinitionBlock ("", "DSDT", 5, "Apple ", "X58AUD7 ", 0x00000021)
{
    Scope (_SB)
    {
        Name (\_S0, Package (0x04)  // _S0_: S0 System State
        {
            Zero,
            Zero,
            Zero,
            Zero
        })
        Name (\_S3, Package (0x04)  // _S3_: S3 System State
        {
            0x05,
            Zero,
            Zero,
            Zero
        })
        Name (\_S4, Package (0x04)  // _S4_: S4 System State
        {
            0x06,
            Zero,
            Zero,
            Zero
        })
        Name (\_S5, Package (0x04)  // _S5_: S5 System State
        {
            0x07,
            Zero,
            Zero,
            Zero
        })
        Processor (CPU0, 0x00, 0x00000410, 0x06) {}
        Processor (CPU1, 0x01, 0x00000410, 0x06) {}
        Processor (CPU2, 0x02, 0x00000410, 0x06) {}
        Processor (CPU3, 0x03, 0x00000410, 0x06) {}
        Processor (CPU4, 0x04, 0x00000410, 0x06) {}
        Processor (CPU5, 0x05, 0x00000410, 0x06) {}
        Processor (CPU6, 0x06, 0x00000410, 0x06) {}
        Processor (CPU7, 0x07, 0x00000410, 0x06) {}
        Device (HPET)
        {
            Name (_HID, EisaId ("PNP0103") /* HPET System Timer */)  // _HID: Hardware ID
            Name (_STA, 0x0F)  // _STA: Status
            Name (_CRS, ResourceTemplate ()  // _CRS: Current Resource Settings
            {
                IRQNoFlags ()
                    {2,8}
                Memory32Fixed (ReadWrite,
                    0xFED00000,         // Address Base
                    0x00000400,         // Address Length
                    )
            })
        }

        Device (RTC)
        {
            Name (_HID, EisaId ("PNP0B00") /* AT Real-Time Clock */)  // _HID: Hardware ID
            Name (_STA, 0x0F)  // _STA: Status
            Name (_CRS, ResourceTemplate ()  // _CRS: Current Resource Settings
            {
                IO (Decode16,
                    0x0070,             // Range Minimum
                    0x0070,             // Range Maximum
                    0x00,               // Alignment
                    0x02,               // Length
                    )
            })
        }

        Device (PWRB)
        {
            Name (_HID, EisaId ("PNP0C0C") /* Power Button Device */)  // _HID: Hardware ID
            Name (_STA, 0x0B)  // _STA: Status
            Name (_GPE, 0x1B)  // _GPE: General Purpose Events
            Method (_L1B, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
            {
                Notify (PWRB, 0x02) // Device Wake
            }
        }

        Device (PCI0)
        {
            Name (_HID, EisaId ("PNP0A03") /* PCI Bus */)  // _HID: Hardware ID
            Name (_STA, 0x0F)  // _STA: Status
            Name (_ADR, Zero)  // _ADR: Address
            Name (_UID, Zero)  // _UID: Unique ID
            Name (_CRS, ResourceTemplate ()  // _CRS: Current Resource Settings
            {
                IO (Decode16,
                    0x0CF8,             // Range Minimum
                    0x0CF8,             // Range Maximum
                    0x01,               // Alignment
                    0x08,               // Length
                    )
                WordBusNumber (ResourceConsumer, MinNotFixed, MaxNotFixed, PosDecode,
                    0x0000,             // Granularity
                    0x0000,             // Range Minimum
                    0x003F,             // Range Maximum
                    0x0000,             // Translation Offset
                    0x0040,             // Length
                    ,, )
                WordIO (ResourceProducer, MinFixed, MaxFixed, PosDecode, EntireRange,
                    0x0000,             // Granularity
                    0x0000,             // Range Minimum
                    0x0CF7,             // Range Maximum
                    0x0000,             // Translation Offset
                    0x0CF8,             // Length
                    ,, , TypeStatic, DenseTranslation)
                WordIO (ResourceProducer, MinFixed, MaxFixed, PosDecode, EntireRange,
                    0x0000,             // Granularity
                    0x0D00,             // Range Minimum
                    0xFFFF,             // Range Maximum
                    0x0000,             // Translation Offset
                    0xF300,             // Length
                    ,, , TypeStatic, DenseTranslation)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000A0000,         // Range Minimum
                    0x000BFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00020000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000C0000,         // Range Minimum
                    0x000C3FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000C4000,         // Range Minimum
                    0x000C7FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000C8000,         // Range Minimum
                    0x000CBFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000CC000,         // Range Minimum
                    0x000CFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000D0000,         // Range Minimum
                    0x000D3FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000D4000,         // Range Minimum
                    0x000D7FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000D8000,         // Range Minimum
                    0x000DBFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000DC000,         // Range Minimum
                    0x000DFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000E0000,         // Range Minimum
                    0x000E3FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000E4000,         // Range Minimum
                    0x000E7FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000E8000,         // Range Minimum
                    0x000EBFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000EC000,         // Range Minimum
                    0x000EFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000F0000,         // Range Minimum
                    0x000FFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00010000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0xFED40000,         // Range Minimum
                    0xFED44FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00005000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0xDFF00000,         // Range Minimum
                    0xFEBFFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x1ED00000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
            })
            Name (_PRT, Package (0x11)  // _PRT: PCI Routing Table
            {
                Package (0x04)
                {
                    0x0001FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0002FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0003FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0003FFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x03,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    Zero,
                    Zero,
                    0x17
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    One,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    One,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001BFFFF,
                    Zero,
                    Zero,
                    0x16
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    One,
                    Zero,
                    0x15
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    0x02,
                    Zero,
                    0x12
                }
            })
            Device (ESI)
            {
                Name (_ADR, Zero)  // _ADR: Address
                Name (_STA, 0x0B)  // _STA: Status
            }

            Device (IOU3)
            {
                Name (_ADR, 0x00030000)  // _ADR: Address
                Device (PXS1)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Device (HDAU)
                {
                    Name (_ADR, One)  // _ADR: Address
                }
            }

            Device (IOU2)
            {
                Name (_ADR, 0x00020000)  // _ADR: Address
                Device (XHCI)
                {
                    Name (_ADR, 0x02000000)  // _ADR: Address
                }
            }

            Device (IOU1)
            {
                Name (_ADR, 0x00010000)  // _ADR: Address
                Device (MRVL)
                {
                    Name (_ADR, 0x01000000)  // _ADR: Address
                }
            }

            Device (RP01)
            {
                Name (_ADR, 0x001C0000)  // _ADR: Address
                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x10
                    }
                })
            }

            Device (RP02)
            {
                Name (_ADR, 0x001C0001)  // _ADR: Address
                Device (JMC0)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Device (PATA)
                {
                    Name (_ADR, One)  // _ADR: Address
                }

                Name (_PRT, Package (0x02)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x12
                    }
                })
            }

            Device (RP03)
            {
                Name (_ADR, 0x001C0002)  // _ADR: Address
                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x12
                    }
                })
            }

            Device (RP04)
            {
                Name (_ADR, 0x001C0003)  // _ADR: Address
                Device (JMC1)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x13
                    }
                })
            }

            Device (RP05)
            {
                Name (_ADR, 0x001C0004)  // _ADR: Address
                Device (LAN0)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x10
                    }
                })
            }

            Device (RP06)
            {
                Name (_ADR, 0x001C0005)  // _ADR: Address
                Device (LAN1)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x11
                    }
                })
            }

            Device (PCIB)
            {
                Name (_ADR, 0x001E0000)  // _ADR: Address
                Name (_STA, 0x0F)  // _STA: Status
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0B,
                    0x05
                })
                Method (_L0B, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (PCIB, 0x02) // Device Wake
                }

                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0x0006FFFF,
                        Zero,
                        Zero,
                        0x12
                    }
                })
                Device (FRWR)
                {
                    Name (_ADR, 0x0A060000)  // _ADR: Address
                    Name (_GPE, 0x0B)  // _GPE: General Purpose Events
                    Name (_SUN, 0x0A)  // _SUN: Slot User Number
                }
            }

            Device (UHC1)
            {
                Name (_ADR, 0x001D0000)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x03,
                    0x03
                })
                Method (_L03, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC1, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC2)
            {
                Name (_ADR, 0x001D0001)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x04,
                    0x03
                })
                Method (_L04, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC2, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC3)
            {
                Name (_ADR, 0x001D0002)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0C,
                    0x03
                })
                Method (_L0C, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC3, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC4)
            {
                Name (_ADR, 0x001A0000)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0E,
                    0x03
                })
                Method (_L0E, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC4, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC5)
            {
                Name (_ADR, 0x001A0001)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x05,
                    0x03
                })
                Method (_L05, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC5, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC6)
            {
                Name (_ADR, 0x001A0002)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x20,
                    0x03
                })
                Method (_L20, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC6, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (EHC1)
            {
                Name (_ADR, 0x001D0007)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0D,
                    0x03
                })
                Method (_L0D, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (EHC1, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PR11)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PR12)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }

                        Device (PR13)
                        {
                            Name (_ADR, 0x03)  // _ADR: Address
                        }

                        Device (PR14)
                        {
                            Name (_ADR, 0x04)  // _ADR: Address
                        }

                        Device (PR15)
                        {
                            Name (_ADR, 0x05)  // _ADR: Address
                        }

                        Device (PR16)
                        {
                            Name (_ADR, 0x06)  // _ADR: Address
                        }

                        Device (PR17)
                        {
                            Name (_ADR, 0x07)  // _ADR: Address
                        }

                        Device (PR18)
                        {
                            Name (_ADR, 0x08)  // _ADR: Address
                        }
                    }
                }
            }

            Device (EHC2)
            {
                Name (_ADR, 0x001A0007)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0D,
                    0x03
                })
                Method (_L0D, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (EHC2, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PR11)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PR12)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }

                        Device (PR13)
                        {
                            Name (_ADR, 0x03)  // _ADR: Address
                        }

                        Device (PR14)
                        {
                            Name (_ADR, 0x04)  // _ADR: Address
                        }

                        Device (PR15)
                        {
                            Name (_ADR, 0x05)  // _ADR: Address
                        }

                        Device (PR16)
                        {
                            Name (_ADR, 0x06)  // _ADR: Address
                        }

                        Device (PR17)
                        {
                            Name (_ADR, 0x07)  // _ADR: Address
                        }

                        Device (PR18)
                        {
                            Name (_ADR, 0x08)  // _ADR: Address
                        }
                    }
                }
            }

            Device (LPCB)
            {
                Name (_ADR, 0x001F0000)  // _ADR: Address
            }

            Device (SATA)
            {
                Name (_ADR, 0x001F0002)  // _ADR: Address
            }

            Device (SBUS)
            {
                Name (_ADR, 0x001F0003)  // _ADR: Address
            }

            Device (HDEF)
            {
                Name (_ADR, 0x001B0000)  // _ADR: Address
            }

            Device (EC)
            {
                Name (_HID, EisaId ("PNP0C09") /* Embedded Controller Device */)  // _HID: Hardware ID
                Name (_UID, Zero)  // _UID: Unique ID
            }
        }
    }

    Name (GPIC, Zero)
    Method (_PIC, 1, NotSerialized)  // _PIC: Interrupt Model
    {
        GPIC = Arg0
    }
}



DefinitionBlock ("", "SSDT", 2, "Apple ", "Sound", 0x00001000)
{
    Method (_SB.PCI0.IOU3.PXS1._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x02)
        {
            "hda-gfx",
            Buffer (0x0A)
            {
                "onboard-1"
            }
        })
    }

    Method (_SB.PCI0.IOU3.HDAU._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x02)
        {
            "hda-gfx",
            Buffer (0x0A)
            {
                "onboard-1"
            }
        })
    }

    Method (_SB.PCI0.PCIB.FRWR._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x02)
        {
            "fwhub",
            Buffer (0x04)
            {
                 0x00, 0x00, 0x00, 0x00                           /* .... */
            }
        })
    }

    Method (_SB.PCI0.LPCB._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x08)
        {
            "name",
            "pci8086,3a18",
            "compatible",
            "pci8086,3a18",
            "IOName",
            "pci8086,3a18",
            "device-id",
            Buffer (0x04)
            {
                 0x18, 0x3A, 0x00, 0x00                           /* .:.. */
            }
        })
    }

    Method (_SB.PCI0.EHC1._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x09)
        {
            "AAPL,current-available",
            0x0834,
            "AAPL,current-extra",
            0x0A8C,
            "AAPL,current-extra-in-sleep",
            0x0A8C,
            "AAPL,max-port-current-in-sleep",
            0x0834,
            Buffer (One)
            {
                 0x00                                             /* . */
            }
        })
    }

    Method (_SB.PCI0.EHC2._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x09)
        {
            "AAPL,current-available",
            0x0834,
            "AAPL,current-extra",
            0x0A8C,
            "AAPL,current-extra-in-sleep",
            0x0A8C,
            "AAPL,max-port-current-in-sleep",
            0x0834,
            Buffer (One)
            {
                 0x00                                             /* . */
            }
        })
    }

    Method (_SB.PCI0.HDEF._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x0A)
        {
            "built-in",
            Buffer (One)
            {
                 0x00                                             /* . */
            },

            "layout-id",
            Buffer (0x04)
            {
                 0x01, 0x00, 0x00, 0x00                           /* .... */
            },

            "device-type",
            Buffer (0x25)
            {
                "Realtek ALC889 High Definition Audio"
            },

            "PinConfigurations",
            Buffer (Zero) {},
            "hda-gfx",
            Buffer (0x0A)
            {
                "onboard-2"
            }
        })
    }
}





[MaLd0n]

I extract config.list clicking generate config because F4 no effect.



About nullcpupm this option is on drop tables tab?

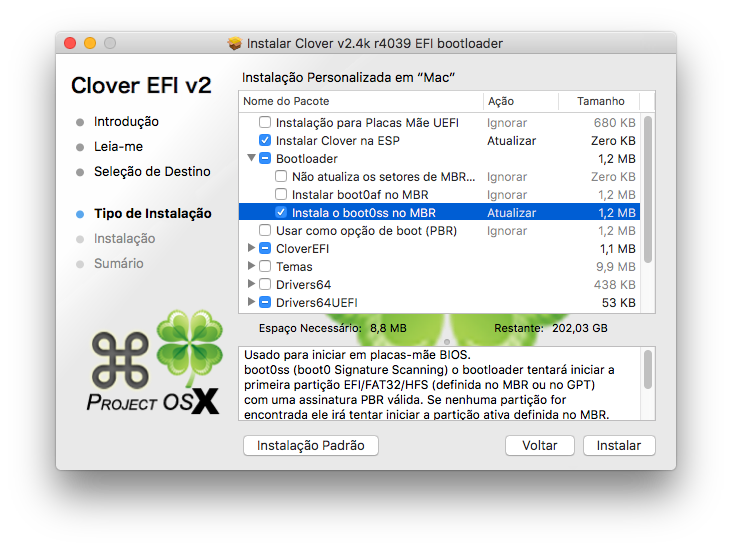

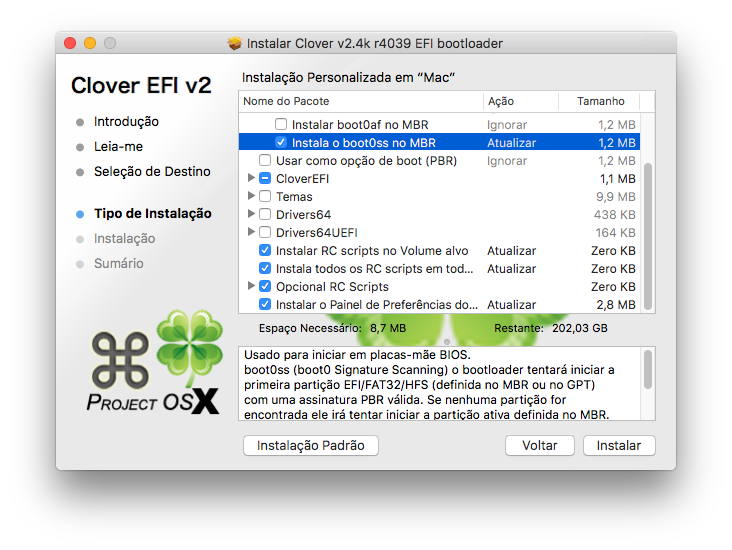

ye, ur partition is not fat32

this is kext, break the PM

NullCPUPowerManagement.kext.zip

DSDT + SSDT for X58A-UD7







DefinitionBlock ("", "DSDT", 5, "Apple ", "X58AUD7 ", 0x00000021)
{
    Scope (_SB)
    {
        Name (\_S0, Package (0x04)  // _S0_: S0 System State
        {
            Zero,
            Zero,
            Zero,
            Zero
        })
        Name (\_S3, Package (0x04)  // _S3_: S3 System State
        {
            0x05,
            Zero,
            Zero,
            Zero
        })
        Name (\_S4, Package (0x04)  // _S4_: S4 System State
        {
            0x06,
            Zero,
            Zero,
            Zero
        })
        Name (\_S5, Package (0x04)  // _S5_: S5 System State
        {
            0x07,
            Zero,
            Zero,
            Zero
        })
        Processor (CPU0, 0x00, 0x00000410, 0x06) {}
        Processor (CPU1, 0x01, 0x00000410, 0x06) {}
        Processor (CPU2, 0x02, 0x00000410, 0x06) {}
        Processor (CPU3, 0x03, 0x00000410, 0x06) {}
        Processor (CPU4, 0x04, 0x00000410, 0x06) {}
        Processor (CPU5, 0x05, 0x00000410, 0x06) {}
        Processor (CPU6, 0x06, 0x00000410, 0x06) {}
        Processor (CPU7, 0x07, 0x00000410, 0x06) {}
        Device (HPET)
        {
            Name (_HID, EisaId ("PNP0103") /* HPET System Timer */)  // _HID: Hardware ID
            Name (_STA, 0x0F)  // _STA: Status
            Name (_CRS, ResourceTemplate ()  // _CRS: Current Resource Settings
            {
                IRQNoFlags ()
                    {2,8}
                Memory32Fixed (ReadWrite,
                    0xFED00000,         // Address Base
                    0x00000400,         // Address Length
                    )
            })
        }

        Device (RTC)
        {
            Name (_HID, EisaId ("PNP0B00") /* AT Real-Time Clock */)  // _HID: Hardware ID
            Name (_STA, 0x0F)  // _STA: Status
            Name (_CRS, ResourceTemplate ()  // _CRS: Current Resource Settings
            {
                IO (Decode16,
                    0x0070,             // Range Minimum
                    0x0070,             // Range Maximum
                    0x00,               // Alignment
                    0x02,               // Length
                    )
            })
        }

        Device (PWRB)
        {
            Name (_HID, EisaId ("PNP0C0C") /* Power Button Device */)  // _HID: Hardware ID
            Name (_STA, 0x0B)  // _STA: Status
            Name (_GPE, 0x1B)  // _GPE: General Purpose Events
            Method (_L1B, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
            {
                Notify (PWRB, 0x02) // Device Wake
            }
        }

        Device (PCI0)
        {
            Name (_HID, EisaId ("PNP0A03") /* PCI Bus */)  // _HID: Hardware ID
            Name (_STA, 0x0F)  // _STA: Status
            Name (_ADR, Zero)  // _ADR: Address
            Name (_UID, Zero)  // _UID: Unique ID
            Name (_CRS, ResourceTemplate ()  // _CRS: Current Resource Settings
            {
                IO (Decode16,
                    0x0CF8,             // Range Minimum
                    0x0CF8,             // Range Maximum
                    0x01,               // Alignment
                    0x08,               // Length
                    )
                WordBusNumber (ResourceConsumer, MinNotFixed, MaxNotFixed, PosDecode,
                    0x0000,             // Granularity
                    0x0000,             // Range Minimum
                    0x003F,             // Range Maximum
                    0x0000,             // Translation Offset
                    0x0040,             // Length
                    ,, )
                WordIO (ResourceProducer, MinFixed, MaxFixed, PosDecode, EntireRange,
                    0x0000,             // Granularity
                    0x0000,             // Range Minimum
                    0x0CF7,             // Range Maximum
                    0x0000,             // Translation Offset
                    0x0CF8,             // Length
                    ,, , TypeStatic, DenseTranslation)
                WordIO (ResourceProducer, MinFixed, MaxFixed, PosDecode, EntireRange,
                    0x0000,             // Granularity
                    0x0D00,             // Range Minimum
                    0xFFFF,             // Range Maximum
                    0x0000,             // Translation Offset
                    0xF300,             // Length
                    ,, , TypeStatic, DenseTranslation)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000A0000,         // Range Minimum
                    0x000BFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00020000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000C0000,         // Range Minimum
                    0x000C3FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000C4000,         // Range Minimum
                    0x000C7FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000C8000,         // Range Minimum
                    0x000CBFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000CC000,         // Range Minimum
                    0x000CFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000D0000,         // Range Minimum
                    0x000D3FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000D4000,         // Range Minimum
                    0x000D7FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000D8000,         // Range Minimum
                    0x000DBFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000DC000,         // Range Minimum
                    0x000DFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000E0000,         // Range Minimum
                    0x000E3FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000E4000,         // Range Minimum
                    0x000E7FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000E8000,         // Range Minimum
                    0x000EBFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000EC000,         // Range Minimum
                    0x000EFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00004000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0x000F0000,         // Range Minimum
                    0x000FFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00010000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0xFED40000,         // Range Minimum
                    0xFED44FFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00005000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
                DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                    0x00000000,         // Granularity
                    0xDFF00000,         // Range Minimum
                    0xFEBFFFFF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x1ED00000,         // Length
                    ,, , AddressRangeMemory, TypeStatic)
            })
            Name (_PRT, Package (0x11)  // _PRT: PCI Routing Table
            {
                Package (0x04)
                {
                    0x0001FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0002FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0003FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0003FFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x03,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    Zero,
                    Zero,
                    0x17
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    One,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    One,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001BFFFF,
                    Zero,
                    Zero,
                    0x16
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    One,
                    Zero,
                    0x15
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    0x02,
                    Zero,
                    0x12
                }
            })
            Device (ESI)
            {
                Name (_ADR, Zero)  // _ADR: Address
                Name (_STA, 0x0B)  // _STA: Status
            }

            Device (IOU3)
            {
                Name (_ADR, 0x00030000)  // _ADR: Address
                Device (PXS1)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Device (HDAU)
                {
                    Name (_ADR, One)  // _ADR: Address
                }
            }

            Device (IOU2)
            {
                Name (_ADR, 0x00020000)  // _ADR: Address
                Device (XHCI)
                {
                    Name (_ADR, 0x02000000)  // _ADR: Address
                }
            }

            Device (IOU1)
            {
                Name (_ADR, 0x00010000)  // _ADR: Address
                Device (MRVL)
                {
                    Name (_ADR, 0x01000000)  // _ADR: Address
                }
            }

            Device (RP01)
            {
                Name (_ADR, 0x001C0000)  // _ADR: Address
                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x10
                    }
                })
            }

            Device (RP02)
            {
                Name (_ADR, 0x001C0001)  // _ADR: Address
                Device (JMC0)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Device (PATA)
                {
                    Name (_ADR, One)  // _ADR: Address
                }

                Name (_PRT, Package (0x02)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x12
                    }
                })
            }

            Device (RP03)
            {
                Name (_ADR, 0x001C0002)  // _ADR: Address
                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x12
                    }
                })
            }

            Device (RP04)
            {
                Name (_ADR, 0x001C0003)  // _ADR: Address
                Device (JMC1)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x13
                    }
                })
            }

            Device (RP05)
            {
                Name (_ADR, 0x001C0004)  // _ADR: Address
                Device (LAN0)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x10
                    }
                })
            }

            Device (RP06)
            {
                Name (_ADR, 0x001C0005)  // _ADR: Address
                Device (LAN1)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                }

                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x11
                    }
                })
            }

            Device (PCIB)
            {
                Name (_ADR, 0x001E0000)  // _ADR: Address
                Name (_STA, 0x0F)  // _STA: Status
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0B,
                    0x05
                })
                Method (_L0B, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (PCIB, 0x02) // Device Wake
                }

                Name (_PRT, Package (0x01)  // _PRT: PCI Routing Table
                {
                    Package (0x04)
                    {
                        0x0006FFFF,
                        Zero,
                        Zero,
                        0x12
                    }
                })
                Device (FRWR)
                {
                    Name (_ADR, 0x0A060000)  // _ADR: Address
                    Name (_GPE, 0x0B)  // _GPE: General Purpose Events
                    Name (_SUN, 0x0A)  // _SUN: Slot User Number
                }
            }

            Device (UHC1)
            {
                Name (_ADR, 0x001D0000)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x03,
                    0x03
                })
                Method (_L03, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC1, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC2)
            {
                Name (_ADR, 0x001D0001)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x04,
                    0x03
                })
                Method (_L04, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC2, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC3)
            {
                Name (_ADR, 0x001D0002)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0C,
                    0x03
                })
                Method (_L0C, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC3, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC4)
            {
                Name (_ADR, 0x001A0000)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0E,
                    0x03
                })
                Method (_L0E, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC4, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC5)
            {
                Name (_ADR, 0x001A0001)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x05,
                    0x03
                })
                Method (_L05, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC5, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (UHC6)
            {
                Name (_ADR, 0x001A0002)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x20,
                    0x03
                })
                Method (_L20, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (UHC6, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PRT1)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PRT2)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }
                    }
                }
            }

            Device (EHC1)
            {
                Name (_ADR, 0x001D0007)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0D,
                    0x03
                })
                Method (_L0D, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (EHC1, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PR11)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PR12)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }

                        Device (PR13)
                        {
                            Name (_ADR, 0x03)  // _ADR: Address
                        }

                        Device (PR14)
                        {
                            Name (_ADR, 0x04)  // _ADR: Address
                        }

                        Device (PR15)
                        {
                            Name (_ADR, 0x05)  // _ADR: Address
                        }

                        Device (PR16)
                        {
                            Name (_ADR, 0x06)  // _ADR: Address
                        }

                        Device (PR17)
                        {
                            Name (_ADR, 0x07)  // _ADR: Address
                        }

                        Device (PR18)
                        {
                            Name (_ADR, 0x08)  // _ADR: Address
                        }
                    }
                }
            }

            Device (EHC2)
            {
                Name (_ADR, 0x001A0007)  // _ADR: Address
                Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
                {
                    0x0D,
                    0x03
                })
                Method (_L0D, 0, NotSerialized)  // _Lxx: Level-Triggered GPE
                {
                    Notify (EHC2, 0x02) // Device Wake
                }

                Device (RHUB)
                {
                    Name (_ADR, Zero)  // _ADR: Address
                    Device (PRT1)
                    {
                        Name (_ADR, One)  // _ADR: Address
                        Name (_UPC, Package (0x04)  // _UPC: USB Port Capabilities
                        {
                            0xFF,
                            0xFF,
                            Zero,
                            Zero
                        })
                        Device (PR11)
                        {
                            Name (_ADR, One)  // _ADR: Address
                        }

                        Device (PR12)
                        {
                            Name (_ADR, 0x02)  // _ADR: Address
                        }

                        Device (PR13)
                        {
                            Name (_ADR, 0x03)  // _ADR: Address
                        }

                        Device (PR14)
                        {
                            Name (_ADR, 0x04)  // _ADR: Address
                        }

                        Device (PR15)
                        {
                            Name (_ADR, 0x05)  // _ADR: Address
                        }

                        Device (PR16)
                        {
                            Name (_ADR, 0x06)  // _ADR: Address
                        }

                        Device (PR17)
                        {
                            Name (_ADR, 0x07)  // _ADR: Address
                        }

                        Device (PR18)
                        {
                            Name (_ADR, 0x08)  // _ADR: Address
                        }
                    }
                }
            }

            Device (LPCB)
            {
                Name (_ADR, 0x001F0000)  // _ADR: Address
            }

            Device (SATA)
            {
                Name (_ADR, 0x001F0002)  // _ADR: Address
            }

            Device (SBUS)
            {
                Name (_ADR, 0x001F0003)  // _ADR: Address
            }

            Device (HDEF)
            {
                Name (_ADR, 0x001B0000)  // _ADR: Address
            }

            Device (EC)
            {
                Name (_HID, EisaId ("PNP0C09") /* Embedded Controller Device */)  // _HID: Hardware ID
                Name (_UID, Zero)  // _UID: Unique ID
            }
        }
    }

    Name (GPIC, Zero)
    Method (_PIC, 1, NotSerialized)  // _PIC: Interrupt Model
    {
        GPIC = Arg0
    }
}



DefinitionBlock ("", "SSDT", 2, "Apple ", "Sound", 0x00001000)
{
    Method (_SB.PCI0.IOU3.PXS1._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x02)
        {
            "hda-gfx",
            Buffer (0x0A)
            {
                "onboard-1"
            }
        })
    }

    Method (_SB.PCI0.IOU3.HDAU._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x02)
        {
            "hda-gfx",
            Buffer (0x0A)
            {
                "onboard-1"
            }
        })
    }

    Method (_SB.PCI0.PCIB.FRWR._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x02)
        {
            "fwhub",
            Buffer (0x04)
            {
                 0x00, 0x00, 0x00, 0x00                           /* .... */
            }
        })
    }

    Method (_SB.PCI0.LPCB._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x08)
        {
            "name",
            "pci8086,3a18",
            "compatible",
            "pci8086,3a18",
            "IOName",
            "pci8086,3a18",
            "device-id",
            Buffer (0x04)
            {
                 0x18, 0x3A, 0x00, 0x00                           /* .:.. */
            }
        })
    }

    Method (_SB.PCI0.EHC1._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x09)
        {
            "AAPL,current-available",
            0x0834,
            "AAPL,current-extra",
            0x0A8C,
            "AAPL,current-extra-in-sleep",
            0x0A8C,
            "AAPL,max-port-current-in-sleep",
            0x0834,
            Buffer (One)
            {
                 0x00                                             /* . */
            }
        })
    }

    Method (_SB.PCI0.EHC2._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x09)
        {
            "AAPL,current-available",
            0x0834,
            "AAPL,current-extra",
            0x0A8C,
            "AAPL,current-extra-in-sleep",
            0x0A8C,
            "AAPL,max-port-current-in-sleep",
            0x0834,
            Buffer (One)
            {
                 0x00                                             /* . */
            }
        })
    }

    Method (_SB.PCI0.HDEF._DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
    {
        If ((Arg2 == Zero))
        {
            Return (Buffer (One)
            {
                 0x03                                             /* . */
            })
        }

        Return (Package (0x0A)
        {
            "built-in",
            Buffer (One)
            {
                 0x00                                             /* . */
            },

            "layout-id",
            Buffer (0x04)
            {
                 0x01, 0x00, 0x00, 0x00                           /* .... */
            },

            "device-type",
            Buffer (0x25)
            {
                "Realtek ALC889 High Definition Audio"
            },

            "PinConfigurations",
            Buffer (Zero) {},
            "hda-gfx",
            Buffer (0x0A)
            {
                "onboard-2"
            }
        })
    }
}





u dont need ssdt, apply all in tiny DSDT. See my signature --> DSDT, but the same result, 1 second + in boot

[Rody Nunes]

ye, ur partition is not fat32

this is kext, break the PM

NullCPUPowerManagement.kext.zip

u dont need ssdt, apply all in tiny DSDT. See my signature --> DSDT, but the same result, 1 second + in boot



In the first quote I did not understand what you mean break the PM



In the second quote worsened even more lolol

[MaLd0n]

PM = power management

[Rody Nunes]

PM = power management



I place nullpowermanagement.kext in folder EFI/CLOVER/kexts/10.12 but nothing shutdown

[MaLd0n]

u use DSDT too?

[Rody Nunes]

u use DSDT too?

Yes I do.

[MaLd0n]

U can extract ur original DSDT with Windows or Linux?

in Mac u need remove all patghes Acpi in Clover, remove DSDT too, reboot and extract new DSDT

Use Maciasl

https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/RehabMan-MaciASL-2016-0423.zip

if u use DSDT from other mobo, u need check - Same mobo and same bios version

dont use DSDT from other mobo, only from same mobo and bios version

[Rody Nunes]

U can extract ur original DSDT with Windows or Linux?

in Mac u need remove all patghes Acpi in Clover, remove DSDT too, reboot and extract new DSDT

Use Maciasl

https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/RehabMan-MaciASL-2016-0423.zip

if u use DSDT from other mobo, u need check - Same mobo and same bios version

dont use DSDT from other mobo, only from same mobo and bios version







Extracted from MaciaASL , place this dsdt original no compiled in folder EFI/CLOVER/ACPI/origin ?

[MaLd0n]

open Maciasl/file/save as and send me



if u dont edit, no diference with DSDT inside bios

u need edit and Clover override table

[Rody Nunes]

open Maciasl/file/save as and send me



if u dont edit, no diference with DSDT inside bios

u need edit and Clover override table



Send for you no compiled and no edit



System DSDT.zip

[MaLd0n]

1- Clean install

2- Install Clover with options

3- Replace folder

CLOVER GA-X58-UD3R.zip

4- Reboot with -v

5- Activate video



if u have a problem, remove AppleAlc.kext, in many x58 chipset, system dont boot with kext, but if work, u have a vanilla system, native audio, etc

[Rody Nunes]

1- Clean install

2- Install Clover with options



3- Replace folder

CLOVER GA-X58-UD3R.zip

4- Reboot with -v

5- Activate video



if u have a problem, remove AppleAlc.kext, in many x58 chipset, system dont boot with kext, but if work, u have a vanilla system, native audio, etc



I dont believe is shutdown 20 times. cool



The sensors no running, only temperature of HDs

[MaLd0n]

i dont use sensors, cause many problems, i dont think about lga 1366, but i use intel app in my new hardware, in my old hardware, dont work

Intel® Power Gadget SIERRA.zip



[Foxic]

I'm having an issue since installing a BCM943602CS Wifi/Bluetooth card. The problem is described here with a potential fix:

http://www.insanelymac.com/forum/topic/316815-bcm943602cs-combo-card-prevents-sleep-on-sierra/



Is there a way to accomplish the same in DSDT?



I have the bluetooth plugged into an internal header, ID with IORegExplorer is 3d000000, I believe this is USB0, also cross referencing with a photo of the motherboard, this header is identified as USB1 (usb0 & usb1?), the header next to it is labeled USB2 (usb2 & usb3?).

If this is correct then

USB0 = BT

USB1 = Front Panel USB

USB2&3 = Empty



This is my USB0 section

Device (USB0)
            {
                Name (_ADR, 0x001D0000)
                Method (_S3D, 0, NotSerialized)
                {
                    If (LEqual (OSFL, 0x02))
                    {
                        Return (0x02)
                    }
                    Return (0x03)
                }
                Name (_PRW, Package (0x02)
                {
                    0x03,
                    0x03
                })
            }

How can I get this port to show as internal to stop my hack waking as soon as I put it to sleep?

[Rody Nunes]

i dont use sensors, cause many problems, i dont think about lga 1366, but i use intel app in my new hardware, in my old hardware, dont work

Intel® Power Gadget SIERRA.zip



Do not use the sensors to not affect the operation of the cooler and cooling of the computer, I use my hachintosh to edit movies and this requires a lot of the machine.
