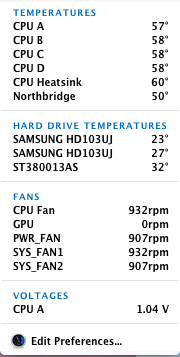

@ROBASEFR Posted June 21, 2010 Share Posted June 21, 2010 Hey There, I have put the new FakeSMC.kext rev.218 with DooD info.plist and SMCITEController.kext in S/L/E and get this layout with iStatmenu: GPU fan doesn't work beacause of ATI grapg-hics card ! ( Thanks for comments ! Link to comment Share on other sites More sharing options...
d00d Posted June 21, 2010 Author Share Posted June 21, 2010 I have put the new FakeSMC.kext rev.218 with DooD info.plist and SMCITEController.kext in S/L/E and get this layout with iStatmenu: GPU fan doesn't work beacause of ATI grapg-hics card ! ( Thanks for comments ! The plugin is called FakeSMCnVclockPort, it's for (nV)IDIA GPUs.There's none for ATI. Link to comment Share on other sites More sharing options...
stellarola Posted June 22, 2010 Share Posted June 22, 2010 If you have slower graphic performance after 10.6.4 update, rename it from MacPro4,1 to MacPro3,1. Worked for me. Link to comment Share on other sites More sharing options...
nullspot Posted June 22, 2010 Share Posted June 22, 2010 If you have slower graphic performance after 10.6.4 update, rename it from MacPro4,1 to MacPro3,1. What does this change behind the scenes? Link to comment Share on other sites More sharing options...
elitee Posted June 22, 2010 Share Posted June 22, 2010 Would it be possible to add support in fakesmc for the now working GTX470/65/80/80M at some point? Whenever you get around to recompiling it next 0x06c010de&0xfff0ffff Link to comment Share on other sites More sharing options...
cartri Posted June 22, 2010 Share Posted June 22, 2010 Hello d00d, sorry for using a open thread to personal comunication. First i have to say that i appreciate the way you did put all together in this thread, and your amazing track keeping capability (which i never had, i forget what i did eat as soon as i digest it). I still had no time to read this thread that was pointed to me as a source for researches by a tester of some moded bios i do for p45 series, but passing the eyes trough the 1st post, shows you have a organization capability that maybe i need to learn if i want to go public without being missunderstood. As your PM box was full here, i did send you a PM with my personal contact trough the other forum we participate (the one that you need to complete a quiz to join etc). If possible please contact me, I'd like to talk to you and share some toughs. Congratulations for your researches. Link to comment Share on other sites More sharing options...
d00d Posted June 23, 2010 Author Share Posted June 23, 2010 If you have slower graphic performance after 10.6.4 update, rename it from MacPro4,1 to MacPro3,1. Worked for me. Thanks, that worked.I get the following GPU speeds using alphamerik's nvclock from projectosx.com. As MacPro4,1 at idle the GPU clock is at level 0, and Shader and Memory clocks are at level 2; GPU clock: 300.856 MHz -- Shader info -- Clock: 1476.000 MHz -- Memory info -- Clock: 1242.000 MHz As MacPro4,1 at load the GPU clock is at level 0, Shader and Memory clocks are at level 2, FPS rates are very low, and Geekbench numbers are normal; GPU clock: 300.856 MHz -- Shader info -- Clock: 1476.000 MHz -- Memory info -- Clock: 1242.000 MHz As MacPro3,1 at idle the GPU clock is at level 0, and Shader and Memory clocks are between level 1 and 2; GPU clock: 300.856 MHz -- Shader info -- Clock: 1296.000 MHz -- Memory info -- Clock: 1188.000 MHz As MacPro3,1 at load the GPU clock is at level 2, and Shader and Memory clocks are at level 2, FPS rates are normal, and Geekbench numbers are normal; GPU clock: 648.000 MHz -- Shader info -- Clock: 1476.000 MHz -- Memory info -- Clock: 1242.000 MHz MacPro4,1 (idle and load); ./nvclock -i -- General info -- Card: GT200b [GeForce GTX 285] Architecture: GT200 B1 PCI id: 0x05e3 Subvendor id: 0x1458 GPU clock: 300.856 MHz Bustype: PCI-Express -- Shader info -- Clock: 1476.000 MHz Stream units: 240 (11111111b) ROP units: 32 (11111111b) -- Memory info -- Amount: 1024 MB Type: 512 bit DDR3 Clock: 1242.000 MHz -- PCI-Express info -- Current Rate: 16X Maximum rate: 16X -- Sensor info -- Sensor: Analog Devices ADT7473 Board temperature: 40C GPU temperature: 47C Fanspeed: 742 RPM Fanspeed mode: manual PWM duty cycle: 40.0% -- VideoBios information -- Version: 62.00.50.00.01 Signon message: GV-N285UD-1GH/F1 Performance level 0: gpu 300MHz/shader 600MHz/memory 100MHz/1.05V/100% Performance level 1: gpu 400MHz/shader 800MHz/memory 300MHz/1.05V/100% Performance level 2: gpu 648MHz/shader 1476MHz/memory 1242MHz/1.15V/100% VID mask: 1 Voltage level 0: 1.05V, VID: 1 Voltage level 1: 1.15V, VID: 0 MacPro3,1 (idle); ./nvclock -i -- General info -- Card: GT200b [GeForce GTX 285] Architecture: GT200 B1 PCI id: 0x05e3 Subvendor id: 0x1458 GPU clock: 300.856 MHz Bustype: PCI-Express -- Shader info -- Clock: 1296.000 MHz Stream units: 240 (11111111b) ROP units: 32 (11111111b) -- Memory info -- Amount: 1024 MB Type: 512 bit DDR3 Clock: 1188.000 MHz -- PCI-Express info -- Current Rate: 16X Maximum rate: 16X -- Sensor info -- Sensor: Analog Devices ADT7473 Board temperature: 40C GPU temperature: 47C Fanspeed: 739 RPM Fanspeed mode: manual PWM duty cycle: 40.0% -- VideoBios information -- Version: 62.00.50.00.01 Signon message: GV-N285UD-1GH/F1 Performance level 0: gpu 300MHz/shader 600MHz/memory 100MHz/1.05V/100% Performance level 1: gpu 400MHz/shader 800MHz/memory 300MHz/1.05V/100% Performance level 2: gpu 648MHz/shader 1476MHz/memory 1242MHz/1.15V/100% VID mask: 1 Voltage level 0: 1.05V, VID: 1 Voltage level 1: 1.15V, VID: 0 MacPro3,1 (load); ./nvclock -i -- General info -- Card: GT200b [GeForce GTX 285] Architecture: GT200 B1 PCI id: 0x05e3 Subvendor id: 0x1458 GPU clock: 648.000 MHz Bustype: PCI-Express -- Shader info -- Clock: 1476.000 MHz Stream units: 240 (11111111b) ROP units: 32 (11111111b) -- Memory info -- Amount: 1024 MB Type: 512 bit DDR3 Clock: 1242.000 MHz -- PCI-Express info -- Current Rate: 16X Maximum rate: 16X -- Sensor info -- Sensor: Analog Devices ADT7473 Board temperature: 42C GPU temperature: 55C Fanspeed: 739 RPM Fanspeed mode: manual PWM duty cycle: 40.0% -- VideoBios information -- Version: 62.00.50.00.01 Signon message: GV-N285UD-1GH/F1 Performance level 0: gpu 300MHz/shader 600MHz/memory 100MHz/1.05V/100% Performance level 1: gpu 400MHz/shader 800MHz/memory 300MHz/1.05V/100% Performance level 2: gpu 648MHz/shader 1476MHz/memory 1242MHz/1.15V/100% VID mask: 1 Voltage level 0: 1.05V, VID: 1 Voltage level 1: 1.15V, VID: 0 Link to comment Share on other sites More sharing options...
seanmcgpa Posted June 23, 2010 Share Posted June 23, 2010 Forgive me for not remembering 100% ... modify the smbios.plist to reflect MacPro3,1 instead of MacPro4,1 ... right? Link to comment Share on other sites More sharing options...
x.di Posted June 23, 2010 Share Posted June 23, 2010 So I flashed this bios and have been running smoothly since May.Today, I updated to 10.6.4 and get a kp unless i boot in safe mode. Any thoughts? I get a version mismatch between kernel and cpu pm I will update today my latest bios and files in Extra. For me all runs smoothly. Link to comment Share on other sites More sharing options...
d00d Posted June 23, 2010 Author Share Posted June 23, 2010 Thanks, that worked.I get the following GPU speeds using alphamerik's nvclock from projectosx.com. As MacPro4,1 at idle the GPU clock is at level 0, and Shader and Memory clocks are at level 2; GPU clock: 300.856 MHz -- Shader info -- Clock: 1476.000 MHz -- Memory info -- Clock: 1242.000 MHz As MacPro4,1 at load the GPU clock is at level 0, Shader and Memory clocks are at level 2, FPS rates are very low, and Geekbench numbers are normal; GPU clock: 300.856 MHz -- Shader info -- Clock: 1476.000 MHz -- Memory info -- Clock: 1242.000 MHz As MacPro3,1 at idle the GPU clock is at level 0, and Shader and Memory clocks are between level 1 and 2; GPU clock: 300.856 MHz -- Shader info -- Clock: 1296.000 MHz -- Memory info -- Clock: 1188.000 MHz As MacPro3,1 at load the GPU clock is at level 2, and Shader and Memory clocks are at level 2, FPS rates are normal, and Geekbench numbers are normal; GPU clock: 648.000 MHz -- Shader info -- Clock: 1476.000 MHz -- Memory info -- Clock: 1242.000 MHz As MacPro3,1 after sleep and wake at idle the GPU clock is at level 2, and Shader and Memory clocks are at level 2.This is a problem, as GPU idle temperature should be around 47C, but now it's around 56C. Link to comment Share on other sites More sharing options...
ANARCHiNTOSH Posted June 24, 2010 Share Posted June 24, 2010 so d00d, performance-wise it is best to rename to MacPro4,1 or MacPro3,1? Link to comment Share on other sites More sharing options...
d00d Posted June 24, 2010 Author Share Posted June 24, 2010 so d00d, performance-wise it is best to rename to MacPro4,1 or MacPro3,1?MacPro3,1, but at idle after wake the GPU was stuck at load level 2 instead of idle level 0.I've gone back to using MacPro4,1, as I don't game on it. Link to comment Share on other sites More sharing options...
jhrfc Posted June 24, 2010 Share Posted June 24, 2010 MacPro3,1, but at idle after wake the GPU was stuck at load level 2 instead of idle level 0.I've gone back to using MacPro4,1, as I don't game on it. just to confirm, i also have much decreased graphics performance on my GTX285, UD5 setup after the 10.6.4 upgrade. (I'm also using d00ds DSDT mods). Thanks for the info on getting fan monitoring to work will try it over the weekend. Jon Link to comment Share on other sites More sharing options...
MasterLen Posted June 24, 2010 Share Posted June 24, 2010 I will update today my latest bios and files in Extra.For me all runs smoothly. Great! I am already using your DSDT.aml and its working great! Big Thanks x.di! Link to comment Share on other sites More sharing options...
elitee Posted June 24, 2010 Share Posted June 24, 2010 MacPro3,1, but at idle after wake the GPU was stuck at load level 2 instead of idle level 0.I've gone back to using MacPro4,1, as I don't game on it. On my GTX 470 changing to MacPro3,1 immensely increased scores/fps as well. Link to comment Share on other sites More sharing options...
zoob Posted June 25, 2010 Share Posted June 25, 2010 d00d, have you any issues with your GTX285 getting a brief screen blinking glitch when transitioning from high to low GPU load? Looks something like this: http://netkas.org/?p=442 but happens to me in SL. I have a GTX285+GTS250 added in my DSDT, and my GTS250 never "blinks", it only happens on my GTX285. Have my SMproductname set to MacPro4,1 and attached is my nvclock output. Many thanks. -- General info -- Card: GT200b [GeForce GTX 285] Architecture: GT200 B1 PCI id: 0x05e3 Subvendor id: 0x19f1 GPU clock: 300.856 MHz Bustype: PCI-Express -- Shader info -- Clock: 1296.000 MHz Stream units: 240 (11111111b) ROP units: 32 (11111111b) -- Memory info -- Amount: 1024 MB Type: 512 bit DDR3 Clock: 1188.000 MHz -- PCI-Express info -- Current Rate: 16X Maximum rate: 16X -- Sensor info -- Sensor: Analog Devices ADT7473 Board temperature: 39C GPU temperature: 43C Fanspeed: 41 RPM Fanspeed mode: manual PWM duty cycle: 40.0% -- VideoBios information -- Version: 62.00.45.00.08 Signon message: GT200 P891 SKU 0052 VGA BIOS Performance level 0: gpu 300MHz/shader 600MHz/memory 100MHz/1.05V/100% Performance level 1: gpu 400MHz/shader 800MHz/memory 300MHz/1.05V/100% Performance level 2: gpu 666MHz/shader 1512MHz/memory 1242MHz/1.15V/100% VID mask: 1 Voltage level 0: 1.05V, VID: 1 Voltage level 1: 1.15V, VID: 0 Link to comment Share on other sites More sharing options...
bluerecap Posted June 25, 2010 Share Posted June 25, 2010 Yesterday buy a Gigabyte GA-X58A-UD7, CPU CORE I7 960 3.20GHZ SK1366 BX80601960, and 12gb ddr3 kingston, and a GEFORCE GTX 470 1280MB PCI-E, can install a retail SL, in this mobo just mod a bios to insert slic 2.1 on last f6 bios, can connect to hdmi port on a HPW2558hc monitor???? thanks in advance and if not i wait for any guide or help to try cheers Link to comment Share on other sites More sharing options...
d00d Posted June 25, 2010 Author Share Posted June 25, 2010 Yesterday buy a Gigabyte GA-X58A-UD7, CPU CORE I7 960 3.20GHZ SK1366 BX80601960, and 12gb ddr3 kingston, and a GEFORCE GTX 470 1280MB PCI-E, can install a retail SL, in this mobo just mod a bios to insert slic 2.1 on last f6 bios, can connect to hdmi port on a HPW2558hc monitor???? thanks in advance and if not i wait for any guide or help to try cheers I'm not exactly sure what you're asking, but there's a good topic on GeForce 4xx at;http://www.insanelymac.com/forum/index.php?showtopic=214219 Link to comment Share on other sites More sharing options...
d00d Posted June 25, 2010 Author Share Posted June 25, 2010 d00d, have you any issues with your GTX285 getting a brief screen blinking glitch when transitioning from high to low GPU load? Looks something like this: http://netkas.org/?p=442 but happens to me in SL.I have a GTX285+GTS250 added in my DSDT, and my GTS250 never "blinks", it only happens on my GTX285. Have my SMproductname set to MacPro4,1 and attached is my nvclock output. Many thanks. I didn't notice any glitch in 10.6.3, and in 10.6.4 the GPU clock speed doesn't change as MacPro4,1, so no glitch noticed now either. Link to comment Share on other sites More sharing options...
Gidi Posted June 25, 2010 Share Posted June 25, 2010 Just to confirm that changing MP4,1 to MP3,1 I got better performance on my GTX285. But still much lower FPS than in W7. Link to comment Share on other sites More sharing options...
bluerecap Posted June 25, 2010 Share Posted June 25, 2010 I'm not exactly sure what you're asking, but there's a good topic on GeForce 4xx at;http://www.insanelymac.com/forum/index.php?showtopic=214219 Thanks ask if i can install a native SL on this mobo and thanks for info about fermi... Link to comment Share on other sites More sharing options...
pcace Posted June 26, 2010 Share Posted June 26, 2010 Hey, i just tried the DSDT you uploaded in the first post ( DSDT_GA_EX58_UD5_F9m_S3_920_W3520_v2.zip ) My Mashine is a GA-EX58-UD5, but with Bios F12 Installed. Im using a nVidia 9800 and only Sata devices. The nVidia card runs with EFI Strings - Created with the DD-Script. Now The Problems: i Can not reboot or shutdown the machine in 64 bit mode. i Just hangs. (also no sleep) Please tell me wich kexts do i realy need in my config? ################################################################ # HackInstaller # # Chameleon Bootloader & Kext/Kernel Installer # # # # v4.52 by digital_dreamer # ################################################################ Files to be installed from the script's folders to MacOSX - Extra: ATA VERSION ARCH SIZE DESTINATION 1) AppleIntelPIIXATA.kext 2.5.1 x86_64 280K /Extra 2) IOAHCIBlockStorageInjector.kext 1.1.1 N/A 4K /Extra Audio 3) HDAEnabler.kext 1.0.0d1 x86_64 108K /Extra 4) LegacyHDA.kext 888 N/A 72K /Extra Graphics (No files present to install) Networking 5) RealtekR1000SL.kext 2.0.0d1 x86_64 256K /System Misc Patches 6) fakesmc.kext 2 x86_64 124K /Extra 7) NullCPUPowerManagement.kext 1.0.0d2 x86_64 116K /Extra 8) OpenHaltRestart.kext 2.1.0 x86_64 100K /Extra 9) PlatformUUID.kext 1.0.0 x86_64 104K /Extra Kernel & matching kext (No files present to install) And this is the Bootlog: 26.06.10 12:59:11 kernel npvhash=4095 26.06.10 12:59:11 kernel PAE enabled 26.06.10 12:59:11 kernel 64 bit mode enabled 26.06.10 12:59:11 kernel Darwin Kernel Version 10.4.0: Fri Apr 23 18:28:53 PDT 2010; root:xnu-1504.7.4~1/RELEASE_I386 26.06.10 12:59:11 kernel vm_page_bootstrap: 770688 free pages and 15744 wired pages 26.06.10 12:59:11 kernel standard timeslicing quantum is 10000 us 26.06.10 12:59:11 kernel mig_table_max_displ = 73 26.06.10 12:59:11 kernel Warning - kext com.psystar.driver.OpenHaltRestart has immediate dependencies on both com.apple.kernel* and com.apple.kpi.* components; use only one style. 26.06.10 12:59:11 kernel NullCPUPowerManagement::init: properties=0x50a93c0 26.06.10 12:59:11 kernel NullCPUPowerManagement::start 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=0 LocalApicId=0 Enabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=1 LocalApicId=2 Enabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=2 LocalApicId=4 Enabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=3 LocalApicId=6 Enabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=4 LocalApicId=1 Enabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=5 LocalApicId=3 Enabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=6 LocalApicId=5 Enabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=7 LocalApicId=7 Enabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=8 LocalApicId=8 Disabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=9 LocalApicId=9 Disabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=10 LocalApicId=10 Disabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=11 LocalApicId=11 Disabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=12 LocalApicId=12 Disabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=13 LocalApicId=13 Disabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=14 LocalApicId=14 Disabled 26.06.10 12:59:11 kernel AppleACPICPU: ProcessorId=15 LocalApicId=15 Disabled 26.06.10 12:59:11 kernel calling mpo_policy_init for Quarantine 26.06.10 12:59:11 kernel Security policy loaded: Quarantine policy (Quarantine) 26.06.10 12:59:11 kernel calling mpo_policy_init for Sandbox 26.06.10 12:59:11 kernel Security policy loaded: Seatbelt sandbox policy (Sandbox) 26.06.10 12:59:11 kernel calling mpo_policy_init for TMSafetyNet 26.06.10 12:59:11 kernel Security policy loaded: Safety net for Time Machine (TMSafetyNet) 26.06.10 12:59:11 kernel Copyright © 1982, 1986, 1989, 1991, 1993 26.06.10 12:59:11 kernel The Regents of the University of California. All rights reserved. 26.06.10 12:59:11 kernel MAC Framework successfully initialized 26.06.10 12:59:11 kernel using 15728 buffer headers and 4096 cluster IO buffer headers 26.06.10 12:59:11 kernel IOAPIC: Version 0x20 Vectors 64:87 26.06.10 12:59:11 kernel ACPI: System State [s0 S3 S4 S5] (S3) 26.06.10 12:59:11 kernel OpenHaltRestart: 2009 © COPYRIGHT PSYSTAR CORPORATION (www.psystar.com) 26.06.10 12:59:11 kernel RTC: Only single RAM bank (128 bytes) 26.06.10 12:59:11 kernel netkas presents fakesmc, a kext which emulates smc device 26.06.10 12:59:11 kernel mbinit: done (64 MB memory set for mbuf pool) 26.06.10 12:59:11 kernel Kext com.chucko.driver.RealtekR1000 - library kext com.apple.iokit.IONetworkingFamily not found. 26.06.10 12:59:11 kernel Can't load kext com.chucko.driver.RealtekR1000 - failed to resolve library dependencies. 26.06.10 12:59:11 kernel Kext com.chucko.driver.RealtekR1000 failed to load (0xdc00800e). 26.06.10 12:59:11 kernel Failed to load kext com.chucko.driver.RealtekR1000 (error 0xdc00800e). 26.06.10 12:59:11 kernel Couldn't alloc class "com_chucko_RealtekR1000" 26.06.10 12:59:11 kernel Not loading kext com.chucko.driver.RealtekR1000 - not found and kextd not available in early boot. 26.06.10 12:59:11 kernel From path: "uuid", 26.06.10 12:59:11 kernel Waiting for boot volume with UUID B255AB20-C785-4AA8-85BA-5E4FCD21BDAE 26.06.10 12:59:11 kernel Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict> 26.06.10 12:59:11 kernel FireWire runtime power conservation disabled. (2) 26.06.10 12:59:11 kernel JMicronATA:J MJiMcBr3o63n A(TCAM:D J0MxB363e d(0C0M,D C0TxR e0fx00ec, 00C,T RI R0Qx ee1080,, BIMR Q0 x1e8b,0 8B)M 26.06.10 12:59:11 kernel 0xeb00)com.apple.AppleFSCompressionTypeZlib kmod start 26.06.10 12:59:11 kernel com.apple.AppleFSCompressionTypeZlib load succeeded 26.06.10 12:59:11 kernel Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IDE1@1F,2/AppleAHCI/SECD@1/IOAHCIDevice@0/AppleAHCIDiskDriver/IOAHCIBlockStorageDevice/IOBlockStorageDriver/WDC WD5000AAKS-00A7B0 Media/IOGUIDPartitionScheme/Raid Partition 2@2/AppleRAIDMember/AppleRAIDStripeSet/MacOSX@0FireWire (OHCI) TI ID 8024 PCI now active, GUID 0079d99f0000241d; max speed s400. 26.06.10 12:59:11 kernel BSD root: disk2, major 14, minor 8 26.06.10 12:59:08 com.apple.launchd[1] *** launchd[1] has started up. *** 26.06.10 12:59:08 com.apple.launchd[1] *** Verbose boot, will log to /dev/console. *** 26.06.10 12:59:11 kernel systemShutdown false 26.06.10 12:59:11 configd[13] network configuration changed. 26.06.10 12:59:11 configd[13] setting hostname to "hanness-Mac-Pro.local" 26.06.10 12:59:16 bootlog[42] BOOT_TIME: 1277549948 0 26.06.10 12:59:17 mDNSResponder[30] mDNSResponder mDNSResponder-214.3.2 (May 14 2010 15:29:49) starting 26.06.10 12:59:18 kernel Previous Shutdown Cause: 0 26.06.10 12:59:19 kernel wl0: Broadcom BCM4318 802.11 Wireless Controller 26.06.10 12:59:19 kernel 5.10.91.27 26.06.10 12:59:19 kernel NVDANV50HAL loaded and registered. 26.06.10 12:59:19 com.apple.SecurityServer[26] Session 0x5fbff962 created 26.06.10 12:59:19 com.apple.usbmuxd[23] usbmuxd-196 built for iTunesNineTwo on May 17 2010 at 13:53:51, running 32 bit 26.06.10 12:59:19 com.apple.SecurityServer[26] Entering service 26.06.10 12:59:19 kernel identified as RTL8168D/8111Didentified as RTL8168D/8111D 26.06.10 12:59:19 configd[13] network configuration changed. 26.06.10 12:59:19 kernel FakeSMC: key info not found MSDS, length - 6 26.06.10 12:59:19 kernel DSMOS has arrived 26.06.10 12:59:19 kernel com_chucko_RealtekR1000: Ethernet address 00:24:1d:77:de:6f 26.06.10 12:59:19 kernel com_chucko_RealtekR1000: Ethernet address 00:24:1d:77:de:6d 26.06.10 12:59:19 kernel AirPort_Brcm43xx: Ethernet address 00:22:15:56:b3:30 26.06.10 12:59:19 kernel IO80211Controller::dataLinkLayerAttachComplete(): adding AppleEFINVRAM notification 26.06.10 12:59:19 kernel AirPort: Link Down on en0. Reason 1 (Unspecified). 26.06.10 12:59:19 configd[13] network configuration changed. 26.06.10 12:59:20 /System/Library/CoreServices/loginwindow.app/Contents/MacOS/loginwindow[31] Login Window Application Started 26.06.10 12:59:25 kernel ACPI_SMC_PlatformPlugin::start - waitForService(resourceMatching(AppleIntelCPUPowerManagement) timed out 26.06.10 12:59:26 kernel AppleTyMCEDriver::start coreVIDPID = 0x2c418086 Number of packages = 1 Number of cpus = 8 memory monitor trough MCA 26.06.10 12:59:28 configd[13] network configuration changed. 26.06.10 12:59:29 com.apple.SecurityServer[26] Session 0x30107d created 26.06.10 12:59:29 com.apple.SecurityServer[26] Session 0x30107d attributes 0x30 26.06.10 12:59:29 loginwindow[31] Login Window Started Security Agent Any idea what i can do now? While installing i updated to 10.6.4... Thank You, Pcace Link to comment Share on other sites More sharing options...
jhrfc Posted June 26, 2010 Share Posted June 26, 2010 Hi d00d, Thanks for posting the new FakeSMC with plug-ins for fan monitoring. Installed using digital dreamers script, rebuilt caches and works great. see attached. Cheers Jon Link to comment Share on other sites More sharing options...
kdawg Posted June 26, 2010 Share Posted June 26, 2010 Hi d00d,Thanks for posting the new FakeSMC with plug-ins for fan monitoring. Installed using digital dreamers script, rebuilt caches and works great. see attached. Cheers Jon Be aware that some of the plug-ins associated with FakeSMC could effect your C-States and increase core temperature. I'm not sure what your hardware setup is but your core temps seem a tad bit high. Check to see if you still have c-states active. Link to comment Share on other sites More sharing options...
d00d Posted June 26, 2010 Author Share Posted June 26, 2010 Hey, i just tried the DSDT you uploaded in the first post ( DSDT_GA_EX58_UD5_F9m_S3_920_W3520_v2.zip ) My Mashine is a GA-EX58-UD5, but with Bios F12 Installed. Im using a nVidia 9800 and only Sata devices. The nVidia card runs with EFI Strings - Created with the DD-Script. Now The Problems: i Can not reboot or shutdown the machine in 64 bit mode. i Just hangs. (also no sleep) Please tell me wich kexts do i realy need in my config? ... And this is the Bootlog: ... Any idea what i can do now? While installing i updated to 10.6.4... Thank You, Pcace I listed the few kexts I use towards the end of post 1. Be aware that some of the plug-ins associated with FakeSMC could effect your C-States and increase core temperature. I'm not sure what your hardware setup is but your core temps seem a tad bit high. Check to see if you still have c-states active.The SMCITEController plugin drops CStates, but FakeSMCSuperIO doesn't.FakeSMCSuperIO is what I included in the version I compiled. Link to comment Share on other sites More sharing options...
