[GUIDE] Making a DSDT.aml for Dell XPS M1330, XPS M1530, and XPS M1730

[ab___73]

MB41_SSDT.zip



SSDT from a MB4,1. Haven't found the DSDT yet.



MB41_SSDT.zip



DSDT and some SSDT from the MBP4,1.



Also what does your battery status say next to Condition? I've made a change to the DSDT and mine now says Replace Soon, I am sure it used to say Service Battery...



Cheers



Brett



Hi Brett,



Both attachments are the same? Do you have the SSDTs from a MacBookPro4,1.



Cheers,



AB

[Brett Whinnen]

Hi Brett,



Both attachments are the same? Do you have the SSDTs from a MacBookPro4,1.



Cheers,



AB



Dammit, must have put the wrong one inline for the second.



Try #2.



MB4,1

MB41_SSDT.zip



MBP4,1

MBP4_1.zip



Cheers,



Brett

[ab___73]

Dammit, must have put the wrong one inline for the second.



Try #2.



MB4,1

MB41_SSDT.zip



MBP4,1

MBP4_1.zip



Cheers,



Brett



Came across this in ProjectX forums...



It's an ioreg file of a newer MacPro4,1.. Maybe this will help us?



Cheers,

AB



MacPro4_1.zip



Sorry this is not a MacBookPro, I keep getting these two mixed up!!!

[dlach]

I have a sneaking suspicion that the shutdown fix is not (a) fully operational (deathstar).



I haven't tested this empirically but on two occasions I shutdown my m1530 and left it unplugged and was later surprised at how drained the battery was when I turned it back on.



Trouble is, I'm not sure how much the battery was charged before shutdown on each of the occasions. I normally leave it plugged in but I know that the connector is so loose that sometimes it appears to be physically plugged in but isn't actually charging.



Anyone else have any observations? Obviously this is easy enough to test so I'm sure I'll get around to it.

[MorLipf]

I always shut off my power strip which powers my computers over night. When I start my notebook the next day the battery is fully loaded. So I think it really shuts down with that hack. Maybe some cells of your battery are defect.

[Wanna Hack]

@ immo and everyone,



been reading this thread and trying to edit my dsdt to get sleep to work on my m1530 (T5250) with 8600GT, but get errors and system won't boot. Bret's latest dsdt with shutdown works, except for sleep.



kexts used in extra/extensions are minimal as suggested. removed applehda in s/l/e and have voodoohda installed for sound.



would love it if someone could help me edit the attached dsdt.dsl file properly to get sleep working. the file was generated with dsdtse.



thanks in advance.

dsdt.dsl.zip

[ab___73]

@ immo and everyone,



been reading this thread and trying to edit my dsdt to get sleep to work on my m1530 (T5250) with 8600GT, but get errors and system won't boot. Bret's latest dsdt with shutdown works, except for sleep.



kexts used in extra/extensions are minimal as suggested. removed applehda in s/l/e and have voodoohda installed for sound.



would love it if someone could help me edit the attached dsdt.dsl file properly to get sleep working. the file was generated with dsdtse.



thanks in advance.



Bretts DSDT.aml does allow sleep, i would guess you're problem is associated with a kext. Do you have any NullCPUPowermanagement kexts or the like loaded in your system?



--

AB

[Klaas1979]

Has anybody issue with the M1330 Sleep when closing the Lid? The Laptop goes to sleep and wakes up after sleep, but I cannot start any programs, shutdown or do anything else. When I am shuting it down holding the power button. The SL does not start up. I can fix it by using SuperHAIs boot CD and doing an fsck_hfs on the EFI partition, then I can boot normally.



Sleep is working perfectly well, when I have the Lid open and use the option from the Apple Menu. Are this different sleep states or why could I have this problem?



Additionally I got a kernel panic trying to sleep with the Apple USB to Ethernet Adapter connected, is this normal?



I am using SL with all current updates installed (10.6.3) the latest DSDT.aml posted by Immo and the Kexts from the first post (I am using the Voodoo stuff).

[Wanna Hack]

Bretts DSDT.aml does allow sleep, i would guess you're problem is associated with a kext. Do you have any NullCPUPowermanagement kexts or the like loaded in your system?



--

AB



@ab



I removed the NullCPUPowerManagement kext (it was installed) from E/E and rebuilt my mkext. Now when I select sleep from Apple menu, rather than going to sleep the system shuts down.

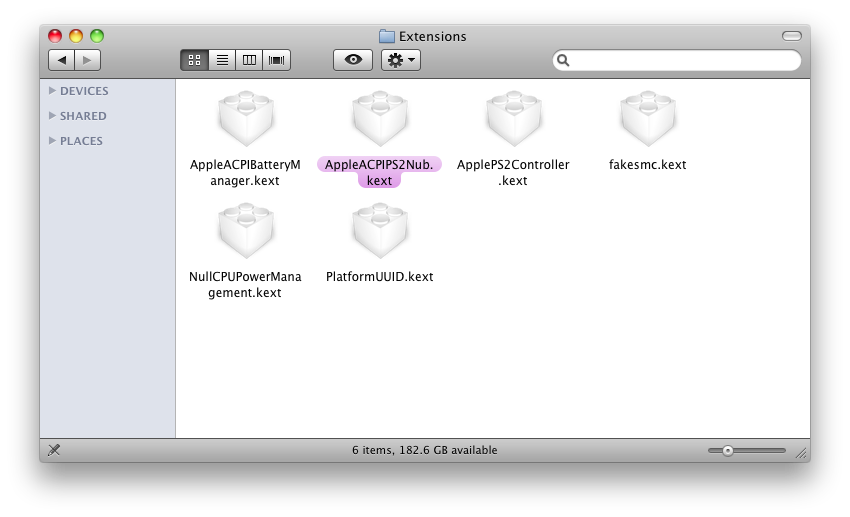

The only kexts in E/E now are:

fakesmc

applePS2Controller

AppleACPIPS2Nub

AppleACPIBatteryManager

PlatformUUID



In S/L/E I removed AppleHDA and have VoodooHDA for sound.



Any ideas on how to get sleep to work? Could someone help me with dsdt.dsl with appropriate fixes?



Thanks.

[donkey]

@ab



I removed the NullCPUPowerManagement kext (it was installed) from E/E and rebuilt my mkext. Now when I select sleep from Apple menu, rather than going to sleep the system shuts down.



The only kexts in E/E now are:

fakesmc

applePS2Controller

AppleACPIPS2Nub

AppleACPIBatteryManager

PlatformUUID



In S/L/E I removed AppleHDA and have VoodooHDA for sound.



Any ideas on how to get sleep to work? Could someone help me with dsdt.dsl with appropriate fixes?



Thanks.



Are you using Brett's DSDT or did you make your own? What are you computer specs? Perhaps you can add them to your sig so its easy to view.

[Wanna Hack]

Are you using Brett's DSDT or did you make your own? What are you computer specs? Perhaps you can add them to your sig so its easy to view.



I am using Brett's latest any CPU DSDT, the one with shutdown fix.



My specs for the m1530:

Dual Core 1.5GHz (T5250)

nVidia 8600GT

4GB RAM

300GB HDD

10.6.3 (used combo update from 10.6)

Chameleon 2 RC3



What I attached a couple posts above is a DSDT.dsl file that I created using DSDTSE. This file, of course, does not include any of the fixes immo provided in the first post of this thread. When I try to add any of these fixes and build a DSDT.aml file and use it to start the system, I get a KP.



Brett's latest DSDT.aml boots and the system runs great. However, I'm unable to put my laptop to sleep either via Apple menu or the lid. Using Brett's latest generic DSDT for m1530 and putting my system to sleep turns off the system.



Any help would be appreciated as getting sleep would be fabulous.



Thanks again.

[MorLipf]

I think Brett put the shutdown commands into the sleep-section of the DSDT. This may be the reason why your notebook shuts down even when you try to enter sleep mode.

[Brett Whinnen]

I think Brett put the shutdown commands into the sleep-section of the DSDT. This may be the reason why your notebook shuts down even when you try to enter sleep mode.



My laptop is running the generic DSDT and it sleeps when I close the lid. I don't try to sleep it any other way.



Edit: It also sleeps from the  menu too

[xudaiqing]

My laptop is running the generic DSDT and it sleeps when I close the lid. I don't try to sleep it any other way.



Edit: It also sleeps from the  menu too

Hi Brett,whats your bios version? That maybe the problem

[MorLipf]

I tried it a few seconds ago. Hibernating works fine when I close the lid or choose the option from the menu. But after wake up the notebook lost the ethernet connection. I have to restart to reenable it. What is the reason for that bug?

[Brett Whinnen]

A12.



And what ethernet controller are you talking about? I use a broadcomm (Dell 1505) for wireless and the inbuilt Yukon for wired. Have no troubles with either. The intel wireless is long gone.



Cheers

[MorLipf]

I am currently using the internal Marvell-Controller. When I wake up the M1530 the connection seems to be still up, but when I try to open an URL the browser reports that the computer is offline.

[Wanna Hack]

First off, thanks Brett for the DSDT.aml.



My BIOS is also A12. I'm running default settings. Should there be a change in this?



Also, what are your settings in the Energy Saver preference pane? Which ones are check?



I forgot to mention that I'm also using OSXRestart kext and I'm wondering if that's the culprit.





A12.



And what ethernet controller are you talking about? I use a broadcomm (Dell 1505) for wireless and the inbuilt Yukon for wired. Have no troubles with either. The intel wireless is long gone.



Cheers

[untrueparadox]

First off, thanks Brett for the DSDT.aml.



My BIOS is also A12. I'm running default settings. Should there be a change in this?



Also, what are your settings in the Energy Saver preference pane? Which ones are check?



I forgot to mention that I'm also using OSXRestart kext and I'm wondering if that's the culprit.

why not update to A15? it works perfectly for me. the latest bios is on dell's website.

[MorLipf]

Because A12 is the latest version for the M1530.

[Brett Whinnen]

First off, thanks Brett for the DSDT.aml.



My BIOS is also A12. I'm running default settings. Should there be a change in this?



Also, what are your settings in the Energy Saver preference pane? Which ones are check?



I forgot to mention that I'm also using OSXRestart kext and I'm wondering if that's the culprit.



I used to run OSXRestart.kext and had no troubles with that in there as well. Am running RC5 of Chameleon now so don't run it anymore as it does restart about 80 - 90% of the time.

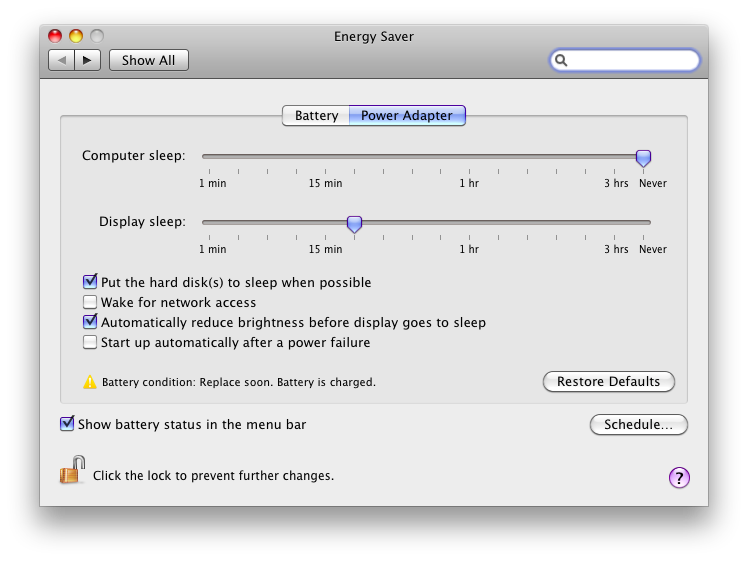

Here is a screenshot of my Energy Saver Preferences.





Thanks,



Brett

[MorLipf]

There is a new mod of Chameleon 2.0 RC5: Click here. It supports full access to the ACPI-Table. Maybe it can help us getting the C-States to work.

[Wanna Hack]

I used to run OSXRestart.kext and had no troubles with that in there as well. Am running RC5 of Chameleon now so don't run it anymore as it does restart about 80 - 90% of the time.



Here is a screenshot of my Energy Saver Preferences.





Thanks,



Brett





Thank you all for your help. After two weeks, several installation of snowy, different kexts, dsdt and smbios files, and a million restarts, I'm considering throwing in the towel for now as I haven't slept much (and my m1530 can't sleep at all).



I've learned a lot from all of you.



Thanks again.



Again, thank you all for your help.

[overshoot]

Hi All,



Thanks to Brett, Imo, and many others... we have an almost perfect hackintosh.



For me, the last point is C-States because i really think the power consumption is by far bigger without this function.

I'm sure we will shortly have it with the work of u all.



Anyway, my post is about sleep and waking my hack from sleep.



I'm not sure i'm the only to have this problem that's why i'm asking it here first.



Sometimes, the third or fourth time my hack wake up from sleep, my screen stays black. I can feel it waking up but not the screen.

I then, need to restart it with the power button. Not cool as now we have shutdown working... i guess it wouldn't be necessary to halt my hack with the power button again... ;-)



Am i the only one?

Is there a trick to do for this?



Thanks in advance.



PS : No news from dvi support?



Regards,

Julien.

[ardeus]

Hello



I am trying to implement my wireless Dell 1395 (Ven:14e4, Dev:4315, CC:0280, SS:000B1028)as native AirPort via DSDT but have no success (info taken from here)



Device (ARPT)
{
Name (_ADR, Zero)
Name (_SUN, One) // this is for PCI card information in System Profiler
Name (_PRW, Package (0x02)
{
0x09,
0x03
})
Method (_DSM, 4, NotSerialized)
{
Store (Package ()
{
"device-id",Buffer ()
{
0x12, 0x43, 0x00, 0x00
},
"subsystem-id",
Buffer (0x04)
{
0x86, 0x00, 0x00, 0x00 // for a/b/g/n
}
"name",
Buffer ()
{
"pci14e4,4312"
},

"model",
Buffer ()
{
"Dell Wireless 1395"
},

"device_type",
Buffer ()
{
"Airport"
},

"built-in",
Buffer (One)
{
0x00
}
}, Local0)
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
Return (Local0)
}
