Dell XPS 1340 under OSX 10.6, including boot-132 install cd

[xCYBERKIDx]

So I installed 10.6

installed all needed kexts, all worked besides WiFi.

Updated to 10.6.3 and started getting kernel panic errors on boot

rebooted using an older version of Chameleon and updated the appleHDA.kext

for 10.6.3 that bcc9 provided, now I can't seem to get audio to work again....

anyone else having troubles with this or am I alone on this one?





I'm having the same problem as you, i just updated and my audio won't work! i tried installing the kext again but that did nothing. can someone explain what's going on with this?



EDIT: Nevermind, got it to work thanks!

[bcc9]

I'm having the same problem as you, i just updated and my audio won't work! i tried installing the kext again but that did nothing. can someone explain what's going on with this?



EDIT: Nevermind, got it to work thanks!

You guys should start a newbie thread to help each other.

Thanks everyone for the kudos; it'd be good to see some users giving back with help for others.

[brockraum]

Well I got it working,

Just reverted back to 10.6 which had working audio and

swapped out my 1515 card for a 1510. Thanks bcc9 for

all the work on this.

cyberkid it's be nice to know what you did to get things working again

[0446]

Am using the same .. i have booted with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] from tonymacx86 and installed MAC SL in my dell XPS. But my keyborad and touchpad is not working. As i have only single usb port am unable to do anything in my lap. tried lots fo times with various boot discs. It worked when I first installed MAC in my system. But once i restart, it was gone for all!!! after that i erased my hard disk completely and tried lots of times installing a fresh copy. I am able to install. My audio is working. Broadcom wireless is working. Camera isn't detected.



Bios A14. and normal XPS 13 config!!



Anybody can help me!!!



thank you guys..

[bcc9]

Well I got it working,

Just reverted back to 10.6 which had working audio and

swapped out my 1515 card for a 1510. Thanks bcc9 for

all the work on this.

cyberkid it's be nice to know what you did to get things working again

Well the 1515 wireless card works with this laptop, and audio works with 10.6.3 with my applehda patch.

[brockraum]

Well the 1515 wireless card works with this laptop, and audio works with 10.6.3 with my applehda patch.

Yes, I am aware that it does work with 10.6.3, but my audio did not

work with the applehda patch, not sure what the problem was, but

it's working now under 10.6, which is good enough for me to run

what I need to run, thanks again.

[olegpronin]

del

[lennyG]

You didn't say what cpu you have, but 6x to 10x is probably correct.

No, the vid voltage values in the p-state table are wrong with voodoomonitor, and it mis-reports states with multipliers less than 6x.

Maybe something like http://codykrieger.com/gfxCardStatus/ would turn off the 9500m.



Maybe this is helpful...? I don't understand the details, though. I believe you are familiar with this.

PLEASE check this out. (post #10)

http://www.projectosx.com/forum/index.php?showtopic=4



BTW, codykrieger updated gfxCardStatus with 9400m/9600m GT support!

But.. console message shows no matching drivers found.. though it says NVIDIA GEForce 9600M GT in use.

[kelobb]

bcc9 - Thanks for this howto!



I've just tried my version of 1340 and here are my results:

- graphics - nv 9400M (native support from sl)

- ethernet, webcam, firewire also without problems

- bluetooth works with your kext



What works, but with mu customizations:

- wireless card is broadcom card (dell, id 0x4315, but after added pcimatch works ok but only b/g, maybe changing second airport kext will do the job) - any help ?



- sound card works well with latest voodoohda (ver.2.6.2b2 - more i/o, hdmi (not yet tested)) from project osx, old voodoohda generate bad quality, but the newest build is ok



- sometimes sleep don't work - any ideas (dsdt??)

- also eject key do not work - small problem...



- sdhc card reader with latest vooodoosdhc not working



Any new ideas?



New dsdt version?



Regards,

[NoorW]

Hi, I'd like to try the MAC OS before I buy a macbook. I have a Dell 1340, but I do not know how to begin. I have downloaded OSX 10.6.3 retail DMG. and boot132.iso. I am a big beginner. He would not want someone to make a video tutorial. . My English is terrible, I apologize for it.

[bcc9]

Maybe this is helpful...? I don't understand the details, though. I believe you are familiar with this.

PLEASE check this out. (post #10)

http://www.projectosx.com/forum/index.php?showtopic=4

Yes, the solution I came up with for this hardware is based upon such information. I see nothing new there. I think the dsdt solution I've made is superior to an injector-based solution.

BTW, codykrieger updated gfxCardStatus with 9400m/9600m GT support!

But.. console message shows no matching drivers found.. though it says NVIDIA GEForce 9600M GT in use.

That would seem to be because the AppleGraphicsControl kext is not running. You could try loading it manually. I don't have a 9500m so somebody else needs to own this and/or ask codykrieger for help.

[0mie]

I bet I am missing something SIMPLE...I just can't get 10.6.3 to load =/



I made a partition to load 10.6.3, then I used disk utility to restore it.



Used the boot132 cd to boot, it won't detect the 10.6.3 to install it. I can't get past that =/



I am trying 10.6 retail, I am thinking that's my issue. I hope it's something simple, because 10.5 took me zero time to get it up and running, I've been trying 10.6 for a few days with 0 success



Here is what I am doing...what am I missing or what am I doing wrong? =/



http://www.youtube.com/watch?v=WT3SC2tdbs8

[bcc9]

I bet I am missing something SIMPLE...I just can't get 10.6.3 to load =/



I made a partition to load 10.6.3, then I used disk utility to restore it.



Used the boot132 cd to boot, it won't detect the 10.6.3 to install it. I can't get past that =/



I am trying 10.6 retail, I am thinking that's my issue. I hope it's something simple, because 10.5 took me zero time to get it up and running, I've been trying 10.6 for a few days with 0 success



Here is what I am doing...what am I missing or what am I doing wrong? =/



http://www.youtube.com/watch?v=WT3SC2tdbs8

It doesn't look like you restored a valid retail OSX distribution .dmg to that partition.

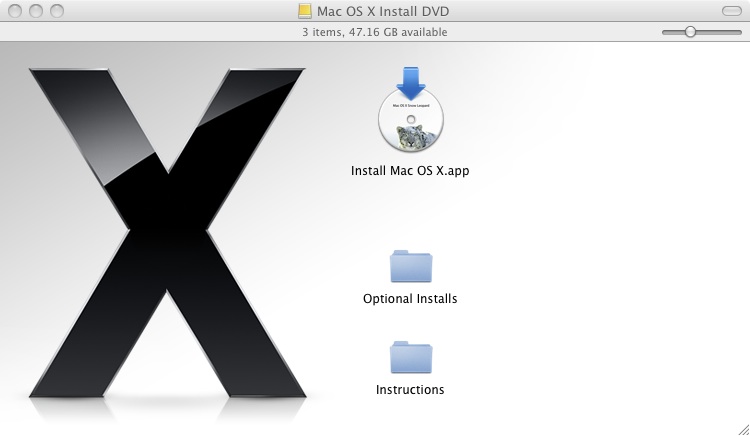

If you had, it would auto-mount under 10.5.8, as if you'd inserted a retail DVD, and you'd see the standard installer window popup:

Speaking of which, since you have 10.5.x running, you could also run the installer and install 10.6.x fresh to a new partition, without using a boot132 cd. I reference an example of the procedure I initially used for that in post #1. On the other hand the boot-cd procedure is supposed to be easy and is well ironed out at this point.

[0mie]

It doesn't look like you restored a valid retail OSX distribution .dmg to that partition.

If you had, it would auto-mount under 10.5.8, as if you'd inserted a retail DVD, and you'd see the standard installer window popup:

Speaking of which, since you have 10.5.x running, you could also run the installer and install 10.6.x fresh to a new partition, without using a boot132 cd. I reference an example of the procedure I initially used for that in post #1. On the other hand the boot-cd procedure is supposed to be easy and is well ironed out at this point.

I'm advancing, I figured it all out...well I thought, I am missing a few files to do the OSInstall.mpkg thing.



This is what I see...do I make the folder or how do I get the whole /Volumes/Mac OS X Install DVD/System/Library/PrivateFrameworks/Install.framework/Frameworks/OSInstall.framework/Versions/A/OSInstall



[olegpronin]

I haven't 9500m GS videocard, but I found nvcap in asus laptop m51sn, you can find review in internet, there also 9500m GS.



Please try it, may be it'll be useful



NvCap

0400000000000300f80000000000000700000000

0400000000000500020000000000000700000000

[0mie]

I just need audio and I'll be set, I can't for the LIFE of me get it to work



I think I've exhausted all my options, step by step anyone? Maybe stupid proof =/ lol



My DVD drives works one boot and not another, what might be the issue there? Also I've noticed if a DVD is left inside and I eject it works every time, but if there is nothing there the DVD won't even load inside 0_o seems odd to me.

[kelobb]

Hello,

get latest build of voodohda from http://www.projectosx.com/forum/index.php?...=483&st=600



and install kext, remove applehda.kext, update cache, reboot and enjoy sound!



regards

[bcc9]

- sound card works well with latest voodoohda (ver.2.6.2b2 - more i/o, hdmi (not yet tested)) from project osx, old voodoohda generate bad quality, but the newest build is ok

Nice find, I had nearly given up on voodoohda after the audio distortion bugs had gone on so long. Amazing that the fix was in linux&freebsd all along and the bug fix for voodoohda:

http://code.google.com/p/voodoohda/issues/detail?id=52



had been collecting dust since last fall too.



So *both* the built-in and mic jack are working with voodoohda 2.6.2.

Some problems:

The right headphone jack doesn't work (neither mutes the speakers nor passes audio)

The max volume is not 100% (I think this might be fixable with the prefpanel additions)

[0mie]

I FINALLY have audio with the posted kext. I had a modified 10.6.2 AppleHDA.kext that worked 1 day and after reboot stopped working. I have rebooted with new kext and audio still works. But HDMI source says there is no output controls. We are a step closer, still no working SD card reader though

[kelobb]

I FINALLY have audio with the posted kext. I had a modified 10.6.2 AppleHDA.kext that worked 1 day and after reboot stopped working. I have rebooted with new kext and audio still works. But HDMI source says there is no output controls. We are a step closer, still no working SD card reader though



but I have problems with wake up after sleep, voodoohda (or 64 bit kernel incompability) generates KP...but sleep is not so important for me



Anyway -SD reader is almost last thing to be fixed with this macbook clone ;-)

I got triple boot with w7 and ubuntu lucid (64b) - everything works nicely

Regards

[0mie]

My battery died and now audio won't work =/ wtf?



If voodoohda.kext is in /E/E it won't work, I had it in /S/L/E and it worked...what do I need to do to make settings stick past 1 reboot?

[RanoVA1916]

My battery died and now audio won't work =/ wtf?



If voodoohda.kext is in /E/E it won't work, I had it in /S/L/E and it worked...what do I need to do to make settings stick past 1 reboot?

I use /E/E exclusively. But you have to make sure permissions are ok and rebuild your Extensions cache. This can all be accomplished by using a tool called "pfix". More info after the jump http://osx86.sojugarden.com/2010/03/pfix-v3-0-released

[RanoVA1916]

but I have problems with wake up after sleep, voodoohda (or 64 bit kernel incompability) generates KP...but sleep is not so important for me



Anyway -SD reader is almost last thing to be fixed with this macbook clone ;-)

I got triple boot with w7 and ubuntu lucid (64b) - everything works nicely

Regards

I have no issue with sound on a 10.6.3 SL retail install using myhack1.0.1 as the bool loader on a MBR. Partitions are WIN7/OSX/UBUNTU10



These are the Kexts that are in my /E/E folder using pfix at any change I make;

AppleACPIPS2Nub.kext

fakesmc.kext

HDAIDT.kext

OpenHaltRestart.kext

VoodooBattery.kext

VoodooPowerAcpi.kext

VoodooPS2Controller.kext



Closing and opening the lid work great. Halts and restarts with lid impressively much better than any windows install I have ever seen. CPU-X worked in 10.5 to tell me speedstep. In 10.6.3 the multiplier no longer moves and stays locked in CPU-X. But it feels like there is less heat generated when not on wall power. The only thing I modified in the s/l/e folder was the HDaudio kext to use HDAIDT.kext with instructions I found in this thread.



UPDATE



Voodomonitor works great for monitoring you systems speedstep. I checked and speedstep is working.

[0mie]

I use /E/E exclusively. But you have to make sure permissions are ok and rebuild your Extensions cache. This can all be accomplished by using a tool called "pfix". More info after the jump http://osx86.sojugarden.com/2010/03/pfix-v3-0-released

That doesn't work for me =/ when I pfix -s and ask for my password I can't type anything =/



Any other way to get this to work? I am sooooo close, yet sooooo far.



When OSX is loading I hear sound and can adjust volume and as soon as everything is done booting, the volume is greyed out and doesn't work anymore

[bcc9]

That doesn't work for me =/ when I pfix -s and ask for my password I can't type anything =/



Any other way to get this to work? I am sooooo close, yet sooooo far.



When OSX is loading I hear sound and can adjust volume and as soon as everything is done booting, the volume is greyed out and doesn't work anymore

Start troubleshooting. Check your logs, check whether one of the kexts unloaded.

BTW, you can use AppleHDA on this laptop with any version of 10.6: 10.6, 10.6.1 thru 10.6.3. Provided that you just follow the instructions in post #1.

I recommend this over voodoohda as the voodoo code isn't setting the max gain appropriately. And obviously that beta version of voodoohda is way less tested than the official driver from apple.
