Realtek ALC1200 ICH10 working kext on Yosemite 10.10 from 10.6+

marionez

By marionez,
in AppleHDA

 Share
579 posts in this topic

Recommended Posts

ergohack
ergohack
Posted
Posted

hey marionez, you can add the m3n78-em to your list as - tested OK!



i'm running 10.6.2



installed your kext to s/l/e and removed any hdaenablers of any sort



i've tested digital out, analog out, and line input



all work fine.



thank you

Link to comment
Share on other sites
tadpole
tadpole
Posted
Posted

Big thank you to Marionez and others. This was the final piece in my SL install puzzle. It also enabled my webcam to be recognized, so very pleased. It would be nice if you could install the kext in to /E/E. Then upgrades would be a little easier, but good enough!!



Congrats on the awesome piece of work.



Running 10.6.2 on a P5Q, Chameleon v2 rc3.

Link to comment
Share on other sites
acehigh
acehigh
Posted
Posted
Big thank you to Marionez and others. This was the final piece in my SL install puzzle. It also enabled my webcam to be recognized, so very pleased. It would be nice if you could install the kext in to /E/E. Then upgrades would be a little easier, but good enough!!



Congrats on the awesome piece of work.



Running 10.6.2 on a P5Q, Chameleon v2 rc3.

The extension you're looking is the one with autosensing that leaves the original in its place, but digital out and mic autosensing don't work yet. They are working on it... stay tuned.

A question to you: it's a little bit OT, but how di u solved the usb ehci/uhci sleep problem? can you point me to the correct topic? tnx

Link to comment
Share on other sites
stefano.85
stefano.85
Posted
Posted
What was the error? I'm relatively new with the verbs, so I'm not surprised I made some mistakes :)



I'll load it up and give it a whirl. I can't actually test the digital stuff since I don't have anything with SPDIF, but I can look for any sound assertions that might crop up.



I've tested your alc1200kext with hdaenabler and vanilla applehda. The autosensing work perfectly from analog out to phones. sorry but i haven't got any digital stuff to try the other ports.

Do you have edited dsdt for the alc1200?? so that i can remove hdaenabler :)



sorry for english. bye

Link to comment
Share on other sites
caxio
caxio
Posted
Posted

Legacy kext, you must install this on a clean vanilla applehda, if you've not, you should got one clean applehda back. ATM those with 10.6.2 hacked acl1200 should continue using that, when 10.6.3 will be out, you will have a clean applehda and you should install this legacy.



- *remove* /S/L/E/applehda hacked kext

- check you don't have HDAenabler in /S/L/E

- download a clean applehda 10.6.2 (here: http://www.insanelymac.com/forum/index.php...t&p=1389581 )

- install in /S/L/E

- download LEGACY applehda, and install it in /Extra/ for example

- run Kext Utility to update kextcache





after Mac Pro Audio Update 1.0 offer in snow update dont works more ,i need delete applehda

and reinstall a clean 10.6.2 applehda and audio reworks, but in snow update re offer Mac Pro Audio Update 1.0

Link to comment
Share on other sites
altieri
altieri
Posted
Posted

I have to tell i have tryed everything that i found here still nothing works. This is what I get no matter what i do:



Audio (Built In):

Intel High Definition Audio:

Device ID: 0x174BAA18

Audio ID: 12

Available Devices:

Intel High Definition Audio:

Device ID: 0x104382FE

Audio ID: 12

Available Devices:

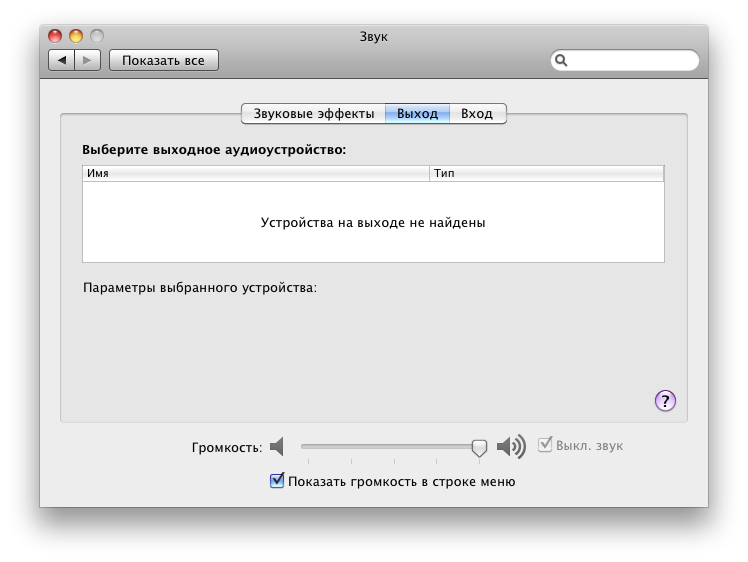

Available devices none is my Big Problem, any help/ideeas will do. My config is MOBO P5QL-pro, Proc E7400, Vid HD3870, 4Gb DDR2 @ 1066 Mhz on iDeneb 1.3 (10.5.5).. Every other devices worked perfect but sound... Thankes a lot in advance for your help!

Link to comment
Share on other sites
  • 3 weeks later...
outlaw69uk
outlaw69uk
Posted
Posted
did anyone try to install on /Extra/Extensions?







weird...



i got errors about HDAEnabler not loading/duplicate, never had sleep issues tho



P5Q-EM

Core2Quad Q6600

4GB RAM

NVIDIA GeForce 8800GT 512MB



Mustang Sally, (since we have the same mobo), how do you install the custom kexts?



/Extra/Extensions to keep your system vanilla?

or in /System/Library/Extension?



I have almost exactly the same setup as this, except my card is a GTS and, I am getting nothing. Have tried to install, at some point, almost every version on here and elsewhere. The voodoo one gives me 'sound' but, not the inputs and options. Th ALC1200 one here gives me this



Intel High Definition Audio:



Device ID: 0x104382FE

Audio ID: 12

Available Devices:



Which is a different Device ID than I see here, but, my board says its a 1200?



Running 10.6. at the moment (because when I update to 10.6.2 it kernel panics on DSMOS?



Am still fairly new to this, but, I see lots of people with almost the same gear as me running fine, so, confused :)



Any help would be great.

Link to comment
Share on other sites
xumix
xumix
Posted
Posted

just installed 10.6.3, used your legacy kexts in /Extra, and now i have:



29.03.10 21:57:45	kernel	HDAEnabler: Copyright (c) 2008 by Kabyl
29.03.10 21:57:45	kernel	HDAEnabler: 05/05/2008 Added SP-Audio support by Taruga
29.03.10 21:57:45	kernel	HDAEnabler: 03/07/2009 Compiled for 32/64-bit by Taruga
29.03.10 21:57:45	kernel	Sound assertion "0 == pciVendorProductID" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDAController/AppleHDAController.cpp" at line 3226 goto Exit
29.03.10 21:57:53	kernel	Sound assertion "0 != result" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDAWidget.cpp" at line 3794 goto handler
29.03.10 21:57:53	kernel	Sound assertion "0 != widget->setUnsolicited ( true )" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDACodecGeneric.cpp" at line 1099 goto handler
29.03.10 21:57:53	kernel	Sound assertion "!hasInitialSettings" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDAEngine.cpp" at line 7356 goto Exit
29.03.10 21:57:53	kernel	Sound assertion "0 != activateAudioEngine ( engine )" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDADriver.cpp" at line 1955 goto Exit
29.03.10 21:57:53	kernel	Sound assertion "!activateAudioEngines ()" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDADriver.cpp" at line 205 goto Exit
29.03.10 21:57:55	kernel	Sound assertion "0 != result" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDAWidget.cpp" at line 3794 goto handler
29.03.10 21:57:55	kernel	Sound assertion "0 != widget->setUnsolicited ( true )" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDACodecGeneric.cpp" at line 1099 goto handler
29.03.10 21:57:55	kernel	Sound assertion "!hasInitialSettings" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDAEngine.cpp" at line 7356 goto Exit
29.03.10 21:57:56	kernel	Sound assertion "0 != activateAudioEngine ( engine )" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDADriver.cpp" at line 1955 goto Exit
29.03.10 21:57:56	kernel	Sound assertion "!activateAudioEngines ()" failed in "/SourceCache/AppleHDA/AppleHDA-184.4.3/AppleHDA/AppleHDADriver.cpp" at line 205 goto Exit



Link to comment
Share on other sites
acehigh
acehigh
Posted
Posted

Hi all,



with upgrade to 10.6.3 I got the same mistake than xumix and audio has stopped working.

But I think that solution proposed by fleebailey is not so good because (if I understand well) it is a patched applehda with version number greater than ever.

We should prefer a proper enabler, like the one made by c.craigen for 10.6.2 to be put in /Extra, isn't it?



Still waiting without sound... ;)

Link to comment
Share on other sites
gatsu_1981
gatsu_1981
Posted
Posted

This is my HDEF on a P5Q with ALC1200. It shows my integrated device on System Profiler, but obviously it just isnt' enough.

It should be only a sostitute of HDAEnabler.



Device (HDEF)
		{
			Name (_ADR, 0x001B0000)
			Name (_PRW, Package (0x02)
			{
				0x0D,
				0x04
			})
			Method (_DSM, 4, NotSerialized)
			{
				Store (Package (0x08)
					{
						"codec-id",
						Buffer (0x04)
						{
							0x88, 0x08, 0xEC, 0x10
						},

						"layout-id",
						Buffer (0x04)
						{
							0x0C, 0x00, 0x00, 0x00
						},

						"device-type",
						Buffer (0x11)
						{
							"ALC1200"
						},

						"PinConfigurations",
						Buffer (0x34)
						{
							/* 0000 */	0x40, 0x01, 0x43, 0x99, 0x10, 0x40, 0x01, 0x01,
							/* 0008 */	0x12, 0x10, 0x01, 0x01, 0x11, 0x60, 0x01, 0x01,
							/* 0010 */	0x14, 0x20, 0x01, 0x01, 0x50, 0x98, 0xA1, 0x01,
							/* 0018 */	0x60, 0x9C, 0xA1, 0x02, 0x5F, 0x30, 0x81, 0x01,
							/* 0020 */	0x20, 0x4C, 0x21, 0x02, 0xF0, 0x01, 0x33, 0x59,
							/* 0028 */	0x01, 0xE6, 0x15, 0x40, 0x30, 0x71, 0x44, 0x01,
							/* 0030 */	0xF0, 0x11, 0x11, 0x41
						}
					}, Local0)
				DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
				Return (Local0)
			}
		}

Link to comment
Share on other sites
Anilo
Anilo
Posted
Posted

Asus P5Q SE fully working



Realtek® ALC 1200 8-channel Heigh-Definition Audio

ALC1200_1063.zip ( 1.67MB )



Tested under: OSX 10.6.3

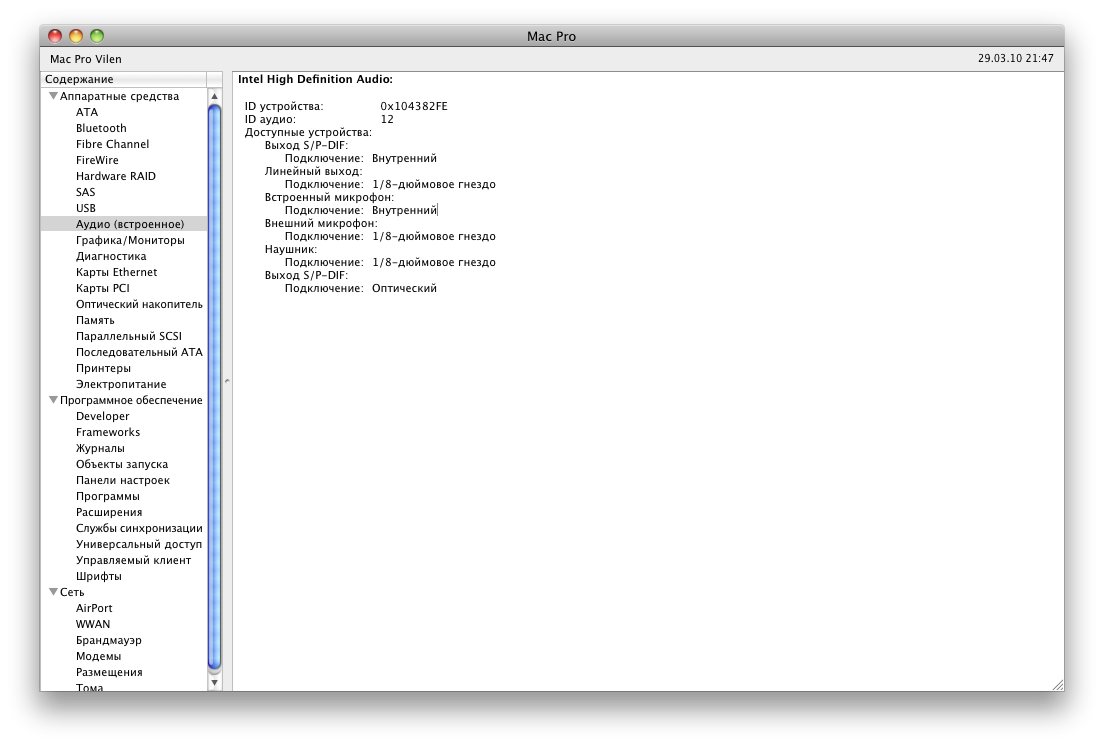

Profiler:



Intel High Definition Audio:

 Device ID:	0x104382FE
 Audio ID:	12
 Available Devices:
 S/P-DIF Out:
 Connection:	Internal
 Line Out:
 Connection:	1/8-Inch Jack
 Internal Microphone:
 Connection:	Internal
 External Microphone:
 Connection:	1/8-Inch Jack
 Headphone:
 Connection:	1/8-Inch Jack
 S/P-DIF Out:
 Connection:	Optical



Without codec, sound work with original appleHDA.kext, but is named in profiler as: (no Audio) - mic not working

legacy kext: Device ID:0x104382FE Audio ID: 885 - sound sometimes work (depend on version of kext),no mic

some other wrong driver: Device ID:0x104382FE Audio ID: 888 - no sound,no mic


Link to comment
Share on other sites
mrbailey
mrbailey
Posted
Posted
Asus P5Q SE fully working



Realtek® ALC 1200 8-channel Heigh-Definition Audio

ALC1200_1063.zip ( 1.67MB )



Tested under: OSX 10.6.3



Profiler:



Intel High Definition Audio:

 Device ID:	0x104382FE
 Audio ID:	12
 Available Devices:
 S/P-DIF Out:
 Connection:	Internal
 Line Out:
 Connection:	1/8-Inch Jack
 Internal Microphone:
 Connection:	Internal
 External Microphone:
 Connection:	1/8-Inch Jack
 Headphone:
 Connection:	1/8-Inch Jack
 S/P-DIF Out:
 Connection:	Optical



Without codec, sound work with original appleHDA.kext, but is named in profiler as: (no Audio) - mic not working

legacy kext: Device ID:0x104382FE Audio ID: 885 - sound sometimes work (depend on version of kext),no mic

some other wrong driver: Device ID:0x104382FE Audio ID: 888 - no sound,no mic






I have the exact same as above on a P5Q-EM.



I can get sound working, but only with the attached file.



I'd really love to get the headphone jack working!



I still get a crackle when my sound starts working for the first time each boot.

AppleHDA.kext.zip

  • Like 2
Link to comment
Share on other sites
mirten
mirten
Posted
Posted
I have the exact same as above on a P5Q-EM.



I can get sound working, but only with the attached file.



I'd really love to get the headphone jack working!



I still get a crackle when my sound starts working for the first time each boot.



My best respects to You, mrbailey!

Yes, sound working.

Link to comment
Share on other sites
