collit99 Posted October 22, 2008 Share Posted October 22, 2008 Upon checking your info.plist, I did the same approach way back but still no luck on having mute on alc268. Instead I got the external mic working. Sorry, was tired yesterday!I just use the try that i used for sigmatel, in hope that mute have same behaviour. This one is clean. Link to comment Share on other sites More sharing options...
macita Posted October 22, 2008 Share Posted October 22, 2008 Yes it can be fixed with VREF verb data in Controller, or thru signal processing in Platform plist, I will look, and post a test kext. But not today... Cool! Taka all your time what u need, is not urgent eheheh i still use USB CMI cheap headphone audio solution for my toshiba thnx Link to comment Share on other sites More sharing options...
xghost Posted October 22, 2008 Share Posted October 22, 2008 @sonotone: Same here as collit99 no working mute... external mic has been working as well with the "old" kext provided by collit99 and madtux! Link to comment Share on other sites More sharing options...
ѕӎѳѳ₮ңӌ Posted October 22, 2008 Share Posted October 22, 2008 hmmm i cannot get this to work no matter what. i manually added the kext that had autosensing fixed, but that gave me a lot of noise so i uninstalled it, afterwhich i got advised to turn down the second mic volume, but i could never reinstall it. so i reinstalled leopard, and now cannot get anything to work, that includes manual with kexthelper and osx86tools and the installer packages by eddie. argh..... i will let you know where it fails after work so i dont get into to much {censored} for not doing what im supposed to be doing :s . this is what i managed to pull out of the console... Oct 22 16:49:24 localhost kextd[18]: loaded version 2.4.1 of module com.apple.iokit.IOPCIFamily differs from requested version 2.4 Oct 22 16:49:24 localhost kextd[18]: a link/load error occured for kernel extension /System/Library/Extensions/AppleHDA.kext/Contents/PlugIns/AppleHDAController.kext Oct 22 16:49:24 localhost kernel[0]: HDAEnabler: Copyright © 2008 by Kabyl Oct 22 16:49:24 localhost kextd[19]: loaded version 2.4.1 of module com.apple.iokit.IOPCIFamily differs from requested version 2.4 Oct 22 16:49:24 localhost kernel[0]: HDAEnabler: 05/05/2008 Added SPAudio support:Taruga Oct 22 16:49:24 localhost kextd[19]: a link/load error occured for kernel extension /System/Library/Extensions/AppleLPC.kext Oct 22 16:49:25 localhost bootlog[43]: BOOT_TIME: 1224690560 0 hope its of use.... Link to comment Share on other sites More sharing options...
Eddie94 Posted October 22, 2008 Share Posted October 22, 2008 I remake packages, there is a BIG ERROR !i try to fix it! Link to comment Share on other sites More sharing options...
braveskunk Posted October 22, 2008 Share Posted October 22, 2008 ok, thanks! will be happy to test it:) Link to comment Share on other sites More sharing options...
ѕӎѳѳ₮ңӌ Posted October 22, 2008 Share Posted October 22, 2008 I remake packages, there is a BIG ERROR !i try to fix it! is this what is causing my issues? i hope for my sanities sake it is, and that your updates will fix it. Link to comment Share on other sites More sharing options...
Monkey_@@ Posted October 22, 2008 Share Posted October 22, 2008 Sorry, was tired yesterday!I just use the try that i used for sigmatel, in hope that mute have same behaviour. This one is clean. Nope... mute still not working... Did anyone get the internal and external mic working WITHOUT the background noise? Link to comment Share on other sites More sharing options...
Eddie94 Posted October 22, 2008 Share Posted October 22, 2008 For me all work!I've tried all installers and it starts script!Not sure for you! Try! this should backup the old AppleHDA.kext into /HDABackup and deleta Azalia, and kextcache! try if it work! ALC660_660VD.mpkg.zip ALC861VD.mpkg.zip ALC268.mpkg.zip Link to comment Share on other sites More sharing options...
braveskunk Posted October 22, 2008 Share Posted October 22, 2008 still the same error after restart: can't add kernel extension /System/Library/Extensions/AppleHDA.kext (not a bundle) any ideas? before restart i got internal in/out working but not headphones strange thing: after typing kextunload- just to be sure i can load it again(before restarting). i got kinda logout and then logged in automatically( kind of shell restart or something) Link to comment Share on other sites More sharing options...
braveskunk Posted October 22, 2008 Share Posted October 22, 2008 after installing the second driver from alc268 i got kernel panic:( dump from KP attached. kextd_2008_10_22_210206_ania_makowskas_mac_pro.crash.zip Link to comment Share on other sites More sharing options...
bongo Posted October 22, 2008 Share Posted October 22, 2008 Hello again MadTux, I just tried your new driver - getting better, but still no internal mic. I don't have an external one to try it. Output is definitely better - has volume control working. Here, I'm attaching to you again the newest codec dump from Ubuntu 8.04 with latest updates. Lenovo 3000 C200 originally with Windows XP, without updating BIOS. codec0.txt Link to comment Share on other sites More sharing options...
collit99 Posted October 22, 2008 Share Posted October 22, 2008 For now the fix is to lower down the volume of the 2nd "Internal Mic" under sound preferences. Nope... mute still not working... Did anyone get the internal and external mic working WITHOUT the background noise? Link to comment Share on other sites More sharing options...
ѕӎѳѳ₮ңӌ Posted October 22, 2008 Share Posted October 22, 2008 hmm when trying to force the kext to load, kextload gives me this error: udo kextload -t /System/Library/Extensions/AppleHDA.kext/Contents/PlugIns/AppleHDAController.kext kextload: extension /System/Library/Extensions/AppleHDA.kext/Contents/PlugIns/AppleHDAController.kext appears to be loadable kextload: loaded version 2.4.1 of module com.apple.iokit.IOPCIFamily differs from requested version 2.4 kextload: a link/load error occured for kernel extension /System/Library/Extensions/AppleHDA.kext/Contents/PlugIns/AppleHDAController.kext link/load failed for extension /System/Library/Extensions/AppleHDA.kext/Contents/PlugIns/AppleHDAController.kext any ideas how i can sort this? i looked through a couple of plists but could not find this entry? im on vanilla 10.5 by the way..... do i need to be on a higher version? Link to comment Share on other sites More sharing options...
braveskunk Posted October 22, 2008 Share Posted October 22, 2008 i'm on vanilla 10.5.5 and had the same error 2 builds ago. now i have not a bundle error... Link to comment Share on other sites More sharing options...
Trainedwreck Posted October 23, 2008 Share Posted October 23, 2008 Pardon my newbieness on the subject but I have everything working except headphone output and the switching which is untestable until headphones work, but input does indeed show up. What do I dump, and how do I do it? Extreme thanks, this is the last bug to shake in my whole Toshiba Satellite P200-Rt2 Mac hipster killing machine. The listing on the Codec is Alc861 but the one included with Ideneb v1.4 does nothing. Had to return to Azalia which only does speaker output and nothing so far has changed anything until I tried the alc861VD toshiba here. I am in your debt if you can iron out this last kink. Cheers Link to comment Share on other sites More sharing options...
bob2600 Posted October 23, 2008 Share Posted October 23, 2008 Here's how you prepare a codec dump... Hope this helps :censored2: --------------------------------------------------------------------------------------------------------------------------------------------------------------- How do I make a linux codec dump ? - By Metajames OK, this is for everyone who is confused about how to get the linux codec dump. This is how I did it, you can do it other ways but basiclly you need to boot linux, cat /proc/asound/card0/codec#1 and save the output so you can feed it to the patcher on OSX. I saved mine directly to a USB stick, make sure to make it writable by right clicking on it and selecting the option if you do that. I will describe a email method below since I think it is a bit more straightforward. If anyone has problems with these steps let me know and I can revise this post. 1) Download Knoppix Live CD Linux Distro http://www.kernel.org/pub/dist/knoppix/KNO...07-01-04-EN.iso 2) Burn the Knoppix iso to a CD-R 3) Boot your Hackintosh from the Knoppix CD you just burned (press enter at the prompt to fully boot into gui) 4) Open a terminal session from the dock, the icon looks really similar to the OSX one, black screen with a ">" 5) Type in the following command CODE cat /proc/asound/card0/codec#1 > ~/Desktop/codec_dump.txt 6) Now you have a file on your desktop called "codec_dump.txt" 7) Launch the web browser (Konqueror) and use web based email to email the file to yourself. 8) Reboot the computer and remove the Knoppix CD Link to comment Share on other sites More sharing options...
ѕӎѳѳ₮ңӌ Posted October 23, 2008 Share Posted October 23, 2008 i'm on vanilla 10.5.5 and had the same error 2 builds ago. now i have not a bundle error... sorry im not quite sure i understand.... are you saying on 10.5.5 you have this problem cured, or on 10.5.5 you now have another problem? Link to comment Share on other sites More sharing options...
braveskunk Posted October 23, 2008 Share Posted October 23, 2008 sorry im not quite sure i understand.... are you saying on 10.5.5 you have this problem cured, or on 10.5.5 you now have another problem? hey i have: not a bundle error when trying to load the applehda.kext manually by typing kextload. i'm using leopard version 10.5.5 with vanilla kernel. that's one the second thing is when i reboot after installing the driver (alc268 version A- without headphone patch), leo can boot but no devices found. i can see the sound card in system profiler, however. and then, if i try to load manually the kext i got the "not a bundle" error. the third case is when i try to install the second version of the driver (one with headphones patch). i'm getting any sound device after installation. and upon reboot i got kernel panic like the one attached above. basicly everything works till reboot. must say that it worked very good on 10.5.4:( Link to comment Share on other sites More sharing options...
ѕӎѳѳ₮ңӌ Posted October 23, 2008 Share Posted October 23, 2008 hey i have: not a bundle error when trying to load the applehda.kext manually by typing kextload. i'm using leopard version 10.5.5 with vanilla kernel. that's onethe second thing is when i reboot after installing the driver (alc268 version A- without headphone patch), leo can boot but no devices found. i can see the sound card in system profiler, however. and then, if i try to load manually the kext i got the "not a bundle" error. the third case is when i try to install the second version of the driver (one with headphones patch). i'm getting any sound device after installation. and upon reboot i got kernel panic like the one attached above. basicly everything works till reboot. must say that it worked very good on 10.5.4:( and all these scenarios are when you use the installer? have you tried manually placing the kexts using kexthelper or something similar? Link to comment Share on other sites More sharing options...
braveskunk Posted October 23, 2008 Share Posted October 23, 2008 good idea:) will give it a try later. should i extract them from the pkg or download from somewhere? Link to comment Share on other sites More sharing options...
ѕӎѳѳ₮ңӌ Posted October 23, 2008 Share Posted October 23, 2008 the kexts can be downloaded from the first post. Link to comment Share on other sites More sharing options...
Monkey_@@ Posted October 23, 2008 Share Posted October 23, 2008 Great MadTux, this is working great with my ALC268!!! The Headphones/Internal Speakers toggle is very nice! Now, about the mic: 1. There is a very nice option available: "Use ambient noise reduction"! This allowed me to use RosettaStone for the first time!!! Thanks! 2. There is no input control option for the mic, is it always at the maximum? It seems that the mic volume when using Skype is a little low... 3. Still no toggling from Internal/External (jack) mic as in the collit99 kext, but there is no noise as that kext still does... So, congratulations and thanks! Link to comment Share on other sites More sharing options...

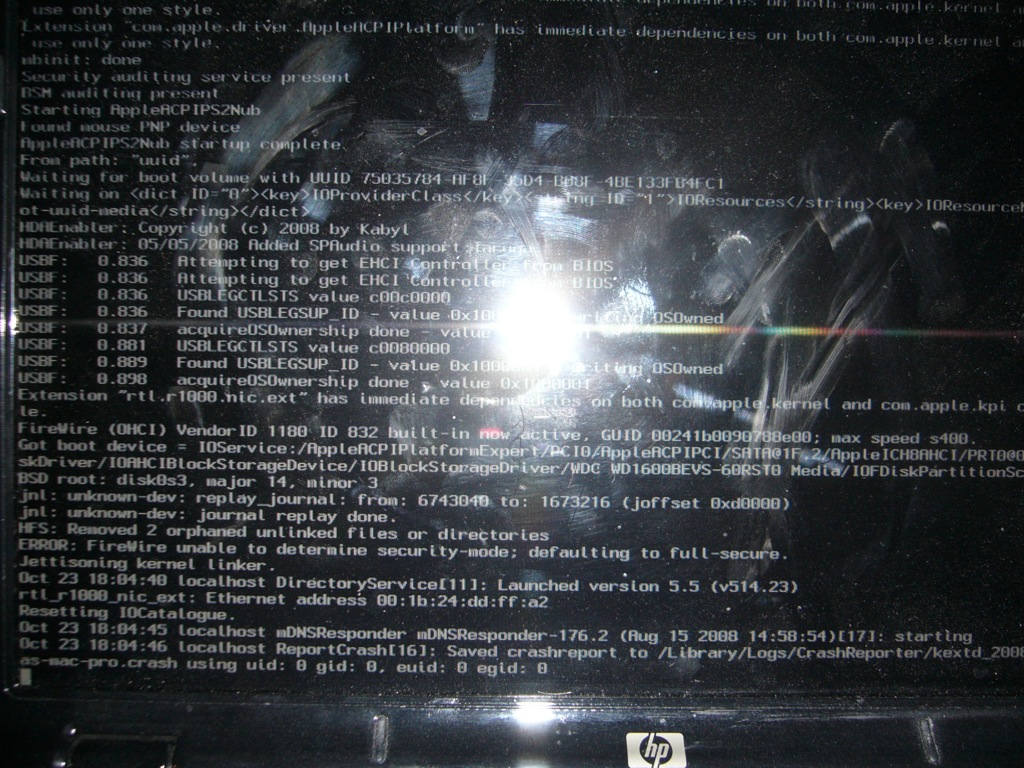

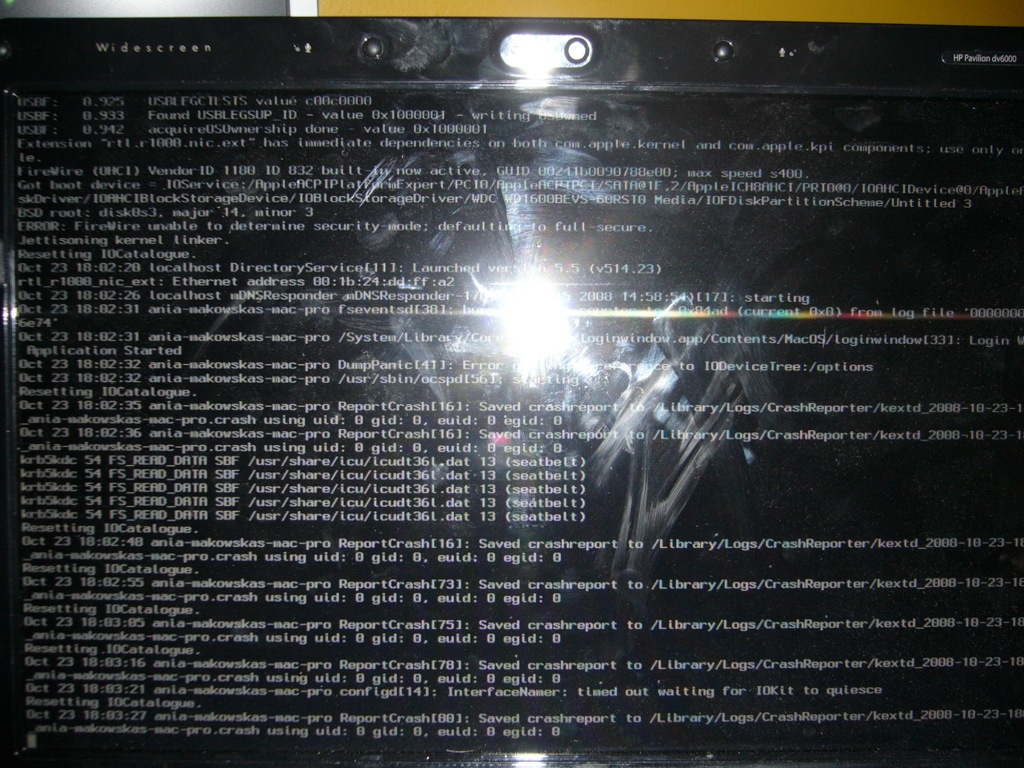

braveskunk Posted October 23, 2008 Share Posted October 23, 2008 yup, nice to hear it worked for you, but in my case theres still kernel panics on boot in both cases(A and the pictures show whats happening when booting and the kernel panic dump shows... the kernel panic:) as you can see on the first photo, theres many iokit errors made by applehda on the second u can see that hdaenabler is loaded succesfully. as always, kernel dump attached. mudtux, any ideas? maybe i'll give you my codec dump? will it help? kextd_2008_10_23_180533_ania_makowskas_mac_pro.crash.zip Link to comment Share on other sites More sharing options...
Leo Kitay Posted October 23, 2008 Share Posted October 23, 2008 Can u describe exactli the steps and code u aplly. I can't get my Dell vostro 1710 ALC268 aurio run. I use Itakos, and everithing is ok but audio Thanks in advance Leo Link to comment Share on other sites More sharing options...
